SERVICE MANUAL
VIDEO CASSETTE RECORDER
No. 82849
March 2001
This service manual is printed on 100% recycled paper.
COPYRIGHT © 2001 VICTOR COMPANY OF JAPAN, LTD.
HR-J580EK/EU,J581EU,J587EU,
J588EU,J589EU
Regarding service information other than these sections, refer to the HR-J680EU/EK service manual (No. 82847).
Also, be sure to note important safety precautions provided in the service manual.
SPECIFICATIONS (The specifications shown pertain specifically to the model HR-J587EU/588EU/589EU,J680EU/681EU/682EU)
VCR
SAT
REVIEW
SAT
PR
GENERAL
Power requirement : AC 220 V – 240 V `, 50 Hz/60 Hz
Power consumption
Power on : 16 W
Power off : 4.0 W
Temperature
Operating : 5°C to 40°C
Storage : –20°C to 60°C
Operating position : Horizontal only
Dimensions (WxHxD)
[HR-J680/681/682EU] : 400 mm x 94 mm x 278 mm
[HR-J587/588/589EU] : 360 mm x 94 mm x 278 mm
Weight
[HR-J680/681/682EU] : 3.3 kg
[HR-J587/588/589EU] : 3.2 kg
Format : VHS PAL standard
Maximum recording time
(SP) : 240 min. with E-240 video cassette
(LP) : 480 min. with E-240 video cassette
VIDEO/AUDIO
Signal system : PAL-type colour signal and CCIR
monochrome signal, 625 lines 50 fields
Recording system : DA4 (Double Azimuth) head helical scan system
Signal-to-noise ratio : 45 dB
Horizontal resolution : 250 lines
Frequency range : 70 Hz to 10,000 Hz (Normal audio)
20 Hz to 20,000 Hz (Hi-Fi audio)
Input/Output : 21-pin SCART connectors :
IN/OUT x 1, IN/DECODER x 1
RCA connectors: AUDIO OUT x 1
TUNER/TIMER
TV channel storage capacity : 99 positions (+AUX position)
Tuning system : Frequency synthesized tuner
Channel coverage : VHF 47MHz – 89MHz/
104MHz – 300MHz/
302MHz – 470MHz
UHF 470MHz – 862MHz
Aerial output : UHF channels 22 – 69 (Adjustable)
Memory backup time : Approx. 10 min.
ACCESSORIES
Provided accessories : RF cable,
Infrared remote control unit,
“R6” battery x 2
Optional accessories : Satellite Controller RM-SD1
Specifications shown are for SP mode unless otherwise specified.
E.& O.E. Design and specifications subject to change without notice.

MODEL HR-J680EK HR-J580EK
ITEM
TABLE OF CONTENTS
DIFFERENT TABLE .................................................................................................................................................................................... 1 to 2
4. CHARTS AND DIAGRAMS (4-1 to 4-3)
4.1 ON SCREEN SCHEMATIC DIAGRAM [HR-J580EK/EU, J581EU] ........................................................................................................ 4-2
5. PARTS LIST (5-1 to 5-10)
5.1 FINAL ASSEMBLY <M2> ........................................................................................................................................................................ 5-1
5.2 ELECTRICAL PART LIST ....................................................................................................................................................................... 5-3
MAIN BOARD ASSEMBLY <03> ............................................................................................................................................................... 5-3
MINI FRONT BOARD ASSEMBLY <28> ................................................................................................................................................. 5-10
[HR-J580EK]
The following tables indicate main different points between models HR-J680EK and HR-J580EK.
The following tables indicate different parts number between models HR-J680EK and HR-J580EK.
PACKING AND ACCESSORY ASSEMBLY <M1>
Notes : Mark — is not used.
1
!REF. MODEL HR-J680EK HR-J580EK
NO. ITEM
SAT_CTL USED NOT USED
PLUG &PLAY AUTO SET.AUTO CLOK AUTO TUNE
VCR PLUS+ VIDEO PLUS+ DELUXE VIDEO PLUS
REC LINK USED NOT USED
DISPLAY WINDOW color LIGHT GRAY SMOKE GRAY
301 PACKING CASE LP30855-001A LP30897-001A
302 CUSHION ASSY LP30909-001B LP30898-001A
!310 INST BOOK(EN) LPT0474-001A LPT0473-001A
313 LED CABLE ASSY QAL0095-005 —
!REF. MODEL HR-J680EK HR-J580EK
NO. ITEM
!501 FRONT PANEL ASSY LP10333-012B LP10293-028B
501A CASSETTE DOOR LP20961-001A LP20868-031A
501C BUTTON(OPE) LP30798-001A —
501D DISPLAY WINDOW — LP20869-084B
501E ORNAMENT — LP30649-005A
!502 TOP COVER LP10013-051A PQ11898-52-23
!511 BOTTOM CHASSIS LP10108-001E LP21026-001B
!512 BOTTOM COVER LP10014-002B PQ11899-3-7
534 PC SUPPORT,MINI FRONT — LP40628-001B
535 BRACKET — LP40854-001A
536 SCREW — QYTDSF3010Z
WR3 FF WIRE,MINI FRONT — QUQ112-0914CG
FINAL ASSEMBLY <M2>
MAIN BOARD ASSEMBLY <03>
!REF. MODEL HR-J680EK HR-J580EK
NO. ITEM
PW1 MAIN BOARD ASSY LPA10131-05C1 LPA10131-08E1
MINI FRONT BOARD ASSEMBLY <28>
!REF. MODEL HR-J680EK HR-J580EK
NO. ITEM
PW1 MINI FRONT BOARD ASSY — LPA20005-01A
SAT_CTL BOARD ASSEMBLY <92>
!REF. MODEL HR-J680EK HR-J580EK
NO. ITEM
PW4 SAT_CTL BOARD ASSY LPA10131-01A4 —

2
PACKING AND ACCESSORY ASSEMBLY <M1>
!REF. MODEL HR-J680EU HR-J580EU HR-J581EU HR-J587EU HR-J588EU HR-J589EU
NO. ITEM
Notes : Mark —is not used.
Mark is same as left.
301 PACKING CASE LP30855-001A LP30897-001A
302 CUSHION ASSY LP30909-001B LP30898-001A
306 REMOTECONTROLLER LP20878-002A LP20878-003A
306A COVER(BATTERY) LP40610-002A LP40610-001A
!310 INST BOOK(EN) LPT0482-001A LPT0481-001A LPT0482-001A
!INST BOOK(GE) LPT0482-002A LPT0481-002A LPT0482-002A
!INST BOOK(FR) LPT0482-003A LPT0481-003A LPT0482-003A
!INST BOOK(DU) LPT0482-004A LPT0481-004A LPT0482-004A
!INST BOOK(SP) LPT0482-005A LPT0481-005A LPT0482-005A
!INST BOOK(IT) LPT0482-006A LPT0481-006A LPT0482-006A
!INST BOOK(DA) LPT0482-007A LPT0481-007A LPT0482-007A
!INST BOOK(FI) LPT0482-008A LPT0481-008A LPT0482-008A
!INST BOOK(SW) LPT0482-009A LPT0481-009A LPT0482-009A
!INST BOOK(NO) LPT0482-010A LPT0481-010A LPT0482-010A
!INST BOOK(PT) LPT0482-011A LPT0481-011A LPT0482-011A
!INST BOOK(GR) LPT0482-012A LPT0481-012A LPT0482-012A
!INST BOOK(CZ) LPT0482-013A LPT0481-013A LPT0482-013A
!INST BOOK(PO) LPT0482-014A LPT0481-014A LPT0482-014A
!INST BOOK(HU) LPT0482-015A LPT0481-015A LPT0482-015A
[HR-J580EU/J581EU/J587EU/J588EU/J589EU]
The following tables indicate main different points between models HR-J680EU and HR-J580EU,HR-J581EU,HR-587EU,HR-J588EU,HR-J589EU.
MODEL HR-J680EU HR-J580EU HR-J581EU HR-J587EU HR-J588EU HR-J589EU
ITEM
SAT_CTL USED NOT USED NOT USED USED
PLUG &PLAY AUTO SET.AUTO CLOK AUTO TUNE AUTO TUNE AUTO SET.AUTO CLOK
VCR PLUS+ VIDEO PLUS+ DELUXE VIDEO PLUS VIDEO PLUS VIDEO PLUS+ DELUXE
AUTO CLOCK/JUST CLOCK USED NOT USED NOT USED USED
REC LINK USED NOT USED NOT USED USED
FRONT PANEL color PURE SILVER BLACK&GRAY PURE SILVER BLACK BLACK&GOLD
DISPLAY WINDOW color LIGHT GRAY SMOKE GRAY
FRONT PANEL color SILVER BLACK SILVER BLACK
The following tables indicate different parts number between models HR-J680EU and HR-J580EU,HR-J581EU,HR-J587EU,HR-J588EU,HR-J589EU.
FINAL ASSEMBLY <M2>
!REF. MODEL HR-J680EU HR-J580EU HR-J581EU HR-J587EU HR-J588EU HR-J589EU
NO. ITEM
!501 FRONT PANEL ASSY LP10333-001B LP10293-025B LP10293-037A LP10293-036A LP10293-026B LP10293-027B
501A CASSETTE DOOR LP20961-001A LP20868-031A LP20868-032A LP20868-031A LP20868-032A LP20868-036A
501C BUTTON(OPE) LP30798-001A ——— — —
501D DISPLAY WINDOW —LP20869-081B LP20869-097A LP20869-096A LP20869-082B LP20869-083B
501E ORNAMENT —LP30649-005A LP30649-002A LP30649-005A LP30649-002A
!502 TOP COVER LP10013-051A PQ11898-52-23 PQ11898-50-23 PQ11898-52-23 PQ11898-50-23
503 SCREW,X4 TOP COVER(SIDE) QYTDSF3010R QYTDSF3010M QYTDSF3010R QYTDSF3010M
!511 BOTTOM CHASSIS LP10108-001E LP21026-001B
!512 BOTTOM COVER LP10014-002B PQ11899-3-7
534 PC SUPPORT,MINI FRONT —LP40628-001B
535 BRACKET —LP40854-001A
536 SCREW —QYTDSF3010Z
WR3 FF WIRE,MINI FRONT —QUQ112-0914CG
MAIN BOARD ASSEMBLY <03>
!REF. MODEL HR-J680EU HR-J580EU HR-J581EU HR-J587EU HR-J588EU HR-J589EU
NO. ITEM
PW1 MAIN BOARD ASSY LPA10131-01D1 LP10131-10F1 LP10131-06E1
MINI FRONT BOARD ASSEMBLY <28>
!REF. MODEL HR-J680EU HR-J580EU HR-J581EU HR-J587EU HR-J588EU HR-J589EU
NO. ITEM
PW1 MINI FRONT BOARD ASSY —LPA20005-01A
SAT_CTL BOARD ASSEMBLY <92>
!REF. MODEL HR-J680EU HR-J580EU HR-J581EU HR-J587EU HR-J588EU HR-J589EU
NO. ITEM
PW4 SAT_CTL BOARD ASSY LPA10131-01A4 ——LPA10131-01A4

Printed in Japan
VICTOR COMPANY OF JAPAN, LIMITED
VIDEO DIVISION S40894

SECTION 4
CHARTS AND DIAGRAM
4-1

MODEL IC201
SYMBOL
JVC
PHI
LC74788N-9751EK,EU,(W/O VPS)
/55
/75
EM
MS,EA,EE LC74789N-9770
LC74789N-9719
LC74789N-9824
LC74788N-9705
R202
R203
R204
X
X
GND
SW5V
D201
R225
C229
C230
L207
L201
D202
D203
C204L202
C201 C202
SYNC DET[H]
OSD CS
R204 R203 R202
0.01
10k 10k 10K
OPEN
OPEN
SHORT
SHORT
OPEN OPEN
DCBA
4
5
3
2
1
4.1
4-2
DIFFERENCE TABLE
V TO OSD
V FROM OSD
P.MUTE[L]
S.CLK
S.DATA FRSYS
2Fsc
TO SYSCON
TO TERMINAL
TO VIDEO/AUDIO
TO SW.REG
TO VIDEO/AUDIO
0
1

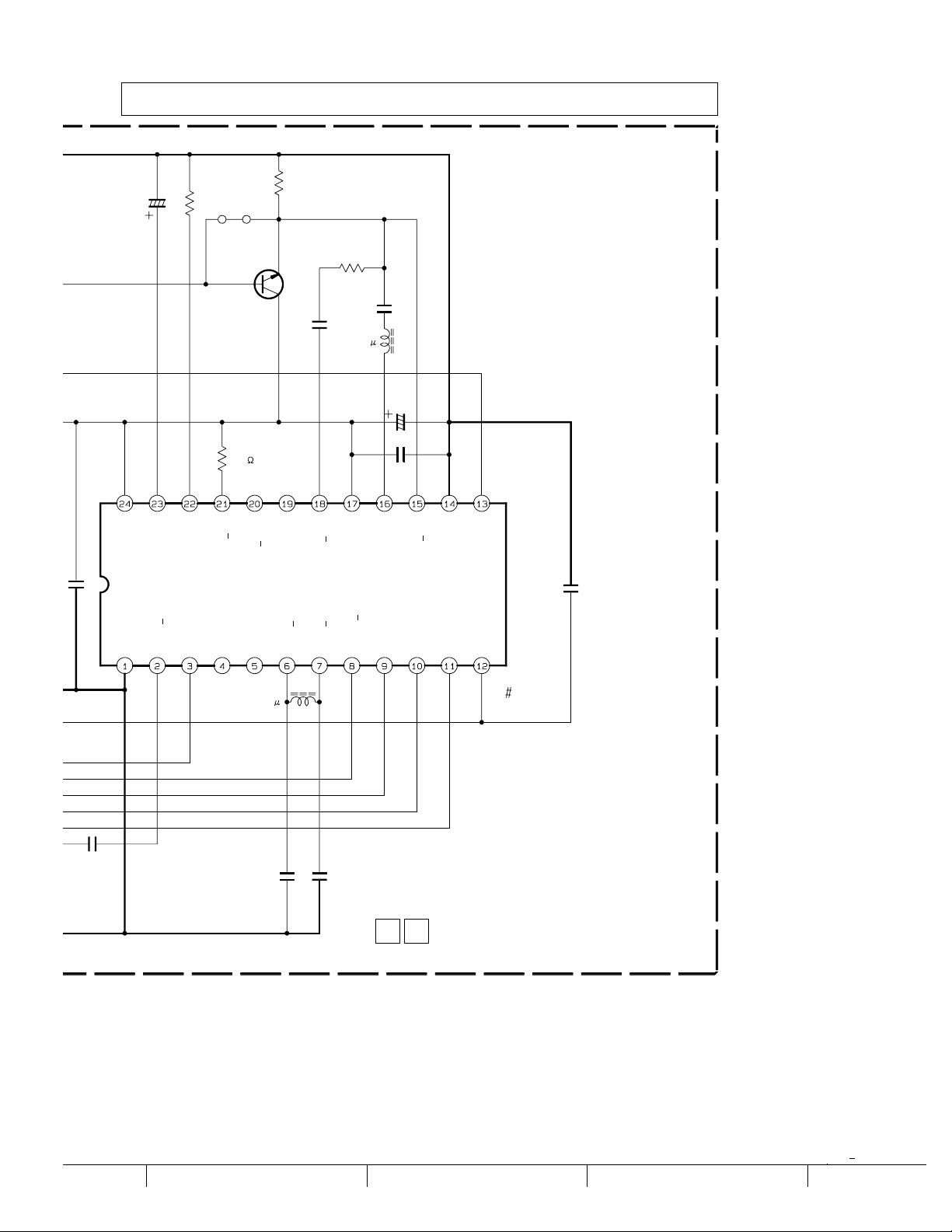

ON SCREEN SCHEMATIC DIAGRAM [HR-J580EK/EU,HR-J581EU]

R220
R224
B216
C218
C226
C209
IC201
C230
Q201
R213
L203
C204
C202
C222 R216
C217
L206
C214
C207C206
680
1
100
0.47
2.2k
0.01
1 10K
56p
0.22
33p33p
OPEN
/6.3
VSS1 XTAL IN MUTE CHABLK NC OSC IN OSC OUT SYNC DET CS SCLK SDATA VDD2 CVOUT
VSS2
CV IN
CVCR VDD1
SYN IN
NC
SEP OUT
SEP IN
CDLR
RST
VDD1
OPEN
2SC4081/QRS/-X
2PC4081/R/-X
OPEN
/50
0
HGFE
4-3
22
0
22
3 MAIN (ON SCREEN)
p30086002a rev0
The Parts Number,value and rated voltage etc. in the Schematic Diagram are for references only.
When replacing the parts,refer to the Parts List.
Note :
E. & O. E. No. 82849 (Sanwa)-V14D0+/D0/D01/D11/D1-/D11

5-1
SECTION 5
PARTS LIST
SAFETY PRECAUTION
Parts identified by the !symbol are critical for safety. Replace only with specified part numbers.

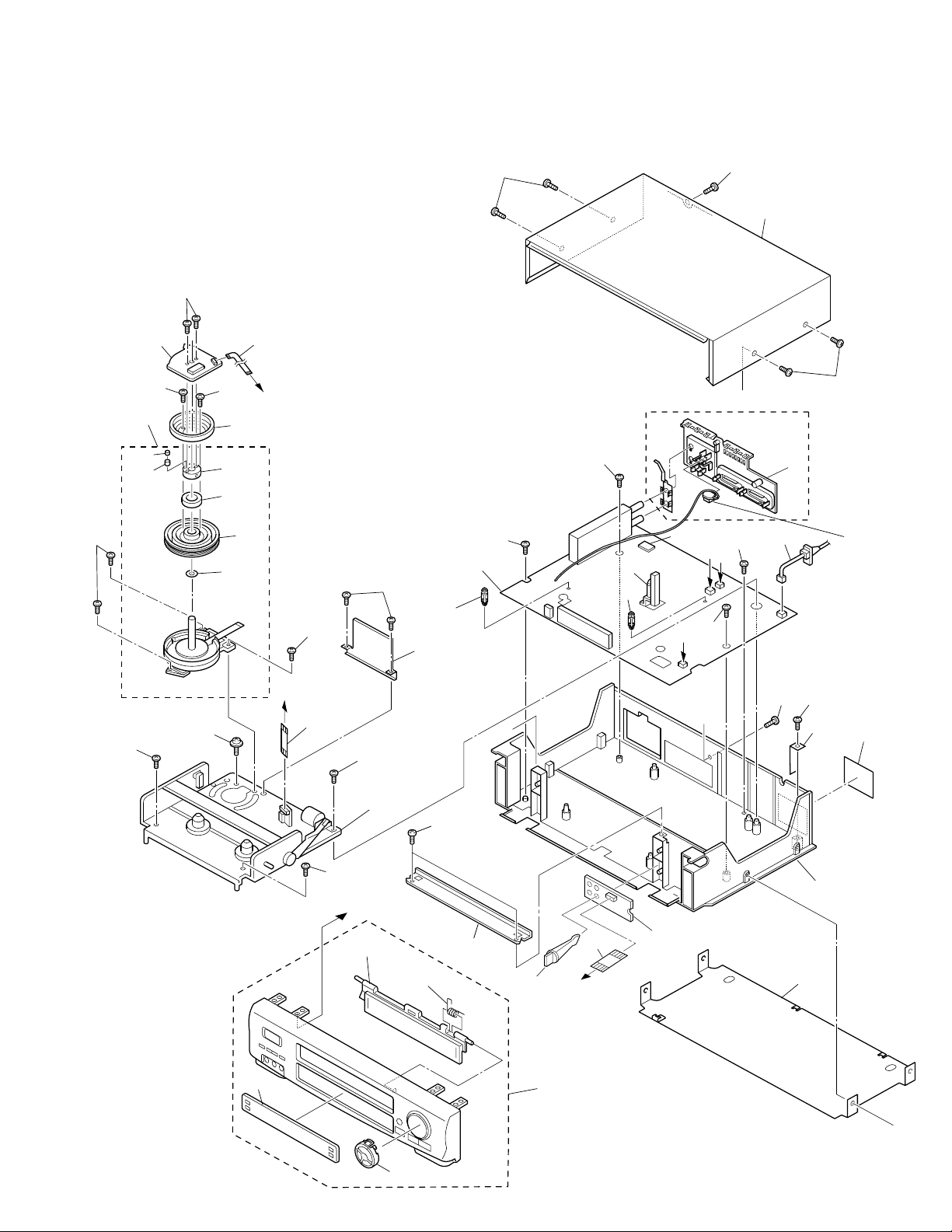

5.1 FINAL ASSEMBLY <M2>
BEWARE OF BOGUS PARTS
Parts that do not meet specifications may
cause trouble in regard to safety and per-
formance. We recommend that genuine JVC
parts be used.
509
508
507
507
505
505F
505E 505D
505B
505A
505C
510
506
WR1
510
527
525
516
515
516
511
SPEC OF
BARCODE
523
531
529 517
502
504
503
503
531
531
(Incl <03>)
530
528
512
B
A
WR2 D
MAIN BOARD
ASSY <03>
SAT-CTL
BOARD ASSY
<92>
(HR-J587EU
/J588EU
/J589EU)
A
H
H
C
B
J
J
MECHANISM
ASSY <M4>
522
522
524
514
513
501A
501B
501D 501
501E
D
MINI FRONT
BOARD ASSY <28>
534 C
WR3
536
535

--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
5-2
******************************
FINAL ASSEMBLY <M2>
! 501 LP10293-025B FRONT PANEL ASSY,J580EU
! LP10293-026C FRONT PANEL ASSY,J588EU
! LP10293-027B FRONT PANEL ASSY,J589EU
! LP10293-028B FRONT PANEL ASSY,J580EK
! LP10293-036A FRONT PANEL ASSY,J587EU
! LP10293-037A FRONT PANEL ASSY,J581EU
501A LP20868-031A CASSETTE DOOR,J580EK/EU,J587EU
LP20868-032A CASSETTE DOOR,J581EU/J588EU
LP20868-036A CASSETTE DOOR,J589EU
501B PQ46448 TORSION SPRING
501D LP20869-081B DISPLAY WINDOW,J580EU
LP20869-082B DISPLAY WINDOW,J588EU
LP20869-083B DISPLAY WINDOW,J589EU
LP20869-084B DISPLAY WINDOW,J580EK
LP20869-096A DISPLAY WINDOW,J587EU
LP20869-097A DISPLAY WINDOW,J581EU
501E LP30649-002A ORNAMENT,J581EU/J588EU/J589EU
LP30649-005A ORNAMENT,J580EK/EU,J587EU
! 502 PQ11898-50-23 TOP COVER,J581EU/J588EU/J589EU
! PQ11898-52-23 TOP COVER,J580EK/EU,J587EU
503 QYTDSF3010R SCREW,X4 TOP COVER(SIDE),J580EK/EU,J587EU
QYTDSF3010M SCREW,X4 TOP COVER(SIDE),J581EU/J588EU/J589EU
504 QYTDSF3010M SCREW,TOP COVER(REAR)
505 LP20981-002A DRUM SUB ASSY
505A LP20982-002A UPPER DRUM ASSY
505B PDM4439 CAP
505C PDM4444-19-2 WASHER
505D LP40572-001A COLLAR ASSY
505E LP40323-001A CONTACT
505F LP30004-014A COMPRESSION SPRING
506 PDZ0179-1-4 ROTOR ASSY
507 QYSPSP3006Z SCREW,X2
! 508 QAR0169-002 STATOR ASSY
509 QYSPSPH2606Z SCREW,X2
510 QYTDST2610Z SCREW,X3,DRUM
! 511 LP21026-001B BOTTOM CHASSIS
! 512 PQ11899-3-7 BOTTOM COVER
513 LP30312-001B BRACKET(CHASSIS)
514 QYTDSF3010Z SCREW,X2,BRACKET(CHASSIS)
515 QYTDSF4012Z SCREW,MECHA
516 QYTDSF3010Z SCREW,X2,MECHA
! 517 QMP4A10-170 POWER CORD,J580EU/J581EU/J587EU/J588EU/J589EU
! QMP51K0-170-K POWER CORD,J580EK
522 LP40226-001A PC SUPPORT,X2
523 QYTDSF3010M SCREW,TERMINAL BOARD
524 LP40253-001B STOPPER,MECHA
525 PQ40413 SPECIAL SCREW,MECHA
527 LP30356-002C DRUM SHIELD
528 QYTDST2606Z SCREW,X2,DRUM SHIELD
529 LP30002-042A SPACER
530 QYTDSF3010Z SCREW,MAIN
531 DPSF3010Z SCREW,X3,MAIN
534 LP40628-001B PC SUPPORT,MINI FRONT
535 LP40854-001A BRACKET
536 QYTDSF3010Z SCREW,BRACKET
WR1 QUQ212-0518CG FFC WIRE,DRUM CN3001
WR2 WJT0005-001A E-CARD WIRE,A/C HEAD CN2001
WR3 QUQ112-0914CG FFC WIRE,FRONT CN7001

5-3
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
5.2 ELECTRICAL PARTS LIST
******************************
MAIN BOARD ASSEMBLY <03>
PW1 LPA10131-06E1 MAIN BOARD ASSY,J587EU/J588EU/J589EU
LPA10131-08E1 MAIN BOARD ASSY,J580EK
LPA10131-10F1 MAIN BOARD ASSY,J580EU/J581EU
IC1 JCP8050-NVA IC
IC201 LC74775-9750 IC,J587EU/J588EU/J589EU
LC74788N-9751 IC (OSD),J580EK/EU,J581EU
IC3001 HD6432194SXD01F IC (MCU),J580EK
HD6432194SXD14F IC
(MCU),J580EU/J587EU/J588EU/J589EU
IC3002 IC-PST3427U-X IC
IC3003 AT24C08N-10SC-X IC,J580EU/J581EU
AT24C16N-10SC-X IC,J580EK/J587EU/J588EU/J589EU
or BR24C08F IC,J580EU/J581EU
or BR24C16F IC,J580EK/J587EU/J588EU/J589EU
or X24C08S IC,J580EU/J581EU
or X24C16S IC,J580EK/J587EU/J588EU/J589EU
or 24LC08B/SN-X IC,J580EU/J581EU
or 24LC16B/SN-X IC,J580EK/J587EU/J588EU/J589EU
IC3004 BA6956AN IC
IC5301 L5431 IC
or MM1431AT IC
IC6701 MSP3417D IC
or MSP3417DG3 IC
IC7001 PT6956 IC
IC7002 GP1U291Q IR DETECT UNIT
or PIC-28143LJ IR DETECT UNIT
or PIC-37143LJ IR DETECT UNIT
or PNA4652M00YC IR DETECT UNIT
IC7101 MM1443XJ IC,J587EU/J588EU/J589EU
Q1 2SC4081/S/-X TRANSISTOR
Q2 2SC4081/S/-X TRANSISTOR
Q3 2SC4081/S/-X TRANSISTOR
Q4 2SC4081/S/-X TRANSISTOR
Q23 2SA1576A/QR/-X TRANSISTOR
or 2PA1576/R/-X TRANSISTOR
Q38 2SC4081/QRS/-X TRANSISTOR
Q41 UN521E TRANSISTOR,J580EU/J581EU/J587EU/J588EU/J589EU
or RN1309 TRANSISTOR,J580EU/J581EU/J587EU/J588EU/J589EU
or DTC144WU TRANSISTOR,J580EU/J581EU/J587EU/J588EU/J589EU
Q201 2SC4081/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
Q2001 2SC4081/QRS/-X TRANSISTOR
or 2SD1819A/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
Q2002 2SC4081/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
or 2SD1819A/QRS/-X TRANSISTOR
Q2003 DTA144WU TRANSISTOR
or PDTA144WU TRANSISTOR
or RN2309 TRANSISTOR
or UN511E TRANSISTOR
Q2051 2SC4081/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
or 2SD1819A/QRS/-X TRANSISTOR
Q2052 2SA1576A/QR/-X TRANSISTOR
or 2SB1218A/QR/-X TRANSISTOR
or 2PA1576/R/-X TRANSISTOR
Q2053 DTC144WU TRANSISTOR
or PDTC144WU TRANSISTOR
or RN1309 TRANSISTOR
or UN521E TRANSISTOR
Q2054 2SA1576A/QR/-X TRANSISTOR
or 2PA1576/R/-X TRANSISTOR
or 2SB1218A/QR/-X TRANSISTOR
Q2055 DTC144WU TRANSISTOR
or PDTC144WU TRANSISTOR
or RN1309 TRANSISTOR
or UN521E TRANSISTOR
Q2251 DTA144WU TRANSISTOR
or PDTA144WU TRANSISTOR
or RN2309 TRANSISTOR
or UN511E TRANSISTOR
Q2252 DTC114EU TRANSISTOR
or PDTC114EU TRANSISTOR
or RN1302 TRANSISTOR
or UN5211 TRANSISTOR
Q3001 2SD1819A/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
or 2SC4081/QRS/-X TRANSISTOR
Q3003 PTZ-NV16 PHOTO TRANSISTOR
or PTZ-NV16A PHOTO TRANSISTOR
Q3004 2SD1819A/QRS/-X TRANSISTOR
or 2SC4081/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
Q3005 2SD1819A/QRS/-X TRANSISTOR
or 2SC4081/QRS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
Q3007 UN521E TRANSISTOR
or RN1309 TRANSISTOR
or DTC144WU TRANSISTOR
or PDTC144WU TRANSISTOR
Q4001 UN5211 TRANSISTOR
or DTC114EU TRANSISTOR
or PDTC114EU TRANSISTOR
or RN1302 TRANSISTOR
Q5101 2SK2632-CB14 POWER MOS FET
or 2SK2129 POWER MOS FET
or 2SK2129-LT POWER MOS FET
or 2SK2632 POWER MOS FET
Q5102 2SD2144S/UV/-T TRANSISTOR
Q5302 2SD2375/QP/ TRANSISTOR
Q5303 2SD1819A/RS/-X TRANSISTOR
or 2PC4081/R/-X TRANSISTOR
or 2SC4081/RS/-X TRANSISTOR
Q5304 2SC3616/ML/-T TRANSISTOR
Q5305 DTA114EU TRANSISTOR
or PDTA114EU TRANSISTOR
or RN2302 TRANSISTOR
or UN5111 TRANSISTOR
Q5306 DTC114EU TRANSISTOR
or PDTC114EU TRANSISTOR
or UN5211 TRANSISTOR
or RN1302 TRANSISTOR
Q5308 2SA1576A/RS/-X TRANSISTOR
Q6030 2SB1218A/RS/-X TRANSISTOR
Q6031 DTC114EU TRANSISTOR
or PDTC114EU TRANSISTOR
or UN5211 TRANSISTOR
or RN1302 TRANSISTOR

--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
5-4
Q6032 DTC114EU TRANSISTOR
or PDTC114EU TRANSISTOR
or RN1302 TRANSISTOR
or UN5211 TRANSISTOR
Q7001 DTA143TU TRANSISTOR
Q7002 DTA143TU TRANSISTOR
Q7003 DTA143TU TRANSISTOR
Q7004 DTA143TU TRANSISTOR
Q7005 DTA143TU TRANSISTOR
Q7101 2SB1218A/QRS/-X TRANSISTOR
or 2PA1576/R/-X TRANSISTOR
or 2SA1576A/QRS/-X TRANSISTOR
Q7102 DTC144WU TRANSISTOR
or PDTC144WU TRANSISTOR
or RN1309 TRANSISTOR
or UN521E TRANSISTOR
Q7105 2SA1576A/QRS/-X TRANSISTOR,J580EK/EU,J581EU
or 2PA1576/R/-X TRANSISTOR,J580EK/EU,J581EU
Q7106 2SA1576A/QRS/-X TRANSISTOR,J587EU/J588EU/J589EU
or 2PA1576/R/-X TRANSISTOR,J587EU/J588EU/J589EU
Q7107 DTA144WU TRANSISTOR,J587EU/J588EU/J589EU
or PDTA144WU TRANSISTOR,J587EU/J588EU/J589EU
or RN2309 TRANSISTOR,J587EU/J588EU/J589EU
or UN511E TRANSISTOR,J587EU/J588EU/J589EU
Q7108 DTC144WU TRANSISTOR,J587EU/J588EU/J589EU
or RN1309 TRANSISTOR,J587EU/J588EU/J589EU
or UN521E TRANSISTOR,J587EU/J588EU/J589EU
or PDTC144WU TRANSISTOR,J587EU/J588EU/J589EU
Q7109 2SC4081/QRS/-X TRANSISTOR,J587EU/J588EU/J589EU
or 2PC4081/R/-X TRANSISTOR,J587EU/J588EU/J589EU
or 2SD1819A/QRS/-X TRANSISTOR,J587EU/J588EU/J589EU
Q7110 2SC4081/QRS/-X TRANSISTOR,J587EU/J588EU/J589EU
or 2PC4081/R/-X TRANSISTOR,J587EU/J588EU/J589EU
or 2SD1819A/QRS/-X TRANSISTOR,J587EU/J588EU/J589EU
Q7201 2SC1317/RS/-T TRANSISTOR,J587EU/J588EU/J589EU
D6 MTZJ5.6C ZENER DIODE
or RD5.6ES/B3/-T2 ZENER DIODE
D201 QRE141J-101Y RESISTOR,J587EU/J588EU/J589EU 100Ø,1/4W
1SS133 DIODE,J580EK/EU,J581EU
or 1SS270A DIODE,J580EK/EU,J581EU
D202 QRE141J-101Y RESISTOR,J587EU/J588EU/J589EU100Ø,1/4W
1SS133 DIODE,J580EK/EU,J581EU
or 1SS270A DIODE,J580EK/EU,J581EU
D203 QRE141J-101Y RESISTOR,J587EU/J588EU/J589EU 100Ø,1/4W
1SS133 DIODE,J580EK/EU,J581EU
or 1SS270A DIODE,J580EK/EU,J581EU
D2101 MTZJ8.2C ZENER DIODE
D3001 LNB2301L01VI LE DIODE
D3002 1SS133 DIODE
or 1SS270A DIODE
D3003 RD39ES/B3/-T2 ZENER DIODE
or MTZJ39C ZENER DIODE
D3004 11ES2 DIODE
or 1A3G DIODE
D3005 11ES2 DIODE
or 1A3G DIODE
D3008 1SS133 DIODE
D4001 QUY153-050Y IM BUS WIRE
D4002 QUY153-050Y IM BUS WIRE
D5001 S1WB/A/60-4102 BRIDGE DIODE
or S1WB/A/60-X BRIDGE DIODE
or S1WB(A)60F4072X BRIDGE DIODE
D5101 AU01 FR DIODE
or ERA18-04-T2 FR DIODE
or 10ELS4 FR DIODE
or 1SR153-400-T2 FR DIODE
D5102 AU01 FR DIODE
or ERA18-04-T2 FR DIODE
or 10ELS4 FR DIODE
or 1SR153-400-T2 FR DIODE
D5103 1SS133 DIODE
or 1SS270A DIODE
D5105 1SS133 DIODE
or 1SS270A DIODE
D5203 AU01Z FR DIODE
or 10ELS2 FR DIODE
D5204 AU01Z FR DIODE
or 10ELS2 FR DIODE
D5208 RK14LF-B2 BARRIER DIODE
or SB240-F26 SB DIODE
or 21DQ04 BARRIER DIODE
D5210 AU01Z FR DIODE
or ERA18-02-T2 FR DIODE
or PG104RS FR DIODE
or 10ELS2 FR DIODE
or 1SR153-400-T2 FR DIODE
D5301 MTZJ15C ZENER DIODE
or RD15ES/B3/-T2 ZENER DIODE
D5302 1SS133 DIODE
or 1SS270A DIODE
D5303 RD5.1JS/B2/-T2 ZENER DIODE
or MA4051N/M/-T2 ZENER DIODE
D5304 1SS133 DIODE
or 1SS270A DIODE
D5305 AK04 DIODE
or 1S4 SB DIODE
or 11EQS04 SB DIODE
D5307 QUY160-100Y IM BUS WIRE
D5308 MTZJ11C ZENER DIODE
or RD11ES/B3/-T2 ZENER DIODE
D5316 QUY160-100Y IM BUS WIRE
D6002 HZ30-2L-T2 ZENER DIODE
or HZ30-2LTD Z DIODE (M)
D6701 1SS133 DIODE
D7101 1SS133 DIODE
D7102 1SS133 DIODE
D7103 QUY160-100Y IM BUS WIRE
D7105 MTZJ12C ZENER DIODE,J587EU/J588EU/J589EU
or RD12ES/B3/-T2 ZENER DIODE,J587EU/J588EU/J589EU
D7106 MTZJ12C ZENER DIODE
R1 NRSA02J-682X MG RESISTOR 6.8kØ,1/10W
R2 NRSA02J-152X MG RESISTOR 1.5kØ,1/10W
R3 NRSA02J-822X MG RESISTOR 8.2kØ,1/10W
R5 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R6 NRSA02J-273X MG RESISTOR 27kØ,1/10W
R7 NRSA02J-681X MG RESISTOR 680Ø,1/10W
R8 QRE141J-101Y RESISTOR 100Ø,1/4W
R9 QRE141J-101Y RESISTOR 100Ø,1/4W
R12 QRE141J-101Y RESISTOR 100Ø,1/4W
R21 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R22 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R37 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W

5-5
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
R46 NRSA02J-331X MG RESISTOR 330Ø,1/10W
R50 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R77 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R90 NRSA02J-391X MG RESISTOR 390Ø,1/10W
R92 NRSA02J-152X MG RESISTOR 1.5kØ,1/10W
R93 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R104 NRSA02J-682X MG RESISTOR 6.8kØ,1/10W
R202 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R203 NRSA02J-103X MG RESISTOR,J580EK/EU,J581EU 10kØ,1/10W
R204 NRSA02J-103X
MG RESISTOR,J580EK/EU,J581EU 10kØ,1/10W
R209 NRSA02J-512X
MG RESISTOR,J587EU/J588EU/J589EU 5.1kØ,1/10W
R210 NRSA02J-182X MG RESISTOR,J587EU/J588EU/J589EU 1.8kØ,1/10W
R211 NRSA02J-562X
MG RESISTOR,J587EU/J588EU/J589EU 5.6kØ,1/10W
R213 NRSA02J-0R0X
MG RESISTOR,J587EU/J588EU/J589EU 0Ø,1/10W
NRSA02J-222X MG RESISTOR,J580EK/EU,J581EU 2.2kØ,1/10W
R216 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R220 NRSA02J-0R0X MG RESISTOR,J580EK/EU,J581EU 0Ø,1/10W
R224 NRSA02J-681X MG RESISTOR 680Ø,1/10W
R225 QUY160-100Y IM BUS WIRE
R2001 QRE141J-681Y RESISTOR 680Ø,1/4W
R2002 NRSA02J-272X MG RESISTOR 2.7kØ,1/10W
R2003 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R2004 NRSA02J-332X MG RESISTOR 3.3kØ,1/10W
R2005 NRSA02J-0R0X MG RESISTOR,J580EK/EU,J581EU 0Ø,1/10W
R2007 NRSA02J-393X MG RESISTOR 39kØ,1/10W
R2008 NRSA02J-123X MG RESISTOR,J580EK/EU,J581EU 12kØ,1/10W
R2010 NRSA02J-123X MG RESISTOR 12kØ,1/10W
R2013 NRSA02J-682X MG RESISTOR 6.8kØ,1/10W
R2014 NRSA02J-224X MG RESISTOR 220kØ,1/10W
R2015 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R2016 NRSA02J-393X MG RESISTOR 39kØ,1/10W
R2017 NRSA02J-183X MG RESISTOR 18kØ,1/10W
R2018 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R2019 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R2053 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R2054 NRSA02J-123X MG RESISTOR 12kØ,1/10W
R2055 NRSA02J-3R3X MG RESISTOR 3.3Ø,1/10W
R2056 QRE141J-820Y RESISTOR 82Ø,1/4W
R2057 NRSA02J-473X MG RESISTOR 47kØ,1/10W
R2058 NRSA02J-183X MG RESISTOR 18kØ,1/10W
R2059 NRSA02J-473X MG RESISTOR 47kØ,1/10W
R2060 NRSA02J-183X MG RESISTOR 18kØ,1/10W
R2201 QRE141J-151Y RESISTOR 150Ø,1/4W
R2206 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R2207 NRSA02J-332X MG RESISTOR 3.3kØ,1/10W
R2217 NRSA02J-0R0X MG RESISTOR,J580EK/EU,J581EU 0Ø,1/10W
R2219 NRSA02J-393X MG RESISTOR 39kØ,1/10W
R2222 NRSA02J-123X MG RESISTOR,J580EK/EU,J581EU 12kØ,1/10W
R2224 QRE141J-123Y RESISTOR 12kØ,1/4W
R2226 NRSA02J-123X MG RESISTOR 12kØ,1/10W
R2227 QRE141J-123Y RESISTOR 12kØ,1/4W
R2228 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R2229 NRSA02J-563X MG RESISTOR 56kØ,1/10W
R2251 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R3013 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3014 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3015 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3016 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3018 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3019 NRSA02J-682X MG RESISTOR,J587EU/J588EU/J589EU 6.8kØ,1/10W
R3020 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3021 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3022 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3026 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3027 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3028 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3029 QRE141J-472Y RESISTOR 4.7kØ,1/4W
R3030 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3031 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3032 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3033 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3034 QUY160-100Y IM BUS WIRE
R3035 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3036 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3037 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3038 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3039 QRE141J-102Y RESISTOR 1kØ,1/4W
R3041 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3042 QRE141J-102Y RESISTOR 1kØ,1/4W
R3044 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3046 NRSA02J-0R0X MG RESISTOR,J580EK/EU,J581EU 0Ø,1/10W
R3047 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3048 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3049 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R3050 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R3052 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R3053 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R3054 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3055 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3058 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3059 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3060 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3061 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3062 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3066 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3069 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R3071 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3072 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3073 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3074 QRE141J-102Y RESISTOR,J580EU/J581EU/J587EU/588EU/J589EU 1kØ,1/4W
R3075 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R3076 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R3077 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3078 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3079 NRSA02J-102X MG RESISTOR,J580EK/EU,J581EU 1kØ,1/10W
R3081 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3085 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3086 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3087 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3088 QUY160-100Y IM BUS WIRE
R3089 NRSA02J-0R0X MG RESISTOR,J587EU/J588EU/J589EU 0Ø,1/10W
R3090 QRE141J-102Y RESISTOR,J587EU/J588EU/J589EU 1kØ,1/4W
R3093 QUY160-100Y IM BUS WIRE
R3104 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3105 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R3201 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3202 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3203 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3204 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R3205 QRE141J-181Y RESISTOR 180Ø,1/4W
R3207 NRSA02J-183X MG RESISTOR 18kØ,1/10W
R3208 QRE141J-181Y RESISTOR 180Ø,1/4W

--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
5-6
R3209 QRE141J-273Y RESISTOR 27kØ,1/4W
R3210 NRSA02J-181X MG RESISTOR 180Ø,1/10W
R3211 NRSA02J-273X MG RESISTOR 27kØ,1/10W
R3212 NRSA02J-474X MG RESISTOR 470kØ,1/10W
R3213 NRSA02J-334X MG RESISTOR 330kØ,1/10W
R3214 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3215 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3216 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3217 NRSA02J-562X MG RESISTOR 5.6kØ,1/10W
R3218 QRE141J-472Y RESISTOR 4.7kØ,1/4W
R3219 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3220 NRSA02J-104X MG RESISTOR 100kØ,1/10W
R3222 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3223 NRSA02J-152X MG RESISTOR 1.5kØ,1/10W
R3224 NRSA02J-152X MG RESISTOR 1.5kØ,1/10W
R3225 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3226 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3227 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R3229 NRSA02J-105X MG RESISTOR 1MØ,1/10W
R3230 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3231 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R3232 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R3234 QRE141J-103Y RESISTOR 10kØ,1/4W
R3235 NRSA02J-332X MG RESISTOR 3.3kØ,1/10W
R3236 NRSA02J-332X MG RESISTOR 3.3kØ,1/10W
R3240 NRSA02J-105X MG RESISTOR 1MØ,1/10W
R4003 NRSA02J-561X MG RESISTOR 560Ø,1/10W
R4004 NRSA02J-561X MG RESISTOR 560Ø,1/10W
R4005 NRSA02J-562X MG RESISTOR 5.6kØ,1/10W
R4007 QRE141J-102Y RESISTOR 1kØ,1/4W
R4008 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R4009 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R4010 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R4011 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R4012 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R4013 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R4014 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R4015 NRSA02J-562X MG RESISTOR 5.6kØ,1/10W
R4017 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R4018 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R4019 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R4020 QRE141J-103Y RESISTOR 10kØ,1/4W
R4021 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R5101 QRE141J-334Y RESISTOR 330kØ,1/4W
R5102 QRE141J-334Y RESISTOR 330kØ,1/4W
R5103 QRE141J-683Y RESISTOR 68kØ,1/4W
R5104 QRG02GJ-683 OMF RESISTOR 68kØ,2W
R5106 QRT01DJ-R39X MF RESISTOR 0.39Ø,1W
R5107 QRE121J-331Y RESISTOR 330Ø,1/2W
R5108 NRSA02J-152X MG RESISTOR 1.5kØ,1/10W
R5109 QRE141J-681Y RESISTOR 680Ø,1/4W
R5110 NRSA02J-224X MG RESISTOR 220kØ,1/10W
R5111 NRSA02J-681X MG RESISTOR 680Ø,1/10W
R5112 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R5301 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R5302 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R5303 NRSA02J-122X MG RESISTOR 1.2kØ,1/10W
R5304 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R5305 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R5306 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R5308 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R5309 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R5310 NRSA02J-471X MG RESISTOR 470Ø,1/10W
R5311 NRSA02J-473X MG RESISTOR 47kØ,1/10W
R5312 QRE141J-332Y RESISTOR 3.3kØ,1/4W
R5313 NRSA02D-332X MG RESISTOR 3.3kØ,1/10W
R5314 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R5316 NRSA02D-123X MG RESISTOR 12kØ,1/10W
R5317 NRSA02J-473X MG RESISTOR 47kØ,1/10W
R5320 NRSA02J-273X MG RESISTOR 27kØ,1/10W
R5321 QRE141J-273Y RESISTOR 27kØ,1/4W
R6020 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R6021 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R6030 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R6031 NRSA02J-271X MG RESISTOR 270Ø,1/10W
R6032 NRSA02J-472X MG RESISTOR 4.7kØ,1/10W
R6033 NRSA02J-182X MG RESISTOR 1.8kØ,1/10W
R6050 QRE141J-101Y RESISTOR 100Ø,1/4W
R6051 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R6052 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R6056 QRE141J-101 RESISTOR,J580EK/EU,J581EU 100Ø,1/4W
R6702 NRSA02J-182X MG RESISTOR 1.8kØ,1/10W
R6707 NRSA02J-330X MG RESISTOR 33Ø,1/10W
R6708 QUY153-050Y IM BUS WIRE
R6709 QUY153-050Y IM BUS WIRE
R6710 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R6711 NRSA02J-684X MG RESISTOR 680kØ,1/10W
R6712 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R6713 NRSA02J-123X MG RESISTOR,J587EU/J588EU/J589EU 12kØ,1/10W
R6714 NRSA02J-102X MG RESISTOR 1kØ,1/10W
R6715 NRSA02J-123X MG RESISTOR,J587EU/J588EU/J589EU 12kØ,1/10W
R6716 NRSA02J-470X MG RESISTOR 47Ø,1/10W
R6719 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R6720 NRSA02J-562X MG RESISTOR 5.6kØ,1/10W
R6721 NRSA02J-562X MG RESISTOR 5.6kØ,1/10W
R7001 NRSA02J-331X MG RESISTOR 330Ø,1/10W
R7015 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R7020 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R7021 NRSA02J-122X MG RESISTOR 1.2kØ,1/10W
R7022 NRSA02J-182X MG RESISTOR 1.8kØ,1/10W
R7023 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R7024 NRSA02J-272X MG RESISTOR 2.7kØ,1/10W
R7030 NRSA02J-103X MG RESISTOR 10kØ,1/10W
R7031 NRSA02J-122X MG RESISTOR 1.2kØ,1/10W
R7032 NRSA02J-182X MG RESISTOR 1.8kØ,1/10W
R7033 NRSA02J-222X MG RESISTOR 2.2kØ,1/10W
R7034 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
R7037 NRSA02J-563X MG RESISTOR 56kØ,1/10W
R7101 NRSA63J-473X MG RESISTOR 47kØ,1/16W
R7102 NRSA63J-102X MG RESISTOR 1kØ,1/16W
R7103 NRSA02J-750X MG RESISTOR 75Ø,1/10W
R7105 NRSA02J-331X MG RESISTOR 330Ø,1/10W
R7107 NRSA02J-331X MG RESISTOR 330Ø,1/10W
R7108 QRE141J-750Y RESISTOR,J587EU/J588EU/J589EU 75Ø,1/4W
R7110 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R7111 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R7112 NRSA02J-331X MG RESISTOR 330Ø,1/10W
R7113 NRSA02J-750X MG RESISTOR 75Ø,1/10W
R7114 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R7116 NRSA02J-221X MG RESISTOR 220Ø,1/10W
R7117 QRE141J-750Y RESISTOR 75Ø,1/4W
R7119 NQL402M-4R7X COIL 4.7µH

5-7
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
R7120 NQL402M-4R7X COIL 4.7µH
R7122 NRSA02J-331X MG RESISTOR 330Ø,1/10W
R7124 NRSA02J-331X MG RESISTOR 330Ø,1/10W
R7131 NRSA02J-0R0X MG RESISTOR,J580EK/EU,J581EU 0Ø,1/10W
NRSA02J-331X
MG RESISTOR,J587EU/J588EU/J589EU 330Ø,1/10W
R7132 QRE123J-331X
RESISTOR,J580EK/EU,J581EU 330Ø,1/2W
R7133 QRE141J-471Y
RESISTOR,J587EU/J588EU/J589EU 470Ø,1/4W
R7134 NRSA02J-471X
MG RESISTOR,J587EU/J588EU/J589EU 470Ø,1/10W
R7135 NQR0148-002X FERRITE BEAD,J587EU/J588EU/J589EU
R7136 NQR0148-002X FERRITE BEAD,J587EU/J588EU/J589EU
R7137 NRSA02J-102X MG RESISTOR,J587EU/J588EU/J589EU 1kØ,1/10W
R7139 QRE141J-101Y RESISTOR,J587EU/J588EU/J589EU 100Ø,1/4W
R7140 NRSA02J-101X MG RESISTOR,J587EU/J588EU/J589EU 100Ø,1/10W
R7142 NRSA02J-681X
MG RESISTOR,J587EU/J588EU/J589EU 680Ø,1/10W
R7144 NRSA02J-681X MG RESISTOR,J587EU/J588EU/J589EU 680Ø,1/10W
R7146 NRSA02J-102X
MG RESISTOR,J587EU/J588EU/J589EU 1kØ,1/10W
R7147 NRSA02J-222X
MG RESISTOR,J587EU/J588EU/J589EU 2.2kØ,1/10W
R7148 NRSA02J-222X MG RESISTOR,J587EU/J588EU/J589EU 2.2kØ,1/10W
R7149 NRSA02J-101X MG RESISTOR,J587EU/J588EU/J589EU 100Ø,1/10W
R7150 NRSA02J-101X MG RESISTOR,J587EU/J588EU/J589EU 100Ø,1/10W
R7166 NRSA02J-101X MG RESISTOR 100Ø,1/10W
R7202 QRE141J-221Y RESISTOR,J587EU/J588EU/J589EU 220Ø,1/4W
R7203 NRSA02J-472X MG RESISTOR,J587EU/J588EU/J589EU 4.7kØ,1/10W
R7204 QRE123J-100X RESISTOR,J587EU/J588EU/J589EU 10Ø,1/2W
R7205 NRSA02J-223X MG RESISTOR,J587EU/J588EU/J589EU 22kØ,1/10W
R7206 NRSA02J-223X MG RESISTOR,J587EU/J588EU/J589EU 22kØ,1/10W
B5 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
B24 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
B28 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
B35 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
B71 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
B204 NRSA02J-0R0X MG RESISTOR,J587EU/J588EU/J589EU 0Ø,1/10W
B2051 NRSA02J-0R0X MG RESISTOR,J587EU/J588EU/J589EU 0Ø,1/10W
NRSA63J-0R0X MG RESISTOR,J580EK/EU,J581EU 0Ø,1/16W
B3002 QUY153-050Y IM BUS WIRE
B3004 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
B3005 NRSA02J-0R0X MG RESISTOR,J587EU/J588EU/J589EU 0Ø,1/10W
B5302 QUY153-050Y IM BUS WIRE
B6701 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
B7002 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
B7005 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
B7006 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
B7009 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
B7109 NRSA02J-0R0X MG RESISTOR,J580EK/EU,J581EU 0Ø,1/10W
B7110 QUY160-100Y IM BUS WIRE,J580EK/EU,J581EU
B7111 NRSA02J-0R0X MG RESISTOR,J580EK/EU,J581EU 0Ø,1/10W
B7112 NRSA02J-0R0X MG RESISTOR,J580EK/EU,J581EU 0Ø,1/10W
B7113 NRSA63J-0R0X MG RESISTOR,J580EK/EU,J581EU 0Ø,1/16W
B7115 QUY153-050Y IM BUS WIRE,J580EK/EU,J581EU
B7118 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
B7119 QUY153-050Y IM BUS WIRE,J580EK/EU,J581EU
B7120 NRSA02J-0R0X MG RESISTOR,J587EU/J588EU/J589EU 0Ø,1/10W
C1 NCB21HK-103X CAPACITOR 0.01µF,50V
C2 NCB21HK-103X CAPACITOR 0.01µF,50V
C3 NCB21HK-103X CAPACITOR 0.01µF,50V
C4 NCB21HK-103X CAPACITOR 0.01µF,50V
C5 QEKJ0JM-227 E CAPACITOR 220µF,6.3V
C6 NCB21EK-104X CAPACITOR 0.1µF,25V
C8 NCB21EK-473X CAPACITOR 0.047µF,25V
C10 NDC21HJ-151X CAPACITOR 150pF,50V
C11 NCB21EK-104X CAPACITOR 0.1µF,25V
C12 NDC21HJ-470X CAPACITOR 47pF,50V
C14 NCB21EK-104X CAPACITOR 0.1µF,25V
C15 NCB21HK-103X CAPACITOR 0.01µF,50V
C16 NCB21EK-104X CAPACITOR 0.1µF,25V
C17 QEKJ1HM-335 E CAPACITOR 3.3µF,50V
C18 QEKJ1HM-105 E CAPACITOR,J580EK/EU,J581EU 1µF,50V
C19 QEKJ1HM-225 E CAPACITOR 2.2µF,50V
C20 QEQF1HM-105 NP E CAPACITOR 1µF,50V
C21 NCB21EK-104X CAPACITOR 0.1µF,25V
C22 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C23 NCB21EK-104X CAPACITOR 0.1µF,25V
C24 NCB21EK-104X CAPACITOR 0.1µF,25V
C25 NDC21HJ-6R0X CAPACITOR 6pF,50V
C27 NCB21EK-223X CAPACITOR 0.022µF,25V
C28 QEKJ1HM-335 E CAPACITOR 3.3µF,50V
C29 NCB21EK-333X CAPACITOR 0.033µF,25V
C30 QEKJ1HM-474 E CAPACITOR 0.47µF,50V
C31 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C32 NCB21EK-104X CAPACITOR 0.1µF,25V
C33 QEKJ1HM-225 E CAPACITOR 2.2µF,50V
C34 NCB21CK-224X CAPACITOR 0.22µF,16V
C35 NCB21HK-103X CAPACITOR 0.01µF,50V
C36 QERF1EM-475 E CAPACITOR 4.7µF,25V
C37 QEKJ1HM-105 E CAPACITOR 1µF,50V
C38 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C39 NCB21EK-104X CAPACITOR 0.1µF,25V
C40 QEKJ1EM-106 E CAPACITOR 10µF,25V
C43 NCB21HK-102X CAPACITOR 0.001µF,50V
C53 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
C62 NCB21EK-104X CAPACITOR 0.1µF,25V
C64 NDC21HJ-220X CAPACITOR 22pF,50V
C65 QEKJ1HM-105 E CAPACITOR 1µF,50V
C69 NCB21HK-103X CAPACITOR 0.01µF,50V
C70 NCB21HK-103X CAPACITOR 0.01µF,50V
C81 NCB21HK-103X CAPACITOR 0.01µF,50V
C92 NDC21HJ-330X CAPACITOR 33pF,50V
C94 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
C106 NCB21HK-821X CAPACITOR 820pF,50V
C108 NDC21HJ-680X CAPACITOR 68pF,50V
C109 NCB21CK-224X CAPACITOR 0.22µF,16V
C110 NDC21HJ-820X CAPACITOR 82pF,50V
C114 NDC21HJ-181X CAPACITOR,J580EU/J581EU/J587EU/J588EU/J589EU 180pF,50V
C204 NCB21HK-103X CAPACITOR,J580EK/EU,J581EU 0.01µF,50V
NDC21HJ-100X CAPACITOR,J587EU/J588EU/J589EU 10pF,50V
C206 NDC21HJ-330X CAPACITOR 33pF,50V
C207 NDC21HJ-330X CAPACITOR 33pF,50V
C209 NCB21CK-474X CAPACITOR 0.47µF,16V
C212 NCB21EK-104X CAPACITOR,J587EU/J588EU/J589EU 0.1µF,25V
C213 QERF1HM-475 E CAPACITOR,J587EU/J588EU/J589EU 4.7µF,50V
C214 NCB21CK-224X CAPACITOR 0.22µF,16V
C215 NCB21CK-224X CAPACITOR,J587EU/J588EU/J589EU 0.22µF,16V
C216 QERF1AM-227 E CAPACITOR,J587EU/J588EU/J589EU 220µF,10V
C217 NDC21HJ-560X CAPACITOR 56pF,50V
C218 NCB21CK-105X CAPACITOR 1µF,16V
C222 QERF1HM-105 E CAPACITOR 1µF,50V
C226 QERF0JM-107 E CAPACITOR 100µF,6.3V
C2001 QEKJ1HM-475 E CAPACITOR 4.7µF,50V
C2002 QEKJ1EM-106 E CAPACITOR 10µF,25V
C2003 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C2005 QEKJ1HM-475 E CAPACITOR 4.7µF,50V
C2006 NCB21HK-123X CAPACITOR 0.012µF,50V

--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
5-8
C2007 QEKJ1CM-226 E CAPACITOR 22µF,16V
C2008 QEKJ1HM-475 E CAPACITOR 4.7µF,50V
C2009 NCB21HK-102X CAPACITOR 0.001µF,50V
C2010 NCB21HK-152X CAPACITOR 0.0015µF,50V
C2011 QEKJ1HM-475 E CAPACITOR 4.7µF,50V
C2012 QEKC1HM-475 E CAPACITOR 4.7µF,50V
C2016 NDC21HJ-330X CAPACITOR 33pF,50V
C2051 NCB21HK-331X CAPACITOR 330pF,50V
C2052 QFLC1HJ-823Z F CAPACITOR 0.082µF,50V
C2053 NCB21HK-472X CAPACITOR 0.0047µF,50V
C2054 NCB21EK-223X CAPACITOR 0.022µF,25V
C2055 QEKJ1EM-106 E CAPACITOR 10µF,25V
C2201 NCB21EK-104X CAPACITOR 0.1µF,25V
C2202 NCB21EK-333X CAPACITOR 0.033µF,25V
C2203 QEKJ1EM-106 E CAPACITOR 10µF,25V
C2204 NCB21HK-102X CAPACITOR 0.001µF,50V
C2205 QEKJ1HM-105 E CAPACITOR 1µF,50V
C2206 QEKJ1EM-106 E CAPACITOR 10µF,25V
C2207 QEKJ1CM-476 E CAPACITOR 47µF,16V
C2208 QEKJ1HM-475 E CAPACITOR 4.7µF,50V
C2215 QEKJ1HM-475 E CAPACITOR 4.7µF,50V
C2217 QEKJ1EM-106 E CAPACITOR 10µF,25V
C2219 QEKJ1EM-106 E CAPACITOR 10µF,25V
C2220 QEKJ1HM-475 E CAPACITOR 4.7µF,50V
C2221 NCB21HK-103X CAPACITOR 0.01µF,50V
C2222 QEKJ1HM-474 E CAPACITOR 0.47µF,50V
C2223 QEKJ1HM-474 E CAPACITOR 0.47µF,50V
C2224 NCB21HK-103X CAPACITOR 0.01µF,50V
C2225 QEKJ1HM-475 E CAPACITOR 4.7µF,50V
C2226 QEKJ1EM-106 E CAPACITOR 10µF,25V
C2227 NCB21EK-104X CAPACITOR 0.1µF,25V
C2228 NCB21EK-104X CAPACITOR 0.1µF,25V
C2229 NCB21HK-331X CAPACITOR,J580EK/EU,J581EU 330pF,50V
C2230 NCB21HK-331X CAPACITOR,J580EK/EU,J581EU 330pF,50V
C2251 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C2252 QDYB1CM-103Y CAPACITOR 0.01µF,16V
C2253 NCB21HK-103X CAPACITOR 0.01µF,50V
C2254 NCB21HK-103X CAPACITOR 0.01µF,50V
C2255 NDC21HJ-181X CAPACITOR 180pF,50V
C3001 NCF21EZ-104X CAPACITOR 0.1µF,25V
C3002 NCB21HK-103X CAPACITOR 0.01µF,50V
C3003 QEKJ1HM-106 E CAPACITOR 10µF,50V
C3004 NCB21EK-473X CAPACITOR 0.047µF,25V
C3011 QETL0JM-338 E CAPACITOR 3300µF,6.3V
C3012 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C3014 QERF0JM-476 E CAPACITOR 47µF,6.3V
C3016 NCB21EK-473X CAPACITOR 0.047µF,25V
C3022 NCB21EK-473X CAPACITOR 0.047µF,25V
C3024 NDC21HJ-120X CAPACITOR,J580EK/EU,J581EU 12pF,50V
NDC21HJ-220X CAPACITOR,J587EU/J588EU/J589EU 22pF,50V
C3025 QAT3725-300Z TRIM CAPACITOR,TIMER CLOCK,J580EK/EU,J581EU
C3026 NCB21HK-103X CAPACITOR 0.01µF,50V
C3027 QEKJ1CM-106 E CAPACITOR 10µF,16V
C3030 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C3031 NCB21EK-473X CAPACITOR 0.047µF,25V
C3032 NCB21EK-473X CAPACITOR 0.047µF,25V
C3033 NCB21EK-473X CAPACITOR 0.047µF,25V
C3036 NDC21HJ-180X CAPACITOR 18pF,50V
C3037 NDC21HJ-120X CAPACITOR 12pF,50V
C3040 NCB21EK-473X CAPACITOR 0.047µF,25V
C3041 NDC21HJ-100X CAPACITOR,J580EK 10pF,50V
C3045 NDC21HJ-101X CAPACITOR 100pF,50V
C3050 NCF21EZ-104X CAPACITOR 0.1µF,25V
C3051 NCB21EK-104X CAPACITOR,J587EU/J588EU/J589EU 0.1µF,25V
C3101 QER61CM-106 E CAPACITOR 10µF,16V
C4002 QDYB1CM-103Y CAPACITOR 0.01µF,16V
C4003 NCB21HK-102X CAPACITOR 0.001µF,50V
C4004 QERF1CM-226 E CAPACITOR 22µF,16V
C4005 NCB21HK-222X CAPACITOR 0.0022µF,50V
C4006 QERF0JM-476 E CAPACITOR 47µF,6.3V
C4008 QEQF1HM-105 NP E CAPACITOR 1µF,50V
C4009 NCB21HK-563X CAPACITOR 0.056µF,50V
C4010 NCB21EK-223X CAPACITOR 0.022µF,25V
C4011 NCB21EK-104X CAPACITOR 0.1µF,25V
C4012 QERF1HM-105 E CAPACITOR 1µF,50V
C4013 NCB21HK-563X CAPACITOR 0.056µF,50V
C4014 NDC21HJ-101X CAPACITOR 100pF,50V
C4015 NCB21HK-102X CAPACITOR 0.001µF,50V
C4016 NDC21HJ-101X CAPACITOR 100pF,50V
! C5001 QFZ9073-683 F CAPACITOR 0.068µF,250V
! C5002 QFZ9051-333 F CAPACITOR 0.033µF,250V
! C5004 QCZ9071-222 CAPACITOR 0.0022µF,250V
C5006 QEZ0375-686 E CAPACITOR 68µF,400V
C5101 QCZ0212-472 CAPACITOR 0.0047µF,1kV
C5102 QCZ0302-330Z CAPACITOR 33pF,1kV
C5104 QEKC1HM-105 E CAPACITOR 1µF,50V
C5105 QFN31HJ-183 F CAPACITOR 0.018µF,50V
C5106 QCBB1HJ-271 CAPACITOR 270pF,50V
C5107 QFV91HJ-104 F CAPACITOR 0.1µF,50V
C5202 QEMT1CM-687 E CAPACITOR 680µF,16V
C5203 QEMT1AM-128 E CAPACITOR 1200µF,10V
C5204 QETN2AM-475 E CAPACITOR 4.7µF,100V
C5206 QETN1AM-476 E CAPACITOR 47µF,10V
C5207 QETN1CM-107 E CAPACITOR 100µF,16V
C5301 QEKJ1CM-107 E CAPACITOR 100µF,16V
C5302 QETJ1CM-107 E CAPACITOR 100µF,16V
C5303 QEKJ1CM-107 E CAPACITOR 100µF,16V
C5304 QFLC1HJ-102Z F CAPACITOR 0.001µF,50V
C5305 QFV91HJ-154 F CAPACITOR 0.15µF,50V
C6005 QETJ1HM-106 E CAPACITOR 10µF,50V
C6007 QEKC0JM-227 E CAPACITOR 220µF,6.3V
C6012 QEKJ1AM-107 E CAPACITOR 100µF,10V
C6013 NCB21HK-103X CAPACITOR 0.01µF,50V
C6016 NCB21HK-103X CAPACITOR 0.01µF,50V
C6023 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
C6027 NCB21HK-103X CAPACITOR 0.01µF,50V
C6032 NCB21EK-473X CAPACITOR 0.047µF,25V
C6037 QEKJ1CM-106 E CAPACITOR 10µF,16V
C6056 QCSB1HJ-470 CAPACITOR,J580EK/EU,J581EU 47pF,50V
C6701 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
C6704 NCB21HK-103X CAPACITOR 0.01µF,50V
C6707 NDC21HJ-470X CAPACITOR 47pF,50V
C6708 NDC21HJ-8R0X CAPACITOR 8pF,50V
C6709 NDC21HJ-2R0X CAPACITOR 2pF,50V
C6713 NCF21CZ-224X CAPACITOR 0.22µF,16V
C6714 NCB21HK-682X CAPACITOR 0.0068µF,50V
C6715 QEKJ1HM-225 E CAPACITOR 2.2µF,50V
C6716 NCB21HK-682X CAPACITOR 0.0068µF,50V
C6717 QEKJ1HM-225 E CAPACITOR 2.2µF,50V
C6719 QEKJ1EM-106 E CAPACITOR 10µF,25V
C6720 QEKJ1EM-106 E CAPACITOR 10µF,25V
C6721 NCB21HK-103X CAPACITOR 0.01µF,50V

5-9
--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
C6723 NCB21HK-103X CAPACITOR 0.01µF,50V
C7001 NCB21HK-103X CAPACITOR 0.01µF,50V
C7002 QEKJ0JM-476 E CAPACITOR 47µF,6.3V
C7011 QEKJ0JM-227 E CAPACITOR 220µF,6.3V
C7012 NCB21HK-103X CAPACITOR 0.01µF,50V
C7103 NCB21HK-681X CAPACITOR 680pF,50V
C7104 NCB21HK-681X CAPACITOR 680pF,50V
C7117 QETN0JM-477 E CAPACITOR,J580EK/EU,J581EU 470µF,6.3V
QUY153-050Y IM BUS WIRE,J587EU/J588EU/J589EU
C7119 NCB21HK-471X CAPACITOR 470pF,50V
C7120 NCB21HK-471X CAPACITOR 470pF,50V
C7128 QEKJ1CM-107 E CAPACITOR 100µF,16V
C7129 NCB31CK-104X CAPACITOR 0.1µF,16V
C7131 QUY153-050Y IM BUS WIRE
C7132 QETN1CM-107 E CAPACITOR 100µF,16V
C7133 NCB21HK-103X CAPACITOR 0.01µF,50V
C7134 NCB31CK-473X
CAPACITOR,J587EU/J588EU/J589EU 0.047µF,16V
C7135 NCB31CK-473X CAPACITOR,J587EU/J588EU/J589EU 0.047µF,16V
C7136 NCB31CK-473X CAPACITOR,J587EU/J588EU/J589EU 0.047µF,16V
C7137 NDC21HJ-330X CAPACITOR,J587EU/J588EU/J589EU 33pF,50V
C7138 QEKJ1EM-106 E CAPACITOR,J587EU/J588EU/J589EU 10µF,25V
C7139 QEKJ1CM-476 E CAPACITOR,J587EU/J588EU/J589EU 47µF,16V
C7140 QEKJ1EM-106 E CAPACITOR,J587EU/J588EU/J589EU 10µF,25V
C7141 QEKJ1EM-106 E CAPACITOR,J587EU/J588EU/J589EU 10µF,25V
C7142 QEKJ1EM-106 E CAPACITOR,J587EU/J588EU/J589EU 10µF,25V
C7143 QEKJ1EM-106 E CAPACITOR,J587EU/J588EU/J589EU 10µF,25V
C7144 QEKJ1EM-106 E CAPACITOR,J587EU/J588EU/J589EU 10µF,25V
C7145 QEKJ1EM-106 E CAPACITOR,J587EU/J588EU/J589EU 10µF,25V
C7146 QEKJ1HM-475 E CAPACITOR,J587EU/J588EU/J589EU 4.7µF,50V
C7147 QEKJ1EM-106 E CAPACITOR,J587EU/J588EU/J589EU 10µF,25V
C7148 QEKJ1EM-106 E CAPACITOR,J587EU/J588EU/J589EU 10µF,25V
C7149 QEKJ1HM-475 E CAPACITOR,J587EU/J588EU/J589EU 4.7µF,50V
C7150 QEKJ1EM-106 E CAPACITOR,J587EU/J588EU/J589EU 10µF,25V
C7151 QEKJ1EM-106 E CAPACITOR,J587EU/J588EU/J589EU 10µF,25V
C7152 NCB21EK-473X CAPACITOR,J587EU/J588EU/J589EU 0.047µF,25V
C7153 NDC21HJ-330X CAPACITOR,J587EU/J588EU/J589EU 33pF,50V
C7155 QEKJ1EM-106 E CAPACITOR,J587EU/J588EU/J589EU 10µF,25V
C7168 NCB21HK-681X CAPACITOR 680pF,50V
C7169 NCB21HK-681X CAPACITOR 680pF,50V
C7170 NCB21HK-821X CAPACITOR 820pF,50V
C7171 NCB21HK-821X CAPACITOR 820pF,50V
C7172 NDC21HJ-101X CAPACITOR,J587EU/J588EU/J589EU 100pF,50V
C7173 NDC21HJ-101X CAPACITOR,J587EU/J588EU/J589EU 100pF,50V
C7174 NCB21HK-681X CAPACITOR 680pF,50V
C7175 NCB21HK-681X CAPACITOR 680pF,50V
C7202 QETJ0JM-477 E CAPACITOR,J587EU/J588EU/J589EU 470µF,6.3V
L1 QQL29BJ-100Z COIL 10µH
L2 QUY153-050Y IM BUS WIRE
L3 QQL29BJ-100Z COIL 10µH
L4 QQL29BJ-100Z COIL 10µH
L5 QQL29BJ-100Z COIL 10µH
L12 QQR0967-001 COIL 12µH
L13 QQL071J-330Y COIL 33µH
L22 QQL231J-1R0Y COIL 1µH
L24 QQL071J-270Y COIL 27µH
L27 QQL071J-330Y COIL 33µH
L28 QQL071J-680Y COIL 68µH
L201 QQL29BK-1R0Z COIL 1µH
L202 QQL071J-330Y COIL,J587EU/J588EU/J589EU 33µH
QUY153-050Y IM BUS WIRE,J580EK/EU,J581EU
L203 QQL29BJ-220Z COIL 22µH
L204 QUY153-050Y IM BUS WIRE,J587EU/J588EU/J589EU
L206 QQL071J-220Y COIL 22µH
L207 QUY153-050Y IM BUS WIRE
L2001 QUY153-050Y IM BUS WIRE
L2251 QQL29BJ-100Z COIL 10µH
L2252 QQL29BJ-151Z COIL 150µH
L3101 QQL29BJ-100Z COIL 10µH
L5201 PELN1184 COIL 33µH
L5202 PELN1184 COIL 33µH
L6001 QQL29BK-1R0Z COIL 1µH
L6003 QQL29BJ-470Z COIL 47µH
L7101 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
L7102 NRSA02J-0R0X MG RESISTOR,J580EK/EU,J581EU 0Ø,1/10W
NQL092M-R22X COIL,J587EU/J588EU/J589EU 0.22µH
L7105 QQL231J-1R0Y COIL,J587EU/J588EU/J589EU 1µH
L7106 QQL231J-1R0Y COIL,J587EU/J588EU/J589EU 1µH
L7107 QQL01BJ-100Z COIL 10µH
L7108 QUY153-050Y
IM BUS WIRE,J587EU/J588EU/J589EU
L7109 QQL231J-R22Y COIL,J587EU/J588EU/J589EU 0.22µH
L7201 QQL01BJ-101Z COIL,J587EU/J588EU/J589EU 100µH
X1 QAX0576-001Z CRYSTAL RESONATOR
X3001 QAX0444-001 CRYSTAL RESONATOR,J580EK
QAX0445-001 CRYSTAL RESONATOR,J580EU/J581EU/J587EU/J588EU
X3002 QAX0527-001 CRYSTAL RESONATOR
X6701 QAX0443-001 CRYSTAL RESONATOR
S3001 QSW0602-004 PUSH SWITCH,REC SAFETY
S7001 QSW0456-002Z TACT SWITCH,STAND-BY
S7002 QSW0456-002Z TACT SWITCH,TIMER
S7004 QSW0456-002Z TACT SWITCH,CH-
S7006 QSW0456-002Z TACT SWITCH,CH+
S7010 QSW0456-002Z TACT SWITCH,DISPLAY
S7011 QSW0456-002Z TACT SWITCH,REC
S7013 QSW0456-002Z TACT SWITCH,PAUSE
S7015 QSW0456-002Z TACT SWITCH,STOP/EJECT
S7016 QSW0456-002Z TACT SWITCH,SAT.CTL
K2001 NQL103K-R10X COIL 0.1µH
K2002 NQL103K-R10X COIL 0.1µH
K2003 NQL103K-R10X COIL 0.1µH
K2004 NQL103K-R10X COIL 0.1µH
K2251 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
K2252 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
K2253 NRSA02J-0R0X MG RESISTOR 0Ø,1/10W
K5101 QQR0678-001Z FERRITE BEAD
K5102 QQR0678-001Z FERRITE BEAD
K6080 NRSA02J-102X MG RESISTOR,J587EU/J588EU/J589EU 1kØ,1/10W
K6701 NQR0200-003X FERRITE BEAD
K6702 NQR0200-003X FERRITE BEAD
K6703 NQR0200-003X FERRITE BEAD
K6704 NQR0200-003X FERRITE BEAD
K6705 NQR0200-003X FERRITE BEAD
K6706 NQR0200-003X FERRITE BEAD
K7001 NQR0403-003X FERRITE BEAD,J587EU/J588EU/J589EU
PC3001 GP3S123 IC(PHOTO SENSOR)
PC3002 GP3S123 IC(PHOTO SENSOR)
! PC5101 PS2561L1-1/L/ IC(PHOTO COUPLER)
T2051 PELN0832 OSC TRANSFORMER
! T5001 QQS0083-001 SW TRANSFORMER
ET1 PQ21623-2-5 EARTH PLATE(RF)
HS1 LP40090-001A HEAT SINK,Q5101
DI7001 LTG-Y2K16M-J LE DIODE
! TB1 LP20317-008A TERMINAL BOARD(PAL),J580EK/EU,J581EU

--------------- ----------------------- ----------------------------------------------------- ---------------- ----------------------- ------------------------------------------------------
# REF No. PART No. PART NAME, DESCRIPTION # REF No. PART No. PART NAME, DESCRIPTION
5-10
! LP20317-005A TERMINAL BOARD(PAL),J587EU/J588EU/J589EU
TU6001 QAU0208-001 TUNER
FC5001 QNG0006-001Z FUSE CLIP,F5001
FC5002 QNG0006-001Z FUSE CLIP,F5001
OT1 QYTDST3006Z SCREW,Q5101
OT2 PU59915-105 #
500SPACER0.01,R6056,J580EK/EU,J581EU
OT3 PU59915-105 # 500SPACER0.01,C6056,J580EK/EU,J581EU
SD1 LP21033-001A SHIELD CASE(PRE)
J7101 PEMC1104 RGB21PIN SOCKET,AV1
J7102 PEMC1104
RGB21PIN SOCKET,AV2,J587EU/J588EU,J589EU
J7103 QNN0292-003 PIN JACK
J7107 PU60612 MINI JACK
! LF5001 PELN1204-01-01 LINE FILTER
! LF5002 QQR0978-001 LINE FILTER
CN1 QGF1028C1-11 FPC CONNECTOR,(1-11)U.DRUM
CN2001 QGF1207C1-07 FPC CONNECTOR,(1-7)A/C HEAD
CN2002 QGB2532J1-02 CONNECTOR,(1-2)FE HEAD
CN3001 QGF1207C1-05 FPC CONNECTOR,(1-5)DRUM MDA
CN3002 QGB2532J1-02 CONNECTOR,(1-2)LOADING MOTOR
CN3003 QGB2015M2-08 CONNECTOR,(1-8)CAPSTAN MOTOR
CN3004 QGB2534J2-04 CONNECTOR,(1-4)ROTARY ENCODER
! CN5001 QGA7901C3-02 CONNECTOR,(1-2)AC IN
CN7001 QGF1207C1-09 FPC CONNECTOR,(1-9)FRONT
CN7104 QUM022-18A4A4 PARA RIBON WIRE
! CP4001 ICP-N25 CIRCUIT PROTECTOR
! CP5302 ICP-N25 CIRCUIT PROTECTOR
! F5001 QMF51E2-2R0J1 FUSE T2.0A,AC250V
******************************
MINI FRONT BOARD ASSEMBLY <28>
PW1 LPA20005-01A MINI FRONT BOARD ASSY
R7043 QRE141J-272Y RESISTOR 2.7kØ,1/4W
R7044 QRE141J-472Y RESISTOR 4.7kØ,1/4W
R7045 QRE141J-682Y RESISTOR 6.8kØ,1/4W
S7021 QSW0456-002Z TACT SWITCH,REW
S7022 QSW0456-002Z TACT SWITCH,FF
S7023 QSW0456-002Z TACT SWITCH,PLAY
CN7002 QGF1208C1-09 FPC CONNECTOR,(1-9)MAIN
(Sanwa)-V14D0+/D0/D01/D11/D1-/D11E. & O. E. No. 82849

5-11

SERVICE MANUAL
No. 82847
January 2001
SPECIFICATIONS (The specifications shown pertain specifically to the model HR-J785EK)
VIDEO CASSETTE RECORDER
Printed in Japan
VICTOR COMPANY OF JAPAN, LIMITED
VIDEO DIVISION S40894
This service manual is printed on 100% recycled paper.
COPYRIGHT © 2001 VICTOR COMPANY OF JAPAN, LTD.
HR-J680EK/EU, J780EU, J785EK No. 82847
PAL
T
V
P
R
+
T
V
P
R
–
T
V
–
T
V
+
TV
0000
STOP
FIN
MENU
OK
TV/VCR
DAILY/QTDN. VPS/PDC
AUX
?
WEEKLY/HEBDO
PROG 30 SEC
– –:– –
AUDIO
123
465
789
0
DATE
START
DEBUT
PR
2
4
1
3
E
N
T
E
R
/
E
N
T
R
E
E
EXPRESS
SAT
24H EXPRESS
PR /
PUSH / TURN
2
33
1
VCR
SAT
REVIEW
g e n e r a l
Power requirement : AC 220 V – 240 V Ó, 50 Hz/60 Hz
Power consumption : on : 16 W, o : 4.0 W
Operating Temperature : 5°C to 40°C
Storage Temperature : –20°C to 60°C
Operating position : Horizontal only
Dimensions (WxHxD) : 400 mm x 94 mm x 278 mm
Weight : 3.4 kg
Format : VHS PAL standard
Maximum recording time
(SP) : 240 min. with E-240 video cassette
(LP) : 480 min. with E-240 video cassette
v i d e o / a u d i o
Signal system : PAL-type colour signal and CCIR monochrome signal,
625 lines/50 ields
Recording system : DA4 (Double Azimuth) helical scan system
Signal-to-noise ratio : 45 dB
Horizontal resolution : 250 lines
Frequency range : 70 Hz to 10,000 Hz (Normal audio)
20 Hz to 20,000 Hz (Hi-Fi audio)
Input/Output :
21-pin SCART connectors (IN/OUT x 1, IN/DECODER x 1)
RCA connectors (AUDIO OUT x 1)
t u n e r
/
t i m e r
TV channel storage capacity : 99 positions (+AUX position)
Tuning system : Frequency synthesized tuner
Channel coverage : VHF 44.5 MHz – 143 MHz/
143 MHz – 470 MHz/
UHF 470 MHz – 862 MHz
Aerial output : UHF channels 22 – 69 (Adjustable)
Memory backup time : Approx. 10 min.
a c c e s s o r i e s
Provided accessories : RF cable, Satellite Controller,
In rared remote control unit,
‘AA’ battery x 2
Speci ications shown are or SP mode unless otherwise speci ied.
E.& O.E. Design and speci ications subject to change without notice.
