JYTEK PCIe-67432 User manual

Advance Technologies; Automate the World.
Manual Rev.: 1.00
Revision Date: Mar. 2, 2020

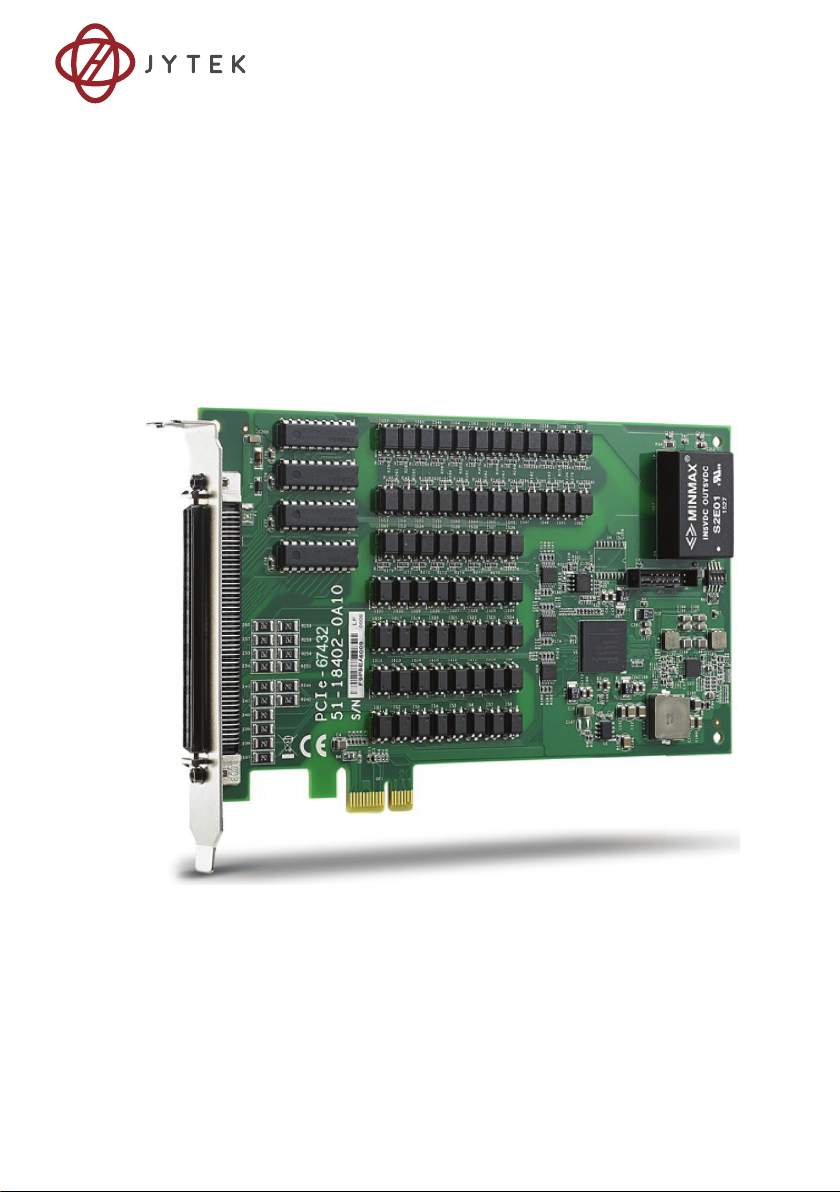

PCIe-67432
32CH Isolated DI/32CH Isolated DO
PCIe Card

ii

Preface iii
Preface
Copyright
This document contains proprietary information protected by copyright.
All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior
written permission of the manufacturer. All specifications are subject to
change without further notice.
Disclaimer
The information in this document is subject to change without prior
notice in order to improve reliability, design, and function and does not
represent a commitment on the part of the manufacturer.
In no event will the manufacturer be liable for direct, indirect, special,
incidental, or consequential damages arising out of the use or inability
to use the product or documentation, even if advised of the possibility
of such damages.
Environmental Responsibility
JYTEK is committed to fulfill its social responsibility to global environ-
mental preservation through compliance with the European Union's
Restriction of Hazardous Substances (RoHS) directive and Waste Electri-
cal and Electronic Equipment (WEEE) directive. Environmental protec-
tion is a top priority for JYTEK. We have enforced measures to ensure
that our products, manufacturing processes, components, and raw
materials have as little impact on the environment as possible. When
products are at their end of life, our customers are encouraged to dis-
pose of them in accordance with the product disposal and/or recovery
programs prescribed by their nation or company.
Trademarks
Product names mentioned herein are used for identification purposes
only and may be trademarks and/or registered trademarks of their
respective companies.

iv Preface
Conventions
Take note of the following conventions used throughout this manual to
make sure that users perform certain tasks and instructions properly.
NOTE:
NOTE:
Additional information, aids, and tips that help users perform tasks.
CAUTION:
Information to prevent minor physical injury, component damage,
data loss, and/or program corruption when trying to complete a
task.
WARNING:
Information to prevent serious physical injury, component damage,
data loss, and/or program corruption when trying to complete a spe-
cific task.

Table of Contents v
Table of Contents
Preface .......................................................................................... iii
Table of Contents............................................................................ v
List of Figures................................................................................ vii
List of Tables .................................................................................. ix
1 Introduction.............................................................................. 1
1.1 Features ......................................................................................... 1
1.2 Applications ................................................................................... 1
1.3 Specifications ................................................................................. 1
1.4 Software Support........................................................................... 3
PCIS-DASK .................................................................................3
1.5 PCB Layout ..................................................................................... 3
1.6 Connectors..................................................................................... 4
1.7 DI/O Channels ............................................................................... 6
Isolated Digital Input Channels ................................................6
Isolated Digital Output Channels ..............................................7
2 Getting Started ......................................................................... 9
2.1 Unpacking Checklist....................................................................... 9
2.2 Installing the Card.......................................................................... 9
3 Register Format....................................................................... 11
3.1 I/O Address Map.......................................................................... 11
3.2 Digital Input Register ................................................................... 11
3.3 Digital Output Register ................................................................ 12
AppendixA C/C++ DOS Function Library ............................... 13
A.1 Data Types ................................................................................... 13
A.2 List of Functions........................................................................... 13

vi Table of Contents
Initial ...................................................................................... 13
Digital Input Relative Functions ............................................. 14
Digital Output Relative Functions .......................................... 15
Interrupt Source Control ........................................................ 15
Get Interrupt Status ............................................................... 16
Interrupt Enable ..................................................................... 17
Interrupt Disable .................................................................... 17
Important Safety Instructions ....................................................... 19
Getting Service ............................................................................. 21

List of Figures vii
List of Figures
Figure 1-1: PCIe-67432 Board Layout..........................................................3
Figure 1-2: PCIe-67432 CN1 Connector.......................................................4
Figure 1-3: Isolated Input Connection.........................................................7
Figure 1-4: Common Ground Connection ...................................................8

viii List of Figures
This page intentionally left blank.

List of Tables ix
List of Tables
Table 1-1: PCIe-67432 CN1 Pin Assignment...............................................6
Table 3-1: I/O Register Map .....................................................................11
Table 3-2: IDI_N: Isolated Digital Input CH N ...........................................11
Table 3-3: IDI_N: Isolated Digital Input CH N ...........................................12

x List of Tables
This page intentionally left blank.

Introduction 1
1 Introduction
JYTEK'S PCIe-67432 for PCIe bus provides 32CH isolated DI and 32CH iso-
lated DO and robust 2,500V isolation protection, suitable for most
industrial applications.
All digital input channels are identical non-polar and opto-isolated. All
channels are isolated and suitable for collecting digital inputs in noisy
environments. Digital input channel 0 & 1 interrupt are supported.
Common input junction can be common ground or common power,
depending on the environment, such that digital input can be either cur-
rent source or current sink. When isolated digital output is ON, sink cur-
rent is through transistors, and when OFF, none is.
The extra connection is utilized for the flywheel diode, forming a cur-
rent-release closed loop, whereby transistors are protected from high
reverse voltage generated by the inductance load when output is
switched from ON to OFF.
1.1 Features
PCI Express x1, Plug and Play
32CH isolated digital input & 32CH isolated digital output
Isolation Voltage 2500V RMS
Sink current up to 500mA@24V on single isolated output,
120mA@24V for all ON channels
Isolated input voltage up to 24V
Digital input channels 0 & 1 interrupt
1.2 Applications
Laboratory and industrial automation
Watchdog timer (WDT)
Event counter
Frequency counter and generator
Low level pulse generator
Time delay
1.3 Specifications

2 Introduction
1.3.1 Digital Input
1.3.2 Digital Output
1.3.3 Isolated +5V Power Supply
1.3.4 Physical & Bus
Input Channels 32
Photocoupler HCPL-814
Input current 10 mA rated
20 mA max. for isolated input
Input voltage
Up to 24V DC or 24V AC
Logic Low: 0 to 1.5V
Logic High 5 to 24V
Input impedance 2.4kΩ @ 0.5W
Interrupt Sources Digital input channels 0 and channel 1
Isolated voltage 2,500V RMS channel-to-system
Output Channels 32
Output Type Darlington transistor with common ground
Output Voltage 5V DC min, 35V DC maximum
Throughput 10kHz (0.1 ms)
Isolated voltage 2,500V RMS channel-to-system
Output Voltage +5V
Output Current 200mA max. (@ 40°C)
Dimensions 175 mm x 107 mm, standard PCIe half size
Bus 1x PCI Express
Operating temperature 0 to 60 °C
Storage temperature -20 °C to 80 °C
Humidity 5 to 95% non-condensing
Power consumption +12V@180mA(typical) 500mA (Max.)

Introduction 3
1.4 Software Support
JYTEK provides comprehensive software solutions for all system building
requirements. In addition to programming libraries such as DLLs for
most Windows-based systems, JYTEK also provides drivers for other
application environments.
Be sure to install the driver & utility before using the PCIe-67432.
PCIS-DASK
PCIS-DASK consists of advanced 32/64-bit kernel drivers and SDK for
customized DAQ application development, enabling detailed opera-
tions and superior performance and reliability from data acquisition
systems.
PCIS-DASK kernel drivers now support Windows 7/8.1 OS.
1.5 PCB Layout
.

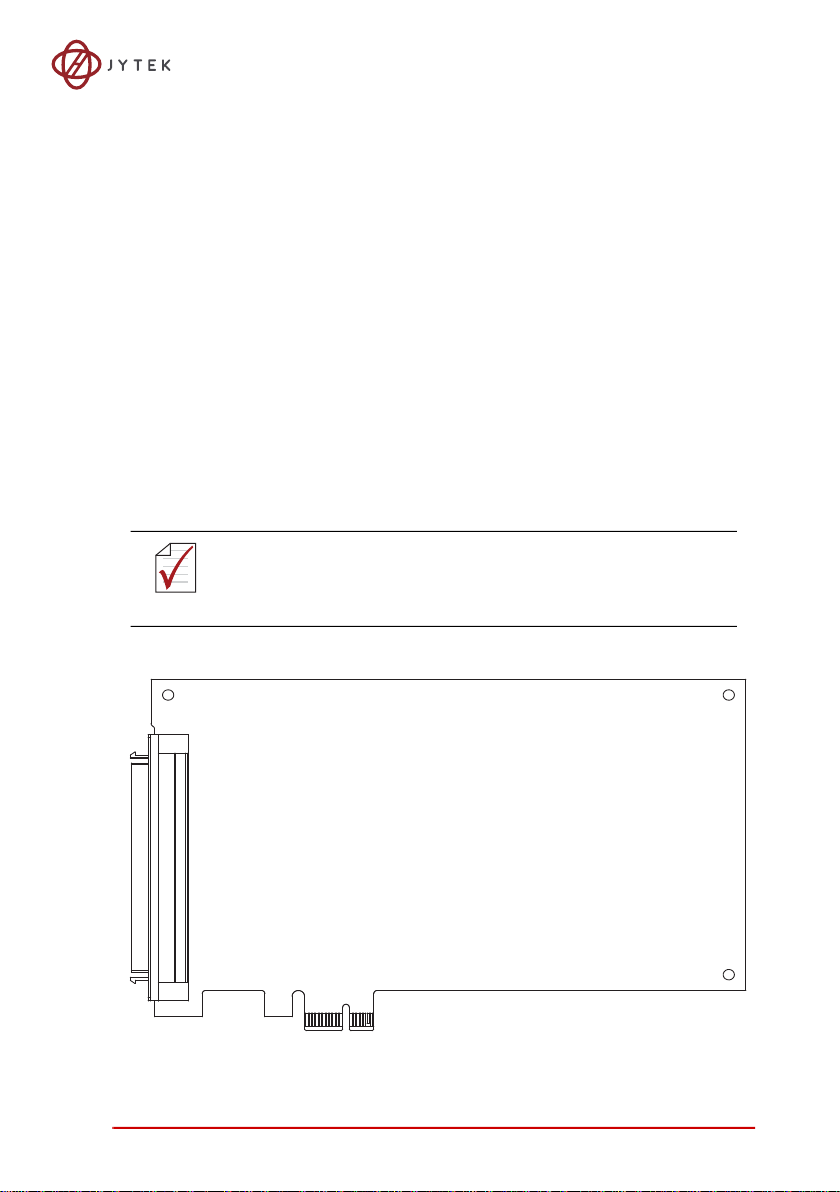

Figure 1-1: PCIe-67432 Board Layout
NOTE:
NOTE:
All dimensions shown are in mm

4 Introduction
1.6 Connectors
The PCIe-67432 is equipped with a 100-pin SCSI connector (CN1).
Figure 1-2: PCIe-67432 CN1 Connector
ID Pin Pin ID
IDI_0 1 51 IDI_8
IDI_1 2 52 IDI_9
IDI_2 3 53 IDI_10
IDI_3 4 54 IDI_11
1
50
51
100

Introduction 5
IDI_4 5 55 IDI_12
IDI_5 6 56 IDI_13
IDI_6 7 57 IDI_14
IDI_7 8 58 IDI_15
COM1 9 59 COM2
COM1 10 60 COM2
COM1 11 61 COM2
COM1 12 62 COM2
IDI_16 13 63 IDI_24
IDI_17 14 64 IDI_25
IDI_18 15 65 IDI_26
IDI_19 16 66 IDI_27
IDI_20 17 67 IDI_28
IDI_21 18 68 IDI_29
IDI_22 19 69 IDI_30
IDI_23 20 70 IDI_31
COM3 21 71 COM4
COM3 22 72 COM4
COM3 23 73 COM4
COM3 24 74 COM4
NC 25 75 NC
IDO_0 26 76 IDO_8
IDO_1 27 77 IDO_9
IDO_2 28 78 IDO_10
IDO_3 29 79 IDO_11
IDO_4 30 80 IDO_12
IDO_5 31 81 IDO_13
IDO_6 32 82 IDO_14
IDO_7 33 83 IDO_15
VDD1 34 84 VDD2
IGND 35 85 IGND
IGND 36 86 IGND
IGND 37 87 IGND
ID Pin Pin ID

6 Introduction
Table 1-1: PCIe-67432 CN1 Pin Assignment
1.7 DI/O Channels
Isolated Digital Input Channels
Isolated digital input has an open collector transistor structure with
voltage range 0V to 24V and input resistance of 2.4kΩ. Connection
between external signals and the PCIe-67432 is as shown in Fig A01.
Since input common junction can be common ground in the environ-
ment, digital input can be either a current source or a current sink.
IDO_16 38 88 IDO_24
IDO_17 39 89 IDO_25
IDO_18 40 90 IDO_26
IDO_19 41 91 IDO_27
IDO_20 42 92 IDO_28
IDO_21 43 93 IDO_29
IDO_22 44 94 IDO_30
IDO_23 45 95 IDO_31
VDD3 46 96 VDD4
IGND 47 97 IGND
IGND 48 98 IGND
IGND 49 99 IGND
V5V 50 100 V5V
ID Pin Pin ID

Introduction 7
Figure 1-3: Isolated Input Connection
Isolated Digital Output Channels
Common ground connection of the isolated digital output is as shown.
When isolated digital output is ON, sink current is through transistors,
and when OFF, none is. When the load is of an inductance nature, such
as a relay, coil or motor, the VDD pin must be connected to an external
power source. The extra connection is utilized for the flywheel diode to
form a current-release closed loop, whereby transistors are protected
from any high reverse voltage generated by the inductance load when
output is switched from ON to OFF.
2.4k
Isolated Input
Signal (source)
COM m
(GND)
Current Dir.
2.4k
Isolated Input
Signal (sink)
COM m
(+VDD)
Current Dir.

8 Introduction

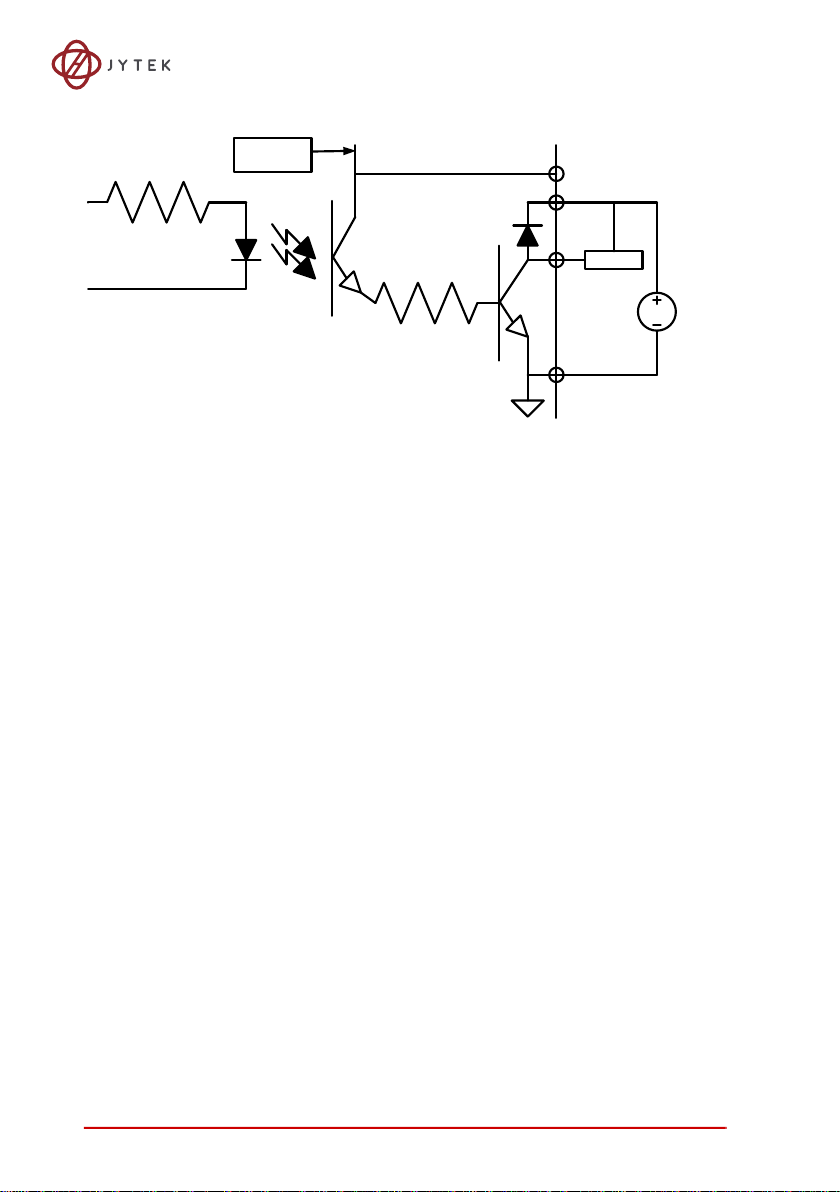

Figure 1-4: Common Ground Connection
Vm
5 to 35V
Load
DC-DC
Converter
IGND

Getting Started 9
2 Getting Started
2.1 Unpacking Checklist
Before unpacking, check the shipping carton for any damage. If the ship-
ping carton and/or contents are damaged, inform your dealer immedi-
ately. Retain the shipping carton and packing materials for inspection.
Obtain authorization from your dealer before returning any product to
JYTEK. Ensure that the following items are included in the package.
PCIe-67432 high-speed DI/O card
If any of the items is damaged or missing, contact your dealer immedi-
ately.
2.2 Installing the Card
Install the card driver before you install the card into your computer sys-
tem. See “Software Support” on page 3. for driver support information.
To install the card:
1. Turn off the system/chassis and disconnect the power plug
from the power source.
2. Remove the system/chassis cover.
3. Select the PCIE Express slot that you intend to use, then
remove the bracket opposite the slot, if any.
4. Align the card connectors (golden fingers) with the slot, then
press the card firmly until the card is completely seated on
the slot.
5. Secure the card to the chassis with a screw.
6. Replace the system/chassis cover.
7. Connect the power plug to a power source, then turn on the
system.
CAUTION:
The card must be protected from static discharge and physical shock.
Never remove any of the socketed parts except at a static-free work-
station. Use the anti-static bag shipped with the product to handle
the card. Wear a grounded wrist strap when servicing.

10 Getting Started
Configuration
All PCI/PCIE Express cards on your system are configured individually.
Because configuration is controlled by the system and the software, no
jumper setting is required for base address, DMA, and interrupt IRQ.
Configuration is subject to change with every boot of the system as new
PCI/PCIE Express® cards are added or removed.
Troubleshooting
If your system fails to boot or if you experience erratic operation with
your PCI/PCIE Express card in place, an interrupt conflict may have been
generated (such as when the BIOS Setup is incorrectly configured).
Refer to the system’s BIOS documentation for details.
