K-Best Technology BL4001 User manual

-2
-
Copyright
Copyright © 2004 all rights reserved. No part of this publication may be reproduced,
adapted, stored in a retrieval system, translated into any language, or transmitted in any
form or by any means without the written permission of the supplier.
About This Manual
The purpose of this manual is for the setup of the 11Mbps Wireless LAN ODU. This
manual, revised as version 4.0.3 in 2004, includes procedures assisting you in avoiding
unforeseen problems.
Technical Support
If you have difficulty resolving the problem while installing or using the Wireless LAN
ODU, please contact the supplier for support.

-3
-
FCC Notice
FCC Certified Declaration:
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) This device may not cause harmful
interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
Reminder:
To comply with FCC part 15 rules, the ODU must only be used as a
system as FCC certified. The system must also be professionally installed
to ensure compliance with the Part 15 certification. It is the responsibility
of the operator and professional installer to ensure that only certified
systems are deployed in where FCC rules apply. Further, according to
FCC Part 15 regulations, Section 15.247(b)(3)(iii), the installer must
ensure that the high-gain directional antenna used in this system is used
exclusively for fixed, point-to-point operations and that multiple
co-located intentional radiators transmitting the same information are
not used. For further information, please see Appendix B.
Notice :
The changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate the
equipment.
IMPORTANT NOTE:
To comply with FCC RF exposure compliance requirements, the
antenna(s) used for this transmitter must be installed to provide a
separation distance of at least 2 meters from all persons and must not
be co-located or operating in conjunction with any other antenna or
transmitter. No change to the antenna or the device is permitted. Any
change to the antenna or the device could result in the device exceeding
the RF exposure requirements and void user’s authority to operate the
device.

-4
-
Table of Contents
Chapter 1 Introduction..........................................................................5
1-1 Features and Benefits............................................................................. 5
1-2Applications.......................................................................................... 6
1-3 System Configurations........................................................................... 7
Chapter 2 Hardware Installation.........................................................8
Chapter 2 Hardware Installation.........................................................9
2-1 Product Kit............................................................................................ 9
2-2 System Requirements ............................................................................. 9
2-3 Mechanical Description....................................................................... 10
2-4 Hardware Installation.......................................................................... 11
Chapter 3 Configuring the ODU........................................................12
3-1 Configuration...................................................................................... 12
3-2 Using the Web Management................................................................. 25
3-3 Using the Telnet................................................................................... 29
Appendix A: Channels................................................................................ 36
Appendix B: FCC Certified Systems........................................................... 37
Appendix C: Troubleshooting..................................................................... 38

-5
-
Chapter 1 Introduction
The Outdoor wireless LAN device –11Mbps Wireless Outdoor Unit, are specially designed
for Point-to-Point and Point-to-Multipoint applications, offering long distance connections
between buildings at a speed of up to 11Mbps. Fully compliant with IEEE802.11b standard,
the Outdoor Unit (ODU) providespowerful features such as the Windows-based
configuration utility, MAC address filtering, WEP security, 802.1x authentication and more.
1-1 Features and Benefits
nCreates a Point-to-Point connection linking two LANs, using 2 Indoor Units or Indoor
and Outdoor total solutions.
nCreates a Point-to-Multipoint system using three or more Indoor Units or Indoor and
Outdoor total solutions.
nDetachable antenna allows you for the use of external high gain antenna.
nWith a data rate of 11Mbps and 5.5Mbps, the system is faster than an E1/T1 data link.
nFeatures 11Mbps data rate by incorporating Direct Sequence Spread Spectrum
technology.
nFully IEEE 802.11b compatible. Allow inter-operation among multiple vendors.
nTechnique operating in the unlicensed 2.4GHz ISM band.
nSeamless roaming within the 802.11 & 802.11b wireless LAN infrastructure.
nProvides user authentication to enforce tight security.
nMAC address Access Control.
nBandwidth control
nAdvanced Security —802.1x authentication (EAP)
nProvides Window-based configuration utility.
nWaterproof housing

-6
-
1-2Applications
The 11Mbps Wireless LAN ODU offersa fast, reliable, cost-effective solution for wireless
client access to the network in applications like these:
1. Remote Access to Corporate Network Information
E-mail, file transfer and terminal emulation.
2. Difficult-to-Wire Environments
Historical or old buildings, asbestos installations, and open area where wiring is difficult
to deploy.
3. Frequently Changing Environments
Retailers, manufacturers and those who frequently rearrange the workplace and change
location.
4. Temporary LANs for Special Projects or Peak Time
C1-Trade shows, exhibitions and construction sites where a temporary network will be
practical.
C2-Retailers, airline and shipping companies need additional workstations during peak
period.
C3-Auditors requiring workgroups at customer sites.
5. Access to Database for Mobile Workers
Doctors, nurses, retailers, accessing their database while being mobile in the hospital,
retail store or office campus.
6. High Security Connection
The secure wireless network can be installed quickly and provide flexibility. (Please
refer to page 16 for more information on encryption configuration.)

-7
-
1-3 System Configurations
The 11MbpsWireless LAN ODU can be configured in a variety of network system
configurations.
Wireless Infrastructure
In a wireless infrastructure, the ODU can act as a bridge. The ODU connects the wireless
clients together. The ODU acts as a center point for all wireless communications. This
would increase efficiency of the communications since the wireless adapters do not need to be
within direct range of each other.
Wireless Infrastructure with Stations Attaching to a Wired LAN
The 11Mbps Wireless LAN ODU will provide an access to the local LAN. An integration of
wireless and wired LAN is called an Infrastructure configuration. A group of wireless LAN
PC users and an ODU construct a Basic Service Set (BSS). Each wireless PC in this BSS
can talk to each other on your network via the ODU.

-8
-

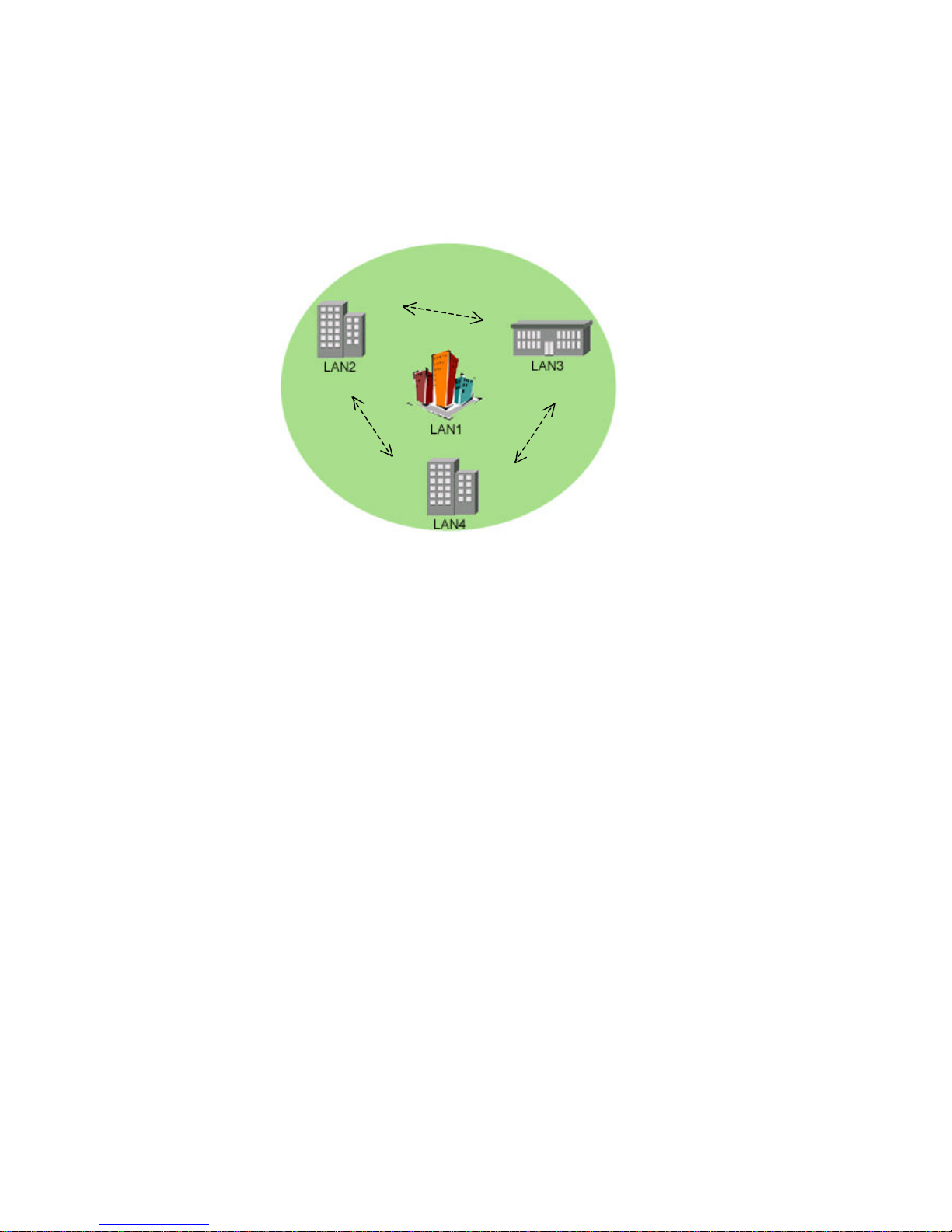

Point-to-Point/Point-to-Multipoint Connection
The 11Mbps Wireless ODU provides ideal bridging solution for inter-building LANs
connection. In an inter-building application, the 11Mbps ODU acts as a repeater, thus
expanding and connecting corporate LANs with reliable and high speed connection.

-9
-
Chapter 2 Hardware Installation
This chapter describes initial setup of the Wireless LAN ODU subsystem.
2-1 Product Kit
Before installation, make sure that you the following items:
u11Mbps Wireless LAN ODUKit…………..…………… .……..x 1
uPower over Ethernet………………………………….…………x 1
uPower Adapter……………………………….…….……………x1
uPower Cord………………………………………………………x1
uMounting kit..……………………………….…………………...x 1
uProduct CD………………………………………………………x1
uQuick Installation Guide……………………………….……….x 1
NOTE:If any of the above items are missing or damaged, please contact your local dealer for
support.
2-2 System Requirements
Installation of the 11Mbps Wireless LAN ODU requires:
1. ADC 12V adapter which supplies the power for the PoE (Power over Ethernet).
2. A 10/100 Base-T (UTP) Ethernet cable drop.
3. Operating system support: Windows 98/Me/NT4.0(SP4 or above)/2000/XP

-10
-
2-3 Mechanical Description
ODU:
LED Indicator
Model name LED Indicator
BL4001 Power
BL4002/ BL4003 Power/ Tx/ Rx
Waterproof RJ-45 connector
Connect to the POE with SFTP cable.
N-type connector
Connect to the antenna by the RF cable. The maximum RF cable length depend on the loss of
the RF cable.
SFTPCable
This cable is attached to the ODU. The default SFTP cable length is 25 meter.
RJ-45 connector(To POE)
LED Indicator
N-type connector

-11
-
2-4 Hardware Installation
Take the following steps to set up your ODU.
nConnect the Ethernet Cable
The 11Mbps Wireless LAN ODU supports 10/100M Ethernet connection. Connect the
SFTP cable from the ODU to the RJ-45 connector of PoE (marked “To ODU”) for ODU
connection.Then connect the other end of the POE with straight RJ-45 cable to a hub or a
switch. Please note that, use the cross-over cable when you desire to connect the PoE
of ODUto a PC.
nConnect the Antenna
In ODU connection, you can connect antenna to the N-type connector of ODU by RF
cable.
nConnect the Power Cable
Connect DC 12Vadapter to the PoE, and plug the other end of the adapter into an
electrical outlet.
NOTE:Only use the power adapter supplied with the PoE of ODU. Otherwise, the product
may be damaged.

-12
-
Chapter 3 Configuring the ODU
The 11Mbps Wireless LAN ODU is shipped with default parameters, which will be suitable
for the typical Point-to-Point and Point-to-Multipoint. You can still adjust configuration
settings depending on how you would like to manage your wireless network. The 11Mbps
Wireless ODU allows for configuration either via the configuration utility, known as Access
Point Manager, TCP/IP (Telnet) connection or Web Management.
3-1 Configuration
Installed on your Windows 95/98/NT/ME/2000/XP desktop computer, the Windows-based
utility “Access Point Utility” provides a user-friendly interface. The ODU Utility enables
you to configure all of your ODUs on the network more easily than ever before. The
following gives instructions guiding you through the installations of the ODU Utility.
1. Insert the Product CD-ROM disk that came with your product kit into the corresponding
drive on your computer.
2. From the Start menu on the Windows desktop, choose Run.
3. In the Run dialog box, type the path where the utility is located, then click OK.
4. Follow the on-screen instructions to install the Access Point Utility.
5. Upon completion, go to Program Files and execute the Access Point Utility. It will begin
to browse all the ODU available on the network.

-13
-
6. Double click Access Point icon to access its property dialog box. Enter the password in
the entry field. The default password is “default”.
7. After entering the correct password, a configuration window appears. You will see the
basic information of the ODU, such as MAC Address, Frequency Domain and Firmware
Version.
MAC Address: It is a hardware identification number that distinguishes the unit from others.
Frequency Domain: The regulated operating frequency per country.
Firmware Version: Displays the firmware version that is equipped with your hardware.

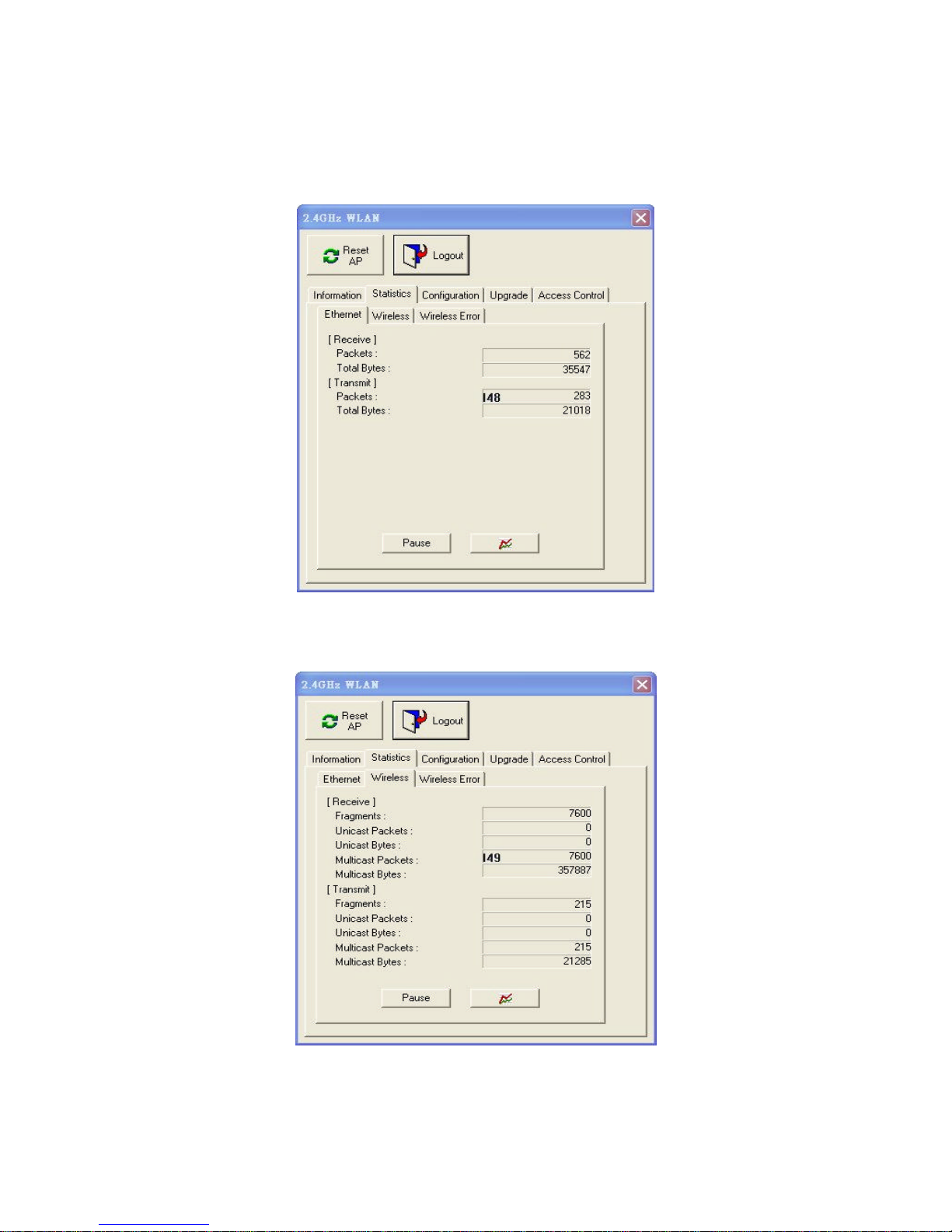

Statistics
The statistics tab contains three of the following items for you to monitor the Ethernet and

-14
-
Wireless network traffic.
Ethernet:
You may monitor the TX/RX on the wired network.
Wireless:
You may monitor the TX/RX of the wireless network.

-15
-

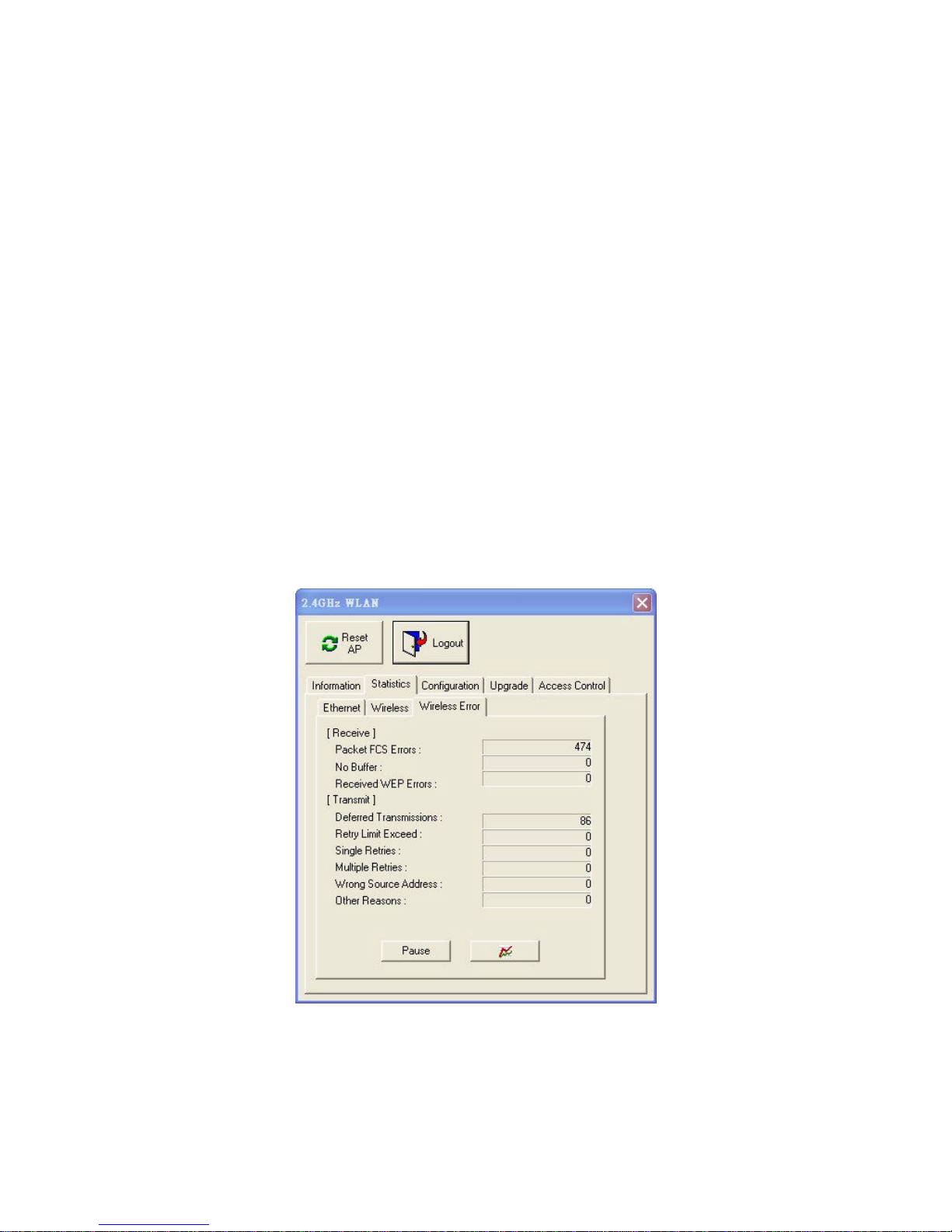

Wireless Error:
This item offers detailed information on error wireless packets that the ODU receives and
transmits.
Receive:
Packet FCS Errors: The number of wireless packets that fail during FCS transmission (Frame
Check Status when accessing the wired network.
No Buffer: The number of wireless packets that the ODU ignores due to insufficient memory.
Received WEP Errors: The number of wireless packets that have WEP encryption errors.
Transmit:
Deferred Transmission: The number of packets that have deferred transmission due to the fact
that the medium is busy.
Retry Limit Exceed: The number of packets that are not sent due to the reason that the packets
exceed the retry limits.
Single Tries: The number of packets that are successfully sent on the first retry.
Multiple Retries: The number of packets that are successfully sent after several retries.
Wrong Source Address: The number of packets that are ignored by the ODU because the
source client is not in its BSS.
Other reasons: Other reasons that cause errors.

-16
-
Configuration
The configuration tab contains 5 following items for you to make changes for the ODU.
General:
AP name: In this entry field, you may enter any name. This will enable you to manage your
ODU with more ease if you have multiple ODU on the network.

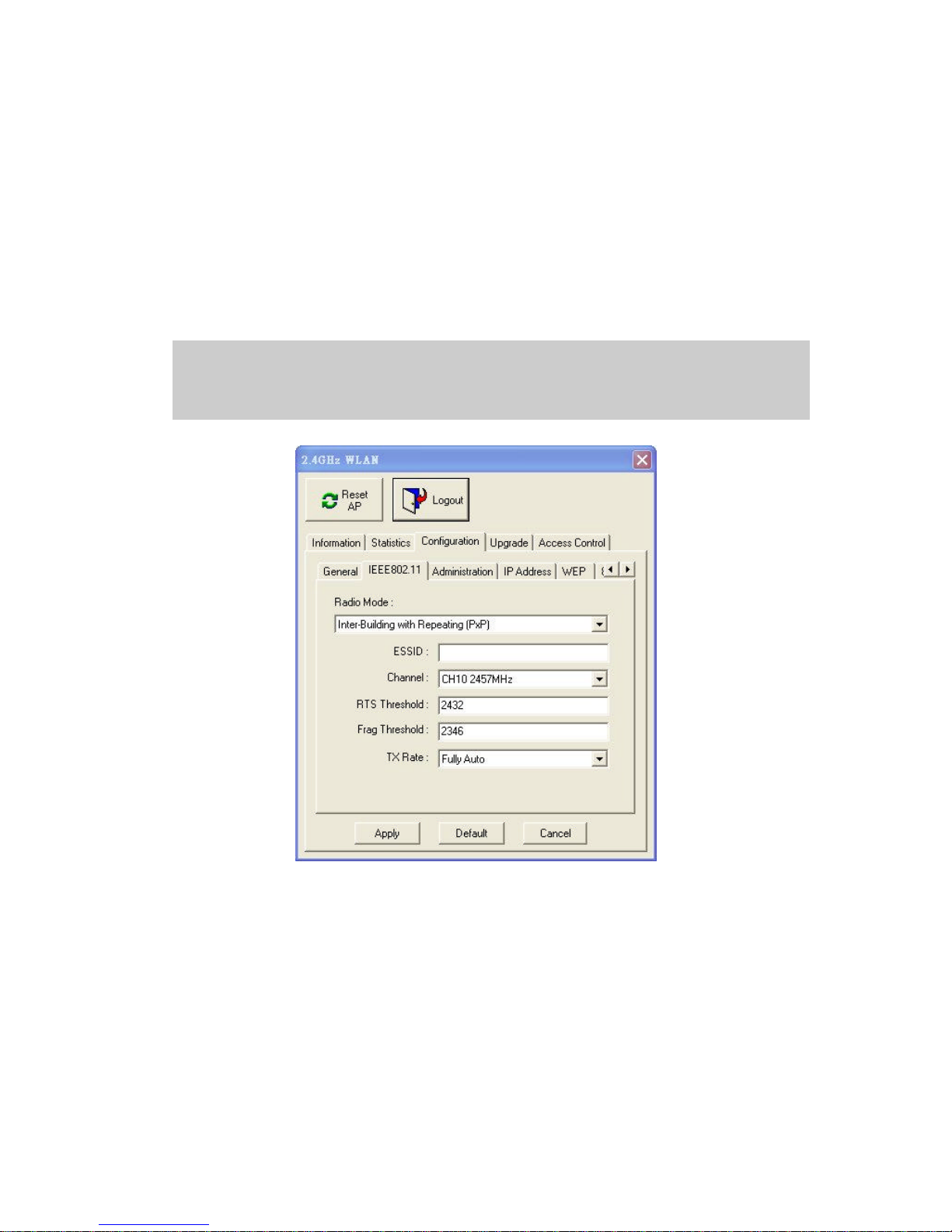

IEEE802.11:
Radio Mode: The Wireless LAN ODU can operate total of 5 radio modes:
ØWireless LAN Access Point (AP): Enables the ODU to act as a wireless bridge
connecting to your network backbone.
ØInter-building with Repeating (PxP): Allows for multi-point connection among LANs
(default setting).
ØStation Adapter –Infrastructure (SAI): Served as a wireless station (infrastructure).

-17
-
Connect the ODU (SAI) to a PC with a cross over RJ-45 cable, and it is able to access
the network via ODU.
ØStation Adapter –Ad-Hoc (SAA): Served as a wireless station (Ad-hoc). Connecting to
a PC with a cross-over RJ-45 cable, the station adapter along with other wireless stations
can establish a small wireless network without ODUs.
ØStation Adapter –802.11 Ad-Hoc (SAA2): Similar to SAA, the ODU acts as a wireless
stations (Ad-Hoc). The only difference is that this Ad-Hoc mode complies with 802.11
standard.
NOTE: When setting the operation mode to either PxPor SAA, you need to set the ODU
with the same channel. ESSID however can be ignored. When the SAA2 is selected,
you need to set the ODU the same ESSID and channel.
ESSID: The ESSID is a unique ID given to the ODU. Wireless clients associating to the
ODU must have the same ESSID. The ESSID can have up to 32 characters.
Channel:You may select any of the available channels as an operational channel for your
ODU. You may use the Site Survey tool came with the wireless PC Card utility to monitor
each channel and choose a channel with good quality.
RTS Threshold:RTS Threshold is a mechanism implemented to prevent the “Hidden
Node” problem. “Hidden Node” is a situation in which two stations are within range of the
same ODU, but are not within range of each other. Therefore, they are hidden nodes for
each other. When a hidden station starts data transmission with the ODU, it might not notice

-18
-
that another station is already using the wireless medium. When these two stations send data
at the same time, they might collide when arriving simultaneously at the ODU. The collision
will most certainly result in a loss of messages for both stations. Thus, the RTS Threshold
mechanism will provide the solution to prevent data collisions. When the RTS is activated,
the station and its ODU will use a Request to Send/Clear to Send protocol (RTS/CTS). The
station will send an RTS to the ODU, informing that it is going to transmit the data. Upon
receipt, the ODU will respond with a CTS message to all station within its range to notify all
other stations to defer transmission. It will also confirm to the requesting station that the ODU
has reserved the channel for transmission.
Fragmentation Threshold:Fragmentation mechanism is used for improving the efficiency
when there is high traffic within the wireless network. If you transmit large files in a
wireless network, you can enable the Fragmentation Threshold and specify the packet size.
The mechanism will split the packet into the packet size you set.
TX Rate: When the ODU is under PXP, SAI, SAA, and SAA2, it provides various data rate
options for you to select. Data rates options include Fully Auto, Fixed 1Mb/s, Fixed 2Mb/s,
Auto Select 1M or 2M, Fixed 5.5Mb/s, and Fixed 11Mb/s.In most networking scenarios,
you will see that the factory-set default “Fully Auto”will prove the most efficient. This
setting will allow your 11Mbps Wireless LAN ODU to operate at the maximum data rate as
possible. When the communications quality drops below a certain level, the ODU will
automatically switch to a lower data rate. Transmission at lower data speeds is usually more
reliable. However, when the communications quality improves again, the 11Mbps Wireless
LAN ODU will gradually increase the data rate again, until it has reached the highest
available transmit rate.

-19
-

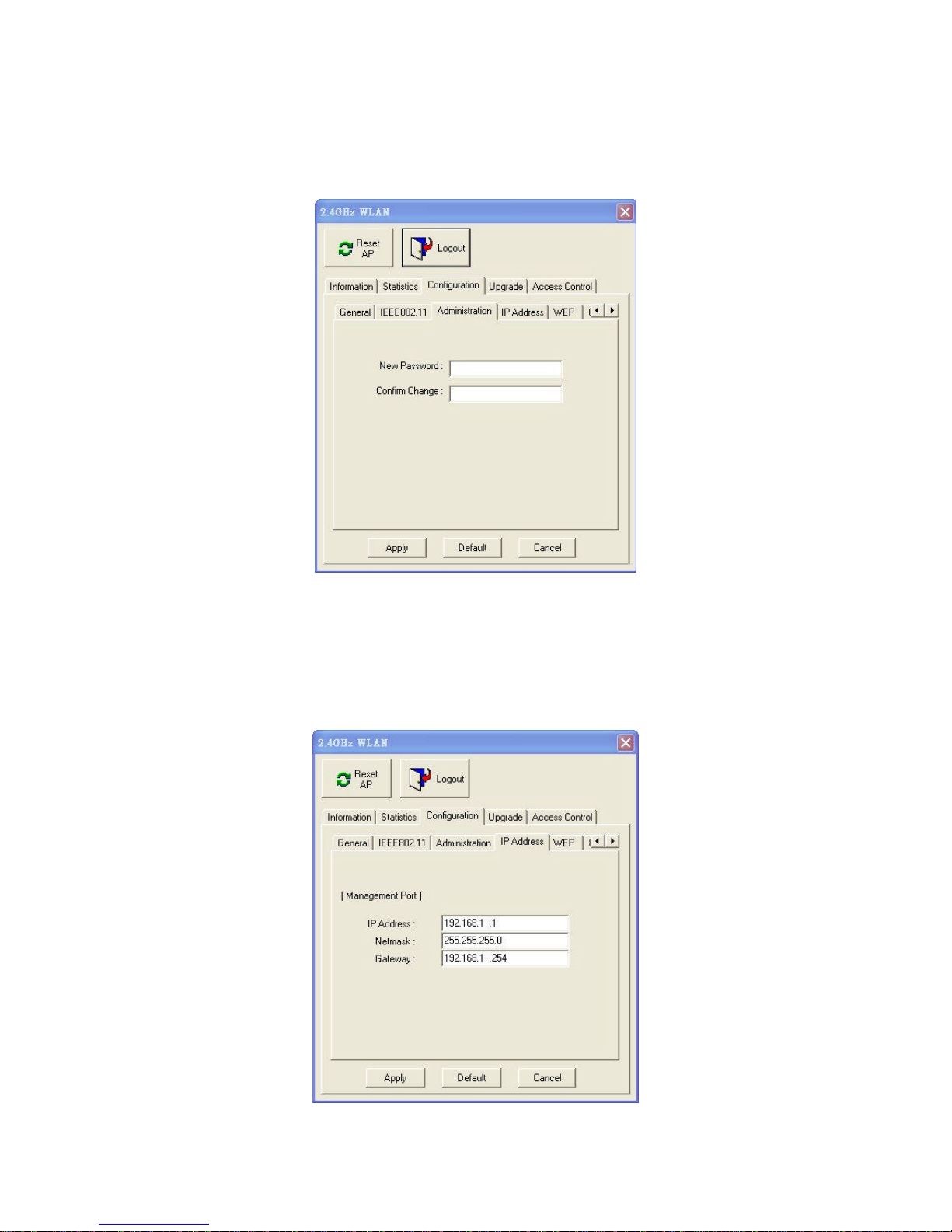

Administration:
You may change the default password by entering the new password. Enter the new
password in the Confirm Change field to make the new setting take affect.
IP Address:
To enable remote access to the ODU using Telnet or Web Management, you must assign an IP
address to the ODU. You may also assign other related Internet addressing options, such as
subnet mask or gateway address. Consult your network administrator to obtain an available
IP address. (Default setting is 192.168.1.1)
WEP:

-20
-
If data transmission with high security is required on your network, it is recommended that
the WEP encryption be used. To activate the WEP encryption, select Configuration, go to the
WEP tab, and do the following:
Pull down the WEP Encryption menu and select WEP64 or WEP128.
You may identify up to 4 different encryption keys and select one of them to encrypt your
transmission data. The key value of your choice may either be:
From the 4 Key entry field, enter the corresponding key value for each encryption method.
For WEP64 data encryption:
-- 5 alphanumeric characters in the range of “a-z”, “A-Z” and “0-9” (e.g. MyKey).
-- 10 digit hexadecimal values in the range of “A-F” , “a-f” and “0-9”, preceded by the
characters “0x” values (e.g. 0x11AA22BB33).
For WEP128 data encryption:
-- 13 alphanumeric characters in the range of “a-z”, “A-Z” and “0-9” (e.g. MyKey12345678).
-- 26 digit hexadecimal values in the range of “A-F” , “a-f” and “0-9”, preceded by the
characters “0x” values (e.g. 0x00112233445566778899AABBCC).
WEP64 Key Setting
