Kärcher Professional B60/10CB User manual

Read these instructions before using the machine.
86390990-L
08/07/15
Operating instructions (ENG)
MODELS:
B60/10CB
1.006-701.0
B60/10CP
1.006-707.0
B60/10CD
1.006-708.0
WARNING:
This product and accessories may contain a chemical known to the
State of California to cause cancer and birth defects or other
reproductive harm.
For more information about this regulation: www.P65Warnings.ca.gov

286390990 B60/10C ECO
Machine Data Label
Overview
The B60/10C is a hard floor cleaning machine intended for commercial use. This appliance applies a
cleaning solution to the floor and then pumps the soiled water back into the recovery bucket.
Warranty Registration
Thank you for purchasing a Kärcher product. Warranty registration is quick and easy.
Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to :
www.karchercommercial.com/WarrantyRegistration.aspx
For customer assistance:
1-888-805-9852

3
Table of Contents
Machine Data Label . . . . . . . . . . . . . . . . . . . . . . . . . .2
Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3
How To Use This Manual . . . . . . . . . . . . . . . . . . . . .4
Safety
HAZARD INTENSITY LEVEL . . . . . . . . . . . . . . . . . .7
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Operations
Machine Operation . . . . . . . . . . . . . . . . . . . . . . . . .10
Chemicals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

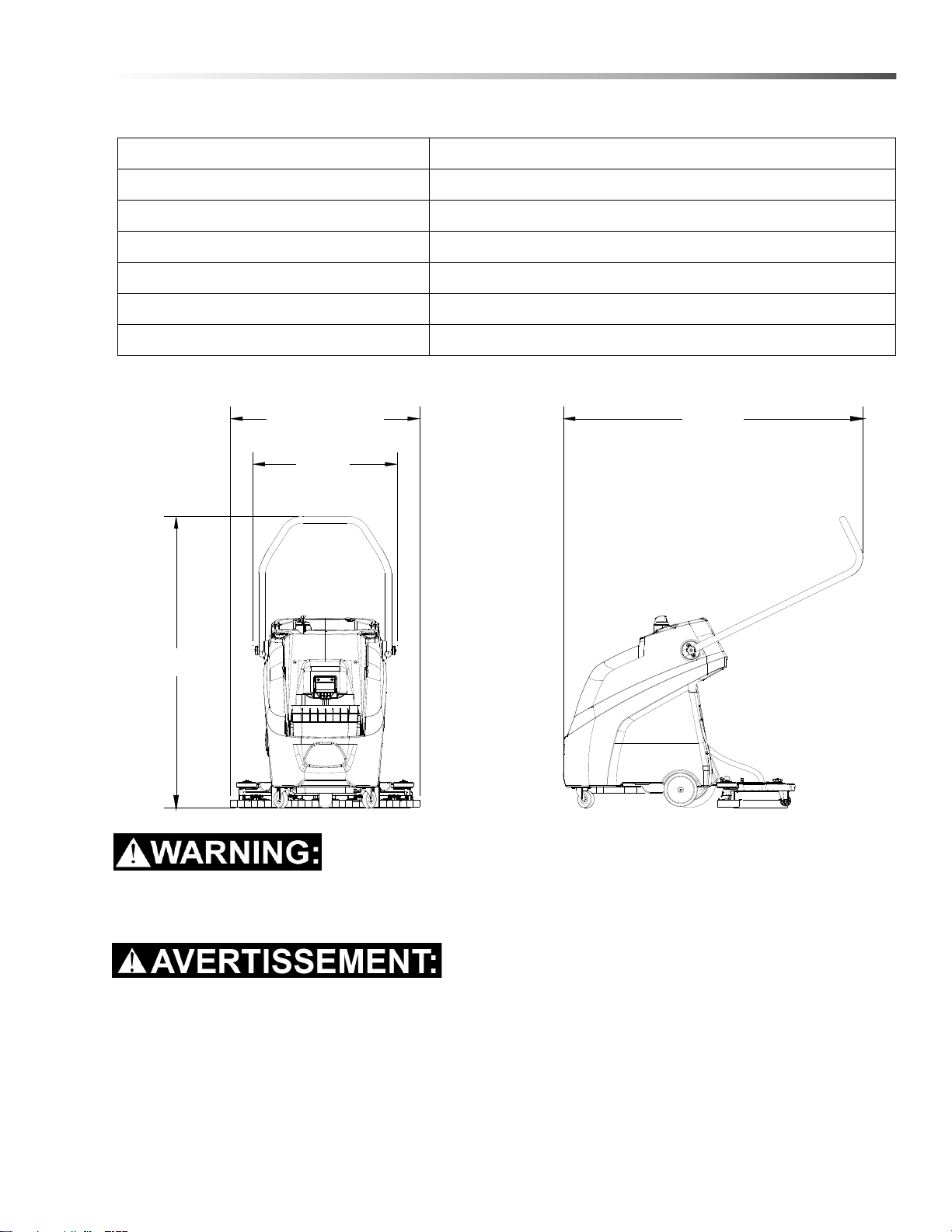

Technical Specifications . . . . . . . . . . . . . . . . . . . . .11
How This Machine Works . . . . . . . . . . . . . . . . . . . .12
Pre-Run Inspection . . . . . . . . . . . . . . . . . . . . . . . . .13
Equipment Set-up . . . . . . . . . . . . . . . . . . . . . . . . . .13
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Maintenance
Periodic Maintenance . . . . . . . . . . . . . . . . . . . . . . .16
Daily/Regular Maintenance. . . . . . . . . . . . . . . . . . .16
Pad Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Squeegee Installation . . . . . . . . . . . . . . . . . . . . . . .18
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . .19
Options Installation
Front Bucket Bracket . . . . . . . . . . . . . . . . . . . . . . .22
Accessory Holder . . . . . . . . . . . . . . . . . . . . . . . . . .24
Accessory Hook . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Wringer Bracket . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Parts
Decals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Deck - Lift . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Deck - Squeegee . . . . . . . . . . . . . . . . . . . . . . . . . 34
Handle and Bucket . . . . . . . . . . . . . . . . . . . . . . . . 36
Recovery - Pump . . . . . . . . . . . . . . . . . . . . . . . . . 38
Recovery - Wheel & Pump Mounting . . . . . . . . . . 40
Solution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Models with Options
1.006-706.0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
1.006-707.0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
1.006-708.0. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Suggested Spare Parts. . . . . . . . . . . . . . . . . . . . . 54
Serial Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
86390990 B60/10C ECO

4
How To Use This Manual
This manual contains the following sections:
• How to Use This Manual
•Safety
• Operations
• Maintenance
•PartsList
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.
The model and serial number of your machine is
located on the back of the machine.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive main-
tenance to keep the machine and its components in
good working condition. They are listed in this general
order:
• Periodic Maintenance
• Daily/Regular Maintenance
• Pad Installation
• Squeegee Installation
• Troubleshooting
The PARTS LIST section contains assembled parts
illustrations and corresponding parts list. The parts lists
include a number of columns of information:
•REF – column refers to the reference number
on the parts illustration.
•PART NO. – column lists the part number for
the part.
•PRV NO. – reference number.
•QTY – column lists the quantity of the part used
in that area of the machine.
•DESCRIPTION – column is a brief description
of the part.
•SERIAL NO. FROM – If this column has an (*)
and a Reference number, see the SERIAL
NUMBERS page in the back of your manual. If
column has two asterisk (**), call manufacturer
for serial number. The serial number indicates
the first machine the part number is applicable
to. The main illustration shows the most current
design of the machine. When a boxed illustra-
tion is shown, it displays the older design.
•NOTES – column for information not noted by
the other columns.
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement parts
numbers needed for ordering future parts.
NOTE: The manual part number is located on the
lower left corner of the front cover.

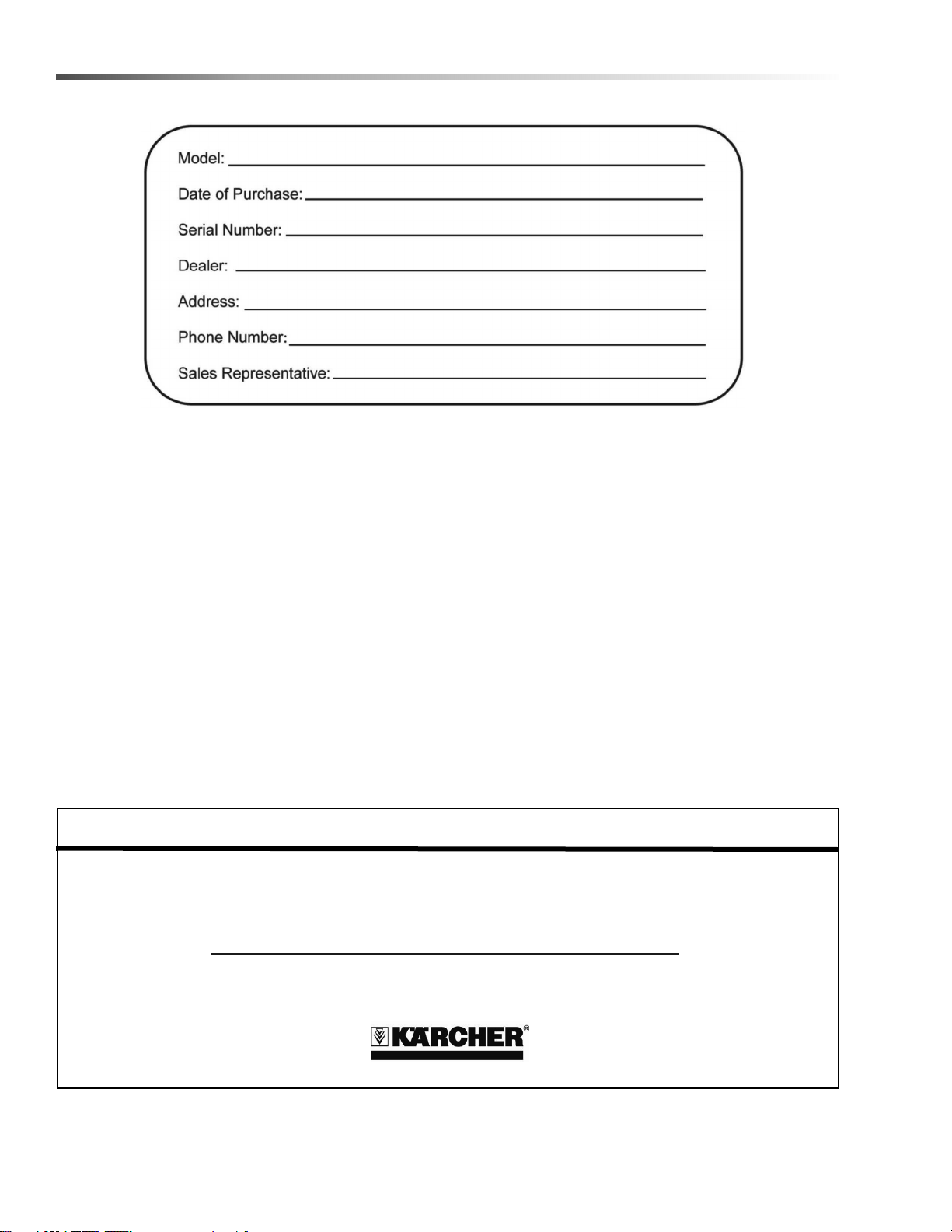

Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
86390990 B60/10C ECO

5
Safety
IMPORTANT SAFETY INSTRUCTIONS
When using this machine, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of injury:
During operation, attention shall be paid to other persons, especially children.
Use only as described in this manual. Use only manufacturer's recommended components and attachments.
If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into water, return it to
an authorized service center.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is intended for cleaning hard floors only.
This machine is not suitable for picking up health endangering dust.
Do not operate this machine near flammable fluids, dust or vapors.
This machine is suitable for commercial use, for example in hotels, schools, hospitals, factories, shops and offices
for more than normal housekeeping purposes.
Maintenance and repairs must be done by qualified personnel.
READ AND SAVE THESE INSTRUCTIONS
86390990 B60/10C ECO

6
Safety
IMPORTANTES MESURES DE SÉCURITÉ
L'utilisation d'un appareil électrique demande certaines précautions:
LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER (CET
APPAREIL).
Pour réduire les risques d'incendie, de chocs électriques, ou de blessures.
Durant la manoeuvre de la machine, prendre garde aux personnes environnantes et notamment aux enfants.
N'utiliser cette machine que comme décrit dans le présent manuel. N'utiliser que les composants et les accessoires
conseillés par le fabricant.
Lorsque la machine ne fonctionnant pas correctement, a fait l'objet d'une chute ou d'une détérioration, a été laissée
à l'extérieur, est tombée dans l'eau, la retourner au centre de service agréé.
Ne pas opérer la machine lorsque les conduits de ventilation sont bloquées. Débarrasser les débris des conduits,
car ils peuvent réduire l'écoulement d'air.
Cette machine est conçue pour le nettoyage des sols durs uniquement.
Cette machine n'est pas adaptée au ramassage de poussières dangereuses.
Ne pas l'utiliser près de liquides, de poussières ou de vapeurs inflammables.
Cette machine est destinée à un usage commercial. Elle est recommandée davantage pour les domaines hôtelier,
scolaire, hospitalier, industriel ou pour les bureaux, les chaînes de magasin, que pour un usage domestique
normal.
L'entretien et les réparations de la machine doivent être effectuées par un personnel qualifié.
CONSERVER CES INSTRUCTIONS
86390990 B60/10C ECO

7
Safety
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property damage.
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the equip-
ment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the
machine. Please take the necessary steps to train the machine operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine.
Use only manufacturer approved replacement parts.
86390990 B60/10C ECO

8
Safety
Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions:
DEGRÉS DE RISQUES EN CAS DE DANGER
Il existe trois degrés de risques identifiés par les termes signalétiques -AVERTISSEMENT et ATTENTION et POUR
VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante:
AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou
entraîner la mort.
ATTENTION - Dangers ou méthodes dangereuses qui pourraient provoquer des blessures légères ou une détério-
ration du produit ou des biens immobiliers.
POUR VOTRE SÉCURITÉ: ce signe permet d'identifier les mesures de précaution à prendre pour assurer
un bon fonctionnement du matériel.
Rendre compte immédiatement d'une défaillance ou d'une détérioration de la machine. Ne pas utiliser la machine
si celle-ci ne fonctionne pas correctement. Lire soigneusement les informations ci-dessous signalant certains
dangers potentiels pour l'opérateur de la machine. L'opérateur doit être absolument au courant de ces dangers
potentiels. Localiser tous les dispositifs de sécurité sur la machine. Il est conseillé de prendre les mesures néces-
saires pour former le personnel opérateur.
POUR VOTRE SÉCURITÉ:
NE PAS MANOEUVRER LA MACHINE:
Lorsqu'on n'est pas expérimenté ou qualifié.
Lorsque le guide d'utilisation n'est pas été lu ou compris.
Dans des zones inflammables ou explosives.
Dans des zones où des objets peuvent tomber.
LORS DE L'ENTRETIEN DE LA MACHINE:
Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des
vêtements avec manches lors de l'utilisation de la machine. Utiliser les pièces détachées homologuées.
86390990 B60/10C ECO

9
Safety
Safety Labels
NOTE: These drawings indicate the location of safety labels on the machine. If at any time the labels become
illegible, promptly replace them.
EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ
REMARQUE: Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment,
les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement rapide.
86390990 B60/10C ECO
WARNING LABEL
P/N 86335010

10
Operations
Machine Operation
Care must be exercised in the use of all chemicals.
Chemicals are poisonous and can pose a health risk.
Read and follow manufacturer’s instructions regarding
dangers and correct usages.
Les précautions appropriées doivent être prises lors de
l'utilisation de tous les produits chimiques. Les produits
chimiques sont toxiques et peuvent poser un risque
pour la santé. Lire et suivre les instructions du fabricant
concernant les dangers et les usages adéquats.
Chemicals
Suitable Chemicals
• Alkalis
• Detergents
• Hydroxides
•Soaps
• Vinegar
Non-Compatible
• Aldehydes
• Aromatics Hydrocarbons
• SP Butyls
• Carbon Tetrachloride
• Chlorinated Hydrocarbons
•Lysol*
• Methyl Ethel Ketone (MEK)
• Perchorethylene (perc)
• Phenolics
• Trichlorethylene
• D-Limonene
*Registered Trademark
Only use chemicals approved for use with this
machine. Use of non-compatible chemicals may cause
machine damage and will not be covered under the
warranty. Carefully read ingredients on manufacturer’s
label before using any product in this machine.
NOTE: Do not use machine to recover floor finish.
86390990 B60/10C ECO

11
Operations
Technical Specifications
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety
Cet appareil n'est pas destiné à être utilisé par des gens (notamment des enfants) dont les capacités physiques,
sensorielles ou mentales sont réduites, ou qui manquent d'expérience ou de connaissance, sauf s'ils ont été
formés et encadrés pour l'utilisation de cet appareil par une personne responsable de leur sécurité.
ITEM MEASURE
Solution Capacity 2.3 Gal 8.7Lt
Recovery Capacity 2.3 Gal 8.7Lt
Height 42.5 inches 1080MM (Handle adjusted to highest position)
Length 43.5 inches 1105MM (Handle adjusted to highest position)
Width without Deck 21.5 inches 546MM
Width of Deck 28 inches 711MM
Length
Height
Width of Deck
Width
86390990 B60/10C ECO

12
Operations
How This Machine Works
The B60/10C is a manually propelled hard floor cleaner
intended for commercial use. The B60/10C applies a
cleaning solution onto a hard floor, scrubs the floor with
a scrub pad, and pumps the soiled solution into the
recovery bucket.
The B60/10Cs primary systems are the Solution
System and the Recovery System.
The function of the Solution System is to store solution
and deliver it to the floor. The Solution System consists
of the solution tank, the solution valve and the scrub
pad. Solution flows from the solution tank through the
manually operated solution valve and onto the scrub
pad to clean the floor
The function of the Recovery System is to pump the
soiled solution from the floor to the recovery bucket.
The recovery System consists of the squeegee, the
recovery pump, and the recovery bucket. The recovery
pump is driven off the B60/10Cs rear center wheel, and
is pumping whenever the wheel is moving. The
squeegee channels the soiled solution to the rear
center of the scrub deck below the recovery pump
pickup plate. When adequate solution is under the
pickup plate the pump will pull the solution through the
recovery hose and deposit the solution into the
recovery bucket.
86390990 B60/10C ECO

13
Operations
Pre-Run Inspection
1. Check all fittings and connectors for proper assembly.
2. Check all hoses for leaks. Repair or replace any damaged hoses.
Equipment Set-up
1. Using a clean container, fill the solution tank with clean hot water. The machine is equipped with two fill ports.
A large covered port on the side of the machine and a smaller uncovered port on the top of the machine.
When using the upper fill port, fill only until water reaches the full level mark on tank. Do not use water over
130°F.
2. Mix in cleaning concentrate, following manufacturer’s instructions printed on container.
NOTE: When using a powder cleaner, pre-mix with hot water in a clean container before adding to the solution
tank.
3. Install 3M Easy Trap Strip on scrub pad (Recommended).
• Place the 3M Easy Trap Strip material on top of the white pad so that the edge does not overlap the
squeegee blade. If the 3M Easy Trap Strip material is taken from the bulk roll, be sure to use only 5
segments of material for each application.
• Fold/wrap material over front edge of pad and hook material on the 5 plastic flippers to hold material in
place.
86390990 B60/10C ECO

14
Operations
Cleaning
1. Pre-sweep area to be cleaned to remove debris.
2. Lower deck to the floor.
3. Turn solution knob to open solution valve to desired flow rate. Solution will begin flowing as soon as knob is
turned from “Off” position.
4. Push machine at normal walking pace. Clean solution should be seen flowing from hose on top of the deck
after pushing the B60/10C 30-50 feet. Recovered solution should be seen flowing through hose located near
the center of the deck
5. When the solution tank is empty or cleaning is complete, turn the solution control knob to the off position. With
the deck lowered, continue pushing the B60/10C 30-50 feet to minimize solution under the deck.
6. Raise the deck and wipe up remaining solution. If necessary, empty recovery bucket by lifting it from the B60/
10C and properly disposing of recovered solution.
Solution Control Knob
86390990 B60/10C ECO
Top View
On
Off

15
Notes
86390990 B60/10C ECO

16
Maintenance
Periodic Maintenance
Periodically inspect all hoses and connections on your
machine. Frayed or cracked hoses should be repaired
or replaced to eliminate vacuum or solution loss.
Daily/Regular Maintenance
1. Empty unused cleaning solution from the solution
tank.
2. After each use, rinse tank with fresh water. Periodi-
cally inspect the recovery bucket and decontami-
nate if necessary, using a Hospital Grade Virucide
or a 10-1 bleach to water solution. If necessary,
use a soft bristle brush to clean machine compo-
nents. Waste water should be disposed of
properly.
3. Remove scrub pad and 3M Easy Trap Strip. Clean
scrub pad and reattach to machine.
Do not allow machine to freeze.
SERVICE SCHEDULE DAILY WEEKLY
Check hoses for wear, blockages, or damage *
Check handles, knobs, pivot points and linkages for damage *
Clean out recovery tank and check float valve to make sure it moves freely *
Clean out solution tank and remove and clean vacuum intake screen *
Clean outside of all tanks and check for damage *
Check all gaskets for wear and leakage *
Replace 3M Easy Trap Strip (Recommended) *
Check scrub pad for wear *
Check for damaged or worn wheels *
Clean squeegee blade and check wear *
Clean wheels and castors *
86390990 B60/10C ECO

17
Maintenance
Pad Installation

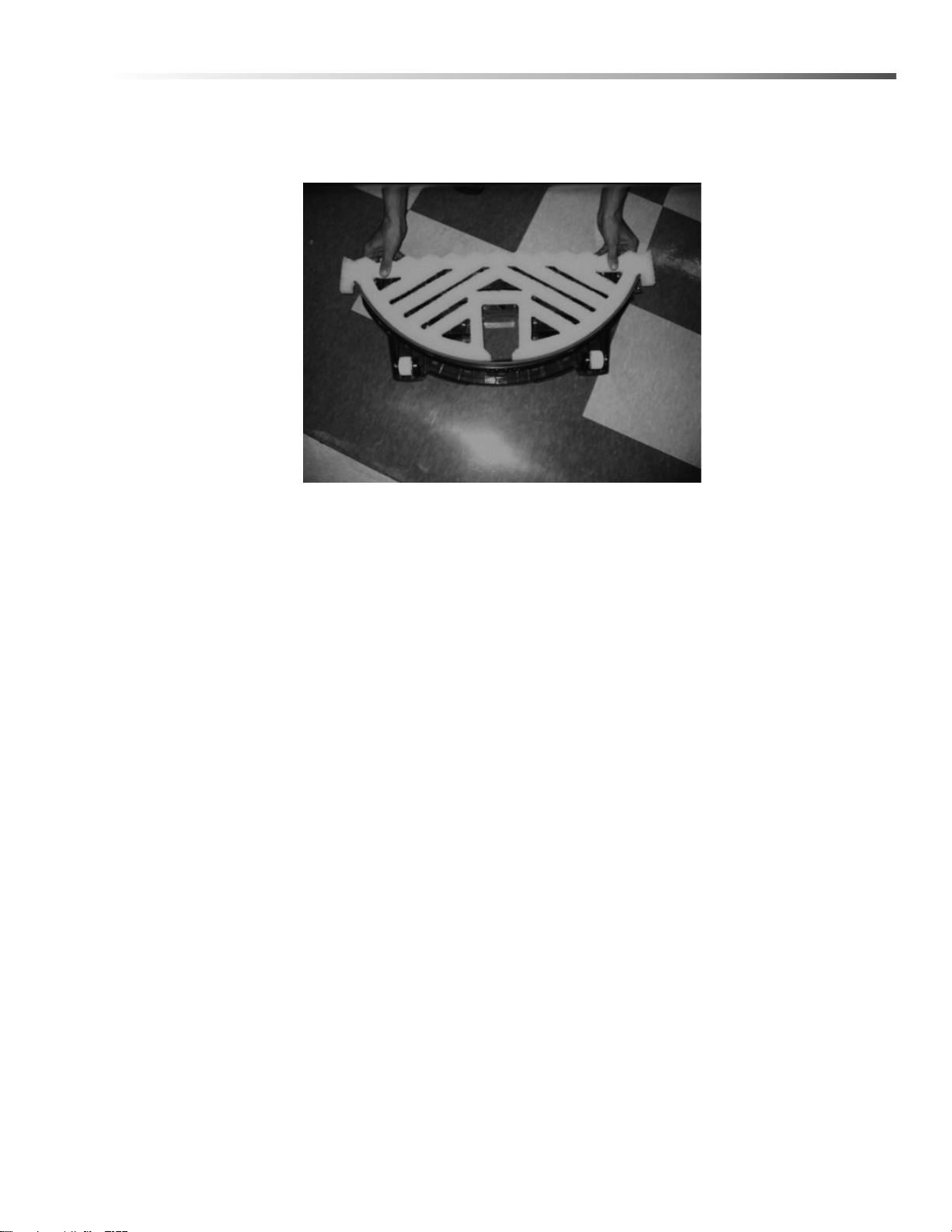

Line up notches in pad with both ends of the squeegee and press firmly into place on all five plastic flippers.
86390990 B60/10C ECO

18
Maintenance
Squeegee Installation

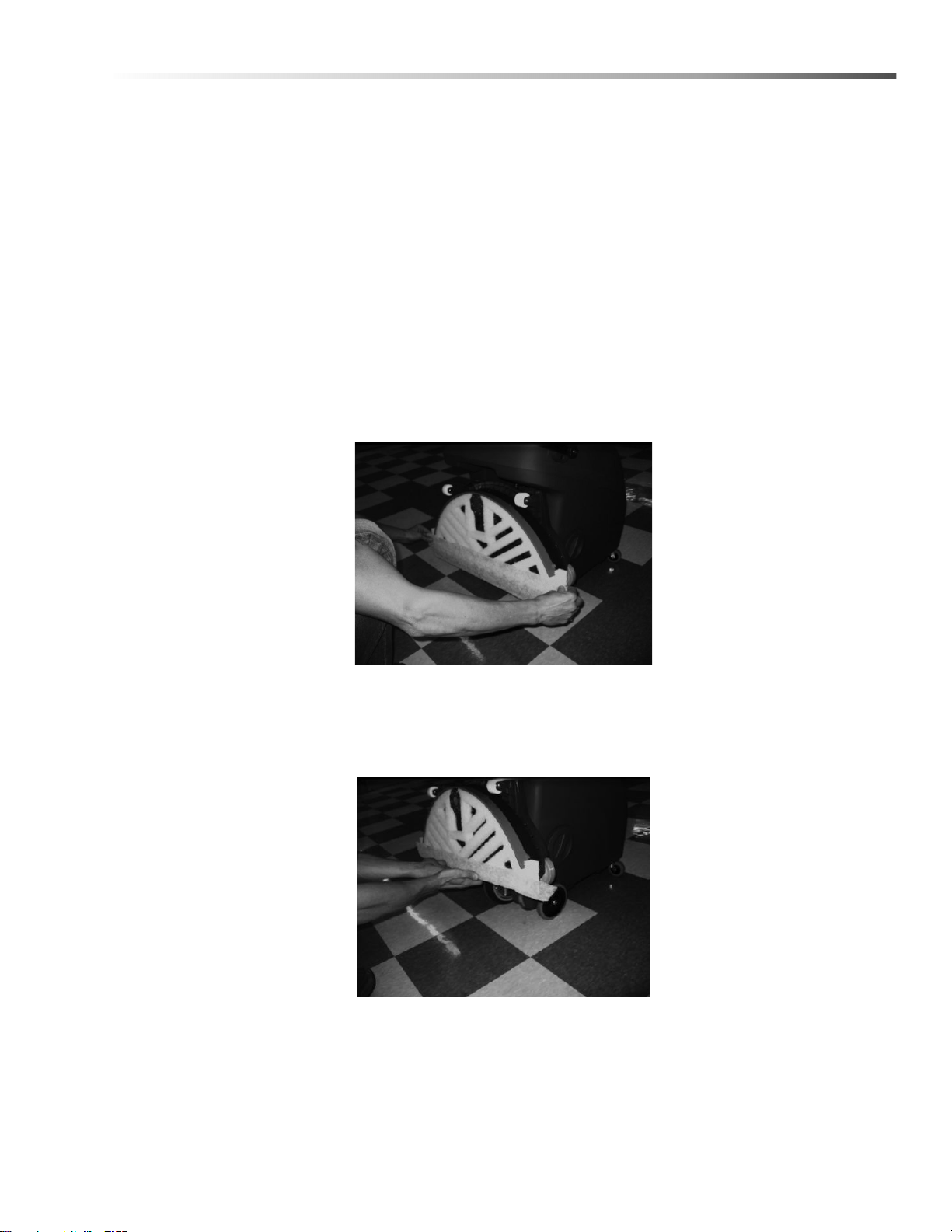

1. Assemble squeegee from right to left. Hook squeegee on metal hook on the right side and align notches with
tabs until squeegee is hooked on the metal tab on the left side.

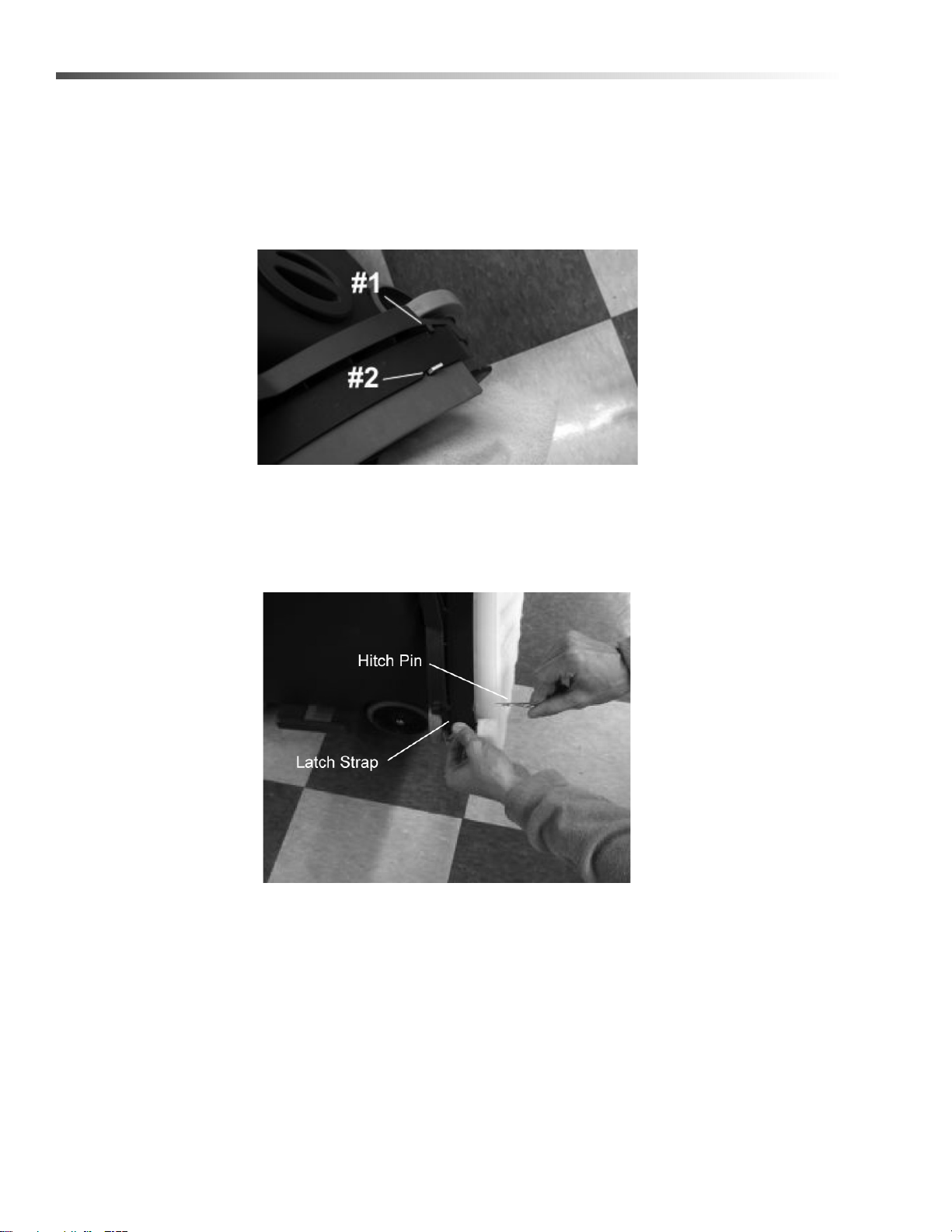

2. Slip the plastic strap under the tab (#1) on the right side of the deck and slide towards the left side so that the
strap is hooked under the metal tab (#2).
3. Push the other end of the strap over tab on left side and install the pin to capture the end of the strap.
Replace or Rotate Squeegee Blades
1. Remove hitch pin and retain.
2. Remove the black plastic latch strap.
3. Remove squeegee blade from deck housing, starting from the left side. Rotate the squeegee blade to a new
edge position or replace as required. Each blade has four new edge positions.
4. Install squeegee blade onto deck housing by pushing blade onto retention features.
5. Install retention strap and hitch pin.
86390990 B60/10C ECO

19
Maintenance
Troubleshooting
Problem Cause Solution
No Solution Flow Solution Tank Empty Fill Solution Tank
Solution Valve Closed Turn Solution Knob to Open Valve
Hose Kinked or Clogged Repair or Replace Hose
Debris in Solution Valve Remove Valve and Clean
Poor or No Solution Recovery Machine Moving too Slow Increase Machine Speed
Debris in Recovery Outlet
Check Valve
Clean Outlet Check Valve, ensure
valve is fully sealed on pump
housing surface.
Debris in Recovery Intake
Grate/Check Valve Clean Intake Grate/Check Valve
Pump Drive Wheel Slipping
Clean and Dry Drive Wheel.
Replace Drive Wheel if Worn to
Height Equal to the Tip Wheels.
Pump Diaphragm Damaged Replace Pump Diaphragm
Pump Drive Mechanism
Loose or Damaged
Repair or Replace Mechanism
Components
Loose Hose Tighten clamps/Ensure hose seated
properly
Floor surface too rough or
uneven.
Use machine on sealed/smooth
floor.
Squeegee Leaving Streaks Debris in Squeegee
Clean Squeegee and Scrub Pad.
Pre-sweep Area to be Cleaned.
Attach New 3M Easy Trap Strip.
Damaged or Worn Squeegee
Blade
Rotate or Replace Squeegee
Blade.
86390990 B60/10C ECO

20
Notes:
86390990 B60/10C ECO
