Kärcher Windsor Admiral ADM8 User manual

86401310-B 06/01/15
Admiral
Carpet Extractor
Operating Instructions (ENG)
MODEL: ADM8
1.008-017.0
From Serial Number (Ref No1*)
*See Serial Number Page in Spare
Parts List or call manufacturer

Warranty Registration
Thank you for purchasing a Kärcher North America product. Warranty registration is quick
and easy. Your registration will allow us to serve you better over the lifetime of the product.
To register your product go to :
http://warranty.karcherna.com/
For customer assistance:
1-800-444-7654
286401310 Operators Manual -ADM8 115V

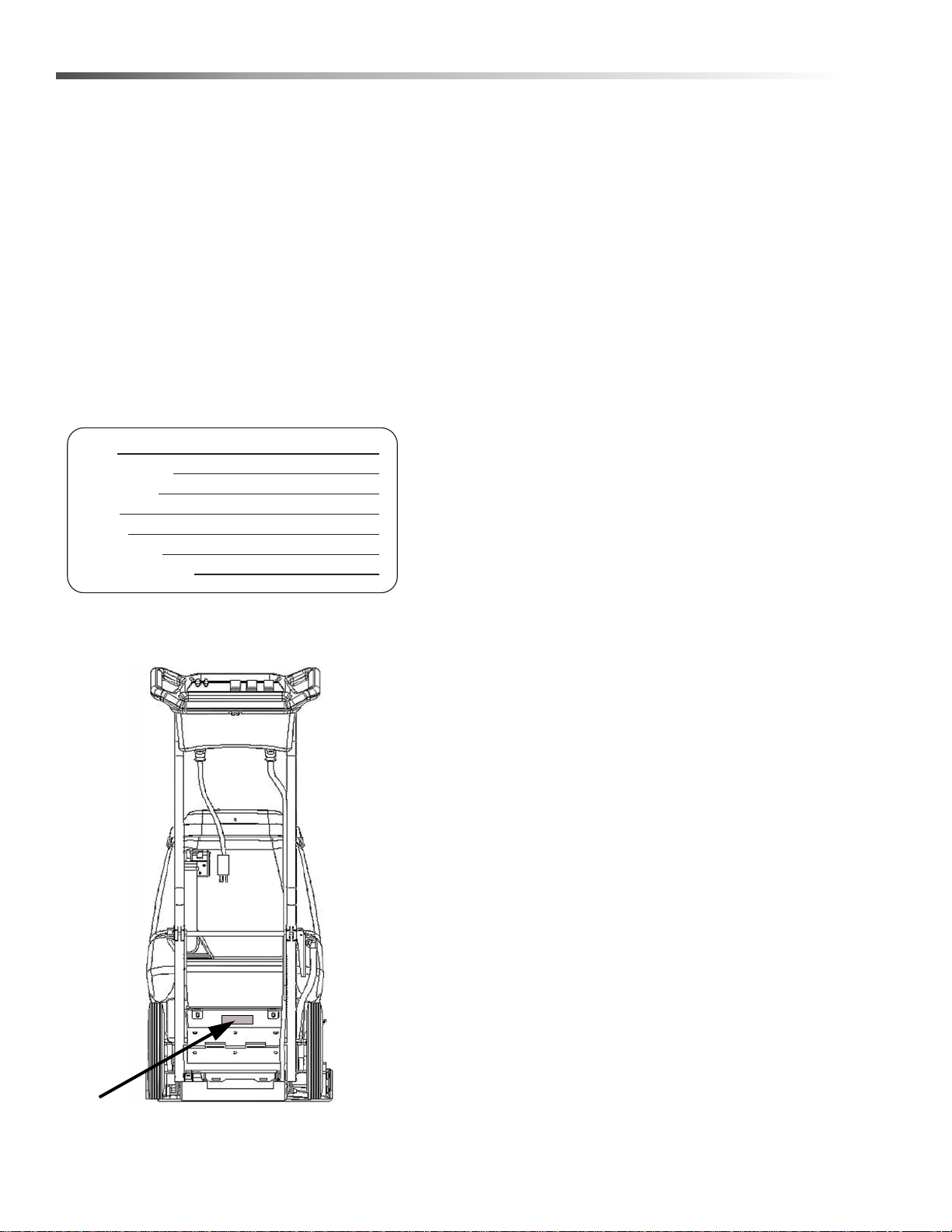

Machine Data Label
This carpet extractor is an electrical powered, portable carpet extractor intended for commercial use. The
appliance sprays a cleaning solution onto the carpet agitates the wet carpet, and then extracts the soiled solution
back into the unit's recovery tank. The appliance is fitted with and a hand tool for cleaning upholstery and stairs.

3
Table of Contents
Machine Data Label. . . . . . . . . . . . . . . . . . . . . . . . . .2
Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . .3
How To Use This Manual . . . . . . . . . . . . . . . . . . . . .4
Safety
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . .5
HAZARD INTENSITY LEVEL. . . . . . . . . . . . . . . . . .7
Safety Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Grounding Instructions . . . . . . . . . . . . . . . . . . . . . .10
Operations

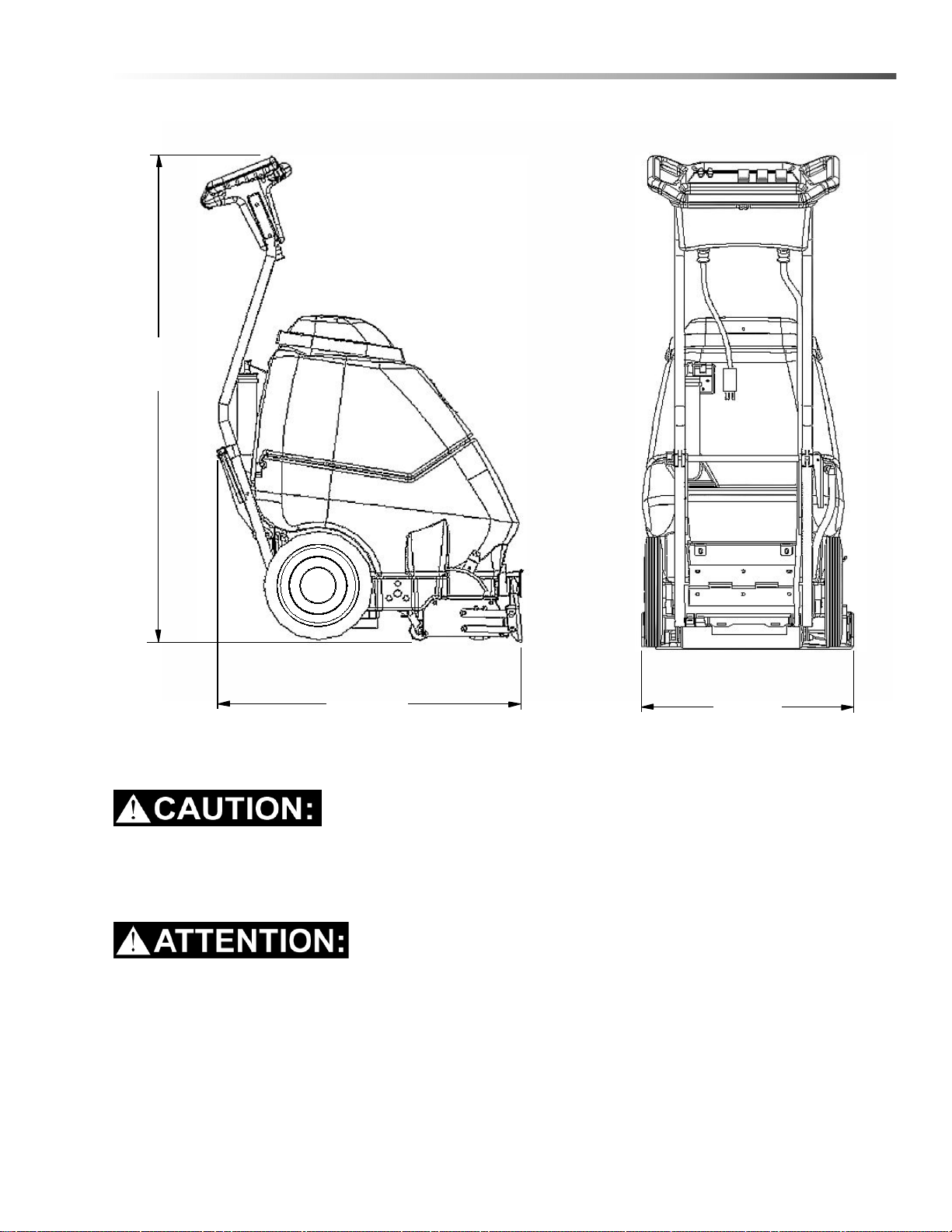

Technical Specifications . . . . . . . . . . . . . . . . . . . . .12

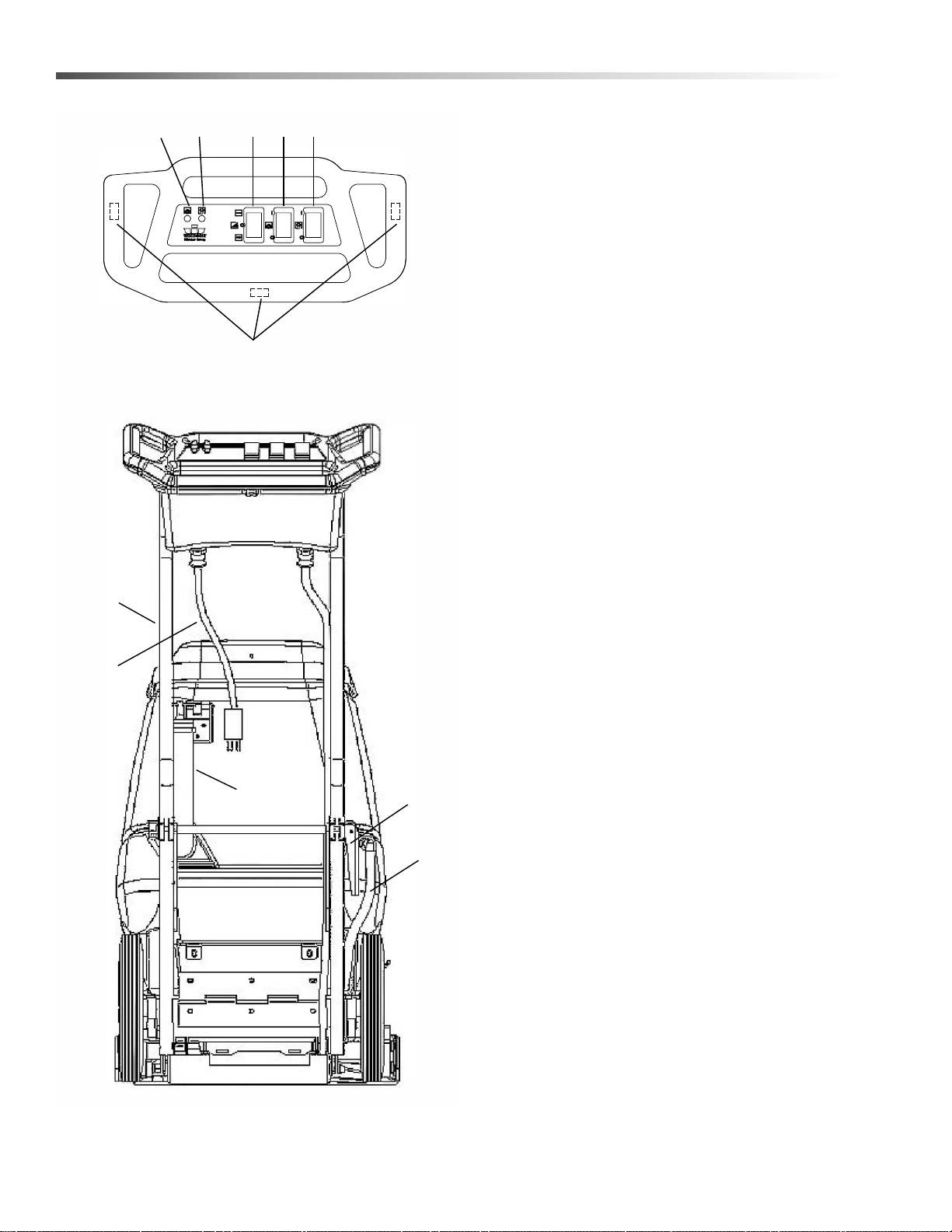

Controls. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

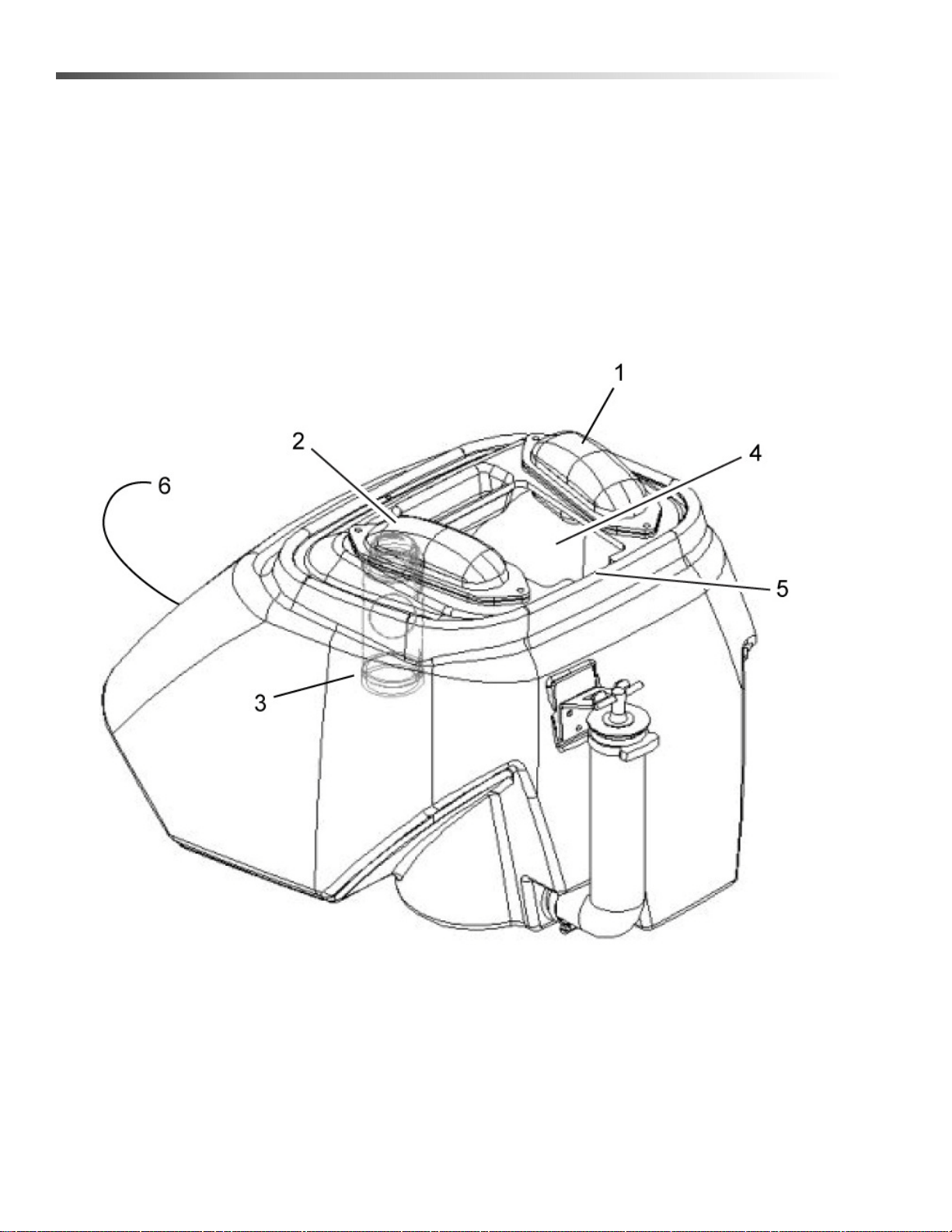

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Filling the Admiral . . . . . . . . . . . . . . . . . . . . . . . . . .17
Machine Operation . . . . . . . . . . . . . . . . . . . . . . . . .19
Cleaning Procedure . . . . . . . . . . . . . . . . . . . . . . . .20
Accessory Tool Usage . . . . . . . . . . . . . . . . . . . . . .23
Maintenance
Service Schedule . . . . . . . . . . . . . . . . . . . . . . . . . .24
Periodic Maintenance . . . . . . . . . . . . . . . . . . . . . . .25
Daily / Regular Maintenance. . . . . . . . . . . . . . . . . .25
Vacuum Motor Replacement . . . . . . . . . . . . . . . . .26
Belt Replacement . . . . . . . . . . . . . . . . . . . . . . . . . .27
Solution Pump Replacement . . . . . . . . . . . . . . . . .28
Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . .29
Suggested Spare Parts. . . . . . . . . . . . . . . . . . . . . .30
86401310 Operators Manual -ADM8 115V

4
How To Use This Manual
This manual contains the following sections:
• How to Use This Manual
•Safety
• Operations
• Maintenance
• Suggested Spare Parts
The HOW TO USE THIS MANUAL section will tell you
how to find important information for ordering correct
repair parts.
Parts may be ordered from authorized dealers. When
placing an order for parts, the machine model and
machine serial number are important. Refer to the
MACHINE DATA box which is filled out during the
installation of your machine. The MACHINE DATA box
is located on the inside of the front cover of this manual.
The model and serial number of your machine is
located on the back of the machine.
The SAFETY section contains important information
regarding hazardous or unsafe practices of the
machine. Levels of hazards are identified that could
result in product damage, personal injury, or severe
injury resulting in death.
The OPERATIONS section is to familiarize the operator
with the operation and function of the machine.
The MAINTENANCE section contains preventive main-
tenance to keep the machine and its components in
good working condition. They are listed in this general
order:
•Periodic
• Daily/Regular
• Troubleshooting
NOTE: If a service or option kit is installed on your
machine, be sure to keep the KIT INSTRUCTIONS
which came with the kit. It contains replacement parts
numbers needed for ordering future parts.
NOTE: The manual part number is located on the lower
right corner of the front cover.
Model:
Date of Purchase:
Serial Number:
Dealer:
Address:
Phone Number:
Sales Representative:
86401310 Operators Manual -ADM8 115V

5
Safety
IMPORTANT SAFETY INSTRUCTIONS
When using this machine, basic precaution
must always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE.
To reduce the risk of fire, electric shock, or injury:
Connect to a properly grounded outlet. See Grounding Instructions.
Do not leave the machine unattended. Unplug machine from outlet when not in use and before maintenance or
service.
Use only indoors. Do not use outdoors or expose to rain.
Do not allow machine to be used as a toy. Close attention is necessary when used by or near children.
Use only as described in this manual. Use only manufacturer’s recommended components and attachments.
Do not use damaged electrical cord or plug. Follow all instructions in this manual concerning grounding the
machine. If the machine is not working properly, has been dropped, damaged, left outdoors, or dropped into
water, return it to an authorized service center.
Do not pull or carry machine by electrical cord, use as a handle, close a door on cord, or pull cord around sharp
edges or corners.
Do not run machine over cord. Keep cord away from heated surfaces.
Do not unplug machine by pulling on cord. To unplug, grasp the electrical plug, not the electrical cord.
Do not handle the electrical plug or machine with wet hands.
Do not operate the machine with any openings blocked. Keep openings free of debris that may reduce airflow.
This machine is intended for cleaning carpet only.
Do not vacuum anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
This machine is not suitable for picking up health endangering dust.
Turn off all controls before unplugging.
Do not operate this machine near flammable fluids, dust or vapors.
Maintenance and repairs must be done by qualified personnel.
If foam or liquid comes out of machine, switch off immediately.
READ AND SAVE THESE INSTRUCTIONS
86401310 Operators Manual -ADM8 115V

6
Safety
IMPORTANTES MESURES DE SÉCURITÉ
L’utilisation d’un appareil électrique demande certaines précautions:
LIRE TOUTES LES INSTRUCTIONS AVANT DE FAIRE FONCTIONNER (CET APPAREIL).
Pour réduire les risques d’incendie, de choc électrique ou
de blessure:
Cet appareil ne doit être connecter qu a des prises ayant une sortie de terre.
Ne pas laisser l’appareil sans surveillance lorsqu’il est branché. Débrancher lorsque l’appareil n’est pas utilisé et
avant l’entretien.
Pour reduire les risques de choc electrique, ne pas utiliser à l exterieur et ne pas aspirer de matières humides.
Ne pas permettre aux enfants de jouer avec l’appareil. Une attention particulière est nécessaire lorsque l’appareil
est utilisé par des enfants ou à proximité de ces derniers.
Utiliser cet appareil conformément aux instructions du présent manuel uniquement. N'utiliser que les composants
et les accessoires conseillés par le fabricant.
Ne pas utiliser si le cordon ou la fiche est endommagé. Retourner l’appareil à un atelier de réparation s’il ne
fonctionne pas bien, s’il est tombé ou s’il a été endommagé, oublié à l’extérieur ou immergé.
Ne pas tirer soulever ou traîner l’appareil par le cordon. Ne pas utiliser le cordon comme une poignée, le coincer
dans l’embrasure d’unée porte ou l’appuyer contre des arêtes vives ou des coins. Ne pas faire rouler l’appareil sur
le cordon.
Garder le cordon à l’écart des surfaces chaudes.
Ne pas débrancher en tirant sur le cordon. Tirer plutôt la fiche.
Ne pas toucher la fiche ou l’appareil lorsque vos mains sont humides.
N’insérer aucun objet dans les ouvertures. Ne pas utiliser l’appareil lorsqu’une ouverture est bloquée. S’assure
que de la poussière, de la peluche, des cheveux ou d’autres matières ne réduisent pas le débit d’air.
Cette machine est destinée pour nettoyer le tapis seulement.
Ne pas aspirer de matiéres en combustion ou qui dégagent de la fumée, comme des cigarettes, des allumettes ou
des cendres chaudes.
Cette machine n’est pas adaptée au ramassage de poussières dangereuses.
Mettre toutes les commandes à la position ARRÊT avant de débrancher l’appareil.
Ne pas aspirer des liquides inflammables ou combustibles, comme de l’essence, et ne pas faire fonctionner dans
des endroits où peuvent se trouver de tels liquides.
L’entretien et les réparations de la machine doivent être effectuées par un personnel qualifié.
Si de la mousse ou du liquide sort de la machine, la mettre hors tension immédiatement.
CONSERVER CES INSTRUCTIONS
86401310 Operators Manual -ADM8 115V

7
Safety
The following symbols are used throughout this guide as indicated in their descriptions:
HAZARD INTENSITY LEVEL
There are three levels of hazard intensity identified by signal words -WARNING and CAUTION and FOR
SAFETY. The level of hazard intensity is determined by the following definitions:
WARNING - Hazards or unsafe practices which COULD result in severe personal injury or death.
CAUTION - Hazards or unsafe practices which could result in minor personal injury or product or property damage
FOR SAFETY: To Identify actions which must be followed for safe operation of equipment.
Report machine damage or faulty operation immediately. Do not use the machine if it is not in proper operating
condition. Following is information that signals some potentially dangerous conditions to the operator or the
equipment. Read this information carefully. Know when these conditions can exist. Locate all safety devices on the
machine. Please take the necessary steps to train the machine operating personnel.
FOR SAFETY:
DO NOT OPERATE MACHINE:
Unless Trained and Authorized.
Unless Operation Guide is Read and understood.
In Flammable or Explosive areas.
In areas with possible falling objects.
WHEN SERVICING MACHINE:
Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine.
Use manufacturer approved replacement parts.
86401310 Operators Manual -ADM8 115V

8
Safety
Les symboles ci-dessous sont utilisés à travers ce manuel comme illustré dans leurs descriptions :
DEGRÉS DE RISQUES EN CAS DE DANGER
Il existe trois degrés de risques identifiés par les termes signalétiques –AVERTISSEMENT et ATTENTION
et POUR VOTRE SÉCURITÉ. Le degré de risque est défini de la manière suivante :
AVERTISSEMENT - Dangers ou méthodes dangereuses qui POURRAIENT provoquer de graves blessures ou
entraîner la mort.
ATTENTION - Dangers ou méthodes dangereuses qui pourraient provoquer des blessures légères ou une
détérioration du produit ou des biens immobiliers.
POUR VOTRE SÉCURITÉ : ce signe permet d’identifier les mesures de précaution à prendre
pour assurer un bon fonctionnement du matériel.
Rendre compte immédiatement d’une défaillance ou d’une détérioration de la machine. Ne pas utiliser la machine si celle-
ci ne fonctionne pas correctement. Lire soigneusement les informations ci-dessous signalant certains dangers potentiels
pour l’opérateur de la machine. L’opérateur doit être absolument au courant de ces dangers potentiels. Localiser tous les
dispositifs de sécurité sur la machine. Il est conseillé de prendre les mesures nécessaires pour former le personnel
opérateur.
POUR VOTRE SÉCURITÉ :
NE PAS MANOEUVRER LA MACHINE :
Lorsqu’on n’est pas expérimenté ou qualifié.
Lorsque le guide d’utilisation n’est pas été lu ou compris.
Dans des zones inflammables ou explosives.
Dans des zones où des objets peuvent tomber.
LORS DE L’ENTRETIEN DE LA MACHINE :
Éviter les parties amovibles. Ne pas porter de vêtements amples, tels que des vestes, des chemises ou des
vêtements avec manches lors de l’utilisation de la machine. Utiliser les pièces détachées homologuées.
86401310 Operators Manual -ADM8 115V

9
Safety

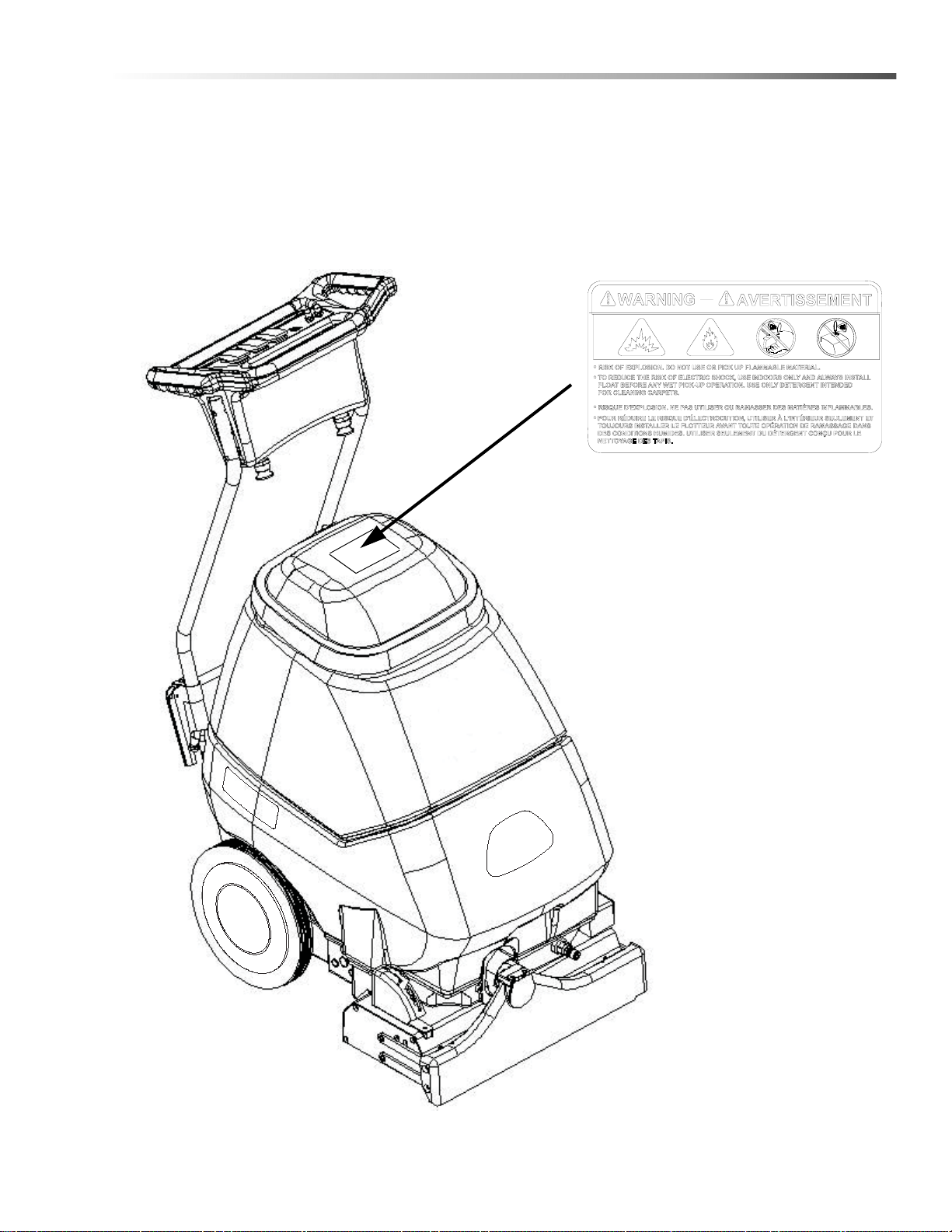

Safety Labels
These drawings indicate the location of safety labels on the machine. If at any time the labels become illegible,
promptly replace them.
EMPLACEMENT DE L'ÉTIQUETTE DE SÉCURITÉ
REMARQUE : Ces dessins indiquent l'emplacement des étiquettes de sécurité sur la machine. Si, à tout moment,
les étiquettes deviennent illisibles, contactez votre représentant autorisé pour un remplacement rapide.
86401310 Operators Manual -ADM8 115V
Warning Label
86242230

10
Safety
THIS PRODUCT IS FOR COMMERCIAL USE
ONLY.
Electrical
In the USA this machine operates on a standard 15
amp 115V, 60 hz, A.C. power circuit.The amp, hertz,
and voltage are listed on the data label found on each
machine. Using voltages above or below those
indicated on the data label will cause serious damage
to the motors.

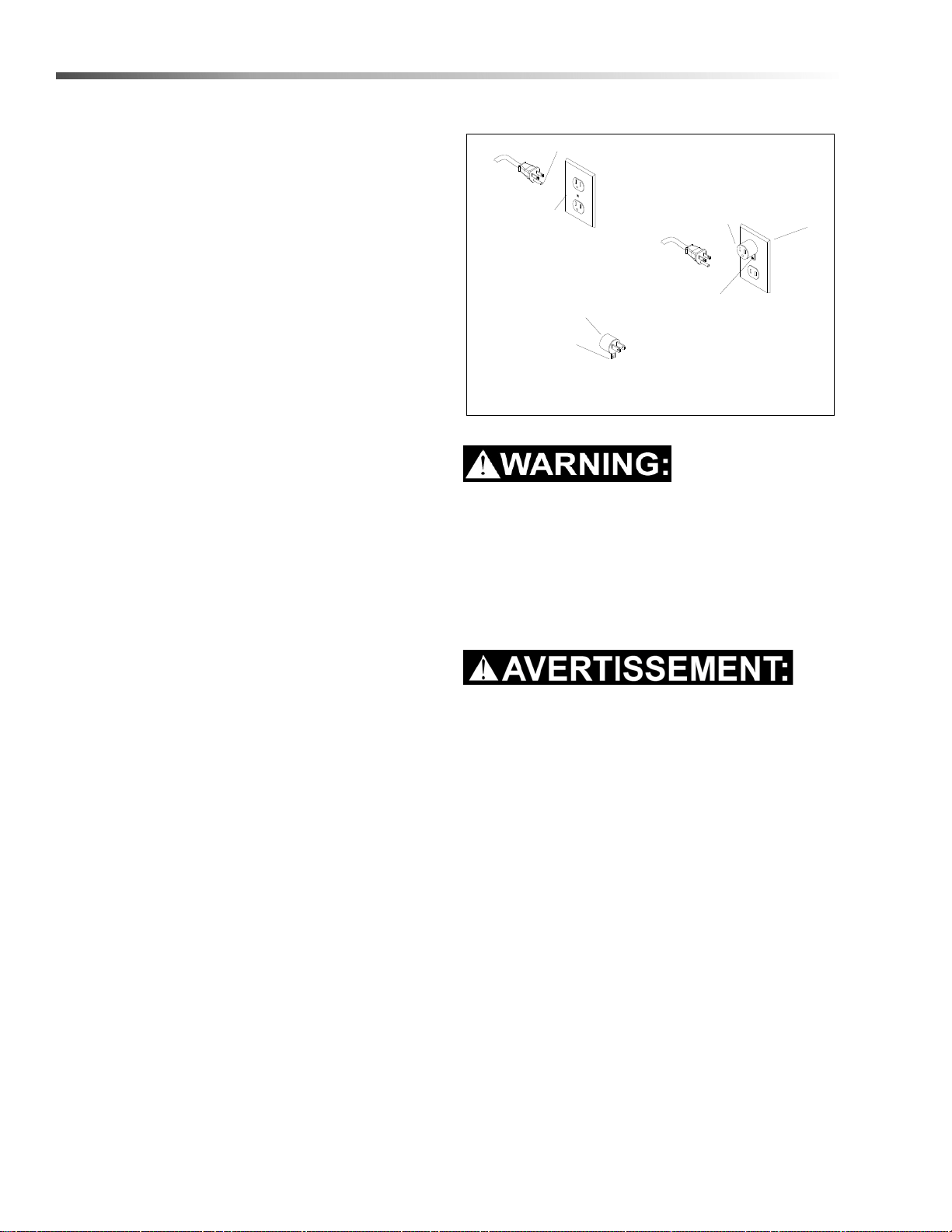

Grounding Instructions
This appliance must be grounded. If it should
malfunction or break down, grounding provides a path
of least resistance for electric current to reduce the risk
of electric shock. This appliance is equipped with a
cord having an equipment-grounding conductor and
grounding plug. The plug must be inserted into an
appropriate outlet that is properly installed and
grounded in accordance with all local codes and
ordinances.
This appliance is for use on a nominal 115-volt circuit,
and has a grounded plug that looks like the plug in “Fig.
A”. A temporary adapter that looks like the adapter in
“Fig . C” may be used to connect this plug to a 2-pole
receptacle as shown in “Fig. B”, if a properly grounded
outlet is not available. The temporary adapter should
be used only until a properly grounded outlet (Fig. A)
can be installed by a qualified electrician. The green
colored rigid ear, lug, or the like extending from the
adapter must be connected to a permanent ground
such as a properly grounded outlet box cover.
Whenever the adapter is used, it must be held in place
by a metal screw.
Proper Grounding
Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Check
with a qualified electrician or service person if you are
in doubt as to whether the outlet is properly grounded.
Do not modify the plug provided with the appliance - if it
will not fit the outlet, have a proper outlet installed by a
qualified electrician.
Le raccordement incorrect du conducteur de terre
d'équipement peut entraîner des risques
d'électrocution. Vérifiez auprès d'un électricien qualifié
ou d'un responsable de l'entretien si vous avez
quelque doute que ce soit quant au raccordement à la
terre de votre prise murale. Ne modifiez pas la fiche
fournie avec l'appareil : si elle ne correspond pas à la
prise murale, faites installer une prise adéquate par un
électricien qualifié.
86401310 Operators Manual -ADM8 115V
USING AN ADAPTOR
GROUNDING CONNECTION
Note: Adaptors are not allowed in Canada.
Outlet
Tab for Grounding
Outlet Box
FIGURE C
Grounded
FIGURE A
Adaptor
Screw
FIGURE B
Adaptor
Metal Screw
Grounded
Grounding Pin

11
Notes
86401310 Operators Manual -ADM8 115V

12
Operations
Technical Specifications
ITEM DIMENSION / CAPACITY
Height 42” (107 cm)
Length 35” (89 cm)
Width 18.5” (47 cm)
Weight 92 lbs (42 kg)
Wheels (2) 10” dia. (25 cm) wheels by 2”
Vacuum Shoe 17” (43.18 cm) cast aluminum with spring loaded down pressure
Solution Spray 2 quick change jets
Power Cable 50’ (12.7 m) (14 gauge)
Electrical 115V, 15 A, 60 Hz
Electric Vacuum Motor (1) - 3 stage, 1 hp, 99 cfm (2.80 cubic meters/min.) Waterlift - 117” (297 cm)
Brush (1) 15” (38.1 cm)
Brush Speed 1000 rpm
Solution Pump 100 PSI, Diaphragm style, Internal bypass
Solution Capacity 8 gallons (30.3 ltr)
Recovery Capacity 8 gallons (30.3 ltr)
86401310 Operators Manual -ADM8 115V

13
Operations
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure
that they do not play with the appliance.
Cet appareil n'est pas prévu à l'usage des personnes (enfants y compris) avec des possibilités physiques, sensori-
elles ou mentales réduites, ou le manque d'expérience et de connaissance, à moins qu'ils aient été donnés la
surveillance ou l'instruction au sujet de l'utilisation de l'appareil par une personne chargée de leur sûreté. Des
enfants devraient être dirigés pour s'assurer qu'ils ne jouent pas avec l'appareil.
86401310 Operators Manual -ADM8 115V
18.5”
(47cm)
42”
(107cm)
35”
(89cm)

14
Operations
Controls
1. Main Handle. Used to pull and maneuver
machine
2. Handle Adjustment. Used to adjust height of
handle
3. Electrical Cord.
4. Solution Switch. Turns on pump. Continuous
position (bottom) activates electro-valve to
dispense solution to floor through jets. Intermittent
position (up) requires operator to depress 1 of 3
trigger switches to dispense solution. Center
position is off.
5. Brush Motor Switch. Turns on brush motor
6. Vacuum Motor Switch. Turns on vacuum motor.
7. Trigger Switches. Activates electro-valve to
dispense solution to floor through jets when
solution switch is in the intermittent position.
8. Brush Motor Circuit Breaker. 6 amp. Breaker
protecting brush motor.
9. Vacuum Motor Circuit Breaker. 15 amp.
Breaker protecting vacuum motor.
10. Recovery Dump Hose. Facilitates draining dirty
cleaning solution.
11. Solution Dump Hose. Facilitates draining excess
cleaning solution from solution tank.
86401310 Operators Manual -ADM8 115V
1
3
10 2
11
89456
7

15
Operations
Components
1. Solution Accessory Tool Hookup.
Used for various auxiliary cleaning
tools.
2. Vacuum Hose Door. Used to connect
various auxiliary 1 ½ inch cleaning tool
vacuum hoses.
3. Brush Height Adjustment. Used to
regulate brush height from storage
position to various carpet heights.
4. Recovery Tank. Used to collect dirty
cleaning solution.
5. Solution Tank. Used to hold cleaning
solution.
6. Recovery Tank Dome.
7. Vacuum Shoe.
8. Brush Housing.
9. Front Lifting Handle.
10. Cleaning Solution Filter.
11. Solution Tank Fill Hose.
86401310 Operators Manual -ADM8 115V
11
1
9
2
10
3
6
4
5
7
8

16
Operations
Components
1. Solution Intake Cover.
2. Vacuum Intake Cover.
3. Float Shut-Off
4. Clean-Out Opening.
5. Pour Spout.
6. Lift Handle
86401310 Operators Manual -ADM8 115V

17
Operations
Filling the Admiral
NOTE: Use clean bucket of water to fill solution tank.
Do not put defoamer, solvents, spotter or prespray chemicals in the solution tank.
Do not allow water to spill into vacuum motor inlet. Dry spillage from top of solution tank before replacing
recovery tank.
* Product Trademark Names
Suitable Chemicals Non-Compatible Chemicals
Alkalis Aldehydes
Detergents Aromatic Hydrocarbons
Hydroxides SP Butyls
Soaps Carbon Tetrachloride
Vinegar Clorox*
Chlorinated Bleaches
Chlorinated Hydrocarbons
Lysol*
Methyl Ethel Ketone (MEK)
Perchorethylene (perc)
Phenolics
Trichlorethylene
D-Limonene
86401310 Operators Manual -ADM8 115V
FILL LINE

18
Operations

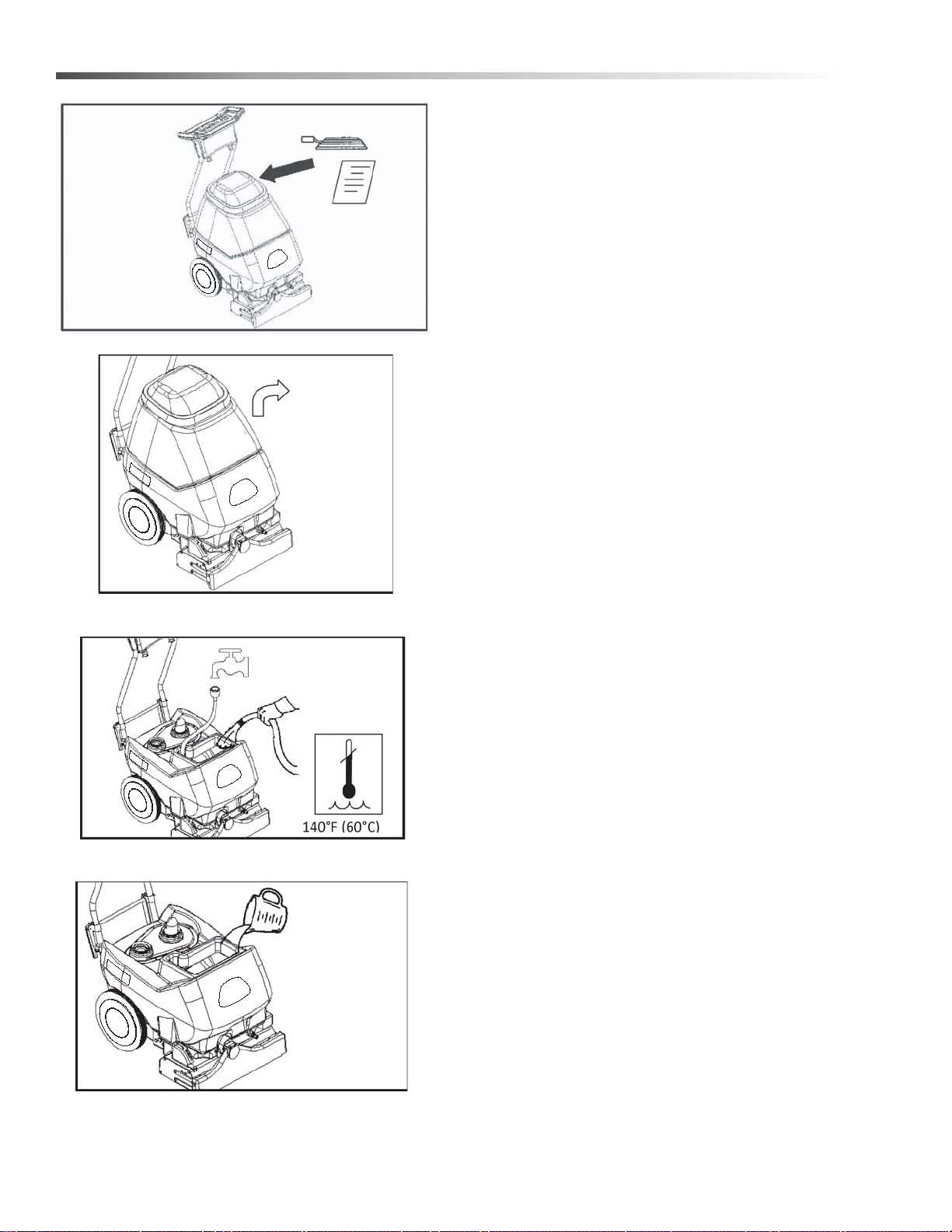

Filling the Admiral - continued
1. Remove electrical cord and literature from recovery
tank.
2. Remove the recovery tank from the machine.
3. Fill the Solution Tank with 8 gallons (30.3 ltr.) of
water, that is no more than 140°F/60°C.
4. Add 8-16 oz. (237ml-473ml) of cleaning chemical.
86401310 Operators Manual -ADM8 115V

19
Operations
5. Replace the Recovery Tank on the machine.
Machine Operation
1. Plug cord into grounded outlet.
NOTE: Be sure dome is seated on recovery tank, and
float shut-off is installed correctly.
2. Adjust brush to proper setting.
NOTE: For good operation the brush must skim the
carpet. If circuit breaker trips raise brush to prevent
damage to motor or carpet.
3. Turn on brush and vacuum motor switches
("ON"="I"). Turn on solution switch for continuous
spray or set switch to intermittent to allow use of
trigger switches.
86401310 Operators Manual -ADM8 115V

20
Operations
4. Adjust handle to comfortable operating position.
Tip machine back by main handle to move to
starting point.
5. Lower machine to floor.
6. Select continuous setting to start solution spray or
select intermittent setting to enable use of trigger
switches to start solution spray.
The intermittent setting requires the operator to
hold any one of the three trigger switches in the
"on" position with the fingers, and is typically used
in small areas where short cleaning passes are
made.
The continuous setting allows the operator to set
the switch in the "on" position with one touch, and
is typically used in large areas where long cleaning
passes are made.
Cleaning Procedure
1. Start at wall closest to power outlet. Pull straight
back without pushing down on handle.
86401310 Operators Manual -ADM8 115V
