Please read and comply with
these original instructions prior
to the initial operation of your appliance and
store them for later use or subsequent own-
ers.
– Before first start-up it is definitely nec-
essary to read the operating instruc-
tions and safety indications Nr. 5.951-
949.0!
– In case of transport damage inform ven-
dor immediately.
– Check the contents of the pack before
unpacking. For scope of delivery see il-
lustration 1.
Notes about the ingredients (REACH)
You will find current information about the
ingredients at:
www.kaercher.com/REACH
DANGER
Pointer to immediate danger, which leads
to severe injuries or death.
몇WARNING
Pointer to a possibly dangerous situation,
which can lead to severe injuries or death.
몇CAUTION
Pointer to a possibly dangerous situation,
which can lead to minor injuries.
ATTENTION
Pointer to a possibly dangerous situation,
which can lead to property damage.
Contents
Environmental protection . . . . EN 1
Danger or hazard levels . . . . . EN 1
Overview. . . . . . . . . . . . . . . . . EN 2
Symbols on the machine. . . . . EN 2
Proper use . . . . . . . . . . . . . . . EN 3
Safety instructions. . . . . . . . . . EN 3
Safety Devices . . . . . . . . . . . . EN 3
Start up . . . . . . . . . . . . . . . . . . EN 4
Operation . . . . . . . . . . . . . . . . EN 6
Storage . . . . . . . . . . . . . . . . . . EN 8
Transport. . . . . . . . . . . . . . . . . EN 8
Care and maintenance . . . . . . EN 9
Troubleshooting . . . . . . . . . . . EN 10
Warranty . . . . . . . . . . . . . . . . . EN 11
Accessories and Spare Parts . EN 12
EU Declaration of Conformity . EN 12
Technical specifications . . . . . EN 13
Recurring tests . . . . . . . . . . . . EN 15
Environmental protection
The packaging material can be
recycled. Please do not throw
the packaging material into
household waste; please send it
for recycling.
Old appliances contain valuable
materials that can be recycled;
these should be sent for recy-
cling. Batteries, oil, and similar
substances must not enter the
environment. Please dispose of
your old appliances using appro-
priate collection systems.
Please do not release engine oil, fuel oil,
diesel and petrol into the environment Pro-
tect the ground and dispose of used oil in
an environmentally-clean manner.
Danger or hazard levels
23EN

– 2
Figure 1

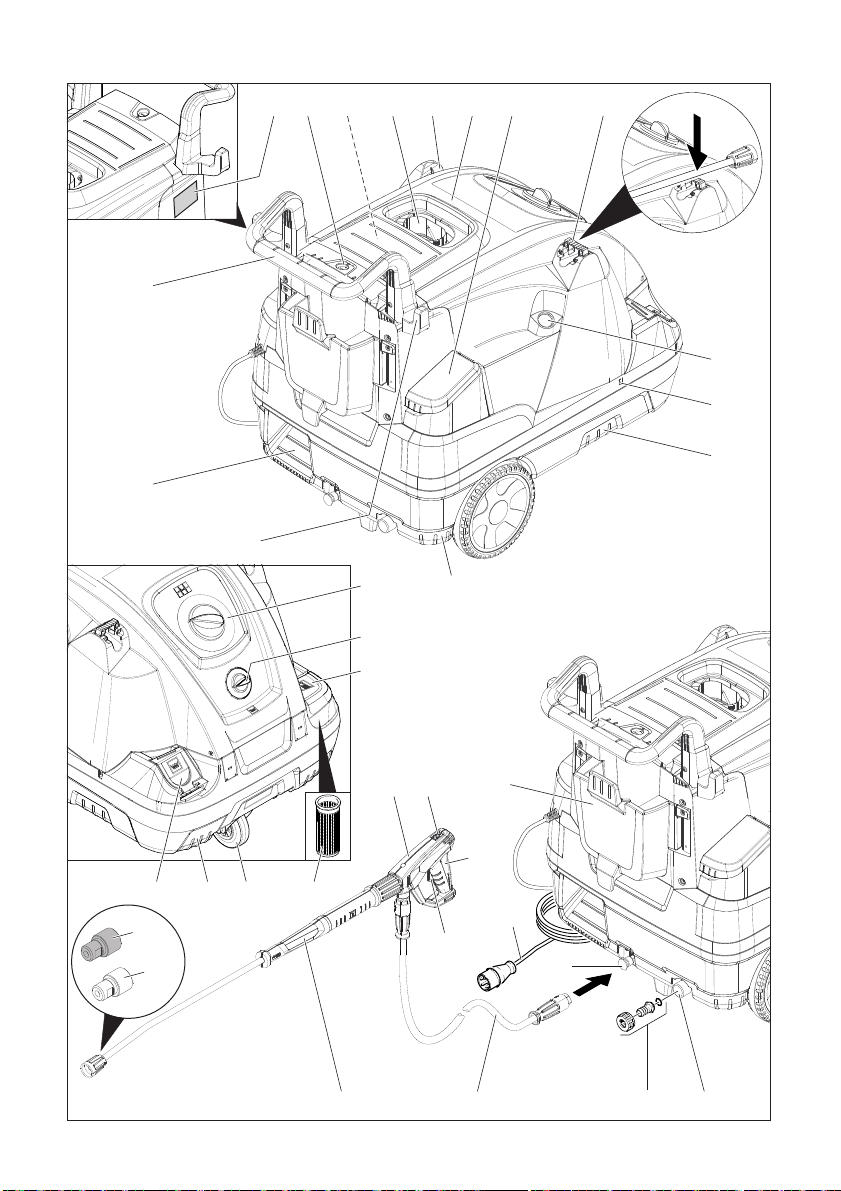

1 Support for spray lance
2 Manometer
3 Recess for detergent suction hose
4 Recessed grip (both sides)
5 Connection for water supply with filter
6 Water supply set
7 High-pressure connection EASY!Lock
8 High pressure hose EASY!Lock
9 Spray lance EASY!Lock
10 High-pressure nozzle (stainless steel)
11 Steam nozzle (brass)
12 Pouring vent for detergent
13 Steering roller with fixed position brake
14 Fuel sieve
15 Safety lever
16 Power supply
17 Triggering lever
18 Tool bag
19 Safety latch of the hand spray gun
20 Trigger gun EASY!Lock
21 Pouring vent for fuel
22 Dosage valve for detergent
23 Operating field
24 Storage for hand spray gun
25 Step depression
26 Handle
27 Nameplate
28 Cover lock
29 Storage compartment for accessories
30 Burner
31 Recess for spray pipe
32 Cover
33 Fill opening for system care RM 110
34 Pressure/quantity regulation of the
pump unit
35 Oil tank
36 Oil drain screw
37 Backflow valve of the detergent infeed
38 Detergent suction hose with filter
39 Fuel filter
40 Fastening clamp
41 Hose (soft damping system) of the wa-
ter shortage safeguard
42 Water shortage safeguard
43 Sieve in the water shortage safeguard
44 Fine filter (water)
45 Float tank
Figure 2

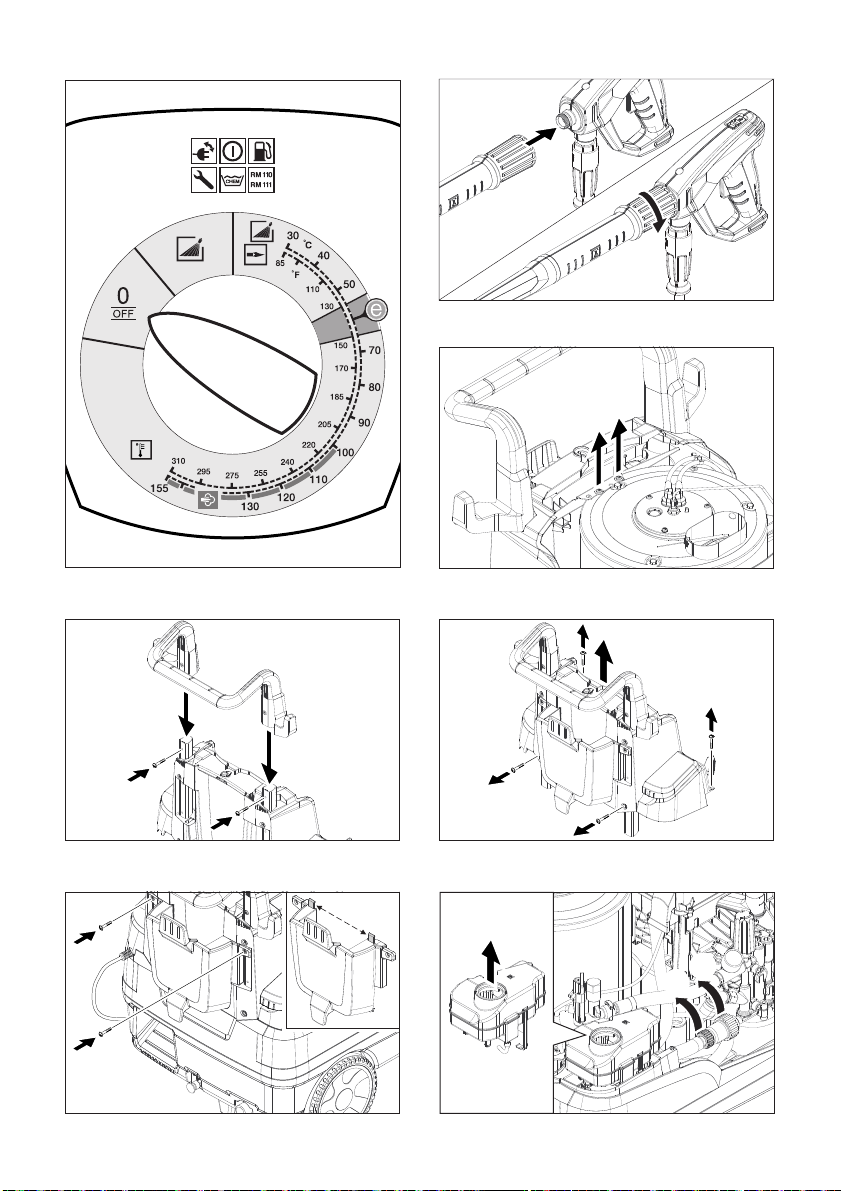

A Power switch
1 Indicator lamp rotation direction
(3-phase appliances only)
2 “Ready for use” indicator lamp
3 Fuel indicator lamp
4 Indicator lamp service
5 Indicator lamp for detergent
6 Indicator lamp system care
– The operating elements for the cleaning
process are yellow.
– The controls for the maintenance and
service are light gray.
High-pressure jets can be dan-
gerous if improperly used. The
jet may not be directed at persons, animals,
live electrical equipment or at the appliance
itself.
Overview
Device elements Operating field
Colour coding
Symbols on the machine
Risk of electric shock!
Only electricians or authorised
technicians are permitted to
work on parts of the plant.
Risk of burns on account of hot
surfaces!
Risk of poisoning! Do not inhale
exhaust fumes.
24 EN

– 3
Cleaning of: Machines, Vehicles, Struc-
tures, Tools, Facades, Terraces, Garden-
ing tools, etc.
DANGER
Risk of injury! Follow the respective safety
regulations when operating at gas stations
or other dangerous areas.
Quality requirements for water:
ATTENTION
Only clean water may be used as high
pressure medium. Impurities will lead to in-
creased wear and tear or formation of de-
posits in the appliance and accessories.
If recycled water is used, the following limit
values must not be exceeded.
–Please follow the national rules and
regulations for fluid spray jets of the re-
spective country.
–Please follow the national rules and
regulations for accident prevention of
the respective country. Fluid spray jets
must be tested regularly and the results
of these tests must be documented in
writing.
–The heating appliance of the machine is
an ignition plant. All national laws and
regulations about heating systems must
also be followed.
–As per the applicable national guide-
lines, the first time this high-pressure
cleaner must be taken into operation by
a skilled person. KÄRCHER has al-
ready performed this initial start-up for
you and has documented it accordingly.
The documentation can be requested at
your KÄRCHER partner. Please have
the part and plant number of the appli-
ance available when enquiring about
the documentation.
–We would like to point out that the appli-
ance must be repeatedly checked by a
skilled person as prescribed by the ap-
plicable national regulations. Please
contact your KÄRCHER partner.
–The appliance/accessories must not be
modified.
Safety devices serve for the protection of the
user and must not be put out of operation or
bypassed with respect to their function.
– While reducing the water supply at the
pump head or with the Servopress -
regulation the overflow valve opens and
part of the water flows back to the pump
suck side.
– If the hand-spray gun is closed, so that
the whole water flows back to the pump
suck side, the pressure switch at the
overflow valve shuts down the pump.
Proper use
Please do not let mineral oil contaminated
waste water reach soil, water or the sew-
age system. Perform engine cleaning and
bottom cleaning therefore only on speci-
fied places with an oil trap.
pH value 6,5...9,5
electrical conductivity * Conductivity
fresh water
+1200 µS/cm
settleable solids ** < 0,5 mg/l
total suspended solids *** < 50 mg/l
Hydrocarbons < 20 mg/l
Chloride < 300 mg/l
Sulphate < 240 mg/l
Calcium < 200 mg/l
Total hardness < 28 °dH
< 50 °TH
< 500 ppm (mg
CaCO3/l)
Iron < 0,5 mg/l
Manganese < 0,05 mg/l
Copper < 2 mg/l
Active chloride < 0,3 mg/l
free of bad odours
* Maximum total 2000 µS/cm
** Test volume 1 l, settling time 30 min
*** no abrasive substances
Safety instructions
Safety Devices
Overflow valve with two pressure
switches
25EN

– 4
– If the hand spray gun is opened, the
pressure switch on the cylinder head
turns the pump back on.
The overflow valve is set by the manufac-
turer and sealed. Setting only by customer
service.
– The safety valve opens, when the over-
flow valve resp. the pressure switch is
broken.
The safety valve is set by the manufacturer
and sealed. Setting only by customer ser-
vice.
– The water shortage safeguard prevents
the burner to be turned on when there is
water shortage.
– A sieve prevents the contamination of
the safeguard and must be cleaned reg-
ular.
– The temperature stop switches off the
machine when the waste gases have
reached very high temperatures.
몇WARNING
Risk of injury! Appliance, accessories, sup-
ply lines and connections must be in fault-
free condition. If they are not in a perfect
state then the appliance must not be used.
Lock parking brake.
Figure 3
Screw tightening torque: 6.5-7.0 Nm
Figure 4
Hook the tool bag onto the top tabs on
the appliance.
Tilt the tool bag down and lock it into
place.
Fasten the tool bag with 2 screws
(torque: 6.5 - 7.0 Nm).
Note: 2 screws are left over.
Note: The EASY!Lock system joins com-
ponents with a quick-fasten thread solidly
and securely with just one turn.
Figure 5
Join the spray lance with the trigger gun
and tighten until hand-tight
(EASY!Lock).
Insert the high pressure nozzle onto the
spray lance.
Install union nut and hand-tighten it
(EASY!Lock).
Join the high-pressure hose with trigger
gun and high-pressure connection of
the appliance and tighten until hand-
tight (EASY!Lock).
– The system care prevents the calcifica-
tion of the heating spiral while operating
with calciferous tap water. It is dosed
into the supply in the float container
drop by drop.
– The metering is set to medium water ri-
gidity by the manufacturer
Note: A sample bundle of system care is in-
cluded.
Refill system care.
DANGER
Danger of explosion! Only refill diesel oil or
light fuel oil. Inappropriate fuels, e.g. petrol,
must not be used.
ATTENTION
Risk of damage! Never operate device with
an empty fuel tank. The fuel pump will oth-
erwise be destroyed.
Refill fuel.
Close tank lock.
Wipe off spilled fuel.
Safety valve
Water shortage safeguard
Temperature stop for exhaust gases
Start up
Installing the handle
Install the tool bag
Install the hand-spray gun, the jet
pipe, the nozzle and the high
pressure hose
Refill system care
Refill fuel
26 EN

– 5
DANGER
Risk of injury!
– Use Kärcher products only.
– Under no circumstances fill solvents
(petrol, aceton, diluting agent etc.)
– Avoid eye and skin contact.
– Observe safety and handling instruc-
tions by the detergent manufacturer.
Kärcher offers an individual cleaning
and care appliances program.
Your dealer will consult you gladly.
Refill detergent.
For connection values refer to technical
specifications.
Attach supply hose (minimum length
7.5 m, minimum diameter 3/4“) to the
water supply set by means of a hose
clamp.
Connect the supply hose to the water
connection point of the machine and at
the water supply point (for e.g. a tap).
Note: The supply hose and the hose clamp
are not included in the scope of delivery.
If you want to suck in water from an exter-
nal vessel, the following modification is
necessary:
Figure 6
Remove the two screws on the burner
casing.
Figure 7
Unscrew the back wall and remove it.
Figure 8
Remove water connection from the fine
filter.
Unscrew the fine filter from the pump
head.
Remove the system care reservoir.
Figure 9
Unscrew the top supply hose to the
swimmer container.
Connect the top supply hose at pump
head.
Replug the rinse line of the detergent
dosing valve to blind plugs.
Connect suction hose (minimum diame-
ter 3/4“) with filter (accessory) to the
water connection point.
– Max. suck height: 0.5 m
Until the pump sucked in water, you should:
Set the pressure/quantity regulation at
the pump unit to maximum quantity.
Close the dosing valve for the detergent.
DANGER
Risk of personal injury or damage! Never
suck in water from a drinking water contain-
er. Never suck in liquids which contain sol-
vents like lacquer thinner, petrol, oil or unfil-
tered water. The sealings within the device
are not solvent resistant. The spray mist of
solvents is highly inflammable, explosive
and poisonous.
Assembly in reverse order.
Note: Ensure that the solenoid valve cable
on the reservoir of the system care is not
pinched.
– For connection values, see technical
data and type plate.
– The electrical connections must be
done by an electrician according to IEC
60364-1.
DANGER
Risk of injury on account of electric shock!
–Unsuitable electrical extension cables
can be hazardous. Only use electrical
extension cables outdoors which have
been approved and labelled for this pur-
pose and have an adequate cable
cross-section.
–Always unwind extension lines com-
pletely.
–The plug and coupling of the extension
cable used must be watertight.
ATTENTION
The highest allowed net impedance at the
electrical connection point (refer to techni-
cal data) is not to be exceeded. In case of
confusion regarding the power impedance
present on your connection, please contact
your utilities provider.
Refill detergent
Water connection
Suck in water from vessel
Power connection
27EN

– 6
DANGER
Danger of explosion! Do not spray flamma-
ble liquids.
DANGER
Risk of injury! Never use the appliance
without the spray lance attached. Check
and ensure proper fitting of the spray lance
prior to each use. The screw connection of
the spray lance must be finger-tight.
DANGER
Risk of injury! Hold the hand spray gun and
the spray pipe firmly with both hands.
DANGER
Risk of injury! The trigger and safety lever
may not be locked during the operation.
DANGER
Risk of injury! Contact Customer Service if
the safety lever is damaged.
ATTENTION
Risk of damage! Never operate device with
an empty fuel tank. The fuel pump will oth-
erwise be destroyed.
To open the trigger gun: Actuate the
safety lever and trigger.
To close the hand spray gun: Release
the safety lever and trigger.
DANGER
Risk of injury! Switch the appliance off prior
to replacing nozzle and activate hand spray
gun until device is pressureless.
Secure the trigger gun. To do so, push
the safety catch towards the front.
Replacing the nozzle.
1 Operating with cold water
2 Operating with hot water
3 Eco setting (hot water max. 60 °C)
4 Operating with steam
Set appliance switch to desired operat-
ing mode.
Indicator lamp for operational readiness
lights up.
The device starts briefly and turns off, as
soon as the working pressure is reached.
Note: If the control lamp "rotation direction"
lights up, please switch the appliance off
immediately and fix the error, see "Help
with malfunctions".
Release the trigger gun. To do so, push
the safety catch towards the back.
When activating the hand spray gun the de-
vice switches back on.
Note: If no water comes out of the high
pressure nozzle, vent pump. Refer to "Help
with malfunctions - appliance is not building
up pressure".
Set device switch to desired tempera-
ture.
30 °C to 98 °C
– Clean with hot water.
100 °C to 150 °C
– Clean using steam.

Replace the high-pressure nozzle
(stainless steel) with steam nozzle
(brass), (refer to "Using steam").
Operation
Opening/closing the trigger gun
Replace the nozzle
Operating modes
0/OFF = Off
Turning on the Appliance
Adjust cleaning temperature
1
4
2
3
28 EN

– 7
Turn the regulation spindle in a clock-
wise direction: Increase working pres-
sure (MAX).
Turn the regulation spindle in an anti-
clockwise direction: Reduce working
pressure (MIN).
– For considerate treatment of the envi-
ronment use detergent economically.
– The detergent must be suitable for the
surface to be cleaned.
With support of the detergent dose
valve set detergent concentration as
determined by the manufacturer.
Note: Recommended values at the control
panel at maximum working pressure.
Note: If detergent is be suctioned from an
external container, route the detergent suc-
tion hose through the recess to the outside.
Set pressure/temperature and deter-
gent concentration according to the sur-
face to be cleaned.
Note: To prevent damage due to too much
pressure, always position high pressure ray
first from a greater distance towards object
to be cleaned.
– Loosen the dirt:
Spray detergent economically and let it
work for 1...5 minutes but do not let it
dry up.
– Remove the dirt:
Spray off loosened dirt with the high
pressure jet.
Removal of light contaminations and clear
rinse, i.e.: Gardening tools, terrace, tools,
etc.
Set operating pressure according to
need.
The appliance works in the most economi-
cal temperature range (max. 60 °C).
We recommend the following cleaning tem-
peratures:
– Light contaminations
30-50 °C
– Contaminations containing protein, i.e.
in the food processing industry
max. 60 °C
– Vehicle cleaning, machine cleaning
60-90 °C
– De-preserve, contaminations contain-
ing strong fat contents
100-110 °C
– De-frosting of surcharge substances,
partially facade cleaning
up to 140 °C
DANGER
Scalding danger!
Set device switch to desired tempera-
ture.
DANGER
Scalding danger! The work pressure must
not exceed 3.2 MPa (32 bar) when operat-
ing with temperatures above 98 °C.
Therefore the following measures must
definitely be performed:

Replace high pressure nozzle (stain-
less steel) with steam nozzle (brass,
order see specification).
Set the working pressure/quantity regu-
lation at the pump unit to the minimum
quantity.
Set device switch to min. 100 °C.
Secure the trigger gun. To do so, push
the safety catch towards the front.
Set working pressure and flow rate
Pressure/quantity regulation of the
pump unit
Operation with detergent
Cleaning
Recommended cleaning method
Operating with cold water
Eco level
Operating with hot water/steam
Operating with hot water
Operating with steam
Interrupting operation
29EN

– 8
Set dosing value for detergent to "0".
Set the appliance switch to "1" (opera-
tion with cold water).
Open the hand spray gun and rinse the
appliance for at least 1 minute.
DANGER
Danger of scalding from hot water! After the
operation with hot water or steam, the de-
vice must be operated with opened gun
with cold water for at least two minutes.
Shut off water supply.
Open the hand spray gun.
Switch on the pump with the power
switch and allow to run for about 5-10
seconds.
Close the hand spray gun.
Set the appliance switch to "0/OFF“.
Pull main plug out of socket with dry
hands only.
Remove water connection.
Activate hand spray gun until device is
pressure less.
Secure the trigger gun. To do so, push
the safety catch towards the front.
Lock in the steel pipe into the holder of
the appliance hood.
Roll up high pressure hose and electri-
cal conduit and hang them into the re-
spective holders.
Note: Do not twist high pressure hose and
electrical conduit.
ATTENTION
Risk of damage! Frost will destroy the appli-
ance if the water has not been completely
drained.
Store in a frost free area.
If the device is connected to a chimney, the
following must be observed:
ATTENTION
Threat of damage by penetrating cold air
through the chimney.
Disconnect device from chimney when
outside temperature drops below 0 °C.
If it is not possible to store frost free, shut
down device.
For longer work breaks or if a frost free stor-
age is not possible:
Empty detergent tank.
Drain water.
Flush device with anti-freeze agent.
Screw off water supply hose and high
pressure hose.
Screw off supply hose at boiler bottom
and drain heating spiral empty.
Operate device for max. 1 minute until
the pump and conduits are empty.
Note: Observe handling instructions of the
anti-freeze agent manufacturer.
Fill anti-freeze agent of the trade into
swimmer container.
Switch on appliance (without heater) till
the appliance has been completely
rinsed.
A certain corrosion protection is achieved
with this as well.
몇CAUTION
Risk of personal injury or damage! Consid-
er the weight of the appliance when storing
it.
Figure 10
ATTENTION
Risk of damage! When loading the appli-
ance with a forklift, observe the illustration.
ATTENTION
Protect the trigger from damage during
transport.
After operation with detergent
Turn off the appliance
Storing the Appliance
Frost protection
Shutdown
Dump water
Flush device with anti-freeze agent
Storage
Transport
30 EN

– 9
몇CAUTION
Risk of personal injury or damage! Mind the
weight of the appliance during transport.
When transporting in vehicles, secure
the appliance according to the guide-
lines from slipping and tipping over.
DANGER
Risk of injury by inadvertent start-up of ap-
pliance and electric shock. Prior to all work
on the appliance, switch off the appliance
and pull the power plug.
Shut off water supply.
Open the hand spray gun.
Switch on the pump with the power
switch and allow to run for about 5-10
seconds.
Close the hand spray gun.
Set the appliance switch to "0/OFF“.
Pull main plug out of socket with dry
hands only.
Remove water connection.
Activate hand spray gun until device is
pressure less.
Secure the trigger gun. To do so, push
the safety catch towards the front.
Allow device to cool down.
Your Kärcher vender will inform you
about the performance of a periodic
safety inspection resp. signing of a
maintenance contract.
Clean the sieve in the water connection.
Clean the fine filter.
Clean the fuel sieve.
Check oil level.
ATTENTION
Risk of damage! In case of lacteous oil in-
form Kärcher customer service immediately.
Clean sieve in the water shortage safe
guard.
Clean filter at the detergent suck hose.
Oil change.
Have the maintenance of the device
performed by the customer service.
Perform the pressure test as per manu-
facturer's instructions.
Take out sieve.
Clean sieve in water and reinstall.
Unpressurize the appliance.
Unscrew the fine filter from the pump
head.
Remove the fine filter and the filter insert.
Clean the filter with clean water or com-
pressed air.
Reinstall in reverse sequence.
Knock the dirt off of the fuel sieve. Do
not let the fuel enter the environment.
Remove the fastening clamp and pull
out the hose (soft damping system) of
the lack of water fuse.
Take out sieve.
Note: If necessary turn in screw M8 appr. 5
mm inwards and therewith pull out sieve.
Clean sieve in water.
Push sieve inwards.
Slide the hose adapter all the way into
the lack of water fuse and secure it with
a fastening clamp.
Take out detergent suck supports.
Clean filter in water and reinstall.
Care and maintenance
Maintenance intervals
Weekly
Monthly
Every 500 operating hours, at least
annually
At least every 5 years, recurring
Maintenance Works
Clean the sieve in the water connection
Cleaning the fine filter
Clean the fuel sieve
Clean sieve in the water shortage safe
guard
Clean filter at the detergent suck hose
31EN

– 10
Ready a catch bin for appr 1 Litre oil.
Loosen release screw.
Tighten release screw.
Fill oil slowly up to the MAX marking.
Note: Air pockets must be able to leak out.
For oil type refer to technical specifica-
tions.
DANGER
Risk of injury by inadvertent start-up of ap-
pliance and electric shock. Prior to all work
on the appliance, switch off the appliance
and pull the power plug.

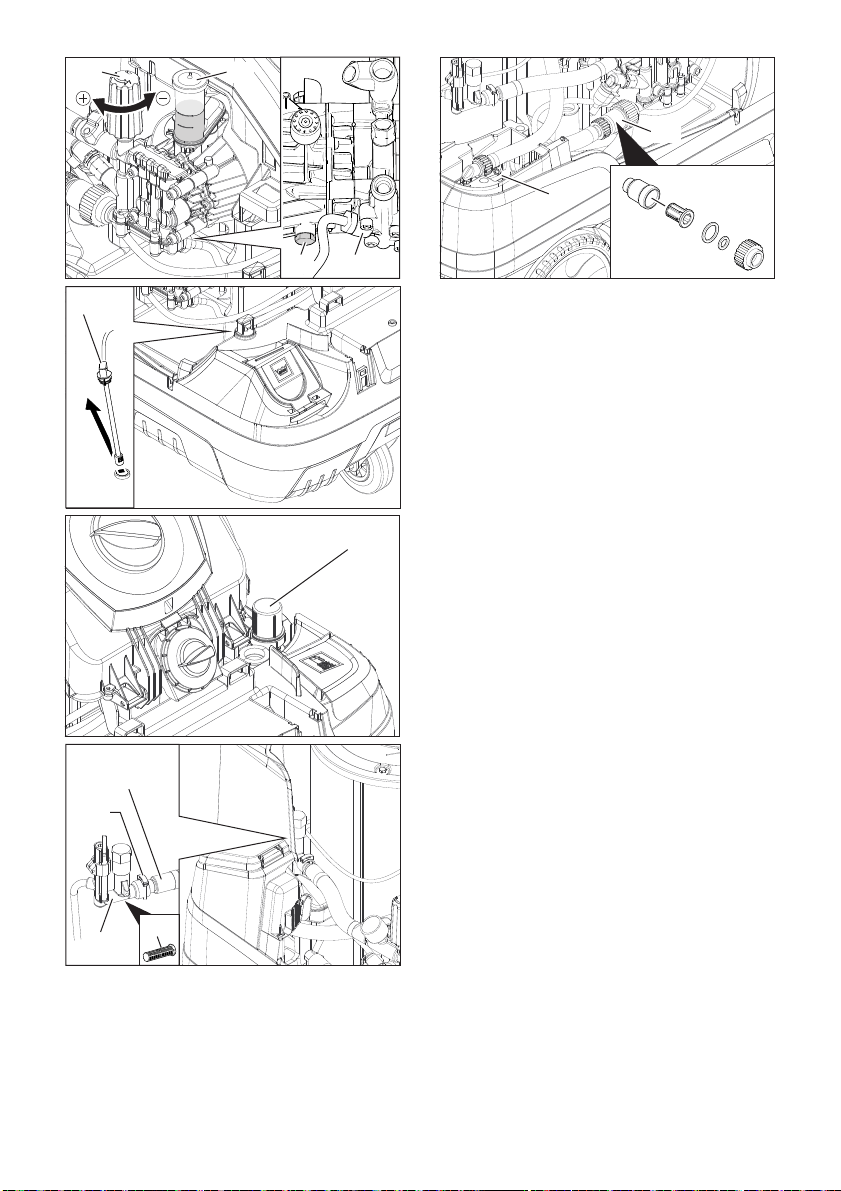

Figure 11
Exchange the poles at the appliance plug.
– No line voltage, see "Appliance is not
running".
– Lack of oil
Replenish oil.
– Water shortage
Check water supply, check connections.
– Leak in the high pressure system
Check high pressure system and con-
nections for tightness.
– Fault in the voltage supply or current
pickup of the motor too high.
Check main connections and mains
fuse.
Inform Customer Service.
– Engine overload/overheat
Set the appliance switch to "0/OFF“.
Allow device to cool down.
Turn on the appliance.
– Error occurs repeatedly.
Inform Customer Service.
– The exhaust temperature limiter has
been triggered.
Set the appliance switch to "0/OFF“.
Allow device to cool down.
Turn on the appliance.
– Error occurs repeatedly.
Inform Customer Service.
– Obstructed reed switch in the lack of
water fuse or magnetic piston stuck.
Inform Customer Service.
– The flame sensor turned the burner off.
Inform Customer Service.
– Fuel tank empty.
Refill fuel.
– System care container is empty.
Refill system care.
– Detergent tank is empty.
Refill detergent.
– No power
Check power connection/conduit.
Oil change
Dispose of old oil ecologically or turn in at
a gathering point.
Troubleshooting
Indicator lamp for rotation direction
will blink (3-phase appliances only)
Indicator lamp "Ready for use"
turns off
Indicator lamp service
Indicator lamp service will be
illuminated
1x blinking
2x blinking
3x blinking
4x blinking
5 x blink
6 x blink
Fuel indicator lamp glows
Indicator lamp system care is
illuminated
Indicator lamp for detergent glows
Appliance is not running
32 EN

– 11
– Air within the system
Vent pump:
Set dosing value for detergent to "0".
With open hand spray gun turn device
on and off multiple times with the device
switch.
Open and close the pressure/quantity
regulation at the pump unit with the
hand spray gun open.
Note: By dismantling the high pressure
hose from the high pressure connection the
venting process is accelerated.
If detergent tank is empty, refill.
Check connections and conduits.
– Pressure is set to MIN
Set pressure to MAX.
– Sieve in the water connection is dirty
Clean sieve.
Clean the fine filter; replace it, if neces-
sary.
– Amount of water supply is too low.
Check water supply level (refer to tech-
nical data).
– Pump leaky
Note: 3 drops/minute are allowed.
With stronger leak, have device
checked by customer service.
– Leak in the high pressure system
Check high pressure system and con-
nections for tightness.
Leave device running with open deter-
gent dosage valve and closed water
supply, until the swimmer tank is
sucked empty and the pressure falls to
"0".
Open the water supply again.
If the pump still is not sucking in any deter-
gent, it could be because of the following
reasons:
– Filter in the detergent suck hose dirty
Clean filter.
– Backflow valve stuck
Remove the detergent hose and loosen
the backflow valve using a blunt object.
– Fuel tank empty.
Refill fuel.
– Water shortage
Check water supply, check connec-
tions.
Clean sieve in the water shortage safe
guard.
– Fuel filter dirty
Change fuel filter.
– No ignition spark
If device is in use and no ignition spark
can be seen through the viewing glass,
have device checked by customer ser-
vice.
– Working pressure/flow rate to high
Reduce working pressure/flow quantity
at the pressure/volume regulator in the
pump unit.
– Sooty heating spiral
Have device de-sooted by customer
service.
If malfunction can not be fixed, the de-
vice must be checked by customer ser-
vice.
The warranty terms published by the rele-
vant sales company are applicable in each
country. We will repair potential failures of
your appliance within the warranty period
free of charge, provided that such failure is
caused by faulty material or defects in man-
ufacturing. In the event of a warranty claim
please contact your dealer or the nearest
authorized Customer Service centre.
Please submit the proof of purchase.
Device is not building up pressure
Device leaks, water drips from the
bottom of the device
Device turns on and off while hand
spray gun is closed
Device is not sucking in detergent
Burner does not start
Set temperature is not achieved
while using hot water
Customer Service
Warranty
33EN

– 12
Note: When connecting the appliance to a
chimney or if the device cannot be ac-
cessed visually, we recommend the instal-
lation of a flame monitor (option).
Only use original accessories and spare
parts, they ensure the safe and trouble-free
operation of the device.
For information about accessories and
spare parts, please visit www.kaercher.com.
We hereby declare that the machine de-
scribed below complies with the relevant
basic safety and health requirements of the
EU Directives, both in its basic design and
construction as well as in the version put
into circulation by us. This declaration shall
cease to be valid if the machine is modified
without our prior approval.
5.957-989
The undersigned act on behalf and under
the power of attorney of the company man-
agement.
Authorised Documentation Representative
S. Reiser
Alfred Kärcher GmbH Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Phone: [phone]
Fax: [phone]
Winnenden, 2016/01/01
Accessories and Spare Parts
EU Declaration of Conformity
Product: High pressure cleaner
Type: 1.169-xxx
Type: 1.173-xxx
Type: 1.174-xxx
Relevant EU Directives
2014/68/EU
2006/42/EC (+2009/127/EC)
2014/30/EU
2000/14/EC
Component category
II
Conformity procedure
Module H
Heating coil
Conformity assessment Module H
Safety valve
Conformity assessment Art. 4 para 3
control block
Conformity assessment Module H
various pipes
Conformity assessment Art. 4 para 3
Applied harmonized standards
EN 60335–1
EN 60335–2–79
EN 55014–1: 2006+A1: 2009+A2: 2011
EN 55014–2: 2015
EN 61000–3–2: 2014
EN 62233: 2008
HDS 7/16, HDS 8/18-4:
EN 61000–3–3: 2013
HDS 6/14:
EN 61000–3–11: 2000
Name of the appointed agency:
for 2014/68/EU
TÜV Rheinland Industrie Service GmbH
Am Grauen Stein
51105 Köln
ID No. 0035
Applied conformity evaluation method
2000/14/EC: Appendix V
Sound power level dB(A)
HDS 6/14
Measured: 91
Guaranteed: 94
HDS 7/16
Measured: 92
Guaranteed: 95
HDS 8/18-4
Measured: 87
Guaranteed: 90
CEO Head of Approbation
34 EN

– 13
Technical specifications
HDS 6/14
Main Supply
Voltage V 230 240 220
Current type Hz 1~ 50 1~ 50 1~ 60
Connected load kW 3,6 3,6 3,6
Protection (slow) A 16 16 16
Type of protection -- IPX5 IPX5 IPX5
Protective class -- I I I
Maximum allowed net impedance Ohm 0.3710 0.3710 0.3710
Water connection
Max. feed temperature °C 30
Min. feed volume l/h (l/min) 800 (13,3)
Suck height from open container (20 °C) m 0,5
Max. feed pressure MPa (bar) 1 (10)
Performance data
Water flow rate l/h (l/min) 240-560 (4-9,3)
Operating pressure of water (using standard nozzle) MPa (bar) 3-14 (30-140)
Max. excess operating pressure (safety valve) MPa (bar) 17 (170)
Steam flow rate l/h (l/min) 240-290
(4-4,8)
240-290
(4-4,8)
240-265
(4-4,4)
Max. operating pressure for working with steam (using
steam nozzle)
MPa (bar) 3,2 (32)
Part no. of steam nozzle -- 2.114-000.0
Max. operating temperature of hot water °C 98
Working temperature steam operation °C 155
Detergent suck in l/h (l/min) 0-33,6 (0-0,56)
Burner performance kW 43
Maximum consumption of heating oil kg/h 3,5
Max. recoil force of trigger gun N 25,6
Size of standard nozzle -- 036 036 035
Values determined as per EN 60335-2-79
Noise emission
Sound pressure level LpA dB(A) 76
Uncertainty KpA dB(A) 3
Sound power level LWA + Uncertainty KWA dB(A) 94
Hand-arm vibration value
Hand spray gun m/s22,7
Spray lance m/s25,4
Uncertainty K m/s20,3
Fuel
Fuel -- Fuel oil EL or Diesel
Amount of oil l 0,3
Oil grade -- 0W40
Dimensions and weights
Length x width x height mm 1060 x 650 x 920
Typical operating weight kg 108,1
Fuel tank l 15,5
Detergent Tank l 15,5
35EN

– 14
HDS 7/16 HDS 8/18-4
Main Supply
Voltage V 400 220 400 220
Current type Hz 3~ 50 3~ 60 3~ 50 3~ 60
Connected load kW 4,7 4,7 6,0 6,0
Protection (slow) A 16 16 16 16
Type of protection -- IPX5 IPX5 IPX5 IPX5
Protective class -- I I I I
Maximum allowed net impedance Ohm -- -- -- --
Water connection
Max. feed temperature °C 30 30
Min. feed volume l/h (l/min) 900 (15) 1000 (16,7)
Suck height from open container (20 °C) m 0,5 0,5
Max. feed pressure MPa (bar) 1 (10) 1 (10)
Performance data
Water flow rate l/h (l/min) 270-660 (4,5-11) 300-800 (5-13,3)
Operating pressure of water (using standard
nozzle)
MPa (bar) 3-16 (30-160) 3-18 (30-180)
Max. excess operating pressure (safety valve) MPa (bar) 19,5 (195) 21,5 (215)
Steam flow rate l/h (l/min) 270-320
(4,5-5,3)
270-305
(4,5-5,1)
300-350
(5-5,8)
300-325
(5-5,4)
Max. operating pressure for working with steam
(using steam nozzle)
MPa (bar) 3,2 (32) 3,2 (32)
Part no. of steam nozzle -- 2.114-001.0 2.114-002.0
Max. operating temperature of hot water °C 98 98
Working temperature steam operation °C 155 155
Detergent suck in l/h (l/min) 0-39,6 (0-0,66) 0-48 (0-0,8)
Burner performance kW 51 61
Maximum consumption of heating oil kg/h 4,1 5,0
Max. recoil force of trigger gun N 32,4 41,4
Size of standard nozzle -- 040 040 043 043
Values determined as per EN 60335-2-79
Noise emission
Sound pressure level LpA dB(A) 77 73
Uncertainty KpA dB(A) 3 3
Sound power level LWA + Uncertainty KWA dB(A) 95 90
Hand-arm vibration value
Hand spray gun m/s22,6 3,4
Spray lance m/s24,2 3,4
Uncertainty K m/s20,3 0,3
Fuel
Fuel -- Fuel oil EL or Diesel Fuel oil EL or Diesel
Amount of oil l 0,3 0,7
Oil grade -- SAE 90 SAE 90
Dimensions and weights
Length x width x height mm 1060 x 650 x 920 1060 x 650 x 920
Typical operating weight kg 118,1 126,1
Fuel tank l 15,5 15,5
Detergent Tank l 15,5 15,5
36 EN

– 15
Recurring tests
Note: The recommended testing frequencies of the respective statutory regulations of the
country of operation are to be followed.
Testing done by: External testing Internal testing Leak-proof tests
Name Signature of the au-
thorised person/
date
Signature of the au-
thorised person/
date
Signature of the au-
thorised person/
date
Name Signature of the au-
thorised person/
date
Signature of the au-
thorised person/
date
Signature of the au-
thorised person/
date
Name Signature of the au-
thorised person/
date
Signature of the au-
thorised person/
date
Signature of the au-
thorised person/
date
Name Signature of the au-
thorised person/
date
Signature of the au-
thorised person/
date
Signature of the au-
thorised person/
date
Name Signature of the au-
thorised person/
date
Signature of the au-
thorised person/
date
Signature of the au-
thorised person/
date
Name Signature of the au-
thorised person/
date
Signature of the au-
thorised person/
date
Signature of the au-
thorised person/
date
37EN
