Kaden KCI36 User manual

Installation
Manual
CASSETTE AIR CONDITIONER
KCI Series
KCI36 | KCI42 | KCI48

Important note
This appliance must be installed in accordance with:
Manufacturer’s Installation Instructions
Current AS/NZS 3000, AS/NZS 5149
Local Regulations and Municipal Building Codes including
local OH&S requirements
This appliance must be installed, maintained, and removed
only by an Authorised Person.
For continued safety of this appliance, it must be installed
and maintained in accordance with the manufacturer’s
Instructions.
REFRIGERANT
R32

Kaden Installation Manual | 3
1. Safety precautions 4
2. Accessories 7
3. Installation summary 8
Unit Parts 9
4. Indoor unit installation 10
Installation instructions – Indoor unit 10
Note for new home installation 13
Note on purchasing pipes 13
Note on drainpipe installation 14
5. Outdoor unit installation 15
Installation instructions – Outdoor unit 15
Special considerations for extreme weather 15
6. Refrigerant piping connection 18
Note on pipe length 18
Connection instructions – Refrigerant piping 19
Note on minimum bend radius 21
7. Wiring 22
Note on isolator 22
Outdoor unit wiring 23
Indoor unit wiring 24
Power specifications 25
8. Leak testing and evacuation 26
Leak, pressure test and evacuation 26
Preparations and precautions 27
Opening outdoor unit valves 27
Note on adding refrigerant 27
9. Panel installation 28
10. Test run 30
Before test run 30
Test run instructions 30
11. Error codes 31
Table of contents
Important note
Read this manual carefully before installing
or operating your new air conditioning unit.
Make sure to save this manual for future reference.

4 | Kaden Installation Manual
1. Safety precautions
Read safety precautions before operation and installation
Incorrect installation due to ignoring instructions can cause serious damage or injury.
The seriousness of potential damage or injuries is classified as either a WARNING or CAUTION.
WARNINGS FOR PRODUCT USE
This symbol indicates the possibility of property damage or serious consequences.
This symbol indicates the possibility of personal injury or loss of life.
Do not share the electrical outlet with other appliances.
Improper or insufficient power supply can cause fire or
electrical shock.
When connecting refrigerant piping, do not let
substances or gases other than the specified refrigerant
enter the unit. The presence of other gases or
substances will lower the unit’s capacity, and can cause
abnormally high pressure in the refrigeration cycle.
This can cause explosion and injury.
Do not allow children to play with the air conditioner.
Children must be supervised around the unit at all times.
1. Installation must be performed by a licensed installer.
Defective installation can cause water leakage, electrical
shock, or fire.
2. Installation must be performed according to the
installation instructions. Improper installation can cause
water leakage, electrical shock, or fire.
3. Contact an authorised service technician for repair or
maintenance of this unit.
4. Only use the included accessories, parts, and specified
parts for installation. Using non-standard parts can cause
water leakage, electrical shock, fire, and can cause the
unit to fail.
5. Install the unit in a firm location that can support the unit’s
weight. If the chosen location cannot support the unit’s
weight, or the installation is not done properly, the unit
may drop and cause serious injury and damage.
6. Only fully qualified licensed personnel should install
service or carry out maintenance to this air conditioning
unit. All electrical work is to follow local and national
wiring standards and the Installation Manual.
7. You must use an independent circuit and single outlet to
supply power. Do not connect other appliances to the
same outlet. Insufficient electrical capacity or defects in
electrical work can cause electrical shock or fire.
8. For all electrical work, use the specified cables. Connect
cables tightly, and clamp them securely to prevent
external forces from damaging the terminal. Improper
electrical connections can overheat and cause fire, and
may also cause shock.
9. All wiring must be properly arranged to ensure that
the control board cover can close properly. If the
control board cover is not closed properly, it can lead
to corrosion and cause the connection points on the
terminal to heat up, catch fire, or cause electrical shock.
10. In certain functional environments, such as kitchens,
server rooms, etc., the use of specially designed air-
conditioning units is highly recommended.
11. This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children must not
play with the appliance. Cleaning and user maintenance
must not be made by children without supervision.

Kaden Installation Manual | 5
CAUTION
Do not install the unit in a location that may be exposed to combustible gas leaks. If combustible gas accumulates around
the unit, it may cause fire.
Do not operate your air conditioner in a wet room such as a bathroom or laundry room. Too much exposure to water can
cause electrical components to short circuit.
1. The product must be properly grounded at the time of installation, or electrical shock may occur.
2. Install drainage piping according to the instructions in this manual. Improper drainage may cause water damage to your
home and property.
Note about fluorinated gases
1. This air-conditioning unit contains fluorinated gases. For specific information on the type of gas and the amount, please
refer to the relevant label on the unit itself.
2. Installation, decommissioning, service, maintenance and repair of this unit must be performed by a licensed technician.
3. Product decommissioning and recycling must be performed by a licensed technician.
4. If the system has a leak-detection system installed, it must be checked for leaks at least every 12 months.
5. When the unit is checked for leaks, proper record-keeping of all checks is strongly recommended.
6. Only ARC (Australian Refrigeration Council) licence holders can install and commission this air conditioner. This air
conditioner must be installed to meet the requirements of the current version of AS/NZS 5149. It is illegal to vent some
types of refrigerant to the atmosphere.
REFRIGERANT
This appliance uses R32 (difluoromethane) refrigerant, which is a flammable gas class 2.2 according to AS/NZS 5149 and must
be handled by a refrigeration mechanic with appropriate Australian refrigerant handling licence.
• WARNING risk of fire/flammable material. If the refrigerant is leaked, together with an external ignition source, there is
possibility of ignition.
• Read all the OPERATING INSTRUCTIONS carefully before operation.
• Service personnel are required to carefully read the OPERATING INSTRUCTIONS and INSTALLATION MANUAL
before operation.
• Further information is available in the OPERATING INSTRUCTIONS, INSTALLATION MANUAL and the like.
Certain levels of refrigerant require minimum room sizes. Please ensure that these minimum room sizes are adhered to for
standard installations (up to 10m pipe length). If larger refrigerant charges than standard are used then please consult AS/NZS
60335.2.40 to determine the safe minimum floor area for the installation.
Make sure that the area has been made safe by having suitable ventilation and is free from ignition sources before charging or
recovering the charge of R32.

6 | Kaden Installation Manual

Kaden Installation Manual | 7
2. Accessories
The air conditioning system comes with the following accessories. Use all of the installation parts and accessories to install the air
conditioner. Improper installation may result in water leakage, electrical shock and fire, or cause the equipment to fail.
Name of accessories Qty (pc) Shape Name of accessories Qty (pc) Shape
Owners, Installation
& Remote Controller
Manuals
3Drain joint 1
Soundproof/insulation
sheath 1Seal ring 1
Soundproof/insulation
sheath 1Copper nut 2
Outlet pipe sheath 1
Magnetic ring – wrap the
electric wires S1 & S2
around the magnetic
ring twice
1
Drain outlet pipe 1
Magnetic ring – hitch it
on the connective cable
between indoor unit
and outdoor unit after
installation
Varies by
model
Ceiling hook 4
Suspension bolt 4
Wired Controller 1

8 | Kaden Installation Manual
3. Installation summary
Install the indoor unit Install the drainpipe Install the outdoor unit
Pressure test and evacuation
Connect the power wires Connect the refrigerant pipes
Install the front panel Perform a test run
1
78
2
5
9
3
4
Connect the signal wires
6
S1 S2 L N

Kaden Installation Manual | 9
Unit parts
NOTE: The installation must be performed in accordance with Australian guidelines.
The installation may be slightly different in different areas.
Note on illustrations
Illustrations in this manual are for explanatory purposes. The actual shape of your indoor unit may be slightly different.
1 Air outlet
2 Air inlet
3 Front grille
4 Display panel
5 Remote controller/
wired controller
6 Drain pipe
7 Connecting pipe
8 Air inlet
9 Air outlet
1
2
4
36
7
9
5
9
8

10 | Kaden Installation Manual
4. Indoor unit installation
Installation instructions – Indoor unit
NOTE: Panel installation should be performed after piping and wiring have been completed.
Step 1: Select installation location
Before installing the indoor unit, you must choose an appropriate location. The following are standards that will help you choose an
appropriate location for the unit.
Proper installation locations meet the following standards:
✓Enough room exists for installation and maintenance.
✓Enough room exists for the connecting pipe and drainpipe.
✓The ceiling is horizontal and its structure can sustain the
weight of the indoor unit.
✓The air inlet and outlet are not blocked.
✓The airflow can fill the entire room.
✓There is no direct radiation from heaters.
DO NOT install unit in the following locations:
✕Areas with oil drilling or fracking
✕Coastal areas with high salt content in the air
✕Areas with caustic gases in the air, such as hot springs
✕Areas that experience power fluctuations, such as factories
✕Enclosed spaces, such as cabinets
✕Kitchens that use natural gas
✕Areas with strong electromagnetic waves
✕Areas that store flammable materials or gas
✕Rooms with high humidity, such as bathrooms
or laundry rooms
Recommended distances between the indoor unit and the ceiling
The distance between the mounted indoor unit and the internal ceiling should meet the following specifications.
Distance from ceiling relative to height of indoor unit
Type Model A (mm) H (mm) B (mm)
KCI880
KCI36 287 >317
KCI42
KCI48 287 >317
Ceiling
Ceiling board
>2500mm
Front panel
Ground
A
B (Ceiling hole)
287 >317

Kaden Installation Manual | 11
Step 2: Hang indoor unit
Use the included paper template to cut a rectangular hole in the ceiling, leaving at least 1000mm of space on all sides. The cut
hole size should be 40mm larger than the body size. Be sure to mark the areas where ceiling hook holes will be drilled.
KCI36-48 models ceiling hole size
Refrigerant piping side Drain hose side
950mm (Panel size)
680mm (Suspension bolt)
840mm (Body)
1000mm
1000mm
1000mm
1000mm
950mm (Panel size)
780mm (Suspension bolt)
840mm (Body)
880mm x
880mm
(Ceiling
opening)

12 | Kaden Installation Manual
CAUTION
The unit body should align perfectly with the hole.
Ensure that the unit and the hole are the same size
before moving on.

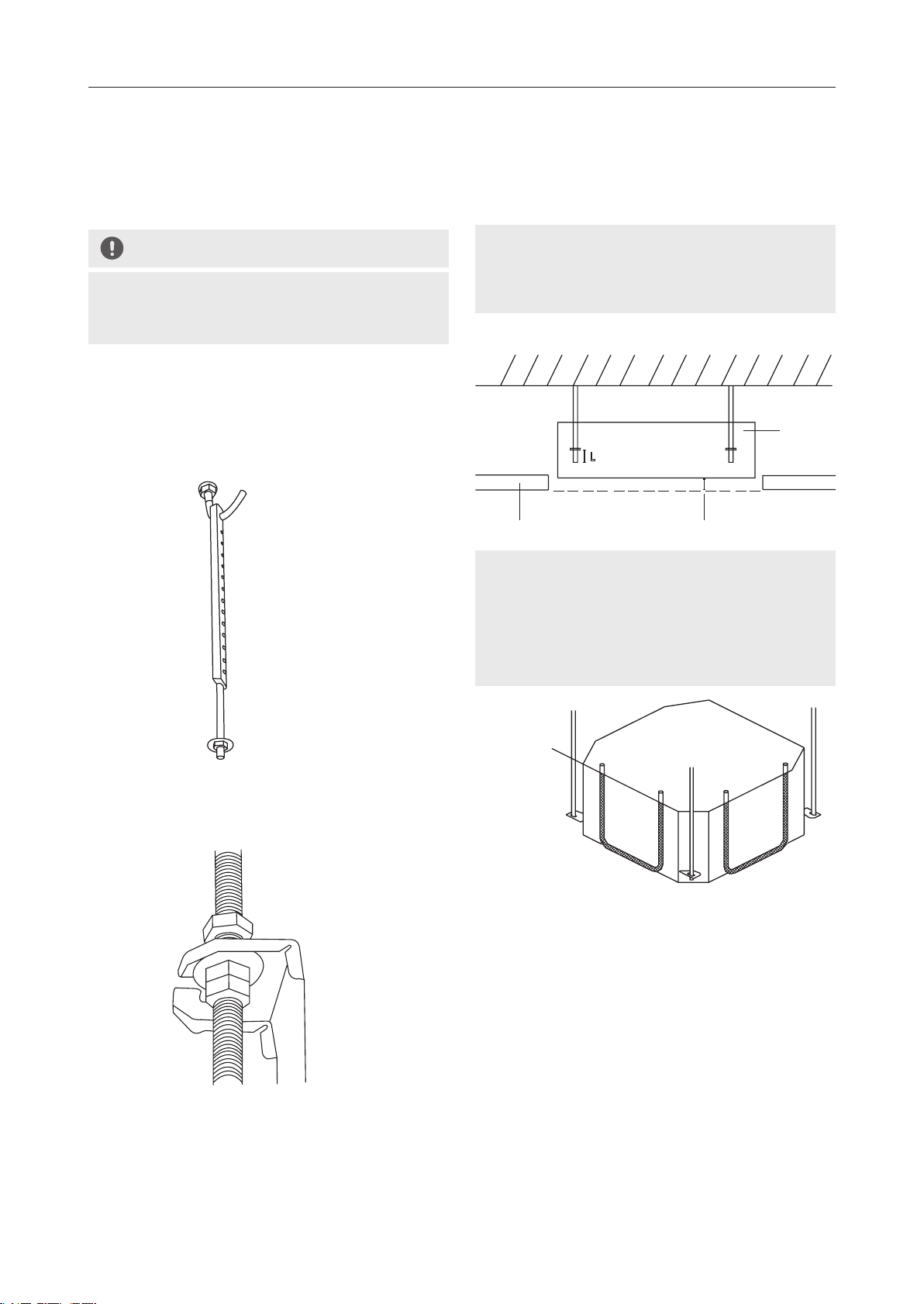

1. Drill 4 holes 50mm deep at the ceiling hook positions in the
internal ceiling. Be sure to hold the drill at a 90° angle
to the ceiling.
2. Using a hammer, insert the ceiling hooks into the pre-drilled
holes. Secure the bolt using the included washers and nuts.
3. Install the four suspension bolts.
4. Mount the indoor unit. You will need two people to lift and
secure it. Insert suspension bolts into the unit’s hanging
holes. Fasten them using the included washers and nuts.
NOTE: The bottom of the unit should be 10-18mm higher
than the ceiling board. Generally, L (indicated in the
following figure) should be half the length of the suspension
bolt or long enough to prevent the nuts from coming off.
NOTE: Ensure that the indoor unit is completely level.
The unit is equipped with a built-in drain pump and
float switch. If the unit is tilted against the direction of
condensate flows (the drainpipe side is raised), the float
switch may malfunction and cause water to leak. Improper
installation can cause the drain pipe to back up into the
unit or water leakage.
Water level
Internal ceiling
10 – 18mm or 24mmCeiling board
Main
body

Kaden Installation Manual | 13

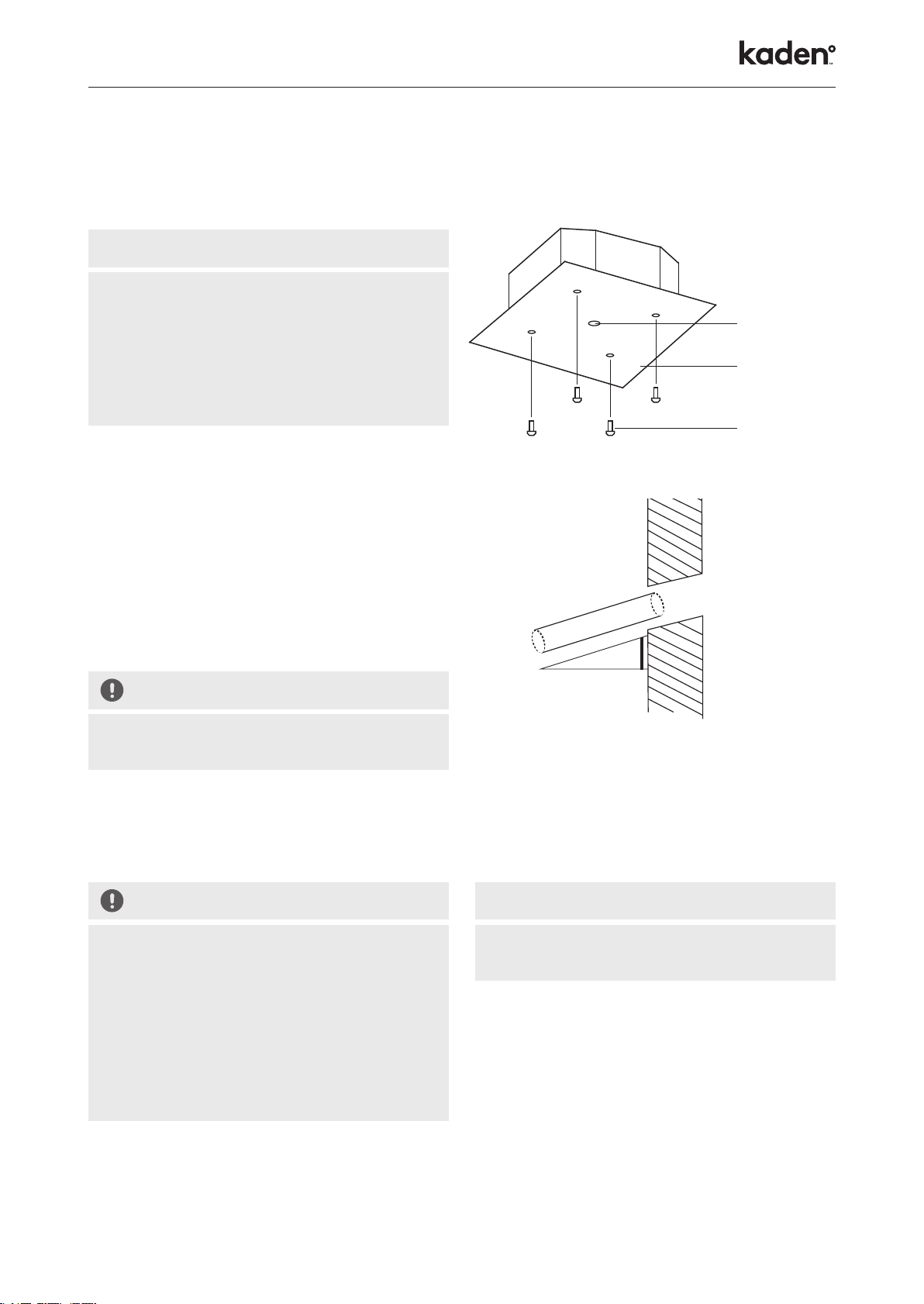

Note for new home installation
When installing the unit in a new home, the ceiling hooks
can be embedded in advance. Make sure that the hooks
do not come loose due to concrete shrinkage. After
installing the indoor unit, fasten the installation paper
template onto the unit with bolts to determine in advance
the dimension and position of the opening on the ceiling.
Follow the instructions above for the remainder of the
installation.
Step 3: Drill wall hole for connective piping
1. Determine the location of the wall hole based on the
location of the outdoor unit.
2. Using a 65mm or 90mm (depending on models) core drill,
drill a hole in the wall. Make sure that the hole is drilled at
a slight downward angle, so that the outdoor end of the
hole is lower than the indoor end by about 12mm. This will
ensure proper water drainage.
3. Place the protective wall cuff in the hole. This protects the
edges of the hole and will help seal it when you finish the
installation process.
CAUTION
When drilling the wall hole, make sure to avoid wires,
plumbing, and other sensitive piping or cables.
Step 4: Connect drain hose
The drainpipe is used to drain water away from the unit. Improper installation may cause unit and property damage.
CAUTION
• Insulate all piping to prevent condensation, which
could lead to water damage.
• If the drainpipe is bent or installed incorrectly, water
may leak and cause a water-level switch malfunction.
• In HEAT mode, the outdoor unit will discharge water.
Ensure that the drain hose is placed in an appropriate
area to avoid water damage and slippage.
•Do not pull the drainpipe forcefully. This could
disconnect it.
Note on purchasing pipes
Installation requires a polyethylene tube (exterior
diameter = 37mm – 39mm, interior diameter = 32mm).
Paper pattern for
installation (on
some models)
Centre of the
ceiling opening
Bolts
Wall
Indoor
≈ 12mm
Outdoor

14 | Kaden Installation Manual

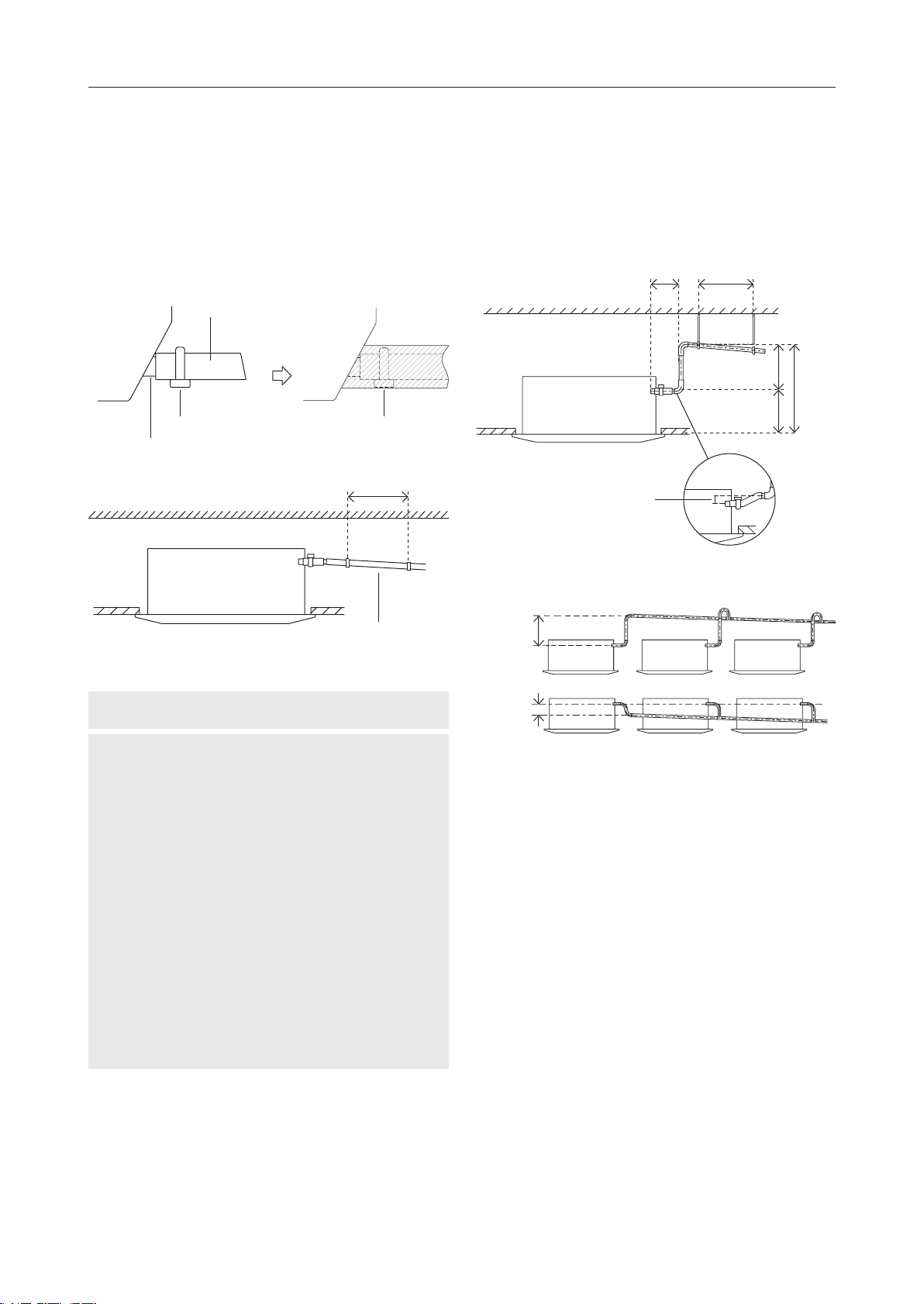

Indoor drainpipe installation
Install the drainpipe as illustrated in the following figure.
Note on drainpipe installation
• When using an extended drainpipe, tighten the indoor
connection with an additional protection tube to
prevent it from pulling loose.
• The drainpipe should slope downward at a gradient of
at least 1/100 to prevent water from flowing back into
the air conditioner.
•To prevent the pipe from sagging, space hanging wires
every 1000mm – 1500mm.
• If the outlet of the drainpipe is higher than the body’s
pump joint, provide a lift pipe for the exhaust outlet of
the indoor unit. The lift pipe must be installed no higher
than 750mm from the ceiling board and the distance
between the unit and the lift pipe must be less than
300mm. Incorrect installation could cause water to flow
back into the unit and flood.
•To prevent air bubbles, keep the drain hose level or
slightly sloping up before the riser.
NOTE: When connecting multiple drainpipes, install the pipes
as illustrated in the following figure.
Drain hose
1000mm – 1500mm
Drainpipe
connecting port
Metal clamp Insulation
Downward
slope 1/100
Ceiling
≤300mm
≤530mm
220mm
≤750mm
0 – 75mm
1000mm – 1500mm
0 – 530mm
≥100mm
Pass the drain hose through the wall hole. Make sure the water
drains to a safe location where it will not cause water damage or
a slipping hazard.
NOTE: The drainpipe outlet should be at least 5cm above the
ground. If it touches the ground, the unit may become blocked
and malfunction. If you discharge the water directly into a sewer,
make sure that the drain has a U or S pipe to catch odours that
might otherwise come back into the house.

Kaden Installation Manual | 15
5. Outdoor unit installation
Install the unit by following local codes and regulations. They
may differ slightly between different regions.
Installation instructions –
Outdoor unit
Step 1: Select installation location
Before installing the outdoor unit, you must choose an
appropriate location. The following are standards that will help
you choose an appropriate location for the unit.
Proper installation locations meet the following standards:
✓Meets all spatial requirements shown in installation space
requirements above.
✓Good air circulation and ventilation.
✓Firm and solid – the location can support the unit and will
not vibrate.
✓Noise from the unit will not disturb others.
✓Protected from prolonged periods of direct sunlight or rain.
✓Where snowfall is anticipated, raise the unit above the base
pad to prevent ice build-up and coil damage. Mount the
unit high enough to be above the average accumulated
area snowfall. The minimum height must be 45cm above
the base pad.
DO NOT install unit in the following locations:
✕Near an obstacle that will block air inlets and outlets.
✕Near a public street, crowded areas, or where noise from
the unit will disturb others.
✕Near animals or plants that will be harmed by
hot air discharge.
✕Near any source of combustible gas.
✕In a location that is exposed to large amounts of dust.
✕In a location exposed to a excessive amounts of salty air.
Special considerations
for extreme weather
If the unit is exposed to heavy wind:
Install unit so that air outlet fan is at a 90° angle to the
direction of the prevailing wind. If needed, build a barrier in
front of the unit to protect it from extremely heavy winds.
See figures below.
If the unit is frequently exposed to heavy rain or snow:
Build a shelter above the unit to protect it from the rain or
snow. Be careful not to obstruct air flow around the unit.
If the unit is frequently exposed to salty air (seaside):
Use outdoor unit that is specially designed to resist
corrosion.
600mm
above
200mm from
back wall
300mm
on left
600mm
on right
2000mm
in front
Strong
wind
Strong
wind
Strong
wind

16 | Kaden Installation Manual

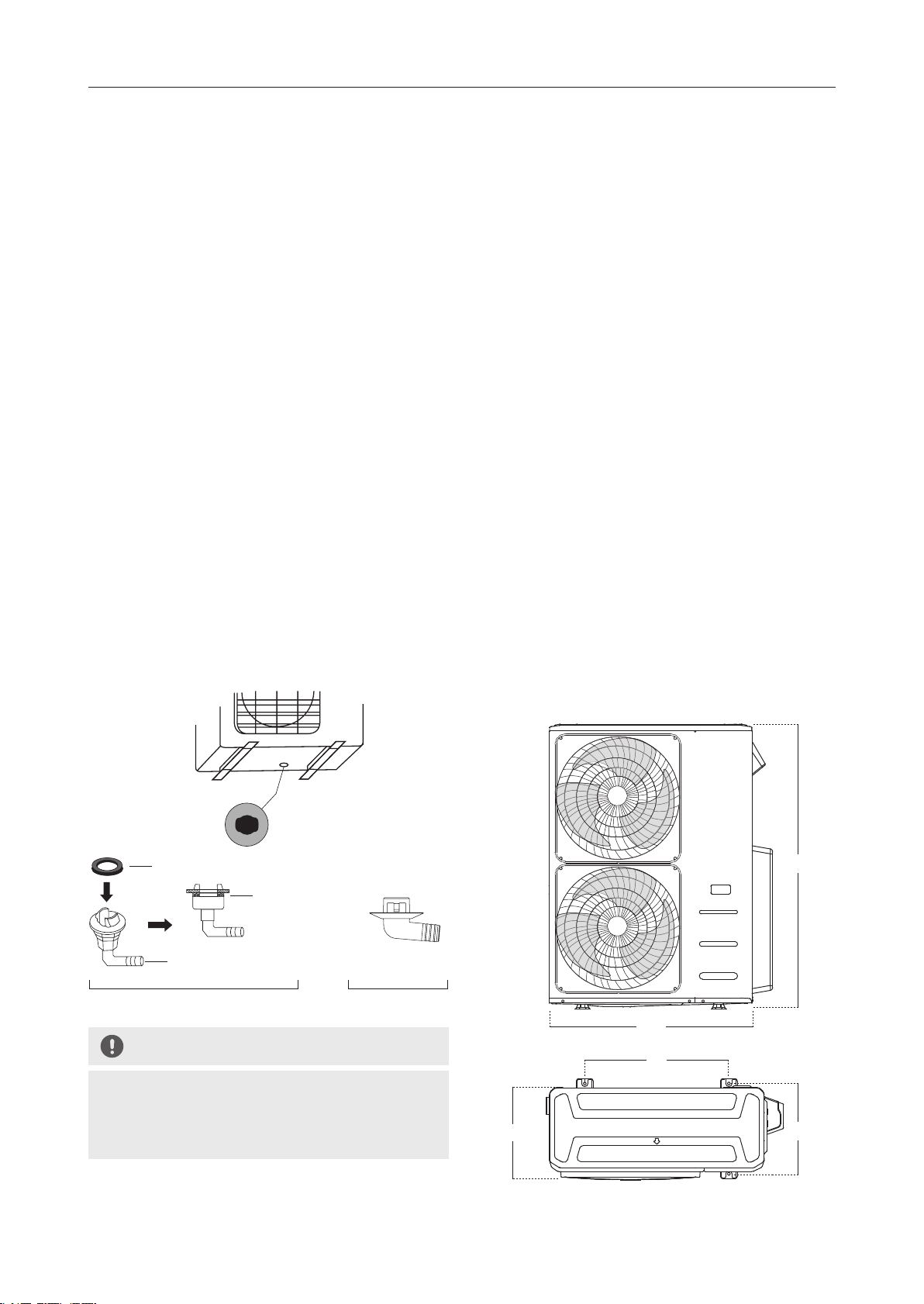

Step 2: Install drain joint
Before bolting the outdoor unit in place, you must install the
drain joint at the bottom of the unit. Note that there are two
different types of drain joints depending on the type of
outdoor unit.
If the drain joint comes with a rubber seal (see Fig. A),
do the following:
1. Fit the rubber seal on the end of the drain joint that will
connect to the outdoor unit.
2. Insert the drain joint into the hole in the base pan
of the unit.
3. Rotate the drain joint 90° until it clicks in place facing the
front of the unit.
4. Connect a drain hose extension (not included) to the drain
joint to redirect water from the unit during heating mode.
If the drain joint doesn’t come with a rubber seal
(see Fig. B), do the following:
1. Insert the drain joint into the hole in the base pan of the
unit. The drain joint will click in place.
2. Connect a drain hose extension (not included) to the drain
joint to redirect water from the unit during heating mode.
IN COLD CLIMATES
In cold climates, make sure that the drain hose is as
vertical as possible to ensure swift water drainage.
If water drains too slowly, it can freeze in the hose and
fl ood the unit.
Step 3: Anchor outdoor unit
The outdoor unit can be anchored to the ground or to a wall-
mounted bracket with bolt (M10). Prepare the installation base
of the unit according to the dimensions below.
Unit mounting dimensions
The following is a list of different outdoor unit sizes and the
distance between their mounting feet. Prepare the installation
base of the unit according to the dimensions below.
Outdoor unit types and specifications
Split type outdoor unit
Base pan hole
of outdoor unit
Seal
Drain joint
Seal
Fig. A Fig. B
H
B
D
W
A

Kaden Installation Manual | 17
Outdoor unit dimensions
W x H x D
Mounting dimensions
Distance A Distance B
952mm x 1333mm x 415mm 634mm 404mm
Rows of series installation
The relationships between H, A and L are as follows.
L A
L ≤ H L ≤ 1/2H 250mm or more
1/2H < L ≤ H 300mm or more
L > H Can not be installed
3000mm or more
A
H
L
250mm
or more
250mm
or more
1500 mm or more
600mm or more

18 | Kaden Installation Manual
6. Refrigerant piping connection
When connecting refrigerant piping, do not let substances or gases other than the specified refrigerant enter the unit. The presence
of other gases or substances will lower the unit’s capacity, and can cause abnormally high pressure in the refrigeration cycle.
This can cause explosion and injury.

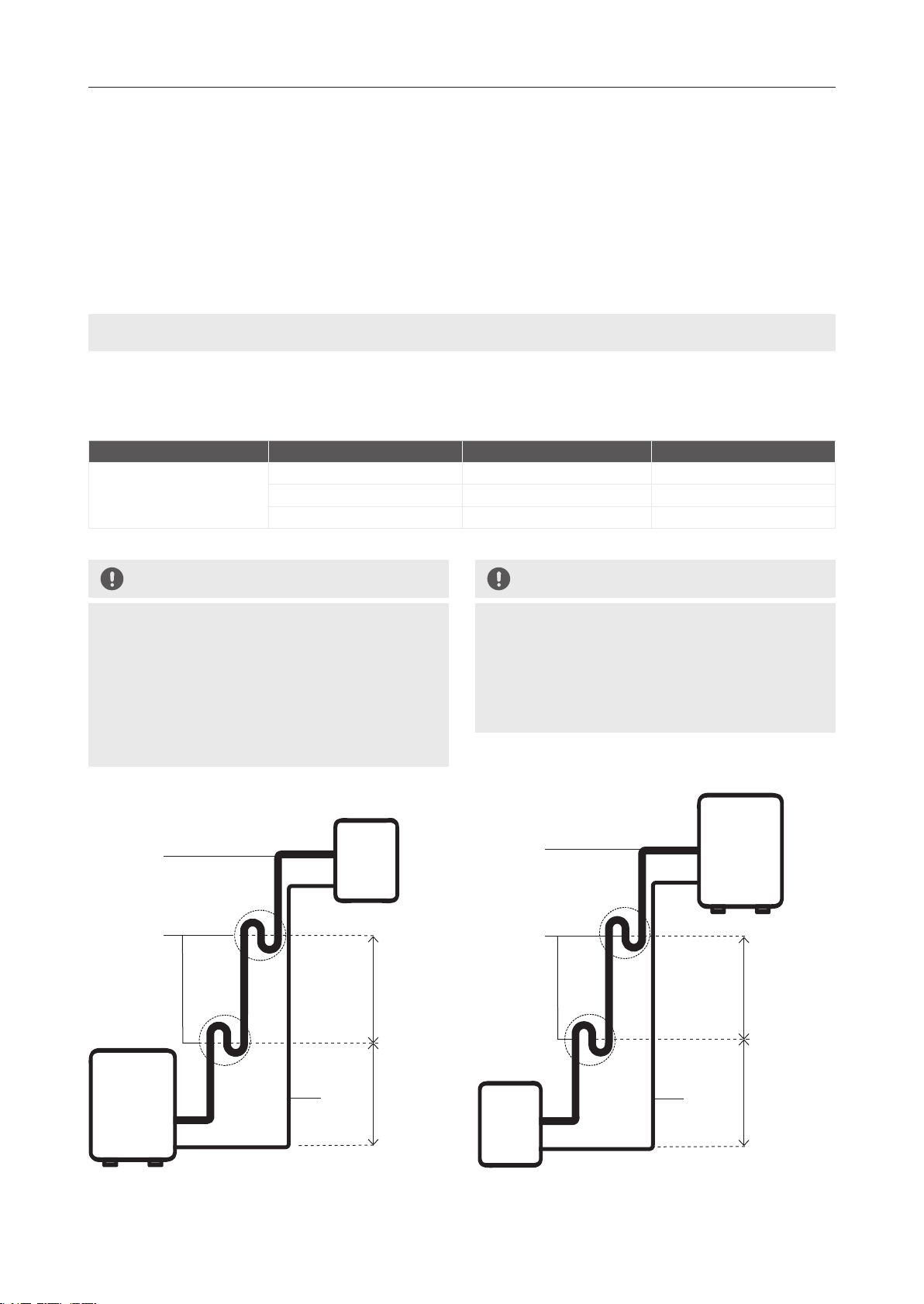

Note on pipe length
Ensure that the length of the refrigerant pipe, the number of bends, and the drop height between the indoor and outdoor units
meets the requirements shown in the following table :
The maximum length and drop height based on models. (Unit: metres.)
Type of model Models Length of piping Maximum drop height
KCI KCI42 7530
CAUTION
• Oil traps
If the indoor unit is installed higher than the outdoor unit:
If oil flows back into the outdoor unit’s compressor, this
might cause liquid compression or deterioration of oil
return. Oil traps in the rising gas piping can prevent this.
An oil trap should be installed every 10m of vertical
suction line riser.
CAUTION
If the outdoor unit is installed higher than the indoor unit:
It is recommended that vertical suction risers not be
up-sized. Proper oil return to the compressor should be
maintained with suction gas velocity. If velocities drop
below 7.62m/s, oil return will be decreased. An oil trap
should be installed every 6m of vertical suction line riser.
The outdoor unit is installed higher than the indoor unit
10000mm
Indoor unit
Outdoor unit
Oil trap
Gas piping
Liquid
piping
10000mm
The indoor unit is installed higher than the outdoor unit
6000mm
Outdoor unit
Indoor unit
Oil trap
Gas piping
Liquid
piping
6000mm
KCI36
KCI48
75
75
30
30

Kaden Installation Manual | 19
Connection instructions –
Refrigerant piping
CAUTION
• The branching pipe must be installed horizontally.
An angle of more than 10° may cause malfunction.
•Do not install the connecting pipe until both indoor
and outdoor units have been installed.
• Insulate both the gas and liquid piping to prevent
water leakage.

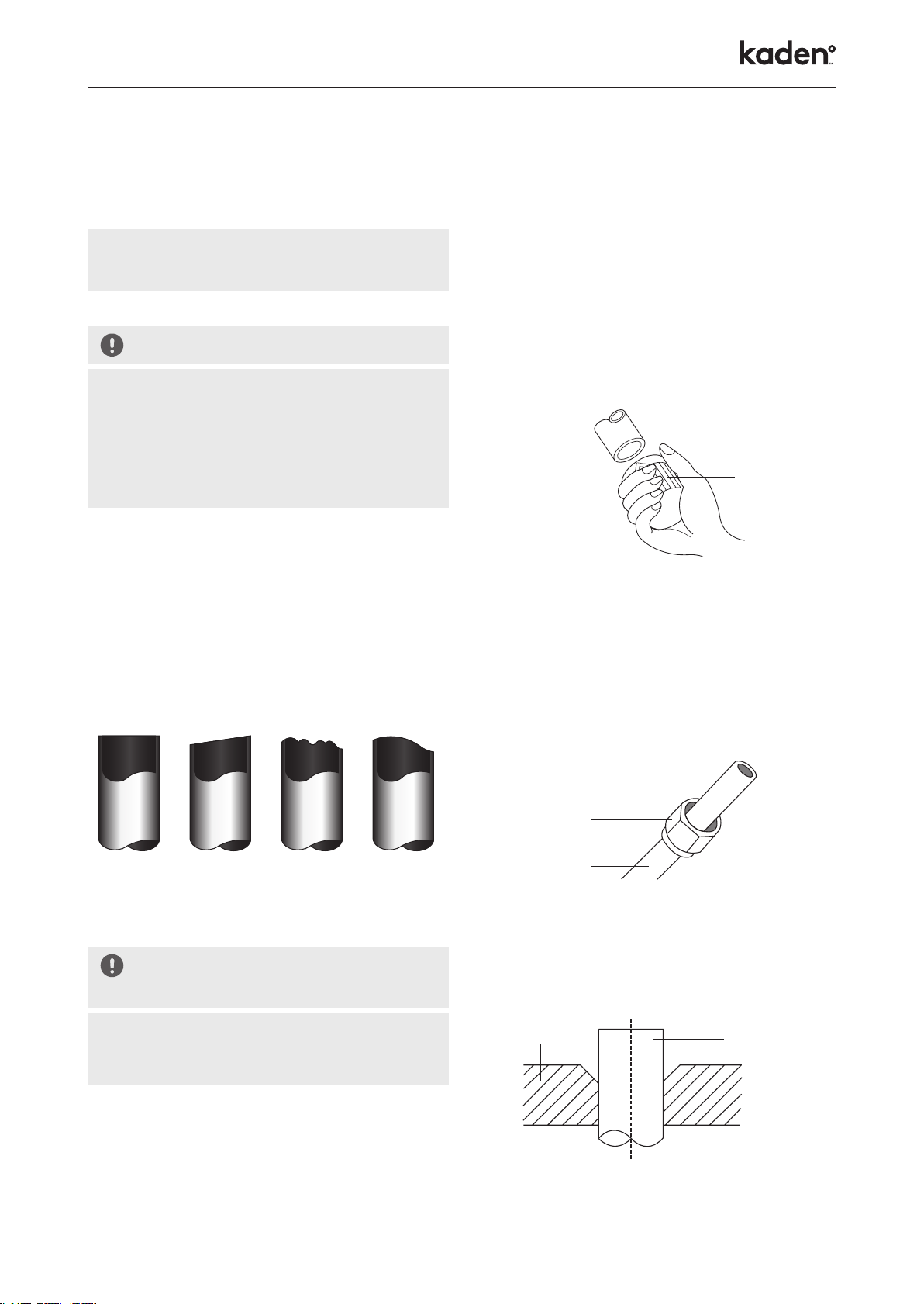

Step 1: Cut pipes
When preparing refrigerant pipes, take extra care to cut and
flare them properly. This will ensure efficient operation and
minimise the need for future maintenance.
1. Measure the distance between the indoor and outdoor units.
2. Using a pipe cutter, cut the pipe a little longer than the
measured distance.
3. Make sure that the pipe is cut at a perfect 90° angle.
DO NOT DEFORM PIPE
WHILE CUTTING
Be extra careful not to damage, dent, or deform the
pipe while cutting. This will drastically reduce the heating
efficiency of the unit.
Step 2: Remove burrs
Burrs can affect the air-tight seal of refrigerant piping
connection. They must be completely removed.
1. Hold the pipe at a downward angle to prevent burrs from
falling into the pipe.
2. Using a reamer or deburring tool, remove all burrs from the
cut section of the pipe.
Step 3: Flare pipe ends
Proper flaring is essential to achieve an airtight seal.
1. After removing burrs from cut pipe, seal the ends with PVC
tape to prevent foreign materials from entering the pipe.
2. Sheath the pipe with insulating material.
3. Place flare nuts on both ends of pipe. Make sure they are
facing in the right direction, because you can’t put them on
or change their direction after flaring.
4. Remove PVC tape from ends of pipe when ready to
perform flaring work.
5. Clamp flare form on the end of the pipe. The end of the
pipe must extend beyond the flare form.
6. Place flaring tool onto the form.
7. Turn the handle of the flaring tool clockwise until the pipe is
fully flared. Flare the pipe in accordance with the dimensions.
✕ ✕ ✕✓
90° Oblique Rough Warped
Pipe
Deburrer
Point down
Copper pipe
Flare nut
Pipe
Flare form

20 | Kaden Installation Manual
Piping extension beyond flare form
Pipe
gauge
Tightening torque Flare dimension (A)
(Unit: mm)
Min. Max.
Ø6.35 18 – 20 N.m
(183 – 204 kgf.cm)
8.4 8.7
Ø9.52 25 – 26 N.m
(255 – 265 kgf.cm)
13.2 13.5
Ø12.7 35 – 36 N.m
(357 – 367 kgf.cm)
16.2 16.5
Ø15.88 45 – 47 N.m
(459 – 480 kgf.cm)
19.2 19.7
Ø19 65 – 67 N.m
(663 – 683 kgf.cm)
23.2 23.7
Ø22 75 – 85 N.m
(765 – 867 kgf.cm)
26.4 26.9
Flare shape
8. Remove the flaring tool and flare form, then inspect the end
of the pipe for cracks and even flaring.
Step 4: Connect pipes
Connect the copper pipes to the indoor unit first, then connect
it to the outdoor unit. You should first connect the low-pressure
pipe, then the high-pressure pipe.
1. When connecting the flare nuts, apply a thin coat of
refrigeration oil to the flared ends of the pipes.
2. Align the centre of the two pipes that you will connect.
3. Tighten the flare nut as tightly as possible by hand.
4. Using a spanner, grip the nut on the unit tubing.
5. While firmly gripping the nut, use a torque wrench to tighten
the flare nut according to the torque values in above table.
NOTE: Use both a spanner and a torque wrench when
connecting or disconnecting pipes to/from the unit.
CAUTION
• Ensure you wrap insulation around the piping. Direct
contact with the bare piping may result in burns or
frostbite.
• Make sure the pipe is properly connected. Over-
tightening may damage the bell mouth and under-
tightening may lead to leakage.
Flare nut PipeIndoor unit tubing
