Kaden KSI Series User manual

Remote
Controller
Manual
KSI06 | KSI09 | KSI12
KSI18 | KSI24 | KSI28
KSI SERIES
WALL MOUNTED AIR CONDITIONER

2| Kaden Remote Controller Manual

Kaden Remote Controller Manual | 3
Table of contents
Important note
Read this manual carefully before installing or operating
your new air conditioning unit. Make sure to save this
manual for future reference.
1. Remote controller specications 4
2. Function buttons 4
3. Handling the remote controller 5
4. Remote LCD screen indicators 6
5. How to use the basic functions 7
6. How to use the advanced functions 12

4| Kaden Remote Controller Manual
1. Remote controller
specications

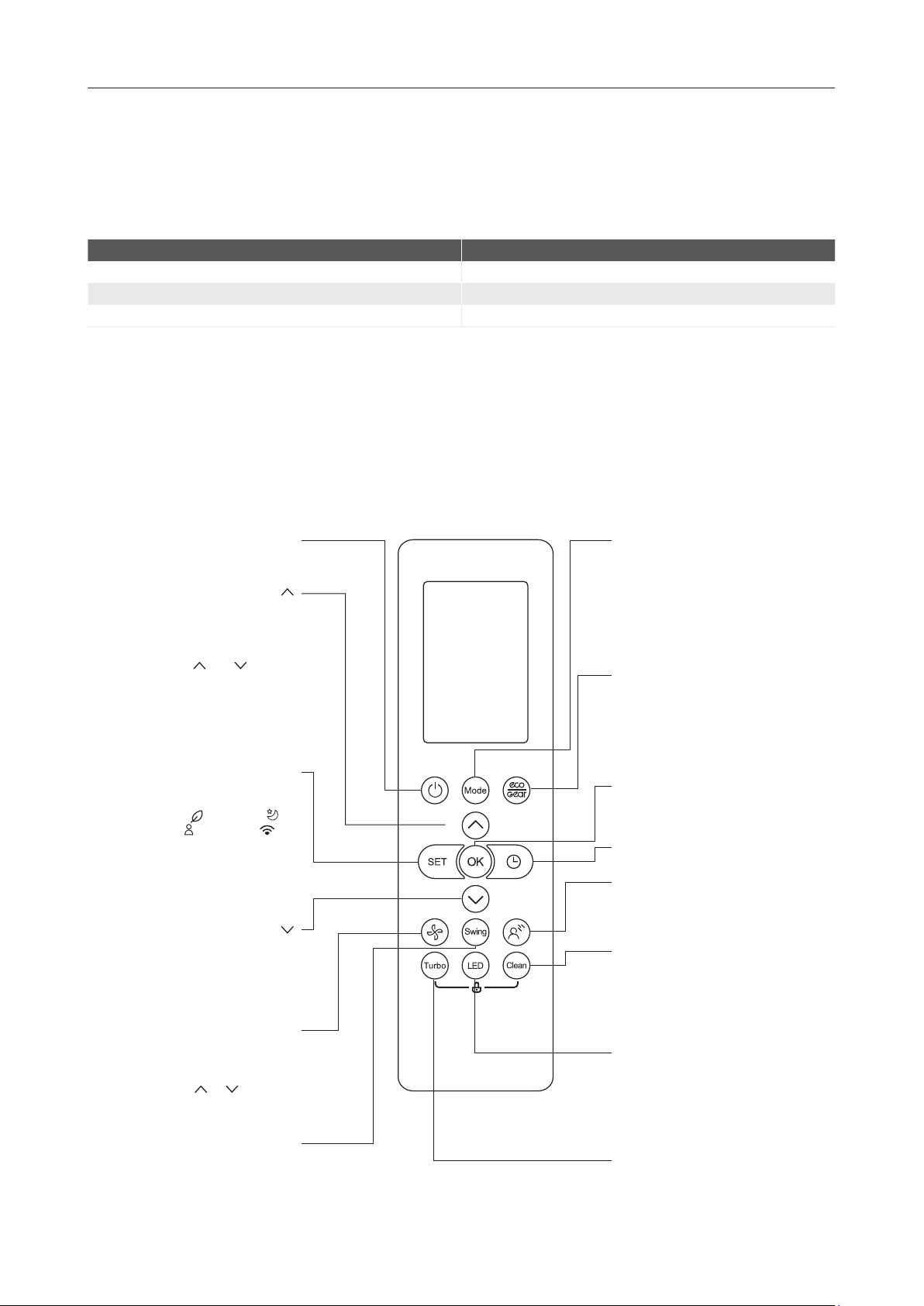

2. Function buttons
Before you begin using your new air conditioner, make sure to familiarise yourself with its remote control. Thefollowing
is a brief introduction to the remote control itself. For instructions on how to operate your air conditioner, refer to the
How to use the basic/advance functions section of this manual.
RG66A1/BGEF
Rated voltage 3.0V (dry batteries R03/LR03×2)
Signal receiving range 8m
Environment -5ºC~60ºC
ON/OFF
Turns the unit on or off
TEMP
Increases temperate in
1°C (1°F) increments.
Max. temperature is
30°C (86°F). NOTE: Press
together and buttons
at the same time for 3
seconds will alternate
the temperature display
between the °C & °F.
SET
Scrolls through operation
functions as follows:
Fresh ( ) ➞ Sleep ( )➞
Follow Me ( ) AP mode ( ) ➞
Fresh ...
The selected symbol will
flash on the display area
press OK button to confirm.
TEMP
Decreases temperature
in 1°C (1°F) increments.
Min. temperature is 16°C (60°F).
FAN SPEED
Selects fan speeds in the
following order: AU ➞ 20% ➞
40% ➞ 60% ➞ 80% ➞100%.
Press the TEMP or button to
increase/decrease the fan speed
in 1% increments.
MODE
Scrolls through operation modes as
follows: AUTO ➞ COOL ➞DRY ➞
HEAT ➞FAN
NOTE: HEAT mode is not supported
by the cooling only appliance.
ECO/GEAR
Press this button to enter the energy
efficient mode in a sequence of
following: ECO) ➞ GEAR (75%) ➞
GEAR (50%)) ➞ Previous setting
mode) ➞ ECO.
OK
Used to confirm the selected functions.
TIMER
Set timer to turn unit on or off.
BREEZE AWAY
This feature avoids direct air flow
blowing on the body.
SWING
Starts and stops the horizontal
louvre movement. Hold down for
2 seconds to initiate vertical louvre
auto swing feature.
CLEAN
Used to start/stop the Self Clean
or Active Clean function. (Model
dependent, please refer to the
USER’S OPERATION AND
INSTALLATION MANUAL).
LED
Turns indoor unit’s LED display
and air conditioner buzzer on
and off (model dependent), which
create a comfortable and quiet
environment.
TURBO
Enables unit to reach preset
temperature in shortest
possible time.

Kaden Remote Controller Manual | 5
3. Handling the
remote controller
Not sure what a function does?
Refer to the How to use basic functions and Howto use advanced functions sections of this manual for a detailed description
of how to use your air conditioner.

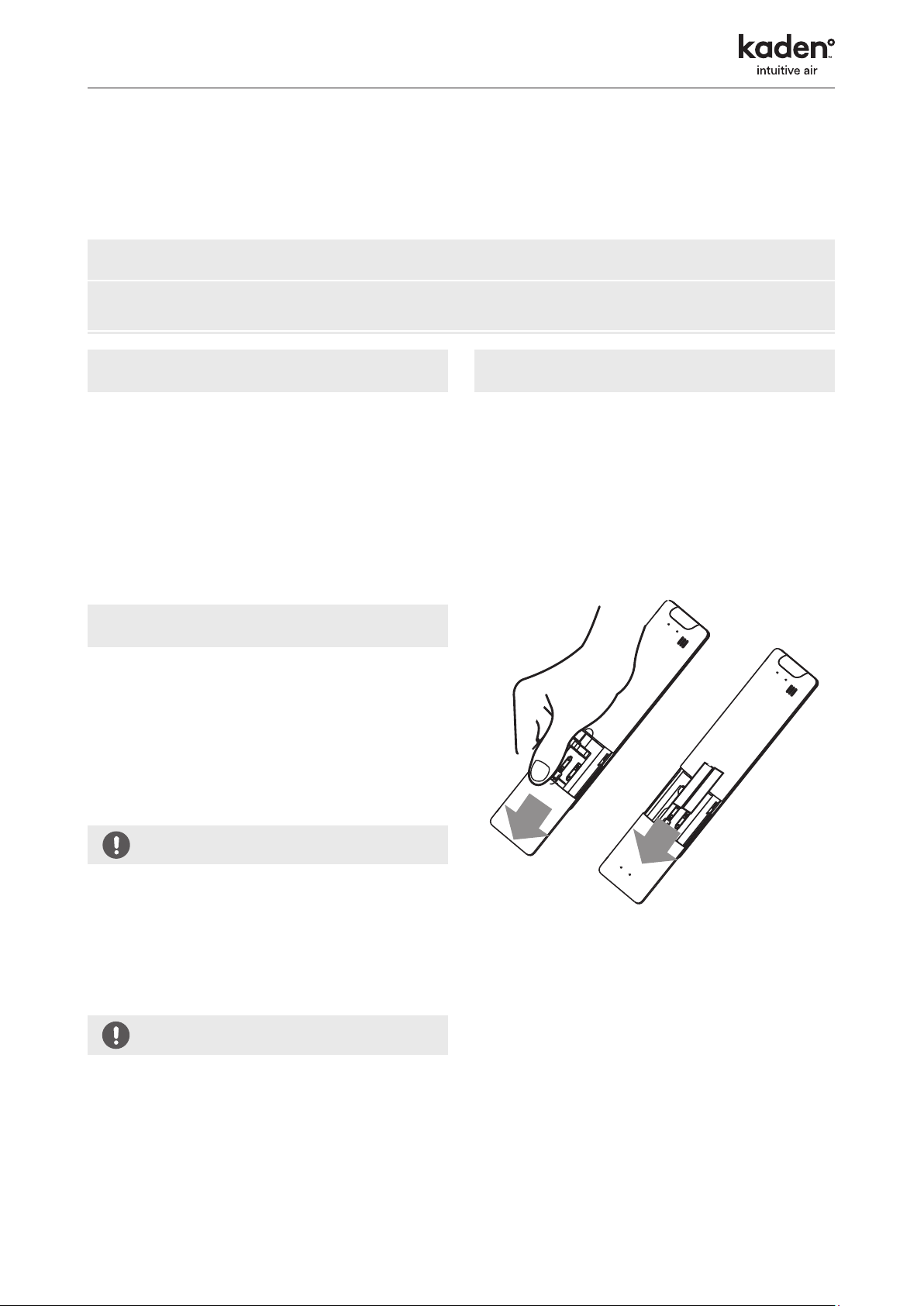

Your air conditioning unit comes with two AAA batteries.
Put the batteries in the remote control beforeuse:
1. Remove the back cover from the remote control,
exposing the battery compartment.
2. Insert the batteries, paying attention to match up
the (+) and (-) ends of the batteries with the symbols
inside the battery compartment.
3. Install the back cover.
The remote controller can be attached to a wall or stand by
using a remote controller holder.
1. Before installing the remote controller, check that the
air conditioner receives the signals properly.
2. Install the holder with two screws.
3. Put the remote controller in the holder.
Battery notes
For optimum product performance:
• Do not mix old and new batteries, or batteries of
different types.
• Do not leave batteries in the remote control if youdon’t
plan on using the device for more than2months.
• The remote control must be used within 8 meters of
the unit.
• The unit will beep when remote signal is received.
• Curtains, other materials and direct sunlight can interfere
with the infrared signal receiver.
• Remove batteries if the remote control will not be
used more than 2 months.
Battery disposal
Do not dispose of batteries as unsorted municipal waste.
Refer to local laws for proper disposal of batteries.
Inserting and replacing batteries Tips for using remote control
Installing remote control holder

6| Kaden Remote Controller Manual

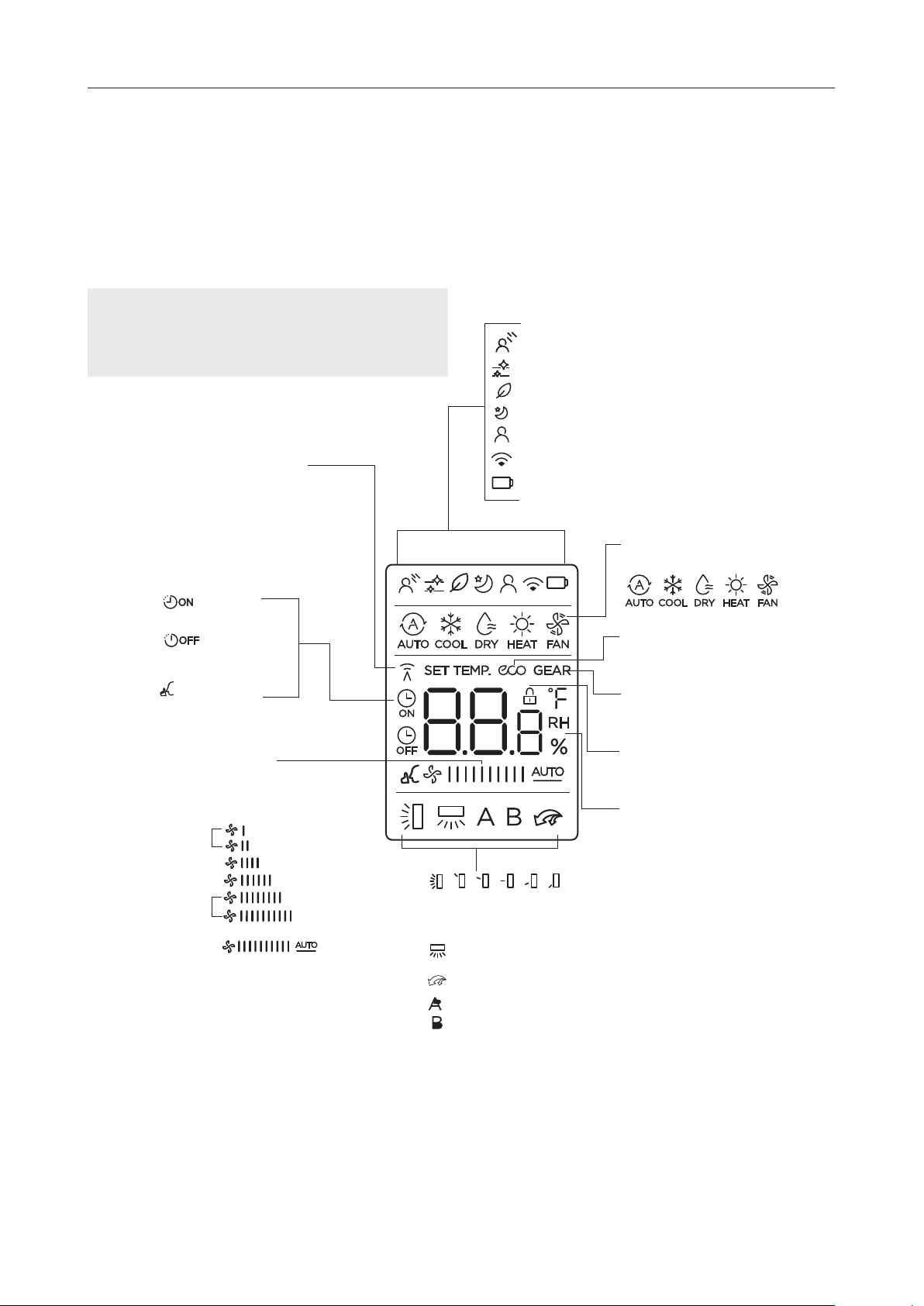

4. Remote LCD
screen indicators
Information is displayed when the remote controller is
powered up.
NOTE: All indicators shown in the figure are for the
purpose of clear presentation. But during the actual
operation, only the relative function signs are shown on
the display window.
   
Breeze Away display (some units)
Active clean feature display
Fresh feature display
Sleep mode display
Follow me feature display
Wireless control feature display
Low battery detection display (if flashes)
Mode Display
Displays the current mode including:
ECO Display
Displays when ECO feature
is activated
GEAR Display
Displays when GEAR feature
is activated
LOCK Display
Displays when LOCK feature
is activated
Temperature/Timer/
Fan Speed Display
Displays the set temperature
by default, or fan speed or timer
setting when using TIMER ON/
OFF functions.
• Temperature range:
16ºC-30ºC/60ºF-86ºF/
(20ºC-28ºC/68ºF-82ºF)
(Model dependent)
• Timer setting range:
0-24 hours
• Fan speed setting range:
AU-100%
This display is blank when operating
in FAN mode.
Note:
All indicators shown in the figure are for the purpose of clear presentation. But during actual operation, only the relative
function signs are shown on the display window.
Horizontal louvre
swing display
Vertical louvre
auto swing display
TURBO mode display
Not available for this unit
FAN SPEED display
Displays selected fan speed:
Silence
LOW
MED
HIGH
AUTO
This fan speed can not be adjusted in
AUTO or DRY mode.
Note: (*)
Not all the models can display the fan
speed values between AU-100%.
Transmission Indicator
Lights up when remote sends
signal to indoor unit.
TIMER ON display
TIMER OFF display
Silence
feature display
1%*
2-20%*
21-40%*
41-60%*
61-80%*
81-100%*

Kaden Remote Controller Manual | 7
5. How to use the
basic functions

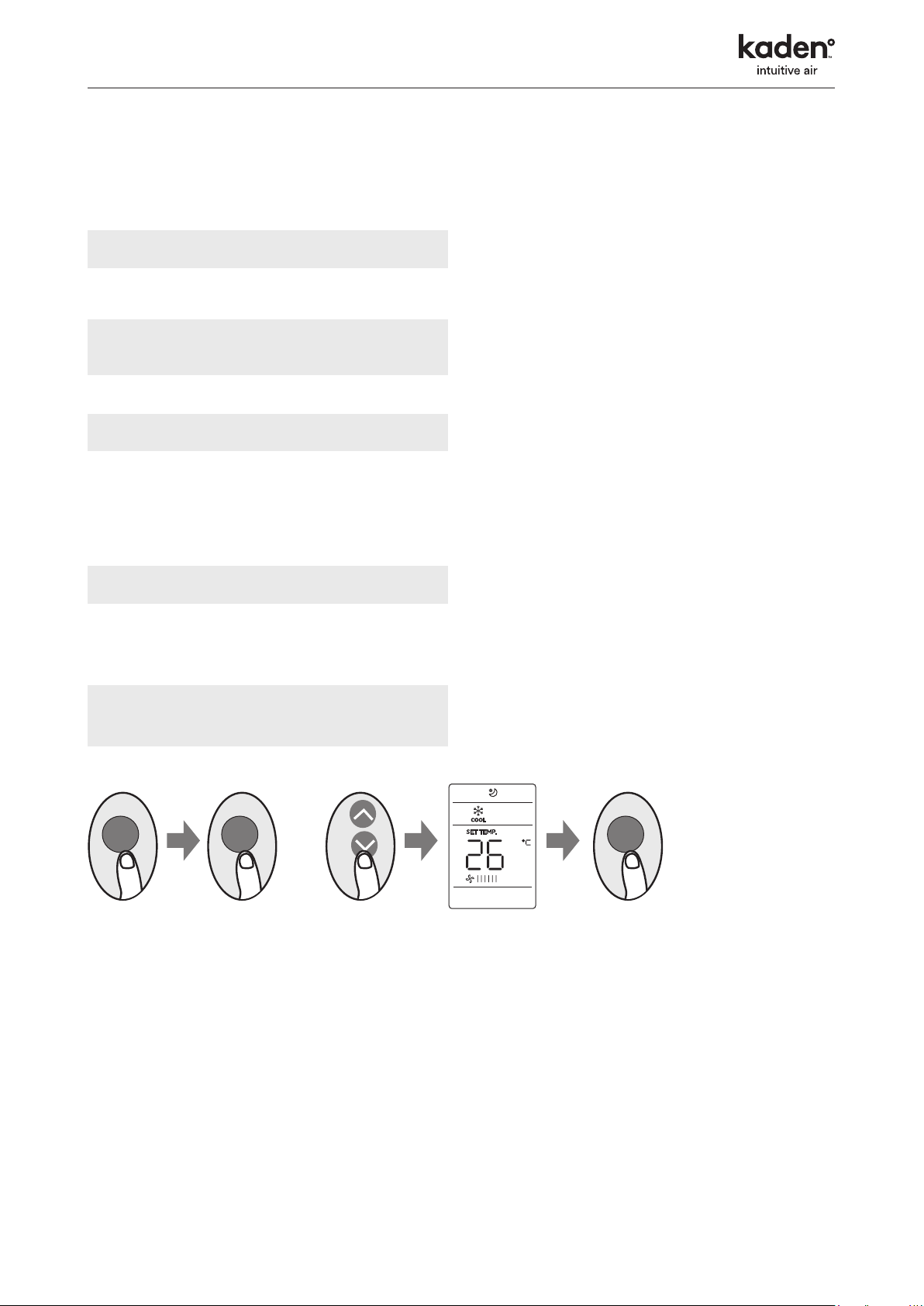

COOL or HEAT operation
1. Press the MODE button to select COOL mode.
2. Set your desired temperature using the
Temp + or Temp – button.
3. Press the FAN button to select the fan speed.
4. Press the ON/OFF button to start the unit.
Setting temperature
The operating temperature range for units is 17ºC – 30ºC.
You can increase or decrease the set temperature in
1ºC increments.
AUTO operation
In AUTO mode, the unit will automatically select the COOL,
FAN, HEAT or DRY mode based on the set temperature.
1. Press the MODE button to select AUTO mode.
2. Set your desired temperature using the
Temp + or Temp – button.
3. Press the ON/OFF button to start the unit.
NOTE: FAN SPEED can’t be set in Auto mode.
MODE
MODE

8| Kaden Remote Controller Manual

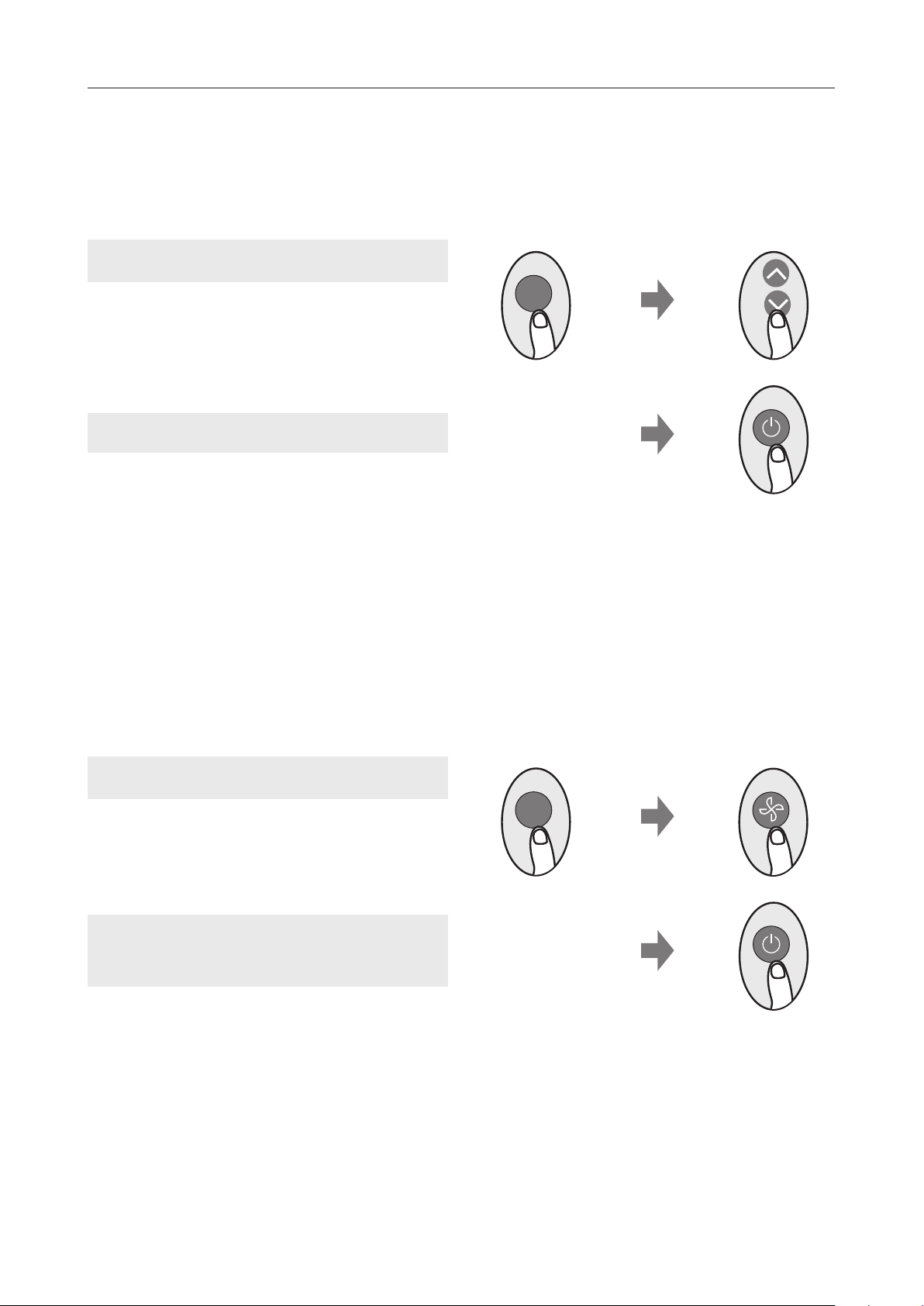

FAN operation
DRY operation (dehumidifying)
1. Press the MODE button to select FAN mode.
2. Press the FAN button to select the fan speed.
3. Press the ON/OFF button to start the unit.
1. Press the MODE button to select DRY mode.
2. Set your desired temperature using the
Temp + or Temp – button.
3. Press the ON/OFF button to start the unit.
NOTE: FAN SPEED can’t be changed in DRY mode.
NOTE: You can’t set temperature in FAN mode.
As a result, your remote control’s LCD screen will not
display temperature.
MODE
MODE

Kaden Remote Controller Manual | 9
TIMER OFF function
The TIMER off function allows you to set a period of time
after which the unit will automatically turn off, such as
when you wake up.
1. Press the Timer button, the Timer off indicator“ “ displays
and flashes. By default, the last time period that you set
and an “h” (indicating hours) will appear on the display.
Note: This number indicates the amount of time after the
current time that you want the unit to turn off. For example,
if you set TIMER OFF for 5 hours, “5.0h“ will appear on the
screen, and the unitwill turn off after 5 hours.
3. Press the Temp + or Temp – button repeatedly to set the
time when you want the unit to turn off.
4. Wait 3 seconds, then the TIMER OFF function will be
activated. The digital display on your remote control will
then return to the temperaturedisplay. The “ “ indicator
remains onand this function is activated.
Your air conditioning unit has two timer-related functions:
• TIMER ON – sets the amount of time after which the
unit will automatically turn on.
• TIMER OFF – sets the amount of time after which
the unit will automatically turn off.
TIMER ON function
The TIMER ON function allows you to set a period of time
after which the unit will automatically turn on, such as when
you come home from work.
1. Press the Timer button, the Timer on indicator “ “
displays and flashes. By default, the last time period that
you set and an “h” (indicating hours) will appear on
the display.
Note: This number indicates the amount of time after the
current time that you want the unit to turn on. For example,
if you set TIMER ON for 2.5 hours, “2.5h“ will appear on the
screen, and the unitwill turn on after 2.5 hours.
3. Press the Temp + or Temp – button repeatedly to set
the time when you want the unit to turn on.
4. Wait 3 seconds, then the TIMER ON function will be
activated. The digital display on your remote control will
then return to the temperaturedisplay. The “ “ indicator
remains onand this function is activated.

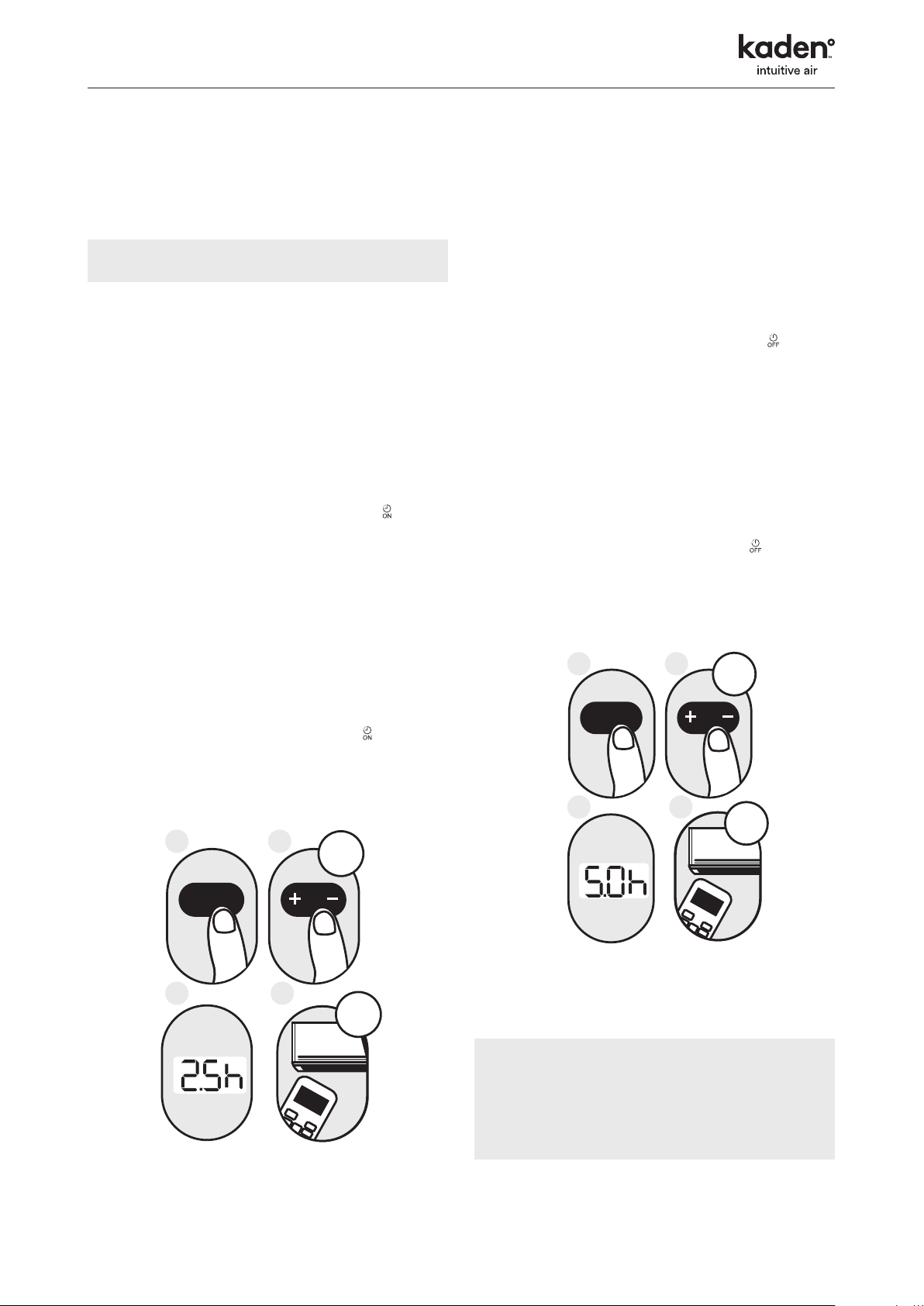

Setting the TIMER function
Example: Setting unit to turn
on after 2.5 hours
Example: Setting unit to turn
on after 5 hours
NOTE: When setting the TIMER ON or TIMER OFF
functions, up to 10 hours, the time will increase in 30
minute increments with each press. After 10 hours and
up to 24, it will increase in 1 hour increments. The timer
will revert to zero after 24 hours. You can turn off either
function by setting its timer to “0.0h”
ON/OFF
MODE
SHORT
CUT
TIMER ON
TEMP
Timer or
ON/OFF
MODE
SHORT
CUT
TIMER ON
TEMP
Timer or
ON/OFF
MODE
SHORT
CUT
TIMER ON
TEMP
Timer or
ON/OFF
MODE
SHORT
CUT
TIMER ON
TEMP
Timer or
1 2
3 4
x10
3 sec
1 2
3 4
x5
3 sec

10 | Kaden Remote Controller Manual
Keep in mind that the time periods you set for both functions refer to hours after the current time. For example, say that the current
time is 1:00 PM, and you want the unit to turn on automatically at 7:00 PM. You want it to operate for 2 hours, then automatically
turn off at 9:00 PM.
Setting both TIMER ON and TIMER OFF at the same time
Do the following:
ON/OFF
ON/OFF
MODE
MODE
SHORT
SHORT
CUT
CUT
TIMER ON
TIMER ON
TEMP
TEMP
Timer
Timer
or
or
1 2 3 4
5 6 7 8
x12
3 sec
3 sec
x16

Kaden Remote Controller Manual | 11
Example: Setting the unit to turn on after 6 hours, operate for 2 hours, then turn off (see figure below).
Your remote display:
6 hours later
8 hours later
Timer starts Unit turns
ON
2PM 3PM 4PM 5PM 6PM 7PM 8PM 9PMCurrent
time 1PM
Timer is set to turn ON
6 hours from current time
Timer is set to turn OFF
8 hours from current time
Unit turns
OFF

12 | Kaden Remote Controller Manual
6. How to use the
advanced functions
NOTE: This function is only available under COOL mode.
ECO operation
When the ECO feature is activated, the air conditioner will
operate automatically at 24ºC.
The fan speed is Auto.
NOTE: Pressing the ON/OFF button, modifying the mode
or adjusting the set temperature to less than 24ºC will
stop ECO operation.
Under ECO operation, the set temperature should be 24ºC
or higher. It may result in insufficient cooling if you feel
unconformable, just adjust thetemperature to stop it.
NOTE: The SLEEP function is not available in FAN or
DRY mode.
SLEEP function
The SLEEP function is used to decrease energy use while
you sleep (and don’t need the same temperature settings
to stay comfortable). This function can only be activated
via remote control. For detail, see “sleep operation” in
OWNER’S MANUAL.
TURBO function
The TURBO function makes the unit work extra hard to
reach your present temperature in the shortest amount
of time possible.
• When you select TURBO feature in COOL/HEAT mode,
the unit will blow cool/hot air with strongest wind setting
to jump-start the cooling/heating process.
ACTIVE CLEAN function
• The Active clean technology washes away dust, mould,
and grease that may cause odours when it adheres to
the heat exchanger by automatically freezing and then
rapidly thawing the frost. A “pi-pi” sound will be heard.
The ACTIVE CLEAN operation is used to produce more
condensed water to improve the cleaning effect, and the
cold air will blow out. After cleaning, the internal wind
wheel then keeps operating with hot air to blow-dry the
evaporator, thus preventing the growth of mould and
keeping the inside clean.
• When this function is turned on, the indoor unit display
window appears “CL”, after 20 to 45 minutes, the unit
will turn off automatically and cancel
ACTIVE CLEAN function.
NOTE: You can only activate this function in COOL or
DRY mode.
ECO function
ECO/GEAR function (some units)
Press X-ECO button to enter the energy efficient mode in a sequence of following:
ECO ➞ GEAR (75%) ➞GEAR (50%) ➞Previous setting mode ➞ECO...
Note: This function is only available under COOL mode.

Kaden Remote Controller Manual | 13
Breeze away function
This feature avoids direct air flow blowing on the body.
NOTE: This feature is available under cool, FAN and DRY
mode only.
AP function
Choose AP mode to do wireless network configuration. For
some units, it doesn’t work by pressing the SET button. To
enter the AP mode, continuously press the LED button seven
times in 10 seconds.
FRESH function
When the FRESH function is initiated, the ion generator is
energized and will help to purify the air in the room.
Breeze away / fresh / sleep / follow
me function
SET SET OK
or

14 | Kaden Remote Controller Manual
LOCK function
Press Turbo button and self clean button simultaneously for
one second to lock or unlock thekeyboard.
FOLLOW ME function
The follow me function enables the remote control to measure
the temperature at its current location and send this signal to
the air conditioner every 3 minute interval. When using AUTO,
COOL, or HEAT modes, measuring ambient temperature from
the remote control (instead of from the indoor unit itself) will
enable the air conditioner to optimise the temperature
around you and ensure maximum comfort.
SILENT function
Hold down Fan button for 2 seconds to activate /cancel
SILENT mode. Due to low frequency operation ofcompressor,
it may result in insufficient cooling and heating capacity.
Hold together for one
second to activate
LOCK function
Hold down Fan
button for 2 seconds
to activate /cancel
SILENT mode

Kaden Remote Controller Manual | 15
SWING function
Swing Button
Used to stop or start vertical louvre movement and set the
desired left/right air flow direction. The vertical louvre changes
6 degree in angle for each press. If keep pushing more than
2 seconds, the vertical louvre auto swing feature is activated.
Swing Button
Used to stop or start horizontal louvre movement or set
the desired up/down air flow direction. The louvre changes
6 degree in angle for each press. If keep pushing more than
2 seconds, the louvre will swing upand down automatically.
Swing function:
Press swing function
Wi-Fi operation setup
For instructions on setting up Wi-Fi connectivity for your Kaden
air conditioner, please scan the QR code below,
or visit kadenair.com.au
SWING SWING
2s
The horizontal louvre will swing up and down automatically
when pressing SWING button. Press again to make it stop.
Keep pressing this button more than 2 seconds, the vertical
louvre SWING function is activated (model dependent).

kadenair.com.au
