KAE Systems MIDI Ant User manual

www.kae-systems.com - 1 - MIDI Ant user’s manual v4.0
What’s this?
MIDI Ant is a powerful small-sized universal programmable MIDI controller. It can:
•Reach every preset in every possible bank, in every device! Plus, it helps You to rearrange Your favorite
presets in a list of up to 256 items!
•Show the program number in various formats
•Send up to 9 messages at once on each button actuation phase –on press, hold or release
•Make sophisticated MIDI message filtering, transformation and routing
•Generate a highly precise MIDI Clock for your favorite delay pedal, with period between 20 and 300 ВРМ
and 1 ВРМ increments
•Handle up to 2 external expression pedals and apply sophisticated value transformation and routing
Plus, it has these amazing features:
•It comes with a free Microsoft Windows® application for easy configuration
•An ‘auto-calibration’ for both expression pedals: eliminates dependency from the extreme positions of
the internal potentiometers
•Software swappable left and right buttons
•3 types of tempo control: ‘hard-coded’, manual or by expression pedal
•Ultra-bright 3-digit red LED display
•2 high-quality Neutrik® ¼” jacks for external expression pedals
•Phantom-powered from spare pins on the MIDI Out socket
•Intelligent switching 2.5mm DC power jack with center negative pin, permitting either power supply or
phantom power at a time.
•Reverse polarity protection
•Sturdy metal case
•Soft-action (click-less) momentary footswitches for maximum comfort
Note: DC power supply and expression pedals are not part of MIDI Ant’s shipping package.
Layout and connection diagram

www.kae-systems.com - 2 - MIDI Ant user’s manual v4.0
Operation
There are 3 operating modes You can use, but only one at a time.
In parallel with the currently active mode, there are always
working expression pedal ports and the ‘Message reactor’ feature
(see details on page 3).
Operating mode > Basic
Its purpose is to change the program/patch in Your controlled
device. The buttons behave as follows:
-Buttons “UP” and “DOWN”:
•When in ‘normal’ sub-mode: change the displayed program. On each change, the currently
selected program is sent by MIDI.
•When in ‘search’ sub-mode: change the displayed program. Hold buttons for fast
increment/decrement.
-Button „ACT”:
•in ‘normal’ sub-mode: enter ‘search’ sub-mode. Display starts to blink.
•in ‘search’ sub-mode: exit ‘search’ sub-mode and transmit currently selected program by
MIDI. Display stops blinking.
Operating mode > Tap-tempo
Like ‘Basic’ mode, plus You may use the “ACT” button to control the tempo in the controlled device.
- Buttons “UP” and “DOWN”:
•When pressed - enter ‘search’ mode (display starts to blink) and change the displayed
program. Hold buttons for fast increment/decrement.
-Button „ACT”when pressed:
•if in ‘search’ sub-mode: exit ‘search’ sub-mode and transmit currently selected program by
MIDI.
•If in ‘normal’ sub-mode:
- If tap method is “CC message”: a CC message is emitted. BPM value is not shown by MIDI
Ant (it’s calculated by the controlled MIDI device).
or
- If tap method is “MIDI Clock”:
- 2 taps start transmission of MIDI clock stream with ‘hard-coded’ BPM (only if configured) or
with currently selected BPM by external expression pedal (only if plugged).
- 3 or more taps will start transmission of MIDI clock stream with tapped BPM (only if the
stream is stopped), otherwise taps will adjust the tempo to the interval between the last 2 taps.
Maximum tap interval = 3 seconds (20 BPM)
Minimum tap interval = 0.2 seconds (300 BPM)
After first 24 MIDI Clocks (that is one quarter note), a MIDI Start command is sent.
-Button „ACT”when hold for 2.3 seconds: only if MIDI clock stream is running, stops it and transmits
MIDI Stop command.
NOTE: The operating modes are active one at a time; only sub-modes can be changed dynamically. See
chapter ‘Settings’ to learn how to change operating modes.
NOTE: The tap method can be changed only by the configurator utility program for Windows®.

www.kae-systems.com - 3 - MIDI Ant user’s manual v4.0
Operating mode > Custom buttons
With this mode, You can send a pre-defined message group on each of the button actuation phases: on
press, hold or release. Each message group may consist of up to 9 MIDI messages with independent
channels. Almost every short message type is supported (except MIDI clock; see the MIDI implementation
chart at the end).
Additionally, the ‘virtual’action type of each button can be configured as momentary or latching
(retentive). The momentary action completely follows the behavior of the Ant’s physical footswitches (1
stable ‘off’ state). The latching action gives You 1 more stable state (‘on’). By configuring a button as
‘latching’, You can send up to 4 message groups just by applying ‘short’ and ‘long’ presses.
NOTE: All settings in ‘Custom buttons’ mode can be changed only by the configurator utility for
Windows®. For detailed explanation, see its manual. See chapter ‘Settings’.
Expression pedal ports
Up to 2 external expression pedals can be connected to MIDI Ant. Pedals should be passive (no
battery powered) and should provide 6.3 mm ( ¼” ) TRS male jacks. Maximum allowed resistance of their
internal linear potentiometer should be 30 kΩ (kilo ohms). Virtually all commercially available pedals meet
this requirement.
The pedals can be assigned to a ‘Control change’ or ‘Pitch bend’ MIDI message or one of them can be
assigned to tempo controller. On each change of a pedal position, a MIDI message will be sent, or BPM value
will be changed.
Both pedal inputs have an auto-calibration, allowing You to have full-range values even if the internal
potentiometer in your pedal doesn’t swing end-to-end. If your pedal has an ‘offset’ knob, set it to minimum.
The auto-calibration is always on, regardless of the pedal assignment. To reset the calibration of particular
expression pedal, just unplug it while the MIDI Ant is powered.
When a pedal is assigned to a MIDI message, it’s possible its value to be limited in a specific range.
After this, it’s possible to apply a transformation of the value before to be output to the message.
Transformation will not be applied to a pedal, when it is assigned to tempo.
Following charts illustrate the available transformation types:
*Range of values for both axes: [0..127] *Input values are on horizontal axes *The charts represent actual values.
This behavior applies to all operating modes.
Message reactor
This is a very powerful feature, allowing You to make sophisticated transformations of the MIDI
messages, appearing on the MIDI In socket. For instance, You may:
•Pass or block messages of specific type
•Pass or block messages matching a specific channel and/or data

www.kae-systems.com - 4 - MIDI Ant user’s manual v4.0
•Change the type of the message (for example 'Control change' to 'Pitch bend')
•Change the channel of a message
•Route different channel messages to a specific channel
•Distribute ‘Note on’ messages to different channels, depending on note number
•Apply offset or other transformation to the note number in a ‘Note on’ messages
•Duplicate a message
and many more…
The message reactor works in all operating modes. The feature can be configured only by the
configurator utility for Windows® (see below). See its manual for details.
Settings
All parameters can be edited by a special free Windows® application, the MIDI Ant Configurator. It
offers very intuitive and self-explanatory interface, but yet it has its own manual. The application and the
manual can be downloaded freely from the MIDI Ant’s webpage.
Settings > ‘On-site’ edit mode
You can edit some of most important parameters in any place and without PC. To get into ‘on-site’
edit mode, power MIDI Ant off. Press and hold simultaneously „UP” and „DOWN” buttons and holding them
that way, reconnect the power to MIDI Ant. Now release the buttons to continue.
Here are the available parameters and their possible values in exact order. Change each parameter’s
value by pressing buttons “UP” or “DOWN”, then move to next parameter by pressing button “ACT”. After
adjusting the last parameter, you’ll enter the last operating mode you’ve selected.
1. Operating mode:
•“F.bA” – mode ‘Basic’
•“F.tt” – mode ‘Tap-tempo’
•“F.cb” – mode ‘Custom buttons’
2. Channel for all messages, defined in ‘Program items’ table; in hexadecimal format:
•“cP.0” .. “cP.F”
3. Assignment of Pedal A.
•“A.no” – not assigned
•“A.tt” – assigned to tempo control (changes the BPM)
•“A.Pb” – assigned to a MIDI ‘Pitch bend’ message
•“A. 0”.. “A.7F” – assigned to a MIDI ‘Control change’ message. The controller number is shown on
rightmost 2 digits in hexadecimal format.
4. Transformation type for values from Pedal A (valid only when Pedal A is assigned to a MIDI message):
•“At.-” –no transformation
•“At.L” – logarithmic transformation
•“At.E” – exponential transformation
•“At.G” – Gaussian transformation (a.k.a ‘S’-curve)
5. Channel for MIDI messages, emitted by pedal A. The value is shown after dot in hexadecimal format:
•“Ac.0” .. “Ac.F”
6. Assignment of Pedal B.
•“b.no” – not assigned
•“b.tt” – assigned to tempo control (change BPM)
•“b.Pb” – assigned to a MIDI ‘Pitch bend’ message

www.kae-systems.com - 5 - MIDI Ant user’s manual v4.0
•“b. 0”.. “b.7F” – assigned to a MIDI ‘Control change’ message. The controller number is shown on
rightmost 2 digits in hexadecimal format.
7. Transformation type for values from Pedal B (valid only when Pedal A is assigned to a MIDI message):
•“bt.-” –no transformation
•“bt.L” – logarithmic transformation
•“bt.E” – exponential transformation
•“bt.G” – Gaussian transformation (a.k.a ‘S’-curve)
8. Channel for MIDI messages, emitted by pedal B. The value is shown after dot in hexadecimal format:
•“bc.0” .. “bc.F”.
Settings > Default settings
MIDI Ant ships with following default settings:
-Operating mode = ‘Tap-Tempo’, tap control method = MIDI clock
-64 program items
-Linear representation of programs, starting from 1.
-Linear program mapping in the program items: N.0 -> PC#0, N.1 -> PC#1 and so on.
-No custom messages defined
-Both expression pedals not assigned.
-Both expression pedals not calibrated.
-Message reactor passes through all types of short messages.

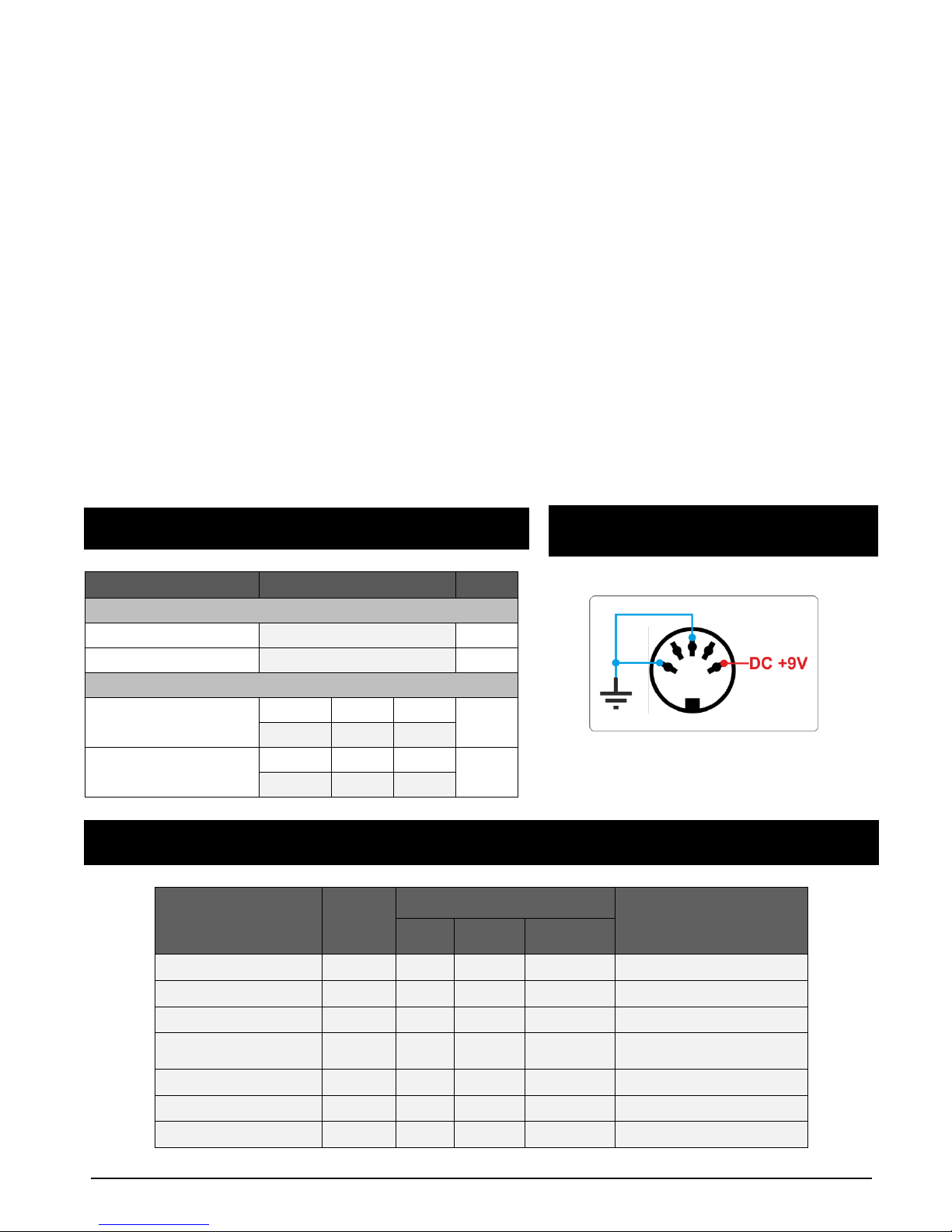

Technical parameters
Parameter
Value
Unit
Mechanical
Overall dimensions
146 х 83 х 57
mm
Net weight
416
g
Electrical
Supply voltage (DC)
Min
Typ
Max
V
6
9
12
Current consumption
Min
Typ
Max
mA
40
Front view of the MIDI Out socket. Ground pins (blue)
are connected internally.
MIDI implementation chart
Message type
Message
code
Transmitted in mode:
Note
Basic
Tap-
Tempo
Custom
buttons
Note off
8x
Yes
Note on
9x
Yes
Polyphonic key pressure
Ax
Yes
Control change
Bx
Yes
Yes
Yes
0 = Bank select LSB
32 (dec) = Bank select MSB
Program change
Cx
Yes
Yes
Yes
Channel pressure
Dx
Yes
Pitch bend
Ex
Yes
Expression pedal values
Supplying phantom power via ‘MIDI
Out’ socket

www.kae-systems.com - 6 - MIDI Ant user’s manual v4.0
routed only to MSB.
MIDI timing code
F1
Yes
Song position pointer
F2
Yes
Song select
F3
Yes
Tune request
F6
Yes
Timing clock
F8
Yes
Yes
Start sequence
FA
Yes
Yes
Continue sequence
FB
Yes
Stop sequence
FC
Yes
Yes
Active sensing
FE
Yes
System reset
FF
Yes
Note: ‘x’ in message code = channel info.
