KAKA Industrial MMS-4 User manual

Operation Manual MMS-4
KAKA Industrial®
— 1 —
Unpacking
The 4" THROATLESS SHEAR is shipped from
the manufacturer in a carefully packed Carton
box. Thoroughly inspect the product upon
opening the package.
After unpacking the unit, carefully inspect for
any damage that may have occurred during
transit. Check for loose, missing, or damaged
parts. Shipping damage claims must be led
with the carrier and are the responsibility of
the user.
Specications
Your KAKA 4" THROATLESS SHEAR for
metal cutting is precision designed and
manufactured to allow precise control when
making straight or intricately curved cuts of
any length, in any direction. Hardened, nely
honed blades produce clean, burr-free cuts in
aluminum, steel and other mild metals.
The gear-driven design delivers maximum
shearing power with minimal handle force.
Stock No. ............................................172504
Model....................................................MMS-4
Max. Capacity Mild Steel............14 Ga. (2.0 mm)
Max. Capacity Staintess Steel......18 Ga. (1.2 mm)
Width..........................................2.76" (70 mm)
Packing size.........20"x13"x9" (51X33X22 cm)
N.W./G.W..........................16/17 lbs (7/8 kg)
Important
Blades are coasted with a protectant. To
ensure proper fit and operation, remove
coating. Coating is easily removed with mild
solvents, such as mineral spirits, and a soft
cloth. Avoid getting cleaning solution on paint
or any of the rubber or plastic parts. Solvents
may deteriorate these nishes. Use soap and
water on paint, plastic or rubber components.
After cleaning, cover all exposed surfaces with
a light coating of oil.
WARNING
Never use highly volatile solvents.
Non-ammable solvents are recommended
to avoid possible re hazard.
SAVE THESE INSTRUCTIONS
Thank you for purchasing our MMS-4
4" throatless shear machine. Before
attempting to operate your new tool please
read these instructions thoroughly. You
will need these instructions for the safety
warnings, precautions, assembly, operation,
maintenance procedures, parts list and
diagrams. Keep your invoice number with
these instructions. Write the invoice number
on the inside of front cover. Keep the
instructions and invoice in a safe, dry place for
future reference.
General Safety Information
CAUTION
Always follow proper operating procedures
as defined in this manual even if you are
familiar with use of this or similar tools.
Remember that being careless for even a
fraction of a second can result in severe
personal injury.

Operation Manual MMS-4
Model MMS-4
— 2 —
2.Keep hands out of path of shear blades.
3.The Max. shearing thickness of this machine
is 14 Ga. (2.0mm) Mild Steel . Exceeding
capacity may be dangerous to operator and
damage may occur to the machine.
4.Bolt machine to oor or sturdy stand that is
bolted to oor to prevent sliding or tipping of
machine.
5.Strenuous physical force may need to be
applied to the Throatless Shear during use.
Failure to ensure proper footing can quickly
result in a fall which could inflict serious
personal injury or property damage. Always
work in a clean, uncluttered environment.
6.Be sure there is sufficient working room
around the tool to allow for safe handling of
various sizes of metal.
7.The KAKA Throatless Shear was specically
designed to be operated by one person only.
Never have one person operate the Handle
while another handles the workpiece or
serious injury could occur.
8.Frequently inspect Blades. If cracks or chips
develop, discontinue tool use immediately and
replace damaged Blades.
WARNING
The warnings, cautions, and instructions
discussed in this instruction manual cannot
cover all possible conditions or situations
that could occur. It must be understood
by the operator that common sense and
caution are factors which cannot be built
into this product, but must be used by the
operator.
SAFETY RULES
1. Wear proper apparel. Do not wear loose
clothing, gloves, neckties, rings, bracelets or
other jewelry which may get caught in moving
parts of machine.
2. Wear protective hair covering to contain
long hair.
3. Wear safety shoes with non-slip soles.
4. Wear safety glasses complying with United
States ANSI Z87.1.
Everyday glasses have only impact resistant
lenses. They are NOT safety glasses.
5. Be alert and think clearly. Never operate
tools when tired, intoxicated or when taking
medications that cause drowsiness.
6. Keep work area clean. Cluttered work areas
invite accidents.
7. Work area should be properly lit.
8. Keep visitors at a safe distance from work
area.
9. Keep children out of workplace. Make
workshop childproof. Use padlocks to prevent
any unintentional use of tools.
10. Assemble only according to these
instructions. Improper assembly can create
hazards.
11.When tools are not in use, store them in a
dry, secure place out of the reach of children.
Inspect the tools prior to storage and before
reuse.
12. Maintain product labels and nameplates.
These carry important safety information.
KNOW HOW TO USE TOOL
1.Use right tool for job. Do not force tool or
attachment to do a job for which it was not
designed.

Operation Manual MMS-4
KAKA Industrial®
— 3 —
WARNING
1.This tool has EXTREMELY SHARP cutting
blades with amplied leverage on the upper
blade which can quickly cause severe injury
or loss of fingers! Keep fingers and hands
away from moving parts when operating.
2.Always place the handle in the DOWN
position with the Locking Pin inserted
through both the Upper Blade Housing and
the Body in the CLOSED position (Figure 1)
when not in use. The weight of the handle,
left in the up position, can cause the upper
blade to suddenly and unexpectedly drop
with great force resulting in severe injury or
loss of ngers.
3.Handling sharp metal can cause serious
cuts. Wear thick, well-tting work gloves to
prevent cuts from handling sharp metal.
4.Metal particles can be ejected from the
material when cutting. Sheet metal edges
and corners are sharp and can injure eyes.
Always wear ANSI approved eye protection
when operating this tool.
Assembly
1. The KAKA Throatless Shear must be securely
mounted on a heavy, solid workbench, stand,
oor etc., capable of holding the static weight
of the unit plus the stresses from operation.
2.Place the Throatless Shear over the chosen
location then mark mounting hole locations by
tracing holes in the base.
CAUTION
Check for the presence of electrical, air or
other utility lines under the mounting surface
before drilling mounting holes.
3.The use of 1/2” through bolts & nuts or
longer lag screws with substantial washers
and attachment to a structural member is
absolutely necessary.
CAUTION
Always keep the handle in the down position
and the Body in the CLOSED position
(Figure 1) when not cutting. The weight of
the handle can cause the upper blade to
suddenly and unexpectedly drop.

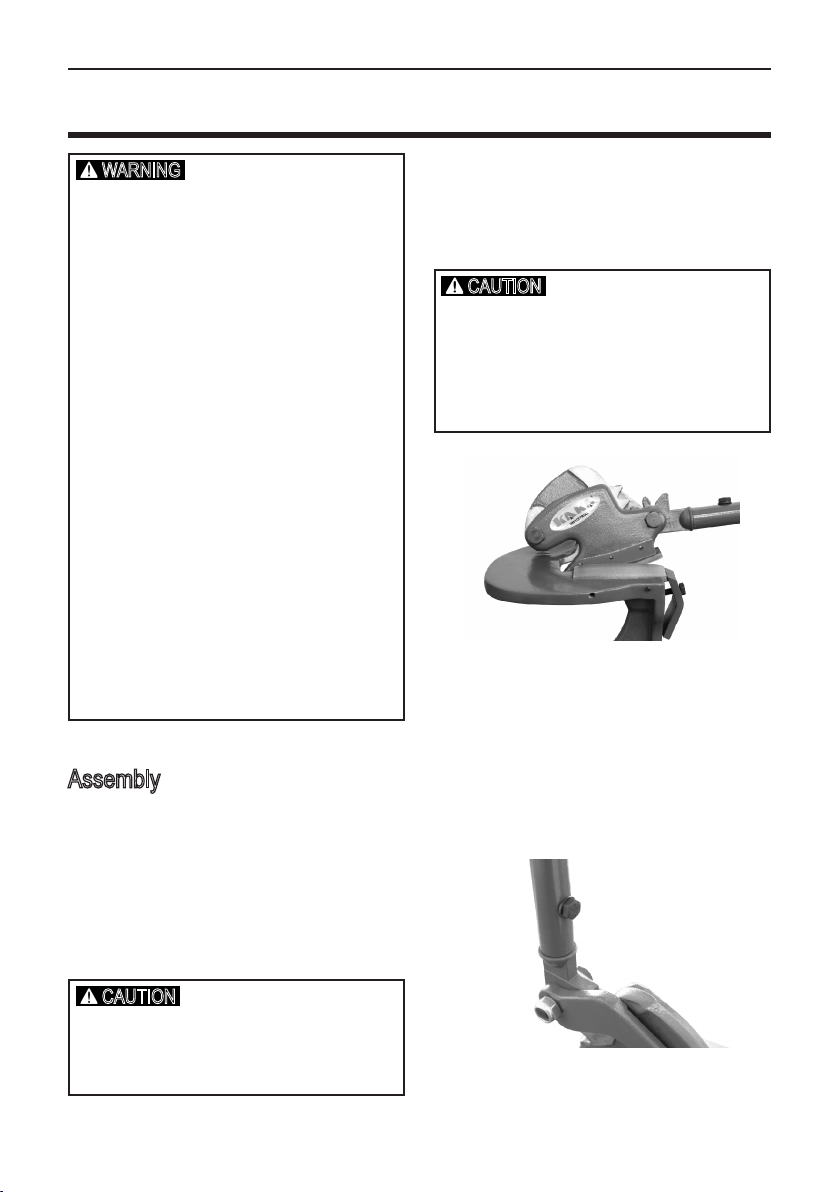

Figure 1
4.Remove the supplied bolt #3 from the
Handle Stub #5 , carefully align the mounting
hole of the Handle #2 over the threaded hole
in the Stub, thread bolt through hole in Handle
and into the Stub then tighten using a 13mm
wrench (not included) (Figure 2).
Figure 2

Operation Manual MMS-4
Model MMS-4
— 4 —
Operation
1.For Maximum Control and Cutting Force,
begin all cuts by raising the handle #2 fully
and placing the edge of the metal at the point
at which the blades #8 & #12 meet.
2.For Straight Cuts; keep the metal stationary
and flat against shear deck as you draw the
handle #2 downward. As the 1st cut has been
done and the upper blade #12 has reached
the low point, raise the handle then move the
material forward placing the uncut area once
again at the blade intersection point.
3.For Curved Cuts; turn the material left or
right to make curved cuts as needed ( NOTE:
Do not move material forward as you cut ). As
the upper blade #12 reaches the low point,
raise the handle then move the material
forward placing the uncut area once again at
the blade intersection point. Resume left or
right material movement.
WARNING
The weight of the handle can cause the
upper blade to suddenly and unexpectedly
drop.When cuts are done, always place the
handle in the DOWN position.
BLADE ADJUSTMENT
NOTES
- The upper blade is fixed in place while the
lower blade is adjustable.
- The ideal blade gap is equal to 1/4 of the
subject material thickness.
For example: 14-gauge steel will work best
with a blade gap of 0.019” [0.48mm], while 20
gauge should be 0.0094” [0.23mm].
- An alternative method is to gradually
decrease blade gap while cutting paper. The
paper should cut cleanly without pulls, tearing
or folding.
CAUTION
Do not allow blades to come into full contact
with each other or permanent blade damage
can occur.
To measure: use a good quality feeler gauge
and measure at the blade intersection point
with the handle at the halfway down position
(Figure 3).
Figure 3
TO ADJUST
1. Loosen the bolt #10 securing the Lower Blade
Clamp at the left front of the tool (Figure 4).
Figure 4
2. Using a small, straight bladed screwdriver,
Turn the two set screws #15 & #17 (Figure 5)
inward (clockwise) to decrease blade gap, turn
outward (counter-clockwise) while applying a
slight outward pressure to increase blade gap.

Operation Manual MMS-4
KAKA Industrial®
— 5 —
Figure 5
NOTE: Turn screws an equal amount and
no more than 1/4 turn at a time while making
adjustments.
3. Re-tighten blade clamp bolt #10.
BLADE REPLACEMENT
WARNING
The blades are extremely sharp! Use
extreme care when handling to avoid severe
cuts or loss of ngers!
UPPER BLADE
Removal
1. Raise Drive Gear Stub/Handle into the up
position.
2. Remove Handle.
WARNING
Handle MUST be removed prior to blade
removal to reduce the chance of blade
accidentally falling.
3. Loosen and remove 3 Phillips blade
retaining screws #13 form the underside of
Upper Blade #12 (Figure 7) and carefully
remove blade.
Installation
1. While holding Lower Blade in place, replace 3
Phillips Screws and tighten securely.
2. Lower Drive Gear Stub and replace handle.
Figure 7
LOWER BLADE
Removal
1. Remove Handle.
WARNING
Handle MUST be removed prior to blade
removal to reduce the chance of blade
accidentally falling.
2. Loosen the bolt #10 securing the Lower
Blade Clamp #9 (Figure 8) at the left front of
the tool.
3. Carefully remove Blade.
Figure 8
Installation
1. Replace blade and exert slight pressure
against adjusting screws.
2. Tighten Lower Blade Clamp bolt.

Operation Manual MMS-4
Model MMS-4
— 6 —
Trouble Shooting
PROBLEM CAUSE CORRECTION
Produces a Rough,
Jagged Cut or Fails
to Cut
Worn Blades Replace Blades.
Material Too Thick Refer to Maximum Material Specs.
Blades out of Adjustment Follow Adjustment Procedure.
NOTE: Blade replacement normally requires a
re-adjustment of the lower blade due to blade
manufacturing tolerance variations. Adjust per
Blade Adjustment procedure.
Maintenance
NOTE: Maintenance should be performed
before each use.
1. Lower the Upper Blade assembly, insert
the Locking Pin through both the Upper Blade
Housing and the Body in the CLOSED position
(Figure 1) and Remove Handle.
2. Apply a thin lm of light oil or rust-preventive
to all bare steel areas.
3. Store in a clean, dust-free, dry, dampness
free area preferably covered with plastic
sheeting.
4. Check tightness of all hardware.
5. Check operation for binding. Lubricate pivot
points and gears periodically with a medium
bodied lubricating oil.
6. Inspect Blades for cracks, damage or
premature wear. Replace if damaged.
7. Clean dirt and debris from Shear Deck.

Operation Manual MMS-4
KAKA Industrial®
— 7 —
Drawing

Operation Manual MMS-4
Model MMS-4
— 8 —
Parts List
Ref.No. Description QTY.
1 Handle Grip 1
2 Handle 1
3 Bolt M8X20 1
4Connecting Arm 1
5 Handle Stub 1
6 Base 1
7 Locknut M12 1
8 Lower Blade 1
9 Lower Blade Clamp 1
10 Bolt M8X30 1
11 Bolt M12X45 1
12 Upper Blade 1
13 Bolt M5X12 3
14 Holder of Upper Dies 1
15 Screw M5X35 1
16 Bolt M12X40 1
17 Screw M5X25 1
18 Washer 8 1

Operation Manual MMS-4
KAKA Industrial®
— 9 —
SERVICE RECORD
KAKA Industrial ®
Date Maintenance performed Repair components require

Operation Manual MMS-4
Model MMS-4
— 10 —
NOTES

Operation Manual MMS-4
KAKA Industrial®
— 11 —
NOTES

Stock No: 172504
Edition 2 12/2018
Copyright © 2018 KAKA
If you have any questions about the use of this product, please contact the nearest one to you
as below:
KAKA INDUSTRIAL LLC
Mail:
[email protected]
Add: 4200 Steve Reynolds
Blvd Ste 6 Norcross,
GA 30093
U.S.A.
KAKA INDUSTRIAL LTD
Mail:
[email protected]
Add: 3143 Underhill Avenue
Burnaby,
B.C V5A3C8
Canada
KANG INDUSTRIAL PTY LTD
Mail:
[email protected]
Add: 3 Wayne Court
Dandenong,
VIC 3175
Australia
