Kalco Lighting ALLEGRI 027753 User manual

MODEL 027753
ASSEMBLY AND DRESSING INSTRUCTIONS
Blending innovative design, cutting-edge technology and the grace and elegance of traditional crystal, ALLEGRI® proudly brings you a new approach
to lighting. ALLEGRI® fixtures are made from the finest raw materials and are brought to life through a combination of traditional manufacturing, such
as sand casting, hand-forging and technology driven techniques including laser cutting.
Enclosed are detailed instructions on how to properly install your fixture. Please read all instructions carefully. If you need further assistance, please
contact the dealer from which you purchased this product or call 866-820-2665 to speak with an ALLEGRI® customer service representative. We
hope you enjoy your fixture!
WWW.ALLEGRICRYSTAL.COM
866.820.2665
P1

ASSEMBLY AND DRESSING INSTRUCTIONS
GENERAL NOTES
vFor your safety and proper operation of fixture, read and understand all instructions completely before commencing installation.
vThis fixture is suited for dry locations. Never install fixture on damp ceiling; room should be dry and well ventilated.
vExtreme care should be taken to avoid damage to the surface of lighting fixture and wires. Wearing gloves is recommended for installation.
vConnect ribbed wire of lighting fixture to live wire, while smooth wire of lighting to neutral. Connect bare copper or silver color ground wire of
fixture to the double colored or green wire of outlet box.
vUse UL LISTED wire nuts for the wiring connections in this fixture. Wrap wire nut connections with UL LISTED electrical tape.
vKeep lighting away from acid, alkali and other corrosive chemical or gas; clean the fixture with a clean cloth only.
vFixture must be firmly secured when installing ceiling tube, chain pipe and other connecting parts.
vNever cover the lighting fixture when power is connected.
vDisconnect the power before installing, cleaning and/or replacing light bulb.
vExtreme care should be taken when installing and cleaning of Glass and/or Crystal Components.
vThis product is rated 110-130V/60HZ bulb 40W Maximum.
vSave these instructions for future reference.
WARNING
The electricity must be turned off at the main fuse box or circuit breaker before installing this fixture. Turning the power off using the light switch may
not be sufficient to prevent electrical shock.
*ALLEGRI will not be liable for injury or damage caused by improper installation, lamping or use of this fixture.
WARNING!
CONTENTS ARE FRAGILE
HANDLE WITH CARE
THE METAL FRAME, FINISH AND CRYSTAL COMPONENTS OF THIS CHANDELIER ARE VERY DELICATE.
PLEASE EXERCISE EXTREME CAUTION DURING UNPACKING AND INSTALLATION.
PLACE ALL PIECES TOGETHER IN A NUMERICAL ORDER AND IN THE ORIENTATION DEPICTED.
REFER TO THE PARTS LIST TO AVOID ANY CONFUSION BETWEEN PARTS THE PARTS NUMBER MUST COINCIDE.
CAUTION: FAILURE TO INSTALL THIS FIXTURE PROPERLY MAY RESULT IN SERIOUS PERSONAL INJURY AND
PROPERTY DAMAGE. All electrical components must be installed only by a Licensed Electrician.
This product must be installed in accordance with the National Electric Code (NEC), and appropriate local electrical code(s), by a
person familiar with the construction and operation of the product and the hazard involved.*
CAUTION: Do not exceed maximum wattage note on fixture. Uses only recommended bulbs with fixture.
WWW.ALLEGRICRYSTAL.COM
866.820.2665
P2

CANOPY MOUNTING INSTRUCTION
INSTALL CANOPY AS FOLLOWS
CAUTION: Be sure power is off at the main
breaker box prior to installation.
1. Drill a hole on main ceiling beam and pass
Solid Nipple through.
2. Place Washer and Hex Nut on top of Solid
Nipple to hold.
3. Take Outlet Box through Solid Nipple and
screw Plate Hickey, then screw Plate Hickey to
main ceiling beam with 4 screws.
4. Secure the Washer and Hex Nut to Solid
Nipple from top side of main ceiling beam.
5. Screw Collar Loop to Nipple as shown, raise
Canopy flat to ceiling and secure it with Collar
Loop Ring.
6. Hang Chain to Collar Loop with the Easy Link,
Proceed to fixture frame assembly Step 1.
Solid Nipple
Hex nut and washer
Screws
Outlet box (by others)
Canopy
Collar loop
Collar loop ring
Easy link (2pcs)
Chain
WARNING
Electrical Danger Turn Power Off
All electrical components must be
installed by a licensed electrician in
accordance with the National
Electric code and the appropriate
local electrical codes.
cR
Plate Hickey
WWW.ALLEGRICRYSTAL.COM
866.820.2665

WWW.ALLEGRICRYSTAL.COM
866.820.2665

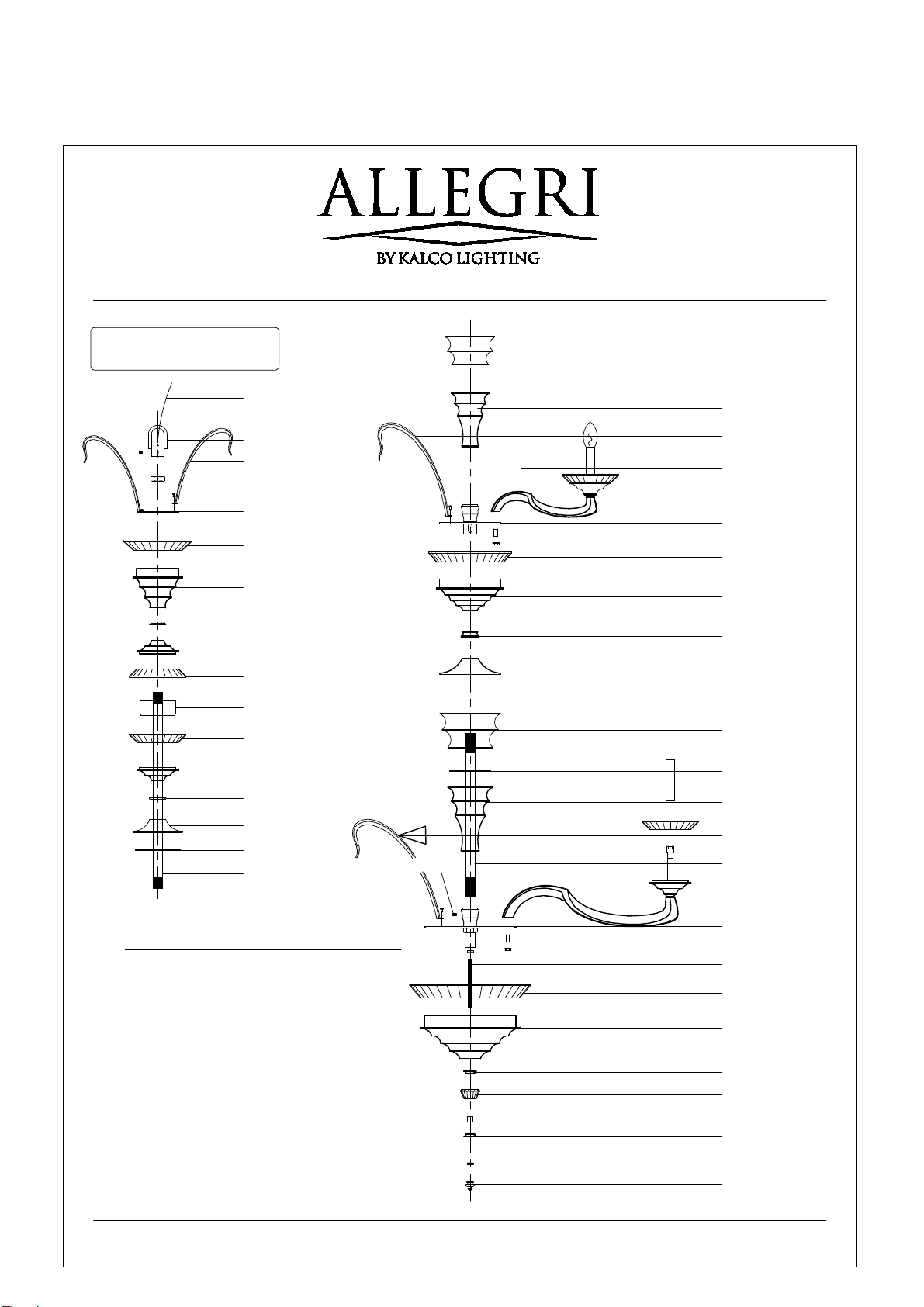

FRAME ASSEMBLY INSTRUCTIONS
MODEL 027753
INSTALLATION
a. Turn off electricity, take all parts from part box.
b. Connect the main wire with the power supply circuit.
See wire connection diagram.
c. Fix part #21 to part #22 by using nut,at time connect
all inner wires,fix part #20 to part #22 by using screw.
d. Fix part #33 to part #34 by using nut,at time connect
all inner wires,fix part #31 to part #34 by using screw.
e. Fix part #2 to part #4 by using screw.
f. Put part #32 through part #23,#24,#25,#26,#27,#28,
#29,#30 then screw to part #22,#34.
g. Put part #35 through part #36,#37,#38,#39,#40,#41,#42
then screw to part #34,#43.
h. Put part #16 through part ,#3,#4,#5,#6,#7,#8,#9,#10,#11,
#12,#13,#14,#15,#16,#17,#18 then screw to part #1,#22.
i. Check the installation and attach bulb into lamp holder.
1-Mounting ring
P4
7-Metal lathe A
21-Arm A
4-Round metal sheet A
22-Main body A
6-Bronze column A
16-Thread Rod A
5-Crystal tray A
8-Copper plate A
9-Crystal tray B
10-Round tube A
11-Crystal tray C
12-Copper plate B
17-Crystal Column A
24-Copper plate D
40-Cannula A
39-Crystal tray
43-Metal lathe E
38-Rolling plate A
Steel wire
3-Hex nut A
Safety screw
41-Rolling plate B
42-Hex nut B
止口托碗32
止口托碗32
D3112-000-10
单支架85mm总高102mm
Safety screw
2-Bending ring A
13-Metal lathe B
14-Copper plate C
15-Round metal sheet B
18-Round metal sheet C
19-Bronze column B
20-Bending ring B
23-Crystal tray D
25-Metal lathe B
26-Copper plate E
27-Round metal sheet D
28-Crystal Column B
29-Round metal sheet E
30-Bronze column C
31-Bending ring C
32-Thread Rod B
33-Arm B
34-Main body B
35-Thread Rod C
36-Crystal tray E
37-Copper plate E

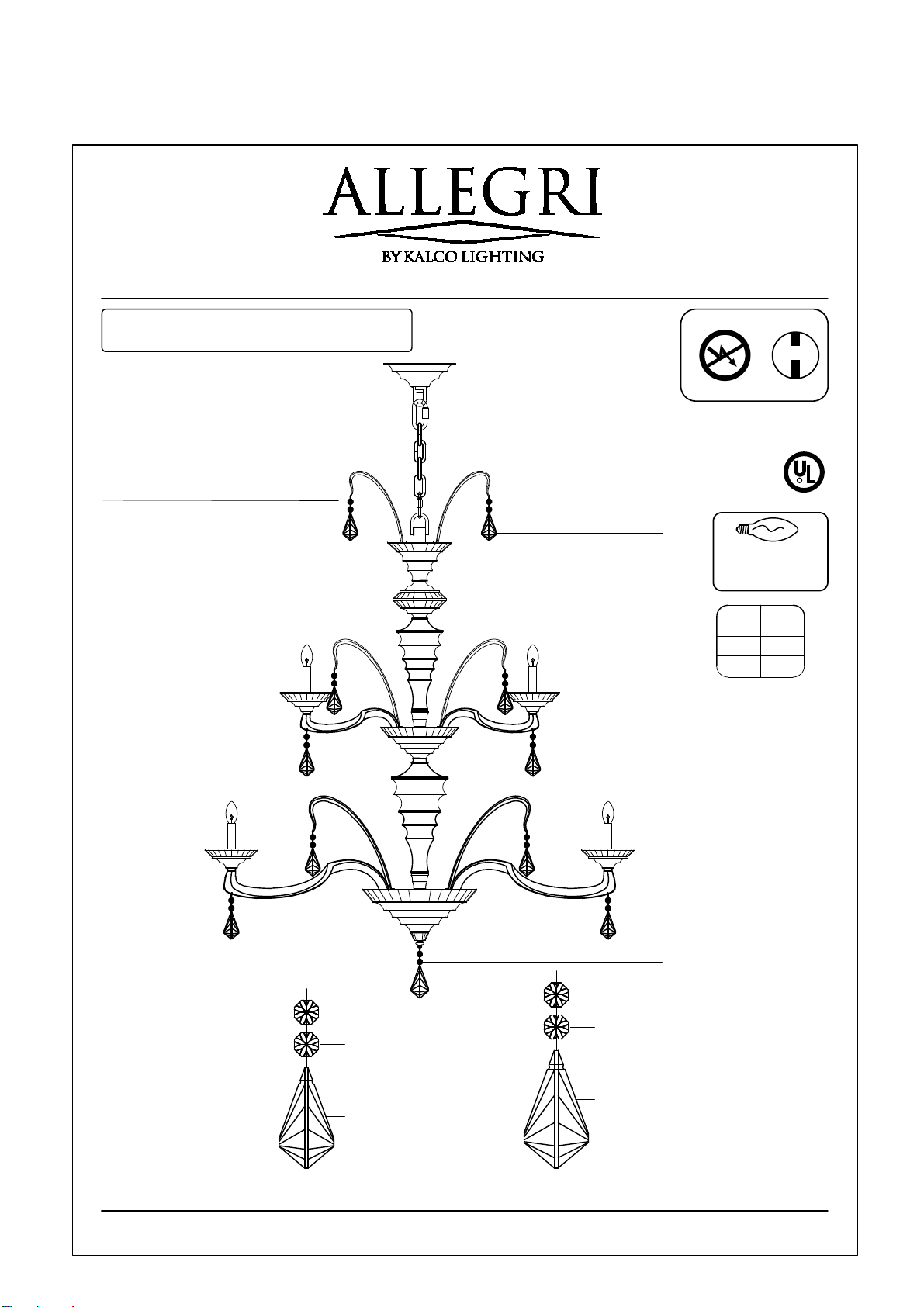

ATTENTION
1. Take all crystal or glass parts carefully from
carton, then put them on a clean cloth.
2. Start hanging crystals from bottom center to
top of fixture in an alphabetical order
as shown in diagram You will need 18 - Cand.Buld
40 Watts Recommended
40 Watts Max
Bulb not included
CRYSTAL DRESSING INSTRUCTION
WWW.ALLEGRICRYSTAL.COM
866.820.2665
MODEL 027753-010-FR001 WARNING
Electrical Danger Turn Power Off
All electrical components must be
installed by a licensed electrician in
accordance with the National
Electric code and the appropriate
local electrical codes.
cR
Code Qty
1B
A
P5
B
42A
AB
1080 14# 2pcs
82931 76# 1pcs
1080 14# 2pcs
82931 89# 1pcs
A
A
A
A

LIGHTING CARE INFORMATION
Every ALLEGRI® fixture is of heirloom quality and will last for generations. To ensure it retains its brilliance and
splendor for years to come, proper care and regular cleaning are necessary.
It is recommended that ALLEGRI® fixture, and particularly their crystal trim, be lightly dusted with a feather or lambs wool
duster, or soft brush every two months, or whenever it appears dull or dusty. A thorough cleaning should be
completed every six months.
Before cleaning an ALLEGRI® fixture, first locate the fixture's trim diagram. This will assist in replacing the crystal trim in
its proper location after cleaning. Should a replacement trim diagram be required, please call
866-820-2665 to speak with an ALLEGRI® customer service representative, who can provide a new diagram.
ALLEGRI® recommends several different cleaning methods, depending on the type of fixture. Some fixtures can be
cleaned with limited removal of crystal, while others must be completely untrimmed.
Place a soft towel or blanket directly beneath the fixture to limit the damage to both the crystal and the surface below the
fixture, should a piece of crystal be dislodged during the cleaning process. Extreme care must be taken around any
electrical fixture. For personal safety and the safety of the fixture, be sure that the fixture has been turned off. Never rotate or
spin the fixture as this can cause the fixture to lose support and fall. Instead, move around the fixture while cleaning.
White Glove Method
Prepare a cleaning solution of one part isopropyl alcohol to three parts distilled water and place in a clean spray bottle.
Do not use packaged cleaning fluids, as many of these contain ammonia, which may degrade the finish of the fixture and
the quality of the crystal.
Wearing white cotton gloves, spray one glove with the solution and keep one dry. Gently polish each crystal with the damp
glove and immediately wipe it with the dr y g lov e. Do not tu g o r pull on the crystal, as this may ca use th e
connectors to chip or crack the crystal, or dislodge it from the fixture.
Warning: To reduce the risk of personal injury due to fire and/or electric shock, never spray solution at or near the fixture.
Crystal Removal Method
Gently remove trim and hand-wash the crystal in lukewarm water using a mild detergent. Rinse in clean water and dry with a
soft clean cloth. Do not soak finished crystal such as SWAROVSKI ELEMENTS Colors: Teak, Golden Shadow or
Silver Shade, for extended periods, as this may degrade the crystal's finish.
With the fixture untrimmed and turned off, wipe the frame, including the light bulbs once they are completely cool, with a soft
cloth.
Wearing white gloves, finger-cots or using a soft clean cloth, gently replace the trim as directed in the trim diagram.
WWW.ALLEGRICRYSTAL.COM
866.820.2665
P6
