KALE HL-FS440 User manual

1

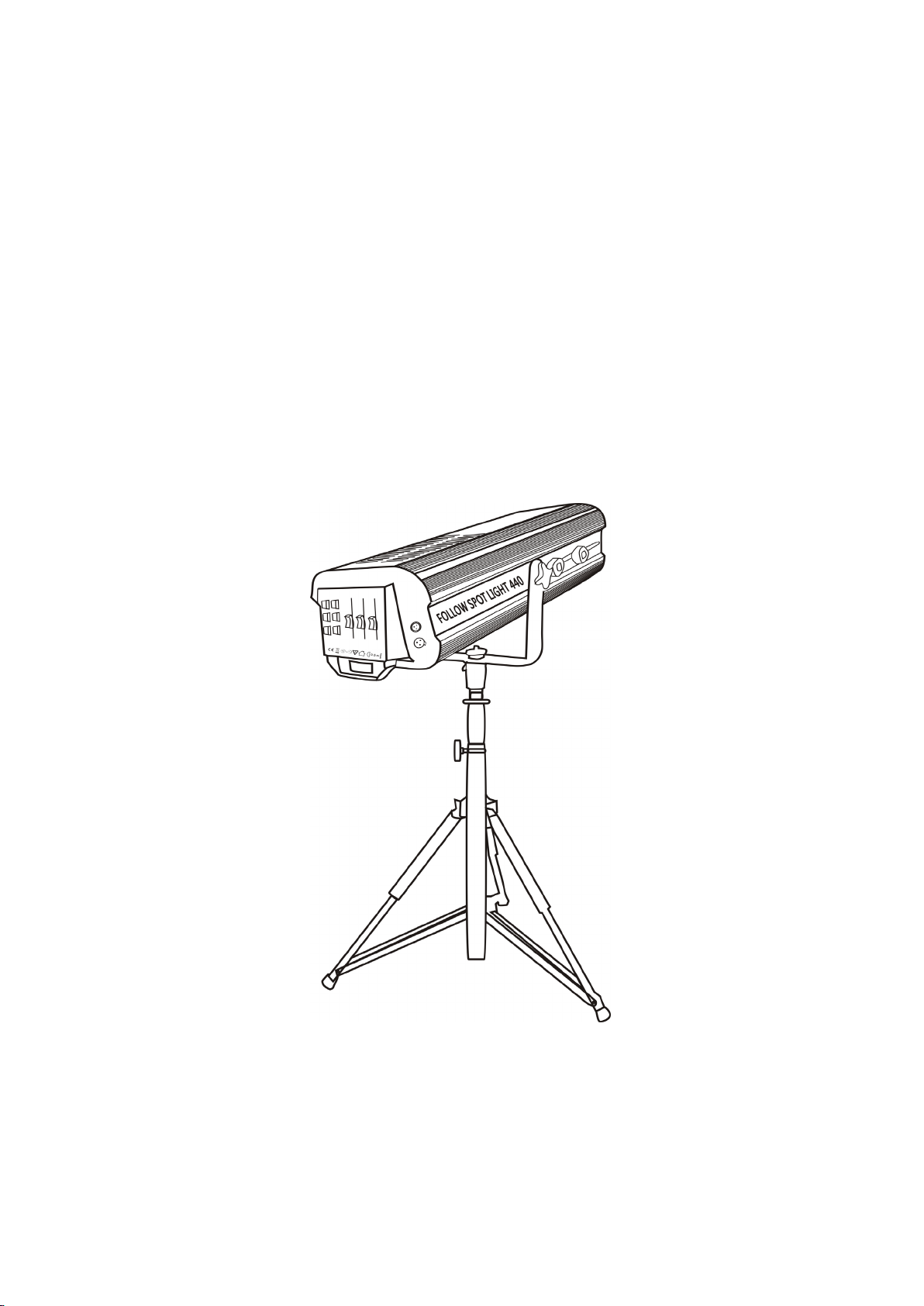

440W LED FOLLOW
SPOT LIGHT
USER MANUAL
Please read this before you use this device.

2
440W LED FOLLOW SPOT LIGHT USER MANUAL
Warning：
◎This manual contains important information how to safe to use and install, please firstly read
all instructions and safety information below.
◎When the equipment leave the factory, it is in good conditions, owns complete packing.
◎The operator should strictly follow stated cautions and instruction.
◎Due to misuse or neglect operation manual and cause any fault and problems,they are not
within the scope and warranty for which our company is responsible.
Safety Information:
Warning：Caution
Warning: Warning Electric Shock
Warning：High temperature surface, do not touch
Warning：Eye Protection
Suitable for installed directly on the surface of noncombustible
only indoor use

3
1、Safety warning information
◎This product belongs to professional purposes and shall not apply to other.
◎After receiving the equipment, please check whether the packaging is complete, And take
down the packing and check if it causes damage by the transport. If it happened to damage
owing to transport ,please do not use the equipment, and contact with local technical staffs or
manufacturers as soon as possible.
◎The protection grade about product is IP20 and is suitable for indoor use only.
◎The equipment should keep dry, avoid in damp, overheating, or used in dusty environment.
We need prevent the device from touching the water and other liquids.
◎When we use the product,we should be paid attention to avoiding fire, heat, electric shocks,
ultraviolet radiation, light source explosion or loss caused by severe or fatal injury. Before
electrifying and installing, please read the instructions. Follow safety operation method and pay
attention to the description and the warning signs on the equipment.
◎Please directly do not install this product on the flammable objects. Equipment need to keep
0.5 m minimum distance from fuel.
◎For this product in normal work, the environment temperature is not more than 45 ℃. W hen
the temperature exceeds 45 ℃, please immediately stop using the equipment.
◎When the equipment work reaches a steady state, the highest surface temperature is 150 ℃
◎Do not use this product which is directly projected on flammable objects. Please keep the
distance between the light and the light objects is more than 3 metres.
◎When the light source is damaged,or is the thermal deformation,it should be replaced.
◎Eyes can't envisage the luminary for long time.
◎The equipment on the protection of the shell, lens and ultraviolet appear to a visible
damage, if adding to the degree of losing efficacy,such as cracks and gash,they should be
replaced.
◎While changing any equipment components, accessories, please ensure that equipment is
disconnected with power to prevent electric shock from damaging.
◎When unpacking or handling the equipment to prevent damage to the equipment, it must
be two people.
◎Professionals only can install, operate and maintain,operating in strict accordance with the
operating instructions stated rules. The equipment should be installed in a well ventilated place,
keep the distance of wall above 50 centimeters, and check the fan and the vent which are
unimpeded.
◎Before installation, please confirm that you can use the power supply voltage that is
consistent with the lamps that are identified.

4
◎Every light should be correct grounding in accordance with the relevant standards for
electrical installation.Don't put the power cord of light that are connected to any other dimming
device.
◎If the equipment of external flexible cable or cord happen to damage,the manufacturer, its
agent or similar qualified person may change them in order to avoid danger, please don't put
any outlet filter or other items on the light; Don't change the original factory parts and
components.
2、Package and Transport
2.1 Strip off the Package
Notes：
When receiving this product, please unpack and check whether there is damage
because of transportation.In the event of damage caused by, please do not use the
equipment, and contact with local technical staff and manufacture as soon as
possible.
◎Flight case: Open the flight case lid, unpack plastic packing bags; Please grab the device
handle, and gently from the case in the vertical light to lift out of it.
◎To open a tripod, then install the equipment body on a tripod.
2.2 Equipment Package
◎Before packing of the light, please disconnect the power to make the light cool completely,
its time is at least more than 5 minutes.
◎The light body will be removed from the tripod, please consolidate it.
◎Flight Case：Wrap the equipment with the plastic bags,and gently vertically put the light body
into the flight case; Place the equipment well, wrap the tripod with plastic bags, then put it into
flight case. it is better to put light fittings into the flight accessories case , cover the flight case
well and lock hooks; Ban backwards flight case.
3、Cleaning and Maintenance
◎Equipment are required routine cleaning and maintenance, length of service life
largely depends on the operating environment and the specification.
Notes: Improper uses cause the damage, such as dust, smoke oil, they are not in the
scope of the warranty.

5
Warning:
◎Before opening any lid, please disconnect the power supply. When cleaning the
optical components,please gently graze, coating surface is scratched very easily, do
not use a damaging liquid or hard objects which can damage plastic or coating
surface.
◎When the lens is broken or has other damages, please change in time.
◎When the light source has deformation and damage, it should also be changed in time.
◎When the equipment can't start, please check whether the power fuse burns out, such as
burning out, must use the same specifications of the fuse installation.
◎The equipment is equipped with temperature protection device, when the temperature is
too high protection device will automatically put out the light source. When this happens,
please check the normal operation of the fan, the fan and fan nets jam with dust, find
troubleshooting before you start the light . Note that qualified technicians can repair work.
◎In order to maintain smooth movement of the focusing lens, it is recommended that every
three months guide rail lubrication of the focusing lens. Should be adopted good resistance to
high temperature lubricating grease in the use of unfavorable and overmuch grease, it is easy
to dirty parts.
4、Technical Parameters
Voltage: AC100V-240V,50/60Hz
Power: 500W
Light Source: 440W LED
Colors: 5 colors + white
Color temperature: Built-in 7500K,6500K,4500K,3200K
Beam angle: 1°- 9°
DMX channels: 4 CHs
Dimmer: 0-100% Linear dimming
Iris: Linear zoom in & zoom out
Focus: Manual focus
Control Mode: Manual control panel, DMX 512
Projection distance: 100m
Housing material: Steel + Aluminum
IP Rate: IP20
Dimension: 880*380*300mm
Packing size: 940*570*450mm(Flight case)
N.W: 17.2KG
G.W: 41KG(Flight case and stander)

6

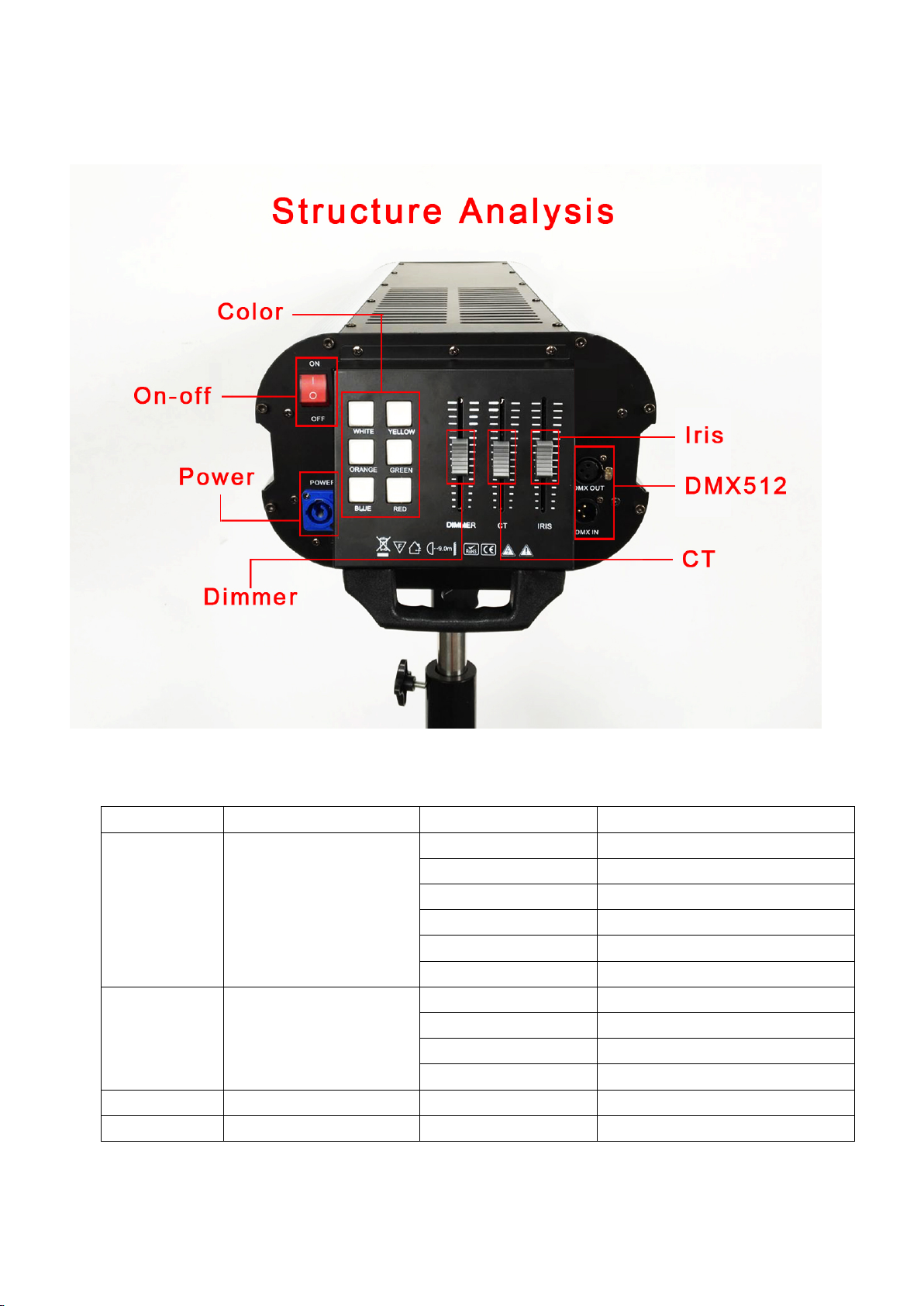

5、Control panel structure analysis
6、DMX512 4 Channels show
Channel
Function
Value
Description
CH1 Color
0-49
White
50-99
Yellow
100-149
Orange
150-199
Green
200-249
Blue
250-255
Red
CH2 Color Temperature
0-69
White
70-139
5600K
140-209
3200K
210-255
Frost
CH3
Dimmer
0-255
From dark to bright
CH4
Iris
0-255
From big to small
