Kalorik RVC 46588 User manual

1
www.KALORIK.com
RVC 46588 - 200501
ROBOT VACUUM WITH IONIC AIR PURIFIER
ASPIRATEUR ROBOT AVEC PURIFICATEUR IONIQUE
RVC 46588
EN……....3
FR….......17
14.4V DC
Adapter output: 24V DC 0.6A

2
www.KALORIK.com
RVC 46588 - 200501
PARTS DESCRIPTION / DESCRIPTION DES
ÉLÉMENTS
ENGLISH :
1. Main unit
2. Power adaptor
3. Remote control
4. Floor brushes
5. Dust container
FRANÇAIS :
1. Unité principale
2. Adaptateur secteur
3. Télécommande
4. Brosses de sol
5. Récipient à poussière

3
www.KALORIK.com
RVC 46588 - 200501
IMPORTANT SAFEGUARDS
WARNING: To reduce the risk of fire, electric shock or injury, when using
your appliance, basic safety precautions should always be followed,
including the following:
1. Read all instructions before use.
2. This device can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they have been given
supervision or instruction concerning use of this device in a safe way
and understand the hazards involved.
3. Children should be supervised to ensure they do not play with this
device.
4. Cleaning and maintenance shall not be performed by children
without adult supervision.
5. This device is only to be used with the power adaptor provided.
6. For the purposes of recharging the battery, only use the power
adaptor provided.
7. The battery must be removed from this device before this device is
disposed of. To remove the battery from this device, first remove the
screws on the bottom, then remove the main PCB and unscrew the
battery cover using a screwdriver. Remove the battery by
disconnecting the quick connector.
8. The used battery should be placed in a sealed plastic bag and
disposed of safely according to local environmental regulations.
9. The external flexible cable or cord of the power supply unit cannot
be replaced; if the cord is damaged, the power supply unit shall be
disposed of.
10. This device is for indoor use only.
11. This device is not a toy. Do not sit or stand on this device. Small
children and pets should be supervised when this device is
operating.
12. Store and operate this device in room temperature environments
only.
13. Clean with a cloth dampened with water only.
14. Do not use this device to pick up anything that is burning or
smoking.

4
www.KALORIK.com
RVC 46588 - 200501
15. Do not use this device to pick up spills of bleach, paint, chemicals,
or anything wet.
16. Before using this device, pick up objects like clothing and loose
paper. Lift up cords for blinds or curtains and move power cords
and fragile objects out of the way. If this device passes over a
power cord and drags it, an object could be pulled off a table or
shelf.
17. If the room to be cleaned has a balcony, a physical barrier should
be used to prevent access to the balcony and to ensure safe
operation.
18. Do not place anything on top of this device.
19. Be aware that this device moves around on its own. Take care
when walking in the area where this device is operating to avoid
stepping on it.
20. Do not operate this device in areas with exposed electrical outlets
on the floor.
21. Do not expose the electronics of this device or its battery. There are
no user-serviceable parts inside.
22. Do not use this device on an unfinished, unsealed, waxed or rough
floor. It may result in damage to the floor and this device. Use only
on hard floor surfaces or low-pile carpet.
23. This device has been designed to be used on floors without
scratching them. We still recommend that you test this device on a
small area of the room to be cleaned to ensure no scratches are
made before cleaning the whole room.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY

5
www.KALORIK.com
RVC 46588 - 200501
MAIN UNIT COMPONENTS
Signal receiver
Bumper
Power button
Dust container
cover

6
www.KALORIK.com
RVC 46588 - 200501
BEFORE THE FIRST USE
•Remove any power cords and small objects from the floor that may
obstruct the Robot Vacuum. Fold any tasseled edges of area rugs
underneath to prevent tangling when vacuuming.
•Avoid cleaning very dark-colored, high-pile rugs or rugs thicker than
1.02 in. / 26 mm, as they may cause the appliance to malfunction.
•Keep the Robot Vacuum away from spaces lower than 2.87 in. / 73
mm to prevent it from getting stuck. If necessary, place a physical
barrier to block off the problem areas.
•Keep the Robot Vacuum away from wet areas.
•The Robot Vacuum may climb on top of objects less than 0.63 in. /
16 mm tall. Remove these objects if possible.
•Anti-drop sensors prevent the Robot Vacuum from tumbling
downstairs and steep drops. They may work less effectively if dirty or
used on reflective/very dark-colored floors. It is recommended to
place physical barriers to block off areas where the Robot Vacuum
may fall.
•Remove the foam blocks beside the bumper before use.
•For best results, make sure the side brushes are attached before
cleaning.
NOTE: Place physical barriers in front of fireplaces and areas that could
damage the Robot Vacuum.

7
www.KALORIK.com
RVC 46588 - 200501
CHARGING
•With the appliance shut off, connect the power adapter to a wall
outlet and insert the other end into the charging slot of the Robot
Vacuum, as shown below.
•If the Robot Vacuum has a low charge, the power button will start
flashing red.
•During the charging process the power button will flash green.
•When the product is fully charged the power button will stay green.
•When charging the appliance for the first time, please make sure to
do so for at least 6 hours.
•If you disconnect the power adapter when the product is turned on
and charged, the power button will begin flashing red and green to
remind you that the power switch is not turned off. If you will not be
using the Robot Vacuum, please remember to turn the switch off.
•Please charge the appliance fully after every use.
USING THE APPLIANCE
•Turn on the main power switch on the bottom of the Robot
Vacuum. See below for reference.

8
www.KALORIK.com
RVC 46588 - 200501
•Switch on the appliance and press the START/STOP button on the
remote.
•When the Robot Vacuum is working properly, the light in the power
button will stay orange. Pressing the power button or turning off the
power will stop the appliance.
•Refer to the REMOTE CONTROL section to select the desired
sweeping modes.
Ionic Air Purifier Function
The robot vacuum comes with an Ionic Air Purifier function, which is
activated when the Robot Vacuum is sweeping.
IMPORTANT:
‒Please switch off the power when appliance will no longer be
used.
‒The Robot Vacuum should not start vacuuming while it is being
charged.
REMOTE CONTROL
The remote control functions differently depending on which of the
below modes the robot vacuum is in. You can switch between the
modes using the Start/Pause button.
‒Standby mode: The vacuum is on but paused.
‒Operating mode: The vacuum is in on and sweeping.

9
www.KALORIK.com
RVC 46588 - 200501
NOTE: Please add two AAA batteries to remote before first use.
1. “Start/Pause” button
a. Pressing this button starts the vacuum, putting it in operating
mode. The vacuum will start sweeping in random directions
if no other buttons are pressed.
b. Pressing this button while the vacuum is sweeping pauses
the vacuum, putting it in standby mode.
2. Directional buttons
a. ▲Up
i. Under operating mode, the vacuum will move
forward if when pressed.
ii. Under standby mode, the vacuum will not respond
to this command.
b. ▼Down

10
www.KALORIK.com
RVC 46588 - 200501
i. Under operating mode, the vacuum will move
backwards if when pressed.
ii. Under standby mode, the vacuum will not respond
to this command.
c. ◀Left
i. Under operating mode, the vacuum will rotate left
when pressed.
ii. Under standby mode, the vacuum will not respond
to this command.
d. ▶Right
i. Under operating mode, the vacuum will rotate right
when pressed.
ii. Under standby mode, the vacuum will not respond
to this command.
3. “Focus”
a. Under operating mode, the vacuum will start sweeping
outwards as shown below.
b. Under standby mode, the vacuum will not respond to this
command.
4. “Random”
a. Under operating mode, the vacuum will start sweeping in
random directions without a fixed pattern.
b. Under standby mode, the vacuum will not respond to this
command.

11
www.KALORIK.com
RVC 46588 - 200501

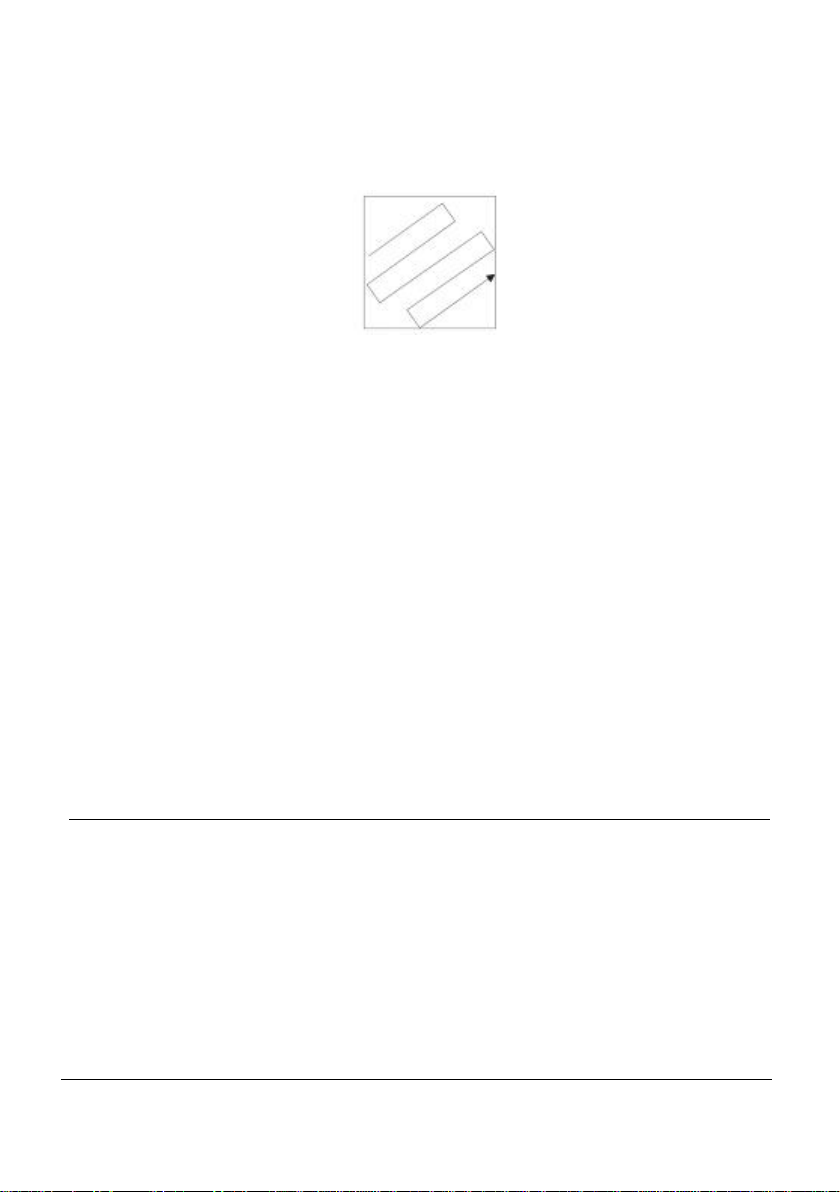

5. “Auto”
a. Under operating mode, the vacuum will start sweeping in a
zigzag pattern as shown below.
b. Under standby mode, the vacuum will not respond to this
command.
6. “Respond”
a. Under operating mode or standby mode, the vacuum will
beep to allow you to find it if you press this button.
NOTE:
‒After you select a sweeping mode, the Robot Vacuum can
change to another mode automatically depending on the
environment. This is done to achieve the best sweeping results
possible.
‒Under any sweeping mode the Robot Vacuum will stop working
if you press the START/STOP button on either the remote or the
power button on the appliance.
CLEANING AND MAINTENANCE
Follow the instructions below regularly to clean and maintain the Robot
Vacuum.
1. If side brushes are dirty, please wash them carefully with clean
water and let them dry naturally before using again. If they are
damaged and cannot operate correctly, they should be replaced.

12
www.KALORIK.com
RVC 46588 - 200501
NOTE:
‒When changing the side brushes, please make sure you
correctly place them with their corresponding letter (“L” or “R”)
‒After the appliance is done sweeping, please remember to
wash the side brushes to ensure its proper operation.

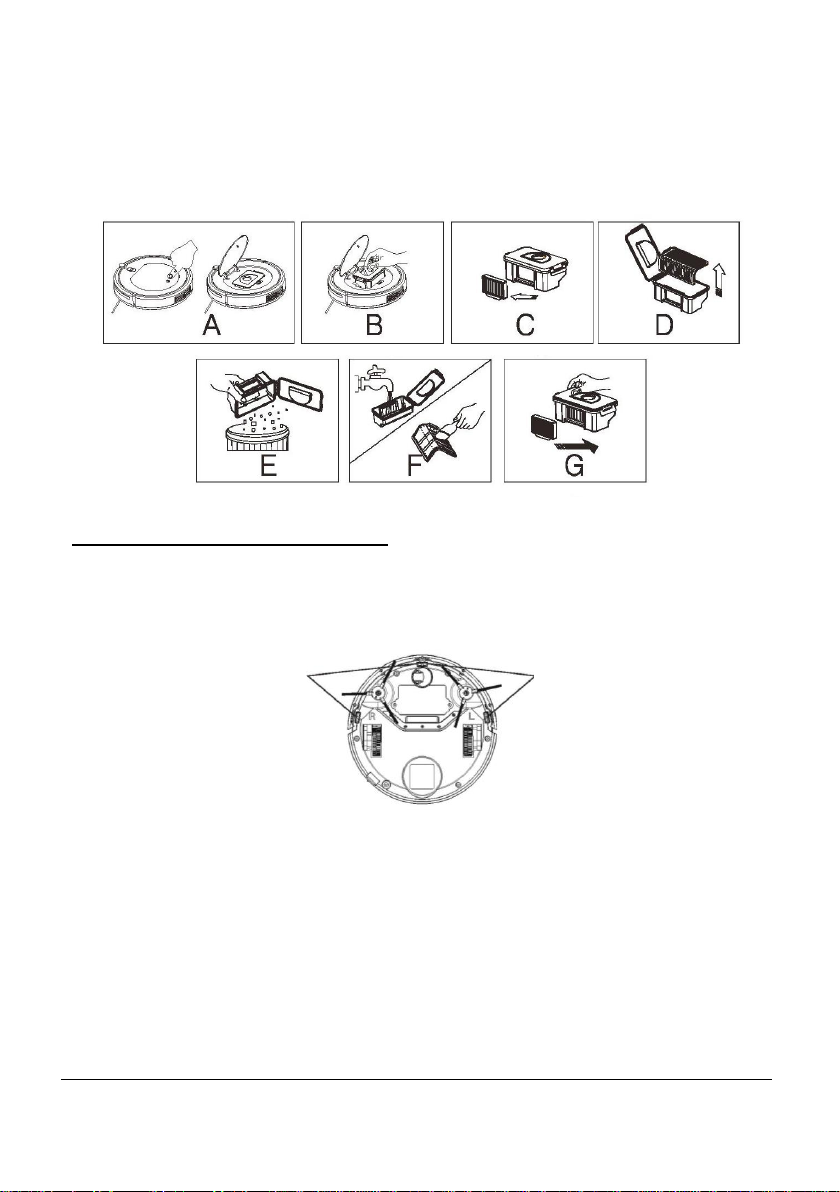

2. To clean the dust container and filters, follow the instructions and
the associated images below.
Follow the instructions below along with the corresponding images.
A. Press down towards the end of the cover as indicated. The
cover will open automatically.
B. After removing the dust container, please make sure to check if
the suction channel of the appliance is not obstructed in any
way.
C. Remove the efficient filter.
D. Remove the preliminary filter.
E. Pour all the dust out of the dust container onto a trashcan.
F. Proceed to clean the dust container, preliminary filter, and
efficient filter fully. Our suggestion is to clean the efficient filter
every 15-30 days of use. The maximum service life of the
efficient filter is 24 months. The efficient filter is not to be cleaned
using a brush, but instead it should be blown using a dryer, or
slightly knocked to remove all the dust. NOTE: Please do not
wash it with water.
G. Assemble all parts again carefully. Please make sure both filters
are assembled properly to prevent any damage to the
appliance.
NOTE:
‒Please clean the dust container and suction channel every time
after sweeping.
‒After all components are washed with water, make sure to let
them dry naturally, but not under the sun. As soon as they are
thoroughly dried, they should be put back into the Robot

13
www.KALORIK.com
RVC 46588 - 200501
Vacuum to prevent affecting the functions and life of the
appliance.
‒If any of the filters are damaged, they need to be replaced as
soon as possible to prevent affecting the effectiveness of dust
removal.
Cleaning the Sensor Lenses
Use a soft damp cloth to wipe the sensors gently. See image below for
reference on where the sensors are located.
Sensor
Sensor

14
www.KALORIK.com
RVC 46588 - 200501
TROUBLESHOOTING
Issue
Reason
Solution
Power button flashes
red and the Robot
Vacuum is beeping.
Unstable surface.
Put the unit back on
the floor. On a stable,
flat, hard surface.
Power button flashes
green and the Robot
Vacuum is beeping.
Side brush is blocked.
Check the status of
the side brush. Make
sure nothing is
blocking it. Remove
anything that may be
preventing them from
operating normally.
Power button flashes
red and orange and
the Robot Vacuum is
beeping.
The wheels are
blocked.
Check the left and
right wheels to make
sure nothing is
blocking them.
Remove anything that
may be preventing
them from operating
normally.
Power button flashes
green and orange.
Front bumper error.
Make sure the path is
clear and the front
bumper is
unobstructed.
Power button flashes
orange for 60 seconds
and the Robot
Vacuum beeps for 10
seconds.
Charging failure.
Replace adapter or
batteries.
If additional assistance is needed, please contact our Customer
Assistance at 1-888-525-6745.
