Kalorik VC 47706 User manual

1
www.KALORIK.com
VC 47706 - 201010
CORDLESS CYCLONE VACUUM CLEANER
ASPIRATEUR CYCLONE SANS FIL
VC 47706
EN……....4
FR….......19
28.8V DC –Li-Ion Batteries 2000mAh
Adapter output: 36V DC 500mAh.

2
www.KALORIK.com
VC 47706 - 201010

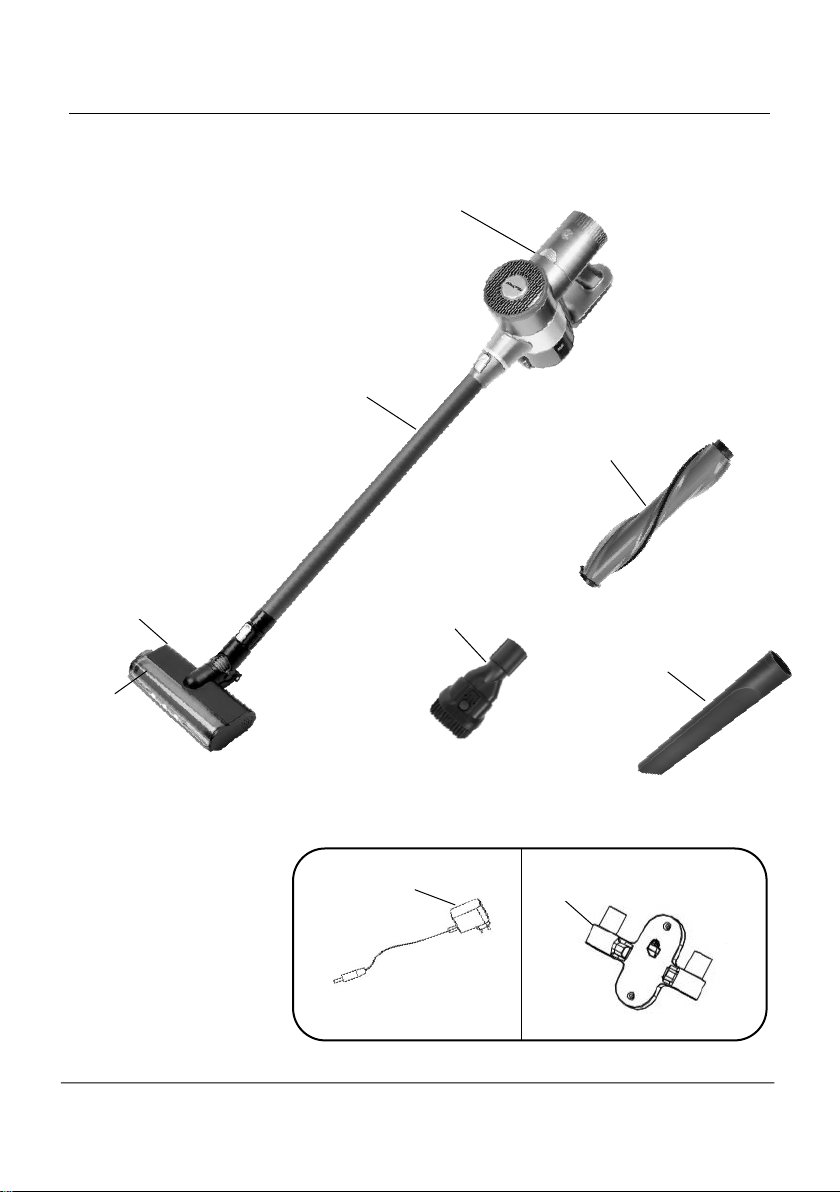

PARTS / ÉLÉMENTS
4
2
1
5
6
7
3
8
9

3
www.KALORIK.com
VC 47706 - 201010
ENGLISH:
1. Main body
2. Extension tube
3. Motorized floor head
4. Soft roller brush
5. Direct driver brush
6. Furniture brush
7. Crevice tool
8. Adaptor
9. Wall mount
FRANÇAIS:
1. Corps principal
2. Tube de rallonge
3. Tête de plancher motorisée
4. Brosse à plancher douce
5. Brosse à entrainement direct
6. Brosse pour meubles
7. Suceur plat
8. Adaptateur
9. Support mural

4
www.KALORIK.com
VC 47706 - 201010
IMPORTANT SAFEGUARDS
WARNING: To reduce the risk of fire, electric shock or injury, when using
your appliance, basic safety precautions should always be followed,
including the following:
1. Read all instructions before use.
2. Use only for intended use.
3. Do not place the vacuum cleaner close to heat sources, radiation
on, or burning cigarette.
4. Do not use the appliance to remove the following objects.
a. All liquids such as water and solvents.
b. Lime, cement, ash and other construction material.
c. Hot objects, such as cigarette butts.
d. Sharp debris, such as glass shards, etc.
e. Inflammable and explosive articles, such as gasoline or
alcohol products.
5. Do not let children play with or operate the vacuum cleaner to
prevent accidents.
6. Do not leave operating vacuum cleaner unattended.
7. The power must be turn off during cleaning, maintenance or when
in storage.
8. Do not pull the adaptor from the cord. Hold the plastic part of the
plug to remove it from the socket.
9. The power supply voltage must correspond to that of the vacuum
cleaner charging voltage.
10. Keep the power cord away from of sharp objects to prevent it from
being damaged.
11. To prevent fires do not immerse the vacuum cleaner in water, do
not expose it to any heating appliances.
12. Do not drag the power cord when moving the charging station.
13. In the case of below situations, do not use the vacuum cleaner
and send it immediately to the nearest approved maintenance
facility if:
a. The vacuum cleaner fell and consequently damaged
b. The power cord is damaged
14. Stop operating the vacuum cleaner if the suction inlet is blocked to
prevent damages (such as overheating) to the motor or

5
www.KALORIK.com
VC 47706 - 201010
deformations to the vacuum plastic part occasioned by
overheating motor.
15. Remove the battery pack when not in use for an extended period
of time and before cleaning.
16. Do not allow the terminals of battery to contact metal objects
when carrying or storing the battery. Never attempt to open or
modify battery for any reason.
SAVE THESE INSTRUCTIONS
HOUSEHOLD USE ONLY

6
www.KALORIK.com
VC 47706 - 201010
BEFORE THE FIRST USE
Installing the Wall Mount Charging Station
•Choose location near power outlet to install the wallmount. Ensure
no pipe work (gas, water, air) or electrical cables,wires or ductwork
are located directly behind the mounting area. It is recommended
to use protective clothing, eyeware and materials when installing
the docking station.
•Locate point high enough on wall to allow stick and power brush to
hang freely.
•Place wall mount (A) against wall and use pencil to mark drill holes.
•Drill holes (with 1/4” bit) and insert drywall anchors (B).
•Insert screws (C) through holes on mount and tighten until firmly
attached.
Assembling the Appliance
1. Slide the stick onto main body until it clicks
2. Push the stick into power brush until it clicks
3. Accessories can be connected to the stick for higher, tough to
reach spots.
A
B
C

7
www.KALORIK.com
VC 47706 - 201010
Charging the Appliance
The battery must be fully charged before the first use. The battery can
be charged either by placing the unit on the wall mount, charging the
main body horizontally, or charging the battery alone.
Charging on the Wall Mount
1. Place the main body on the wall mount
2. Lift the tab located in the center of the battery pack to connect
the adaptor cord into the charging socket.
3. When connected, the power indicators will flicker as the unit
charges. Once fully charged, all the indicator lights will be solid
blue.
Charging the Main Body Horizontally
1. Place main body on flat surface.
2. Lift the tab located in the center of the battery pack to connect
the adaptor cord into the charging socket.
3. When connected, the power indicators will flicker as the unit
charges.

8
www.KALORIK.com
VC 47706 - 201010
4. Once fully charged, all the indicator lights will be solid blue.
Note: When charging horizontally, it is recommended to charge the
appliance without the brush and extension tube to keep the main
body stable.
Charging the Battery Alone
1. Remove the battery pack from the main body by pressing the
release button.
2. Lift the tab located in the center of the battery pack to connect
the adaptor cord into the charging socket.
3. When connected, the power indicators will flicker as the unit
charges.
Note:
•General charging time: 4-5 hours
•High Power mode (without motorized accessory): approximately
10 minutes

9
www.KALORIK.com
VC 47706 - 201010
•Eco mode (without motorized accessory): approximately 40
minutes
•It may take longer to charge under the following circumstances:
oRoom temperature is higher than 30°C;
oRecharged immediately after the vacuum cleaner has
stopped operating.
•Always recharge the vacuum cleaner after each usage, no
matter how long it has been used.
•Unplug when not charging.
•To ensure a longer battery life, the vacuum cleaner should be
charged at least once every two months. If the vacuum will not
be used for more than two months, it is recommended to leave
the vacuum cleaner disconnected from the power supply.
•The vacuum cleaner or adapter may become hot during
charging. Take the necessary precautions to avoid contact.
OPERATION
•Once the appliance is fully charged, remove the main body from
adaptor cord.
•Connect the desired accessories to the vacuum (see USING THE
ACCESSORIES section for details).
•Switch the vacuum on by pressing the ON/OFF trigger (A). The
indicator lights (B) will turn on, reflecting the battery level.
•Select between desired suction power by pressing the MAX/MIN
button (C).
•When you are finished, press the ON/OFF trigger again, to switch off
the appliance.
•Once turned off, charge the appliance.
A
B
C

10
www.KALORIK.com
VC 47706 - 201010
USING THE ACCESSORIES
Motorized floor head
Attach the motorized floor head (A) to the extension tube (B). Connect
the extension tube to the main body (C).
Note: to detach the extension tube from either the floor head or the
main body, press and hold the release button on the end of the
extension tube connecting the attachment. While holding the button,
gently but firmly disconnect the attachment.
Floor Head Brushes
The motorized floor head can be used with 2 different brushes: the
direct driver brush and the soft roller brush.
The direct driver brush is better suited for carpets and deep cleaning,
while the soft roller brush is ideal for gentle cleaning on hard floors.
A
B
C

11
www.KALORIK.com
VC 47706 - 201010
Furniture Brush and Crevice Tool
When using as a handheld vacuum, attach the furniture brush (D) or
the crevice tool (E) to the main body (C).
Furniture Brush Crevice Tool
When using with the extension tube, attach the furniture brush (D) to
the extension tube (B). Attach the extension tube to the main body (C).
Furniture Brush Crevice Tool
Note: To disconnect the furniture brush or crevice tool, gently but firmly
pull the attachment from the main body or the extension tube.
D
C
D
C
B
E
C
E
C
B

12
www.KALORIK.com
VC 47706 - 201010
CLEANING AND MAINTENANCE
Emptying the dust container

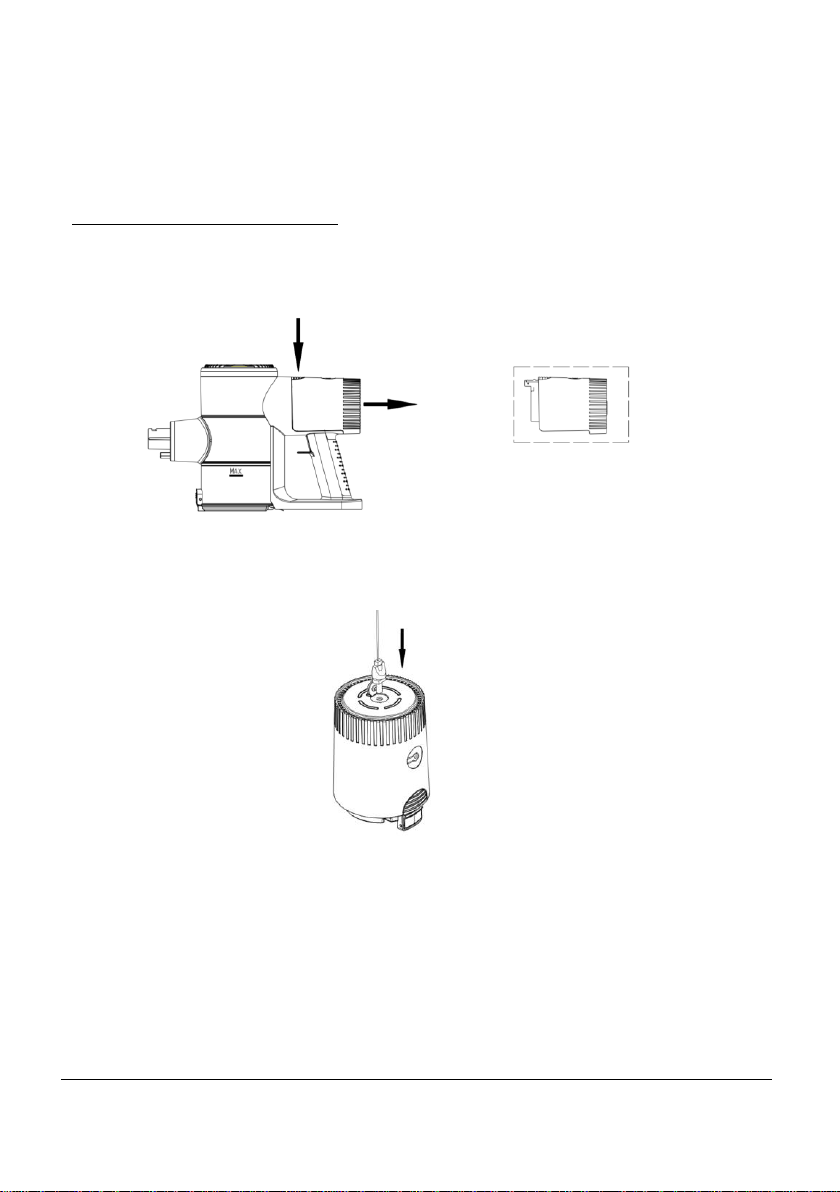

1. Make sure the vacuum is off.
2. Remove the battery and all attachments from the main body.
3. Turn the vacuum cleaner so that the bottom lid is facing upwards.
4. Place on a flat surface. Press the release button to open the bottom
lid (A).
5. Dispose of the debris by turning the unit over a trashcan (B). If
required, use your hand to remove any waste sticking to the
container.
6. Close the bottom lid until it clicks into place.
Cleaning the Motorized Floor Head and Brushes
1. Make sure the vacuum is off.
2. Hold the release button on the floor head and disconnect the
motorized floor head from the extension tube.
A
B

13
www.KALORIK.com
VC 47706 - 201010

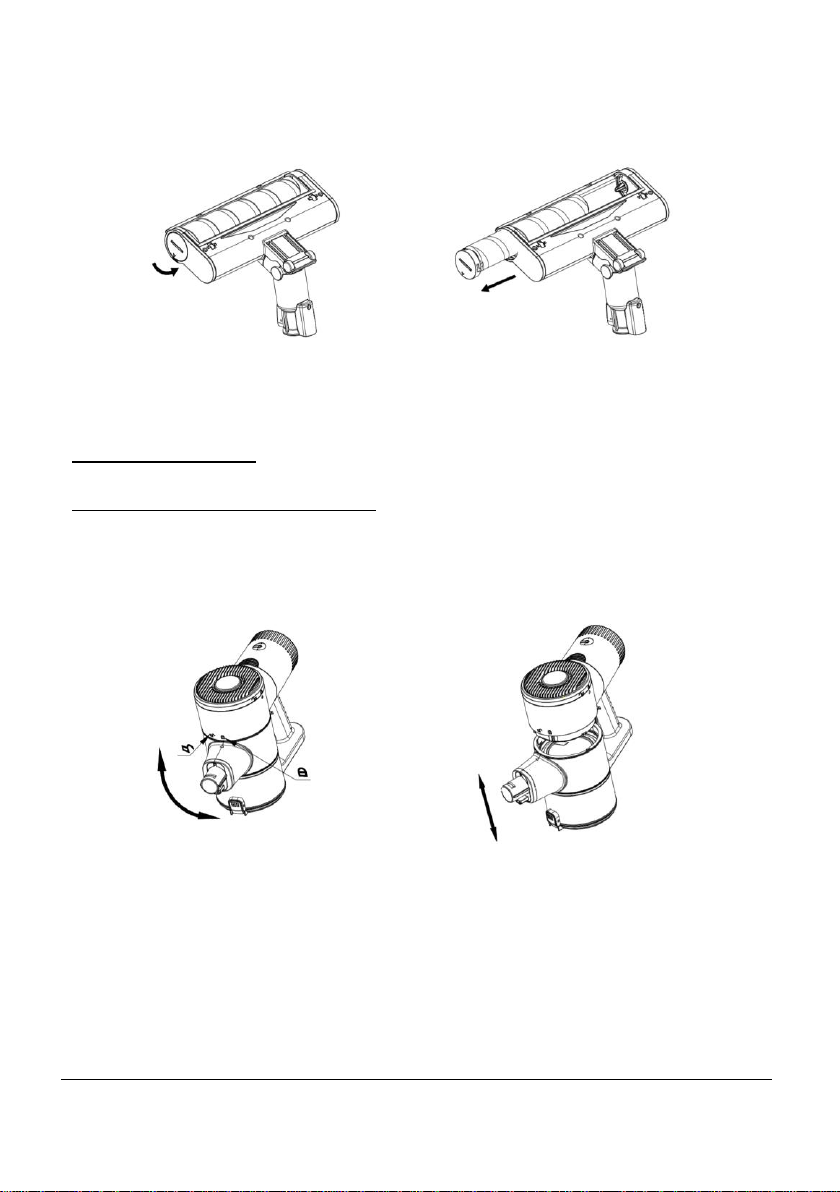

3. Using flathead screwdriver or coin, turn screw to the ‘unlock’
position. Disassemble brush roll for cleaning and reassemble after all
parts are cleaned.
Note: The brush roll is washable. Ensure it is completely dried before
reassembling.
Cleaning the Filters
Microfiber filter and filter screen
1. Remove the dust cup by twisting to the “unlock”position. Twist the
dust cup and remove. It is recommended to place the unit on flat
surface, using two hands to more easily disassemble.

14
www.KALORIK.com
VC 47706 - 201010
2. Lift the microfiber filter out. Twist the filter screen and remove.
3. Rinse and dry the filters THOROUGHLY.
4. Once completely dried, reassemble.
Note: It is recommended to replace the microfiber filter approximately
every 3 months.

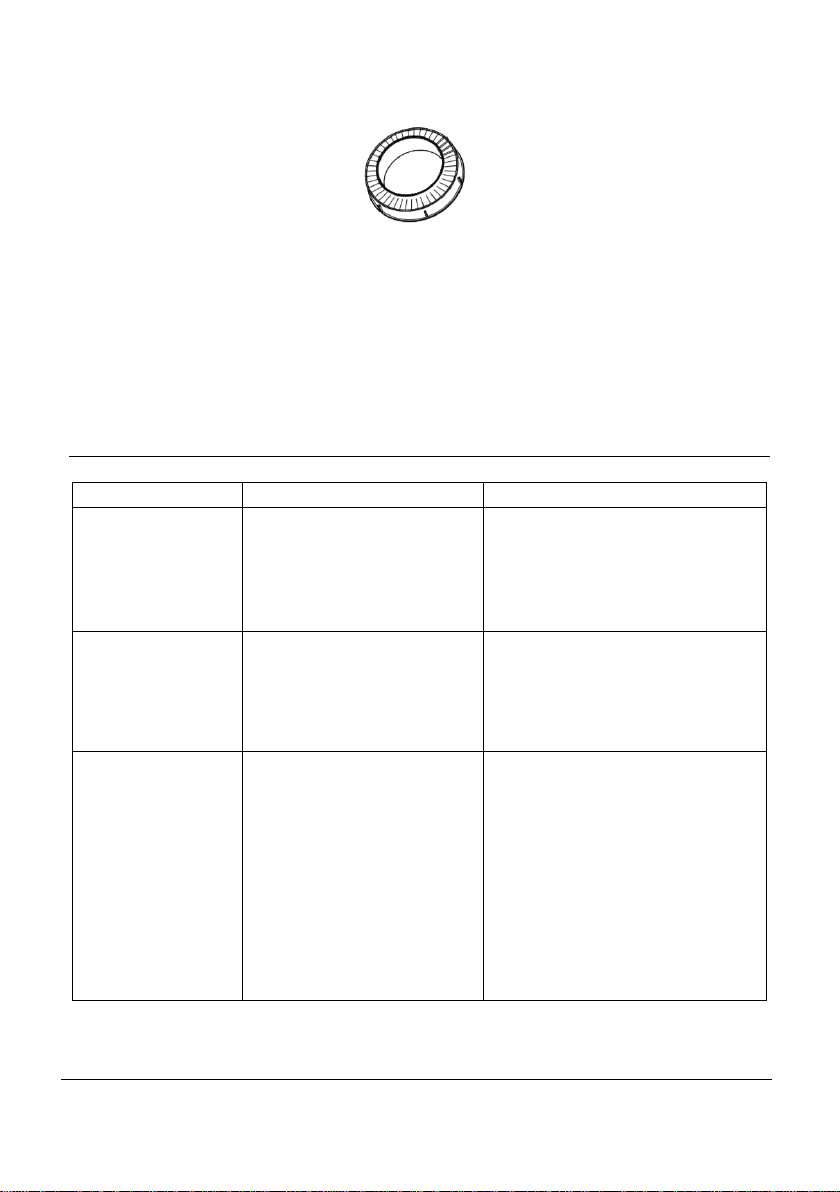

HEPA Filter
1. Remove the filter cover located on top of the main body by turning
counterclockwise.

15
www.KALORIK.com
VC 47706 - 201010
2. Lift out post-motor HEPA filter.
3. Shake to remove dust. Wash the filter under running cold water.
4. Completely dry the filter before assembling.
Note: It is recommended to wash the HEPA filter after six months of
regular use, to maintain the vacuum’s performance. If the HEPA filter
becomes heavily soiled, it is recommended to replace with a new filter.
TROUBLESHOOTING
ISSUE
POSSIBLE REASON
POSSIBLE SOLUTION
Indicator lights
on the floor
head are
flickering
1. The rolling bar
is wrapped
2. Temperature is
too high or low
1. Clean the rolling
brush
2. Move the vacuum
to suitable
temperature
The floor head
does not work
The floor head is
blocked by debris or
hair
Ensure that no hair or other
thread is trapped around
the brush and check brush
area for larger debris
Running time
shortened
1. Battery needs
to be
replaced
2. Ambient
temperature is
too high or too
low
3. Battery is not
fully charged
1. Contact the
manufacturer to
replace the
battery at the
user's own cost
2. Move the vacuum
to suitable
temperature
3. Charge the battery

16
www.KALORIK.com
VC 47706 - 201010
The vacuum
has no suction
power
1. The dust cup is
full
2. The filter is
blocked
3. Suction inlet of
brush or other
accessory is
blocked
4. Parts of the
appliance is
not fully dried
after cleaning
1. Clean the dust cup
after use to
prevent build ups
2. Remove any dust
or debris from the
filter
3. Check for
blockages at brush
and other
attachment points
4. Ensure that all
components are
properly dried after
washing
All indicator
lights on main
body flicker
The filter or duct are
blocked
Clean the dust filter, dust
cup and air duct
Not charging
Ambient temperature
when charging is too
low or too high
Charge the machine
under the right
temperature environment
(5°C - 40°C)
