Kampa Brean 4 Classic AIR User manual

Brean 4 Classic AIR
Instructions & care manual
Some of the images shown in these instructions are other similar Kampa tents and are for illustration purposes only.

2
IMPORTANT:
Your tent is made from a breathable polyester/cotton material
that requires some preparation before first use to maximise its
weatherproofing. Before first use fully set up the flysheet of the
tent, preferably when heavy rain is expected, and allow the tent to
become thoroughly wet. This process is known as “weathering”.
If necessary you could use a hose pipe with a fine spray. This
wetting tightens the fabric and allows the cotton in the sewing
thread to swell and fill the holes made by the sewing needle.
Allow the tent to thoroughly dry before packing away. Your tents
weatherproofing will improve with subsequent soakings.
The seams of this tent have been sewn using a special sewing
thread. The core of the sewing thread is a strong polyester that is
wrapped with cotton. It is the cotton that swells to fill the sewing
holes when it becomes wet. Depending upon your expectations,
it may be necessary to treat any seams that continue to drip with a
seam sealer. We recommend Kampa Seam Sealer that is
available from your dealer.
WELCOME
Thank you for purchasing your Kampa AirFrame tent. Please read these
instructions carefully before attempting to set up your tent and retain for future
reference. If used properly, your tent should give you years of trouble free
use. We recommend that your tent is insured against accidental and storm
damage as this is not covered by the warranty.
This tent is designed for use in light to moderate weather. During very strong
winds or snowfall we recommend that you take your tent down. The tent is
designed for touring use; it is not designed for static or commercial use.
We recommend a trial run before using your tent for the first time. This will
allow you to familiarise yourself with the tent, its set up and any limitations the
tent may have for your particular use.

3
Item Qty
Tent 1
Inner tent 1
Front canopy pole 1
Hand pump 1
Peg bag 1
Carry bag 1
The inner tent may already be attached to the tent and can be left attached for
take down and setup.
If you are missing any parts please contact your supplying dealer.
Before using for the first time please check the contents of your tent
SITING
Choose a site that is flat and, if possible, protected from the wind. Try to clear
the site of sharp stones to avoid damaging the groundsheet. A footprint
groundsheet is available as an optional extra – please see your dealer for more
information. Try to set up your tent with the doors facing away from the wind.
Avoid pitching under trees as falling branches, sap, etc could damage your tent.
SET UP
To protect your tent from dirt and damage, it may be beneficial to lay a footprint
(available as an optional extra) or groundsheet down before unpacking. Unpack
the tent and separate and identify the different parts. Assemble the aluminium
porch pole, this is shock corded and just needs slotting together. Ensure that
each pole is fully inserted into the adjoining pole.

4
2
3
IMPORTANT
It is important that whilst
unscrewing/replacing the inflation/
deflation valve that the valve does
not spin in the AirPole. You can
prevent this from happening by
holding the valve in place where it
meets the AirPole. In picture (2) the
left hand is holding the valve in
place. If the valve spins it will twist
the inflation tube in the pole and
may lead to premature failure. If you
suspect this has happened do not
inflate your tent before untwisting the
tube. Unscrew the valve from the
AirPole and check that the inflation
tube is not twisted. Before replacing
the valve ensure that the black
sealing washer is in place (3).
WARNING
NEVER OPEN THE ZIP ON THE INNER
TUBES WHILST THE POLES ARE
INFLATED. THIS WILL RESULT IN THE
POLE BURSTING.
Unroll and lay the tent out in the
required position (1). Peg each
corner of the tent ensuring that you
tension the tent between the pegs
and making sure that the tent keeps
it rectangular shape. You will
probably need to re-peg later.
1

5
Starting from one end of the tent,
unscrew the top cap, of the inflation
valve, and attach the pump nozzle (4).
Pump up each AirPole. (5). The pump
has a pressure gauge and each
AirPole should be inflated to 7 psi
(0.482 bar). As each AirPole is
inflated the tent will lift. It is normally
necessary to go inside the tent and to
push the poles upwards so that the
AirPoles can assume their correct
shape (6).
Once all the AirPoles have sprung
outwards, assuming their correct
shape, detach the pump from the tent
and tighten the outer valve cap on
each inflation point. It is important that
these are tight to prevent the seepage
of air.
You may need to use a guy rope to
keep the tent upright in place whilst
pegging.
Close all doors and entrances and
check the positioning of the corner
pegs again. If necessary re-peg to
ensure that the groundsheet is taut
inside the tent.
Peg all the intermediate pegging
points ensuring that each side is
straight.
Thread the front canopy pole through
the tent sleeve (7).
4
5
7
6

6
If the inner tent is not already installed,
take the inner tent inside and suspend
from the colour coded buckles (8).
Attach the remaining suspension
points.
Attach the base of the
inners to the corresponding
buckles on the groundsheet
(9). It will be easier to
attach the rear points before fully
suspending the inner tent.
The inner tent can remain permanently
installed whilst the tent is deflated and
inflated.
8
9
10
The tent comes with guy lines pre-
attached. We recommend that these
guy lines are used at all times. Peg
the guy lines so that the tent is under
tension without distorting the shape
(10). The guy lines can be adjusted
using the runners. Guy lines should be
secured using suitable pegs (see
below) and the guy line should
generally be pegged in line with the
seam of the tent it starts from. Check
the guy lines from time to time to
ensure that they are still adequately
tensioned.
11
Inflate the central ridge pole and
locate in the peak of the tent between
the front and middle pole. There are
velcro pads at each that attach to the
velcro on the pole sleeves.

7
PEGS
The tent comes complete with general purpose pegs. These will be suitable for
many sites but there will be some instances where different pegs will be
necessary. Your dealer will stock a range of pegs suitable for different types of
ground. For maximum effectiveness, pegs should be driven into the ground at a
45ºangle away from the pegging point.
RAIN
We make our tents as resistant to the weather as possible. Occasionally you
may find slight leakage. This is not a fault with the manufacturing process or
materials and can normally be rectified by spot treating the seam with seam
sealant or waterproofing spray (see below).
SEAMS
Please refer to page 2, to the section on weathering. Your tent will need to me
weathered before use to be as weatherproof as possible. Follow the
instructions in this section. If a seam is still leaking, particularly around tie tapes, a
waterproofing spray can be used - your retailer will stock waterproofing spray.
SUITABILITY
This tent is designed for use in light to moderate weather. During very strong
winds or snowfall we recommend that you take your tent down. The tent is
designed for occasional use; it is not designed for static or commercial use.
UV DEGRADATION
Tent fabrics can be weakened by prolonged exposure to sunlight. Under normal
holiday use your tent will give long service but use for extended periods in
strong sunlight will soon cause deterioration. In those cases it would be wise to
use a site as shaded as possible. UV degradation is not covered under the
warranty. The warranty does not cover tents used on permanent sites, displays
or for commercial purposes.
CONDENSATION
Your tent is manufactured using a breathable material and is much less likely to
be affected by condensation than fully synthetic tents. If you experience any
condensation you should ensure that all the vents are open.
SAFETY
DO NOT COOK IN THE TENT OR USE NAKED FLAMES. READ AND
UNDERSTAND THE FIRE PRECAUTIONS LABEL SEWN INTO THE INSIDE OF THE
TENT.

8
DEFLATION
To pack away the tent:
1. Close all doors and openings, including those on the inner tent/s.
2. Close all window blinds.
3. Un-peg the guy lines and tie them neatly to avoid future tangling.
4. Un-peg the intermediate pegging points but keep the four corners in place.
5. Open the valves on each pole. The tent will start to deflate. Wait until most
of the air has been expelled.
6. Un-peg the four corners.
7. Fold/roll the tent towards the deflation valves to expel more air and then roll
to fit in the carry bag.
8. Ensure that the tent is totally dry before storing in a cool, dry, dark space: if
possible opened out.
CARE
Tents are best stored opened out. Air fully and ensure it is totally dry before
packing away. Store in a well ventilated dry place. A wet/damp tent will
develop mildew surprisingly quickly.
Dirty tents can be washed using clean water and a soft brush. Do not scrub and
never use detergents.
The AirPoles do not need any maintenance but should be protected from
damage during storage. Damage due to improper use, wind damage or neglect
is not covered under the warranty. Have any damage repaired at the first
opportunity.
Zips should be treated with care, use two hands to close and open and never
tread on them. Never force a zip. We strongly recommend that you carry a
comprehensive spares kit including silicone waterproof spray, seam sealer and
tape for repairing the AirPoles.
Repairs to the tent should be made by a company recommended by Kampa or
your supplying dealer. Repairs and alterations made by an unauthorised
company may invalidate your warranty.

9
PROBLEM SOLUTIONS Difficulty in pumping up the tent 1. The inflation valve is not fully screwed into the AirPole.
2. The inflation tube is twisted at the valve. This may also be indicated by
a noise. DO NOT continue to inflate until the tube has been untwisted (see page 4).
If you suspect an air leak 1. Check that the inflation/deflation valve is properly screwed in and that
the black ‘O’ ring seal is in place.
2. Check that the top cap on the inflation valve is done up tightly.
If you think your tent has a water leak 1. Most suspected leakage is actually condensation (see condensation
section of this manual). This forms on the inside of the tent fabric. Try to increase the ventilation by opening the doors and ventilation ports. Do not cook in your tent.
If your tent has a water leak at specific points/areas
1. This tent uses a special sewing thread that swells to fill the holes made
by the needle. The flysheet is made from a polyester/cotton mix. Both need to be weathered before first use and will continue to improve during use—so give the tent time. Small areas can be treated with a waterproofing spray. If after using the tent many times you feel that the fabric has lost some of its waterproofing, you can treat it with a waterproofing product available from your dealer.
TROUBLESHOOTING

10
IN THE EVENT OF A PUNCTURE
If you suspect a puncture follow the following:
1. Undo the inflation/deflation valve from the pole and re-attach ensuring that
the tube does not twist and that the valve is firmly connected.
2. Re-inflate the AirPole.
3. If tightening the hose fittings does not solve the problem then the AirPole
may be punctured.
TO REMOVE AN AIRPOLE
3. Unzip the sleeve holding the AirPole.
4. You should now be able to remove the AirPole.
5. Unzip the protective cover of the AirPole, whilst deflated, to expose the
inflatable tube.
6. Locate the puncture. This is made easier if you blow some air into the tube.
For small holes it may be necessary to submerge the inflatable tube in
water.
7. Once located the tube can be repaired using repair tape. We recommend
Kampa Tent & Awning Repair Tape—available from your dealer.
The repair can be enhanced by using a combination of the tape with Kampa
Repair Solution.
Follow the manufacturers instructions to repair.
Another alternative is to replace the tube. Spares are available from your dealer
or direct from Kampa.
Once a repair or replacement has been made, the AirPole can simply be zipped
back into the sleeve.

11

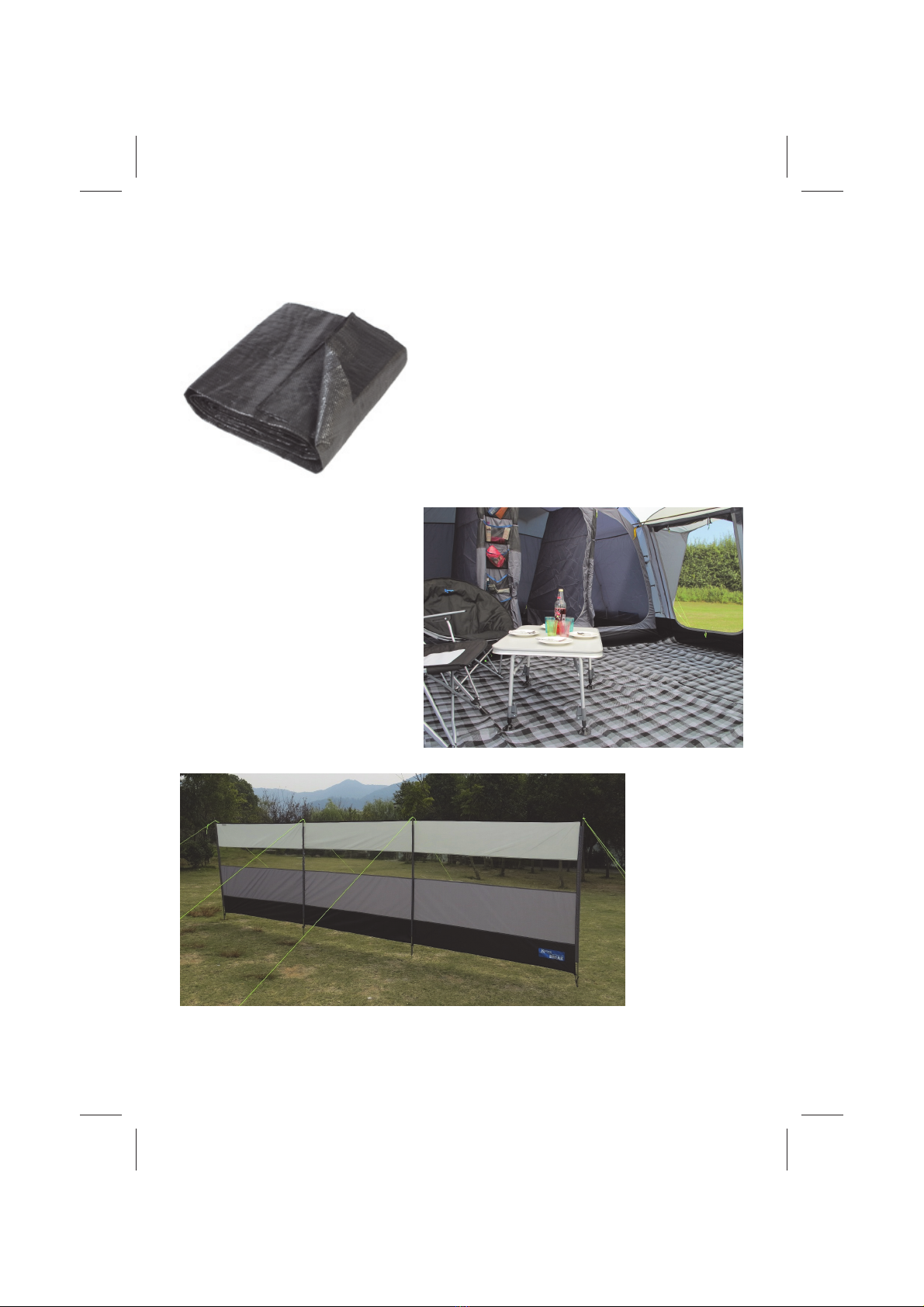

OPTIONAL EXTRAS AVAILABLE FOR YOUR TENT
FOOTPRINT goes under your tent to
protect and keep the groundsheet
clean.
CARPET adds a
luxury feel to the living area of
your tent. Insulating and soft
underfoot.
WINDBREAK provides privacy and protection from the wind.

12
Kampa UK Limited
Witham, CM8 3EU
© mol/Kampa/2016
Kampa produce a superb
range of camping accessories
that are available from your
dealer
See the whole range at www.kampa.co.uk
