Kampa Hayling 4 Air User manual

Hayling Series 3
Instructions & care manual
Some of the images shown in these instructions are from other similar
Kampa tents and are for illustration purposes only.
2
Tips for pitching your tent:
 Get help - it’s always easier with more people and will put less stress on
the tent and you!
 Keep your tent clean - use a footprint.
 To help set up the tent, each ring and pin is on an adjustable strap
that can be loosened. After the pin is inserted into the pole ensure
that the strap is tightened as much as possible. You will never
achieve satisfactory results unless you do this.
 Remember to readjust the pegging until the tent is taut . A well set up tent
will resist the weather much better than a poorly set up one. Your tent
should look like the picture above.
 Ensure that all doors and openings are fully closed before pegging the
tent. This will avoid undue strain on the zips.
Hayling 4
Hayling 6

3
IMPORTANT - PLEASE READ:
Under certain conditions all tents will suffer from internal
condensation. Depending upon the atmospheric conditions,
the weather and the amount of moisture in the ground, the
condensation could be quite severe and is commonly
mistaken for leaking, especially as it can run down the inside
of the roof and drips off ties tapes and other internal
fittings. If you suspect your awning is leaking it is almost
certainly condensation.
The tent material has a waterproof PU coating over its entire
surface and the main seams of your tent have been factory
taped to help prevent leakage. Depending upon your
expectations, it may be necessary to treat the remaining
seams with a seam sealant. Seams treated with seam
sealant cannot leak. Seam sealant should also be applied to
areas where the taping is damaged or has peeled away
through wear and tear. It can also be applied to areas where
a leak may have developed. Seam sealant is available from
your dealer.
WELCOME
Thank you for purchasing your Kampa tent. Please read these instructions
carefully before attempting to set up your tent and retain for future reference.
If used properly, your tent should give you years of trouble free use. We
recommend that your tent is insured against accidental and storm damage as
this is not covered by the warranty.
This tent is designed for use in light to moderate weather. During very strong
winds or snowfall we recommend that you take your tent down. The tent is
designed for touring use; it is not designed for static or commercial use.
We recommend a trial run before using your tent for the first time. This will
allow you to familiarise yourself with the tent, its set up and any limitations the
tent may have for your particular use.
4
PARTS LIST
Before using for the first time, ensure that the following parts are present:
If any parts are missing please contact your supplying retailer immediately.
SITING
Choose a site that is flat and, if possible, protected from the wind. Try to clear
the site of sharp stones to avoid damaging the groundsheet. A footprint
groundsheet is available as an optional extra – please see your dealer for more
information. Try to set up your tent with the doors facing away from the wind.
Avoid pitching under trees as falling branches, sap, etc could damage your tent.
SET UP
To protect your tent from dirt and damage, it may be beneficial to lay a footprint
(available as an optional extra) or groundsheet down before unpacking. Unpack
the tent and separate and identify the different parts. The fibreglass poles are
shock corded together and just need to be slotted together.
Item Qty
Tent flysheet 1
Fibreglass shock corded pole 4
Four berth inner tent 1
Canopy groundsheet 1
Steel canopy pole set 1 set (2 poles)
Peg bag 1
Carry bag 1

5
Spread the flysheet on the ground
and locate the five black pole sleeves
on the roof.
Thread the fibreglass poles through
the outer sleeves.
One pole at a time, attach the pole
ends to the pins located on metal
rings at the base of the tent.
1
3
2
Stand the tent upright and pull into
shape. If necessary use the guy lines
to help hold the tent upright. We
recommend you start from the centre.
Once the tent is standing, thread the
front canopy pole through the tent
sleeve.
56
Repeat on the other poles whilst
doing step 5.
Fully tighten the tensioning straps at
each pole end.
4
6
Position the tent into the required
location.
Peg the four corners of the tent
ensuring good tension between them
to keep the flysheet taut.
Peg the intermediate pegging points. Take the inner tent inside and
suspend from the colour coded
buckles. Attach the remaining
suspension points.
78
910
Attach the base of the inner to the
corresponding buckles on the
groundsheet. It will be easier to
attach the rear points before fully
suspending the inner tent.
Guy the tent using the pre-attached
guy lines. Do not over tension as this
will exert unnecessary strain on the
tent.
11 12

7
The tent comes with a canopy groundsheet that can be pegged down under the
canopy.
Doorways and entrances should be cross pegged – the points should be pulled
across each other. Once completed the tent should look taut without too many
creases – if necessary readjust the pegging. A well pitched tent will tolerate bad
weather much better than one that is poorly erected.
CAUTION: The inner tent has pockets inside and organiser pockets on the
front wall. Please note that these pockets are for light items only and care
should be taken not to overload the pockets as this could damage the inner tent.
PEGS
The tent comes complete with general purpose wire pegs. These will be
suitable for many sites but there will be some instances where different pegs will
be necessary. Your dealer will stock a range of pegs suitable for different types
of ground. For maximum effectiveness, pegs should be driven into the ground at
a 45°angle away from the pegging point.
GUY ROPES
The tent comes with guy lines pre-attached. We recommend that these guy
lines are used at all times. Peg the guy lines so that the tent is under tension
without distorting the shape. The guy lines can be adjusted using the runners.
Guy lines should be secured using suitable pegs (see above) and the guy line
should generally be pegged in line with the seam of the tent it starts from.
Check the guy lines from time to time to ensure that they are still adequately
tensioned.
8
RAIN
We make our tents as resistant to the weather as possible. Occasionally you
may find slight leakage. This is not a fault with the manufacturing process or
materials and can normally be rectified by spot treating the seam with seam
sealant (see below).
SEAMS
The main seams of this tent have been factory taped to help prevent leakage.
Depending upon your expectations, it may be necessary to treat the remaining
seams with a seam sealant. Seam sealant should also be applied to areas
where the taping is damaged or has peeled away through wear and tear. It can
also be applied to areas where a leak may have developed. Seam sealant is
available through your dealer.
SUITABILITY
This tent is designed for use in light to moderate weather. During very strong
winds or snowfall we recommend that you take your tent down. The tent is
designed for occasional use; it is not designed for static or commercial use.
UV DEGRADATION
Tent fabrics can be weakened by prolonged exposure to sunlight. Under normal
holiday use your tent will give long service but use for extended periods in strong
sunlight will soon cause deterioration. In those cases it would be wise to use a
site as shaded as possible. UV degradation is not covered under the warranty.
The warranty does not cover tents used on permanent sites, displays or for
commercial purposes.
CONDENSATION
Tents contain a high proportion of synthetic materials and under certain
conditions will be effected by condensation inside the tent. This should
not be confused with leaking. Condensation can be improved by ensuring
adequate ventilation. The tent comes with various ventilation ports that
can be opened and it may also help to keep a door open when the weather
allows. Condensation and its effects are not covered under the warranty.
SAFETY
DO NOT COOK IN THE TENT OR USE NAKED FLAMES. READ AND
UNDERSTAND THE FIRE PRECAUTIONS LABEL SEWN INTO THE INSIDE
OF THE TENT.
DISMANTLING
Reverse the set up procedure. Push the poles out of the sleeves, do not pull.
Ensure that all parts are clean before packing in the carry bag. If the tent is wet
or damp, dry fully as soon as possible.

9
CARE
Tents are best stored opened out. Air fully and ensure it is totally dry before
packing away. Store in a well ventilated dry place. A wet/damp tent will develop
mildew surprisingly quickly. Dirty tents can be washed using clean water and a
soft brush. Do not scrub and never use detergents.
Poles should be protected from damage and should be stored completely dry to
prevent corrosion of the ferrules. To prevent corrosion steel poles can be stored
with a light coating of petroleum jelly to protect them. Ensure that this is
completely removed before use. Damage due to improper use, wind damage or
neglect is not covered under the warranty. Have any damage repaired at the
first opportunity. Failure in the poles normally occurs through incorrect use.
Make sure that poles sections are fully inserted into their adjoining pole and do
not over stress the pole beyond its designed curve. You can purchase
replacement poles from your dealer. Connecting shock cord is considered a
consumable part and is not covered under the warranty. Replacement shock
cord is available from your retailer and is easy to change.
Zips should be treated with care, use two hands to close and open and never
tread on them. Never force a zip.
We strongly recommend that you carry a comprehensive spares kit including
silicone waterproof spray, seam sealer, tape for repairing split poles and spare
guy ropes and pegs for extreme weather.
Repairs should be made by a company recommended by Kampa or your
supplying dealer. Repairs and alterations made by an unauthorised company
may invalidate your warranty.
WARRANTY
We guarantee this product from manufacturing defects for twelve months from
date of purchase. The guarantee does not cover slight leakage, condensation,
UV degradation, storm/weather damage, improper use, improper set up,
permanent use, commercial use, displays or modification. Any complaint should
be made to your supplying dealer with the original receipt. Please ensure that
your tent is dry and clean before returning to your dealer for inspection. Your
dealer may refuse to handle any tent that is returned in an unsuitable condition.
SPARE PARTS
A full range of spare parts can be purchased from your supplying dealer or
Kampa.
10
PROBLEM SOLUTIONS If you think your tent has a water leak
Most suspected leakage is actually condensation (see condensation section of this manual). This forms on the inside of the tent fabric. Try to increase the ventilation by opening the doors and ventilation ports. Do not cook in your tent. The fabric, used to make this tent, has a massive 5000 mm hydrostatic head, so it is extremely unlikely that it would leak.
If your tent has a water leak at specific points/areas
The main seams of this tent have been factory taped to help prevent leakage. Depending upon your expectations, it may be necessary to treat the remaining seams with a seam sealant. Seam sealant should also be applied to areas where the taping is damaged or has peeled away through wear and tear and folding. It can also be applied to areas where a leak may have developed. Kampa seam sealant is available through your dealer.
The shock cord connecting the l poles has broken
This is a consumable part and replacement shock cord can be purchased from your dealer. It is easy to fit.
A pole has broken You can purchase replacement parts from you dealer or from Kampa. A temporary
repair can be made by using a straightened metal tent peg as a splint and binding it to the pole with strong tape.
TROUBLESHOOTING

11
WINDBREAK matches the tent and provides
privacy and protection from the wind.
FOOTPRINT goes under your tent
to protect and keep the groundsheet
clean.
CARPET adds a
luxury feel to the living area of
your tent. Insulating and soft
underfoot.

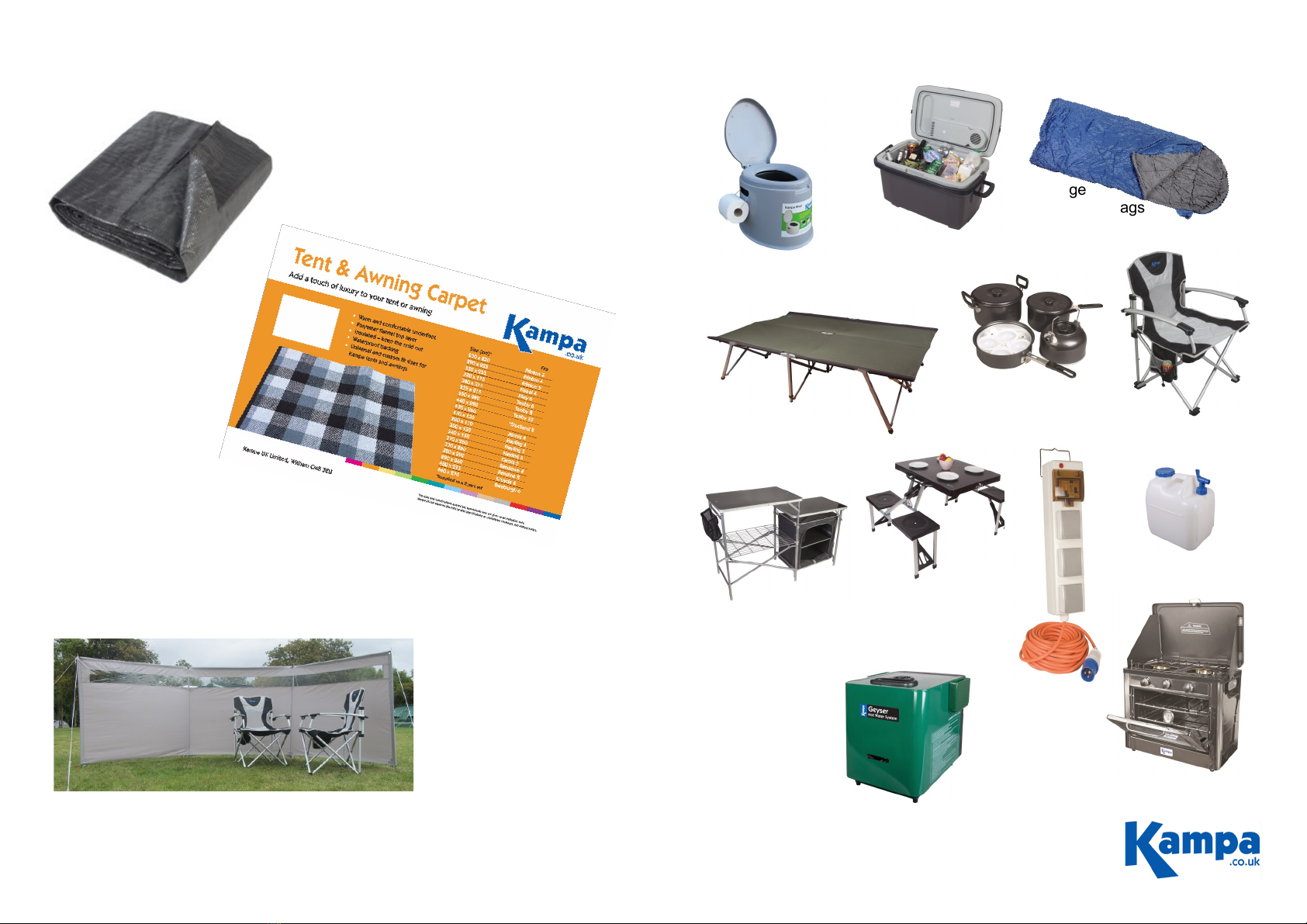

OPTIONS (AT EXTRA COST)
The following custom made options are available for your tent:
12
Kampa UK Limited
Witham
CM8 3EU
See the whole range at
Kampa produce a superb range of camping accessories that are available
from you dealer
Toilets & chemicals
Coolers - passive
and electric
Camp beds - singles
and double A great range of
chairs and tables
Cookware and
tableware
Gas stoves and ovens
Water carriers
Portable gas water
heater
A table for every
occasion
A range
of sleeping bags
Field Kitchens from
simple to luxurious
Mains
electricity
supply and
appliances
