KM 402 Kit Air/Mech Installation (PN: 6793 & 6794)
Technical Support
1. Remove original seat and suspension from the cab.
2. Determine if your seat well has an angled front section or a square front section. For models with the angled front
section, use the JD W43A plate. For models with the square front section, use the JD W43B plate.
3. Bolt W43A or W43B plate to the bottom of the PED JD 43 with two 5/16" x 3/4" carriage bolts and flange nuts.
4. Place the PED W43 into the seat well in the location it will be fastened. It may help to bolt the JD W43 Plate to the
back of the cab using the original bolts to secure it. Check to make sure the W43A or W43B plate, which ever is
installed, is tight to the front section of the seat well. Loosen the bolts and adjust if necessary.
5. With the PED W43 assembly in place in the seat well mark the location of the front holes onto the seat well.
6. Remove the PED W43 assembly from the cab and drill two 11/32" holes through the seat well where you marked.

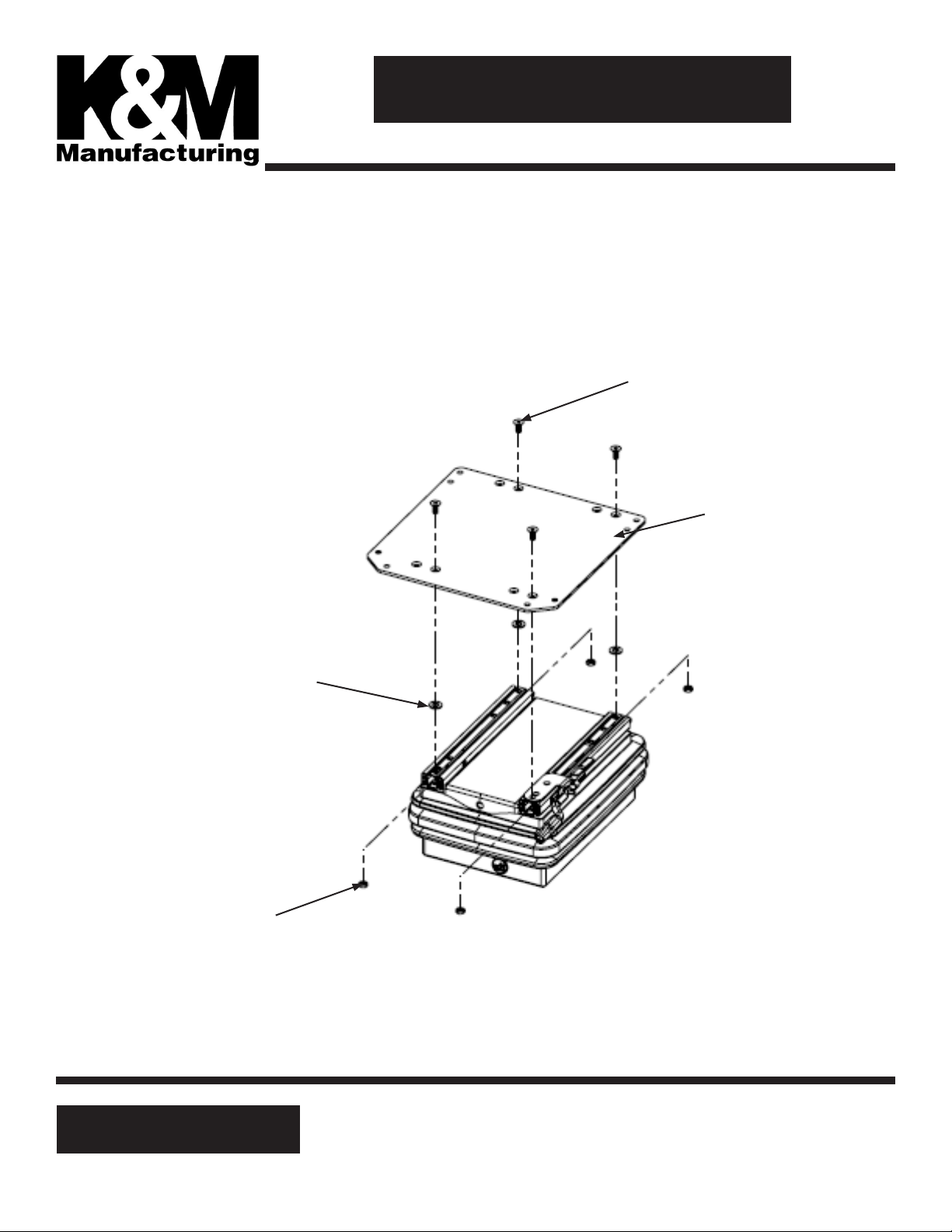

JD PED W43
PN: 6051
JD W43B Plate
JD W43A Plate
Use these holes to mark locations
on the seat well to drill.
1
5/16" x 3/4" Carriage
Bolt (2)
5/16" Serrated
Flange Nut (2)

Installation Guide
Phone: [phone] / Website: www.tractorseats.com
KM 402 Kit Air/Mech Installation (PN: 6793 & 6794)
Technical Support

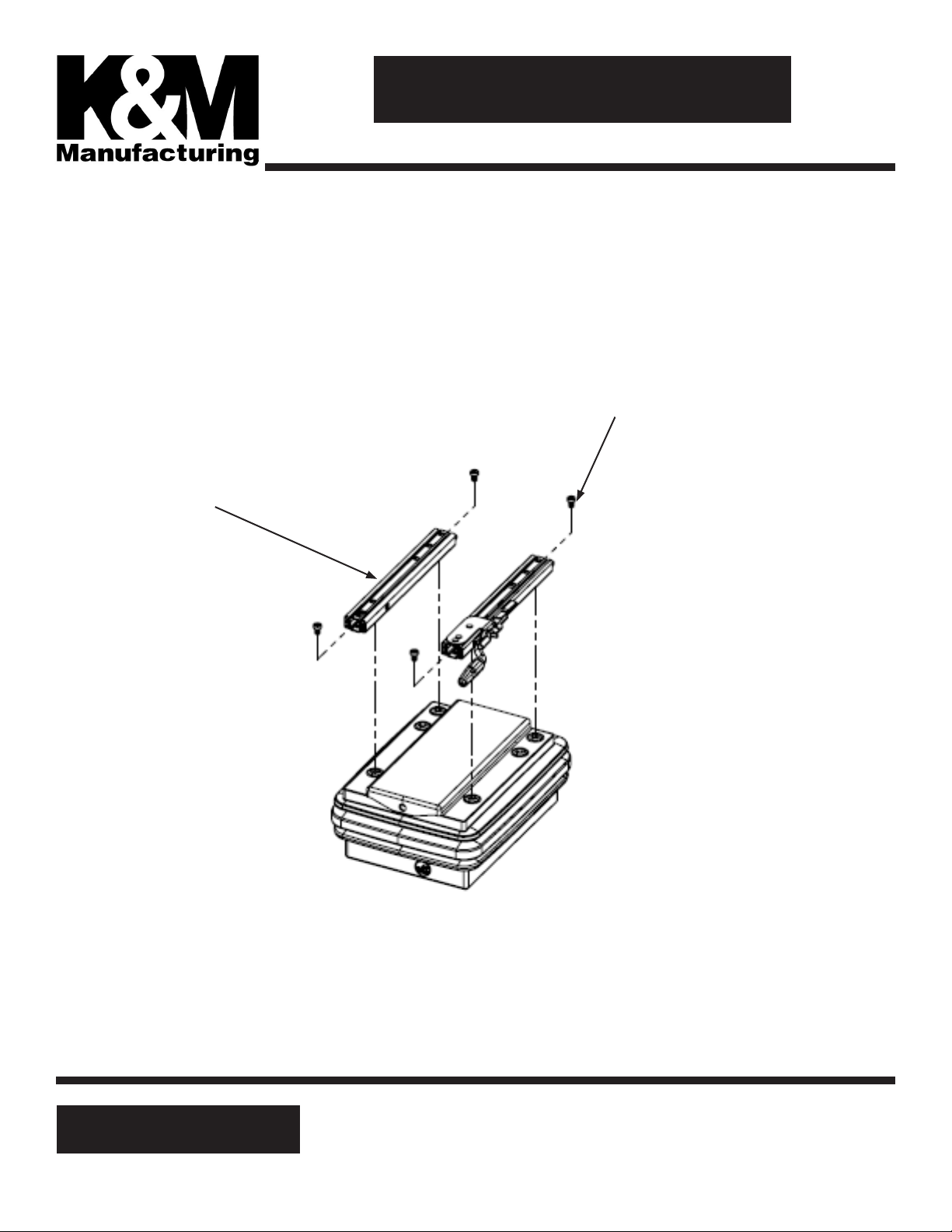

7. Bolt the slide rails to the suspension using four 8mm x 12mm low profile socket cap screws. The slide rail must be
assembled with the adjustment lever to the left side of the seat and suspension.
8mm x 12mm Low Profile
Socket Cap Screw (4)
KM MSG83 PN: 8079
or
KM MSG93 PN: 8080
Slide Rails
PN: 6048
2

Installation Guide
Phone: [phone] / Website: www.tractorseats.com
KM 402 Kit Air/Mech Installation (PN: 6793 & 6794)
Technical Support
8. Bolt the 6080 SAP to the slide rails using four 5/16" x 3/4" flat head socket cap screws, three flat washers, and four
5/16" jam nuts. The three flat washers go in between the 6080 SAP and the slide rails as shown below.
3
KM MSG83 PN: 8079
or
KM MSG93 PN: 8080
5/16" Jam Nut (4)
5/16" Flat Washer (3)
5/16" Flat Head Socket
Cap Screw (4)
6080 SAP

Installation Guide
Phone: [phone] / Website: www.tractorseats.com
KM 402 Kit Air/Mech Installation (PN: 6793 & 6794)
Technical Support
9. Bolt the suspension to the JD PED W43 using four 5/16" x 3/4" bolts, lock nuts, and .225" spacers. The spacers
install between the suspension and the JD PED W43. You need to loosen the lower part of the rubber bellows to
access the inside of the suspension to install the nuts onto the bolts.
.225" Spacer (4)
5/16" x 3/4" Bolt (4)
5/16" Serrated
Flange Nut (4)
JD PED W43
PN: 6051
KM MSG83 PN: 8079
or
KM MSG93 PN: 8080
4

Installation Guide
Phone: [phone] / Website: www.tractorseats.com
KM 402 Kit Air/Mech Installation (PN: 6793 & 6794)
Technical Support
10. Mount the JD PED W43 and suspension assembly to the back of the cab using the original bolts.
11. Fasten the W43A or W43B plate, which ever is installed, to the cab deck where the holes were drilled in step 6.
Use two 5/16" x 3/4" and 5/16" serrated flange nuts for fasteners.
5
5/16" x 3/4" Bolt (2)
5/16" Serrated
Flange Nut (2)
JD PED W43
PN: 6051
KM MSG83 PN: 8079
or
KM MSG93 PN: 8080

Installation Guide
Phone: [phone] / Website: www.tractorseats.com
KM 402 Kit Air/Mech Installation (PN: 6793 & 6794)
Technical Support
12. If a swivel was purchased, remove the plastic knock outs from the locations shown below. If no swivel was
purchased, continue to step 19 on page 9.
6

Installation Guide
Phone: [phone] / Website: www.tractorseats.com
KM 402 Kit Air/Mech Installation (PN: 6793 & 6794)
Technical Support
13. Rotate the swivel 45 degrees as shown below.
14. Mount the swivel to the 6080 SAP plate using four 5/16" x 5/8" socket head cap screws, lock washers, and 5/16"
jam nuts.
7
5/16" x 5/8" Socket
Head Cap Screw
(4) 5/16" Lock Washer (4)
5/16" Jam Nut (4)
6080 SAP

Installation Guide
Phone: [phone] / Website: www.tractorseats.com
KM 402 Kit Air/Mech Installation (PN: 6793 & 6794)
Technical Support
15. Remove the cushion from the new seat by taking out the three screws from the bottom front of the seat pan.
16. Mount the seat to the swivel using four 5/16" x 5/8" socket head cap screws and 5/16" serrated flange nuts.
17. Reinstall the seat cushion.
18. If the suspension is air, connect it to a power source. Keyed power is recommended.
8
5/16" x 5/8" Socket
Head Cap Screw (4)
5/16" Serrated
Flange Nut (4)

Installation Guide
Phone: [phone] / Website: www.tractorseats.com
KM 402 Kit Air/Mech Installation (PN: 6793 & 6794)
Technical Support
19. Continued from step 12. Remove the cushion from the new seat by taking out the three screws from the bottom
front of the seat pan.
20. Mount the seat to the 6080 SAP using two 5/16" flat head socket cap screws and serrated flange nuts for the front
holes and two 5/16" x 5/8" socket head cap screws and serrated flange nuts for the rear holes.
21. Reinstall the seat cushion.
22. If the suspension is air, connect it to a power source. Keyed power is recommended.
9
5/16" Serrated
Flange Nut (4)
5/16" x 5/8" Socket
Head Cap Screw (2)
5/16" x 1" Flat Head
Socket Cap Screw (2)
