USER MANUAL
K64P818RGBW

I n d e x
summarize ......................................................................... 3
safety i structio ................................................................ 3
outside size picture ............................................................. 4
mai fu ctio ...................................................................... 5
DMX co troller fu ctio ....................................................... 5
Display operatio i structio ............................................... 7
Ma ual i structio ............................................................... 8
Operati g co trol i structio ............................................... 9
XRL co ectio i structio .................................................11
Co ectio picture .............................................................13
Problem a alyse.................................................................14
Tech icals secificatio …………….…………………………..………16

Summarize
Thank you for purchasing our LED PAR lighting. Please read these instructions
carefully before begin and operate the fixtures according to these instructions to
avoid any possible da ages and accidents causes by isusage.
Products i troduce
LED K649818RGBW light uses alu inu shell , designed in a fashion of
hydrodyna ic for . Appearance shows: long can, short can or short can with
color filter . It adopts high power 4-in-1 LED, which refers to single LED is ade
of R,G,B,W LED, And long life span, low consu ption, good color ixing effect
and high brightness are the ost pro inent features. Each kind of LED can be
independently di ed. The built-in progra includes di ing, strobe, eotic,
gradual change, fading and so on. It uses power switch, perfor s low weight
and consu ption, stable capability and long life. International standard DMX 512
signal is requested.
Packi g list
•K64P818RGBW light 1PC
•DMX cable 1PC (Sold separately)
•The use anual
•Warranty Card
Safety Infor ation
! Enquire the skilled people before any repair;
! Always ake sure disconnect fro the power source before setting up, serving and
oving;.
! Avoid direct eye exposure to the fixture when it is on;
Safety i structio

● Make sure the power supply voltages are consistent with this lights ， Ensure the
use of voltage is in the range of the request technical para eter.
●before the installation, please check the light’s fasteners and echanical
structure have been received in good condition and appear no da age.
● This light is designed for indoor use, working te perature is lower than 40
degree.
●The fixtures aybe ounted in any position provided there is adequate roo
for ventilation. Make sure there are no infla able and explosive ite s
(orna ents) in 0.5 eters away.
●Yellow / green cabling earthling safety; no flicker when the fixture is working on.
Outside Size Picture

Mai Fu ctio
•Each color of LED with 256 di ing. RGB can ake over 16.7 illion colors
•di 0%-100%, Strobe 、 gradual change 、 ju ping change
•DMX512 Controller ， 4 button set DMX ID address with led display
•auto run /sound activated/ aster slave/interconnected ulti- achine
control
•using switching power supply to protect the LED to work well
•lens degree: 25º 、 45º optional
•3 、 4 、 5 、 8 CH DMX control channel optional
•body color: black/white, optional
DMX Co trol Fu ctio
3CH
Cha el DMX Value Co trol Fu ctio Remark
1CH 0-255 RGB ixing tone
2CH 0-255 White 0——100% color saturation
3CH 0-255 General di ing purity
Note: Chro aticity represents visible light, such as red, green, yellow, cyan etc. Color
saturation refers to the proportion of color chro aticity possession, 100% saturation
eans the color has reached the pure color. Purity value refers to the brightness,
when purity reaches 100%, the color is the brightest.

4CH
Cha el DMX Value Co trol Fu ctio Remark
1CH 0-255 R 0-100%
2CH 0-255 G 0-100%
3CH 0-255 B 0-100%
4CH 0-255 W 0-100%
5CH
Cha el DMX Value Co trol Fu ctio Remark
1CH 0-255 General di ing
2CH 0-255 R 0-100%
3CH 0-255 G 0-100%
4CH 0-255 B 0-100%
5CH 0-255 W 0-100%
8CH
Cha el DMX Value Co trol Fu ctio Remarks
1CH 0-255
（
（（
（ Ge eral dimmi g ）
））
）
2CH 0-255 Red dimmi g
0——100%
3CH 0-255 Gree dimmi g
0—100%
4CH 0-255 Blue dimmi g 0—100%
5CH 0-255 White 0——100%
0-14 Dimmi g
6CH 15-255 Strobe Speed
Whe 7CH>31 ，
，，
， this
fu ctio is i valid.
0-31 I valid
32-63 From dark to bright
64-95 From bright to dark
96-127 From
dark—bright—dark
Must use
CH1,2,3,4,5CH,
otherwise no light.
Fro the 8CH, start
the speed adjust ent.
128-159 RGB Gradie t
160-191 dark—bright—dark
auto ru
192-223 4 colors jumpi g
cha ge
7CH
224-255 Multi-colors jumpi g
cha ge
Speed adustme t
from 8CH
8CH 0-255 Speed Adjustme t
（
（（
（ 7CH ）
））
）

Display Operatio
•MENU : access the enu or return to a previous enu option
•ENTER: select the current enu option
•UP: enu selection or para eter incre ents
•DOWN: enu selection or para eters decrease

Ma ual I structio
Addr A001-A512 DMX Mode
SLAV SL.AV Slave receiving ode
CHNd 3.4.5.8 DMX receiving channel
choosing
SP-- SP-SP15 Built-in progra speed
Pr-- Pr00-Pr15 Built-in progra
ASC
AS00-AS1
5
Color Ju ping
MENU
FADE FA00-FA15 Gradual Changing ode
FLAS FL00-FL15 White strobe ode
RL r000-r255 Red di ing
gL g000-g255 Green di ing
bL b000-b255 White di ing
UL u000-u255 White di ing

Operati g i structio
1 、 MENU is used to access the enu or return to a previous enu option. It can
not be used to select and store the current enu option. Press UP / DOWN to
choose a desired enu ite . Here are the operation details :
•“Addr” ： DMX ode ；（ A001-A512 ）
•“SLAV” ： Slave receiving ode
•“CHNd” ： DMX receiving channel choosing （ 3 、 4 、 5 、 8 ）
•“SP - -“ ： Modify built-in progra speed （ SP00-SP15 ， SP00 is the
fastest ）
•“Pr- -“ ： Built-in progra （ Pr00-Pr15 is 16 kinds of progra s ）
•“ASC-“ ： Multi-color ju ping change （ AS00-AS15 : speed adjust ent ）
•“FadE” ： Gradual change ode （ FA00-FA15: odify speed ）
•“FLAS” ： White strobe speed （ FL00-FL15: odify speed ）
•“rL- -“ ： Adjust red brightness ode （ r000-r255, r255 is the brightest ）
•“gL- -“ ： Adjust green brightness ode （ g000- g255, g255 is the
brightest ）
•“bL- -“ ： Adjust blue brightness ode （ b000- b255, b255 is the
brightest ）
•“UL- -“ ： Adjust white brightness ode （ U000-U255, U255 is the
brightest ）
2 、 Press ENTER to access the further enu setting. This process can be saved
auto atically; that eans you will enter the process saved previously when
you activate the light next ti e.
For exa ple, if you want to choose DMX ode A001, operate as follows:
•Press MENU, go back to the initial setting
•Press UP / DOWN until Addr
•Press ENTER to choose, the display will glinting at this o ent
•Press UP / DOWN to change the address code to select A001

• Press ENTER to select and store the current enu options. DMX ode
will be
o stored auto atically and the screen will stop glinting.
•DMX channel choosing ： CHNd ode
•Press MENU ， go back to the initial setting
•Press UP/DOWN till “CHNd”
•Press ENTER to choose, the display will glinting at this o ent
•Press UP/DOWN to odify DMX receiving channel ， 3CH 、 4CH 、 5CH 、 8CH
•Press ENTER, if you press ENTER without stop for 3s ， DMX channel will be
saved and back to DMX receiving ode （ A001 ） , if you press ENTER(with
stop) or not press ENTER for 8s ， DMX chanel will be choosed and saved, then
back to DMX receiving ode （ A001 ）。
3 、 Details of built-in progra （ Pr- - ）
•Press MENU ， go back to initial setting
•Press UP/DOWN till “pr- - “
•Press ENTER to choose, the display will glinting at this o ent
•Press UP/DOWN to odify built-in progra till “Pr00”
• Press ENTER to select and store the current enu options. DMX ode
will be stored auto atically and the screen will stop glinting.
Note ：
•Pr14--- Pr30 can odify the content of “SP-- -“ ， correct the speed of
ju ping change , SP00 is the fastest ， SP15 is the slowest
•Pr00-Pr13 ： RGBW single color or ulti-color ixing
•Pr14-Pr27 ： Pr00 - Pr13 corresponds, increasing strobe function
•Pr28 ： 4 colors ju ping change

Operati g Co trol I structio
Master/Slave
Master ： The aster should set as built-in progra and shows” P - X – X” send out
synchronization signals. To avoid the host signal and DMX512 signals interfere
with each other, should cut off the DMX512 signals. The signal lines are longer
than 60 eters should increase a signal a plifier.
Slave ： It ust be in the SLAV ode and the address code should be A001 to assure
receive the aster’s signals correctly. Only one light can be set as a Master and
others are slaves.
XLR cable co ecti g
XRL cable：
：：
：
The stand connection way of the XRL is: one end connects to the ale plug, and
the other connects to the fe ale.

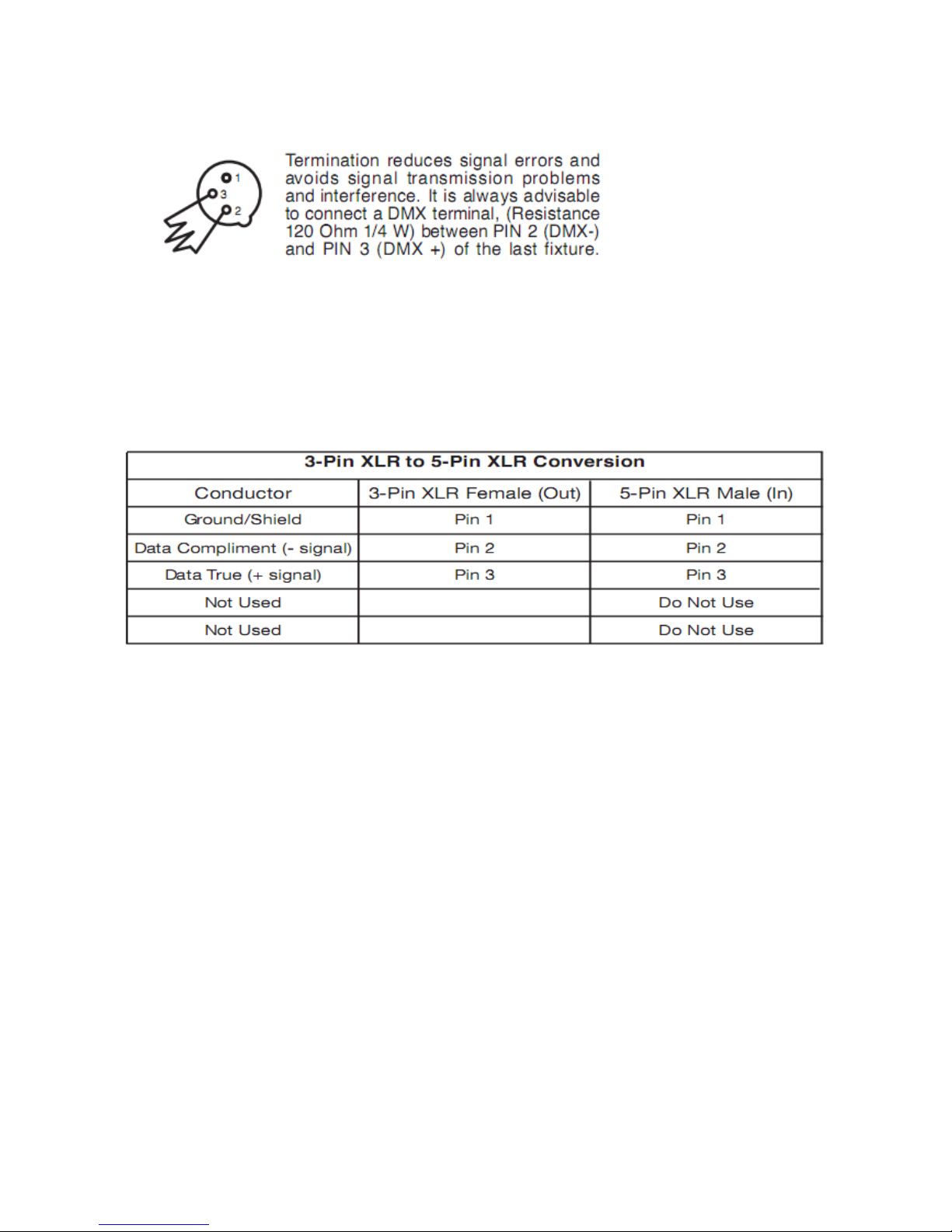

Noted
：
In order to avoid failures and interference signal trans ission
，
we connect
a resistance120Ω
（
1/4W
）
at the end of the DMX connecting as below:

The Conversion between 3pin and 5 pin XLR
If the output cable of DMX512 controller is the 5PIN, please use 1pc 5PIN to
3PIN cable

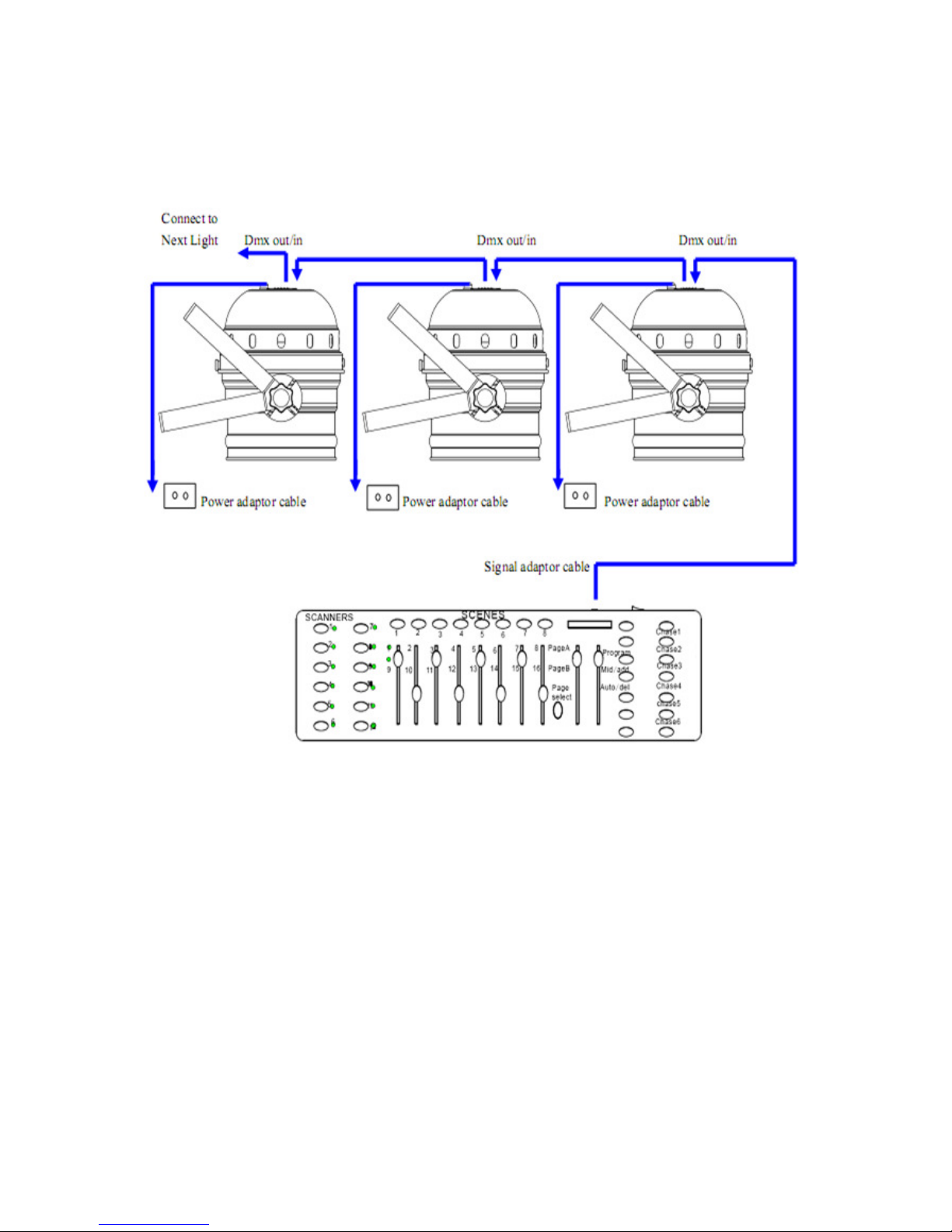

Co ecti g picture
Cable connecting picture：

Problem A alyze
Proble Checking way
Can not turn on the
light
Check the power source plug is in nor al or not
Check the switch of the lights is off or on
Check it the fuse if in nor al
DMX can not control
it
Check the DMX cable is connect to the lights or not
Check the DMX512 controller work in nor al or not
Check the DMX cable is nor al or not
Check if the lights is in DMX ode（ A001）
Display not bright
When connect to the electricity， did the led flash one ti e?
If so， the power source is nor al; If not， please check if the
switch and the transfor er has power out
Check if the power input of the IC board is nor al
Check if the cable connect to the display loose
Change the ain board to see if it is nor al.
Chang the display
LED not light
When connect to the electricity， did the led flash one ti e?
If so， the power source is nor al; If not， please check if the
switch and the transfor er has power out
Check if the power input of the IC board is nor al
Check if the cable connect to the display loose
Change the ain board to see if it is nor al.
Chang the display
LED is connect by leds in series first, then connect parallel,
so please check if the leds is loose

So e of the LED not
light
 Use the ulti eter to check if the led is bright or not, of
not, please change the led
check whether current li iting resistor is nor al or not
Check constant current IC is nor al or not (co pared with
the nor al IC)
Single color leds
always bright/not
bright
Check the switch of this color is nor al or not
Change the IC control board
Noted: only professional persons can do as above
！

Tech ical Specificatio
•Input voltage: AC 100-264v / 47-63Hz
•Output voltage: DC24V
•Consu e: 144W
•La p Type: High Power LED (8W)
•La p Spec: 4-in-1 8W （ 18PCS ）
•Constant current driver: 500MA
•Refresh rate : >400HZ
•Life span: 50000~100000hours
•Control Signal ： DMX512, sound activated, auto run
•Control ode ： stand alone/ sound activated
•Channel ： 3, 4,5, 8CH
•Color effect ： RGBW ixing
•Function Effect: di er, strobe, eotic, gradual change, sound activated
•Bea Angle: 15°, 25°, 45°
•Cooling ode: Natural Convection
•Anti-electricity intension ： 1.5KV
•Insulation Resistance: ＞２ MΩ
•Size: 30*22*23c
•Net Weight: 2.5KG

Copyright 2012 KANDOLITE. All rights
reserved. Due to continuous i prove ents
and innovations, specifications ay change
without notice.
