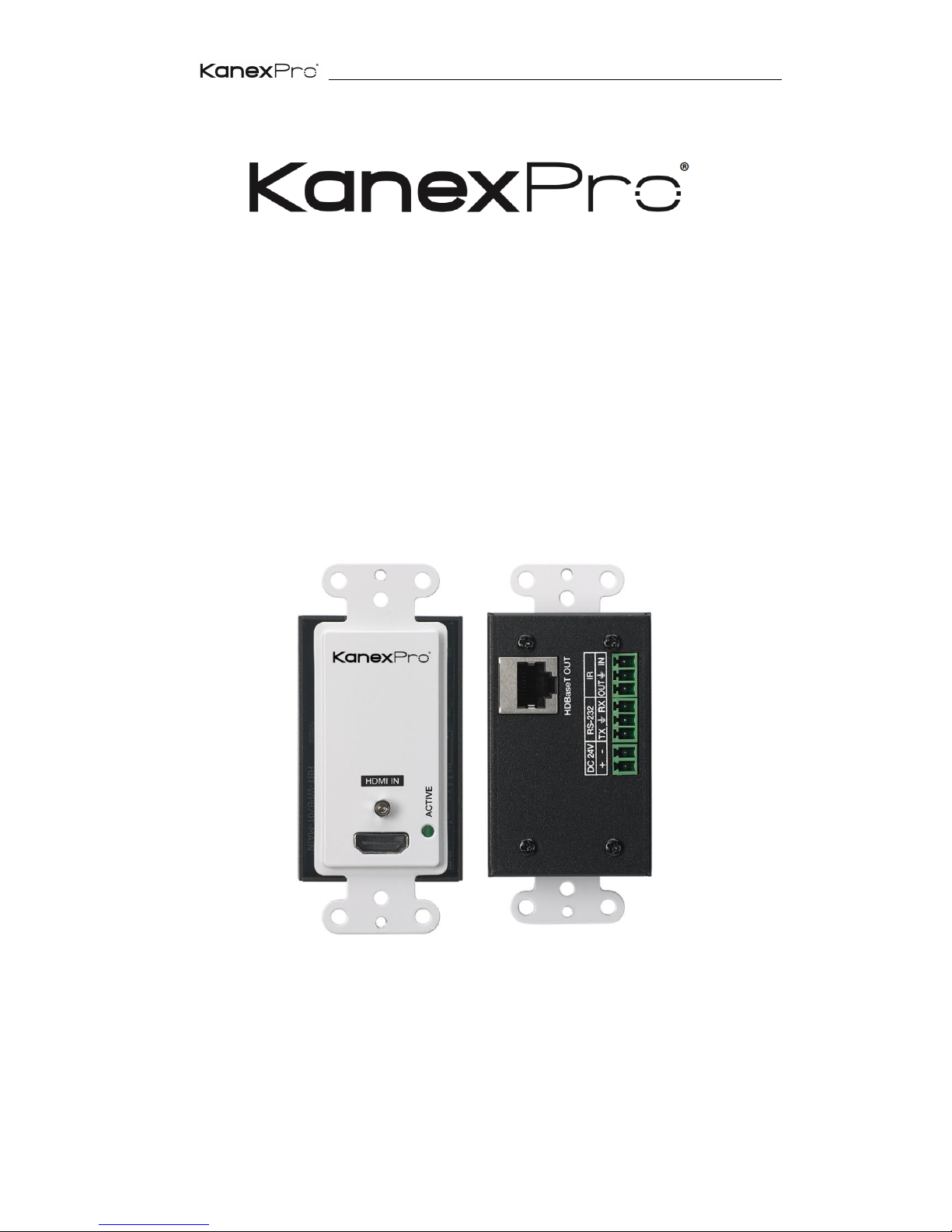

KanexPro WP-EXTHDBTX1 User manual

WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™
1
Single Gang HDMI®2.0 Wall plate over
HDBaseT™ w/ IR, RS-232 & PoC
(1-Gang US Decora)
All Rights Reserved
Version: WP-EXTHDBTX1_2018v2.0

WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™
2
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully before
connecting, operating or adjusting this product. Please keep this manual for future
reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged by
electrical spikes, surges, electric shook, lighting strikes, etc. Use of surge protection
systems is highly recommended in order to protect and extend the life of your
equipment.
Table of Contents
1. Introduction.................................................................................................................3
2. Features....................................................................................................................... 4
3. Package Contents.........................................................................................................4
4. Specifications...............................................................................................................5
5. Operation Controls and Functions.................................................................................6
5.1 Front panel.............................................................................................................6
5.2 Rear panel..............................................................................................................7
6. Application Example.....................................................................................................9
7.Warranty…………………………………………………………………………………………………..……….9

WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™
3
FCC Statement
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful
interference to radio communications. It has been tested and found to comply with
the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful interference in
a commercial installation.
Operation of this equipment in a residential area is likely to cause interference, in
which case the user at their own expense will be required to take whatever
measures may be necessary to correct the interference.
Any changes or modifications not expressly approved by the manufacture would
void the user’s authority to operate the equipment.
1. Introduction
The KanexPro WP-EXTHDBTX1 is a US Decora style single gang HDMI 2.0® wall plate
transmitter designed for connecting one HDMI device such as a laptop, Blu-ray, or a
4K media player remotely over CAT5/6 up to 230 ft. (70 meters). The outputs is via
HDBaseT port. It supports full 18 Gbps bandwidth with true 4K video resolutions up
to 4/60Hz, HDCP 2.2 compliant and will extend 4K up to 40m delivering color
sampling rate of 4:4:4.
PoC & Control
The wall plate transmitter supports PoC –power over cable requiring only power
supply from the Receiver optional, part# EXT-HDBT70MRX side to operate. It also
supports bi-directional IR control and RS-232 control for devices to and from the
display.
Applications:
Ideal for use within court rooms, classrooms, conference rooms or showrooms
where audio-visual devices can be extended from a remotely located HDMI source
device. This single-gang HDMI wall plate can be used anywhere to enhance signal
integrity over CAT5e/6 cabling.

WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™
4
2. Features
•Single Gang, One HDMI Input wall plate over HDBaseT
•Extend 4K/60 w/ 4:4:4 up to 40 meters (130ft.)
•Extend 1080p/60 w/ 4:4:4 up to 70 meters (230 ft.)
•Supports the latest HDMI 2.0 Specs with 18 Gbps bandwidth
•Digital Audio Support up to 7.1 channels of HD audio
•HDCP 2.2 /1.4 Compliant
•Bi-directional IR & RS-232C
•Remote power support thru PoC (Either from Tx or Rx)
•POC Power consumption is less than 10W
•Simple point-to point transmission over CAT5e/6
•Active LED status indicator
3. Package Contents
① 1× 18G HDMI Wall Plate Transmitter
② 1× User Manual
③ 2× Phoenix connector(2 pins)
④ 2× Phoenix connector(3 pins)

WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™
5
4. Specifications
Technical
HDMI Compliance
HDMI 2.0b
HDCP Compliance
HDCP 1.4 and HDCP 2.2
Video Bandwidth
18 Gbps
Video Resolution
up to
4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@
120Hz, and 1080P 3D@60Hz
Color Space
RGB/YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
10-bit, 12-bit
HDMI Audio Formats
LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby
Digital+,
Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos,
DTS:X
Optical Audio Formats
LPCM 2CH, LPCM 5.1, Dolby Digital 2/5.1CH, DTS
2/5.1CH
ESD Protection
Human body model—±8kV (Air-gap discharge)
&±4kV
(Contact discharge)
Connections
Transmitter
Inputs: 1x HDMI Type A [19-pin female]
1x IR INPUT [Phoenix jack]
1x RS-232 [Phoenix jack]
Outputs: 1x HDBaseT Out [RJ45]
1x IR OUTPUT [Phoenix jack]
1x RS-232 [Phoenix jack]
Mechanical
Housing
Metal Enclosure
Color
Black
Dimensions
103.5mm [W] x 46mm [D] x 30mm [H]
Weight
163g
Power Supply
Input: AC100 - 240V 50/60Hz
Output: DC 24V/1A (US/EU standards, CE/FCC/UL
certified)
Power Consumption
9W (Max)
Operating Temperature
32 - 104°F / 0 - 40°C
Storage Temperature
-4 - 140°F / -20 - 60°C
Relative Humidity
20 - 90% RH (no condensation)

WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™
6
5. Operation Controls and Functions

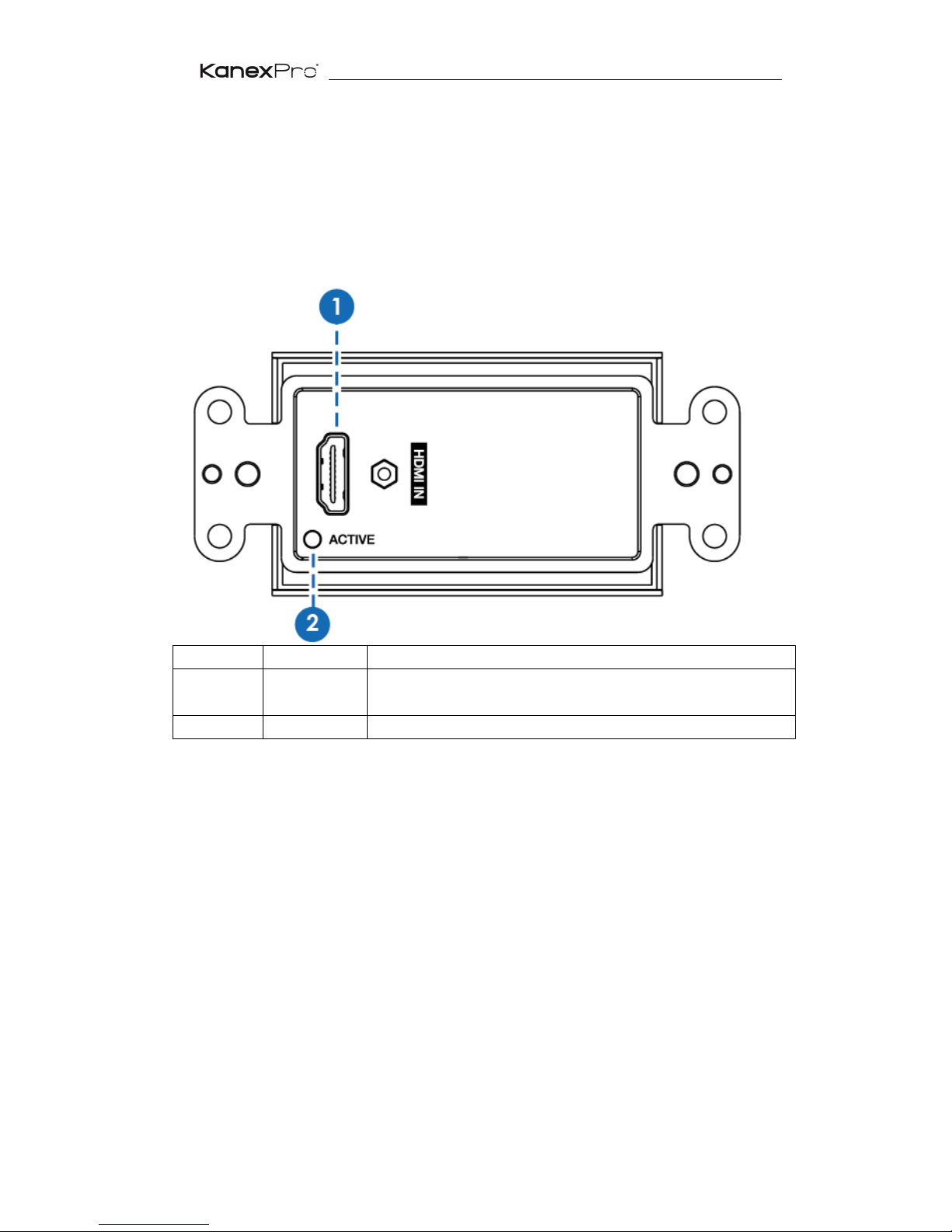

5.1 Front panel
Number
Name
Function description
1
HDMI IN
Connect to HDMI source devices such as Blu-ray or PS4
player.
2
ACTIVE
Green LED input signal indicator.

WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™
7
5.2 Rear panel
Number
Name
Function description
1
HDBaseT OUT
HDBaseT output port. Connect HDBaseT receiver
with a
UTP cable.
2
5V OUT
Supply 5V power for external IR emitter.
3
IR IN/OUT
Use the phoenix jack for connect IR input or
output.
4
RS-232
Use the phoenix jack for connect PC or control
system to transmit RS-232 commands.
5
DC 24V
Use the phoenix jack for connect power supply.

WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™
8
POC (Power over Cable) Application
Bi- directional (Two-way) Infrared control Application

WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™
9

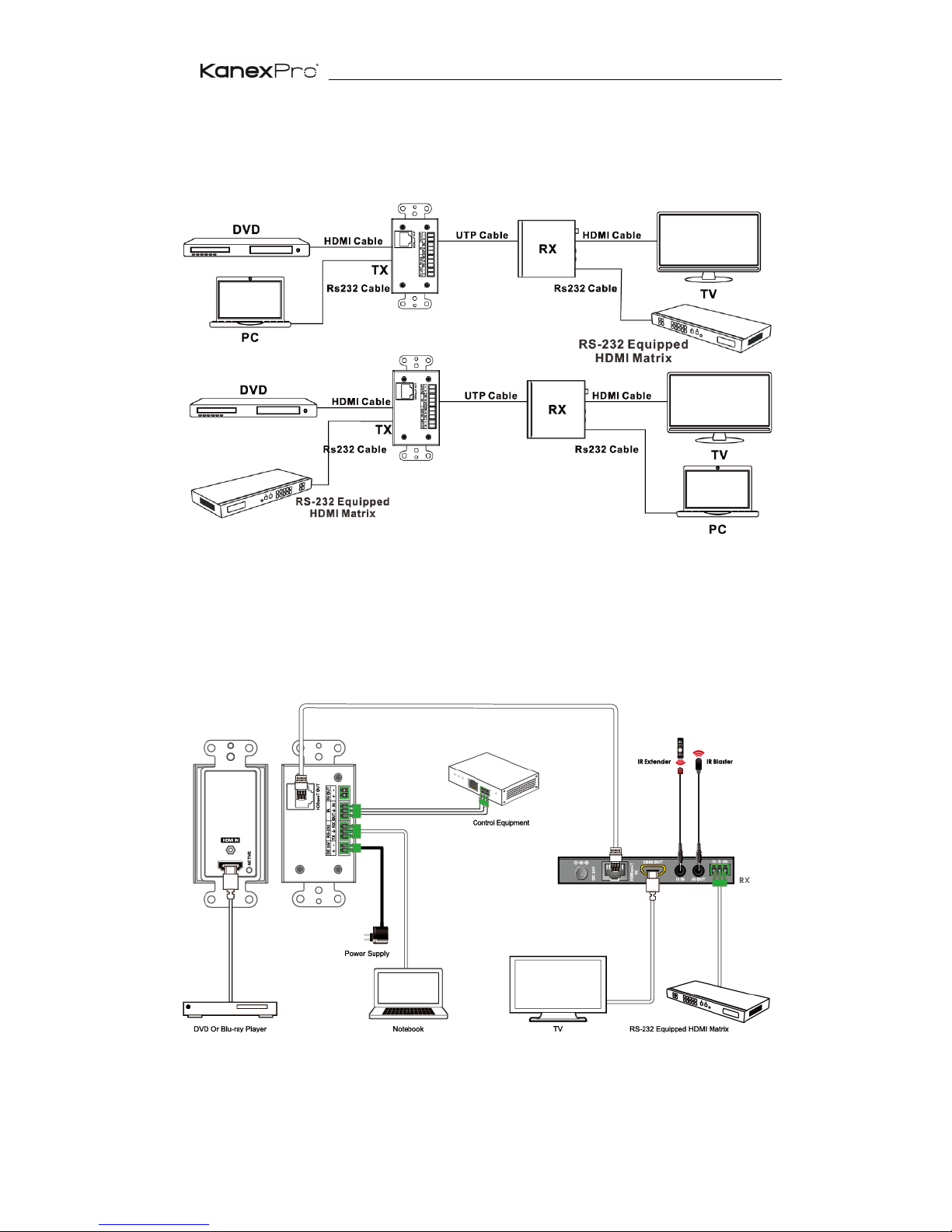

Bi-directional (Two-Way) RS-232 Control Application
6. Typical connection diagram

WP-EXTHDBTX1 - Single Gang HDMI® Wall plate over HDBaseT™
10
Support & Customer Care Guarantee
The return of a product to our Customer Service implies the full agreement of the
terms and conditions hereinafter. There terms and conditions may be changed
without prior notice.
①Warranty
The limited warranty period of the product is fixed 3 (three) years.
②Scope
These terms and conditions of Customer Service apply to the customer service
provided for the products or any other items sold by authorized distributor only.
③Warranty Exclusions:
Warranty expiration.
Factory applied serial number has been altered or removed from the product.
Damage, deterioration or malfunction caused by:
✓Normal wear and tear.
✓Use of supplies or parts not meeting our specifications.
✓No certificate or invoice as the proof of warranty.
✓The product model showed on the warranty card does not match with the
model of the product for repairing or had been altered.
✓Damage caused by force majeure.
✓Servicing not authorized by distributor.
✓Any other causes which does not relate to a product defect.
Shipping fees, installation or labor charges for installation or setup of the
product.
④Documentation:
Customer Service will accept defective product(s) in the scope of warranty
coverage at the sole condition that the defeat has been clearly defined, and upon
reception of the documents or copy of invoice, indicating the date of purchase,
the type of product, the serial number, and the name of distributor.
Remarks: For further assistance or solutions, please contact your local distributor or
to [email protected]
