OPERATORS MANUAL
&
WARRANTY FORM
Gavhall Pty Ltd, trading as KANGA FARM EQUIPMENT, would like to thank you for choosing one of our
implements. Kanga Farm Equipment has manufactured three point linkage implements to handle the harsh
Australian Conditions, since 1982.
All new Kanga Farm Equipment Implements are backed with a 12 month comprehensive warranty, against
faulty workmanship and/or materials, under normal working conditions and service, as outline in this
manual. Your warranty maybe considered void if any damaged to the implement is caused by operator
abuse, neglect, or if any unauthorised modifications have been made.
Kanga Farm Equipment and its Distributors/Dealers are not responsible for any transportation cost
incurred in the repair or replacement of parts in either a successful or non-successful warranty claim. All
implements must be returned to the manufacture for warranty assessment.
This warranty does not exclude any conditions implied by the Trade Practises Act 1974, or any other
relevant legislation.
The information contained in this manual was current at the time of printing and has been compiled
especially to assist you with the Implement that you have purchased. It is of the utmost importance that you
read this manual and understand the context completely before attempting to operate the implement. Please
be aware that in an effort to bring you better products we are always implementing continuous
improvements that may change the designs and specifications of the Implement. In doing this, Kanga Farm
Equipment together with its Dealers and Distributors are under no obligation to implement these changes,
free of charge, on any previously delivered Implement

2

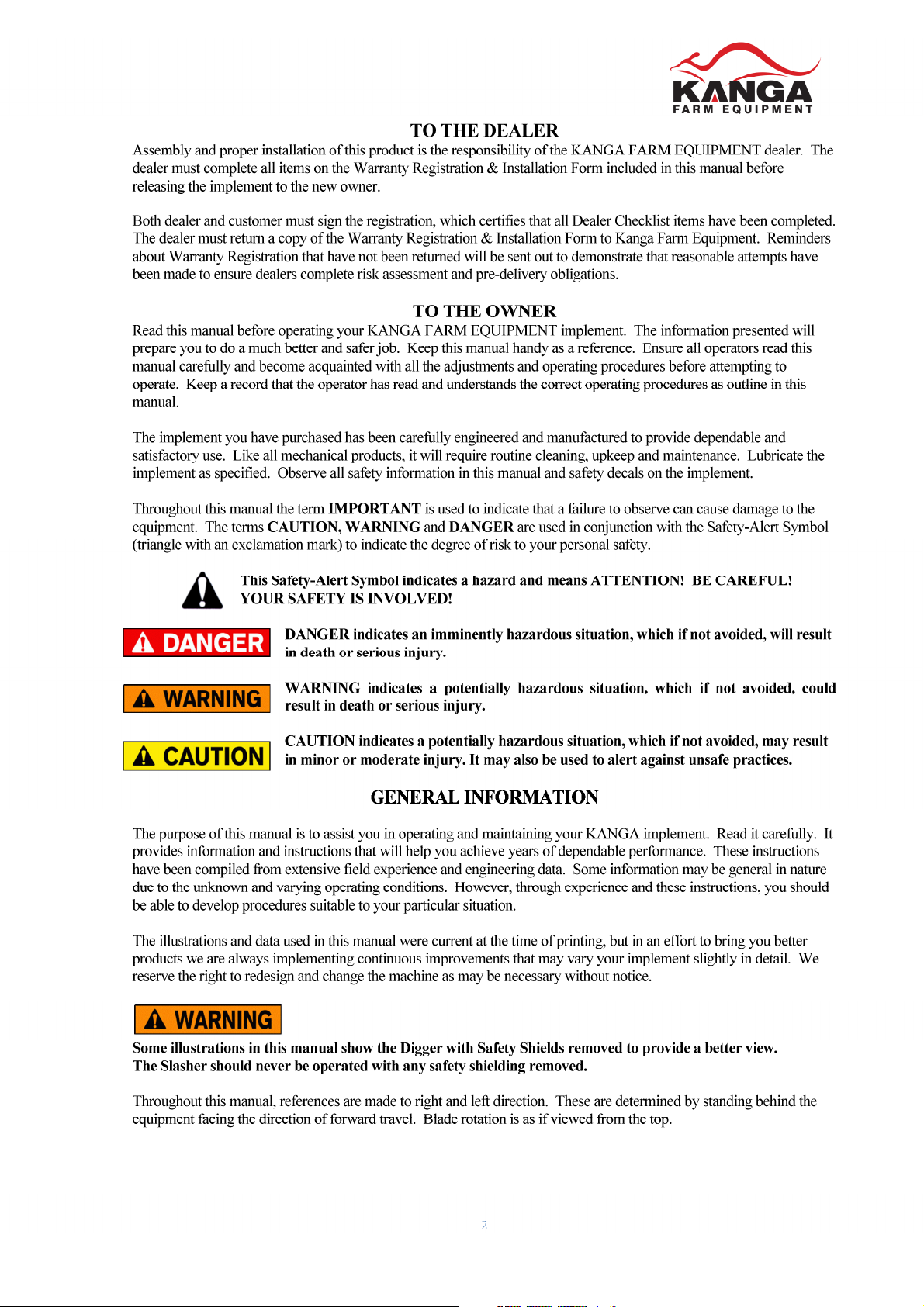

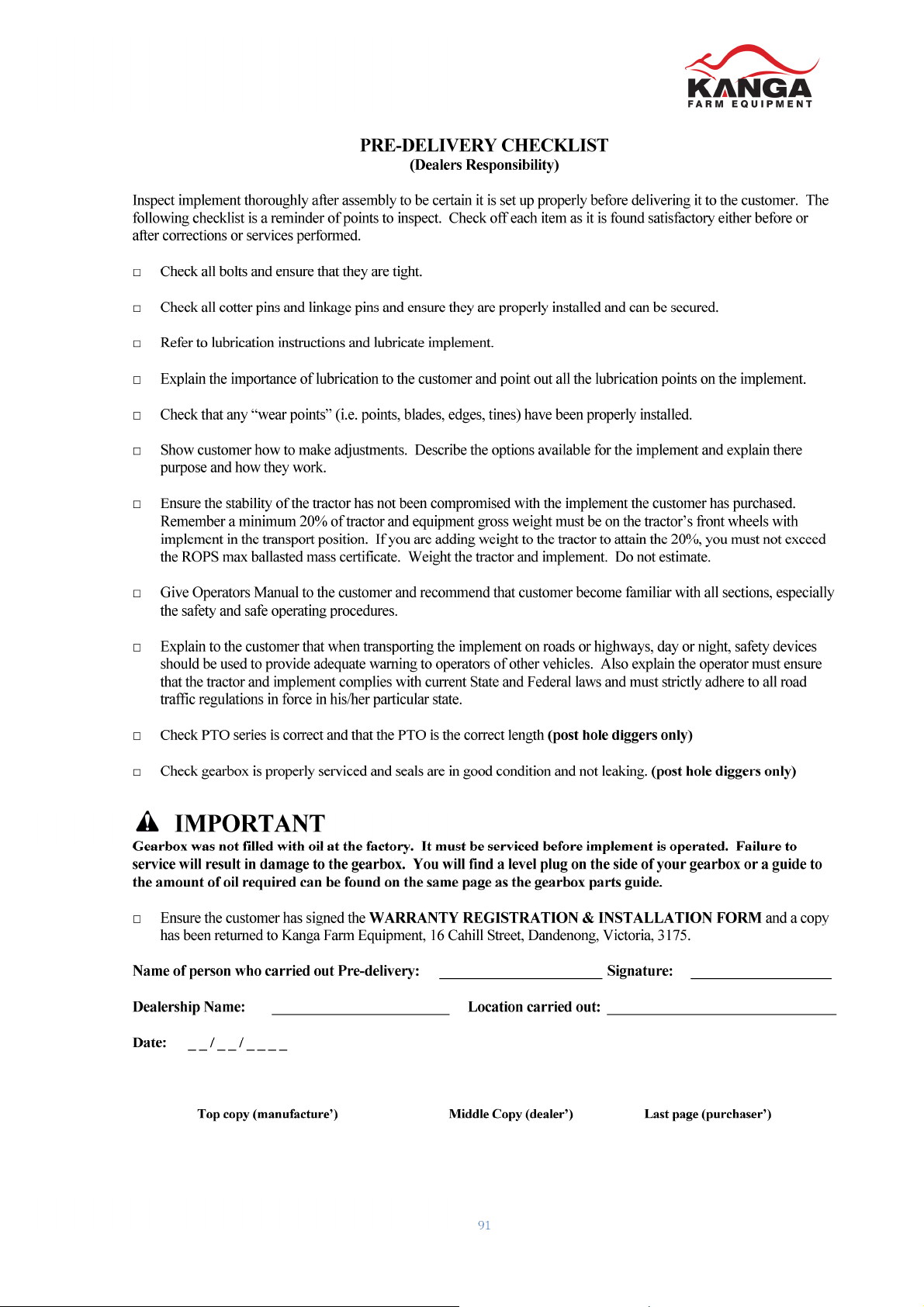

TO THE DEALER
Assembly and proper installation of this product is the responsibility of the KANGA FARM EQUIPMENT dealer. The
dealer must complete all items on the Warranty Registration & Installation Form included in this manual before
releasing the implement to the new owner.
Both dealer and customer must sign the registration, which certifies that all Dealer Checklist items have been completed.
The dealer must return a copy of the Warranty Registration & Installation Form to Kanga Farm Equipment. Reminders
about Warranty Registration that have not been returned will be sent out to demonstrate that reasonable attempts have
been made to ensure dealers complete risk assessment and pre-delivery obligations.
TO THE OWNER
Read this manual before operating your KANGA FARM EQUIPMENT implement. The information presented will
prepare you to do a much better and safer job. Keep this manual handy as a reference. Ensure all operators read this
manual carefully and become acquainted with all the adjustments and operating procedures before attempting to
operate. Keep a record that the operator has read and understands the correct operating procedures as outline in this
manual.
The implement you have purchased has been carefully engineered and manufactured to provide dependable and
satisfactory use. Like all mechanical products, it will require routine cleaning, upkeep and maintenance. Lubricate the
implement as specified. Observe all safety information in this manual and safety decals on the implement.
Throughout this manual the term IMPORTANT is used to indicate that a failure to observe can cause damage to the
equipment. The terms CAUTION, WARNING and DANGER are used in conjunction with the Safety-Alert Symbol
(triangle with an exclamation mark) to indicate the degree of risk to your personal safety.
This Safety-Alert Symbol indicates a hazard and means ATTENTION! BE CAREFUL!
YOUR SAFETY IS INVOLVED!
DANGER indicates an imminently hazardous situation, which if not avoided, will result
in death or serious injury.
WARNING indicates a potentially hazardous situation, which if not avoided, could
result in death or serious injury.
CAUTION indicates a potentially hazardous situation, which if not avoided, may result
in minor or moderate injury. It may also be used to alert against unsafe practices.
GENERAL INFORMATION
The purpose of this manual is to assist you in operating and maintaining your KANGA implement. Read it carefully. It
provides information and instructions that will help you achieve years of dependable performance. These instructions
have been compiled from extensive field experience and engineering data. Some information may be general in nature
due to the unknown and varying operating conditions. However, through experience and these instructions, you should
be able to develop procedures suitable to your particular situation.
The illustrations and data used in this manual were current at the time of printing, but in an effort to bring you better
products we are always implementing continuous improvements that may vary your implement slightly in detail. We
reserve the right to redesign and change the machine as may be necessary without notice.
Some illustrations in this manual show the Digger with Safety Shields removed to provide a better view.
The Slasher should never be operated with any safety shielding removed.
Throughout this manual, references are made to right and left direction. These are determined by standing behind the
equipment facing the direction of forward travel. Blade rotation is as if viewed from the top.

55

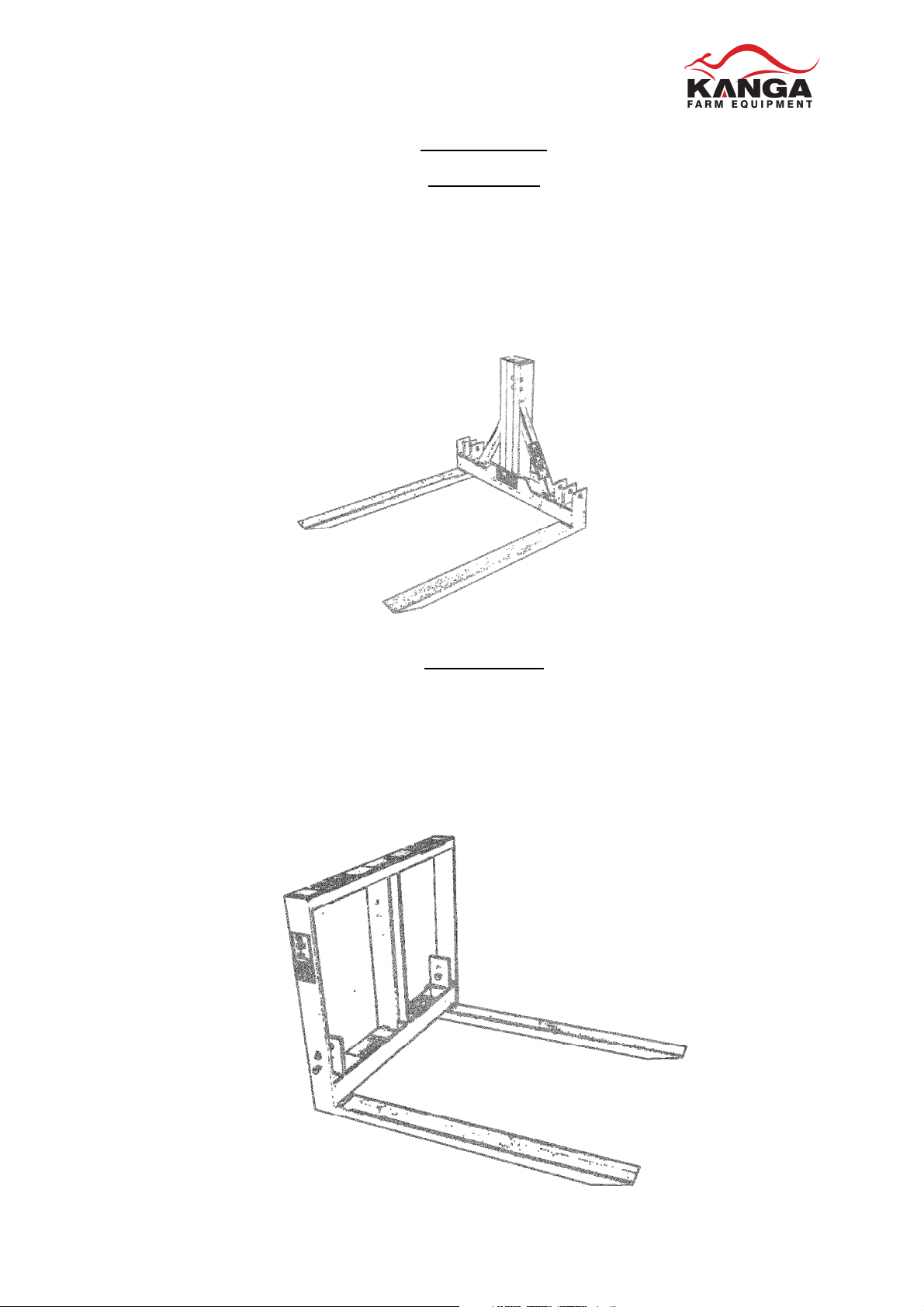

PALLET FORKS
500kg
1000kg

56
SPECIFICATIONS
500kg Pallet Fork
3 – Point Linkage … … … … … … … … … … … … … … … … Category 1
3 – Point Linkage Type … … … … … … … … … … … … … Double Clevis
Frame Reinforcing … … … … … … … … … … … … … … RHS/Channel
Fork Width … … … … … … … … … … … … … … … … 1020mm
Fork Material … … … … … … … … … … … … … … … … 100 x 50 RHS
Max Capacity … … … … … … … … … … … … … … … … 500 kg
Load Rating … … … … … … … … … … … … … … … … 5 times max capacity
Approximate Weight … … … … … … … … … … … … … … 80 kg
1000kg Pallet Fork
3 – Point Linkage … … … … … … … … … … … … … … … … Category 1 & 2
3 – Point Linkage Type … … … … … … … … … … … … … Double Clevis
Frame Reinforcing … … … … … … … … … … … … … … RHS/Flat
Fork Width … … … … … … … … … … … … … … … … 990mm
Fork Material … … … … … … … … … … … … … … … … 100 x 50 RHS
Max Capacity … … … … … … … … … … … … … … … … 1000 kg
Load Rating … … … … … … … … … … … … … … … … 5 times max capacity
Approximate Weight … … … … … … … … … … … … … … 100 kg

57

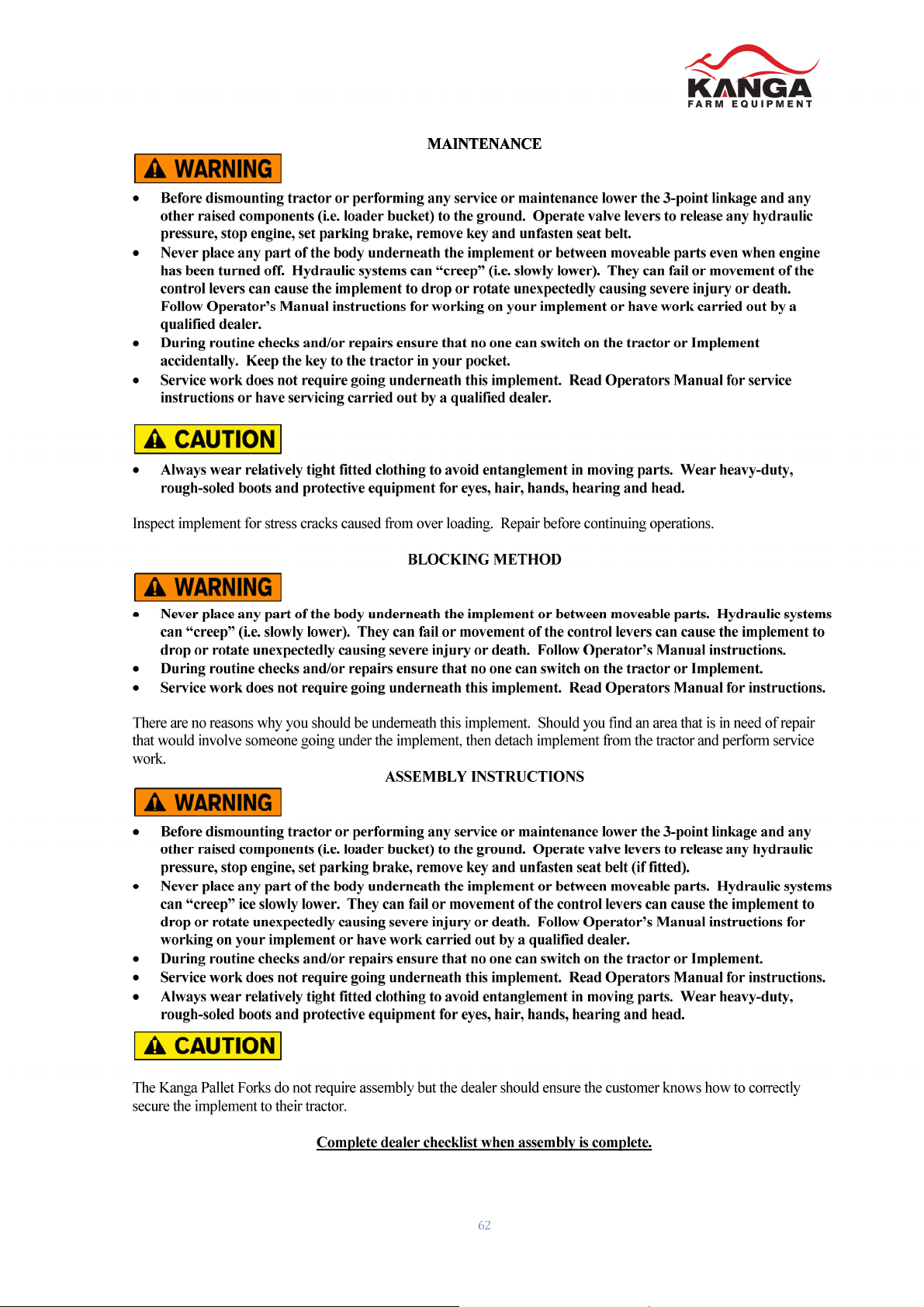

SAFETY RULES & ACCCIDENT PREVENTION
ATTENTION! BE CAREFUL! YOUR SAFETY IS INVOLVED!
Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to provide safe
equipment can be wiped out by a single careless act of an operator.
In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the
awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and
storage of equipment.
It has been said, “The best safety device is an informed careful operator.” We ask you to be that kind of operator.
•Safety instructions are important! Read all attachments and unit manuals; follow all safety rules and safety
decal information. Failure to follow instructions can result in serious injury or death.
•If you do not understand any part of this manual and need assistance the Department of Agriculture,
Occupational Health & Safety Offices, any Agricultural School or college and your local dealer should be
able to direct you on where you can received appropriate training. No operator however experienced in
farm machinery operation they maybe, should attempt to use any piece of machinery that they have not
been competently trained to use.
•Never lift a load greater than the rated capacity of the implement.
•Never walk or walk under a raised implement, loaded or unloaded.
•Keep hands and body away from pressurized lines. Use paper or cardboard, not hands or other body parts
to check for leaks. Wear safety goggles. Hydraulic fluid (oil) under pressure can easily penetrate the skin
and will cause serious injury or death.
•Make sure that all operating and service personnel know that if hydraulic fluid (oil) penetrates the skin, it
must be surgically removed as soon as possible by a doctor familiar with this form of injury or gangrene,
serious injury or death will result. CONTACT A PHYSICAN IMMEDIATELY IF FLUID ENTERS SKIN
OR EYES. DO NOT DELAY.
•Know your controls and how to stop quickly in an emergency.
•Operators must be instructed in and be capable of the safe operation of the equipment and all controls. Do
not allow anyone to operate this equipment without proper instruction.
•Do not allow children or untrained persons to operate equipment.
•Check that all hardware is tight and properly installed.
•Always wear relatively tight fitted clothing to avoid entanglement in moving parts. Wear heavy-duty,
rough-soled boots and protective equipment for eyes, hair, hands, hearing and head.
•Ensure implement is properly attached, adjusted and in a good condition so that it can be operate safely.
•Tractors MUST be fitted with Roll Over Protection Structure (ROBS) or ROBS Cap. It is also advisable
that your tractor be fitted with a seatbelt, where fitted it must be worn at all times. Falling from your
tractor can result in death from being run over or crushed. If your tractor is fitted with a folding ROBS,
keep it in the “locked up” position at all times.
•Inspect chains, shackles, deflectors and any wear parts for damage. Replace if damaged.
•Remove any debris that has accumulated on the implement, tractor or engine to avoid fire hazard.
•Ensure all safety decals are installed. Replace if damaged.
•A minimum 20% of tractor and equipment weight must be on the tractor’s front wheels with implement in
the transport position. Without this weight, tractor could tip over causing personal injury or death. The
weight maybe attained with a loader, front wheel weights, and ballast in the tires or front tractor weights.
When attaining the minimum 20% weight on the front wheels, you must not exceed the ROPS max
ballasted mass certificate. Weight the tractor and implement. Do not estimate.
•Watch for hidden hazards on the terrain during operation and avoid any hazards or object that could cause
injury or damage.
•Inspect operating area, remove where possible any stones, branches or foreign objects that may cause injury
or damage. It is very important to always watch for foreign objects in the area you are operating and avoid
any that could cause injury or damage.
