KARABINIS MEDICAL IMEDICA SELECT User manual

Instruction manual
IMEDICA SELECT
Automatic Digital
Blood Pressure Monitor
Upper Arm

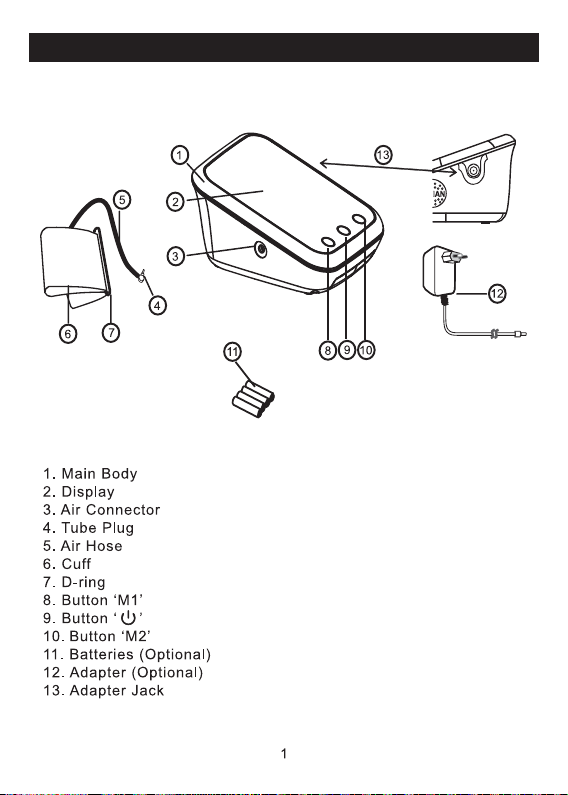

PARTS AND COMPONENTS

SYMBOLS
Symbols Meaning
Manufacturer
Authorized Representative in the
European community
CE marking in conformity with EC
directive 93/42/EEC
Keep dry
Attention, consult accompanying
documents
Type BF Applied Part
Stand by
Symbol for the marking of electrical
and electronics devices according to
Directive 2002/96/EC.
The device, accessories and the
packaging have to be disposed of
waste correctly at the end of the
usage. Please follow Local Ordinances
or Regulations for disposal.
0653

TABLE OF CONTENT
4
4
4
5
7
7
8
8
10
10
11
11
12
13
13
13
13
14
15
15
16
17
18
19
23
23
23
1. GENERAL
-PRINCIPLE OF OPERATION
-NEW TECHNOLOGIES USED
2. TIPS ON TAKING BLOOD PRESSURE MEASUREMENT
3. BATTERY INSTALLATION
4. USING THE DEVICE WITH AC POWER ADAPTER
5. CORRECT POSTURE FOR MEASUREMENT
6. ASSEMBLING THE CUFF
7. CARRYING OUT A MEASUREMENT
-IRREGULAR HEARTBEAT DETECTING
-AUTOMATIC INFLATION
-RAPID DEFLATION DURING MEASUREMENT
8. SETTING THE DATE AND TIME

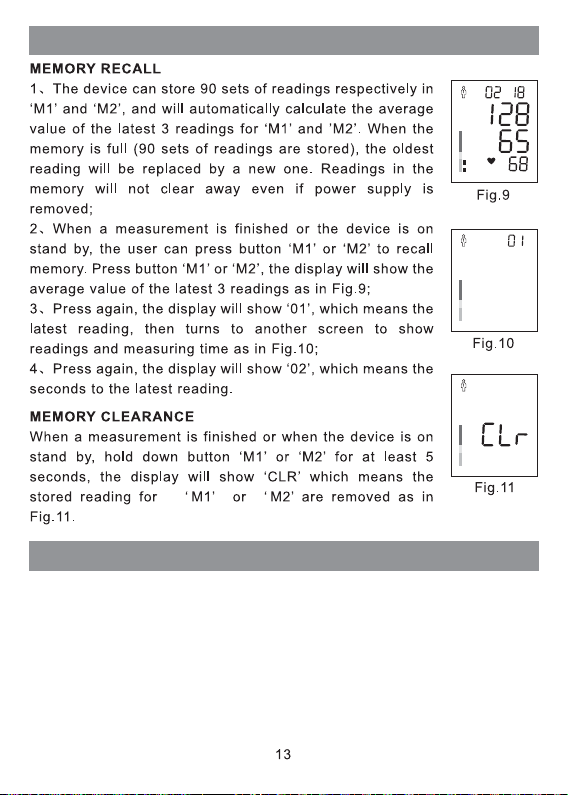

9. FUNCTION OF MEMORY
-MEMORY RECALL
-MEMORY CLEARANCE
10. WHO BLOOD PRESSURE CLASSIFICATION INDICATION
11. ERROR AND LOW BATTERY INFORMATION
12. MAINTENANCE, STORE, REPAIR AND RECYCLE
13. TROUBLESHOOTING
14. WARRANTY OBLIGATIONS
15. SPECIFICATIONS
16. BLOOD PRESSURE RECORD
17. MANUFACTURER’S DECLARATION
18. QUALITY GUARANTEE
19. REQUIRING RECORD
20. PERIODIC SAFETRY CHECKS

GENERAL
CAUTION: DO NOT USE THE DEVICE OUTDOORS.
Software version: V1.1
Imedica Select.

Blood Pressure (mmHg)
10
30
50
70
90
110
130
150
170
190
210
230
Time (24 hours)
1200 1200 1800 2100 0000 0300 0600 0900 1200
systolic blood pressure
night time period
diastolic blood pressure
normal
bands
TIPS ON TAKING BLOOD PRESSURE MEASUREMENT

CLASSIFICATION
ME EQUIPMENT not intended for use in an oxygen rich environment or in the
presence of flammable mixers.
Internally powered equipment (without adaptor), Class II equipment
(with adapter).
Type BF applied part, recognize the cuff as applied part.
2.Take measurement under doctor’s instruction for patients with cardio-vas-
cular diseases. Under no circumstances should you alter the dosages of any
drugs prescribed by your doctor!
3.Accurate measurement of blood pressure may be difficult in arrhythmia,
premature beat, atrial fibrillation atreriosclerosis hypoperfusion diabetes pregnancy
nephropathy , weak pulse, or in patients with obvious fluctuation of heart contrac-
tion rhythm. Please consult a qualified physician to interpret your blood pressure
readings.
blood pressure is being taken. Children and adults whose cuff size falls
outside the range of the standard and large cuff size must select special
size cuffs. Please contact the dealer to get these special size cuffs.
ATTENTION: Do not use cuff other than the original cuffs contained in this kit!
5.Repeated measurements with an interval of 3 minutes are recommended,
so you can calculate the average to get a more accurate measurement.
Atherosclerosis patients may require longer interval (10-15minutes) as
elasticity of patient’s vessels decreases significantly with the disease.
10-15minutes interval is also applicable for patients suffering from diabetes
for a long period of time.
4.It is necessary to keep quiet
during measurement to get
accurate readings. Measurement
should be conducted in quiet
environment at room temperature.
Don’t eat or smoke before a
measurement. This device is
supplied with a conical cuff which
is fit for the arm size 22-42 cm.
Care should be taken to ensure
that the cuff size is appropriate for
the person whose

BATTERY INSTALLATION
USE THE DEVICE WITH AC POWER ADAPTER
2.Close the battery compartment cover.
1.Open the battery cover and install four ‘AA’ type batteries into the battery
compartment as indicated. Make sure that the polarity is correct;
Replace the batteries when the replacement indication “ ”appears in
the display or nothing after “ ” button is pressed;
Batteries in this kit are intended to check work capacity of the device
and the life-span of the batteries can be shorter than the recommended
time;
Use R6,LR6 or AA alkaline batteries, do not use rechargeable
batteries;
Only same type batteries are allowed to be used together. Replace all
batteries simultaneously;
If the device is to be unused for a long time, please take out the
batteries;
Don’t leave the worn batteries in the device.
Besides batteries you can use AC power adapter as the power supply. The
AC power adapter is optional for this device for sale.
Insert the AC adapter cord into the jack on the right side of the monitor .
Insert the AC adapter plug into the outlet.
To remove the AC adapter, disconnect the adapter plug from the AC
outlet first and then disconnect the cord from the monitor’s jack.
When using optional AC adapter, the AC adapter must comply with the
requirements of standard IEC60601-1.
To avoid possible damage of the monitor, use only the exclusive AC
adapter that can be purchased from authorized dealers. Other adapter
may damage the blood pressure monitor.
The AC adapter is used as an isolating means, the AC adapter plug shall
insert into the outlet nearby the operator, make it easy to disconnection the
device from the outlet.
Caution

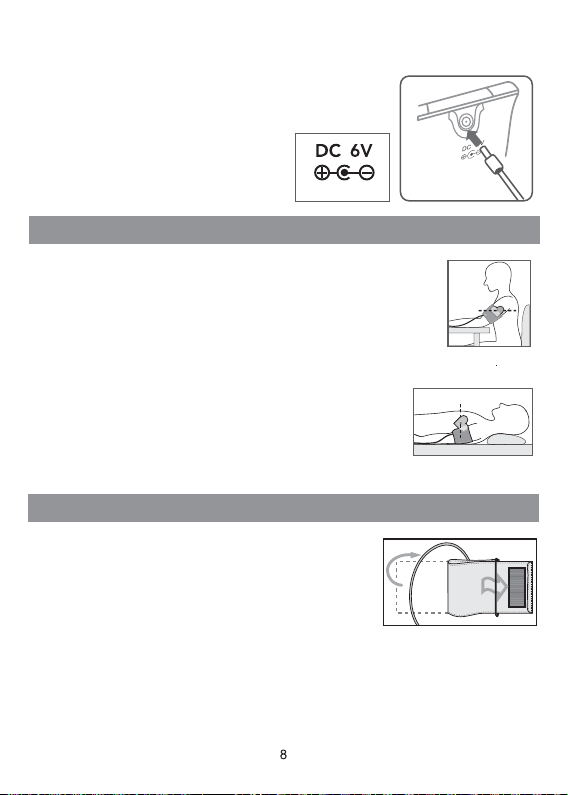

CORRECT POSTURE FOR MEASUREMENT

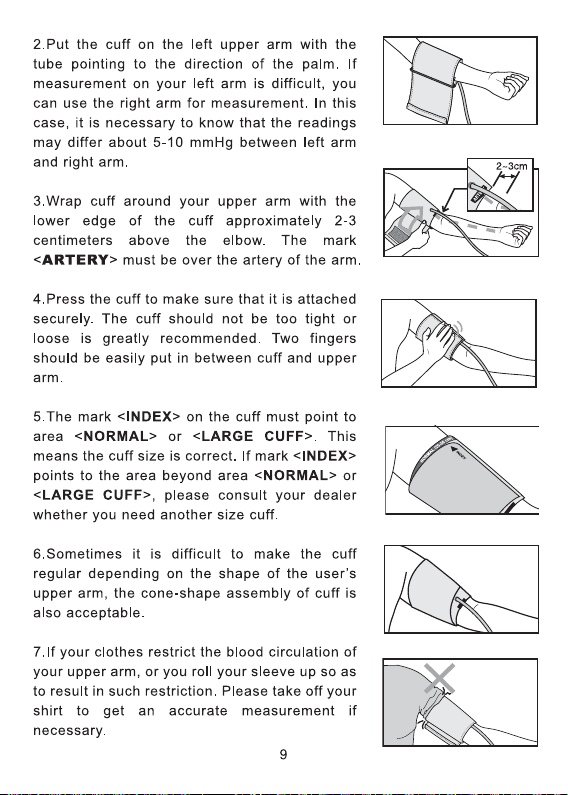

ASSEMBLING THE CUFF
If long time work, remove the plug after the adapter cools, and prevent bums.
Note: The monitor is designed not to draw power of the batteries when
the AC adapter is in use.
Optional AC adapter technical feature:
Output voltage: 6V±5%
Max. output current: At least 600 mA
Output plug polarity: <-> inner
Fig.1
Fig.2
1.Sit beside the table and let the table support your
arm as you take the measurement. Make sure that
the cuff on the upper arm no cross, and is at
approximately the same level as the heart, make
sure that your feet lie on the ground and no cross.
as in Fig.1;
2.You may lie on your back and take a measurement.
Look at the ceiling, keep calm, and don’t move your
neck or body during the measurement. Make sure
that the cuff on the upper arm is at approximately at
the same level as the heart as in Fig.2.
1.Insert the edge of the cuff approximately 5
centimeters into the D-ring as shown in figure.

M
A
mmHg
D
mmHg
M
mmHg
D
mmHg mmHg
M
mmHg
D
1. Assembling the cuff, then insert the tube plug into the air connector.
Before the measurement, take 3~5 times deep breathe and relax yourself.
Don’t talk or move your arm;
2. Press button ‘ ’, and all symbols will appear on display in 2 seconds.
Then ‘0 mmHg’ will appear on the screen. Pump begins to inflate with
display showing the reading of pressure. Generally the pressure will reach
190 mmHg as in Fig.3;
3. The pump stops inflating and the pressure begins to decrease gradually,
during which the user’s blood pressure and pulse will be calculated as in Fig.4;
Note: When the device has finished taking your measurement, your
blood pressure readings, pulse are announced.

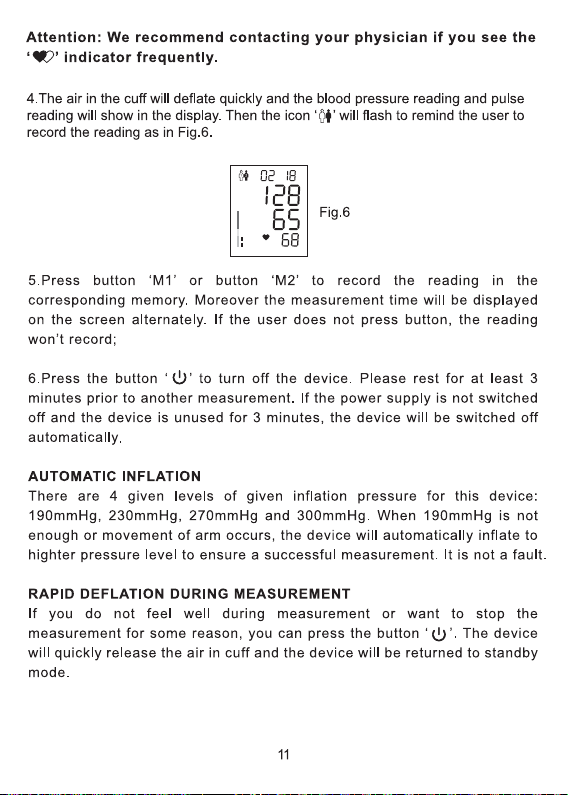

IRREGULAR HEARTBEAT DETECTING
When the device detects the irregular heartbeat or any excessive body
movement during measurement, ‘ ’ icon will flash on the screen as in Fig.5.
CARRYING OUT A MEASUREMENT
Fig.3
Fig.4
Fig.5

M
mmHg
D

M D

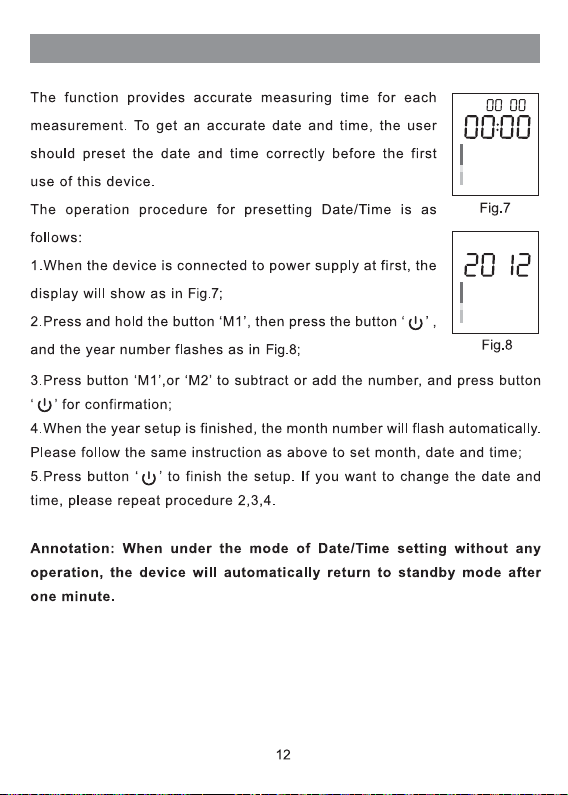

SETTING THE DATE AND TIME

M
mmHg
D

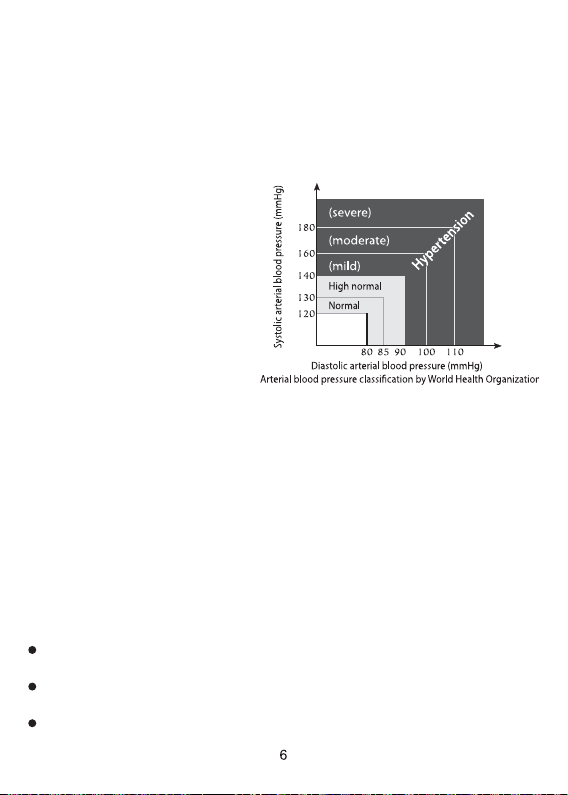

Standards for assessment of high or low blood pressure, regardless of
age, have been established by World Health Organization (WHO) as
show in the chart as below：
FUNCTION OF MEMORY
WHO BLOOD PRESSURE CLASSIFICATION INDICATION

ERROR AND LOW BATTERY INFORMATION
The indicator display a segment, based on the current data, correspond-
ing to the WHO classification.
For example, if your blood press is 145mmHg (systolic pressure), 88mmHg
(diastolic pressure), according to the world health organization standard,
your blood pressure level is Mild Hypertension.
Note: If the systolic blood pressure and the diastolic blood pressure fall into
different categories, the higher value should be taken for classification.
Severe Hypertension
Moderate Hypertension
Mild Hypertension
High-normal
Normal
Optimal

TROUBLESHOOTING
MAINTENANCE, STORING, REPAIR AND RECYCLING
1. It’s necessary to protect this device against high moisture, direct sunlight,
shock, solvent, alcohol and gasoline.
2. Remove the batteries if the device is being stored for a long time, and keep the
batteries far away from children.
3. Keep the cuff away from sharp objects and don’t extend or twist the cuff.
4. Use only soft and dry cloth to clean the device.
5. The cuff is sensitive and must be handled with care. You can clean the cuff with
damp cloth for daily maintenance.
To avoid cross infection when sharing the cuff, you can sterilize the fabric cover of
the cuff with tampons moistened by 3% solution of hydrogen dioxide. After long
use there will be a partial discoloration on the fabric surface of the cuff. Do not
laundry the cuff as well ironing with a hot flatiron.
WARNING: Under no circumstances may you wash the inner bladder!
6. Since neither the device nor batteries are household waste, follow your local
recycling rules and dispose them at an appropriate collection site.
7. Do not open the device, or delicate electrical components as an intricate air unit
could be damaged. If you can not fix the problem using the troubleshooting
instruction, please request service from your dealer.
8、Generally, we recommend having the device inspected every 2 years to
ensure proper function, accuracy and safety. Please contact your dealer for
maintenance.
WARNING: Do not repair the device without manufacturer’s authorization.
9.Do not serve or maintain the cuff when in use with patient.

WARRANTY OBLIGATIONS
Your Imedica Select blood pressure monitor is guaranteed for 2 years against
manufacturers’ defects for the original purchaseronly, from date of purchase.
The warranty does not apply to damage caused by improper handling,
accidents, professional use, not following the operating instructions or
alterations made to the instrument by third parties.
All accessories including the Cuff, AC adapter, software and USB cable are
guaranteed for one year.
There are no user serviceable parts inside. Batteries or damage from old
batteries is not covered by the warranty. Please note: According to internation-
al standards, your monitor should be checked for accuracy every 2 years.
Contact for support:
Exclusively Distributed and Traded in Romania by: IMEDICA SA
Soseaua Bucuresti - Ploiesti 141D, Sector 1, BUCURESTI - ROMANIA
TEL.: [phone] (8 lines)
FAX: [phone]
Mail: [email protected]
Web: www.imedica.ro

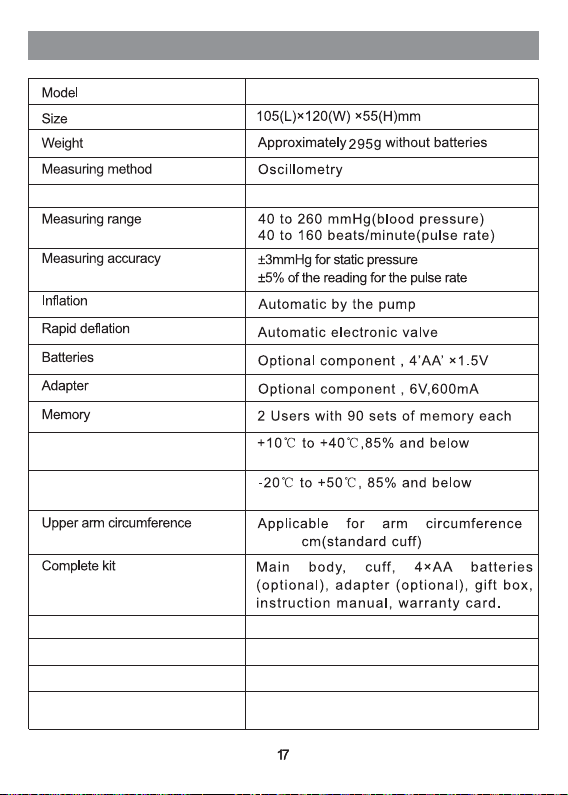

SPECIFICATIONS
700hPa to 1060hPa
500hPa to 1060hPa
Pollution Degrees
Overvoltage category
High Altitudes (m)
Fuse
Operation temperature and
humidity, air pressure
Transport and storage tempera-
ture and humidity, air pressure
Category II
Adapter: T3.15AH250V
Main Unit: T630mAl250V
Degrees 2
≤2000m
Extreme Pressure 300mmHg
22-42
Imedica Select

BLOOD PRESSURE RECORD

Imedica Select
Imedica Select
