Please read and comply with
these original instructions prior
totheinitialoperationofyourapplianceand
store them for later use or subsequent own-
ers.
–Before initial start-up it is definitely nec-
essary to read the safety information
no. 5.956-251.0!
–The non-compliance of the operating
and safety instructions may lead to
damages of the appliance and to dan-
gers for the operator and other persons.
–Incase oftransport damageinform ven-
dor immediately
Notes about the ingredients (REACH)
You will find current information about the
ingredients at:
www.kaercher.com/REACH
Danger
Immediate danger that can cause severe
injury or even death.
몇Warning
Possible hazardous situation that could
lead to severe injury or even death.
Caution
Possible hazardous situation that could
lead to mild injury to persons or damage to
property.
This device is intended for commercial use
as a wet cleaning device for carpets as de-
picted in these operating instructions as
well as in the descriptions and safety notes
in the enclosed brochure "Safety indica-
tions for brush cleaning devices and spray
extraction devices".
Contents
Environmental protection . . EN . . .1
Symbols in the operating in-
structions . . . . . . . . . . . . . . EN . . .1
Proper use . . . . . . . . . . . . . EN . . .1
Overview . . . . . . . . . . . . . . EN . . .2
Start up. . . . . . . . . . . . . . . . EN . . .2
Operation . . . . . . . . . . . . . . EN . . .3
Cleaning methods . . . . . . . EN . . .4
Transport . . . . . . . . . . . . . . EN . . .4
Storage. . . . . . . . . . . . . . . . EN . . .4
Maintenance and care . . . . EN . . .5
Troubleshooting . . . . . . . . . EN . . .5
Accessories and Spare Parts EN . . .5
Warranty. . . . . . . . . . . . . . . EN . . .6
EC Declaration of Conformity EN . . .6
Technical specifications . . . EN . . .7
Environmental protection
The packaging material can be
recycled. Please do not throw
the packaging material into
householdwaste;pleasesendit
for recycling.
Oldappliancescontainvaluable
materials that can be recycled;
these should be sent for recy-
cling. Batteries, oil, and similar
substances must not enter the
environment. Please dispose of
your old appliances using ap-
propriate collection systems.
Symbols in the operating in-
structions
Proper use
11EN

– 2

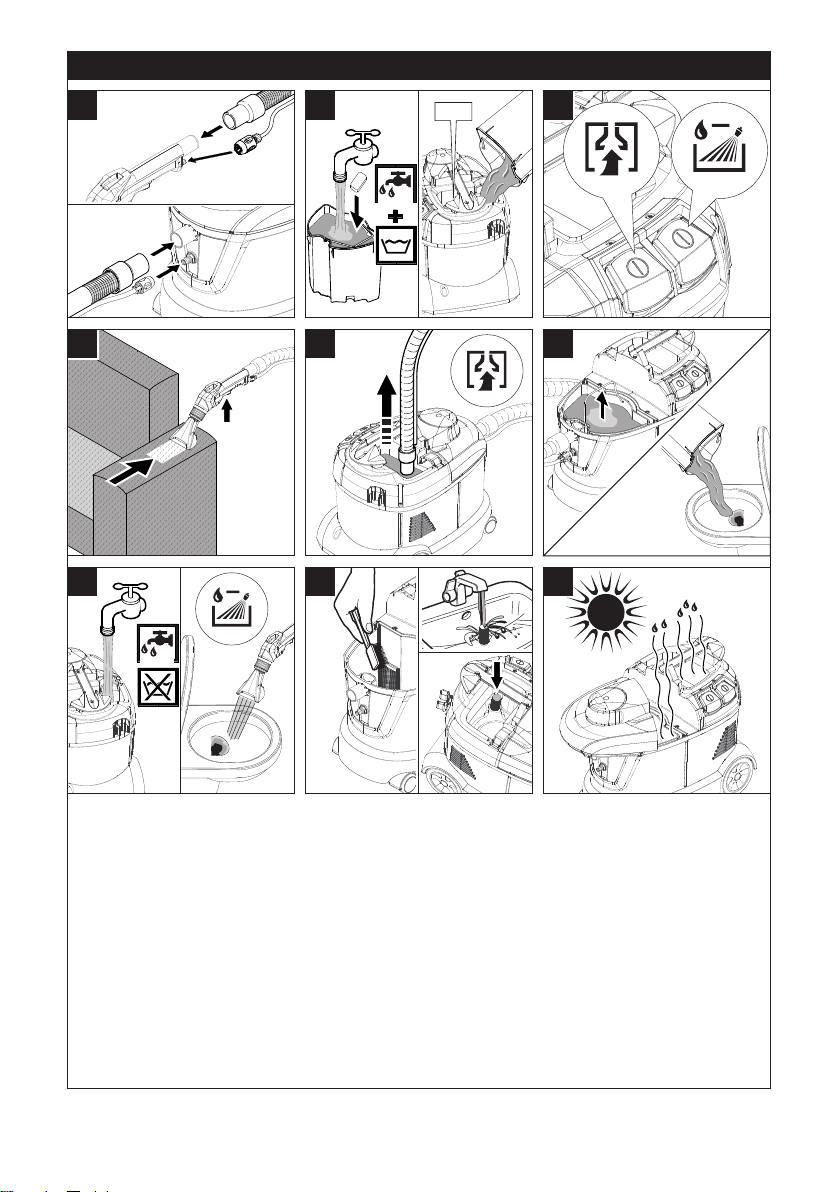

Illustration
1 Connect spray/suction hose to the el-
bow,
Connect spray/suction hose to the ap-
pliance
2 Prepare cleaning solution,
Fill up the fresh water tank
3 Select operating mode
4 Cleaning
5 Empty the fresh water tank
6 Empty wastewater container
7 Fill fresh water tank (without detergent),
Flush appliance
8 Clean lint trap,
Clean fresh water sieve
9 Allow appliance to dry

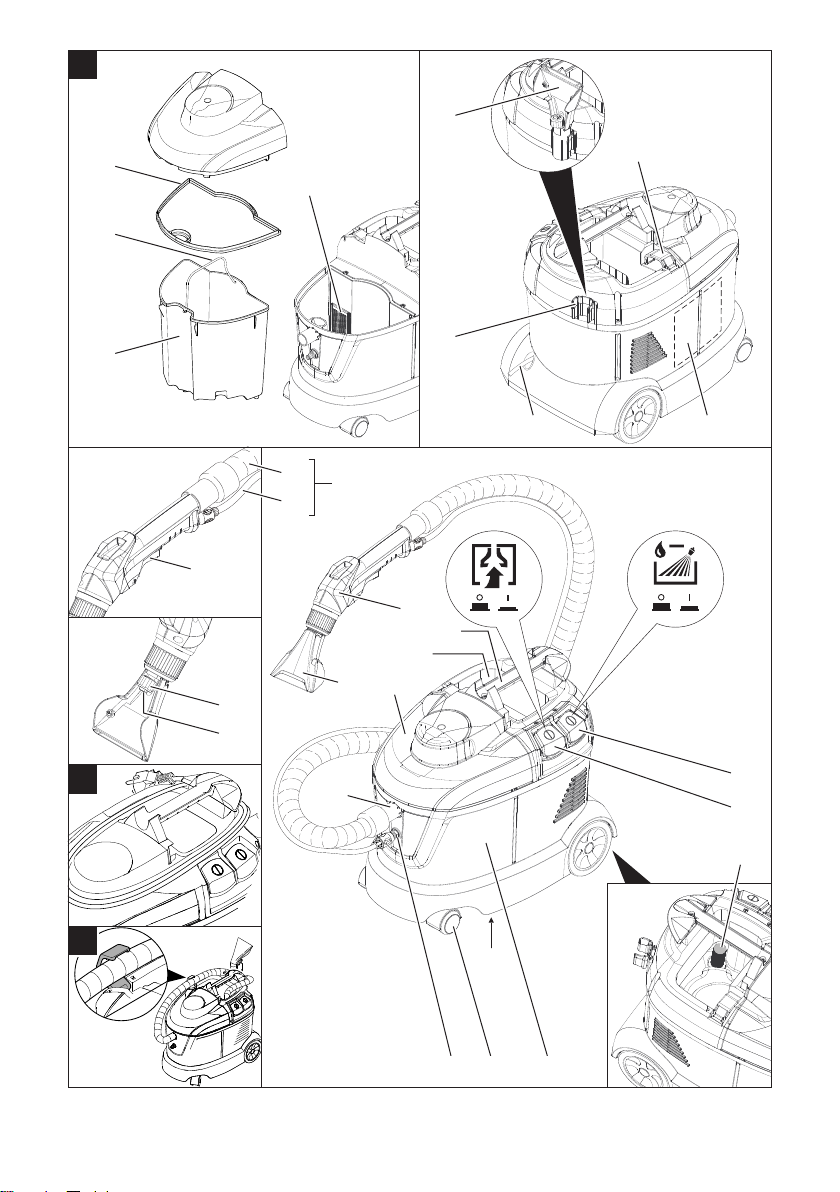

Illustration
1 Manual nozzle for upholstery cleaning
2 Hook for spray/suction hose
3 Holder for accessories
4 Power cord
5 Quick start instructions
6 Switch for spraying
7 Switch for vacuuming
8 Fresh water sieve
9 Casing
10 Nameplate
11 Steering roller
12 Spray hose connection
13 Suction hose connection
14 Nozzle mouth piece
15 Union joint
16 Cover
17 Fresh water tank
18 Carrying handle of the appliance
19 Bender
20 Lever on the manifold
21 Spray hose
22 Suction hose
23 Spray/suction hose
24 Dirt water reservoir, detachable
25 Carrying handle of the wastewater con-
tainer
26 Seal on the lid
27 Fluff filter
Check high power cable, extension ca-
bles and hoses for damage every time
before use.
Attachtheelbowtothehandnozzleand
hand-tighten the union nut on the el-
bow.
Insert the suction hose into the suction
hose connection on the appliance.
Attach the coupling of the spray hose to
the spray hose connection of the appli-
ance and snap in place.
Connect the suction hose to the elbow.
Connect the coupling of the spray hose
with the manifold and snap in place.
몇Warning
Health risk, risk of damage. Observe all in-
dications on the detergent used.
Mixfreshwateranddetergentinaclean
container (use the concentration rec-
ommended for the detergent).
Dissolve detergent in the water.
Note: Warm water (max. 50°C) will in-
crease the cleaning effect. Verify the tem-
perature resistance of the surface to be
cleaned.
Note: For considerate treatment of the en-
vironment use detergent economically.
Fill detergent solution into the fresh wa-
ter reservoir. The fill level must not ex-
ceed the "MAX" mark.
Overview
Quick start instructions
Device elements
Start up
Attaching the Accessories
Prepare cleaning solution
Fill up fresh water reservoir
12 EN

– 3
Note: When cleaning previously sham-
pooed carpets, foam is generated in the
wastewater container. This formation of
foam can be prevented by adding a de-
foaming agent.
Putdefoaming agent(optionalaccesso-
ry) into the wastewater container.
Plug in the main plug.
Press the suction switch to turn on the
suction turbine.
Press the spray switch to switch on the
spray pump.
Caution
Risk of damage. Check the object to be
cleaned prior to using the appliance in an
inconspicuous place for colour fastness
and water resistance.
Operate the lever on the manifold in or-
der to spray the cleaning solution.
Runacross thesurface tobecleaned in
overlappingpaths. Pullthe nozzleback-
wards (do not push).
When changing nozzles, the hand noz-
zle can be put into the accessories
holder.
Switch off the spray and suction switch-
es.
Pull out the mains plug.
If the dirt water reservoir is full, switch
off the suction and spray switches.
Remove the lid.
Removethe wastewatercontainer from
the appliance and drain it.
Turn off the appliance.
Shortly activate the lever on bender to
decrease the pressure.
Separatebenderfromthespray/suction
hose.
Insert the suction hose into the fresh
water reservoir.
Press the suction switch to turn on the
suction turbine.
Empty the fresh water reservoir and
switch the appliance off.
Remove the lid.
Removethe wastewatercontainer from
the appliance and drain it.
Connect the elbow (with hand nozzle)
to the suction hose.
Connect the coupling of the spray hose
with the manifold and snap in place.
Fill approx. 2 litres of fresh water into
the fresh water reservoir.
Do not add any detergents.
Press the spray switch to switch on the
spray pump.
Hold hand nozzle over a drain.
Activate lever on bender and flush the
appliance for appr. 1 to 2 minutes.
Turn off the appliance.
Flush appliance.
Empty the wastewater container and
clean it under running water.
Empty the fresh water reservoir.
Clean the outside of the appliance with
a damp cloth.
Remove all water from the appliance
prior to longer periods of non-use to
avoid offensive odours.
Allow appliance to dry thoroughly: Re-
move or move lid sideways.
Defoaming agent
Operation
Turning on the Appliance
Cleaning
Turn off the appliance
Empty wastewater container
Empty the fresh water reservoir
Flush appliance
After each operation
13EN

– 4
Illustration
Coil the power cable around the carry-
ing handle and the lid of the appliance.
Place the appliance in a dry room and
secure it from unauthorized use.
Sprayandsuctionoffdetergentsolution
in one work cycle.
Note: Repeated suctioning without spray-
ing will shorten the drying time.
Apply detergent solution with suction
turbine turned off and soak for 10 to 15
minutes.
Clean the surface just like with normal
soiling.
In order to further improve the cleaning
result, the surface can be recleaned us-
ing clear, warm water.
With sensitive materials, use less deter-
gentandspraythesurfaceata distance
of approx. 200 mm. Then simply vacu-
um off.
–Highly soiled spots should be pre-
soaked and the detergent solution
should soak 5 to 10 minutes.
–Always work from the light to the shade
(from the window to the door).
–Always work from the cleaned to the un-
cleaned surface.
–Themoresensitivethesurface(oriental
rugs, berbers, upholstery material) the
lower the cleaning solution concentra-
tion should be.
–Rugs with jute backing can shrink if too
much water is used and can bleed col-
ours.
–Brush high-fiber rugs in the direction of
the weave after cleaning (using a fiber
brush or a scrubber).
–Water-proofing the fabric using Care
Tex RM 762 after the wet cleaning pre-
vents a quick resoiling of the textile sur-
face.
–Do not step on cleaned surfaces until
they have dried and do not place furni-
ture on them to avoid pressure spots or
rust stains.
If you require further information please re-
questtheproductinformationsheetandthe
DIN safety data sheet for the respective
cleaning agent.
Caution
Risk of injury and damage! Observe the
weight of the appliance when you transport
it.
Illustration
Insert the spray/suction hose into the
hook.
When transporting in vehicles, secure
the appliance according to the guide-
lines from slipping and tipping over.
Caution
Risk of injury and damage! Note the weight
of the appliance in case of storage.
This appliance must only be stored in inte-
rior rooms.
Storing the Appliance
Cleaning methods
Normal soiling
Strong soiling or stains
Upholstery cleaning
Cleaning tips
Detergent
Carpet and upholstery
cleaning RM 760 powder
RM 760 tabs
RM 764 liquid
Defoaming RM 761
Waterproofing carpets RM 762
Transport
Storage
14 EN

– 5
Danger
Danger of injury by electric shock.
Firstpull outtheplug fromthe mains before
carrying out any tasks on the machine.
Remove the lid.
Removethe wastewatercontainer from
the appliance.
Regularly clean the lint trap using a
brush.
Unscrew the fresh water sieve.
Regularly clean the fresh water sieve
under running water.
Unscrew the covering nut.
Clean nozzle mouthpiece.
Danger
–Danger of injury by electric shock.
Firstpull outthe plugfromthe mainsbe-
fore carrying out any tasks on the ma-
chine.
–Get the electrical components checked
and repaired only by authorised cus-
tomer service persons.
Check the receptacle and the fuse of
the power supply.
Check the power cable and the power
plug of the device.
Turn on the appliance.
Fill up fresh water reservoir.
Check the couplings on the spray hose
for proper seating.
Clean or replace nozzle tip.
Clean the sieve in the fresh water reser-
voir.
Spray pump defective, contact after-
sales service.
Clean nozzle mouthpiece.
Check the correct positioning of the lid.
Clean seal on lid and surface on the ap-
pliance.
Clean the fluff filter.
Check suction hose for blockages;
clean if required.
Fill up fresh water reservoir.
Putdefoaming agent(optionalaccesso-
ry) into the wastewater container.
If malfunction can not be fixed, the de-
vice must be checked by customer ser-
vice.
–Only use accessories and spare parts
which have been approved by the man-
ufacturer. The exclusive use of original
accessories and original spare parts
ensures that the appliance can be oper-
ated safely and trouble free.
–At the end of the operating instructions
youwillfindaselectedlistofspareparts
that are often required.
–For additional information about spare
parts, please go to the Service section
at www.kaercher.com.
Maintenance and care
Clean the fluff filter
Cleaning the fresh water sieve
Cleaning the nozzle
Troubleshooting
Appliance is not working
No water exiting from nozzle
Spray stream one-sided
Insufficient vacuum performance
Spray pump loud
Heavy formation of foam in the
wastewater container
Customer Service
Accessories and Spare Parts
15EN

– 6
The warranty terms published by the rele-
vant sales company are applicable in each
country. We will repair potential failures of
your appliance within the warranty period
free of charge, provided that such failure is
caused by faulty material or defects in man-
ufacturing. In the event of a warranty claim
please contact your dealer or the nearest
authorized Customer Service centre.
Please submit the proof of purchase.
We hereby declare that the machine de-
scribed below complies with the relevant
basicsafety andhealth requirementsofthe
EU Directives, both in its basic design and
construction as well as in the version put
into circulation by us. This declaration shall
cease to be valid if the machine is modified
without our prior approval.
The undersigned act on behalf and under
the power of attorney of the company man-
agement.
Authorised Documentation Representative
S. Reiser
Alfred Kärcher GmbH Co. KG
Alfred-Kärcher-Str. 28 - 40
71364 Winnenden (Germany)
Phone: [phone]
Fax: [phone]
Winnenden, 2013/12/01
Warranty EC Declaration of Conformity
Product: Spray extraction device
Type: 1.100-xxx
Relevant EU Directives
2006/42/EC (+2009/127/EC)
2004/108/EC
2011/65/EU
Applied harmonized standards
EN 55014–1: 2006+A1: 2009+A2: 2011
EN 55014–2: 1997+A1: 2001+A2: 2008
EN 60335–1
EN 60335–2–68
EN 61000–3–2: 2006+A1: 2009+A2: 2009
EN 61000–3–3: 2008
EN 62233: 2008
EN 50581
Applied national standards
-
CEO Head of Approbation
16 EN

– 7
Technical specifications
Puzzi 8/1 C
Mains voltage V 220-240
Frequency Hz 1~ 50/60
Type of protection -- IPX4
Protective class II
Blower motor performance (max) W 1380
Nominal performance of blower motor W 1200
Air volume (max.) l/s 61
Negative pressure (max.) kPa (mbar) 23 (230)
Spray pump performance W 40
Spray pressure MPa 0,1
Spray pressure (max.) MPa 0,3
Spray volume I/min 1
Temperature of the cleaning solution (max.) °C 50
Filling quantity of fresh water l 8
Fill volume wastewater l 7
Length x width x height mm 575 x 330 x 445
Typical operating weight kg 9,8
Max. ambient temperature °C +40
Values determined to EN 60335-2-68
Sound pressure level LpA dB(A) 71
Uncertainty KpA dB(A) 1
Hand-arm vibration value m/s2<2,5
Uncertainty K m/s20,2
Power cord H05VV-F 2x1,0 mm2
Part no.: Cablelength
EU 6.647-263.0 7.5 m
GB 6.647-264.0 7.5 m
CH 6.647-265.0 7.5 m
17EN

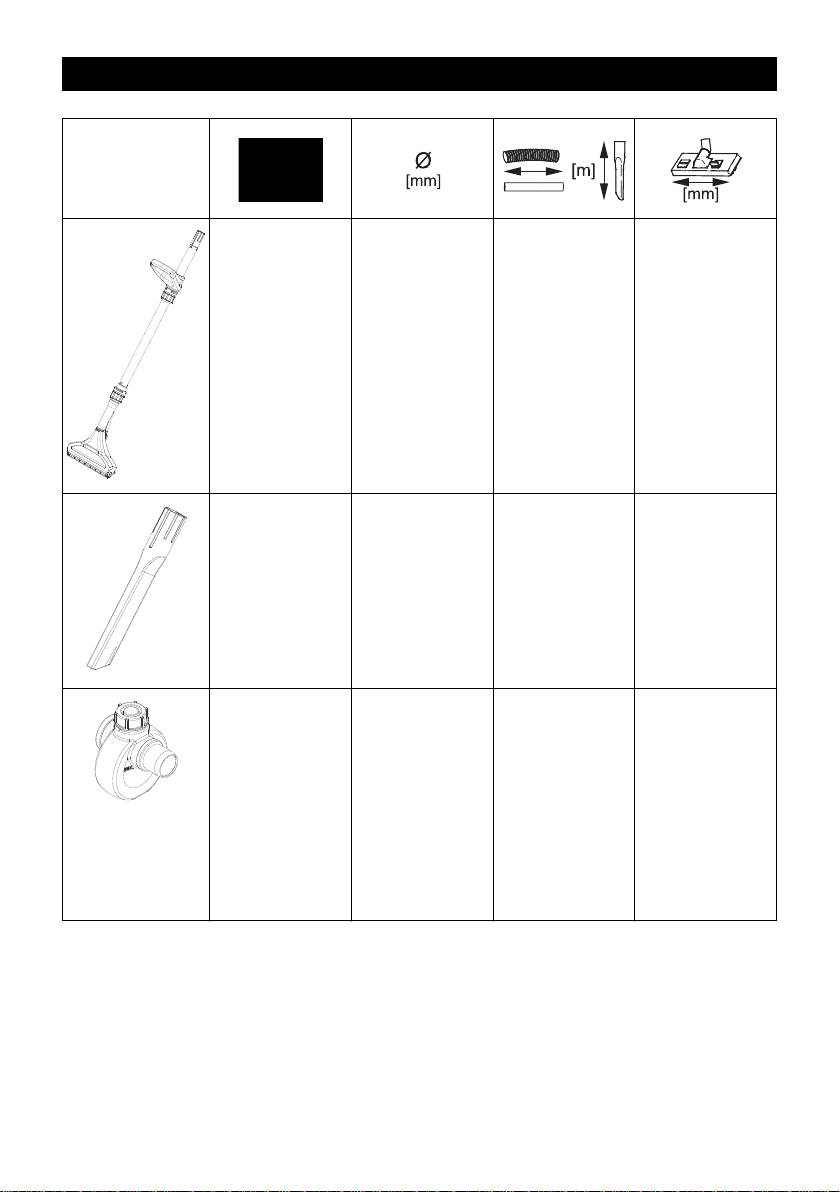

Zubehör / Accessories / Accessoires
4.130-008.0 DN 32 240
4.762-014.0
Hartflächen-
adapter,
hard surface
adapter,
adaptateurpour
surface rigide
240
4.025-004.0 DN 32
4.321-001.0 DN 32
197

Zubehör / Accessories / Accessoires
4.130-007.0 DN 32 240
4.130-010.0 DN 32 0,25
4.006-907.0
Dosiereinheit
Entschäumer,
defoaming
agent dosing
unit,
unitédedosage
de l‘agent
antimousse
DN 32
198

DN = Konus-Verbindung, cone connection, connexion de cône
Zubehör / Accessories / Accessoires
5.070-010.0
Behälter für
Reinigungs-
mittel,
container for
detergent,
réservoir pour
détergent
6.980-078.0 DN 20-26
6.980-077.0
6.980-080.0
199

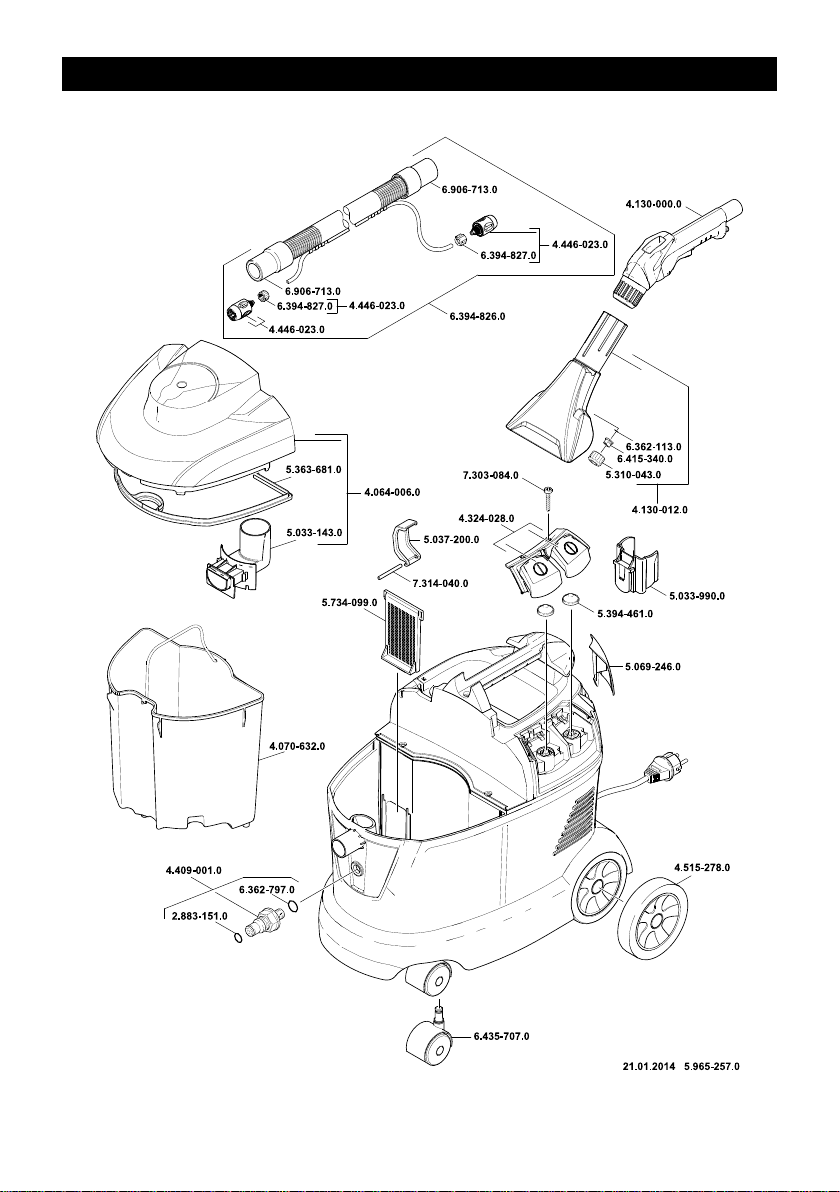

Puzzi 8/1 C
200
