KaVo MINItech 5050 User manual

Instructions for use
MINItech cart 5050

Distributed by:
KaVo Dental GmbH
Bismarckring 39
D-88400 Biberach
Phone [phone]
Fax [phone]
Manufacturer:
Kaltenbach & Voigt GmbH
Bismarckring 39
D-88400 Biberach
www.kavo.com

Contents
1 User instructions............................................................................................................................................. 5
1.1 User guide ............................................................................................................................................. 5
1.1.1 Abbreviations ............................................................................................................................ 5
1.1.2 Symbols .................................................................................................................................... 5
1.1.3 Target group ............................................................................................................................. 5
1.2 Service................................................................................................................................................... 6
1.3 Warranty terms and conditions .............................................................................................................. 6
1.4 Transport and storage ........................................................................................................................... 6
1.4.1 Currently valid packaging regulations ....................................................................................... 6
1.4.2 Damage in transit...................................................................................................................... 6
1.4.3 Information on the packaging: Storage and transportation ....................................................... 7
2 Safety ............................................................................................................................................................. 9
2.1 Description of safety instructions ........................................................................................................... 9
2.1.1 Warning symbol ........................................................................................................................ 9
2.1.2 Description of hazard levels...................................................................................................... 9
2.1.3 Structure ................................................................................................................................... 9
2.2 Safety instructions ................................................................................................................................. 9
2.2.1 General information .................................................................................................................. 9
2.2.2 Product-specific ........................................................................................................................ 10
2.3 Purpose – Intended use......................................................................................................................... 11
2.3.1 General information .................................................................................................................. 11
2.3.2 Product-specific ........................................................................................................................ 12
3 Product description......................................................................................................................................... 13
3.1 MINItech cart 5050 ................................................................................................................................ 13
3.2 Rating plates.......................................................................................................................................... 14
3.3 Scope of delivery ................................................................................................................................... 15
3.4 Technical data ....................................................................................................................................... 15
4 First use.......................................................................................................................................................... 17
4.1 Select location ....................................................................................................................................... 17
4.2 Prepare the system................................................................................................................................ 17
4.2.1 Setting the country-specific mains voltage on the SMARTair mobile / SMARTair Evo mobile . 17
4.2.2 Remove the drawer................................................................................................................... 18
4.3 Connect the pneumatic hand-held nozzle ............................................................................................. 18
4.4 Connecting the K5plus handpiece ......................................................................................................... 19
4.5 Connecting the SMARTair mobile / SMARTair Evo mobile ................................................................... 19
4.6 Connect the suction hose ...................................................................................................................... 21
4.7 Fastening the lines................................................................................................................................. 21
4.8 Insert the drawer.................................................................................................................................... 22
4.9 Connect the compressed air.................................................................................................................. 22
5 Operation........................................................................................................................................................ 24
5.1 Move the suction system drawer into working position.......................................................................... 24
5.2 Bring the face shield into working position............................................................................................. 24
5.3 Using the MINItech cart 5050 ............................................................................................................... 24
5.4 Change the filter .................................................................................................................................... 25
Instructions for use MINItech cart 5050
Contents
3 / 32

6 Cleaning and care .......................................................................................................................................... 27
6.1 Cleaning................................................................................................................................................. 27
6.2 Care ....................................................................................................................................................... 27
6.2.1 Servicing the drawer ................................................................................................................. 27
7 Safety checks in accordance with VDE 0701-0702........................................................................................ 28
8 Troubleshooting.............................................................................................................................................. 29
Instructions for use MINItech cart 5050
Contents
4 / 32

Instructions for use MINItech cart 5050
1 User instructions | 1.1 User guide
1 User instructions
1.1 User guide
Requirement
Read these instructions prior to first use to avoid misuse and prevent damage.
1.1.1 Abbreviations
Abbre-
viation
Explanation
GA
(IfU)
Instructions for use
MA (AI) Assembly instructions
TA (TI) Technician's instructions
Abbre-
viation
Explanation
IfU Instructions for use
CI Care instructions
AI Assembly instructions
TI Technician's instructions
SC Safety checks
IEC International Electrotechnical Commission
RI Repair instructions
RK Retrofitting kit
AS Assembly set
EP Enclosed parts
EMC Electromagnetic compatibility
PI Processing instructions
1.1.2 Symbols
See the Safety/Warning Symbols section
Important information for users and technicians
CE mark (European Community). A product bearing this mark meets the re-
quirements of the applicable EU directive.
Action required
1.1.3 Target group
This document addresses dental technicians, laboratory staff, dentists and the staff of
the dental practice.
5 / 32

Instructions for use MINItech cart 5050
1 User instructions | 1.2 Service
6 / 32
1.2 Service
Service-Hotline:
[phone]
[email protected]
Please indicate the product serial number in all requests!
For further information, please visit: www.kavo.com
1.3 Warranty terms and conditions
Within the scope of the applicable KaVo delivery and payment conditions, KaVo guar-
antees proper function, absence of defects in material and workmanship for a period
of 12 months from the date of purchase as confirmed by the salesperson.
In case of justified complaints, KaVo will honour its warranty with a free replacement
or repair.
The warranty does not cover defects and their consequences that arose or may have
arisen due to natural wear, improper handling, cleaning or maintenance, non-compli-
ance with operating, maintenance or connection instructions, corrosion, contaminated
media supply or chemical or electrical influences deemed abnormal or impermissible
in accordance with factory specifications.
The warranty does not usually cover lamps, light conductors made of glass and glass
fibres, glassware, rubber parts and the colourfastness of plastic parts.
The warranty expires if defects or their consequences could possibly have arisen be-
cause the product has been modified or changed. Warranty claims can only be asser-
ted when they are immediately reported to KaVo in writing.
This notification must be accompanied by a copy of the invoice or delivery note on
which the manufacturing number is clearly visible. In addition to the guaranty, the stat-
utory warranty claims of the purchaser also apply with a warranty period of 12 months.
1.4 Transport and storage
1.4.1 Currently valid packaging regulations
Note
Only valid for the Federal Republic of Germany.
Dispose of and recycle the sales packaging appropriately in accordance with current
packaging regulations, employing waste management or recycling companies. Com-
ply with the comprehensive return system. KaVo has had its sales packaging licensed
for this purpose. Please comply with the regional public waste-disposal system.
1.4.2 Damage in transit
In Germany
If the packaging is visibly damaged on delivery, please proceed as follows:
1. The recipient of the package must record the loss or damage on the delivery re-
ceipt. The recipient and the representative of the shipping company must sign this
delivery receipt.
2. Leave the product and packaging in the condition in which you received it.

Instructions for use MINItech cart 5050
1 User instructions | 1.4 Transport and storage
3. Do not use the product.
4. Report the damage to the shipping company.
5. Report the damage to KaVo.
6. Consult with KaVo first, before returning a damaged product.
7. Send the signed delivery receipt to KaVo.
If the product is damaged but there was no discernable damage to the packaging on
delivery, proceed as follows:
1. Report the damage to the shipping company immediately and no later than 7 days
after delivery.
2. Report the damage to KaVo.
3. Leave the product and packaging in the condition in which you received it.
4. Do not use a damaged product.
Note
Failure on the part of the recipient to comply with any of the above-mentioned oblig-
ations will mean that the damage will be considered to have arisen following deliv-
ery (in accordance with the General German Freight Forwarders´ Terms and Condi-
tions, Art. 28).
Outside Germany
Note
KaVo shall not be held liable for damage arising from transportation.
The shipment must be checked on arrival.
If the packaging is visibly damaged on delivery, please proceed as follows:
1. The recipient of the package must record the loss or damage on the delivery re-
ceipt. The recipient and the representative of the shipping company must sign this
delivery receipt.
Without this evidence, the recipient will not be able to assert a claim for damages
against the shipping company.
2. Leave the product and packaging in the condition in which you received it.
3. Do not use the product.
If the product is damaged but there was no discernable damage to the packaging on
delivery, proceed as follows:
1. Report any damage to the shipping company either immediately or no later than 7
days after delivery.
2. Leave the product and packaging in the condition in which you received it.
3. Do not use a damaged product.
Note
If the recipient fails to comply with any of the above-mentioned obligations, the
damage will be considered to have arisen following delivery
(in accordance with CMR law, Chapter 5, Art. 30).
1.4.3 Information on the packaging: Storage and transportation
Note
Please keep the packaging in case you need to return the product for servicing or
repair.

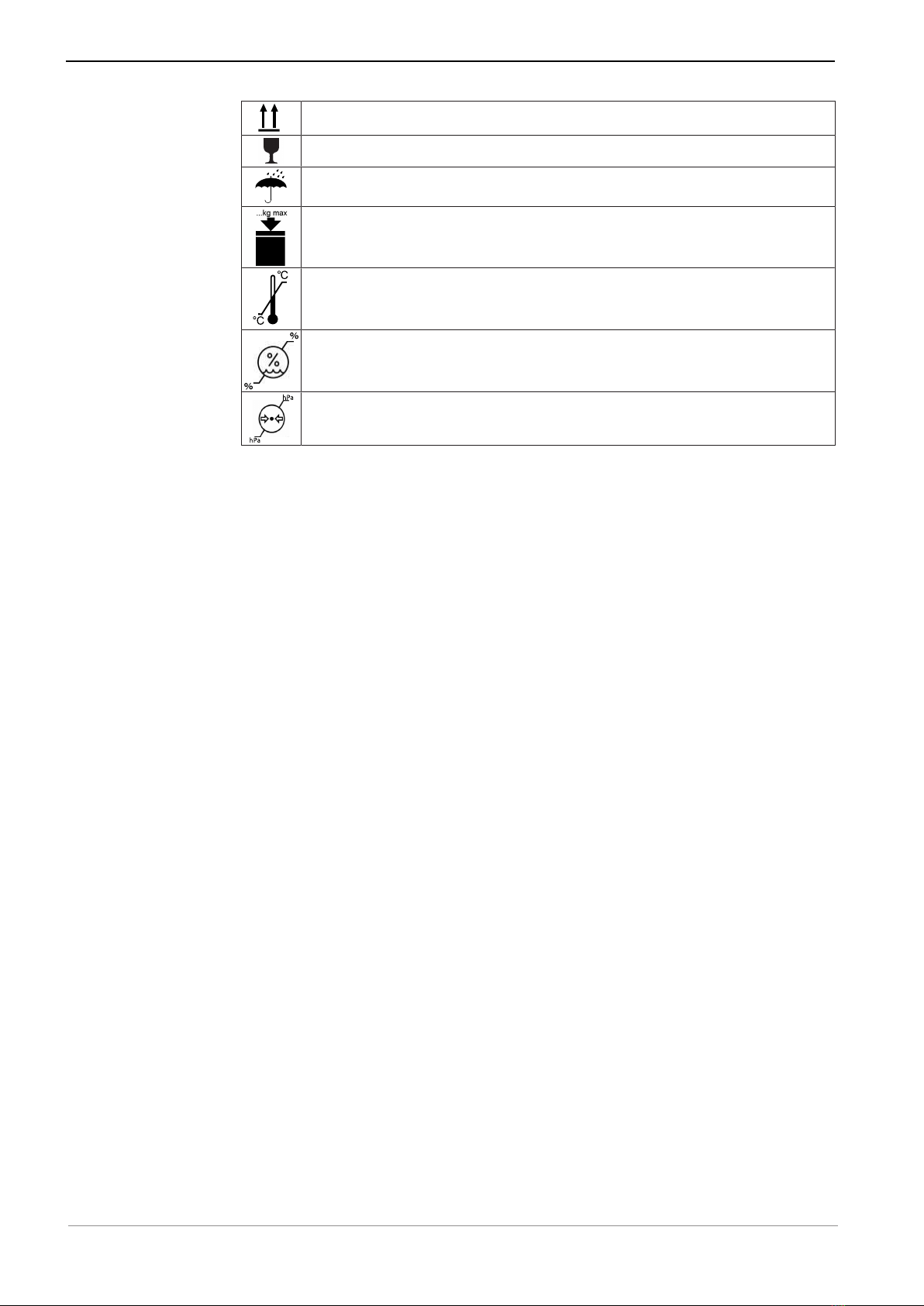

The symbols printed on the outside are for transportation and storage, and have the
following meaning:
7 / 32

Instructions for use MINItech cart 5050
1 User instructions | 1.4 Transport and storage
8 / 32
Transport upright with the arrows pointing upwards!
Fragile - protect against impact!
Protect from moisture!
Permissible stacking load
Temperature range
Humidity
Air pressure

Instructions for use MINItech cart 5050
2 Safety | 2.1 Description of safety instructions
2 Safety
2.1 Description of safety instructions
2.1.1 Warning symbol
Warning symbol
2.1.2 Description of hazard levels
Safety instructions distinguishing between three hazard levels are used in this docu-
ment to prevent personal and property damage.
The warning and safety notes in this document must be observed to prevent personal
injury and material damage. The warning notes are designated as shown below:
NOTICE
In cases which – if not prevented – could lead to material damage.
CAUTION
CAUTION
indicates a hazardous situation that can cause damage to property or mild to moder-
ate injuries.
WARNING
WARNING
indicates a hazardous situation that can lead to serious or fatal injury.
DANGER
DANGER
indicates a maximal hazard due to a situation that can directly cause death or fatal in-
jury.
2.1.3 Structure
DANGER
The introduction describes the type and source of the hazard.
This section describes potential consequences of non-compliance.
▶ The optional step includes necessary measures for hazard prevention.
2.2 Safety instructions
2.2.1 General information
Note
Only competent and trained personnel may use the product!
9 / 32

Instructions for use MINItech cart 5050
2 Safety | 2.2 Safety instructions
10 / 32
Each time before using the device, the qualified user shall ensure that the device is
functionally safe and in a proper condition.
CAUTION
Improper maintenance or repair of the unit.
Damage to and malfunction of the unit.
▶ Repair and servicing work on the electronic part of the unit may be done only by
skilled staff or KaVo-trained technicians.
▶ Use original KaVo spare parts only.
Users have a duty to:
▪ Only use equipment that is operating correctly
▪ Protect themselves and others against hazards.
The following persons are authorised to repair and service the KaVo product:
▪ Technicians of KaVo branch offices after appropriate product training.
▪ Specifically KaVo-trained technicians of KaVo franchised dealers.
KaVo shall not be responsible for damage caused by:
▪ external influences, poor media quality or faulty installation.
▪ The use of incorrect information.
▪ repair work carried out incorrectly.
Note
Any waste which is generated must be recycled or disposed of in strict compliance
with all applicable national regulations in a manner which is safe both for people
and the environment.
If you have any questions regarding proper disposal of the KaVo product, please
contact the KaVo branch.
2.2.2 Product-specific
WARNING
Injury or damage from damaged functional parts.
Damage to functional parts can cause further damage or personal injury.
▶ Check the device, electrical cables and any accessories for possible damage to
the insulation and replace if necessary.
▶ If functional parts are damaged: discontinue your work and repair the damage or
notify a service technician!
CAUTION
Premature wear and malfunctions from improper servicing and care.
Reduced product life.
▶ Perform regular proper care and servicing!
CAUTION
Hazard from exposed cables.
Slipping and tripping.
▶ Do not lay the cable and connector in walking areas.

Instructions for use MINItech cart 5050
2 Safety | 2.3 Purpose – Intended use
CAUTION
Hazards from damaged mains connection cable
Injury or damage.
▶ Only trained personnel may exchange the cable.
▶ Only exchange a complete line.
CAUTION
Risk of injury due to rotating tools.
Eye injury.
▶ Wear safety glasses!
▶ Use protective shield!
Note
Do not lean or sit on the countertop.
Note
Before changing location, always pull the power plug.
Note
For the safety instructions of the machines enclosed in the delivery, see the corres-
ponding Instructions for use.
IfU K5plus 4911 / K5 4910 handpiece 4914/4912
IfU K-Control TLC 4955, 4956, 4957
IfU SMARTair mobile / SMARTair Evo mobile
2.3 Purpose – Intended use
2.3.1 General information
In combination with KaVo control units, this KaVo product is suitable for the pro-
cessing of materials in dentistry, industry and trade applications by means of rotating
tools.
Any other type of use is not permitted.
"Proper use" includes following all instructions for use and ensuring that all inspections
and service tasks are performed.
DANGER
Explosion hazard.
Risk of fatal injury.
▶ Do not use KaVo product in areas subject an explosion hazard.
This product has only been approved for use indoors.
The applicable national legal regulations must be observed during the use of the
device, in particular the following:
▪ Current regulations governing the connection and start-up of laboratory devices.
▪ Current occupational safety regulations.
▪ Current accident prevention regulations.
11 / 32

Instructions for use MINItech cart 5050
2 Safety | 2.3 Purpose – Intended use
12 / 32
2.3.2 Product-specific
The MINItech cart 5050 (Cart) is a:
▪ mobile workplace for minor dental grinding tasks.
▪ technical tool according to the Equipment Safety Law and is not a medical device
for use on patients.
Note
It may not be used on the patient.
Note
The device may not be used for a different purpose or for a purpose that goes bey-
ond the original purpose. KaVo is not liable for any arising damage.

Instructions for use MINItech cart 5050
3 Product description | 3.1 MINItech cart 5050
3 Product description

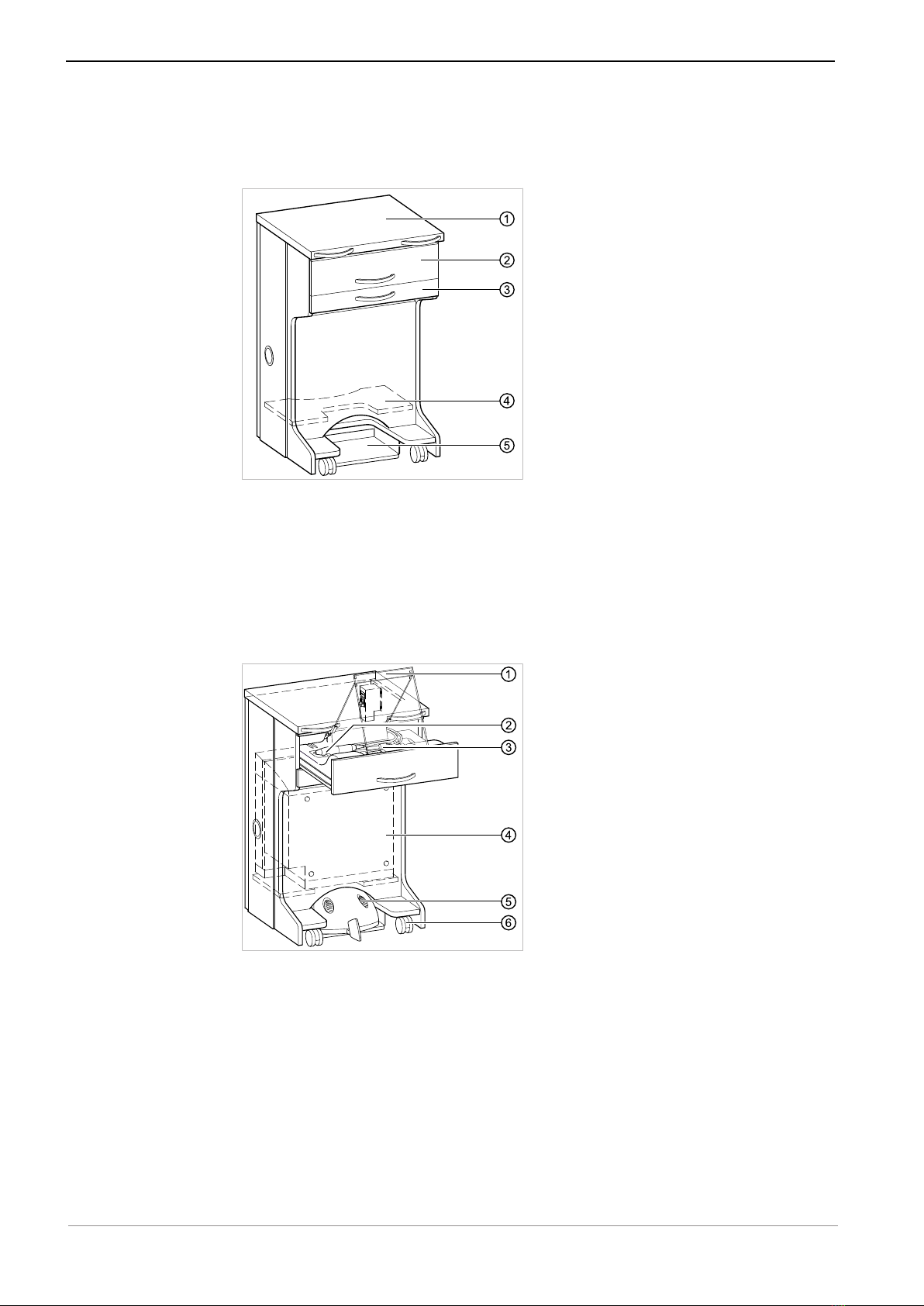

3.1 MINItech cart 5050
Storage area
① Surface tops ② Suction drawer for handpiece, pneu-
matic hand-held nozzle and face shield
③ Drawer for materials ④ Storage area for the suction system of
the SMARTair mobile / SMARTair Evo
mobile
⑤ Storage area for the K-Control TLC
4956 control unit
Front
① Two-part face shield ② K5plus handpiece
③ Pneumatic hand-held nozzle ④ Suction system of the SMARTair mo-
bile / SMARTair Evo mobile
⑤ K-Control TLC 4956 control unit ⑥ Castors
13 / 32

Instructions for use MINItech cart 5050
3 Product description | 3.2 Rating plates
14 / 32
Rear
① Microswitch attachment ② Back wall
③ Magnet
3.2 Rating plates
100V rating plate
115V rating plate
650W
230 V rating plate
Type Device type MINItech cart 5050

Instructions for use MINItech cart 5050
3 Product description | 3.3 Scope of delivery
SN Year of manufacture – serial number
REF Material number
CE mark
Fuses
For disposal instructions see: Intended use
Please note accompanying documents and safety instructions
HIBC Code
3.3 Scope of delivery
▪ MINItech cart 5050
▪ Instructions for use
▪ Protection shield
▪ K5plus handpiece 4911
▪ Pneumatic hand-held nozzle
▪ Suction drawer
▪ SMARTair mobile or SMARTair Evo mobile
▪ K-Control TLC 4956 control unit
▪ Drawer for storage area
3.4 Technical data
Dimensions and weight
Length 475mm
Width 520mm
Height 860mm
Weight (empty) 34 kg
Total weight 63 kg
15 / 32

Instructions for use MINItech cart 5050
3 Product description | 3.4 Technical data
16 / 32
Load - storage areas
Max. load of the drawers 10 kg
Max. load of the storage areas 20 kg
Electrical system
Device input power SMARTair/K5 (nom-
inal power)
650 W
Supply voltage AC 100 V / 115 V / 230 V
Fuses in the power input area T 10 A, H 250 V
Line voltage fluctuations ± 10 % of nominal voltage
Overvoltage according to installation cat-
egory, see annex J DIN EN 61010
Category II
Connection values - air
Air connection (only for pneumatic hand-
held nozzle)
Max. 6 bar
Ambient conditions
Permissible setup site Interior room
Ambient temperature 5°C to 40°C
Max. relative humidity at temperatures up
to 31°C
80 %
Max. relative humidity at temperatures
from 31°C to 40°C
linear decrease from 80% to 50%
Degree of contamination according to IEC
664
2

Instructions for use MINItech cart 5050
4 First use | 4.1 Select location
4 First use
4.1 Select location
Note
DIN EN 61010 must be observed to ensure proper use.
Note
Note the required dimensions and permissible max. loads.
Note
A separate air supply is required; the max. connection value is 6 bar.
▶ Place the MINItech cart 5050 in the desired place.
▶ Secure the MINItech cart 5050 against rolling away.
4.2 Prepare the system
▶ Place the SMARTair mobile / SMARTair Evo mobile and K-Control TLC 4956 con-
trol unit in front of the MINItech cart 5050.
CAUTION
Improper mains voltage settings.
Damage to the product.
▶ Only professionals or technicians trained by KaVo are permitted to set the mains
voltages.
4.2.1 Setting the country-specific mains voltage on the SMARTair
mobile / SMARTair Evo mobile
Note
Make sure that the set voltages correspond with the information on the rating plate.
SMARa
Tir
mobile
0
3
2
0
0
1
115
▶ Set the country-specific mains voltage with a screwdriver on the voltage selector
switch ②.
▶ Move the power switch ① to the "ON" position.
17 / 32

Instructions for use MINItech cart 5050
4 First use | 4.3 Connect the pneumatic hand-held nozzle
18 / 32
4.2.2 Remove the drawer
▶ Pull out the drawer ② to the stop, lift the front and remove it.
▶ Pull out the drawer ① to the stop.
4.3 Connect the pneumatic hand-held nozzle
▶ Put down the left (right-handers) or right (left-handers) pneumatic hand-held
nozzle ①.
▶ Put down the pneumatic connection line ③ behind the drawer ②.
See also:
2IfU K5plus handpiece 4911

Instructions for use MINItech cart 5050
4 First use | 4.4 Connecting the K5plus handpiece

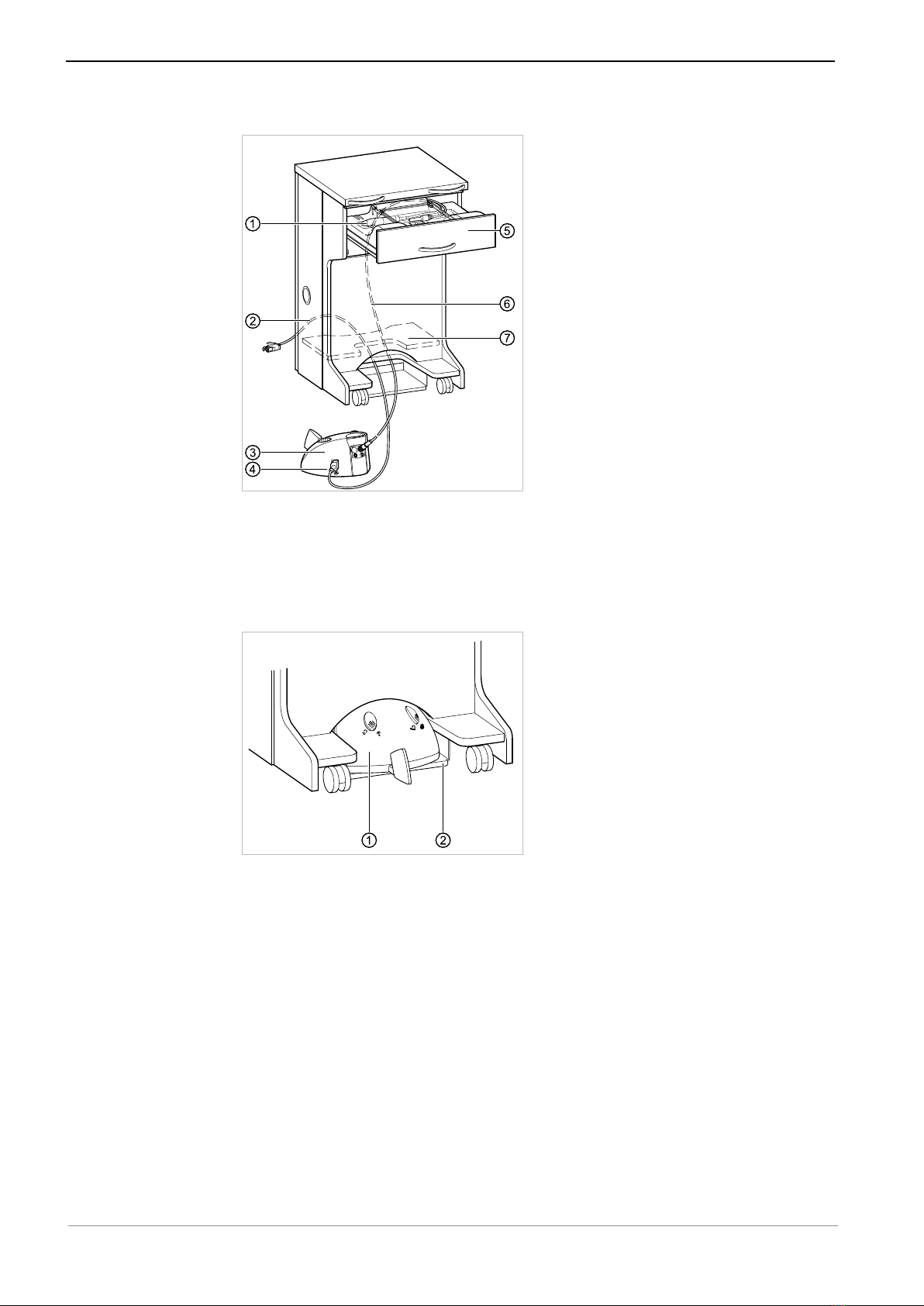

4.4 Connecting the K5plus handpiece
▶ Put down the K5 handpiece ① on the left (right-handers) or right (left-handers).
▶ Put down the connection cable ⑥ behind the suction system drawer ⑤.
▶ Run the connection cable ⑥ under the storage area ⑦ and connect it to the K-
Control TLC 4956 control unit ③.
▶ Run the enclosed connecting cable ② of the K-Control TLC 4956 control unit un-
der storage area ⑦ and plug it into the dedicated connector ④.
▶ Place the K-Control TLC 4956 control unit ① on storage area ②.
See also:
2Instructions for use K-Control TLC
4.5 Connecting the SMARTair mobile / SMARTair Evo mobile
▶ Check if the country-specific settings have been set.
19 / 32

Instructions for use MINItech cart 5050
4 First use | 4.5 Connecting the SMARTair mobile / SMARTair Evo mobile
20 / 32
▶ Insert the connecting cable for the control ① (already connected to the K-Control
TLC unit) into the dedicated connector ② of the SMARTair mobile / SMARTair
Evo mobile.
▶ Insert the connecting cable of the SMARTair ① (included in the scope of delivery
of the SMARTair mobile / SMARTair Evo mobile) into the dedicated connector of
the SMARTair mobile / SMARTair Evo mobile ②.
See also:
2IfU SMARTair mobile or SMARTair Evo mobile
