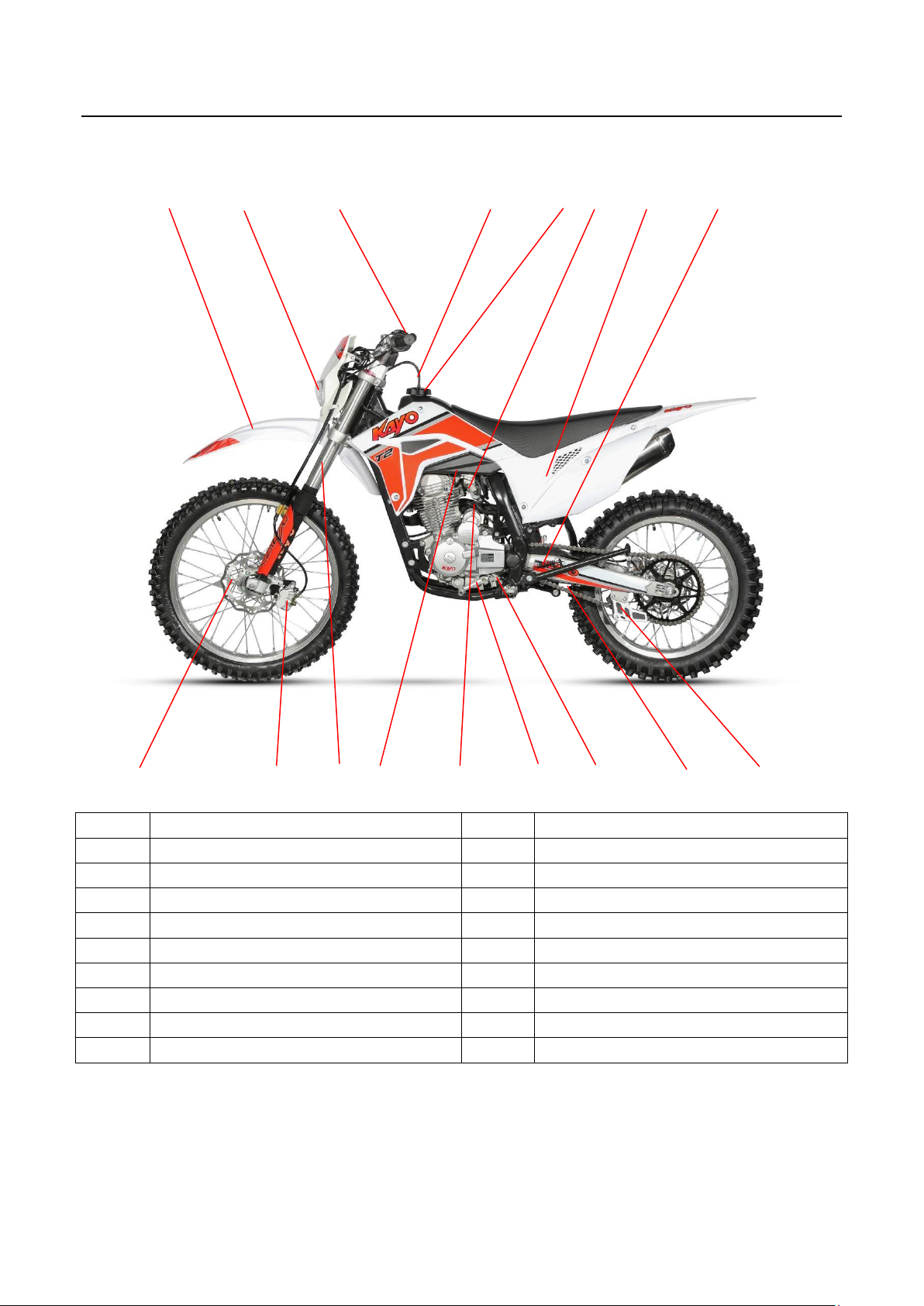

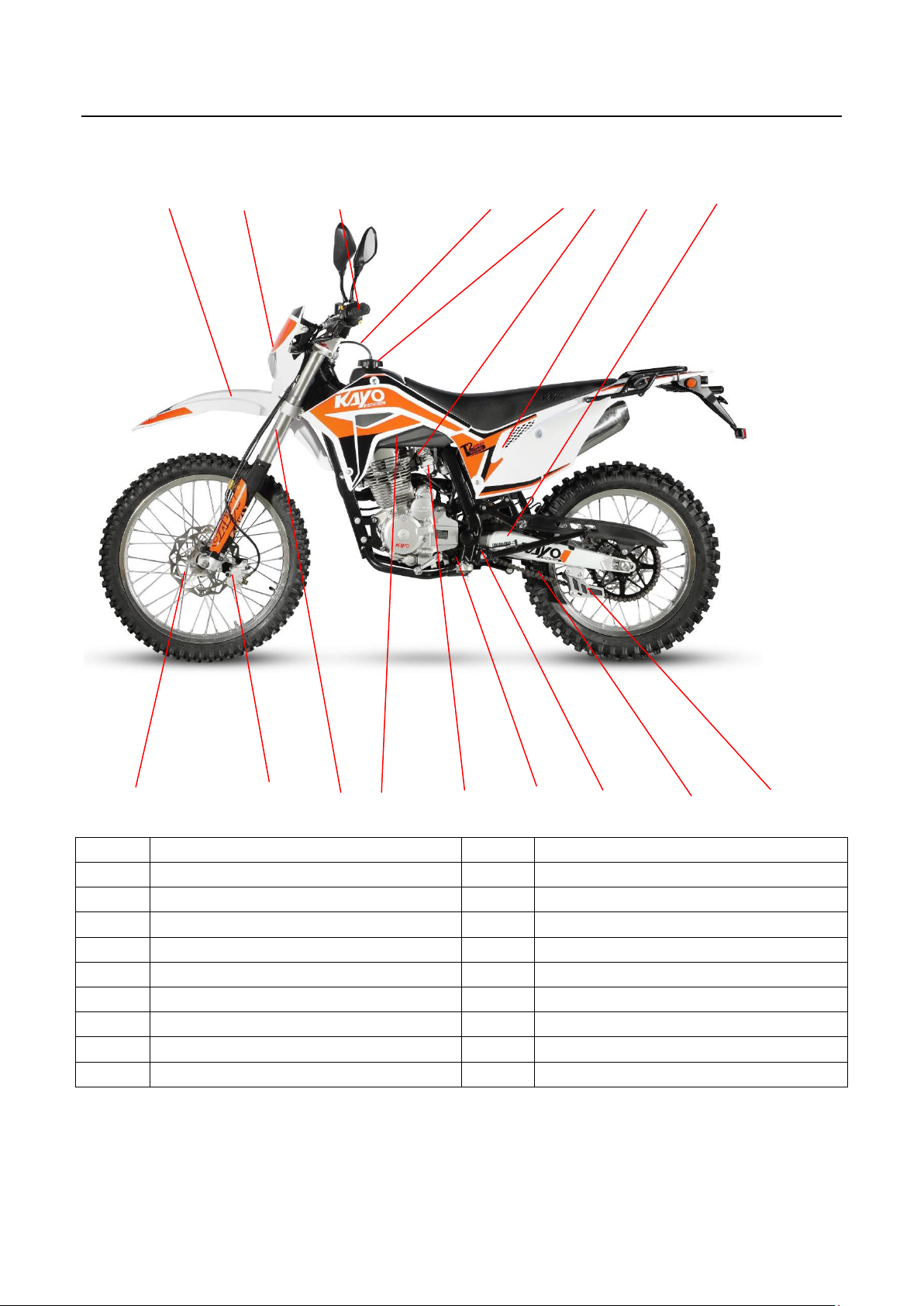

Vehicle component and location

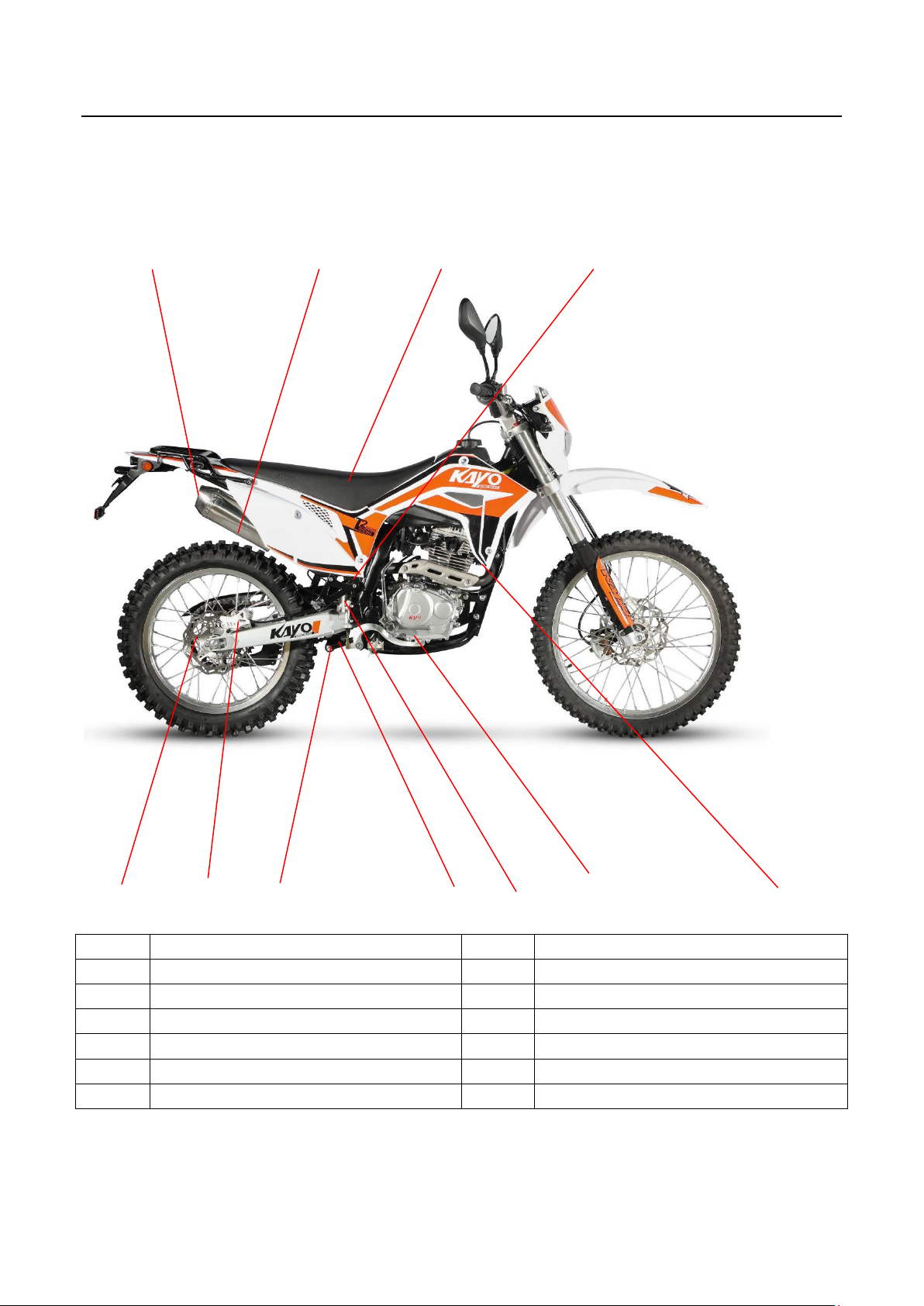

No.
Name
No.
Name
1
Front fender
10
Front brake caliper
2
Headlight
11
Front fork
3
Handlebar
12
Fuel tank
4
Vent pipe
13
Carburetor
5
Fuel tank cap
14
Gear shift lever
6
Fuel tank petcock
15
Pedal
7
Air filter
16
Chain
8
Chain slider
17
Chain guide
9
Front brake disc
○
1○ 2 ○ 3 ○ 4○ 5 ○ 6○ 7 ○ 8
○
9 ○ 10 ○ 11 ○ 12 ○ 13 ○ 14 ○ 15 ○ 16 ○ 17

ZHEJIANG KAYO MOTOR CO., LTD.
www.kayomoto.us
- 6 -
No.
Name
No.
Name
18
Rear fender
24
U-shape rocker arm/linkage
19
Muffler
25
Triangle rocker arm/rear linkage
20
Seat
26
Rear brake oil cup
21
Rear shock
27
Brake pedal
22
Rear brake disc
28
Muffler pipe
23
Rear brake caliper
○

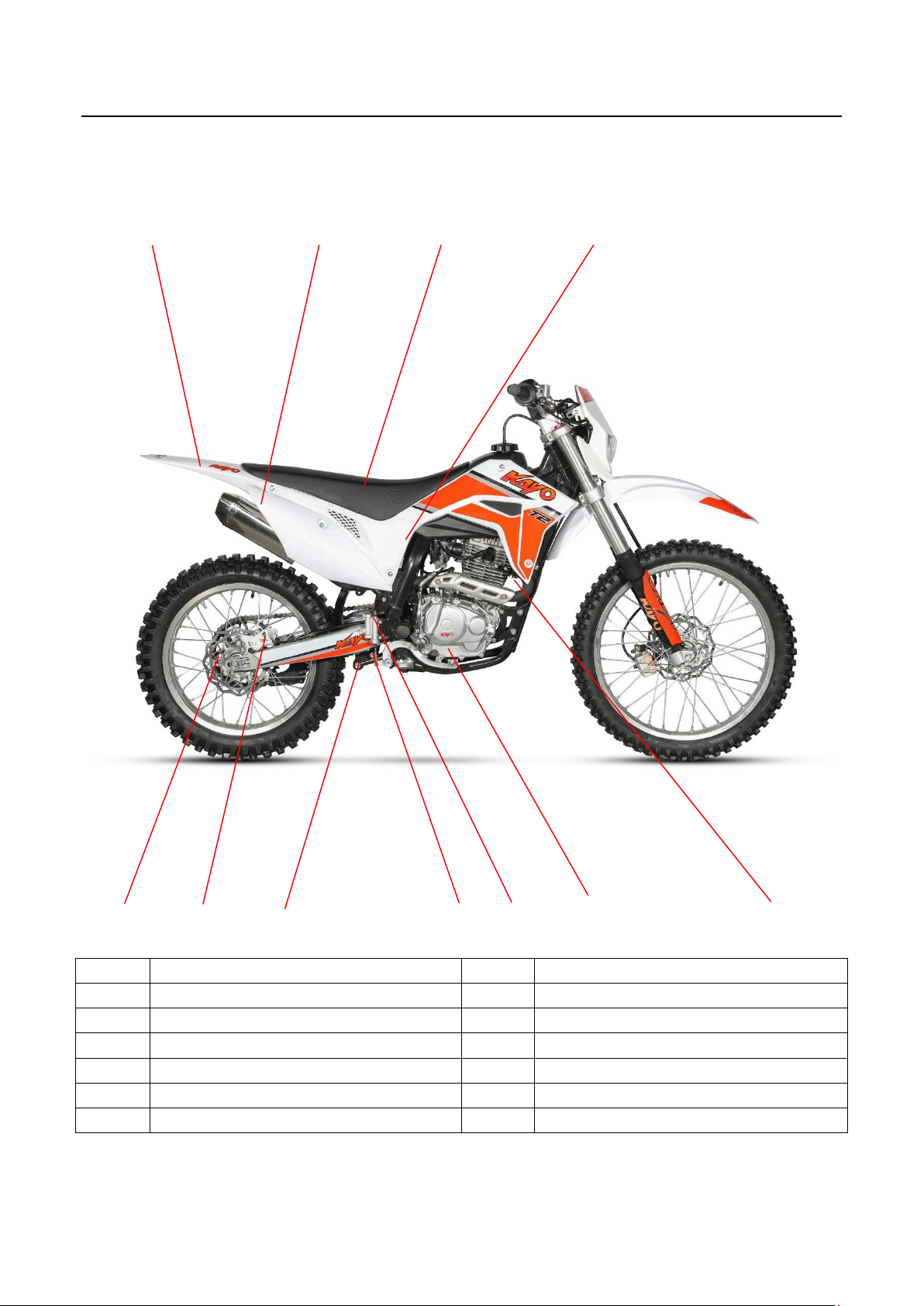

18 ○ 19 ○ 20 ○ 21
○
22 ○ 23 ○ 24 ○ 25 ○ 26 ○ 27 ○ 28

ZHEJIANG KAYO MOTOR CO., LTD.
www.kayomoto.us
- 7 -
Vehicle component and location
No.
Name
No.
Name
1
Front fender
10
Front brake caliper
2
Headlight
11
Front fork
3
Handlebar
12
Fuel tank
4
Vent pipe
13
Carburetor
5
Fuel tank cap
14
Gear shift lever
6
Fuel tank petcock
15
Pedal
7
Air filter
16
Chain
8
Chain slider
17
Chain guide
9
Front brake disc
○
1○ 2 ○ 3 ○ 4○ 5 ○ 6○ 7 ○ 8
○
9 ○ 10 ○ 11 ○ 12 ○ 13 ○ 14 ○ 15 ○ 16 ○ 17

ZHEJIANG KAYO MOTOR CO., LTD.
www.kayomoto.us
- 8 -
No.
Name
No.
Name
18
Rear fender
24
U-shape rocker arm
19
Muffler
25
Triangle rocker arm
20
Seat
26
Rear brake oil cup
21
Rear shock
27
Brake pedal
22
Rear brake disc
28
Muffler pipe
23
Rear brake caliper
○
18 ○ 19 ○ 20 ○ 21
○
22 ○ 23 ○ 24 ○ 25 ○ 26 ○ 27 ○ 28

ZHEJIANG KAYO MOTOR CO., LTD.
www.kayomoto.us
- 9 -
VIN number
①
VIN number
Located on frame plate
②
Frame plate
Located on frame head tube
③
Engine number
Located on engine crankcase body
○
1 ○ 2 ○ 3

ZHEJIANG KAYO MOTOR CO., LTD.
www.kayomoto.us
- 10 -
Specification
T2（CB250）size and quality parameters
Length ×width ×height
（mm）
2195×820×1240
wheelbase（mm）
1436
weight（kg）
107
Tyre spec.
Front 80/100-21；rear 110/90-18
steering angle
Minimum turning circle diameter
Seat height（mm）
925mm
Ground clearance（mm）
335mm
Fuel tank capacity（L）
10L
engine parameter
Engine type
Single cylinder, four stroke, air - cooled, vertical
Clutch type
Wet, multi-plate
Cylinder diameter ×stroke
65.5×66.2mm
method of lubrication
Pressure lubrication, splash lubrication
Oil capacity
1000ml
Oil brand
10W-40
displacement
223cc
Max power（kw/r/min）
15/8500
Max torque（N•m/r/min）
18/6500
compression ratio
9.25:1
Gear shift type
International five gears 1-N-2-3-4-5
Start method
Electric start
Fuel control system
NIBBI PE28 carburetor
battery
12V/2.4Ah lithium battery
chain
#520H；13T/45T

ZHEJIANG KAYO MOTOR CO., LTD.
www.kayomoto.us
- 11 -
Frame/shock absorber/braking/wheel parameters
Frame type
High strength steel tube frame
Front shock
Inverted adjustable front shock，L=880mm
Rear shock absorber
double adjustable nitrogen charged shock with reservoir，L=430mm
Rear swing arm
Aluminum
handlebar
Aluminum alloy tapered handlebar，material 7075 Φ28.6mm
Front & rear rim
Front 1.60×21，rear 2.15×18；Black aluminum rim，Bright silver hub
Front brake system
Dual piston pump hydraulic brake system，brake disc Φ240mm
Rear brake system
Single piston pump hydraulic brake system, brake disc Φ220mm
other
Air filter type
Sponge filter type
Fuel type
Gasoline No. 92 and above
Persons capacity
1 person（driver）

ZHEJIANG KAYO MOTOR CO., LTD.
www.kayomoto.us
- 12 -

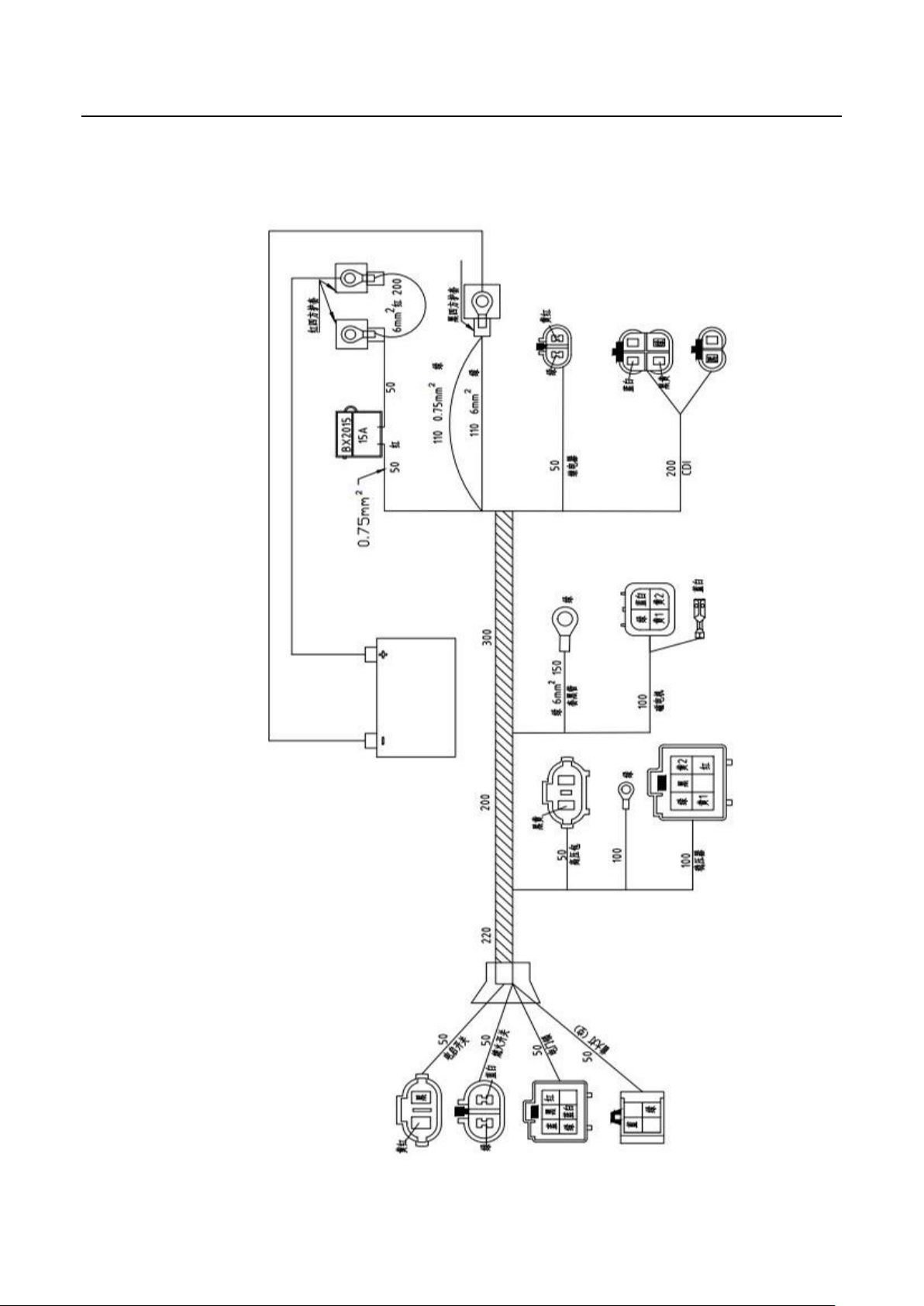

Circuit diagram
T2

ZHEJIANG KAYO MOTOR CO., LTD.
www.kayomoto.us
- 13 -
T2-G

ZHEJIANG KAYO MOTOR CO., LTD.
www.kayomoto.us
- 14 -
Fastener torque table
Note: before installing the thread, apply anti-rust grease on the thread and joint surface.
No.
Item
Fastener specification
Qty
Torque（N•m）
1
Front brake caliper mounting bolt
M8×40 full thread
2
20～32
2
front brake shield mounting screw
M6×16
2
7～11
3
steering column screw
铝制银色
1
/
4
Upper lock block mounting screw
M8×30
4
20～32
5
Front brake disc mounting bolt
M6×16
6
7～11
6
Front wheel axle mounting nut
M16×1.5×H14
1
175～218
7
Foot pedal, seat mounting bolt
M8×20 full thread
2
20～32
8
shift lever mounting bolt
M6×25
1
7～11
9
Engine hanger bolt
M8×60
3
20～32
10
Engine mounting nut
M10×1.25
2
40～70
11
tank mounting screw
M6×25
4
7～11
12
Exhaust pipe mounting nut
M8
2
20～32
13
Chain guide mounting screw
M6×12
3
7～11
14
Swing arm axle mounting nut
M16×1.5×H14.8
1
175～218
15
Triangle linkage mounting nut
M12×1.25
3
68～85
16
Chain adjustment bolt
M10×40×1.25 S14
2
36～55
17
Chain adjustment nut
M10×1.25
2
40～70
18
Rear shock and frame connection bolt
M10×50×1.25
1
40～70
19
oval head bolt
M10×42×1.25+Φ10×28
1
40～70
20
Rear brake disc mounting bolt
M6×16
4
7～11
21
Rear sprocket mounting screw
M8×31 10.9 级
6
27～35
22
Rear wheel axle nut
M22×1.5
1
452～550
23
Rear brake shield mounting bolt
M6×12
4
7～11
24
Brake pedal head mounting screw
M5×10 full thread
2
4～7
25
brake limit bolt
M8×20 full thread
1
20～32
26
Rear brake pump mounting bolt
M6×16 full thread
2
7～11
27
brake pedal bolt
M6×25 full thread
1
7～11
28
Ignition coil mounting bolt
M6×20
2
7～11
29
Plastics mounting bolt
M6×16 full thread
10
7～11
30
CDI mounting bolt
M6×16 full thread
2
7～11
31
voltage regulator mounting bolt
M6×25 full thread
2
7～11
32
Electric switch lock bracket bolt
M6×12
2
7～11
33
Fuel tank switch mounting screw
M5×12 full thread
2
4～7
34
front mudguard bolt
M6×12
4
7～11
35
Left and right guard plate and fuel tank connection screw
M5×10 full thread
6
4～7
36
Cross head screw
ST 4.2×12
10
/
37
Cross flat head screw
M6×10
4
/
38
sparking plug
/
1
25～30

ZHEJIANG KAYO MOTOR CO., LTD.
www.kayomoto.us
- 15 -
OPERATION INSTRUCTIONS
Check before riding ………………………………………………………19
Starting steps ……………………………………………………………...22
Vehicle run in……………………………………………………...............24
Vehicle cleaning ……………………………………………………..........24
Storage and use of vehicles..........................................................................25

ZHEJIANG KAYO MOTOR CO., LTD.
www.kayomoto.us
- 16 -

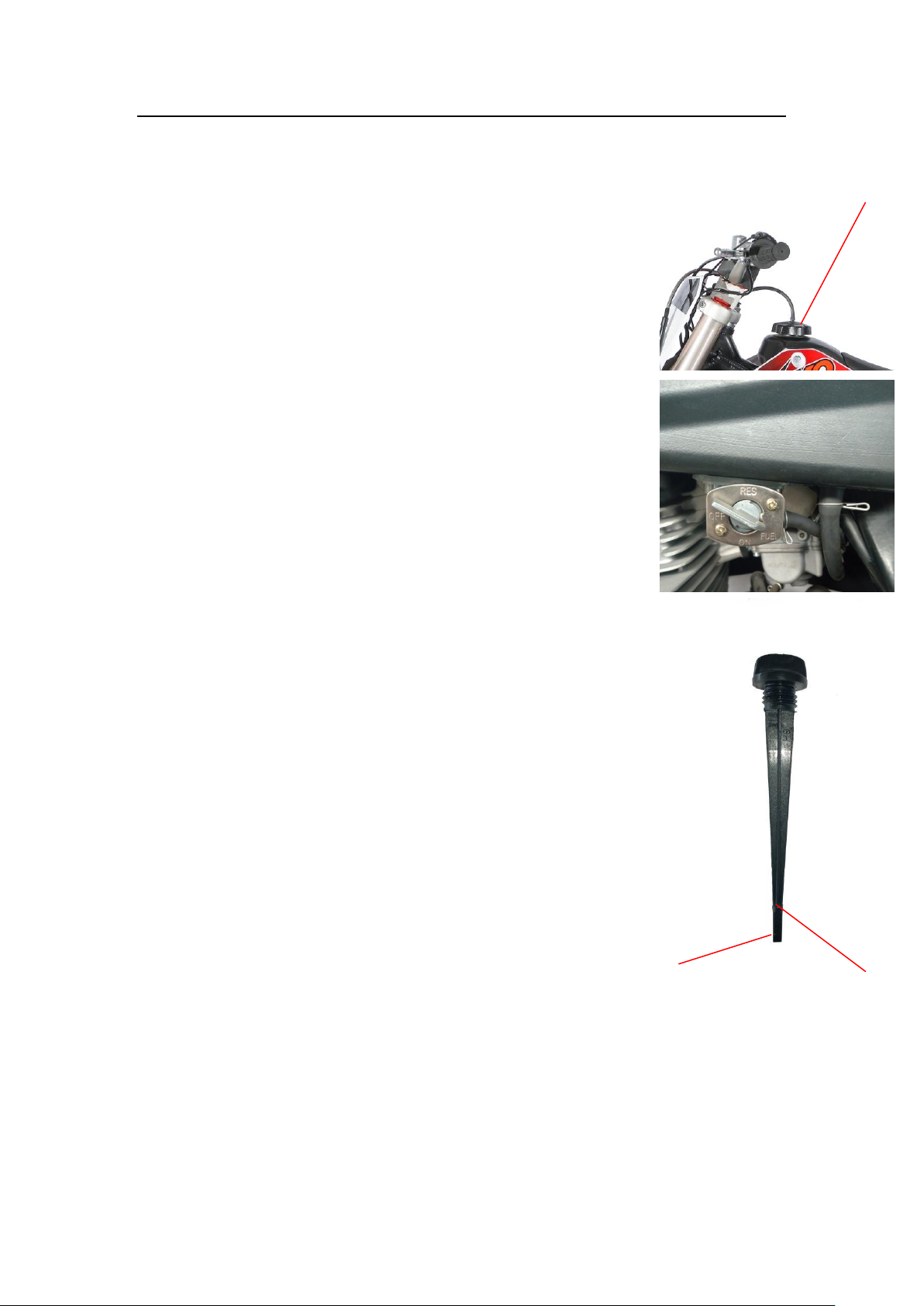

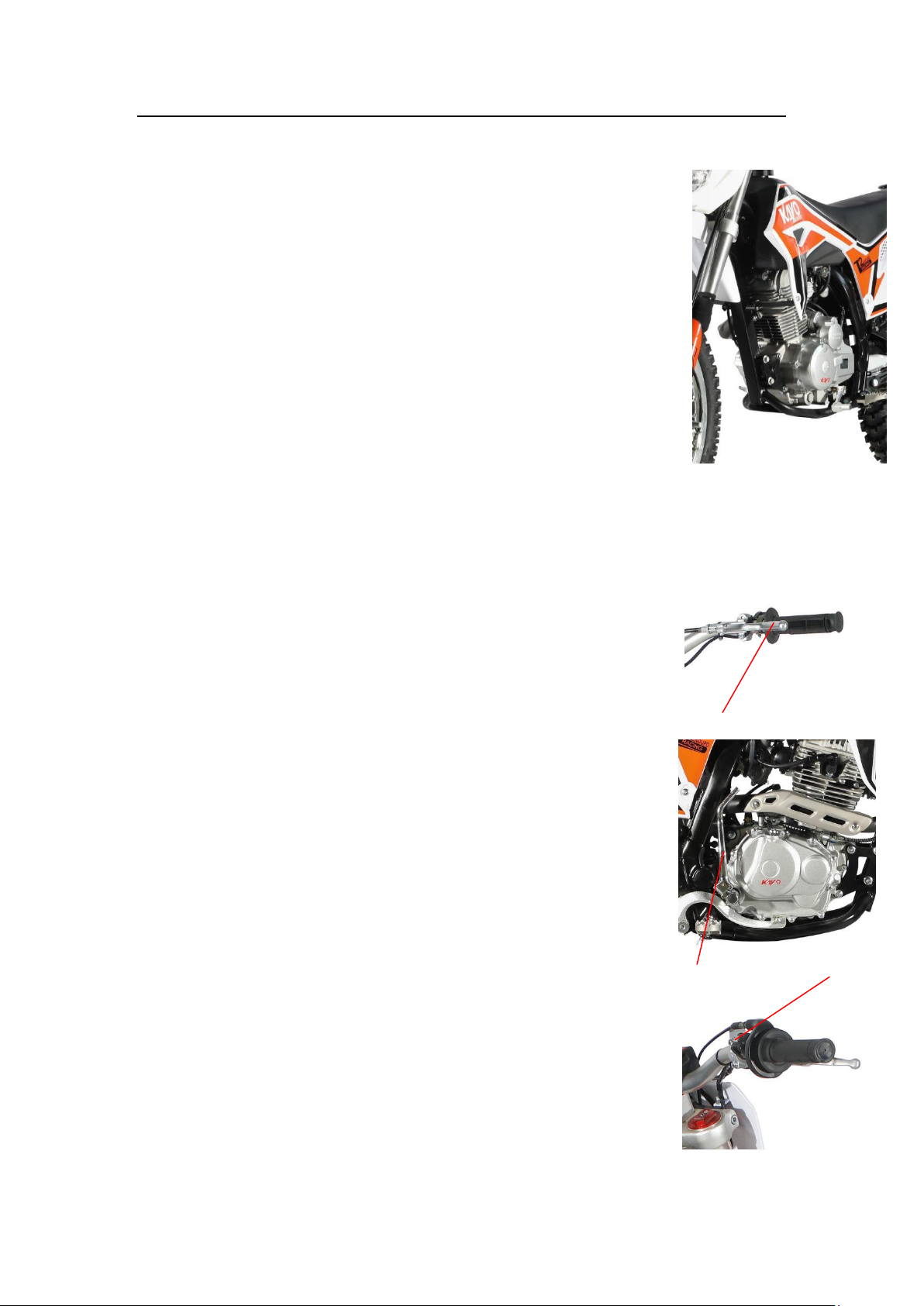

Check before riding
1.Fuel level
Open the tank cap and shake the handlebars, and observe the fuel the
level of the tank. If fuel is low, please add fuel.
Tank cap
2. Fuel tank switch
There are three positions of the fuel tank switch in this motorcycle,
from top to bottom: RES (the auxiliary fuel tank is open), OFF (the fuel tank
switch is closed), ON (the fuel tank switch is open).If the fuel tank switch is
OFF, there is no fuel in the carburetor and the engine cannot run. If fuel is
low in the tank, switch the tank to the RES position and refuel immediately.
If fuel is sufficient and the motorcycle is in good condition, switch to ON.
Note: when the engine is turned off, turn the tank switch to OFF.
3.Engine Oil level.
Engine Oil capcity:1500ml. To check oil level run the vehicle for a
few minutes until it reaches operating temperature. Then stand the
bike up vertically and check the sight glass on the lower right side of
the engine case.
L H

ZHEJIANG KAYO MOTOR CO., LTD.
www.kayomoto.us
- 17 -
4.Brake system brake fluid levels
5. Brake fluid level.

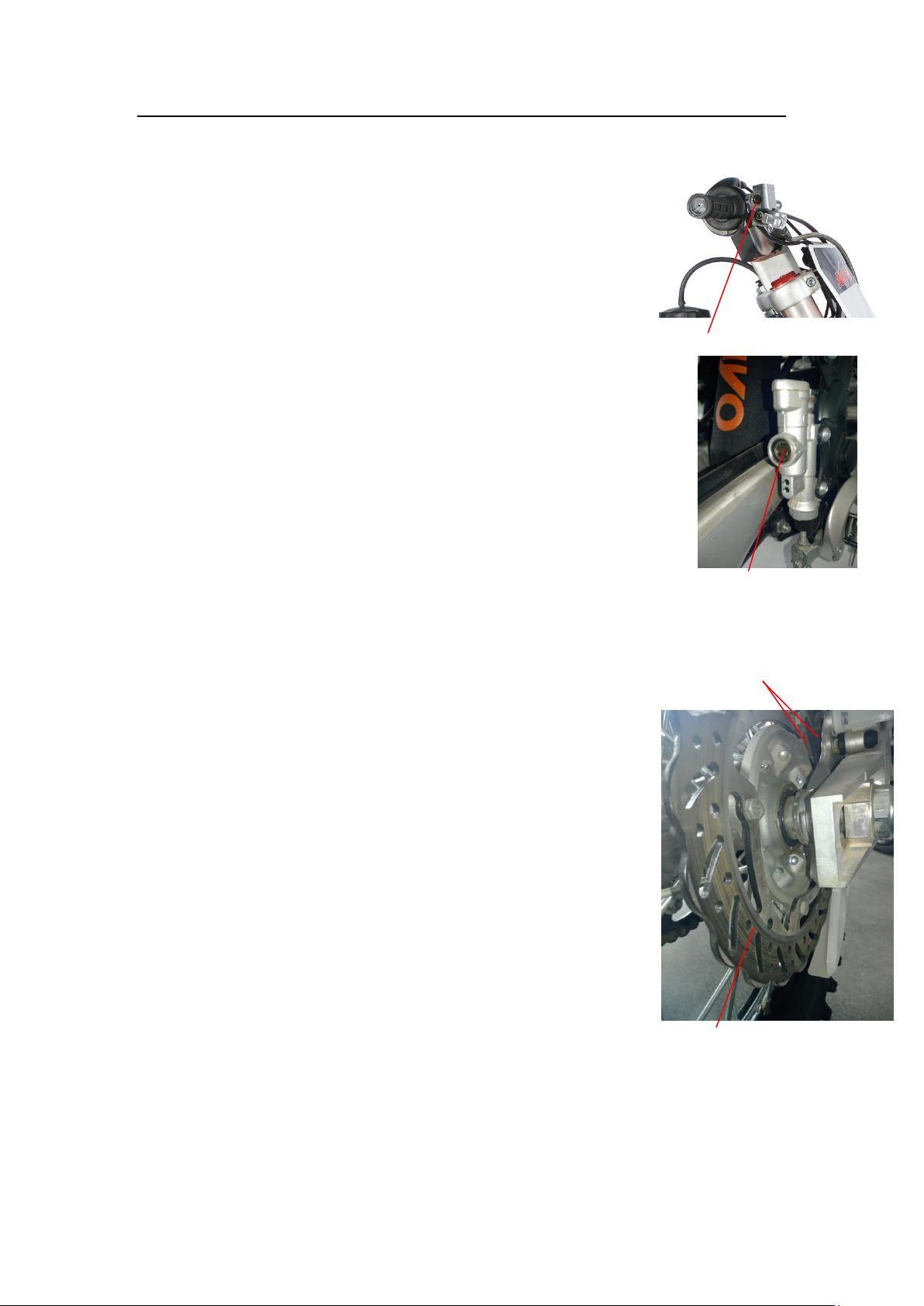

Through the brake fluid sight glass (①and②), checking the brake
fluid in the brake master cylinder. If brake fluid level is lower than
half of the observation hole, or "LOWER" position, then add brake
fluid.
Note: brake fluid should be replaced annually even if the
motorcycle has not been used for a long time.
Note: please check the brake fluid level frequently. Check the brake
line and connecting points for damage or wear. If any, please
replace. Check the master cylinder/calipers for damage or wear, if
any, please replace.
Note: Do not leave .brake reservoirs open for extended periods of
time
Note: Always use brake fluid from an unopened container
①Brake fluid sight glass
②Brake fluid sight glass
5.Brake pads
Check the caliper brake pad’s thickness, if the brake pad’s thickness is less
than the minimum thickness, the brake pad must be replaced. Check the
caliper brake pad for damage or crack. If there is damage or crack, a new
brake pad should be replaced.
Minimum thickness of brake pad:
Front MIN = 1 mm
Rear MIN = 1 mm
Note: brake pads should be replaced as a set.
Brake pad
Brake disc

ZHEJIANG KAYO MOTOR CO., LTD.
www.kayomoto.us
- 18 -
6. brake disc’s abrasion of brake system
Check for damage to the brake disc surface, (scratches, gouges, warping,
bluing) and check the thickness, if the brake disc is less than the limit
thickness, the brake disc must be replaced immediately.
Limit thickness of brake disc:
Front MIN=3.5mm
Rear MIN=3.5mm
7.Check tire pressure
Use the pressure gauge to check whether the tire pressure level is in
specification,
Recommended pressure: front 2.23 bar (2.23 kgf /cm2); rear 2.77bar (2.77
kgf /cm2).
Note: the tire pressure check should be done under cool conditions. Riding
with over or under inflated tires will affect operation and ride comfort and
may result in irregular tire wear and loss of control
8.Check spoke tension
Pinch the two adjacent spokes with your fingers to check whether there is a
lack of tension in the spokes. If the spokes are found loose wheel truing and
tightening may need to be performed..
NOTE: spoke tensioning and truing should be performed by a professional
9.Check the chain and its supporting parts
Check chain tension. If the chain is too loose, it can be adjusted by loosening
the rear axle and adjusting the chain adjusters. Do not make the chain too
tight.
Note: if the chain needs to be tensioned frequently, or if you find any signs
of wear on the front sprocket, rear sprocket and chain replace immediately.

ZHEJIANG KAYO MOTOR CO., LTD.
www.kayomoto.us
- 19 -
10.Inspection of the remaining components
Visually inspect the entire motorcycle for loose parts. Tighten any loose
bolt or parts
. Check the battery charge.
check the lights.
Note: these pre ride checks won't take much time, but it can help you
develop good riding habits and make your daily riding easier and safer.
chain adjuster
Starting steps
The steps to kick start as follows (if with kickstart lever)
1. Switch the fuel tank to the "ON" position;
2, the left hand pull in clutch handlebar;
3, the right hand pull in the brake handle;
4. kick the kickstart lever down in a smooth rapid motion
5.once the engine starts up, release the kickstart lever and fold back to
its regular position.
Clutch handlebar
Start lever ignition switch
The electric starting steps are as follows:
1. Switch the fuel tank to the "ON" position;
2. turn the key switch on;
3, the left hand pull in clutch lever;
4, the right hand pull in front brake lever;
5. push the start switch with the right thumb;
6. once then engine starts make sure you are in neutral and release
clutch and brake levers
Note: when the vehicle starts, the brake should be applied to prevent the
vehicle from starting in gear.
