Kaysun Amazon V Product guide

Amazon V
ENGINEERING DATA BOOK
K2F-252 DN5S
K2F-280 DN5S
K2F-335 DN5S
K2F-400 DN5S
K2F-450 DN5S
K2F-500 DN5S
K2F-560 DN5S
K2F-615 DN5S
K2F-670 DN5S
K2F-730 DN5S
K2F-785 DN5S
K2F-850 DN5S
K2F-900 DN5S
Thank you very much for purchasing our air conditioner.
Before using your air conditioner, please read this manual carefully and keep it for future
reference.

Amazon V
CONTENTS
1
CONTENTS
Part 1 General Information............................................................... 3
Part 2 Outdoor Unit Engineering Data............................................. 15
Part 3 System Design and Installation ........................................... 144

Amazon V
2
Kaysun Amazon V Series Engineering Data Book

Amazon V
Part 1 - General Information
3
Part 1
General Information
1 Indoor and Outdoor Unit Capacities ........................................4
2 External Appearance ..............................................................6
3 Outdoor Unit Combinations ....................................................8
4 Combination Ratio..................................................................9
5 Selection Procedure .............................................................10

Amazon V
4
Kaysun Amazon V Engineering Data Book
1 Indoor and Outdoor Unit Capacities
1.1 Indoor Units
1.1.1 Standard indoor units
Table 1-1.1: Standard indoor unit abbreviation codes
Abbreviation
code Type
KCOF One-way Cassette
KCIF Compact Four-way Cassette
KCIBF Four-way Cassette
KPDF Medium Static Pressure Duct
KPDHF High Static Pressure Duct
Abbreviation
code Type
KAYF Wall-mounted
KPCF Ceiling & Floor
KS(E)F Floor Standing
KSDF Console
Table 1-1.2: Standard indoor unit capacity range
Capacity Capacity
index KCOF KCIF KCIBF KPDF KPDHF KAYF KPCF KS(E)F KSDF
kW HP
2.2 0.8 22 22 22 — 22 — 22 — — —
2.8 1 28 — 28 — 28 — 28 — — 28
3.6 1.25 36 36 36 — 36 — 36 — — 36
4.5 1.6 45 — 45 — 45 — 45 — — 45
5.6 2 56 — — 56 56 — 56 56 56 —
7.1 2.5 71 71 — 71 71 71 — — 71 —
8.0 3 80 — — 80 80 — 80 — — —
9.0 3.2 90 — — — 90 90 — 90 — —
10.0 3.6 100 — — 100 — — — — — —
11.2 4 112 — — 112 112 112 — — — —
14.0 5 140 — — 140 140 140 — 140 — —
16.0 6 160 — — — — 160 — — — —
20.0 7 200 — — — — 200 — — — —
25.0 9 250 — — — — 250 — — — —
28.0 10 280 — — — — 280 — — — —
40.0 14 400 — — — — 400 — — — —
45.0 16 450 — — — — 450 — — — —
56.0 20 560 — — — — 560 — — — —

Amazon V
Part 1 - General Information
5
1.2 Outdoor Units
Table 1-1.5: Outdoor unit capacity range
Capacity Model Name Combination Type
8HP K2F-252 DN5S /
10HP K2F-280 DN5S /
12HP K2F-335 DN5S /
14HP K2F-400 DN5S /
16HP K2F-450 DN5S /
18HP K2F-500 DN5S /
20HP K2F-560 DN5S /
22HP K2F-615 DN5S /
24HP K2F-670 DN5S /
26HP K2F-730 DN5S /
28HP K2F-785 DN5S /
30HP K2F-850 DN5S /
32HP K2F-900 DN5S /
34HP K2F-950 DN5S 12HP+22HP
36HP K2F-1015 DN5S 14HP+22HP
38HP K2F-1065 DN5S 16HP+22HP
40HP K2F-1120 DN5S 12HP+28HP
42HP K2F-1175 DN5S 20HP+22HP
44HP K2F-1230 DN5S 22HP+22HP
46HP K2F-1285 DN5S 22HP+24HP
48HP K2F-1345 DN5S 22HP+26HP
50HP K2F-1400 DN5S 22HP+28HP
52HP K2F-1460 DN5S 26HP+26HP
54HP K2F-1515 DN5S 26HP+28HP
56HP K2F-1570 DN5S 28HP+28HP
58HP K2F-1635 DN5S 28HP+30HP
60HP K2F-1685 DN5S 28HP+32HP
62HP K2F-1750 DN5S 30HP+32HP
64HP K2F-1800 DN5S 32HP+32HP
66HP K2F-1850 DN5S 12HP+22HP+32HP
68HP K2F-1915 DN5S 14HP+22HP+32HP
70HP K2F-1965 DN5S 16HP+22HP+32HP
72HP K2F-2020 DN5S 12HP+28HP+32HP
74HP K2F-2075 DN5S 20HP+22HP+32HP
76HP K2F-2130 DN5S 22HP+22HP+32HP
78HP K2F-2185 DN5S 22HP+24HP+32HP
80HP K2F-2245 DN5S 22HP+26HP+32HP
82HP K2F-2300 DN5S 22HP+28HP+32HP
84HP K2F-2360 DN5S 26HP+26HP+32HP
86HP K2F-2415 DN5S 26HP+28HP+32HP
88HP K2F-2470 DN5S 28HP+28HP+32HP
90HP K2F-2535 DN5S 28HP+30HP+32HP
92HP K2F-2585 DN5S 28HP+32HP+32HP
94HP K2F-2650 DN5S 30HP+32HP+32HP
96HP K2F-2700 DN5S 32HP+32HP+32HP
Notes:
1. The combinations of units shown in the table are factory-recommended. Other combinations of units are also possible.

Amazon V
6
Kaysun Amazon V Engineering Data Book
2 External Appearance
2.1 Indoor Units
2.1.1 Standard indoor units
Table 1-2.1: Standard indoor unit appearance
One-way Cassette Compact Four-way Cassette
KCOF KCIF
Four-way Cassette Medium Static Pressure Duct
KCIBF KPDF
High Static Pressure Duct Wall-mounted
KPDHF KAYF
Ceiling & Floor Floor Standing
KPCF KS(E)F
Console
KSDF

Amazon V
Part 1 - General Information
7
2.2 Outdoor Units
2.2.1 Single units
Table 1-2.4: Single outdoor unit appearance
2.2.2 Combinations of units
Table 1-2.5: Combination outdoor unit appearance
8/10/12HP
(with single fan)
14/16HP
(with single fan)
18/20/22HP
(with dual fans)
24/26/28/30/32HP
(with dual fans)
34HP 36/38HP 40HP
42/44HP 46/48/50HP 52/54/56/58/60/62/64HP
66HP 68/70HP 72HP
74/76HP 78/80/82HP 84/86/88/90/92/94/96HP

Amazon V
8
Kaysun Amazon V Engineering Data Book
3 Outdoor Unit Combinations
Table 1-3.1: Outdoor unit combinations
System capacity Number of
units
Modules1Outdoor branch
joint kit2
kW HP 8 10 12 14 16 18 20 22 24 26 28 30 32
25.2 8 1 ●
—
28.0 10 1 ●
33.5 12 1 ●
40.0 14 1 ●
45.0 16 1 ●
50.0 18 1 ●
56.0 20 1 ●
61.5 22 1 ●
67.0 24 1 ●
73.0 26 1 ●
78.5 28 1 ●
85.0 30 1 ●
90.0 32 1 ●
95.0 34 2 ● ●
KCME 12.6
101.5 36 2 ● ●
106.5 38 2 ● ●
112.0 40 2 ● ●
117.5 42 2 ● ●
123.0 44 2 ●●
128.5 46 2 ● ●
134.5 48 2 ● ●
140.0 50 2 ● ●
146.0 52 2 ●●
151.5 54 2 ● ●
157.0 56 2 ●●
163.5 58 2 ● ●
168.5 60 2 ● ●
175.0 62 2 ● ●
180.0 64 2 ●●
185.0 66 3 ● ● ●
KCME 13.6
191.5 68 3 ● ● ●
196.5 70 3 ● ● ●
202.0 72 3 ● ● ●
207.5 74 3 ● ● ●
213.0 76 3 ●● ●
218.5 78 3 ● ● ●
224.5 80 3 ● ● ●
230.0 82 3 ● ● ●
236.0 84 3 ●● ●
241.5 86 3 ● ● ●
247.0 88 3 ●● ●
253.5 90 3 ● ● ●
258.5 92 3 ● ●●
265.0 94 3 ● ●●
270.0 96 3 ●●●
Notes:
1. The combinations of units shown in the table are factory-recommended. Other combinations of units are also possible.
2. For systems with two or more outdoor units, outdoor branch joints (sold separately) are required.

Amazon V
Part 1 - General Information
9
4 Combination Ratio
Combination ratio =
Sum of capacity indexes of the indoor units
Capacity index of the outdoor units
Table 1-5.1: Indoor and outdoor unit combination ratio limitations
Type Minimum combination ratio Maximum combination ratio
Standard indoor units only
Amazon V outdoor units 50% 150%
Table 1-5.2: Combinations of Indoor and outdoor units
Outdoor unit capacitySum of capacity indexes of connected indoor
units (standard indoor units only)
Maximum number of connected indoor
units
kW HP Capacity
index
25.2 8 252 126 to 378 13
28.0 10 280 140 to 420 16
33.5 12 335 167.5 to 502.5 20
40.0 14 400 200 to 600 23
45.0 16 450 225 to 675 26
50.0 18 500 250 to 750 29
56.0 20 560 280 to 840 33
59.0 22 590 295 to 885 36
67.0 24 670 335 to 1005 39
73.0 26 730 365 to 1095 43
75.5 28 755 392.5 to 1132.5 46
85.0 30 850 425 to 1275 50
85.0 32 850 425 to 1275 53
92.5 34 925 462.5 to 1387.5 56
99.0 36 990 495 to 1485 59
104.0 38 1040 520 to 1560 63
109.0 40 1090 545 to 1635
64
115.0 42 1150 575 to 1725
118.0 44 1180 590 to 1770
126.0 46 1260 630 to 1890
132.0 48 1320 660 to 1980
134.5 50 1345 672.5 to 2017.5
146.0 52 1460 730 to 2190
148.5 54 1485 742.5 to 2227.5
151.0 56 1510 755 to 2265
160.5 58 1605 802.5 to 2407.5
160.5 60 1605 802.5 to 2407.5
170.0 62 1700 850 to 2550
170.0 64 1700 850 to 2550
177.5 66 1775 887.5 to 2662.5
184.0 68 1840 920 to 2760
189.0 70 1890 945 to 2835
194.0 72 1940 970 to 2910
200.0 74 2000 1000 to 3000
203.0 76 2030 1015 to 3045
211.0 78 2110 1055 to 3165
217.0 80 2170 1085 to 3255
219.5 82 2195 1097.5 to 3292.5
231.0 84 2310 1155 to 3465
233.5 86 2335 1167.5 to 3502.5
236.0 88 2360 1180 to 3540
245.5 90 2455 1227.5 to 3682.5
245.5 92 2455 1227.5 to 3682.5
255.0 94 2550 1275 to 3825
255.0 96 2550 1275 to 3825

Amazon V
10
Kaysun Amazon V Engineering Data Book
Yes
limitations
5 Selection Procedure
5.1 Procedure
Step 1: Establish design conditions
Design temperature and humidity (indoor and outdoor)
Required heat load of each room
System peak load
Piping length, level differences
Indoor unit specifications (type and quantity)
Step 2: Select indoor units
Decide indoor unitsafety factor
Select indoor unit models ensuring that:
Indoor unit capacity corrected for indoor air temperature WB1≥ Required heat load × Indoor unit safety factor
Step 3: Select outdoor units
Determine required total heat load on outdoor units
Use the sum of the peak load of each room Use the system peak load
Provisionally select outdoor unit capacity based on combination ratio limitations
Confirm that the number of indoor units connected to the outdoor units is within limitation
Correct cooling and heating capacities of the outdoor units for the following items:
Outdoor air temperature / Indoor air temperature WB / Combination ratio / Piping length, level
difference / Piping heat loss / Frost accumulation (for heating capacity only)
No
Is correctedoutdoor unit capacity≥ Required total heat load on outdoor units?
VRF system selection is complete
Notes:
1. If the indoor design temperature falls between two temperatures listed in the indoor unit's capacity table, calculate the corrected capacity by interpolation.
If the indoor unit selection is to be based on total heat load and sensible heat load, select indoor units which satisfy not only the total heat load
requirements of each room but also the sensible heat load requirements of each room. As with total heat capacity, the sensible heat capacity of indoor
units should be corrected for indoor temperature, interpolating where necessary.For the indoor unit capacity tables, refer to the indoor unit technical
manuals.

Amazon V
Part 1 - General Information
11

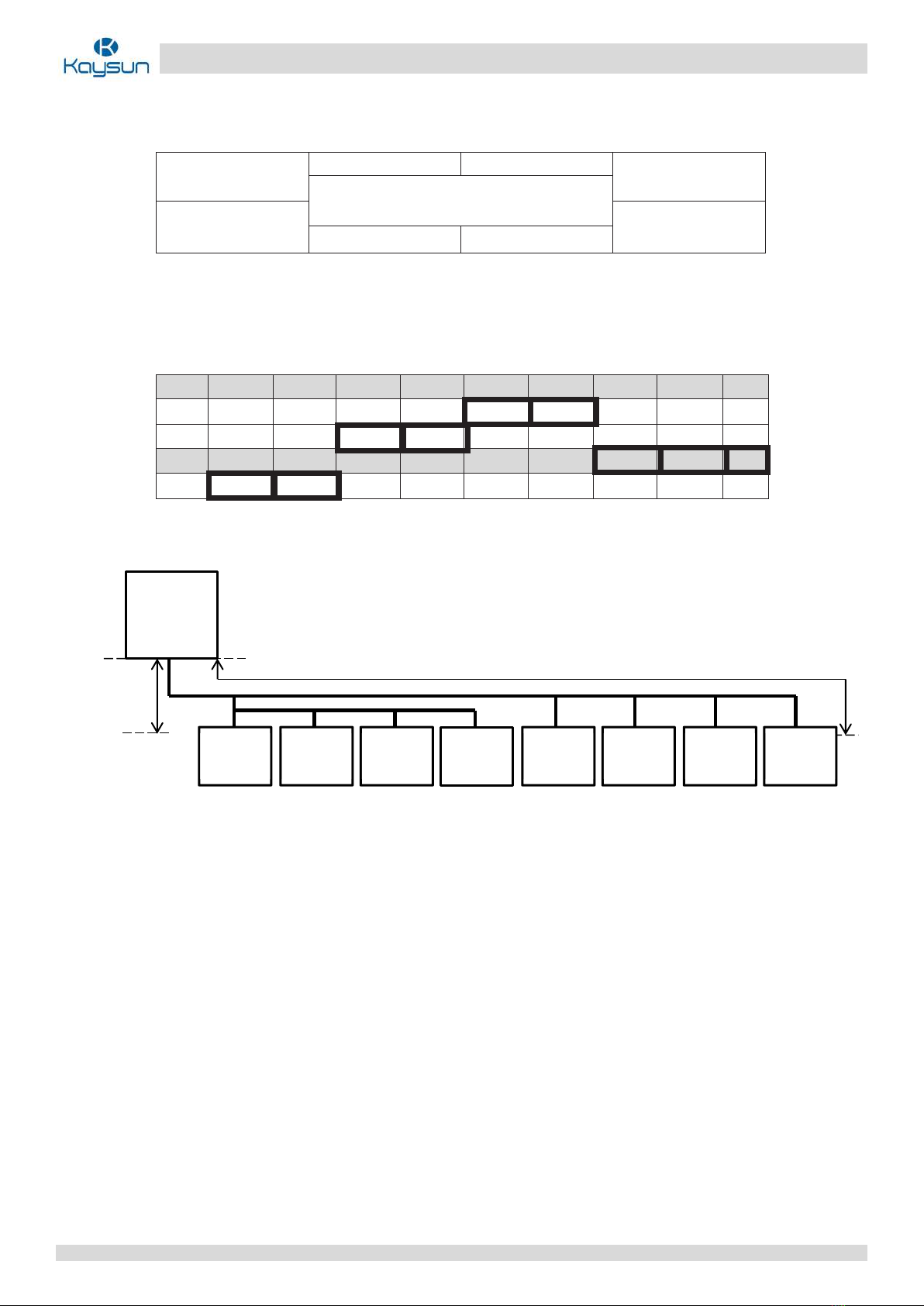

5.2 Example
The following is a selection example based on total heat load for cooling.
Figure 1-6.1:Room plan
Room A Room H Room G Room F
Room B Room E
Room C Room D
Step 1: Establish design conditions
▪Indoor air temperature 25°C DB, 18°C WB; outdoor air temperature 33°C DB.
▪Determine peak load of each room and system peak load. As shown in Table 1-6.1, the system peak load is 50.7kW.
Table 1-6.1: Required heat load of each room (kW)
Time Room A Room B Room C Room D Room E Room F Room G Room H Total
9:00 4.8 4.8 3.0 3.0 9.1 9.0 2.9 2.9 39.5
12:00 6.6 7.1 5.1 5.1 7.4 6.8 4.0 4.0 46.1
14:00 9.0 9.4 4.9 4.9 7.3 6.8 4.2 4.2 50.7
16:00 10.6 10.7 3.9 3.9 6.3 6.2 3.8 3.8 49.2
▪The maximum piping lengths and level differences in this example are as given in Figure 1-6.2.
Figure 1-6.2: System diagram
Outdoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Indoor
Unit
Equivalent length of piping 60mLevel
difference
40m
▪Indoor unit type for all rooms: Medium Static Pressure Duct (KPDF).
Step 2: Select indoor units
▪In this example, a safety factor is not used (i.e. the safety factor is 1).
▪Select indoor unit models using the medium static pressure duct cooling capacity table. Each indoor unit's corrected
capacity needs to be greater than or equal to the peak load of the relevant room. The selected indoor units are shown
in Table 1-6.3.

Amazon V
12
Kaysun Amazon V Engineering Data Book
Table 1-6.2: Extract from medium static pressure duct (KPDF) cooling capacity table
Model Capacity
index
Indoor air temperature
14°C WB 16°C WB 18°C WB 19°C WB 20°C WB 22°C WB 24°C WB
20°CDB 23°CDB 26°CDB 27°CDB 28°CDB 30°CDB 32°CDB
TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC TC SHC
KPDF
22 1.5 1.4 1.8 1.5 2.1 1.6 2.2 1.6 2.3 1.7 2.4 1.5 2.4 1.5
28 1.9 1.7 2.3 1.9 2.6 2.1 2.8 2.1 3.0 2.1 3.1 2.0 3.1 1.9
36 2.5 2.1 2.9 2.3 3.4 2.5 3.6 2.6 3.8 2.7 4.2 2.8 3.9 2.3
45 3.1 2.6 3.7 2.8 4.2 3.1 4.5 3.2 4.8 3.2 4.9 3.1 5.1 2.9
56 3.9 3.0 4.6 3.3 5.3 3.6 5.6 3.7 5.9 3.8 6.2 3.7 6.2 3.4
71 4.9 3.9 5.8 4.3 6.7 4.7 7.1 4.9 7.5 4.8 7.8 4.6 7.8 4.3
80 5.5 4.4 6.6 4.9 7.5 5.3 8.0 5.5 8.4 5.5 8.8 5.2 8.8 4.8
90 6.2 5.3 7.3 5.8 8.4 6.3 9.0 6.4 9.6 6.5 9.9 6.1 9.9 5.7
112 7.7 6.4 9.1 7.1 10.5 7.7 11.2 7.8 11.9 8.1 12.5 7.8 12.5 7.4
140 9.7 7.8 11.3 8.6 13.2 9.6 14.0 9.8 14.8 9.8 15.7 9.7 15.4 8.8
Abbreviations:
TC: Total capacity (kW); SHC: Sensible heat capacity (kW)
Table 1-6.3: Selected indoor units
Room A Room B Room C Room D
Peak heat load(kW) 10.6 10.7 5.1 5.1
Selected indoor unit KPDF-140 DN4.0 KPDF-140 DN4.0 KPDF-56 DN4.0 KPDF-56 DN4.0
Corrected TC(kW) 13.2 13.2 5.3 5.3
Room E Room F Room G Room H
Peakheat load(kW) 9.1 9.0 4.2 4.2
Selected indoor unit KPDF-112 DN4.0 KPDF-112 DN4.0 KPDF-56 DN4.0 KPDF-56 DN4.0
Corrected TC(kW) 10.5 10.5 4.2 4.2
Step 3: Select outdoor units
▪Determine the required total heat load from the indoor units to the outdoor units based on either the sum of the peak
loads of each room or the system peak load. In this example, it is determined based on the system peak load. Therefore,
the required heat load is 50.7kW.
▪Provisionally select outdoor units using the sum of the capacity indexes (CIs) of the selected indoor units (as shown in
Table 1-6.4), ensuring that the combination ratio is between 50% and 130%. Refer to Table 1-6.5. As the sum of CIs of
the indoor units is 706, outdoor units from 20HP to 50HP are potentially suitable. Start from the smallest, which is the
20HP unit.
Table 1-6.4: Sum of indoor unit capacity indexes
Model Capacity Index No. of units
KPDF-140 DN4.0 140 2
KPDF-112 DN4.0 112 2
KPDF-56 DN4.0 56 2
KPDF-56 DN4.0 45 2
Sum of CIs 706

Amazon V
Part 1 - General Information
13
Table 1-6.5: Extract from Table 1-5.2 Combinations of Indoor and outdoor units
Outdoor unit capacity Sum of capacity indexes of
connected indoor units (standard
indoor units only)
Maximum number of
connected indoor units
kW HP Capacity
index
50.0 18 500 250 to 750 29
56.0 20 560 280 to 840 33
59.0 22 590 295 to 885 36
67.0 24 670 335 to 1005 39
73.0 26 730 365 to 1095 43
75.5 28 755 392.5 to 1132.5 46
85.0 30 850 425 to 1275 50
85.0 32 850 425 to 1275 53
92.5 34 925 462.5 to 1387.5 56
99.0 36 990 495 to 1485 59
104.0 38 1040 520 to 1560 63
109.0 40 1090 545 to 1635
64
115.0 42 1150 575 to 1725
118.0 44 1180 590 to 1770
126.0 46 1260 630 to 1890
132.0 48 1320 660 to 1980
134.5 50 1345 672.5 to 2017.5
146.0 52 1460 730 to 2190
▪The number of connected indoor units is 8 and the maximum number of connected indoor units on the 20HP outdoor
unit is 33, so the number of connected indoor units is within the limitation.
▪Calculate the corrected capacity of the outdoor units:
a) The sum of the indoor unit CIs is706 andthe CI of the 20HP outdoor unit (K2F-560 DN5S)is 560, so the combination
ratio is 706 / 560 = 126%.
b) Using the outdoor units’cooling capacity table, interpolate to obtain the capacity (“B”) corrected for outdoor air
temperature, indoorair temperature, and combination ratio.Refer to Tables 1-6.6 and 1-6.7.
Table 1-6.6: Extract from Table 2-8.7 K2F-560 DN5S cooling
capacity
Table 1-6.7: Cooling capacity calculated by interpolation
CR
Outdoor
air temp.
(°C DB)
Indoor air temp.
(°C DB / °C WB)
CR
Outdoor
air temp.
(°C DB)
Indoor air temp.
(°C DB / °C WB)
25.8 / 18.0 25.8 / 18.0
TC PI TC PI
kW kW kW kW
130%
31 60.0 14.25
130%33 59.2 14.77 33 59.2 14.77
35 58.2 15.32 B = 58.81
120%
31 59.0 14.16
120%
33 58.2 14.69 33 58.2 14.69
35 57.2 15.22
Notes:
1. 58.2 + (59.2 – 58.2) × (126 – 120) / (130 – 120) = 58.8.

Amazon V
14
Kaysun Amazon V Engineering Data Book
c) Find the correction factor for piping length and level difference (“K1”)
Figure 1-6.3: V6rate of change in cooling capacity
90
-90
-100
-110
80
-80
70
-70
60
-60
50
-50
40
-40
30
-30
20
-20
10
10
1.0
0.97
0.95
0.92
0.90
0.87
0.85
0.84
0.81 0.80 0.78 0.78 0.77 0.76
1.0
0.97
0.95
0.92
0.90
0.87
0.85
0.84
0.81 0.80 0.78 0.78 0.77
20 30 40 50 60 70 80
K1 = 0.898
90 100 110 120 130 140 150 160 170 180 190 200
-10
0
0
Notes:
1. The horizontal axis shows equivalent length of piping between farthest indoor unit and first
outdoor branch joint; the vertical axis shows the largest level difference between indoor unit
and outdoor unit. For level differences, positive values indicate that the outdoor unit is above
the indoor unit, negative values indicate that the outdoor unit is below the indoor unit.
d) Calculate the corrected capacity of K2F-560 DN5S (“C”) by using K1:
C = B × K1 = 58.8× 0.898 = 52.8kW
▪The corrected capacity 52.8kW is larger than required total heat load 50.7kW, so selection is complete. (In the event
that the corrected capacity is lower than the required total heat load, Step 3 should be repeated from the point where
the outdoor unit capacity is provisionally selected.)

Amazon V
Part 2 - Outdoor Unit Engineering Data
15
Part 2
Outdoor Unit
Engineering Data
1 Specifications ........................................................................16
2 Dimensions ...........................................................................19
3 Installation Space Requirements.............................................23
4 Piping Diagrams.....................................................................24
5 Wiring Diagrams ....................................................................30
6 Electrical Characteristics ........................................................32
7 Functional Components and Safety Devices.............................33
8 Capacity Tables......................................................................34
9 Operating Limits ..................................................................140
10 Sound Levels .......................................................................141
11 Accessories .........................................................................143

Amazon V
16
Kaysun Amazon V Engineering Data Book
1 Specifications
8-14HP
Table 2-1.1: 8-14HP specifications
HP 8 10 12 14
Model name K2F-252 DN5S K2F-280 DN5S K2F-335 DN5S K2F-400 DN5S
Power supply V/Ph/Hz 380-415/3/50
Cooling1
Capacity kW 25.2 28.0 33.5 40.0
Power input kW 8.46 10.68 13.55 15.37
EER 2.98 2.62 2.47 2.60
Heang2(rated)
Capacity kW 25.2 28.0 33.5 40.0
Power input kW 6.37 7.38 9.78 11.3
COP 3.27 3.96 3.79 3.43 3.54
Heang2(max)
Capacity kW 27.0 31.5 37.5 45.0
Power input kW 7.13 8.83 11.72 13.63
COP 3.79 3.57 3.20 3.30
SEER 6.79 6.44 6.07 6.31
ηs,c %268.7 254.4 239.8 249.3
SCOP 4.02 4.10 4.22 3.81
ηs,h %157.8 160.9 165.7 149.5
Connected
indoor unit
Total capacity 50-150% of outdoor unit capacity
Maximum quanty 13 16 20 23
Compressor
Type DC inverter
Quanty 1
Oil type FV68H
Start-up method So start
Fan
Type Propeller
Motor type DC
Quanty 1
Motor output kW 0.56 0.56 0.56 0.92
Airow rate m3/h 11000 11000 11000 13000
Drive type Direct
Refrigerant
Type R410A
Factory charge kg 13 13 17 17
Pipe
connecons3
Liquid pipe mm Φ12.7 Φ15.9 Φ15.9
Gas pipe mm Φ25.4 Φ28.6 Φ31.8
Sound pressure level4dB(A) 58 58 60 62
Sound power level dB(A) 83 84 85 86
Net dimensions (W×H×D) mm 990×1635×790 1340×1635×850
Packed dimensions (W×H×D) mm 1090×1805×860 1405×1805×910
Net weight kg 227 277
Gross weight kg 242 304
Ambient temp.
operaon range
Cooling oC-5 ~ 48
Heang oC-25 ~ 24
Notes:
1. Indoor air temperature 27°C DB, 19°C WB; outdoor air temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor air temperature 20°C DB; outdoor air temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Diameters given are those of the unit's stop valve.
4. Sound pressure level is measured at a position 1m in front of the unit and 1.3m above the floor in a semi-anechoic chamber.

Amazon V
Part 2 - Outdoor Unit Engineering Data
17
16-22HP
Table 2-1.2: 16-22HP specifications
HP 16 18 20 22
Model name K2F-450 DN5S K2F-500 DN5S K2F-560 DN5S K2F-615 DN5S
Power supply V/Ph/Hz 380-415/3/50
Cooling1
Capacity kW 45.0 50.0 56.0 59.0
Power input kW 20.96 28.09 34.22 35.41
EER 2.15 1.78 1.64 1.67
Heang2(rated)
Capacity kW 45.0 50.0 56.0 59.0
Power input kW 13.78 14.92 15.98 19.57
COP 3.27 3.27 3.35 3.50 3.01
Heang2(max)
Capacity kW 50.0 56.0 63.0 66.2
Power input kW 16.58 18.02 19.21 23.22
COP 3.02 3.11 3.28 2.85
SEER 5.58 5.43 5.38 5.07
ηs,c %220.3 214.2 212.2 199.9
SCOP 4.06 3.95 4.31 4.42
ηs,h %159.4 155.0 169.5 173.7
Connected
indoor unit
Total capacity 50-150% of outdoor unit capacity
Maximum quanty 26 29 33 36
Compressor
Type DC inverter
Quanty 1 2
Oil type FV68H
Start-up method So start
Fan
Type Propeller
Motor type DC
Quanty 1 2
Motor output kW 0.92 0.92 0.56×2 0.56×2
Airow rate m3/h 13000 13000 17000 17000
Drive type Direct
Refrigerant
Type R410A
Factory charge kg 13 13 17 17
Pipe
connecons3
Liquid pipe mm Φ15.9 Φ19.1
Gas pipe mm Φ31.8 Φ31.8
Sound pressure level4dB(A) 65 66
Sound power level dB(A) 86 91 89 89
Net dimensions (W×H×D) mm 1340×1635×850 1340×1635×825
Packed dimensions (W×H×D) mm 1405×1805×910
Net weight kg 277 295 344 344
Gross weight kg 304 322 364 364
Ambient temp.
operaon range
Cooling oC-5 ~ 48
Heang oC-25 ~ 24
Notes:
1. Indoor air temperature 27°C DB, 19°C WB; outdoor air temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor air temperature 20°C DB; outdoor air temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Diameters given are those of the unit's stop valve.
4. Sound pressure level is measured at a position 1m in front of the unit and 1.3m above the floor in a semi-anechoic chamber.

Amazon V
18
Kaysun Amazon V Engineering Data Book
24-32HP
Table 2-1.3: 24-32HP specifications
HP 24 26 28 30 32
Model name K2F-670 DN5S K2F-730 DN5S K2F-785 DN5S K2F-850 DN5S K2F-900 DN5S
Power supply V/Ph/Hz 380-415/3/50
Cooling1
Capacity kW 67.0 73.0 75.50 85.00 85.00
Power input kW 36.71 34.63 37.27 44.88 44.88
EER 1.83 2.11 2.03 1.89 1.89
Heang2(rat-
ed)
Capacity kW 67.0 73.0 75.50 85.00 90.00
Power input kW 20.88 21.53 24.04 23 25.68
COP 3.27 3.21 3.39 3.14 3.70 3.50
Heang2(max)
Capacity kW 75.0 81.5 84.2 95.0 100.0
Power input kW 25.26 25.74 29.41 27.77 30.60
COP 2.97 3.17 2.86 3.42 3.27
SEER 5.37 5.77 5.43 5.15 5.15
ηs,c %211.8 227.9 214.2 202.9 202.9
SCOP 4.36 4.14 4.45 4.08 4.08
ηs,h %171.4 162.4 175.1 160.2 160.2
Connected
indoor unit
Total capacity 50-150% of outdoor unit capacity
Maximum quanty 39 43 46 50 53
Compressor
Type DC inverter
Quanty 2
Oil type FV68H
Start-up method So start
Fan
Type Propeller
Motor type DC
Quanty 2
Motor output kW 0.92×2 0.92×2 0.92×2 0.92×2 0.92×2
Airow rate m3/h 25000 25000 25000 24000 24000
Drive type Direct
Refrigerant
Type R410A
Factory charge kg 22 22 22 25 25
Pipe
connecons3
Liquid pipe mm Φ19.1 Φ22.2 Φ22.2
Gas pipe mm Φ31.8 Φ31.8 Φ38.1
Sound pressure level4dB(A) 67 68
Sound power level dB(A) 89 93
Net dimensions (W×H×D) mm 1730×1830×850
Packed dimensions (W×H×D) mm 1800×2000×910
Net weight kg 407 429 475
Gross weight kg 430 452 507
Ambient temp.
operaon
range
Cooling oC-5 ~ 48
Heang oC-25 ~ 24
Notes:
1. Indoor air temperature 27°C DB, 19°C WB; outdoor air temperature 35°C DB; equivalent refrigerant piping length 7.5m with zero level difference.
2. Indoor air temperature 20°C DB; outdoor air temperature 7°C DB, 6°C WB; equivalent refrigerant piping length 7.5m with zero level difference.
3. Diameters given are those of the unit's stop valve.
4. Sound pressure level is measured at a position 1m in front of the unit and 1.3m above the floor in a semi-anechoic chamber.

Amazon V
Part 2 - Outdoor Unit Engineering Data
19
2 Dimensions
2.1 Single Units
8/10/12HP
Figure 2-2.1: 8/10/12 dimensions (unit: mm)
1635
990
790
R
Checkport (usedtomeasure
system pressureandcharge
additionalrefrigerant in
maintenance process)
Liquid pipe
connection
port (ΦA)
Gas pipe
connection
port (ΦB)
Detail R
77
63
50
Table 2-2.1: 8/10/12HP connection piping diameter (unit: mm)
Size 8HP 10HP 12HP
AΦ12.7 Φ12.7 Φ15.9
BΦ25.4 Φ25.4 Φ28.6
