KB GLOBAL T62202b User manual

Instruction manual shop crane T62202b
Authorized representative:
KB GLOBAL sp z o.o.
Grunwaldzka 25 street
785-438 Bydgoszcz
Tel. [phone]
Please read the manual carefully, safe operating requirements,
warnings and notes.

Shop crane is to be used for removal, installation and transport in the abandoned
position of engines of passenger cars and small vans(trucks) Should not be used for
lifting belts. Once removed, the load must be immediately transferred to a suitable
location, for example, the engine repair station.
2.Basic technical data
Load capacity (kg)
500-2000
medical history
58-95
height
2380
medical history
56-93
lifting (mm)
Crane height
1450
Packaging (mm)
1# 1360*315*160
(mm)
2# 730*585*90
Length (mm)
1550
3.Safety instructions
1.Keep the workplace clean. Disorder promotes accidents.
2.Observe the working conditions of the area. Do not use the machine in wet or
damp areas. Do not expose to rain. The workplace should be well lit.
3.Keep your children away. Children should never be in the workplace.
4.Unused devices. When not in use, the tools must be stored in a dry place.
Always close the tools and keep out of reach of children.
5.Use the right tool for your task. There are some steps for which this tool
was designed. Do not modify this tool and do not use this tool for purposes for
which it is not intended.
6.Dress appropriately. Do not wear loose clothing or jewellery as they may be
pulled by moving parts. Protective clothing and safety shoes are indicated at work.
Wear a headdress. Wear thick work gloves at work.
7.Do not lean out. Maintain a stable position in all conditions.
8.Take care of your device. Keep your device clean for better and safer
operation. Follow the instructions for maintenance and replacement of the
attachments.
9. Be vigilant. Do not use any tools when you are tired.

10.Checkfor damaged parts. Before using any tool, any part that has signs of
damage should be carefully checked to determine that it will work properly and
perform its function.
11. Spare parts and accessories When servicing, use only original spare parts.
Use only accessories intended for use with this tool.
12.Do not use the device under the influence of alcohol or drugs .
13.Never exceed the maximum load capacity. Watch out for dynamic charging!
Sudden movements and hesitation of the object being lifted can cause a temporary
overload of the lever, which can lead to damage to the product, damage to the load, serious
injury or death.
14. maintenance. For your own safety, service and maintenance should be
performed regularly by a qualified technician.
15.Cannot be used at very high altitudes

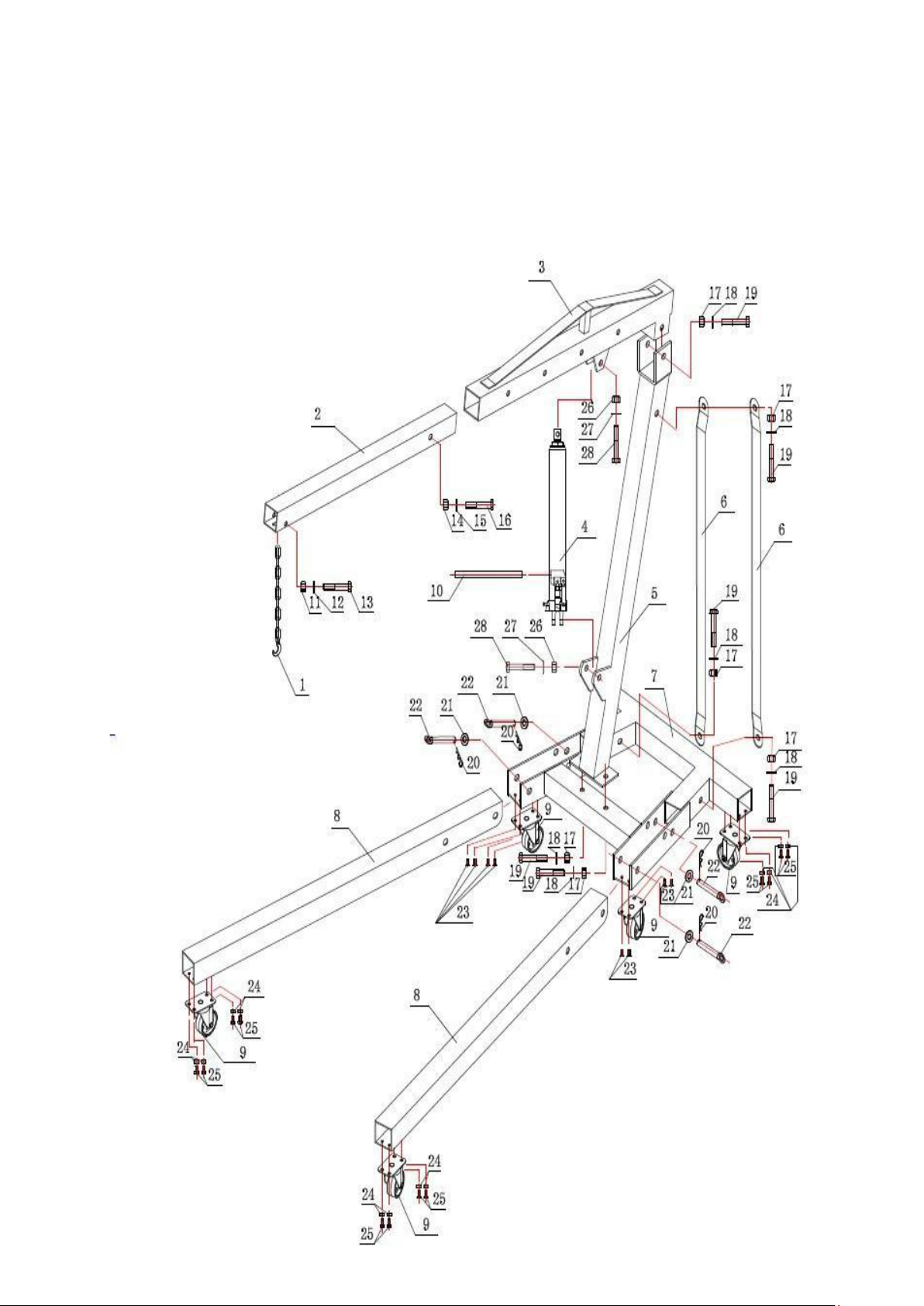

4.Main design

Part No.
name
Pcs
Part No.
name
Pcs
1
rights
1
16
screw
1
2
beam
1
17
Nut
8
(extension)
3
Main Boom
1
18
washer
8
4
Lewarek
1
19
screw
8
5
Support beam
1
20
Steel cot
4
6
Buckle support
2
21
Round pin
4
7
base
1
22
Nut
8
8
Legs of the base
2
23
screw
8
9
Wheels
6
24
Nut
8
10
lever
1
25
washer
8
11
Nut
1
26
screw
8
12
washer
1
27
Nut
1
13
screw
1
28
washer
2
14
Nut
1
29
screw
1
15
washer
1
5.Operating instructions
1.To lift the boom frame, close the drain valve on the hydraulic assembly. Then,
using the lever, increase the oil pressure in the system until the desired height is
obtained.
2. To lengthen the boom main frame, remove the screw and locking nut. Then slide the
movable beam from the main arm to the desired distance and place it in such a position
that the holes in the beam and the main arm are centered. Lock the main frame and the
retractable beam together by placing the screw and locking nut in the previously
centered holes.

3. Remark!!! Do not exceed the maximum load capacity of this device!!!
Exceeding the maximum load capacity can cause: damage to the device, damage
to the lifted object, INJURY, DEATH.
REMEMBER THAT EXTENDING THE MAIN ARM RESULTS IN A DECREASE IN
THE MAXIMUM !!!
4. Position the lever directly above the raised object to minimize the risk of the
device losing balance.
5. remark!!! Never enter the raised object!!! It is possible for the device to lose
balance, break the chain of attachment or other damage to the device which may
cause the object to collapse. When transporting an object with a lever, do not allow
the lifted element to swing as this increases the risk of the device losing balance.
6. After placing the lever over the object, unscrew the trigger valve so that the hook
can be hooked to the object. Check that the hook protection is closed after
attaching the item. Close the drain valve, then use the lever to increase the
pressure of the hydraulic fluid until the lifted object is at the desired height. Move
the lever carefully with the raised element to the final resting place of the lifted
element. After reaching the target and preparing a stable stand for the raised
element, lower the object gently and slightly releasing the drain valve.
7.Make sure that the item is firmly resting on the prepared position then release the
mounting hook. The not used lever should be in a place not accessible to children
and bystanders. This place should be dry and clean, and only persons authorized to
use the lever can access it.
6. Maintenance
1.Check all mounts before each use and make sure they are safe from using the
crane.
2.Make sure the hook and chain are clean from dirt, grease or debris.
3.If the crane is not working properly, the air may be in the hydraulic
system. Then follow the instructions below to remove the air.
a)make sure the crane is completely lowered
b) remove the oil filler stopper and refill the hydraulic oil
c) lift the crane to its maximum height
d) unscrew wiping the drain valve and press the main frame to be in the minimum
position.
e) with hydraulic fluid and place the filler stopper. Repeat if necessary. 4.Do use a
damp cloth and a gentle detergent for cleaning. Do not use solvents or other
flammable detergents.
5.If the crane's performance begins to decrease, check the hydraulic oil level in
the oil tank, if necessary, refill the oil.
