G E N E R A L O P E R A T I N G I N S T R U C T I O N
Read these instructions before use and save them for future reference.
Let the unit rest and unplugged for 24 hours before use.
 Remove all external and internal packaging materials. Be sure that all parts have been
included before discarding any packaging materials. You may want to keep the
packaging materials for use at a later date.
 Upon receipt and inspection of the unit, the power cord must be replaced if it is
damaged.
 Contact customer service at 800-433-9938 or inf[email protected]m
SAFETY INSTRUCTIONS
Electrical Safety
DANGER Improper use of the power cord plug can result in the risk of
electrical shock, property damage and personal injury or death.

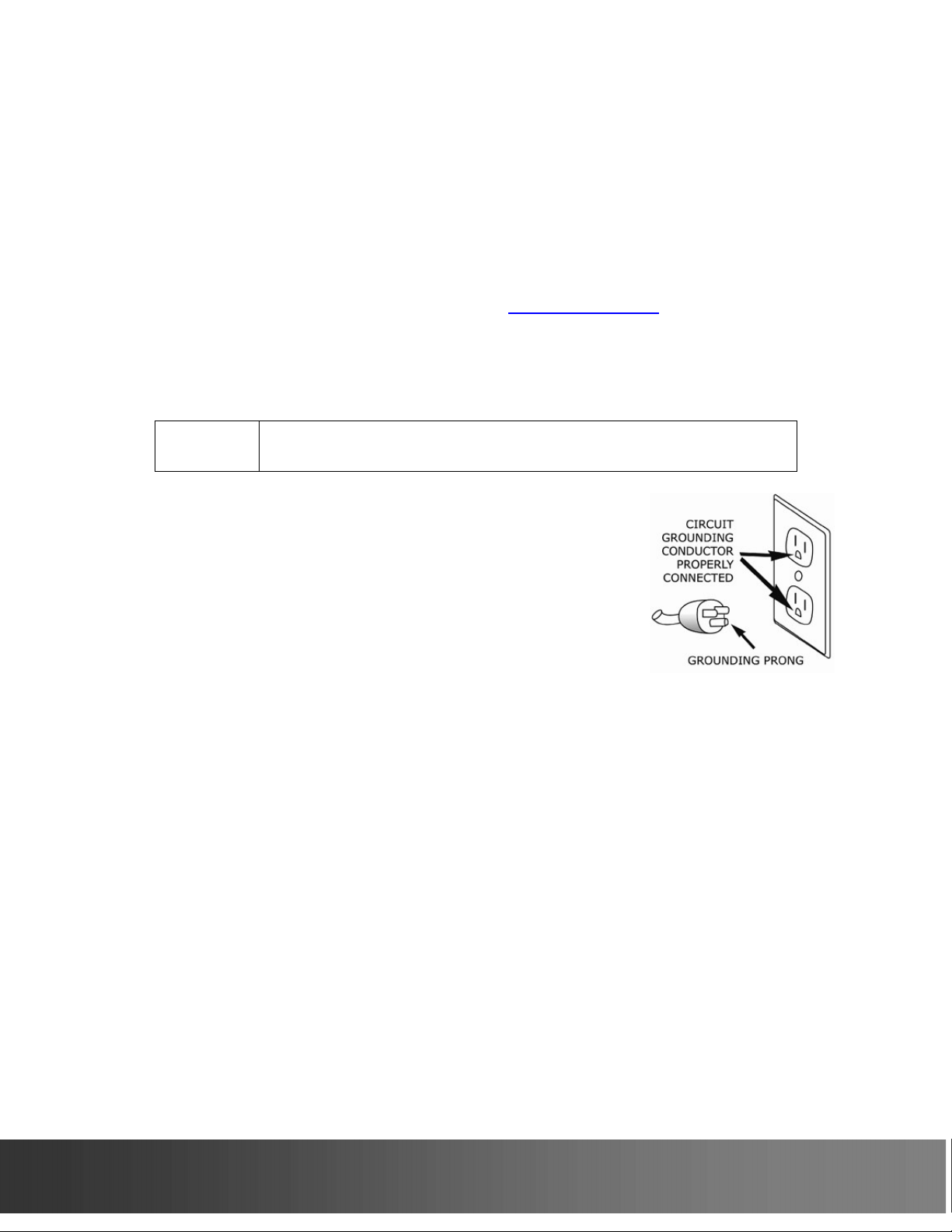

 This appliance is equipped with a 3-prong grounding-type plug,
and shall be plugged into a properly connected grounding-
type outlet.
 It is required to use a 3–prong grounding-type electrical outlet
properly grounded in accordance with the National Electrical
Code and local codes and ordinances.
 A separate adequately fused and grounded circuit shall be
used for this appliance. The voltage rating must match the
rating label on the unit.
 Do not use an adapter or an extension cord.
 Do not under any circumstances cut or remove the third ground prong from the power
cord.
 Never unplug the appliance by pulling the power cord. To disconnect the unit, always
grip the plug firmly and pull straight out from the wall outlet.
 Do not operate the appliance if the appliance housing is removed or damaged.
 Do not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing shall be referred to a qualified
technician.
 To protect against electric shock, do not immerse appliance, plug or cord into water or
other liquids.
Child Safety
 Exercise caution and use reasonable supervision when appliance is used near children.
Never allow children to operate, play with or crawl inside the unit. Keep packing
materials away from children.
 Keep fingers out of pinch point areas and be careful when closing doors if children are
around.

3
5 9 8 3 S m i t h w a y S t
C o m m e r c e , C A 9 0 0 4 0 U S A
Hot Water Safety
DANGER This unit can dispense hot water. Hot water can burn your hands
and body and cause serious injury.
 To avoid hot water spilling, always put a cup under the dispenser before you press the
button to dispense hot water.
Cleaning Safety
DANGER To reduce the risk of injury when cleaning your appliance, follow
these basic precautions.
 Unplug the appliance or disconnect power before performing any maintenance or
cleaning.
 Do not clean appliance with flammable fluids. Do not store or use gasoline or other
flammable vapors or liquids in the vicinity of this or any other unit. The fumes can
create a fire hazard or explosion.
 Do not use solvent-based cleaning agents or abrasives on the interior or exterior of the
appliance. These cleaners may damage or discolor the appliance.
 Do not operate the appliance with wet hands, while standing on a wet surface or while
standing in water.
Moving Safety
DANGER To reduce the risk of injury when moving your appliance, follow
these basic precautions.
 Exercise caution when moving and installing the appliance. The unit is heavy, to
prevent strain or injury, it may require two or more people to move the unit.
 Remove all ice, empty water and secure all loose accessories before you transport the
unit. Use protective materials to prevent the glass shelves from being damaged.
Disposing Safety
DANGER
When disposing of refrigeration appliances, special handling is
often required. It is the consumer’s responsibility to comply with
federal and local regulations when disposing of this product.
 Keep the carton, plastic bags and any exterior wrapping materials in a safe place
where children cannot reach them. If you don’t need these materials, destroy or recycle
them. These items may cause suffocation to children.
 To avoid entrapment and suffocation, before you discard this appliance, remove the
doors and leave the shelves in place, so that children may not climb inside.

4
i n f o @ k b g o o d i c e . c o m
4
FEATURES & SPECIFICATIONS
Overview
This is a great appliance to help you prepare hot or cold beverages and drinks. The
countertop ice and water dispenser is an innovative design that combines cubed and
crushed ice with hot and room temp water in a single compact product. The freezer keeps
10 lbs. of crescent ice cold and available anytime. POU filtered water system creates the
flexibility to place it anywhere in the office, break room, hotel and home. Stainless or black
doors with silver accents give a sleek and modern appearance.
Features and Parts
1. Freezer Door
2. Ice maker (located inside)
3. Ice Bin (located inside)
4. Display Panel
5. Ice and Water Dispenser
6. Trip Tray
7. Water Line Connector
8. Water Release Drain
9. Condenser Fan
10. Power Cord

5
5 9 8 3 S m i t h w a y S t
C o m m e r c e , C A 9 0 0 4 0 U S A
 The dispenser allows you to enjoy cubed or crushed ice and hot or iced water with the
touch of a button.
 The two-evaporator cooling system and the ice freezer keep ice from melting and
produce ice quicker.
 Hot-gas defrost system makes the unit frost-free and maintenance free.
 POU filtered water provides you with clean and great tasting water.
 Adjustable temperature hot water brings more precise to your hot favorite recipes.
 Touch control brings you the simplicity to select and dispense your preferred types of
ice or water.
 Blue display and bright LED lights make it easy to use anytime and attractive to display
anyplace.
 On/Off buttons save energy and give you the flexibility to use ice and hot water.
 Automatic alerts for water and filter will not allow you to run out of water or leave water
contaminated.
 Child safety design protects your children from burning.
Specifications and Dimensions
Model No FDFD10501
Ice Type Crescent Cubed and Crushed
Ice Production Capacity
(70°F Air/50°F Water) Crescent Ice 11 lbs. / 24 h
Ice Bin Capacity 10 lbs.
Defrost Type Automatic
Water Type Hot and Room Temp
Hot Water Temperature Adjustable 122~192 °F
Hot Water Capacity 1.8 L
Operating Temperature for Ice 50~110 °F
Water Supply POU Filtered Water
Electrical Rating 115V/60HZ/5.6A
Unit Dimensions 18-1/8”W x 22-3/8”D x 31-1/2”H
Depth w/ Door Open 90 Degree 39-3/8”
Net Weight 90 lbs.

6
i n f o @ k b g o o d i c e . c o m
6
CONTROL & DISPENSER
DANGER Hot water can burn your hands and body and cause serious injury.
CAUTION Do not store food and drink in the ice freezer.
NOTE For the first time use, allow 24 hours to produce the first batch of
ice. Discard the first three batches of ice produced.
NOTE
For the first time use or after connecting a filter water source or
after replacing the water filters, flush the water system by
dispensing several cups of water, then discarding them. Repeat this
until water is clear and tasting good.
Indicator and Display Functions
Water heater indicator
Low water level indicator
Hot water temperature display

7
5 9 8 3 S m i t h w a y S t
C o m m e r c e , C A 9 0 0 4 0 U S A
Use of the Dispenser
 Once the unit is powered, the ice and hot water functions will be turned on and
“ON” green LEDs will light accordingly.
 The water inlet valve opens immediately to let water flow into the internal water
reservoir.
 Once the internal water reservoir is full, the ice maker and water heater will start
working immediately. If the water reservoir is not filled with water within 4 minutes,
the “Low” indicator will appear, and the water inlet valve, water heater, ice maker
and water dispensing will stop working.
 While the water heater is on, the “Heating” indicator will appear and the water
temperature will be displayed.
 The cooling system will start working in 5 minutes. The cooling system will stop
working automatically when ice is being ejected.
Adjusting the hot water temperature
Hot water temperature setting buttons
 Press “+” or “-” button once to enter temperature setting mode, the
temperature display will start flashing and show the current setting.
 Press “+” or “-” button once to adjust temperature in 1 degree increment or
decrement, or press and hold “+” or “-” button until the proper temperature is
displayed.
 Once “+” or “-” button is released for more than 3 seconds, the new setting will be
saved and the current hot water temperature will be displayed.
Turning on/off the ice maker function
Ice maker function button
 Press and hold the “Ice making” button for more than 3 seconds to turn the ice
maker off or on, the “OFF” red LED or the “ON” green LED will light.
Turning on/off the hot water function
NOTE Normally the hot water function should be turned off to save energy.
Hot water function button
 Press and hold the “Water heating” button for more than 3 seconds to turn the hot
water off or on, the “OFF” red LED or the “ON” green LED will light.

8
i n f o @ k b g o o d i c e . c o m
8
Turning on/off the light
Light button
 Press the “Light” button once to turn the light on. The light will automatically turn off
in 5 minutes; press the button again to turn it off.
Dispensing hot water
NOTE
If the “Hot” button is pressed without unlocking, continuous short
beeps will be heard. The “Hot” button will be locked automatically if it
has been pressed for more than 40 seconds or once the button is
released.
Hot water dispensing button
Hot water unlocking button
 Place a cup under the water dispenser.
 Press the “Unlock” button once. You will hear a long beep indicating the “Hot”
button is unlocked.
 Then press and hold “Hot” button within 5 seconds to dispense hot water.
Dispensing room temp water
NOTE Water will stop dispensing automatically if the “Ambient” button has
been pressed for more than 40 seconds.
Room temp water dispensing button
 Place a cup under the water dispenser.
 Press and hold the “Ambient” button to dispense room temp water.
Dispensing ice
NOTE
Ice
does not dispense
while the freezer door is open.
If ice cubes haven’t been used for days, they may freeze together
and unable to dispense. If this happens, pull out the ice bin and
shake it, then push it in.

9
5 9 8 3 S m i t h w a y S t
C o m m e r c e , C A 9 0 0 4 0 U S A

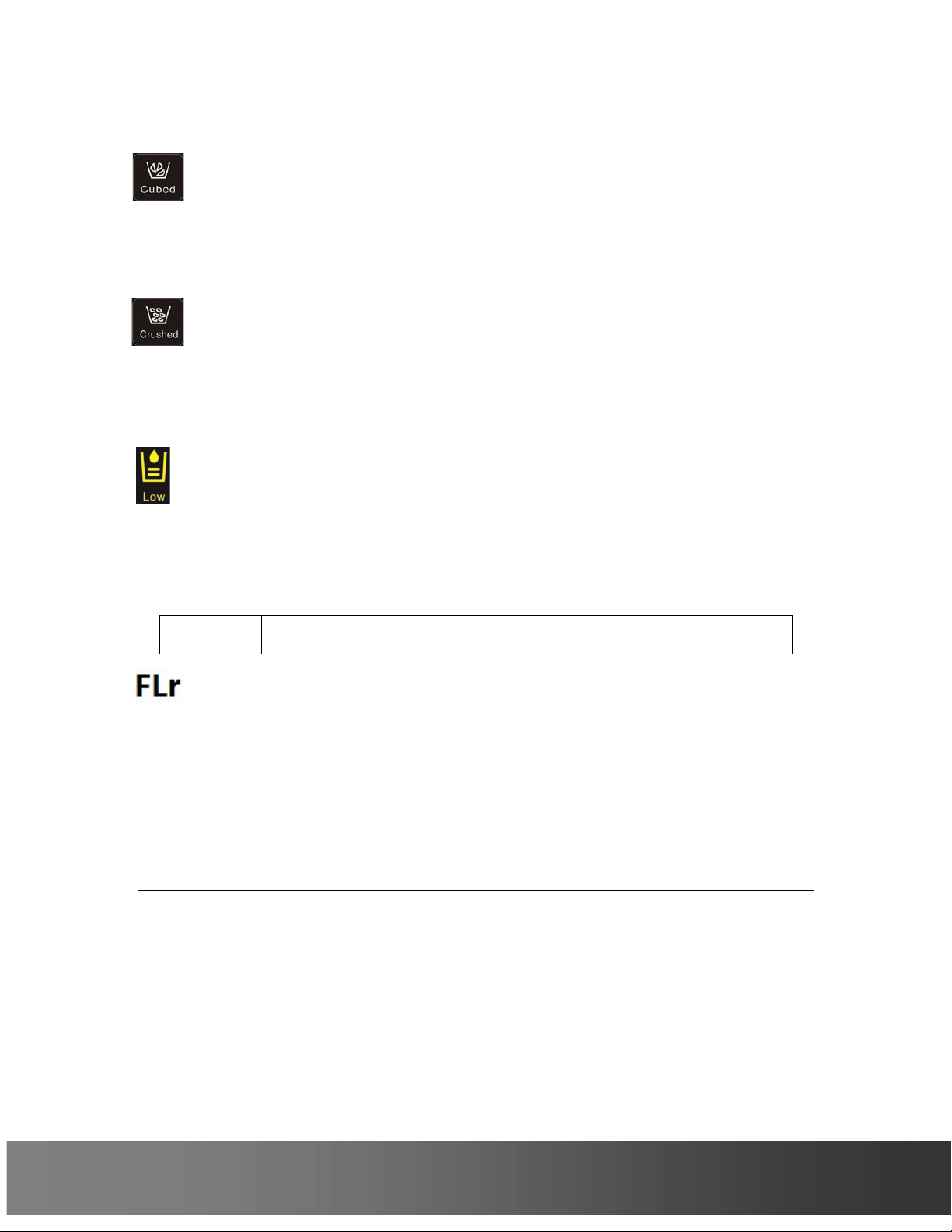

Dispensing cubed ice
Cubed ice dispensing button
 Place a cup under the ice dispenser.
 Press and hold the “Cubed” button to dispense cubed ice.
Dispensing crushed ice
Crushed ice dispensing button
 Place a cup under the ice dispenser.
 Press and hold the “Crushed” button to dispense crushed ice.
Resetting Water inlet valve
When “Low” indicator appears, the water inlet valve, water heater, icemaker and
water dispensing will stop working automatically.
 Activate the water inlet valve by pressing and holding “Light” button for more than 3
seconds until the “Low” indicator flashes.
Replacing water filters
CAUTION All water filters must be replaced at the same time.
The filters should be replaced at least once a year.
When “FLr” flashes, replace the water filters immediately.
 Reset the “FLr” status by pressing and holding “Light” and “+” buttons for more than
6 seconds until you hear a long beep and “FLr” disappears.
 Dispense several cups of water to flush the system until water is clear.
Turn off the cooling system
NOTE You may turn off the cooling system if you use only water dispenser.
Please remove all ice before you turn it off.
 Press and hold both “Light” and “-” buttons for more than 6 seconds until “OFF”
flashes.
 Press “Light” button within 10 seconds to stop flashing for confirmation.

10
i n f o @ k b g o o d i c e . c o m
1
0
DISPENSER CARE
DANGER Unplug the unit or disconnect power before performing any maintenance.
CAUTION
If ice cubes block the feeler arm, clear the ice cubes before you pull out
the ice bin.
Move the feeler arm up and keep it above the ice bin while you pull out
the ice bin. Otherwise the feeler arm may be damaged if it is obstructed
by the ice bin.
How to empty ice bin
 Use the instructions below to remove the ice bin when emptying ice or cleaning the
ice bin.
 Push the ice bin back until the auger is engaged in the auger coupler. If it is stuck,
rotate the auger 1/8 turn, then push it in again.
