Kedacom NVR2860E User manual

NVR2860E 快速安装指导
NVR2860E Installation Guide

工作环境
工作电源 AC 100 240V 50 60Hz ~ ~
温度 -10℃ ~55℃
湿度 10%~90%（无凝结）
大气压 70kPa~106kPa
前言一
安全说明二
感谢您购买我司产品，如对本公司产品有疑问或需要，请随时和我们联系。我们尽最大努力来保证
本手册信息的正确性，如因升级等原因发生信息修改，恕不另行通知。
获取最新文档请联系产品供应商。
请使用满足安全电压要求的电源。
如果设备工作不正常，请联系厂家或最近的服务中心。不要以任何方式随意拆卸或修改设备。
请不要将较重的物品摆放在NVR上，并防止设备从高处摔落或受强烈敲击。
避免将产品暴露在非用户手册所示的工作环境下使用 。
使用时不可让任何液体流入NVR。
当运送NVR时，请重新以出厂时的包装进行包装，或用同等品质的材质包装。
需要替换部件时，请事先与经销商联系，更换指定型号的部件，或与原部件具有相同特性的部件。
擅自使用其它部件进行替换，后果自负。
锂电池安全警告
设备内部使用的是锂电池，使用其他型号的电池可能会有爆炸危险。
更换电池时，请勿将旧电池掷入火中或与生活垃圾一起处理。
安装设备前，请先检查机房及四周的洁净度、防静电、防干扰、防雷击是否符合要求。若不符合，
请不要急于安装设备，以免对设备造成损害。
此内容（手册）的目的是确保用户正确使用本产品，以避免危险或财产损失。在使用产品之前，请
认真阅读此手册并妥善保存以备日后参考。如果用户因没有按照以下安全说明，致使设备不能正常
使用或损坏等情况，责任由用户承担。
1

洁净度
防静电
防干扰
防雷击
NVR2860E对机房内的灰尘含量及粒径要求如下表所示：
当静电超过一定限度时，会对设备产生一定的破坏作用。在与设备连接的通信网中，静电感应主要
来自两方面：一是室外高压输电线、雷电等外界电场，二是室内环境、地板材料、整机结构等内部
系统。因此，为防止静电的破坏，应保持：
设备及地板良好接地；
室内防尘；
温度、湿度条件适宜。
设备使用中可能的干扰源（无论是来自设备，或应用系统的外部与内部）都是以电容耦合、电感耦
合、电磁波辐射、公共阻抗（包括接地系统耦合）的传导方式对设备产生影响。因此，为有效抗干
扰，应做到：
供电系统采取有效的防电网干扰措施；
设备工作地最好不要与电力设备的接地装置或防雷接地装置合用，并尽可能保持远距离；
远离强功率无线电发射台、雷达发射台等高频大电流设备；
必要时采取电磁屏蔽的方法。
在雷击强度超过一定范围时可能对设备造成损害，为了有效防雷，应做到：
保证机箱外壳用接地线接地良好；
保证交流电源插座的中性点接地良好；
为增强电源的防雷击效果，可在电源的输入前端加入电源避雷器。
最大直径（um）
最大浓度（颗粒数/m³）
0.5 135
1.4×1077×1052.4×1051.3×105
【说明】 更多信息见附带光盘中的《NVR管理员指南》。
2

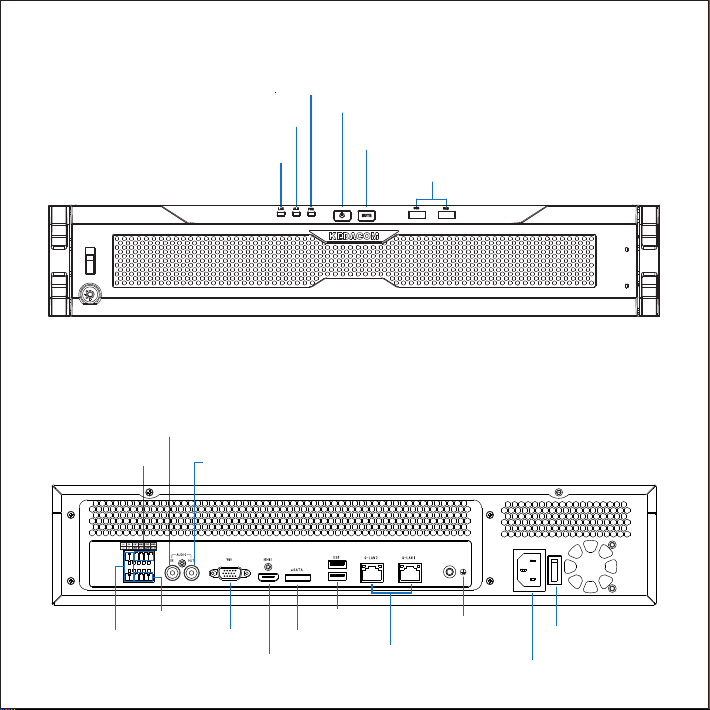

三产品外观
前面板
尺寸：88 mm x 443 mm x 561 mm
重量（不含硬盘）：12.5 kg
告警输入
音频输入
音频输出
LAN
网口灯，表示网络连接状态
ALM
告警灯，有告警时快闪
PWR
电源灯，开机后长亮 电源按钮
按一下开机；长按4秒关机
MUTE
关闭当前蜂鸣器报警
2xUSB接口
后面板
RS485串口
告警输出 USB接口
电源接口
电源开关
接地
网口100M/100M自适应
VGA视频接口 eSATA接口
HDMI接口
3

四安装设备
1.安装前检查
检查包装箱物品
开工必备
2.将NVR安装到机架上
在安装设备之前，请先检查包装箱中的设备及组件，确保实际物品与装箱清单相符且物品无损坏现
象。若发现问题，请及时与供应商或客服联系。
安装NVR，以下为必备组件：
NVR2860E网络录像机
电源线
产品光盘
网线
绿色端子台(一个六位，一个两位)
鼠标
机箱钥匙
硬盘盒部件
十字槽小沉头螺钉#6-32X6
安装前，请确保安装环境通风良好，并安装硬盘，硬盘安装方法见附录部分。
将NVR安装到机架上，必须要有托盘。
安装方法:
将两个挂耳分别用螺钉固定在设备的两侧,如下图所示.
1)
2)将设备水平放在托盘上，使两侧挂耳的螺孔与机架上的螺孔重合，然后用螺钉固定。
4

eSATA接口
2×USB接口
电源接口
AC 100-240V
60-50Hz 7-3.5A
2×网口
100M/1000M自适应
G-LAN1默认IP：192.168.1.100
G-LAN2默认IP：2.0.0.1
2×告警输出
2×RS485
AUDIO IN AUDIO OUT
音频输入 音频输出
监控键盘
PICKUP
KEDACOM
硬盘
网络
eSATAeSATA
电源开关
接地
HDMI接口
高清显示器
VGA接口
显示器
2×告警输入
3.线缆连接
设备摆放好后，开始线缆连接。
按照如下图所示，进行线缆连接。
托盘
5

连接完成后，给设备上电，开机。

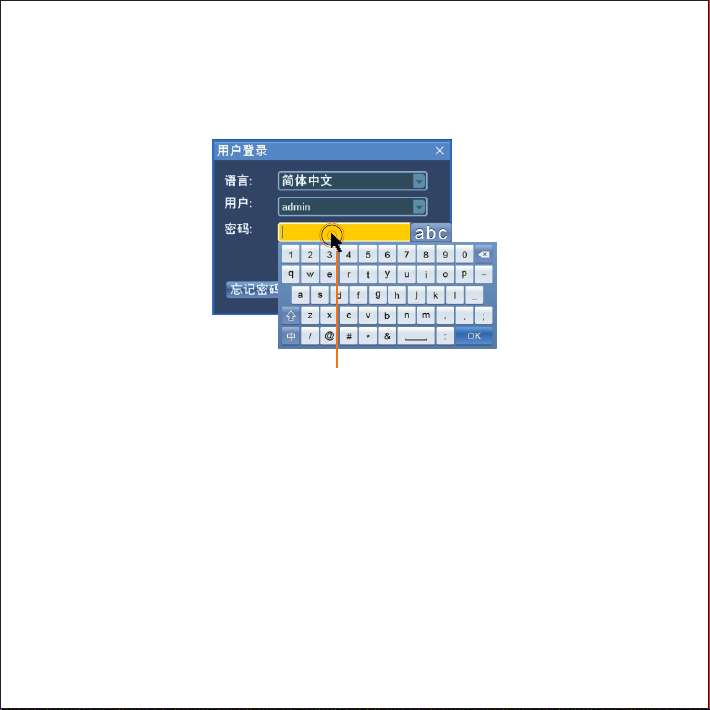

开机后自动进入画面浏览并录像。点击任意选项，系统将弹出用户登录对话框，如图。
默认用户名：admin。
初始密码：admin123。
登陆设备后，可通过图形界面(GUI)对NVR进行配置。具体配置方法可参考随机光盘手册《NVR管
理员指南》。
用户也可选择在PC机上通过NVRStation进行初始配置，配置方法可参考随机光盘手册
《NVRStation操作手册》和客户端帮助文档。
4.上电、开机
点击弹出软键盘
6

附 硬盘安装方法
【说明】1）硬盘安装需将四颗螺丝都拧上，且四颗螺丝都拧紧；
2）建议使用兼容硬盘列表中推荐的硬盘型号，兼容硬盘列表见随机光盘手册。
1
2

MUTE
USB USB
LAN ALM PWR
将钥匙往里推，顺时针转动开锁 推动滑块，卸下保护盖，露出硬盘支架
盒盖开启后，向外
拉出硬盘盒 用四颗螺钉固定硬盘
4

3

按下按钮，硬盘盒盖自动弹开
1
2
3
45
67
8
推入硬盘盒，关上盒盖
5
6

盖上保护盖，上锁
1
23
45
67
8
7

本保修卡适用于您购买的本公司系列产品。
1.终身保质，免费保修期一年，如合同中有另行约定则以合同为准。
2.凡保修期内，由于本产品自身引起的故障，请与公司售后服务部联系。
3.保修时我们将使用您的保修卡信息，请认真填写。
4.以下情况，属于有偿保修范围：
-人为原因造成的设备故障
-因使用环境不符合本产品要求造成的故障
-因不可抗力造成的产品损坏
-无保修卡
-已过保修期
用户名称：
详细地址：
传真： 电话：
邮箱： 邮编：
产品名称：
产品型号：
购买日期：

Trademarks
Kedacom™, TrueSens™ and are registered trademarks of Suzhou Keda
Technology Co., Ltd. in China and various other countries. All other trademarks mentioned
in this document are the property of their respective holders.
Suzhou Keda Technology Co., Ltd.
131 Jinshan Road
New District, Suzhou, 215011
People's Republic of China
http://www.kedacom.com/en
Tel: [phone]
Fax: [phone]
© 2014 Suzhou Keda Technology Co., Ltd. All rights reserved.
Without the prior written permission of Suzhou Keda Technology Co., Ltd., any reproduction,
translation or retransmission of all or any part of this document for any purpose in either.
Notice
The information in this document is subject to change without notice. Every effort has been
made in the preparation of this document to ensure accuracy of the contents, but all
statements, information, and recommendations in this document do not constitute a warranty
of any kind,express or implied. Suzhou Keda Technology Co., Ltd. is not responsible for
printing or clerical errors electronic or mechanical form is not allowed.
™

About the NVR2860E
1 Product Introduction
2 Product Appearance
2.1 Front Panel
The NVR2860E is a turnkey solution for video surveillance and video recording. The
NVR2860E supports Open Network Video Interface Forum (ONVIF) and Real Time Streaming
Protocol (RTSP) interoperability standards. Additionally, the NVR2860E features native
integration to cameras and encoders from third party manufacturers, therefore making it an
open system.
The advanced system capabilities make the NVR2860E easy to use with functions like
Automatically Adding Devices and One-Click Partition and Formatting and meet various
customer needs with functions like Image Flip and Privacy Mask for every day security users to
advanced video surveillance users.
The NVR2860E works with the following management system and applications:
NVR Station: is a complete system for device management, video surveillance, and
video recording.
NVR Station Web: is a web-based application of the NVR Station.
Mobile NVR Client: is an iOS/Andriod-compatible mobile application of the NVR Station.
On the front panel of the NVR2860E, you can see the following items:
One LAN indicator
One ALM indicator
One PWR indicator
One PWR indicator
One power button
One mute button (used to mute the beeper)
Two USB ports

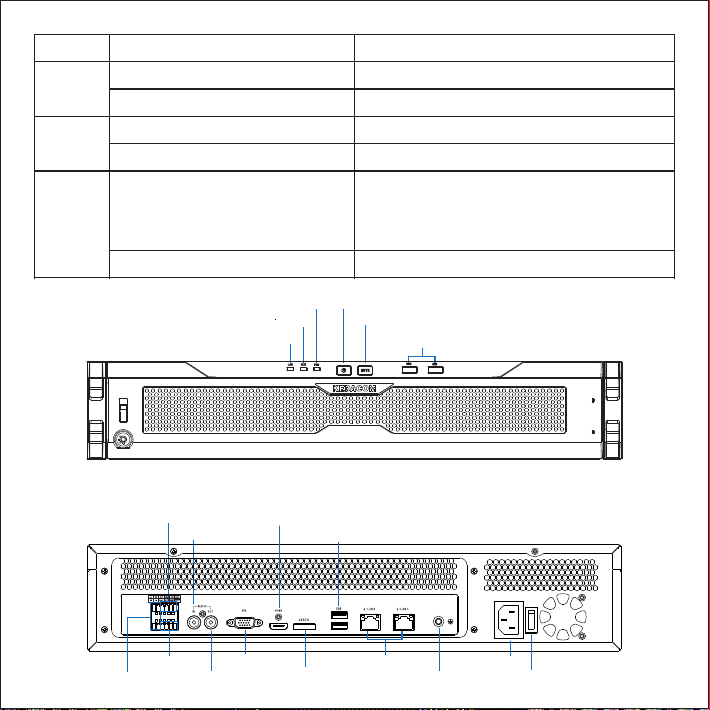

The following table helps you read the preceding indicators.
1

Indicator
LAN Green
Green
Off
Off
Off
Blinking red(0.25s on and 0.25s off)
ALM
PWR
State Description
The system is connected to the Internet.
The system is disconnected from the Internet.
No system alarm is triggered.
A system alarm is triggered.
When the system is just started, the indicator
will blink once.
W h e n t h e s y s t e m s t a r t s o p e r a t i n g , t h e
indicator is steady green.
The system is powered off or is rebooting.
The following figure shows the front panel of the NVR2860E.
USB ports
Mute button
Power button
PWR indicator
ALM indicator
LAN indicator
2.2 Rear Panel
The following figure shows the rear panel of the NVR2860E.
Alram input
Audio input
Audio output
RS-485
Alram output
USB ports
Power port
Power switch
Ground
Ethernet ports
VGA output
eSATA port
HDMI output
2

1.3×105
2.4×105
7×105
7
Particle Diameter Range
[0, 0.5]
[0.6,1]
[1.1,3.0]
[3.1,5.0]
Number of Particles per Cubic Meter
Installing the NVR2860E
1 Preparations
1 .1 System Specifications
1 .2 Equipment Cleanliness
The following table provides the mapping between the particle diameter range and number of
particles per cubic meter.
You must install the NVR2860E in an environment as free from dust and foreign conductive
material (such as metal flakes from construction activities) as is possible.
Ensure that the specifications of the NVR2860E are complied with. For example, the operating
temperature for the NVR2860E must be within the range of -10°C to 55°C.
For the physical specifications of the NVR2860E, see chapter 3 "Physical Specifications.”
1 .3 ESD
To reduce the effects of electrostatic discharge (ESD), you should observe the following
guidelines.
Wear a grounding wrist strap. If a grounding wrist strap is unavailable, touch an
unpainted metal surface on the appliance chassis periodically to neutralize any
static charge.
Keep components in their antistatic packaging until they are installed.
Avoid wearing clothing made of wool or synthetic materials.
Ensure that the NVR2860E is well grounded.
Keep the area around the NVR2860E clean, free of clutter, and well ventilated.
Ensure that the operating temperature and the relative humidity within the range
complying with the NVR2860E.
3
1.4×10

1 .4 EMI
2 Unpacking
Follow the following steps to unpack the system:
1) Inspect the package to make sure that it has not been damaged.
If you find damage, contact the local authorized Kedacom agent.
2) Open the package and check whether any item on the packing list is missing.
3)Take all items out of the package and check whether any item is in poor condition.
If you find damage, contact the local authorized Kedacom agent.
3 Installing Disks
The NVR2860E can be mounted on a 19-inch rack and it is 2U high. Before mounting the
NVR2860E on a 19-inch rack, you must install disks.
If you do not want to install a disk:
You cannot use the recording function.
When the NVR2860E starts operating and detects that no disk is installed, the beeper will go
off and an alarm will be generated. To clear the alarm, on the OSD of the NVR, choose Main
Menu > Alarm > Active Alarm, and then select the alarm and click Clear.
To shield electromagnetic interference (EMI), you should observe the following guidelines:
Keep the ground system of the NVR2860E away from that of the power supply system or
lightning protection system.
Place the NVR2860E away from high-frequency devices, such as radio or radar stations.
When necessary, deploy EMI shielding devices.
To install a disk:

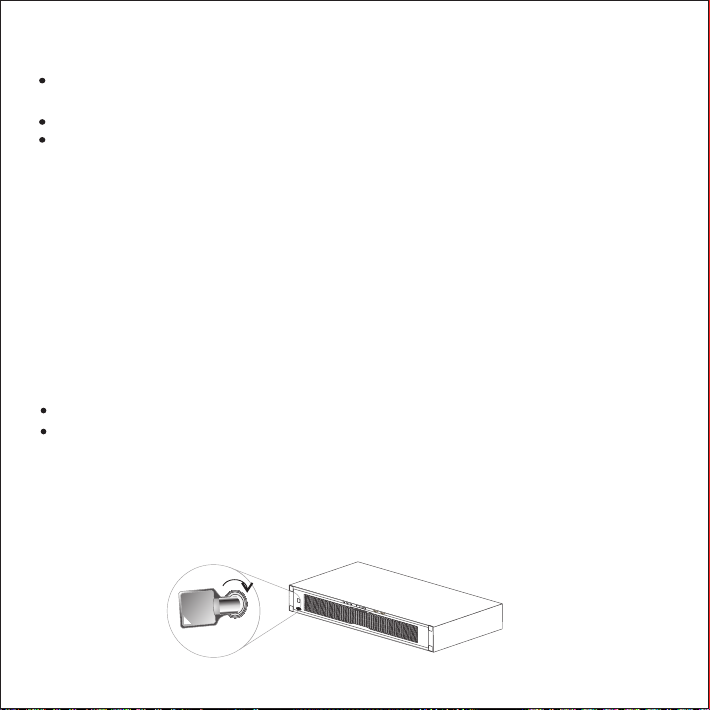

1. Slide the included key into the keyway of the lock on the front panel of the NVR2860E and
turn the key clockwise to unlock the slider.
4

MUTE
USB USB
LAN ALM PWR
2. Push the slider up to remove the protection mask from the NVR2860E.
3. Take out a hard disk tray, put a disk inside the tray, and fasten the disk to the tray using the
included screws.
4. Press the button on the front panel of the tray until the cover on the front panel pops open.
Repeat this step for all the disks that you want to install.
Repeat this step for all the disks that you want to install.
5. Slide the tray into a disk slot along the rails of the disk slot. Note that you must keep the
cover on the front panel of the tray open.
5

1
23
45
67
8
Repeat this step for all the disks that you want to install.
6. Press the cover on the front panel of the tray until you hear a click indicating that the tray is
locked into the disk slot.
7. Push and hold the slider up to install the protection mask back to the NVR2860E.
8. Release the slider.
9. Slide the included key into the keyway of the lock on the front panel of the NVR2860E and
turn the key counterclockwise to lock the slider.
In a well ventilated area, install the NVR2860E in a 19-inch rack as follows:
1. Choose a suitable location for the rack that is near a grounded power outlet.
Ensure that the rack is at least 0.6 m far away from the wall. Leave at least 1.5 m of space in
the front of the NVR2860E.
2. Install the chassis provided by the rack manufacturer.
3. Place the NVR2860E on the chassis.
4. Fasten the hangers on the left and right sides of the NVR2860E to the rack with screws
provided by the rack manufacturer through the four holes in the hangers.
4 Installing the NVR
6

5. Connect the green-yellow wire to the ground bolt of the NVR2860E.
6. Connect the G-LAN 1 network port to the Internet.
Depending on onsite conditions, connect the G-LAN 2 network port to the Internet.
You are advised to use RJ-45 network cables.
7. Connect the NVR2860E to a display that provides an HDMI and/or VGA port.
8. Connect the power cable to a power outlet.
9. Turn on the power switch on the rear panel.
【Note】
To switch off the NVR2860E, click the related button on the OSD of the NVR2860E or
on the NVR Station. To switch on the NVR2860E, press the power button on its front
panel.
You can connect the NVR2860E to other devices (for example, a speaker). However,
this document does not provide the corresponding details.
5 Power-on Self-Test
After the system is started up, check whether the the status of the LAN and PWR indicators on
the front panel is normal.
If yes, the system is operating properly.
If not, contact the system administrator or the local authorized Kedacom agent.
To prevent the risk of lightning, you are advised to ensure the following:
The NVR2860E is well grounded.
The green-yellow wire is properly connected to the ground bolt of the NVR2860E.
The connection between the natural points of alternating current (AC) outlets and
the earth ground is normal.
Based on onsite conditions, install lightning arrestors.
6 Product Care
6.1 Lightning Protection
6.2 Lithium Battery Replacement
The system clock uses the CR2032 button cell lithium battery. When the battery loses its
charge, the system may malfunciton. You must call the local authorized Kedacom agent to
replace the battery. Do not attempt to replace the battery yourself.
7

Dispose of used batteries according to the manufacturer's instructions. If instructions are
unavailable, contact your local waste disposal agency to learn about the nearest battery
recycling place.
6.3 Miscellaneous
Do not place heavy objects on the NVR2860E.
Do not block the air vent.
Switch off the NVR2860E if you want to let it idle for a long period of time.
Regularly check the status of hubs and switches to ensure that the NVR2860E is properly
connected to the transport network.
The following table provides the physical specifications of the NVR2860E.
Physical Specifications
100 V AC to 240 V AC
50 Hz to 60 Hz
<40 W (excluding disks)
10% to 90% (non-condensing)
70 kPa to 106 kPa
-60 m to 3000 m
88 mm x 443 mm x 561 mm
12.5 kg (excluding disks)
-10 ℃ to 55℃
Power
Operating frequency
Rated power
Operating temperature
Relative humidity
Atmosphere pressure
Altitude
Size(height x width x depth)
Weight
8

WHAT IS COVERED BY THIS WARRANTY?
Kedacom warrants the Kedacom-branded hardware product and accessories contained in the original
packaging (hereinafter referred to as "Kedacom Product") against defects in materials and workmanship
when used normally in accordance with Kedacom's published guidelines for a period of TWO (2) YEARS from
the date of original retail purchase by the end-user purchaser (hereinafter referred to as "Warranty Period").
Kedacom's published guidelines include but are not limited to information contained in technical
specifications, user guides, and service communications.
The preceding applies unless otherwise agreed in the contract.
Kedacom Two (2) Year Limited Hardware Warranty
WHAT IS NOT COVERED BY THIS WARRANTY?
This warranty does not apply to any non-Kedacom branded hardware products or any software, even if
packaged or sold with Kedacom hardware. Manufacturers, suppliers, or publishers, other than Kedacom, may
provide their own warranties to you but Kedacom, in so far as permitted by law, provides their products "AS
IS". Software distributed by Kedacom with or without the Kedacom brand (including, but not limited to system
software) is not covered by this warranty. Please refer to the licensing agreement accompanying the software
for details of your rights with respect to its use. Kedacom does not warrant that the operation of the Kedacom
Product will be uninterrupted or error-free. Kedacom is not responsible for damage arising from failures to
follow instructions relating to the Kedacom Product's use.
This warranty does not apply: (a) to consumable parts, such as batteries, unless failure has occurred due to a
defect in materials or workmanship; (b) to cosmetic damage, including but not limited to scratches, dents, and
broken plastic on ports; (c) to damage caused by use with another product; (d) to damage caused by acts
outside the control of Kedacom, including without limitation acts of God, accidents, abuse, misuse, fire,
storms, earthquakes, flood, or other external cause; (e) to damage caused by exposure of the product to heat,
bright light, sun, liquids, sand, or other contaminants; (f) to damage caused by operating the Kedacom
Product outside Kedacom's published guidelines; (g) to damage caused by service (including upgrades and
expansions) performed by anyone other than a representative of Kedacom, Kedacom employee, or
authorized Kedacom agent; (h) to an Kedacom Product that has been modified to alter functionality or
capability without the written permission of Kedacom; (i) to defects caused by normal wear and tear or
otherwise due to the normal aging of the Kedacom Product, or (j) if any serial number has been removed or
defaced from the Kedacom Product.
YOUR RESPONSIBILITIES
If your Kedacom product is capable of storing data and other information, you should make periodic backup
copies of the information contained on the storage media to protect the contents and as a precaution against
possible operational failures.
Before receiving warranty service, Kedacom or its authorized agents may require that you furnish proof of
purchase details, respond to questions designed to assist with diagnosing potential issues, and follow
Kedacom's procedures for obtaining warranty service. Before submitting your Kedacom Product for warranty
service, you should maintain a separate backup copy of the contents of its storage media, remove all personal
information that you want to protect, and disable all security passwords.
