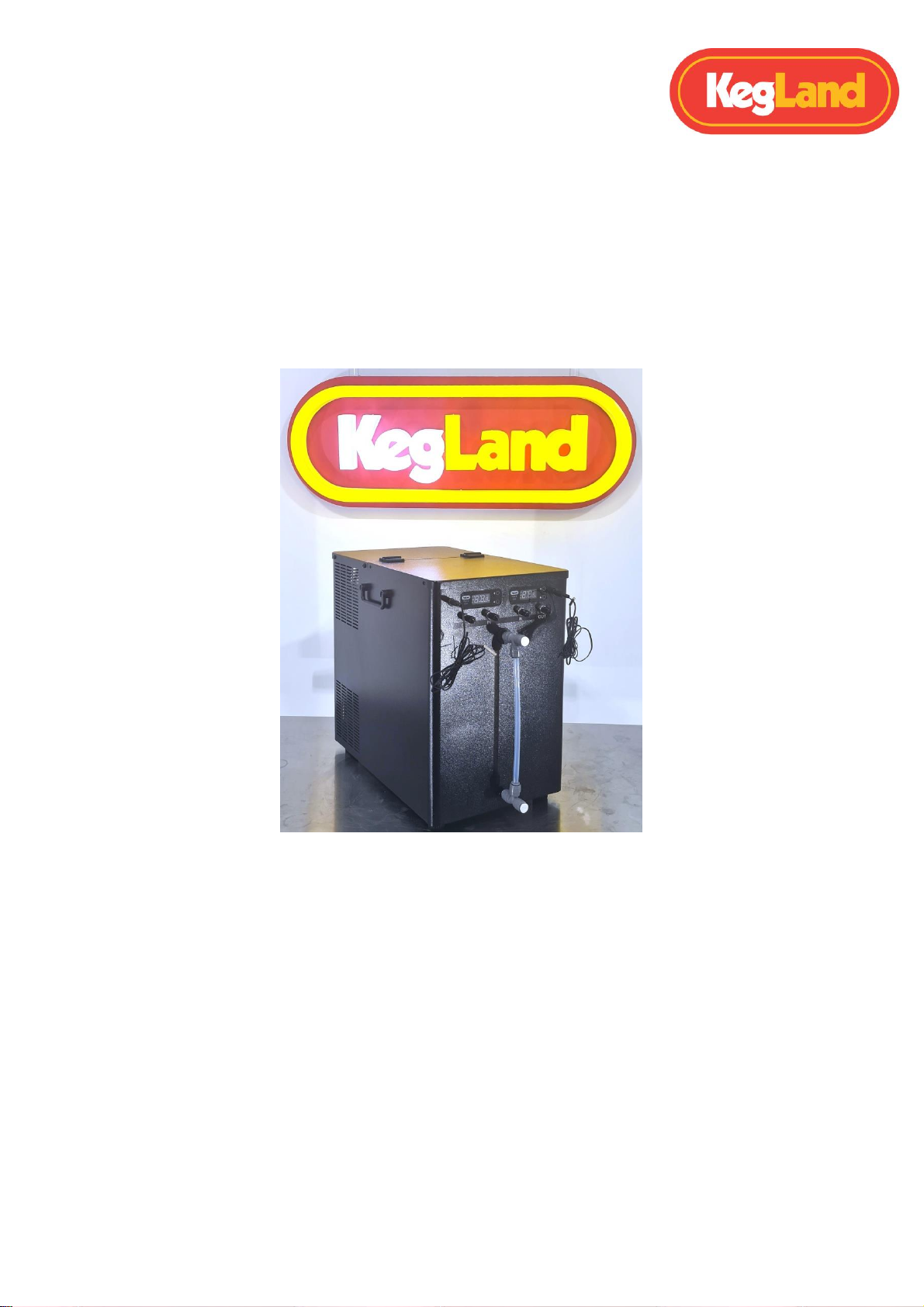

KegLand Icemaster G20.1 User manual

Icemaster G20.1 Instruction Manual
Page 1of 8www.KegLand.com.au Last Updated 5/08/2020 3:33 PM
Icemaster G20.1 –Glycol Chiller
Instruction manual
KL16049
KegLand Distribution PTY LTD
www.KegLand.com.au

Icemaster G20.1 Instruction Manual
Page 2of 8www.KegLand.com.au Last Updated 5/08/2020 3:33 PM
WARNING
IF THE GLYCOL CHILLER HAS JUST BEEN MOVED DO TURN ON UNLESS THE
GLYCOL CHILLER HAS BEEN STANDING UPRIGHT FOR 24 HOURS. FAILURE
TO DO SO WILL VOID WARRANTY. STAND THE GLYCOL CHILLER IN THE
UPRIGHT POSITION FOR 24 HOURS BEFORE PLUGGING INTO THE MAINS
SOCKET
WARNING
THE GLYCOL CHILLER IS NOT INTENDED FOR COOLING WORT FROM
BOILING TEMPERATURES. USING THE CHILLER TO COOL FROM BOILING
TEMPERATURES COULD OVERLOAD THE COMPRESSOR AND VOID
WARRANTY
WARNING
ENSURE THAT THERE IS ALWAYS ATLEAST 100mm OF CLEARANCE ON EACH
SIDE OF THE GLYCOL CHILLER TO ALLOW ADEQUATE AIRFLOW. NOT
ALLOWING ADEQUATE VENTILATION WILL REDUCE PERFORMANCE,
INCREASE POWER CONSUMPTION AND VOID WARRANTY
WARNING
DO NOT RUN THE PUMPS DRY. ENSURE THE PUMPS ARE ALWAYS
SUBMERGED WHEN IN OPERATION. RUNNING DRY CAN DAMAGE THE
PUMPS

Icemaster G20.1 Instruction Manual
Page 3of 8www.KegLand.com.au Last Updated 5/08/2020 3:33 PM
INITIAL STARTUP AND TESTING
Important
Let the glycol chiller sit for at least 24 hours after delivery or after sitting on its side before turning
the unit on.
Whenever the glycol chiller is operating and cooling the reservoir the pumps should be operating
to keep the liquid in the reservoir agitated and avoid ice formation.
Firstly, attach the sight glass to your G20 by firmly pushing the two 3/8” duotight tee pieces
(KL07023) onto the push fit tubes on the front of the G20 as shown to the right. Confirm this is held
in place securely by pulling on the duotight fittings and ensuring they are
locked in place.
Then, perform a leak test and cooling test on your system to ensure that all
connections are water tight, the pumps are operational and the glycol chiller
is chilling the reservoir correctly.
Testing the system
1. With the G20 unplugged fill the reservoir with 17L of water.
2. Look for any signs of leaks around the exterior of the G20.
3. Attach 10mm ID silicone tube (KL18142) to the two OUT barbs.
4. Connect each of these silicone tubes to the adjacent IN barbs.
5. Plug the G20 in using the provided IEC cable and turn the red power switch on.
6. Set the temperature on each temperature controller on the front of the G20 to 2°C
Hold the ‘Up’ button for 3 seconds until the number is flashing (this flashing number
is your set temperature).
Press the ‘Down’ button to decrease the set temperature and press the ‘Up’button
to increase the set temperature.
Up/Increase Button
Down/Decrease button
Temperature Display

Icemaster G20.1 Instruction Manual
Page 4of 8www.KegLand.com.au Last Updated 5/08/2020 3:33 PM
7. Check that each pump is operating correctly
This can be determined by looking for water flow through the silicone tubes or by
placing the outlet hose into a jug and ensuring that liquid is being pumped out of the
hose into the jug.
8. Set the temperature on the controller on the rear of the G20 above the IEC plug to 2°C.
Hold the ‘S’ button until F1 is displayed.
Press ‘S’ again which will enter temperature adjustment mode.
Then hold ‘S’ and up or down buttons simultaneously to alter the set temperature of the
reservoir.
During this step you can get a rough guide of the cooling factor of the glycol chiller when not under
load. To determine this note the starting temperature of the water in the reservoir and then
measure how long it takes to drop the temperature to 2°C.
Prior to putting any beer into the fermenter for cooling you should leak test your whole system. This
can be done by connecting the silicone tubing from the OUT barb to the cooling coil of the fermenter
and then connect the silicone tube from the fermenter to the IN barb on the G20.
Set the temperature on the temperature controller to 2C and test that there are no leaks in the
system including into the fermenter itself.
After all testing is complete empty the reservoir by removing the plug on the bottom 3/8” duotight
fitting on the nylon sight tube. This can be achieved by removing the blue retaining clip on the
duotight fitting and pushing in on the collar as you pull on the plug. After you have drained the
reservoir put the plug retaining clip back in place.
The system has now been tested for cooling and leaks and is ready to be used to cool a fermenter.
Filling the reservoir
The G20 can be operated with either just water in the reservoir or both water and glycol to reduce
the freezing point of water.
IMPORTANT: If you are only using water in the reservoir and not glycol then do not set the
temperature of the reservoir below 2°C.
Fill the reservoir to a total of 17L with water if the reservoir is set at 2°C or an appropriate
concentration of glycol solution if dropping the reservoir below 2°C according to the table below.
Ensure the cooling coils are submerged. The amount of glycol required to be added to the reservoir
depends on the desired set temperature of the reservoir which is dependent on a number of factors
including how many fermenters are being cooled, the ambient temperature the fermenters are in
and heat ingress etc. Use the table below to determine what percentage of glycol you require.
Glycol Volume %
Freezing Point °C
Specific Gravity at 21°C
0
0.0
1.000
10
-3.3
1.006
20
-7.8
1.015
30
-13.3
1.024

Icemaster G20.1 Instruction Manual
Page 5of 8www.KegLand.com.au Last Updated 5/08/2020 3:33 PM
You can measure the glycol percentage using a calibrated refractometer and comparing to the
specific gravity at 21°C in the above table.
We would advise running a 20% glycol solution however, if you do not have a jacketed fermenter or
have the fermenter in a very warm environment you can run it at a higher glycol concentration. The
pumps are not designed to be run with a glycol concentration higher than 30% hence it is not
advised to exceed this glycol concentration. Doing so may damage the pumps.
Setup for each fermenter
1. Prior to connecting the G20 to the fermenter ensure that the temperature of the liquid in
the fermenter is below 50°C. The G20 is not designed to cool from boiling to 50°C and
instead normal tap water should be recirculated through the cooling coils first to drop the
temperature of the liquid.
2. Connect a suitable length of silicone tubing for your application to the desired outlet (OUT)
port on the G20.
3. Connect the silicone tubing to the cooling coil on your fermenter.
4. Run a length of silicone tubing from the fermenter back into the inlet (IN) adjacent to the
outlet chosen on the G20.
5. Insert the temperature probe into the thermowell of the fermenter being controlled.
6. Set the temperature on the temperature controller to the set temperature of fermentation
7. Set the temperature on the temperature controller for the reservoir to -2°C if using glycol. If
you are only using water in the reservoir and not glycol then do not set the temperature of
the reservoir to below 2°C.
When under load such as when cooling a fermenter it can take a longer time than the cooling factor
you have measured to cool the reservoir down to the set temperature and this time is dependent on
a number of variables including and not limited to:
Jacketing of the fermenter (jacketed or non-jacketed)
Number of fermenters being cooled
Ambient temperature
Heat ingress
Cooling fermenters at a large distance away from the G20
The G20 is capable of cooling 200L jacketed fermenters. However, if your fermenter is a large
distance away from the G20 then the submersible pumps may not be able to handle this increased
resistance. Hence, it is suggested for fermenters at a distance that an external pump be used to
transfer the glycol to the fermenter.
1. Connect an external pump to an external temperature controller.
2. Remove the retaining clip and 3/8” plug from the bottom duotight fitting on the nylon sight
tube. Attach 3/8” EVABarrier tubing (KL06248) to the duotight fitting and connect this tubing
to your external pump.
3. Attach tubing to the outlet of the external pump and attach this tube to the cooling coils on
your fermenter.

Icemaster G20.1 Instruction Manual
Page 6of 8www.KegLand.com.au Last Updated 5/08/2020 3:33 PM
4. Run tubing from the outlet of the fermenter cooling coils back into the reservoir of the G20
5. Set the temperature on the G20 to -2°C (if using glycol) or to 2°C (if only using water in the
reservoir).
6. Insert the temperature probe of the external temperature controller into the thermowell on
your fermenter.
7. Set the temperature on your external temperature controller to your desired fermentation
temperature. This will cycle the pump on and off to supply cold glycol solution only when
the temperature of the fermenter increases above the set fermentation temperature.
For best performance, insulate the glycol lines between the G20 and the fermenter.

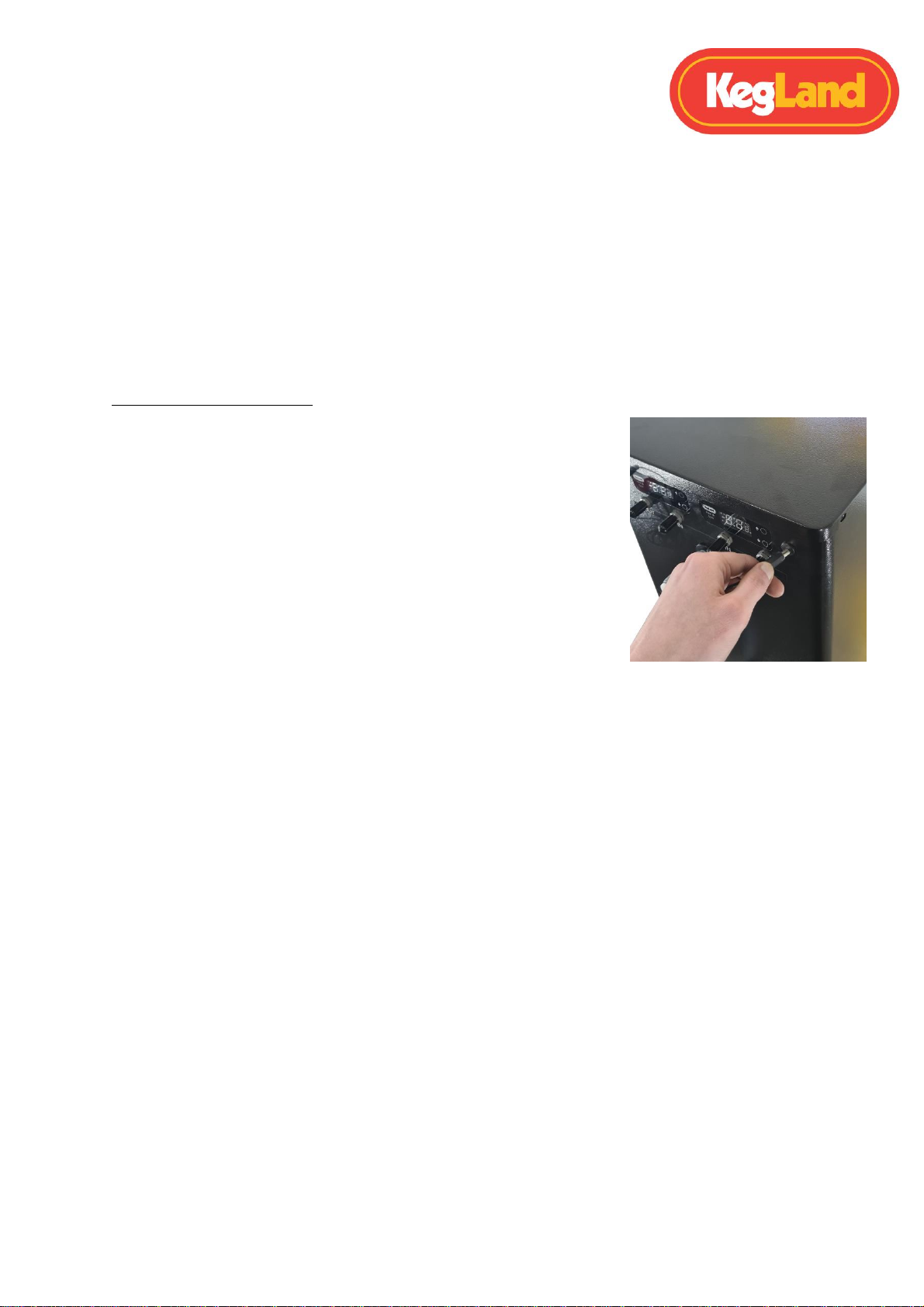

Temperature probe removal
The temperature probes for the temperature controllers on the front
which control the pumps can be removed if a longer probe is required to
reach your fermenter.
To remove the temperature probe simply unplug it from the socket on
the G20 and then plug your new probe in.

Icemaster G20.1 Instruction Manual
Page 7of 8www.KegLand.com.au Last Updated 5/08/2020 3:33 PM
TEMPERATURE CONTROLLER SET POINT AND PARAMETER ADJUSTMENT
The G20.1 includes temperature controllers on the front of the G20 which controls the switching on
and off of the submersible pumps and can also be wired to control an external heating source. To
adjust the parameters of the temperature controllers on the front of the G20 follow these steps:
Turn the Temperature Controller On/Off - Hold the “Down” button for 3 seconds
Adjusting the Set Temperature:
1. Hold the ‘Up’ button for 3 seconds until the number is flashing (this flashing number is your
set temperature).
2. Press the ‘Down’ button to decrease the set temperature and press the ‘Up’ button to
increase the set temperature.
Parameter Adjustment
3. Hold the “Up” and “Down” buttons simultaneously for 3 seconds. The first menu code FO
will appear on the display.
4. Press the “Up” or “Down” buttons to cycle through the parameters F0-F12
5. Press both the “Up” and “Down” buttons simultaneously to alter the parameter which
appears on the display.
6. Press the “Up” or “Down” buttons to change the set value of the parameter selected.
If there is no key operation within 5 seconds then the parameter will be set with the displayed value.
The parameters which can be modified are outlined below.
Parameter
Function
Range
Default
Units
F0
SetPoint range
-40.0 –90.0
10.0
°C
F1
Minimum value for SetPoint
-40.0 –F0
-40.0
°C
F2
Maximum value for SetPoint
F0 –90.0
90.0
°C
F3
Cooling hysteresis
0.1 –10.0
0.5
°C
F4
Heating hysteresis
0.1 –10.0
0.5
°C
F5
Temperature probe
calibration
-10.0 –10.0
0
°C
F6
Cooling start delay
1 –10.0
1
Minute
F7
Cooling start delay after
power failure
0 –300
10
Second
F8
Heating start delay
1 –10.0
1
Minute
F9
Heating start delay after
power failure
0 –300
10
Second
F10
Maximum temperature
before alarm activation
F11 –99.9
90.0
°C
F11
Minimum temperature
before alarm activation
-45.0 –F10
-40.0
°C
F12
Alarm delay
1 –120
1
Minute
To change any settings on the temperature controller for the reservoir such as temperature
hysteresis or calibration refer to this instruction manual

Icemaster G20.1 Instruction Manual
Page 8of 8www.KegLand.com.au Last Updated 5/08/2020 3:33 PM
https://www.kegland.com.au/media/pdf/stc1000%20instructions.pdf
MAINTENANCE
If the glycol solution has been stored for an extended period of time then it is suggested to replace
the solution, despite glycol having antimicrobial properties. To replace the glycol empty the reservoir
using the drainage port and then refill with the required concentration of glycol using a
refractometer to confirm the concentration.

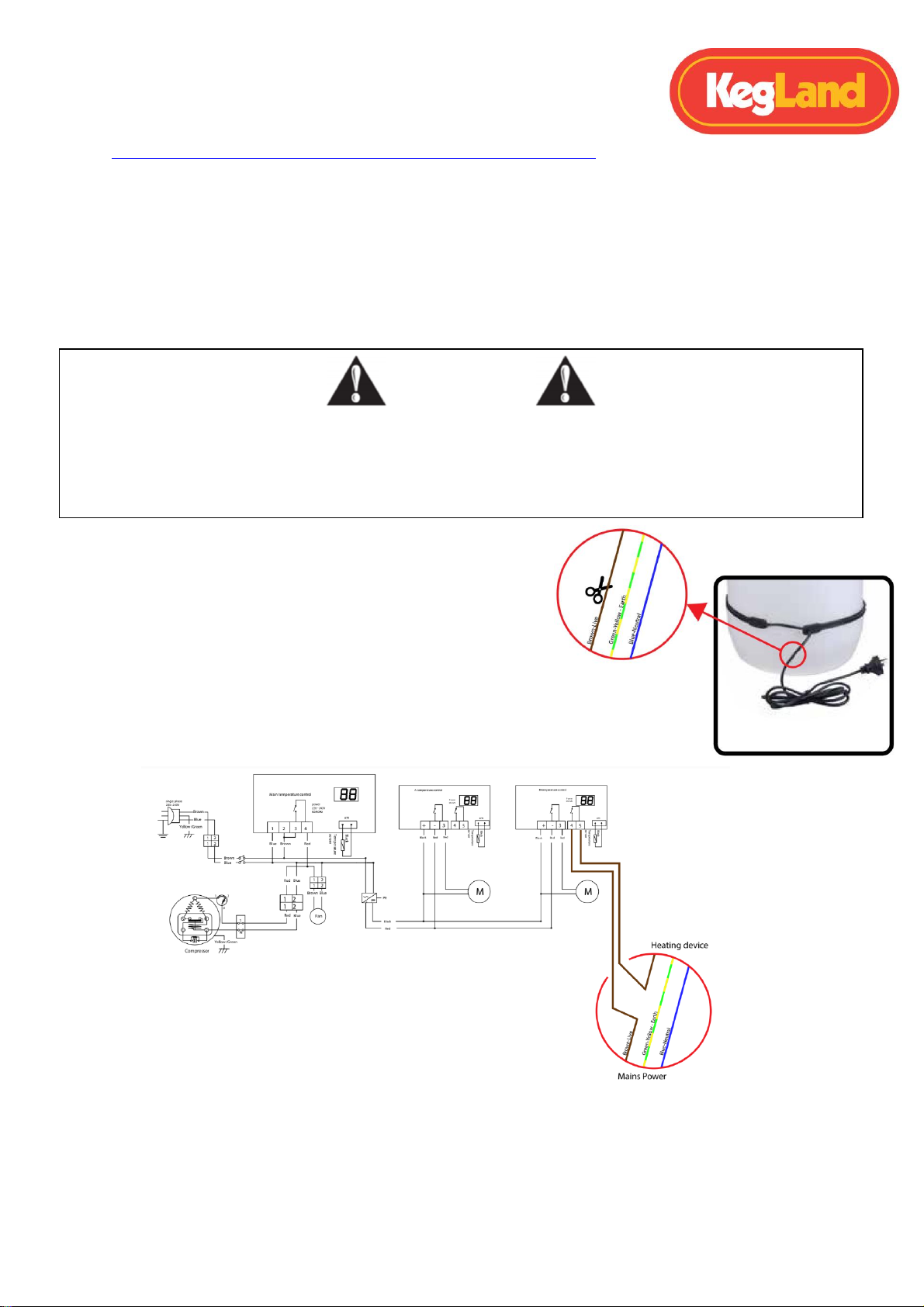

HEATING RELAY INSTRUCTIONS
Step 1. Unplug the power source for the heating
device and the G20.1 chiller
Step 2. Locate and cut the active wire to your heating
device (see diagram to the right). Most active wires
are brown or red but this should be double checked
with an electrician.
Step 3. Divert the active wire into the blade connects
(terminals 4 and 5 shown below)
Step 4. Plug both the G20 and heating device into mains power
NOTE: This is the same process for Controller A and Control B. So repeat this step to wire
multiple controllers in the same way.
WARNING
ENSURE All WORKS ARE CARRIED OUT BY OR INSPECTED BY A CERTIFIED
ELECTRICIAN
