VEVOR CL-850 User manual

Technical Support and E-Warranty Certificate https://www.vevor.com/support
WATER CHILLER
USER MANUAL
MODEL: CL-850
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

- 1 -
CL-850

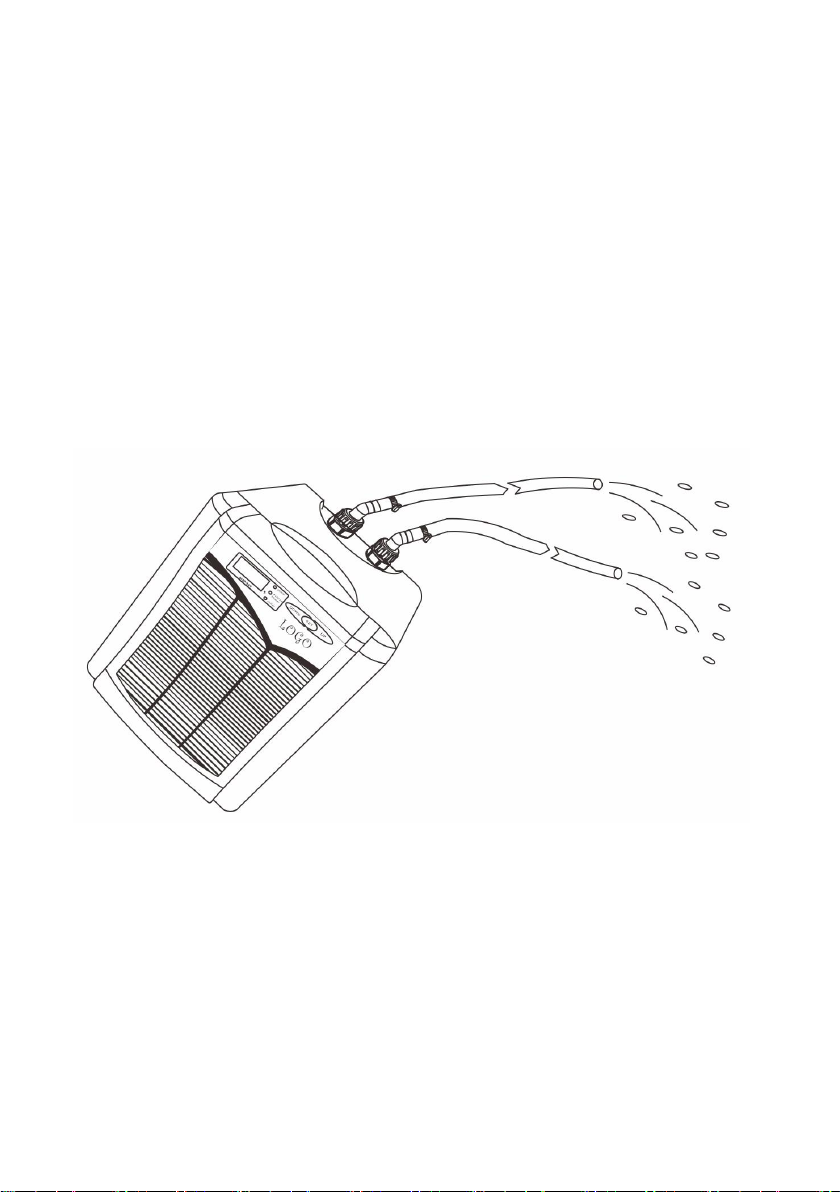

<Picture Only For Reference >
Have product questions? Need technical support? Please feel free to
contact us:
[e-mail]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
Coffee Grinder
CL-850

- 2 -
PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE USING THE EQUIPMENT
AND KEEP IT FOR FURTHER REFERENCE
Contents
Ⅰ. SAFETY PRECAUTIONS
Ⅱ. PRODUCT DESCRIPTION
Ⅲ. DIMENSION AND SPECIFICATION
Ⅳ. INSTALLATION
Ⅴ. HOW TO USE
Ⅵ. MAINTENANCE
Ⅶ. CLEANING
Ⅷ. ATTENTIONS
IX. CIRCUIT DIAGRAM
X. TROUBLE-SHOOTING
Ⅰ. Safety precautions
WARNING：Read all safety warnings, instructions, illustrations and specifications
provided with this electric appliance. Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
WARNING
Improper operation may cause personal injury.
Improper operation may cause damage to the machine.
Improper operation may cause others object damage.
The symbol indicates that the user should pay high attention to and
pay attention to the drawing shows the situation to be noted, and the
left figure shows "Be careful of electric shock".
Disconnect the chiller when moving from one location to another.
Do not use a power supply that does not meet the rated voltage and
frequency.
The use of non-compliant power supplies can cause fire or electric
shock.

- 3 -
If the machine emits smoke, odor, motor noise and other abnormal
conditions, Please do not use it. It may cause fire or electric shock.
Do not disassemble, repair or rectify the machine during use. Doing
so may result in fire or electric shock and personal injury.
BE CAREFUL
Do not damage or arbitrarily change the original power cord, and do
not bend, forcibly pull, bind or press the power cord under heavy
objects. This will damage the power cord, causing electric leakage
fire or electric shock.
If the machine is not used for a long time, please unplug the power
cord from the socket.
If the power cord is damaged, contact your local service center or a
qualified electrician to install an appropriate replacement cord to
prevent any injury or damage.
Never insert fingers, pencils, or any other object through the air inlet
when chiller is running.
When the power cord is unplugged from the socket, the plug should
be unplugged. Do not pull the power cord to forcibly pull the wire,
which may cause damage to the wire and lead to leakage or electric
shock.
Please disconnect the power supply when cleaning.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
FCC information:
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:(1)This device may not cause

- 4 -
harmful interference, and (2)this device must accept any
interference received, including interference that may cause
undesired operation.
Ⅱ. PRODUCT DESCRIPTION
INTRODUCTION:
Many thanks for choosing the VEVOR water chillers.
--- with energy-saving, low-noise and excellent durable compressor provided by
well-known brands.
--- with finned condensor produced under strict quality control procedures and the radiator
made with premium aluminum and coated with anti-corrosion paint.
--- With corrosion-resistant heat exchanger made of high quality industrial pure titanium,
ideal for both fresh and marine water.
The chillers are widely used in ornamental aquariums, medical cosmetology,
biopharmaceutical, horticulture, soilless cultivation and other fields.
FEATURES：
• Unique and creative design of the space with ABS housing, safe and reliable.
• Micro computer controlled and easily operated with the control panel.
• High-quality compressor of excellent durability, low-noise and energy efficiency.
• Titanium heat exchanger, reliable and corrosion-resistant.
• Reserved socket for outside heater, if water heating is needed, plug in a heater and then it
is controlled by the inner thermostant.
• The air filter prevents the chiller from being affected by dirt accummulation, and the air
filter can be removed, assembled and cleaned with ease.
• The water inlet and outlet are 360 degree turnable, easy to use.

- 5 -
TECHNICAL PARAMETER
MODEL
CL-850
POWER
1/3HP
VOLT. & FREQ.
115V/60HZ
COOLANT
R134A
PUMP OUTFLOW
≥1200L/H
REFRIGERATING CAPACITY
850W
RECOMMENDED TANK SIZE
≤450L（120gal）
WEIGHT (KG)
16.7
SIZE(MM)
350*430*400
CARTON DIMENSION(MM)
495*414*550
PERFROMANCE CURVES
CL-850
Temperature ℉
Work time
(Min=Minute, H=Hour)

- 6 -
NOTES:
1.Refrigerating effect will be impacted by ambient temperature, water circulation flow rate,
installation position, lighting system, surrounding heat sources, room ventilation,
aquarium/reservoir structure, etc. To get the best use of this machine, please strictly follow
this instruction manual.
2.Recommended water volume is closely related to the ambient temperature and the
required water temperature. When ambient temperature is high (and a low water
temperature is required) the water volume should be REDUCED to achieve best
performance.
PRODUCT STRUCTURE DIAGRAM

- 7 -
heater socket：28*26*16
Model
A
B
C
D1
D2
d
E
H
G
F
CL-850
42
22
21
Φ16
Φ20
Φ12
29
90
24
18

- 8 -
Ⅲ. DIMENSION
Back View
View from right side
Front View
Top View
DIMENSION
MODEL
L(mm)
W(mm)
H1(mm)
H2(mm)
CL-850
350
430
400
500

- 9 -
Ⅳ. INSTALLATION
TIPS！Please check the accessories before installation.
Installation method:
1.Check the Accessories Box, inside of which there are 2 PVC hoses, 1 water pump, 1
hose clamp, and 1 suction cup. See the Fig.1. Take out the 2 hoses firstly.
Fig. 1
2.Go on Check the Accessories Bag. See the Fig.2. Assemble the water inlet and outlet.
See the Fig.3.
Fig. 2
Fig. 3
3.Fix water inlet and outlet on the chiller. See the Fig.4 and connect to the PVC flexible
hoses. See the Fig.5.
Fig. 4
Fig. 5

- 10 -
4.Pick the hose 1 ( the hose with one end connected to the chiller inlet), see the Fig. 5, then
connect the other end to the water pump outlet, fasten the hose clamp tight (see the Fig. 6)
Pick the hose 2 (the hose with one end connected to the chiller outlet), then insert the other
end through the elastic ring of the suction cup, and fix it at proper position inside the
aquarium wall (see the Fig.6.)
Note: for the water pump installation, please refer to the Water Pump Instruction Manual.
Attention: Check the chiller inlet and outlet carefully, DO NOT MISCONNECT.
Fig. 5
Ⅴ. HOW TO USE
Before using the machine, please check:
(1)Power cord is securely plugged into a grounded, correctly rated outlet. Make sure the
power voltage and frequency are in accordance with the data specified on the nameplate
or in the instruction manual.
(2)The water inlet, outlet and hose are connected correctly and firmly, make sure there are

- 11 -
no leaks or clogs.
(3)Keep sufficient clearance between the chiller and its surrounding objects for heat
dissipation and convenient maintenance, with at least 30cm clearance around front (air
inlet) and sides and 60cm in back (air outlet). If the chiller is to be put in an aquarium
cabinet, the cabinet should have enough grilles for air circulation, or to be equipped with an
extra small exhaust fan.
If the 3 items above are OK, you may begin using your water chiller:
(1)Turn on water pump, making sure the Circulating Cooling Water System can run
normally without any blockage or leak.
(2)Turn on the chiller and use the Control Panel to set desired water temperature.
Adjust temperature
1.Plug the chiller into a socket of rated voltage and frequency, turn it on. The power
indicator light is on and the LCD shows the current water temperature.
Fig.1.
2.Press “SET” to enter the setting. Press ▲ to turn up pre-set temperature, and press ▼ to
turn down pre-set temperature. The starting temperature difference is 2℉，for example, the
chiller needs to be set at least 2℉lower than the actual water temperature to get it started.
The chiller needs to set at least 2℉lower
than the actual water temperature to cool.
The chiller needs to set at least 2℉higher
than the actual water temperature to heat.
Fig.2.
Fig.3.

- 12 -
3.After setting the temperature, the LCD shows the current water temperature, and the
chiller will select cool or heat mode automatically after comparing the set temperature and
actual water temperature. If in cool mode, the green indicator blinks in “delayed start” state,
after a 3 minutes’ delay, the chiller starts chilling, and the green indicator becomes solid. If
in heat mode, the heater works without delay and the red indicator turns on (Note: heater
not included, it requires the user to insert a heater with a two-pin flat plug).
Fig.4.
4.When the chiller works in cool mode, the green indicator turns on. When the water
temperature drops to the pre-set temperature, the chiller stops working. If the water
temperature rises to meet the starting condition (temperature difference is 2℉), the chiller
enters a 3-minute delay and then starts working automatically. By repeating in this way, the
chiller keeps the water temperature stay between pre-set temperature and the temperature
+ 2℉. See the Fig. 5.
5.When the chiller works in heat mode, the red indicator turns on. When the water
temperature rises to the pre-set temperature, the heater stops working. If the water
temperature drops to meet the starting condition (temperature difference is 2℉), the heater
works again. By repeating in this way, the chiller keeps the water temperature stay
between pre-set temperature and the temperature - 2℉. See the Fig. 6.
Fig.5.
Fig.6.

- 13 -
Ⅵ. MAINTENANCE
1.Regular maintenance is needed each year. Please power off and unplug before
maintaining.
2.Please DO NOT use chemicals such as gasoline, benzene and diluent to wipe the chiller.
3.Control panel and motor must be kept dry. If water or any liquid is found on the chiller,
please turn off the power immediately and wipe it off with cloth before restarting.
4.DO NOT operate the chiller if it has a damaged cord or plug, or it is malfunctioning or has
been dropped or damaged in any manner.
5.DO NOT attempt to service this unit yourself as opening or removing covers may expose
you to dangers or other hazards. Refer servicing to qualified service personnel for service
or replacing all electrical parts.
6.If the chiller is not in use for a long time, please unplug the power cord, fully discharge the
residual water in the tubes, clean the inlet/outlet and hoses and dry them thoroughly. Put
the chiller away at a safe dry place.
Ⅶ. CLEANING
Step1: Please unplug (important!). See the Fig. 1.

- 14 -
Fig.1
Step2: Please open the front cover (see the Fig. 2), and then take the air filter out (see the
Fig. 3).
Fig.2
Fig.3
Step3: To prevent dust accumulation, please clean the air filter in water or with a vacuum
cleaner regularly. See the Fig. 4
Fig.4
Note: For optimal refrigerating performance, circulating and filter system, and the air filter
should be cleaned at least once every month including hoses, fittings, filter media, titanium
tube inside the machine and others, as the dirt accumulation and or clogs would weaken
the refrigerating capacity.
Ⅷ. ATTENTIONS

- 15 -

- 16 -

- 17 -
IX. CIRCUIT DIAGRAM
X. TROUBLE-SHOOTING
Failures may be caused by improper operation or maintenance. Before sending the
defective product for repair, check the troubleshooting table below.
Failure
Possible cause
Possible solution
The LCD doesn’t
display and the
machine doesn’t
work
Bad power connection,
blown fuse, or broken
circuit
Change fuse, check the power switch, plug.
Check if plug in the rated voltage and
frequency.
The compressor
stops working
High air and water
temperature leading to
high internal pressure,
heat protector or
capacitor failure
Please improve the heat dissipation and air
ventilation. Change capacitor or heat
protector.
Refrigerating
capacity reduces
dramatically or no
refrigeration at all
after a long time of
normal use
Refrigerant leakage or
not enough refrigerant
left. Poor heat
dissipation, condenser
radiator fins blocked by
dust.
Please contact a certificated and licensed
technician to check and refill the refrigerant.
Improve the heat dissipation and air
ventilation. Remove dust accumulation on
the air inlet and parts. Reduce the water
volume referring to the specifications.

- 18 -
The displayed
water temp is
different from the
actual water temp
There is tolerance
between the LCD
displayed temp and the
actual water temp.
To calibrate water temperature:
1. Press and hold “SET” for 10 seconds to
enter Temp Error Adjustment Function,
digital display will show “CA”.
2. Press "▲"(turn up) or "▼" (turn down)
until the displayed figure equals to the
tolerance intended to eliminate (tolerance
CA = actual water temp - displayed water
temp), adjusting range is +4 to -4.
3. After your adjusting operation has
stopped for 10 seconds, the control panel
will exit to show the adjusted temperature.
Water temp
reaching set-up
temp, but the unit
continues to run
Temperature sensor
not installed at right
place, or temperature
sensor failed
Turn off or replace the heating switch; refer
to operating instructions to adjust
temperature control.
Digital display
shows “E1”,
cannot detect
water temp
Check the temperature sensor installation.
Note: If any other abnormal conditions occur during normal use, please do not try to
dissemble and fix the machine by yourself, take it to your supplier or contact certificated
and licensed technicians for repair.
Manufacturer: Shenzhen XingRisheng lndustrial Co., Ltd.
Address: No. 2, Baolong Road 3, Baolong Avenue, Baolong Industrial Park, Longgang,
Shenzhen, Guangdong, China
MADE IN CHINA

TechnicalSupport and E-Warranty Certificate
https://www.vevor.com/support
