RC-02A
1-2 Outline
Quality Assurance Provision
This product passed our close product inspection. When it did not satisfy an early purpose,
specifications by trouble after the delivery in a year, we repair it gratis in the case of the
responsibility in our production. Please report to agency or us. We repair it in our factory. About
measurement precision, I guarantee it for six months after the delivery. But I will repair it
undermentioned for payment.
1. In the case of trouble / the damage that occurred by the handling against usage mentioned in
the manual of this product and instructions.
2. When you remodeled it without our approval
3. In the case of trouble / the damage that occurred because the handling was not reasonable
such as the bad transportation by the visitor, a fall at the time of the movement, a shock.
4. In the case of trouble / the damage by the natural accidents such as a fire / an earthquake /
the flood.
5. In the case of trouble / the damage that occurred by the abnormal input voltage.
6. When we dispatched an engineer.
*This warranty is valid only in Japan.
Copyrights
According to relevant laws, all the copyright of this manual contents belongs to KG(Keisoku
Giken Co., Ltd.). Any copy from this manual is prohibited without prior written permission by
KG.
Read this manual before start using this product
Please read this manual carefully before using this product.
This manual should be kept in a place accessible easily.
Please attach this manual to this product when you relocate them.
This manual is written based on the functions of this product when shipped from KG.
The specifications are subject to change without any notice.
Trademarks
MicrosoftWindows, MicrosoftExcel,ActiveX, VisualBasic, and VisualC++ are trademarks of its
respective suppliers.

RC-02A
Outline 1-3
For your safe use of this Product
This section describes the Handling Instructions when you use this Product in safety.
You are requested to understand and follow these instructions without fail.
It is not our responsibility for any accidents caused by the ignorance of the instructions or
improper handling or operation. .
Disassembly
There are some portions inside where high Voltage may
present and which is dangerous to human. Please do NOT
remove the cover or panel of this Product.
Surroundings
For the safety, do not use this product where explosive or
corrosive gas can be detected.
If you use this Product in the strong electromagnetic field,
because of the characteristics of this product, the noise induced
on the input cable may be also regarded as the signal and
measured to affect the measurement result. Do not use in such
surroundings.
Please do not palace this product where it will be subject to direct
sunlight or high temperature.
Please follow the instruction to use this product in the
temperature range between 23℃±5℃and the temperature of
70% or less.
When any condensation is present, please do not use this product
until completely dried.
Please do not use this product in a dirty, duty, stuffy, slanting, or
vibrating locations. This product has a forced air-cooling
functions, so do not block the inlet and outlet by an obstacle and
keep the enough space around this product for the air-cooling.

RC-02A
1-4 Outline
Input Power
Do not input the Volt. other than specified for this product.
(The input rated for this product is AC100V-240V 50/60Hz)
And Do not used the AC Power Cable that is attached to this
product.(Rated of the attached Power Cable in Japan is
AC100V)Use the proper cable that meets the Volt. and shapes in
t the area or country.
Fuse
The fuse located in the AC inlet can be changed .
Use the proper Fuse with the same shape, rated, and the
characteristics. (The rated of this fuse is 250V/3.15A.)
Operator
It is suggested that the operator of this product should have
proper Engineering background in Electronics and understand
the descriptions in this manual before start using. If an operator
doesn’t have such background, the operator has to operate this
product under the supervision of the person who has such
background in Electronics.
Connections
When you connect or disconnect this product with the other
GPIB instrument GPIB, please make sure that the power of
all the relevant instrument are turned off in advance.

RC-02A
Outline 1-5
Move
Before you move this product, turn off the power , and remove all
the cables from this product.
When you move this product , attach this manual to the product,
and use the dedicated or more robust packing material.
Maintenance
Before you do maintenance or check this product, make sure
than the Power Plug is detached.
To keep the safety of this product, periodical maintenance and
check would be suggested.
We would also suggest the periodical calibration to keep the
performance of this product
Overload
Do not use the connector of this product for any purpose that is
not described in this manual.
Do not apply Volt. that exceeds the specifications.
Repair / Adjustment
The Adjustment and Calibration can be done by Keisoku Giken.
Contacts or our distributor.

RC-02A
1-6 Outline
WARNING
CAUTION
Supplement
NOTE
Safety Symbols used in this Manual
To used this Product correctly and safely, the following symbols are used in this Manual and
this Product. Please review the following to understand the meaning of each symbol and us this
Product with cake about the safety.
This is a symbol label used both in this manual and on this
Product, informing the portion or contents that you should
recognize as “Warning”, “Dangerous”, or “Caution”.
When you find this Label affixed on this Product, please refer
to the relevant portion in this manual to check the meaning.
Wrong or improper Operation may cause a considerable
disability including the death and heavy injury. Please
understand the description in this manual and follow the
relevant procedure and instructions.
Wrong or improper Operation may damage this Product or
other connected Products and may cause a mild disability.
Please understand the description in this manual and follow
the relevant procedure and instructions.
This symbol shows the prohibited Matter.
This is Supplement for the Operations.
This is the Operating Suggestion about the Product
Performance.

RC-02A
Outline 1-7
Preface
Index of this Manual
This Manual describes the following contents.
Chapter 1. Outline
The Outline and the features of this unit is described.
Chapter 2. Ripple/Noise measurement
The method for measuring Ripple/Noise is described.
Chapter 3. Connections
Cautions about connections to maximize the true potential of this method are
described.
Chapter 4. Operations of each measurement mode.
The operations of each measuring mode are described.
Chapter 5. Remote Control
GPIB and USB commands are described.
Chapter 6. Specifications
Electrical specifications of this unit are described.
Chapter 7.Maintenance / Calibration
The Maintenance, Check, and Calibration of this Product are described.
Check Items when you unpack
When you unpack this unit, please check if there are any damage on the package during
the transportation and if there is any missing attachment.
If there is any missing attachment, please contact us or dealer promptly.
The attachments of this unit are as follows;
* Operation Manual(M-2100-02)*Input Cable
(1.5m BM-58U-150KO)

RC-02A
1-8 Outline
INDEX
For your safe use of this Product Ⅰ
Safety Symbols Ⅳ
Preface ------------------------------------ 1
Index of this Manual ------ 1
Check Items when you unpack------- 1
1. Outline ---------------------------------------------------------------------------- 1-1
1.1 Outline 1-1
1.2 Features 1-1
1.3 Options 1-1
2. Ripple/Noise measurement --------------------------------------------------------------- 2-1
2.1 Terms 2-1
2.2 How to separate Ripple component 2-2
2.3 How to select proper Ripple Ratio 2-3
2.4 Affection when AC ripple and
switching ripple are overlapped 2-4
3. Connections --------------------------------------------------------------------------------- 3-1
3.1 Connection to an INPUT connector 3-1
4. Operations of each measurement mode ------------------------------------------------ 4-1
4.1 Items to be displayed 4-1
4.2 Select a function in menu 4-2
4.3 Select a measurement item 4-3
4.4 Setting of sampling rate 4-4
4.5 Setting of DC/noise/ripple Volt. range 4-4
4.6 Setting of filter and ripple ratio 4-7
5. Remote Control
5.1 GBIP interface 5-1
5.2 Ripple/Noise measurement command 5-2
5.3 System command 5-3
5.4 Multi line message 5-3
5.5 Status register 5-3
5.6 USB interface 5-4
5.7 Reference of ActiveX controller function 5-4

RC-02A
Outline 1-9
6. Specifications ----------------------------------------------------------------------------------------- 6-1
6.1 Specifications of Ripple/Noise measurement 6-1
7. Maintenance/Calibration -------------------------------------------------------------------------- 7-1
7-1 Cleaning 7-1
7-2 Calibration 7-1
7-3 Storage 7-1

RC-02A
1-10 Outline
1. Outline
1.1 Outline
RC-02A is an optional board used in Keisoku Giken’s LOAD EDGE/STATION Series
electronic load, capable of measuring ripple/noise according to JEITA (Japan Electronics
and Information Technology industries Association) standard, and making it possible to
measure ripple/noise voltages rapidly.
1.2 Features
・Up to 100MH of nominal frequency range is realized.
・Frequency range can be limited up to 20MHz
・AC ripple and switching ripple can be measured separately.
・Data of “DC voltage + Ripple/Noise voltage“can be measured.
・Setting range of ripple ratio is between 0.0% and 50.0% with 05% step resolution.
・As a method of separating ripple component out of an output waveform of a switching
power supply, a low pass is not being used but detecting the level where ripple
separation ratio is equal to the preset value. Because of this feature, a ripple value
measured by this unit has good data correlation with that measured by an oscilloscope.
(refer to chapter 2 for more detailed description)
Measured data by using this unit may have an error due to a connecting condition of the
signal cable and other use conditions, such conditions resulting from complicated
ripple/noise generation mechanism specific to switching power supplies.
1.3 Option
The following option is available for
Differential cable : DP-100
With this differential probe, the common mode noise that would affect the accuracy of
ripple/noise measurement can be largely reduced.
For detailed information, please contact us directly or our distributor near you.
Supplement
Supplement

RC-02A
Outline 1-11
2.Ripple/Noise measurement
Ripple/Noise measurement with this unit is described.
Measured data by using this unit may have an error due to a connecting
condition of the signal cable and other use conditions, such conditions resulting from
complicated ripple/noise generation mechanism specific to switching power supplies.
2.1 Terms

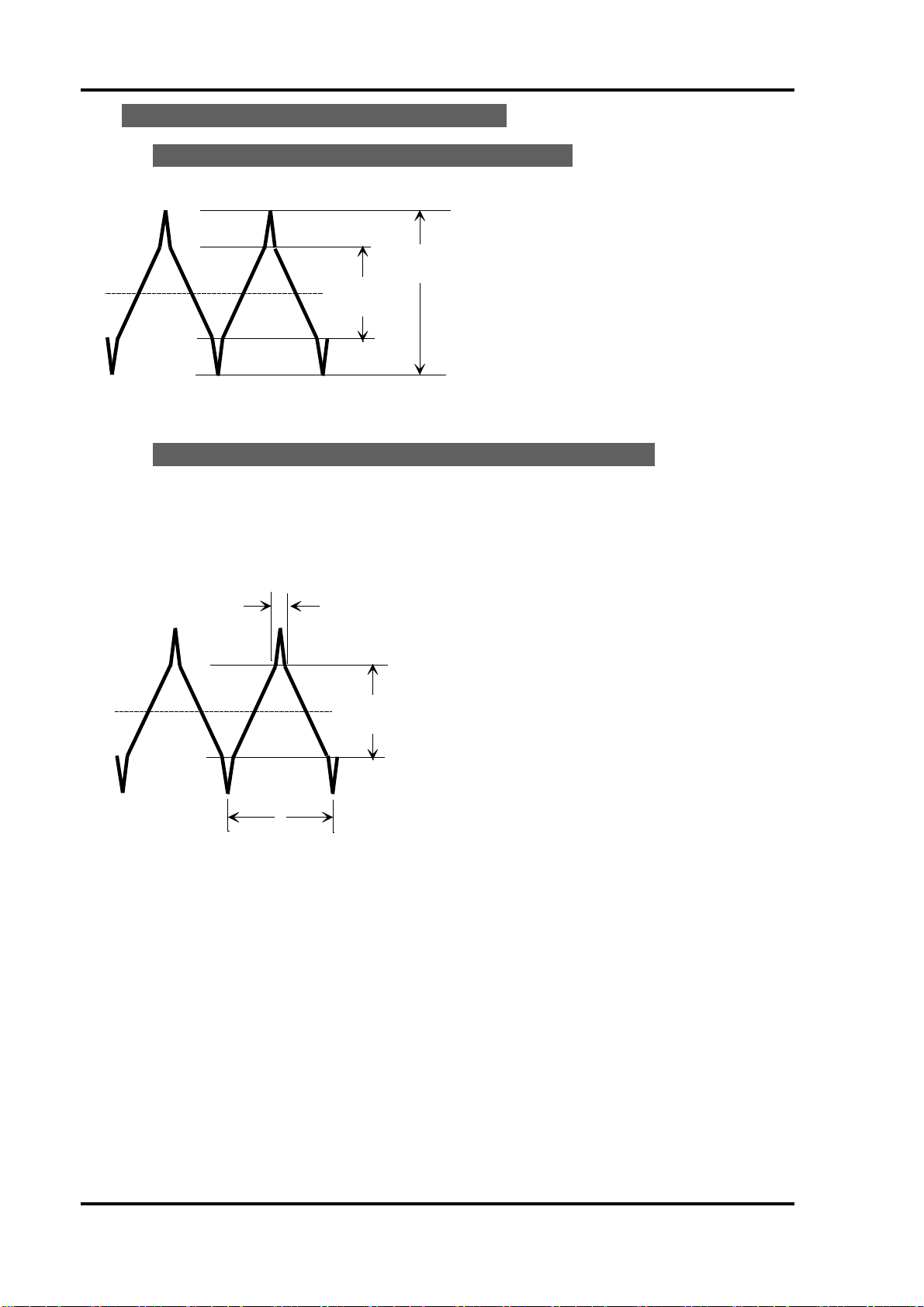

A typical output waveform of switching supplies can be illustrated in below Fig. 2.1
Fig.2.1 a typical sample of output waveform for switching power supplies
A through G in Fig2.1 are defined as follows Suggested filter and measurement settings
with this unit
A:RIPPLE NOISE Volt. (filter: 2K-5KHz; meas. mode: NOISE)
B:RIPPLE Volt. (filter:2K~5KHz; meas. mode: RIPPLE)
C:NOISE Volt. (filter:5KHz; meas. mode: NOISE)
D:SWITCHING RIPPLE Volt. (filter:5KHz; meas. mode: RIPPLE)
E:AC RIPPLE Volt. (filter:50~2KHz; meas. mode: RIPPLE)
F:PERIOD of INPUT Volt.
G:SWITCHING PERIOD
NOTE
A
D
C
B
E
G
F

RC-02A
1-12 Outline
2.2 How to separate ripple component
2.2.1 Typical waveform of switching ripple
Spike Noise of Switching Power Supply
is shown in Fig 2-2. And spike Noise will
be overlapped at the summit of each
Ripple Volt. To make accurate
measurement of RIPPLE Volt, one of the
Typical Approach to remove the Spike
Noise that had been done was to use the
Low Pass Filter to cut off High
Frequency. As the result, only Spike
Noise couldn’t be removed and the
Waveform of RIPPLE Volt. is deformed.
2.2.2 Separation method with pulse width duty ratio
To remove only Spike Noise accurately , RC-02A adopt the Method of Setting a “RIPPLE
RATIO”which is defined as
t / T ×100(%)
where “t“is the Pulse Width of Spike Noise
and ’T’is the Switching Period which is measured
automatically by RC-02A. Please set this RIPPLE
RATIO before starting RIPPLE Measurement.
Setting Range of RIPPLE RATIO is from 0.0% to
50.0% with 0.5% step.
The Advantage of this RIPPLE Measurement is
to remove only Spike Noise for all the measuring
range without deforming the Waveform. And the
measured Data by RC-02A is mostly close to the
read data on Oscilloscope.
R
i
p
p
l
e
N
o
i
s
e
V
o
l
t
.
R
i
p
p
l
e
V
o
l
t
.
F
i
g
.
2
-
2
T
y
p
i
c
a
l
w
a
v
e
f
o
r
m
o
f
s
w
i
t
c
h
i
n
g
r
i
p
p
l
e
R
i
p
p
l
e
V
o
l
t
.
T
S
w
i
t
c
h
i
n
g
P
e
r
i
o
d
P
u
l
s
e
W
i
d
t
h
o
f
S
p
i
k
e
N
o
i
s
e
t
F
i
g
.
2
-
3
S
e
p
a
r
a
t
i
o
n
m
e
t
h
o
d
w
i
t
h
p
u
l
s
e
w
i
d
t
h
d
u
t
y
r
a
t
i
o

RC-02A
Outline 1-13
2.3 How to select proper Ripple Ratio
In this RIPPLE RATIO
Method, Measured RIPPLE
Data changes as you change
the Value of RIPPLE
RATIO. Because as you
increase the RIPPLE
RATIO, Level of RIPPLE
Voltage is gradually going
down, which means that
Measured RIPPLE Data
is the Function of RIPPLE
RATIO.
So it is possible to measure
RIPPLE data by changing
RIPPLE RATIO. But it is
not very practical to
measure such vast data.
So Following is the
explanation how to set up
RIPPLE RATIO so that the
Measured RIPPLE Data
would be most closest to the
Data of an Oscilloscope.
As you can see in Fig.2-4,
there are several Output
Waveforms of Switching
Power Supplies in A1
through A3 , while there are
Measured RIPPLE Data
from B1 through B3 which
are the Measurement
Result of A1 through A3
respectively In B1
through B3 , if Setting of
RIPPLE RATIO is 0%
RC-02A will regard the
Peak of the Output
Waveform as the Peak of
Ripple Volt. However if you
Increase the RIPPLE
RATIO gradually ,you will
find that Measured RIPPLE
Volt. gradually decreases.
Now you see them in more
detail, there a several
slopes of different slope
angles . In the slope (①of B1-3 ), as you increase RIPPLE RATIO , Measured RIPPLE Volt.
decrease steeply. In the slope third slope (③of B1-3) ,on the other hand, the slope is more
gentle. Some of Switching Power Supplies has have such characteristics as shown in ②of
B2-3 which show medium slope between ①and ③of B1-B3.
When you observe these A1-A3 Waveforms by an Oscilloscope, Portions of Thick line (③) of
A1-A3 will be displayed more brighter than any other potions (①or ②of A1-A3) because
the Slope of Spike Noise is so steep that it could be seen darker. And most people regard the
Amplitude of the brighter portion (③of A1-A3) as the RIPPLE Volt As the conclusion how
to select RIPPLE RATIO so as the Measured Data is closest to the Measured data by an
Oscilloscope is to choose RIPPLE RATIO Value which is the closest to the most left edge of
①
②
R
i
p
p
l
e
R
a
t
i
o
(
%
)
1
5
%
0
%
①
②
A
1
B
1
(
A
)
W
a
v
e
f
o
r
m
o
f
R
i
p
p
l
e
①
②
③
①
②
1
5
%
0
%
③
A
2
B
2
①
②
③
①
②
1
5
%
0
%
③
A
3
B
3
F
i
g
.
2
-
4
E
x
p
l
a
i
n
h
o
w
t
o
R
i
p
p
l
e
R
a
t
i
o
M
e
a
s
u
r
e
d
R
i
p
p
l
e
V
a
l
u
e
M
e
a
s
u
r
e
d
R
i
p
p
l
e
V
a
l
u
e
M
e
a
s
u
r
e
d
R
i
p
p
l
e
V
a
l
u
e
a
n
d
R
i
p
p
l
e
N
o
i
s
e
R
i
p
p
l
e
R
a
t
i
o
(
%
)
R
i
p
p
l
e
R
a
t
i
o
(
%
)
(
B
)
M
e
a
s
u
r
e
m
e
n
t
R
e
s
u
l
t
o
f
R
i
p
p
l
e
V
o
l
t
.
V
a
l
u
e

RC-02A
1-14 Outline
Line (③of B1-B3).which slope is most gentle.
2.4 Affection when AC ripple and switching ripple are overlapped
As for some Switching Power Supplies, the Output Waveform has two fundamental Periods –
Switching Period and AC Period- and they are overlaid shown in Fig.2-5. If you measure the
RIPPLE Volt. with this unit without special consideration to this , Measured RIPPLE Volt. (I)
is apt to be lower than Real RIPPLE Volt. (H). Because this unit is designed to detect only one
Period which is longest. In such a case as shown in Fig.2-5 ,therefore, this unit will not choose
Switching Period (G) but AC Period (F) as a Period to search the peak of RIPPLE Volt.. As you
can see Fig.2-5, once the AC Frequency (F) is selected as the Measuring Period for RC-02A,
there are many Triangle Waveform of RIPPLE and the Peaks of Spike Noise as well as
RIPPLE are fluctuated due to AC Ripple. Because of the existence of the sinking Peaks of
Spike Noise, the Measured RIPPLE Voltage (I) is a little lower than Real RIPPLE (H). If you
select LPF-HPF as the Filter Mode of RC-02A, you will get more accurate RIIPPLE Volt. (But
Measurement Time will be doubled or more because this unit will measure two times; LPF
mode and HPF mode independently and sum the two results )
H
I
G
F
F
:
F
r
e
q
u
e
n
c
y
o
f
I
n
p
u
t
V
o
l
t
.
G
:
S
w
i
t
c
h
i
n
g
F
r
e
q
u
e
n
c
y
H
:
T
r
u
e
R
i
p
p
l
e
V
o
l
t
.
I
:
M
e
a
s
u
r
e
d
R
i
p
p
l
e
V
o
l
t
.
F
i
g
.
2
-
5
W
a
v
e
f
o
r
m
o
f
A
C
r
i
p
p
l
e
a
n
d
s
w
i
t
c
h
i
n
g
r
i
p
p
l
e
a
r
e
o
v
e
r
l
a
p
p
e
d

RC-02A
Outline 1-15
3. Connections
Please review this precautions herein so as to maximize the capability of this unit to obtain
accurate data as much as possible.
Refer to an manual of LAOD EDGE/STATION Series electronic load to be used to make sure
the position of the INPUT connector.
3.1 Connection to an INPUT connector
INPUT connector
A signal to be measured can be inputted through this connector. As the cable, a coaxial
cable with 50 ohm impedance should be used.
・Do not apply voltage higher than max. rated input voltage (±500V) to this
connector, which might cause damages of the equipment and/or electric shock to
the operator.
・When an optional differential probe, DP-100, is used, the max. input voltage is
±200V.
・While a DUT is connected, do NOT connect or disconnect a cable to the connector
of the electronic load, because the operator might get a electric shock when the
operator touches the metal portion of the BNC connector.
INPUT
WARNING

RC-02A
4-16 Operations of each measurement mode
4. Operations of each measurement mode
As the measurement items, this unit has three (3) measurement mode for measuring DC
voltage, Ripple voltage and Noise voltage.
There are three (3) and two (2) measurement ranges for measuring DC volt. and Ripple/Noise
volt respectively for more accurate measurement.
4.1 Items to be displayed
With an optional board RC-02A, the following new menu can be displayed.
(1) DC Voltage range
The currently selected DC volt. range is displayed. The range can be selected one
from among 6V(LOW range), 60V(MID range), and 500V(HIGH range).
(2) Ripple/Noise Voltage range
The currently selected Ripple/Noise volt. range is displayed. The range can be
selected one from among 0.3V(LOW range) and 3V(HIGH range).
(
1
)
(
2
)

RC-02A
Operations of each measurement mode 4-17
4.2 Select a function in menu
When the optional board - RC-02A is embedded, the following new menu is then added.
・RIPPLE NOISE : settings of ripple/noise measurement can be done.

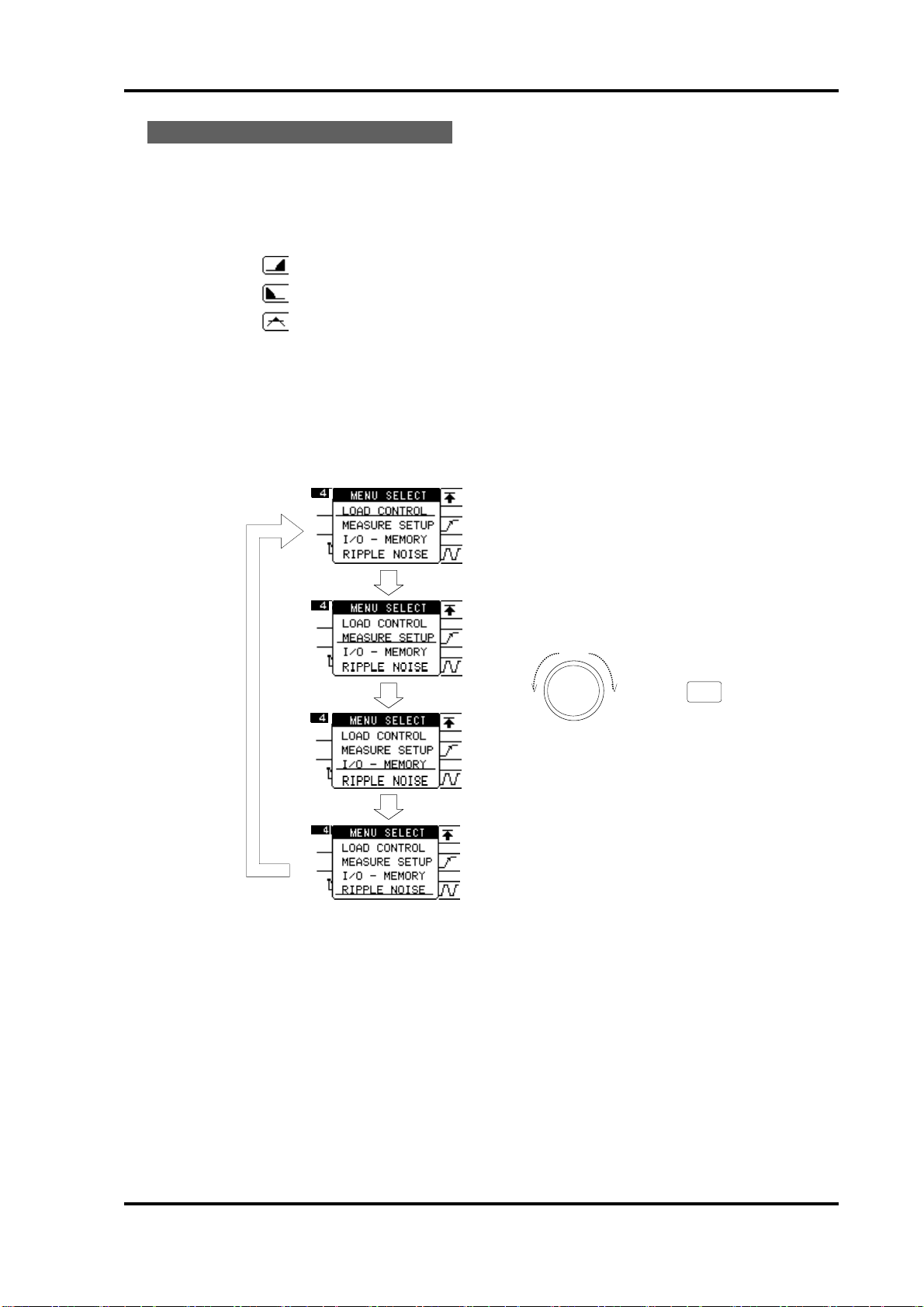

First, select an appropriate menu mode by pressing “MENU”key to display menu selection
display.
To select a menu, press “MENU”key or rotate the rotary knob until desirable menu is
underlined. Then press “ENT”key or the rotary knob to confirm and display the menu.
To quit the selection, press “CE”key.
O
R
M
E
N
U

RC-02A
4-18 Operations of each measurement mode
4.3 Select a measurement item
One measurement item can be selected and displayed on the display.
To do it, select and display “MESURE SETUP”menu by using the method described in above
(1) Change the measurement item
Change the displayed contents, press “F2”key to display the choices to be selected.
Press “F2”key or rotate the rotary knob until item to be selected is selected.
Then press “ENT”key or the rotary knob to confirm.
Items to be selected are as follows:
・VOLT-I Voltage at INPUT terminal
・NOISE Noise voltage
・RIPPLE Ripple voltage
・POWER-I Power (Load current x “VOLT-I”)
・DC+NOISE VOLT-I + (Noise voltage)/2
・DC+RIPPLE VOLT-I + (Ripple voltage)/2
・During the measurement with RC-02A, only lower display can be updated.
・Voltage unit of Ripple/Noise differs according to the LOAD EDGE/STATION Series type of
an electronic load as follows:
・LOAD STATION Series
Unit is “mV”
・LOAD EDGE Series
Unit is “V”
Supplement
O
R
F
2

RC-02A
Operations of each measurement mode 4-19
4.4 Setting of sampling rate
To minimize the influence of hum noise, the sampling frequency of A/D converter can be
selected. This frequency should be set as the commercial frequency of the AC line voltage.
(1) How to select sampling frequency
To change the sampling frequency, while “MEASURE SETUP”menu is displayed, press “F3”
key to display choices of the frequencies, 50Hz and 60Hz. Select one by pressing “F3”key or
rotating the rotary knob and then press “ENT”key or the rotary knob to confirm it.
4.5 Setting of DC/noise/ripple Volt. range
Range can be changed from any menu except I/O menu. If I/O menu is displayed, change the
menu to the other menu.

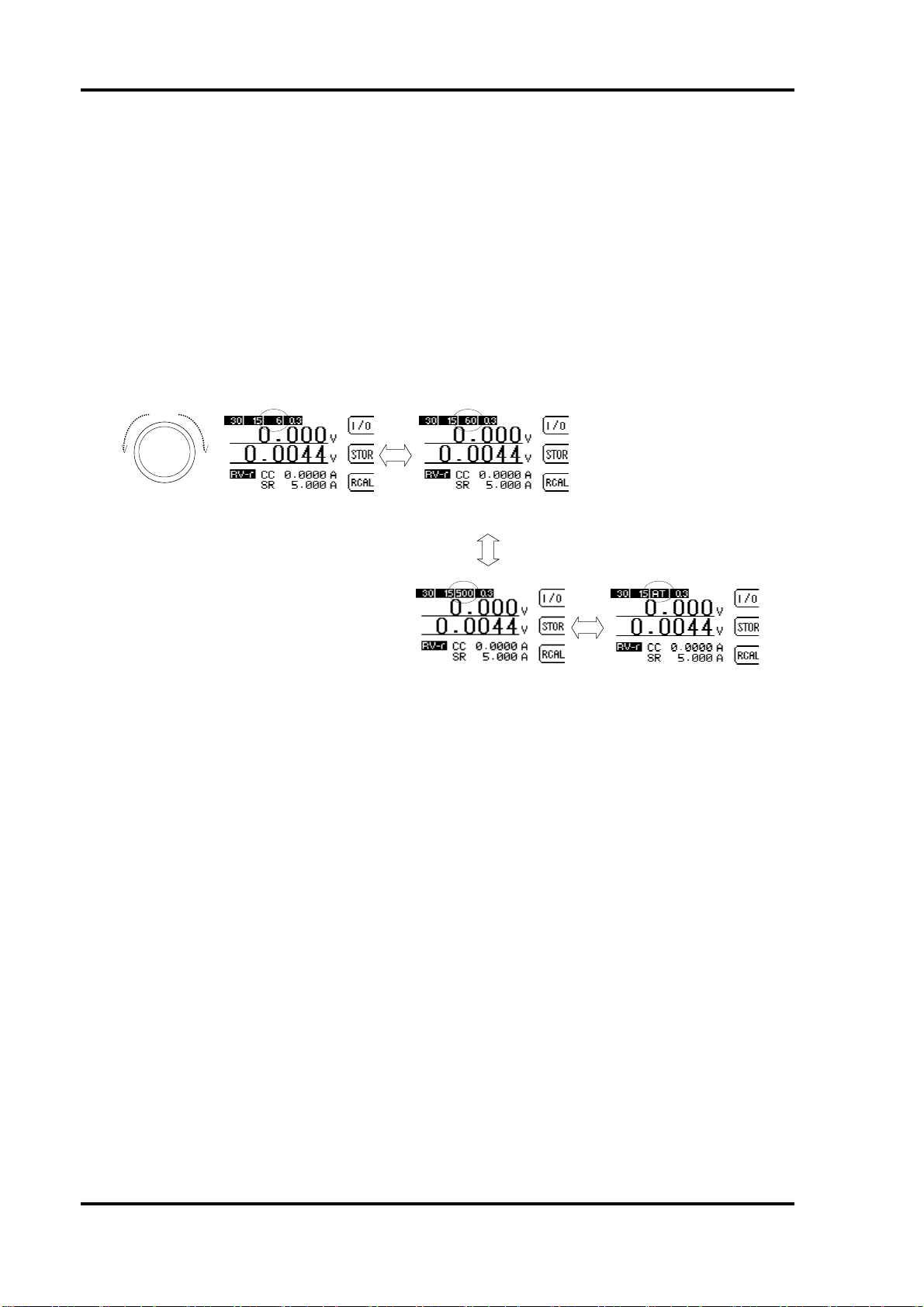

(1) Select DC volt range.
Press the rotary knob four (4) times in a row.
During the operations, as shown above, when the rotary knob is pressed one time and four
O
R
F
3
O
n
c
e
T
w
i
c
e
T
h
r
e
e
t
i
m
e
s
F
o
u
r
t
i
m
e
s

RC-02A
4-20 Operations of each measurement mode
times, “MODE”and “RV-r”is displayed respectively.
Then turn the rotary knob. Choices of “6”, “60”, “500”, “AT”are sequentially displayed.
Each indicates the following.
“6”6 Volt fixed range
“60”60 Volt. fixed range
“500”500 Volt. fixed range
“AT”Auto range
Select one of above choices and confirm it by pressing “ENT”key or the rotary knob.
6
V
F
i
x
e
d
6
0
V
F
i
x
e
d
A
U
T
O
5
0
0
V
F
i
x
e
d
Table of contents
Popular Media Converter manuals by other brands

Ensemble Designs
Ensemble Designs BrightEye 90 user guide

Creative
Creative Sound BLASTER PLAY! 4 quick start guide

Dynacord
Dynacord Echocord Super 76 operating manual

FeinTech
FeinTech VSP01222 Operating instructions and technical information

CYP
CYP CSC-5501 Operation manual

Ribimex
Ribimex PREHLS11T/VN User and maintenance manual

SamplexPower
SamplexPower VTC305-12-12 owner's manual

Thor Broadcast
Thor Broadcast H-4HD-EMS user manual

Omnitron Systems Technology
Omnitron Systems Technology Omnitron iConverter GX/TM2 user manual

Fagor
Fagor G2AB installation manual

GUSTARD
GUSTARD A26 instruction manual

Transition Networks
Transition Networks FBRM1XXX-1XX manual
