Kellfri 35-RKATV117 User manual

35-RKATV117
ATV ROUGH MOWER
CAREFULLY READ THE OPERATING INSTRUCTIONS BEFORE USING THE PRODUCT!
OPERATING INSTRUCTIONS TRANSLATED FROM THE ORIGINAL


TABLE OF CONTENT
Product information 
Technical data 
For your safety 
Product safety information 
In case of emergencies 
Personal protection 
Surroundings 
Warning signs and labels 
Before use 
Use/operating 
Connecting 
Cut height - adjusting 
Driving and speed 
After use 
Petrol handling 
Transport and storage 
Maintenance and service -
Maintenance of knives 
Service and trouble shooting 
Spare parts 
Assembly instructions -
Exploded diagram -
Complaint form 
Warranty and EG-mark 


INTRODUCTION
Thank you for choosing a product from Kellfri AB. By following the general safety information and the in-
struction manual and by using common sense, you will have a great and safety use of your Kellfri product
for many years. Kellfri designs and delivers eective, aordable machinery and components for forest,
agriculture, construction and gardening in Sweden, other Nordic countries and Europe.
PRODUCT INFORMATION
Kellfri Rough Mower with electric starter for ATVs/Quads. Cutting unit with generous 116 cm cutting
width enables you to quickly cover large areas of grass. Three overlapping blades mean that you avoid
strips of uncut grass. The cutting height is simple to adjust between 25-250 mm. Tow the rough mower
at the rear or angled to the sides, works well in hilly terrain. Supplied with a 16 hp force-feed lubricated
engine. Ball hitch for 50 mm tow bar included.
INTENDED USE
The equipment is intended for cutting and trimming grass or green areas.
The machine must not be run in rocky terrain.
TECHNICAL DATA 35-RKATV117
Working width 116 cm
Engine 16 Hp 3600 rpm
Battery 12V
Cutting height 25-250 mm
Ball coupling 50 mm
Dimension (Lx Bx H) cm 128x112x63
Wheel designation 4,80/4,00-8
Number of hoses. 3
Speed limit, km/h 8-10
Engine oil, type (L) SAE 30, 10W-30 or 5W-30 see table page 12
ca: 0,7 L
Size, tank 13 L
Weight 202 kg
Spark plugs Champion RC12YC
IMPORTANT !! THE MACHINE IS DELIVERED WITHOUT ENGINE OIL!


FOR YOUR SAFETY
Before using the product, please read the safety information and instruction manual and understand its
contents for your own and others’safety. Always keep the safety information and instruction manual easily
accessible to the user of the product.
Remember that it may be good for your own and others’ safety to read the safety information every now
and then. If the instructions manual is damaged or otherwise unusable If the instructions manual is dam-
aged or otherwise unusable, please contact your retailer.
For more information visit our website: https://www.kellfri.co.uk/
Do not use this equipment if you are feeling sick, tired or in inuence of alcohol. Nor if you are under the
inuence of strong medications or drugs, suering from strong depression or severe mental illness. Al-
ways follow the general trac rules and regulations and the rules of the Animal Welfare Act. Persons under
15 years old and people with mental illness may not use these product.
PRODUCT SAFETY INFORMATION
• Never stick your hands or feet under the machine without rst stopping the equipment and engine.
• Never leave your equipment with the engine running. Turn the engine o when you leave the equip-
ment - even for a short while.
• Always disconnect the machine from the towing vehicle before performing service or maintenance
work.
• Only you, who are operating the equipment, may be in the vicinity of the machine during work.
• Do not use the rough mower without all guards being mounted correctly.
• Do not turn o the engine immediately after hard work, (see, turn o the engine)
• Do not run the engine in a conned space, exhaust contains monoxide which is fatal if inhaled.
• Do not drive the mower on steep slopes.
• Clear the mowing area from harmful objects such as stones, branches, etc. before starting work.
• The machine is not designed to run on rocky terrain. Check that there are no stones on the grass
surface before starting work.
• Do not try to remove things that have been stuck with the engine running. Ensure that the engine
has stopped and the rotor has stopped spinning before any action is taken on the mower.
• Do not use the mower at night unless adapted spotlight is used.
• Do not drive with the mower if excessive vibration occurs, stop the machine immediately and check
the maintenance schedule.
• Do not change the engine settings unless it is told by the engine manufacturer.
• Do not use the mower unless all safety precautions are taken.
• Never allow anyone to ride on the equipment!
• Do not exceed the maximum driving speed.
• NEVER ADJUST cutting height when the machine is running.
INCASE OF EMERGENCIES
In case of an emergency please dial 112.
Keep cell phone or emergency phone available specially when working alone. First aid kit and
re extinguishers must be kept easily accesable during all work, maintenance and service.
IMPORTANT!
The product must not in any circumstances be modied
without permission from the manufacturer. Unauthor-
ized modication of the machine and/or accessories can
cause fatal injuries or death to operator or others.


PERSONAL PROTECTION
Always wear suitable clothing and footwear. Do not wear loose clothing or jewelry when using
the machine. Remember to put up long hair when operating rotating machines. Wear protec-
tive gloves, to prevent risking burns on contact with hot surfaces such as exhaust system, and
to avoid oil and gasoline on the skin. Hearing protection should be used when the engine is
running.
SURROUNDINGS
Make sure your working area is clear from people, children and objects before installing and
using the machine. Risk of serious injuries can occur during operation.Take an extra caution
when children are in the area where the equipment/ product is being use or stored. Check
the area for low hanging electrical wires. Be careful when working on slopes and near ditches.
Always work alone with single - purpose tools/products. Never have junk lying in your area.
Keep working areas clean. Always respect the risk zone.
DANGER!
Children in the area should be supervised.


WARNING DECALS
Ensure that warning labels are always visible and clean. Clean the warning labels as required.
Do not rinse using pressure washer directly on the warning labels. Any damage/ brokenstick-
ers should be replace. Order new stickers from your supplier.
SYMBOL EXPLANATION LOCATION
Danger zone 15 m Side of the machine
Warning! Risk of ying debris!
Rotating knives
Fordbidden to stay on the ma-
chine.
Risk for children accidents.
The product is CE marked
SAFETY MEASURES BEFORE OPERATING
Read the safety information and instruction manual carefully. Be sure you understand the
safety measures, instruction manual and warning labels. Use common sense when operating
the machine and use appropriate personal protective equipment. Always check the perfor-
mance and the machine combination that are used. It’s highly important these matches in a
satisfactory manner. This is to ensure the product or the function and most important yours
and others safety.
Do visual inspection of equipment or product before use. Fix or replace damaged or worn
parts immediately to reduce the risk of injury. Lubricate moving parts and check that all screw-
nuts and bolts are tightened.


Learn and remember the correct working methods. Beginners should always keep a low
speed, use extreme caution before routine and product knowledge is achieved. The user/cus-
tomer is responsible to handle the situation correctly. The product should not be taken into
use unless it can be done in a safe way for the user.
Warning!
Never use faulty safety equipments!
• Ensure that all nuts, bolts and ttings are securely attached, that all gasket /
transport equipment such as tape, steel tape, rope, etc. are removed.
• Make sure there is proper oil level in the engine and that there is petrol in the
tank.
• Make sure there is proper tire pressure. Max 2.06 bar / 30 psi
• Ensure that all guards are in place and not come o before use.
• Check that the blades are not defective, replace if necessary.
• Check and clear mowing area from harmful objects such as stones, branches,
etc. before starting the work .. The machine must not be used in rocky terrain.
OPERATING THE MACHINE
Only people who understand the safety information and instructions in this manual may op-
erate the equipment. Be alert and careful when working with the machine and only use the
tool or product in the manner described in this manual. When working with equipment that
has moving parts, there is always the risk of injury. Be careful when working with equipment
equipped with hydraulic hoses ,oil under pressure can penetrate the skin. Seek medical at-
tention immediately if this occurs. Always work alone with the tools that are dened as single
porpose tools. Respect the equipment’s danger zone.
CONNECTING
• Plug the rough mower’s ball coupling to the ATV’s towing ball.
• Reduce speed when working on slopes and uneven terrain.
• Be aware that dierent parts of the machine may be hot after use.
• Follow the guidelines that the ATV manufacturer provides regarding towing / pulling
equipment / tools.
• Be careful when you ll the tank with fuel, in particular if any parts are hot.
The rough mower is designed to make a safe and reliable job if used as
instructions and for its intended use. Read and understand this manual before using the mow-
er, if not followed, it may result in personal injury and / or damage to the equipment. When
driving, always use ear protectors. During normal operating conditions, it is normally with a
noise level of 83 decibels, in this case, protection recommended.


CUTTING HEIGHT
1. The mower must be turned o when adjusting the cutting height.
Never adjust the cutting height with the engine running.
2. The cutting height is adjusted by turning the lever. Turn the lever
clockwise to lower the knife down and counterclockwise to raise
it.
3. Make sure that the mower is always kept horizontal by adjusting
the handle.
STARTING THE ENGINE
Observe all safety precautions: Keep hands and feet away from the cutting blades and other
moving parts. Ensure that bystanders are at a safe distance from the machine.
1.Make sure that there is space between the blades and ground / grass.
2. Choose an area free from loose objects that can be thrown around.
3. Make sure the machine is braked and the cutting height set in the desired position.
4. Turn the fuel valve. Turn the key to “ON” position.
5. Turn the throttle. Insert the key in the ignition and press the “ON”position then turn the key
to “START”.
6. When the engine is cold, push up the throttle to start the shock (Picture 3).
7. If the engine does not start, press the throttle to about 1/4 and try again.
8. Always set the throttle to maximum eect when mowing or trimming grass.
6. Always warm up the engine at idle before use, in order to give the engine a normal working
speed of up to 3600 RPM.
NOTE! Always turn the fuel valve o as soon as the engine is o. Make sure the “ON /
OFF” switch is in the “OFF”position after each use.
KÖRNING OCH HASTIGHET
WARNING!
If the gas is changed to increase the speed above the given recommendations,
the insurance may get invalid. Cut eectiveness will decrease, fuel consump-
tion will rise and large vibration can occur causing danger to the user and the
equipment.
throttle - full gas ”The lever must be up additio-
nal 1-2cm” Choke mode.
The throttle in the o mode
PICTURE 1 PICTURE 2 PICTURE 3


The amount of grass to be cut determines the forward speed; low speed usually gives the best
result. Make sure that you follow these procedures. Normal speed 1 km / h at heavy work, 8
km / h at very light work. Do not exceed the maximum driving speed 8km / h when driving
Start with the lowest possible speed, ensure that the mower is working eectively with the
engine at maximum speed without eort. (If this is not possible due to very tough mowing
conditions, raise the cutting rate and cut the same surface twice, the second time with a lower
cutting level, leave at least 24 hours between the rst and second cut so that the grass can
dry out.)
Increase forward speed until the engine begins to run slowly and heavily, then immediately
decrease and hold a speed where the engine runs easily. It is important to always listen to the
engine to ensure that the engine and cutter works eectively, slow down or stop if the engine
starts to move heavily.
IMPORTANT! When doing normal work and then change to heavier work, it is common that
the engine starts going heavy and reduces speed.
IF THIS OCCURS SLOW DOWN IMMEDIATELY so that the engine will get normal speed and
velocity. Follow the instructions above with normal speed. Expected speed is much lower for
hard work.
FAILURE OF FOLLOWING THESE INSTRUCTIONS will result in the power transfer slips and
cause serious damage to clutch and drive belts.
TURNING OFF THE ENGINE
When the mower is turned o after hard work. Allow the engine to idle in a stationary position
for at least 4 minutes, for the drive belts to be cooled down.
1. Use precaution against hot parts such as exhaust, belts, etc. after the engine is switched
o.
2. Ensure that the mower’s drawbar is adjusted so that it is pulled directly behind the tractor
and that it is not in an odd position.When the mower has cooled down (minimum. One
hour after the last use).
3. Ensure that there is no grass left on the engine cooling ns, power transmission belts and
rotor before using the mower again.
AFTER USE
• Parking may not be made with the equipment suspending, but is done with the equip-
ment resting on the ground.
• Rinse the equipment if necessary.
HANDLE PETROL WITH CARE
• Use only approved fuel containers
• Never ll the tank with fuel while it is running.
• Fill fuel tank outdoors with caution. Always ll the engine with fuel outdoors.
• Ret the fuel cap rmly and wipe any spilled fuel.


TRANSPORT AND STORING
Make sure there are no people, children and foreign objects around the area before transport-
ing the machine. Always take an extra caution during the transport. Ensure that the product
is well secured and that transport brackets are mounted. Always place the load as low as pos-
sible. Respect the danger zone even during transport. When lifting the equipment, never go
underneath suspended loads. Trailer used for transport should have working brakes.
Always store the machine in a dry place preferably underneath a cover when not in use. En-
sure that the product is stable and not likely to tip over. Never let children play where the
machine is being stored. Always keep in mind the risk of tipping!
TRANSPORT MODE
When the mower is moved from one job site to another, it is appropriate to raise the equip-
ment to the highest position(see section about cutting height). The engine must be turned
o and the blades stopped before adjusting to the transport position may be made. Remove
all loose dirt such as grass etc. from the cutter before leaving the eld. Never move from one
place to another with the engine running. Please take into consideration that the mower is
not legal on public roads, it must not be used on public roads. Maximum speed when towing
is 15km / h.
MAINTENANCE AND SERVICE
• Make sure the equipment is stable and not likely to tip over during maintenance and
service.
• Replace damaged and worn parts immediately to reduce the risk of injury.
• Perform maintenance, servicing and inspections as recommended. Use only parts with
equivalent performance to reduce the risk of damage and failure.
For spare parts: contact Kellfri Service
Check all bolts and nuts are tightened after maintenance and service. Always test the machine
before work is started.
• Regularly check the condition of the equipment before the failure is a fact. Discovered
cracks, twistings, bendings, glitches or fatigue stop work and x the problem. Worn parts
are to be exchanged.
• Tighten all screws and nuts after a few hours of driving, and after a day at every runtime.
• Disconnect the equipment from the towing vehicle when it is being repaired.
• Lubricate moving parts regularly. For maintenance of the engine, see the separate engine
manual.

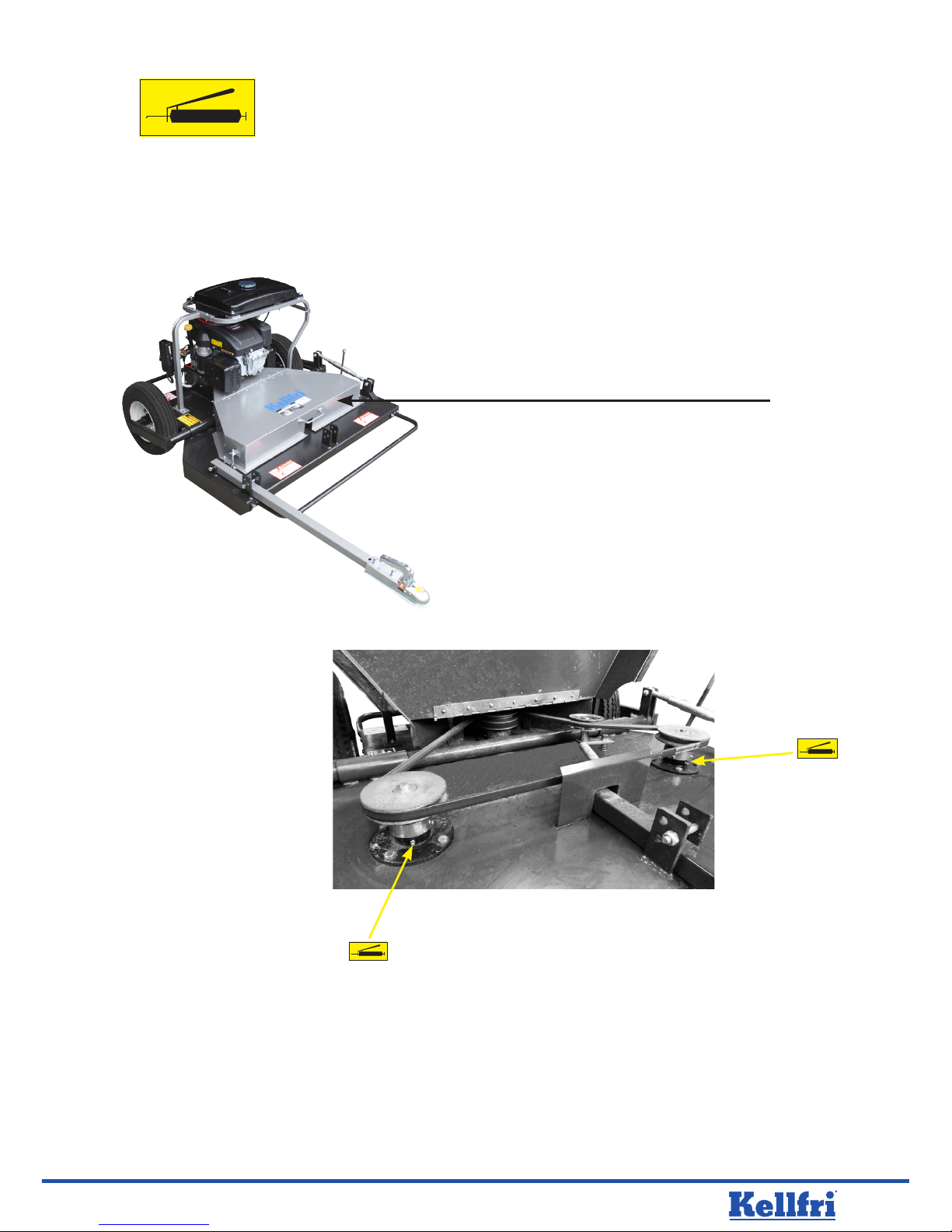

INSPECTION
It is very important to regularly check the machine, in order to detect and prevent wear and
tear, damage, etc


Open the cover and lubricate the bearings
for the strap.
LUBRICATE ALL LUBRICATION POINTS
EVERY 8TH HOUR OF OPERATING:
WARNING: ENGINE MUST BE TURNED OFF BEFORE LUBRICATION IS IMPLEMENTED
Lubricate the bearings carefully, unnecessary wear and mechanical damage may result from
insucient lubrication. Use the universal lubricant.
IMPORTANT! Avoid lubricate too much. Dirt is collected in exposed fat and leads to increaseded
wear. After greasing, wipe o excess grease from ttings.
LUBRICATING
Lubricate the draw coupling
Check the coupling to see signs of damage or wear.
Replace damaged and / or worn parts. Lubricate the coupling regularly.


Open the plate protection, to get to
the grease tting under the engine.
Lubricate bearings
CHANGING OIL
Use the correct type of oil depending on temperature conditions.
Use SAE W- or SAE-.
See table:



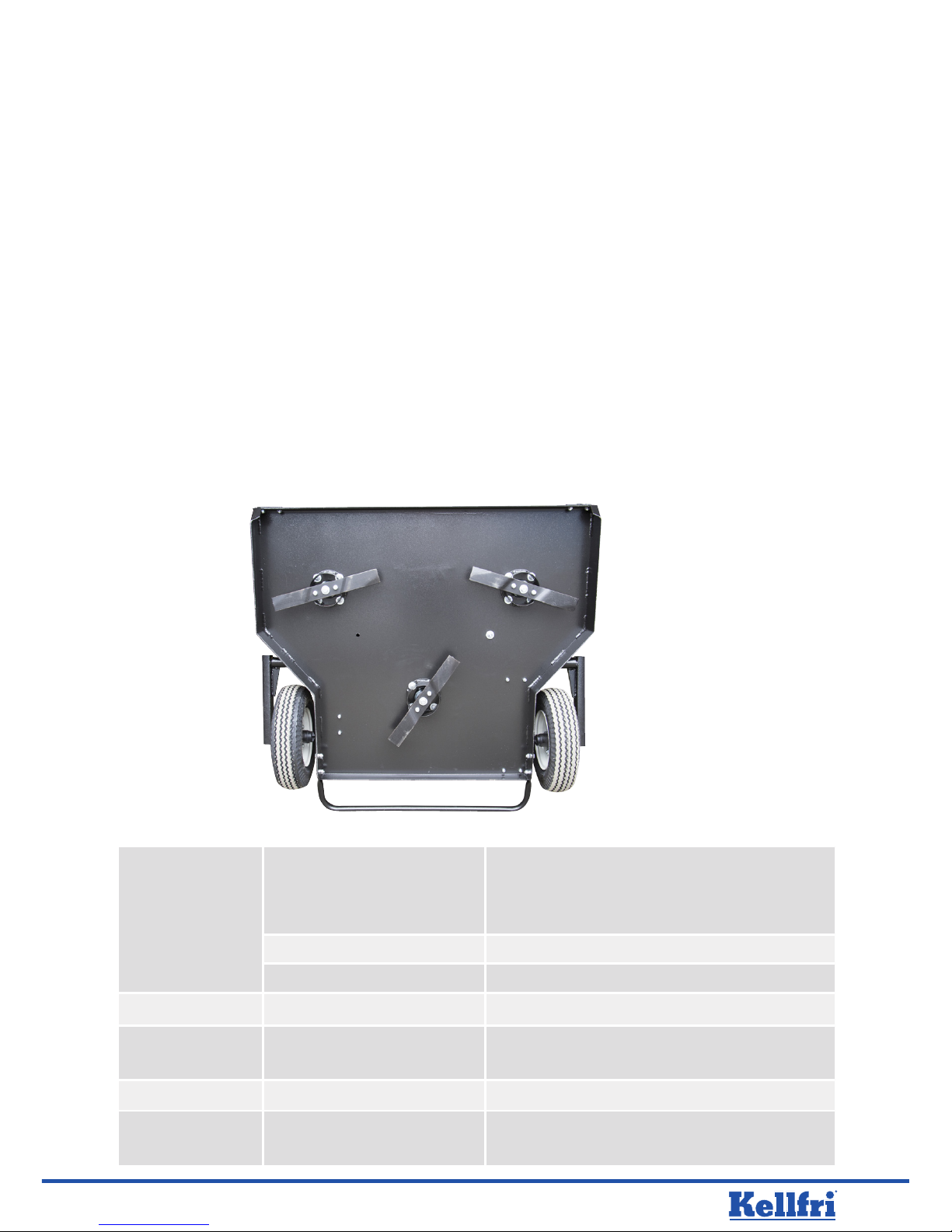

MAINTENANCE OF KNIVES
The mower is equipped with blades made to last for a long time. If a knife loosens or breaks
down, it is important to replace it immediately. If not, there is a possible imbalance, which is
very serious. If it is partly or completely worn out, it should be replaced to maintain the correct
weight balance. Use of dull blades reduces the cutting eciency and increases fuel consump-
tion. Replacing of the blades is done as following:
A) Make sure the engine is o and the blades do not rotate. Turn o the fuel valve and allow
the engine to cool for ve minutes. Remove the spark plug to be sure that the engine can not
start.
B) Raise the mower to its maximum cutting height.
C) Gently raise the mower into a slightly inclined position. IMPORTANT! Ensure that the mower
can not tip over.
D) Loosen and remove the bolts.
E) Replace blades.
F) Insert the bolts properly, and check that the blades can move properly on the shoulder.
IMPORTANT! Never use worn, cracked or repaired knives. Replace with new ones.
IMPORTANT! For repairs beyond the previously listed adjustments, please contact your local dealer.
SERVICE INTERVAL MEASURE
Knives Before every use. Kontrollera knivar
Check knives
Replace any defective blades. Sharp blades provide better results.
When replacing knives, bolts must be tightened properly.
During operation. Listen for noises
After every use. Control and check.
Straps Before every use. Strap tension. At pressure, the strap should be moved 20 mm.
Knife shafts and bearings Before every use.
Every 5th operating hour.
Lubricating
The mower After every use. Remove dirt and grass with water.
Oil Every 500th operating hour or at least 1
time each year.
Changing oil.


LONG TIME STORAGE:
Before the storage, be sure to follow the below
• Drain the engine on or add a stabilizer in the fuel to prevent fuel becomes messy.
• If you have added stabilizer, run the engine for about 5 minutes ..
• Turn o the engine.
• Pull the lever back and forth to release the hydraulic pressure.
• Remove the spark plug.
• Pour ca. one tsp (teaspoon) of oil into the spark plug hole. Cover the hole with a cloth and
turn the engine a few times to lubricate the cylinders.
• Replace the spark plug.
• Never store the machine where there is a risk of re. Allow the engine to swallow before
storage.
RECYCLING
Disposal of the product, disassemble and transport to the municipality’s recycling station.
Contact your local authority for further information
TROUBLE SHOOTING MEASURE
Mower cuts unevenly or poorly Check that the blades are undamaged and secured properly.
Check and tighten any straps.
The cutting sound changes. Check knives.
Check the tension of drive belts.
Check the blade shafts and bearings
Vibrations Check knives
Oil overheats
• dirty oil.
• The inlet lter is clogged.
• Safety valve is incorrectly set.
• Engine runs too fast.
• Unskilled driving, causes excessive oil ow
valves.
• broken oil pipeline.
• Wrong type of oil in hot hot weather.
• Change the oil and oil lter.
• Cleaning the lter element.
• adjust the valve.
• Lower the speed.
• Learn correct and smooth driving.
• Replace broken wires.
• Use the recommended oil.








NO. DESCRIPTION
1 ENGINE: 16 hp
2 Petrol tank, volume 13 L
3 Petrol level gauge
4 Ball coupling: 50 mm
5 Drawbar bracket: for use in sideway direction
6 Wheel: Maximum wheel pressure 2,06 Bar /30 PSi
ART.NO. NAME
R35RKATV.001 Knife
R35RKATV.004 Bearings for knives
R35RKATV.005 Wheel
R35RKATV.015 Strap disc 2-track
R35RKATV.016 Strap disc 1-track
R35RKATV.017 Strap disc - engine
R35RKATV.018 Turn buckle
R35RKATV.019 Draw boom
SPARE PARTS


ASSEMBLY INSTRUCTIONS
STEP : Installation of the gas tank and the support frame
. Assembly the support frame ( parts , , ), lock in place with  Mx () and
lock nut M ()
. Mount the tank on the frame, lock in place with Mx (), spring disc Ø () and large
disc Ø ()
. Mount the stabilizer bar () for stabilizing the frame (A-A), lock in place with  Mx
() and lock nut M ()
Step: Install the draw bar
. Install the draw bar in the desired position on the mower (see picture), lock in place with 
bolts M x () and M lock nut.
POSTION 
STRAIGHT FORWARD
POSTION 
FROM THE SIDE


Step: Installing the tank on the mower
. Place the frame with the tank above the mower () and lock in place with  bolts Mx
(), spring disc Ø () and lock nut M ()
Step 4: Fill the engine with oil SAE 5W-30 /SAE 5-30
. Make sure the mower is on an even surface.
. Open the lid with the dipstick and ll with oil approximately ,L.
. Check the engine oil level before each run.
CAUTION! Never start the engine without oil, always check before starting the engine, that it
is lled with the correct amount of oil. Starting the engine without oil can result in engine fail.
Step: Fill the tank with petrol
. Use only clean, unleaded gasoline with minimum  octane rating.
. Never mix oil and gasoline
. Fill the tank. NOTE: Do not overll the tank, always leave room for fuel expansion about
cm from the tank opening.
. Replace the lid and always clean spilled fuel.
CAUTION! Never start the engine indoors or in a poor ventilated place. Exhaust gas from the
engine contains karbonmonoxid, colorless and odorless substance that is dangerous to inhale.
Fuel vapors are extremely ammable, ll therefore not the tank with fuel when the engine is
hot. Smoking is prohibited when the engine is replenished with fuel!




Pos
no.
NAME AMOUNT
 Petrol tank 
 Six point bolt Mx 
 Lock disc Ø 
 Lock boltM 
 Hooks for battery 
 Rubber bushing 
 Engine 
 V-belt SPB 
 V-belt SPB 
 Disc for V-belt A 
 Wedge for pulley A 
 Pulley 
 Wedge for pulley B 
 Support roll 
 Pulley B 
 Six point bolt Mx (.) 
 Lock disc Ø 
 Lock nut M 
 Collision cover - front 
 Cutting head 
 Draw boom 
 Protection cover 
 Six point bolt Mx (.) 
 Lock discØ 
 Washers Ø 
 Six point bolt Mx 
 Lock nut M 
 Six point bolt Mx 
 Hook 
Pos
no.
NAME AMOUNT
 Spring 
 Side disc 
 Six point bolt Mx 
 Lock disc Ø 
 Washers 
 Six point bolt 
 Adjustable disc B 
 Plate - back 
 Adjustable disc A 
 Six point bolt Mx 
 Washers Ø 
 Battery bracket 
 Hydraulic hose (mm) 
 Hose clamp 
 Collison cover - back 
 Rubber disc for battery 
 Washers Ø 
 Electric start 
 Six point bolt Mx 
 Lock nut M 
 Six point bolt Mx 
 Lock nut M 
 Screw Mx 
 Sleeve 
 Clamp bushing 
 Screw Mx 
 Screw Mx 
 Clamp bushing 
 Bushing 


