Kellfri 25-T300K User manual

READ THE INSTRUCTION MANUAL CAREFULLY BEFORE USING THE PRODUCT!
OPERATING INSTRUCTIONS TRANSLATED FROM ORIGINAL
25-T300K
WIND SHELTER FOR SHEEP


INTRODUCTION
Thank you for choosing a product from Kellfri AB. Compliance with the general safety instruc-
tions, instruction manual and sound common sense will guarantee many years of enjoyment
using the product. Kellfri’s equipment and products are aimed at self-employed farmers who
have stringent performance demands.
PRODUCT INFORMATION

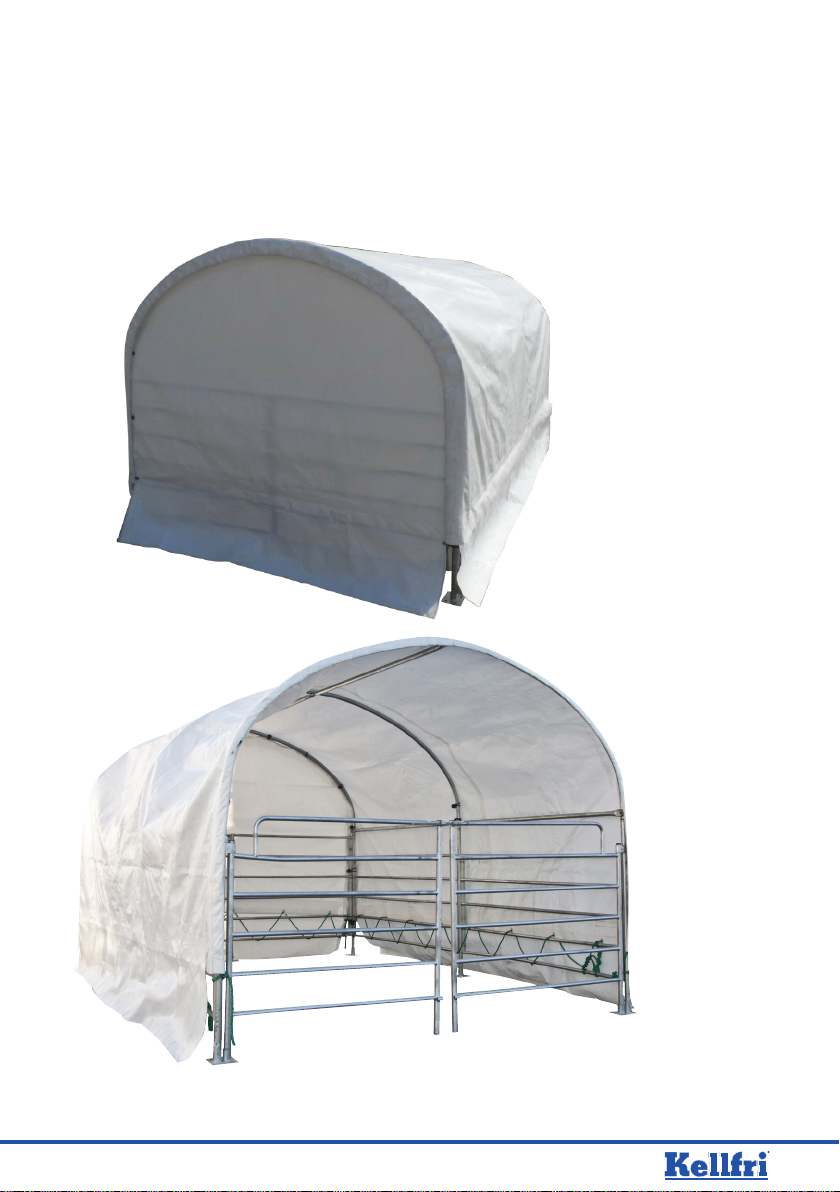

Construct a simple and economical wind shelter for your animals. This roof combines with our
25-F1500 sheep gate to form a complete wind shelter. The roof is made from dimensioned steel
arches. The fabric cover extends all the way to the ground and is anchored with the galvanised
anchors supplied.
FOR YOUR SAFETY
Before using the product, please read the safety information and instruction manual and
understand its contents for your own and others’ safety. Always keep the safety information
and instruction manual easily accessible to the user of the product. Remember that it may be
good for your own and others’safety to read the safety information every now and then. If the
instructions manual is damaged or otherwise unusable, please contact your retailer and order
a new one
The general safety instruction is also available from Kellfri’s website: www.kellfri.com
Do not work with this equipment if you are feeling sick, tired or in inuence of alcohol. Nor if
you are under the inuence of strong medications or drugs, suering from strong depression
or severe mental illness. Always follow the general trac rules and regulations and the rules
of the Animal Welfare Act. Persons under 15 years old and people with mental illness may not
use this product.
Warning!
Compliance with the safety instructions
requires that the product is only used as
described in these instructions. It is the user’s
responsibility to read through the instructions
and comply with them.
TECHNICAL DATA 25-T300K (COMPLETE WITH GATE AND ROOF)
Length xWidth x Height 3.0 x 2.0 x 1.7 m
Fabric cover Fabric cover PE300g
Weight 83 kg
Tubular pipe dimension 25/19 mm


PRODUCT SAFETY INSTRUCTIONS
1. Supervision should be carried out at least once per day during use. Avoid keeping too
many animals in the pen.
2. Broken or damaged gates should not be used.
3. Follow the safety instructions during the whole installation. Use suitable protective
equipment and the correct equipment and tools.
4. Choosing a site: Choose a site on rm, level ground. Do not assemble the structure on
ground that is unstable or cannot support its weight. Do not assemble the structure on
soft grass or on wet land.
5. Inspect the surroundings carefully. Keep the work site clean. Do not assemble the struc-
ture in snow drifts or on slippery ground. The fabric cover will protect against falling
leaves and other light objects, but large, heavy and sharp objects may cause holes or
tears in the cover. Keep the structure a safe distance away from such risks. Exercise care
with electricity and heat sources. Do not put heat sources near the fabric cover and do
not expose the cover to naked ames.
6. Choose a calm day for assembling the structure, as it is very dicult to attach the fabric
cover in a strong wind.
7. Any snow which falls on the structure should be removed immediately, in order to
prevent the structure from collapsing under the weight.
8. Try to keep the structure dry, especially along the base. This will extend its service life.
9. The user is responsible for missing parts or damage which arise in conjunction with
installation.
10. Do not make any alterations to the material. Do not hang anything in the frame except
the material included. The user is responsible for damage or injury caused by faulty instal-
lation or incorrect use, and for damage caused by snow, wind or other natural causes. The
structure is not intended for hiring out.
Warning!
The original design of the product must
not, under any circumstances, be modied
without the approval of the manufacturer.
Unauthorised modications and/or acces-
sories may cause life-threatening injuries or
death to users and others.
PERSONAL PROTECTION
Always use suitable protection equipment. Do not wear loose clothing or jewellery while
working with the equipment. Wear protective gloves during assembly and maintenance.
SURROUNDINGS
Check that the work area is free from bystanders, children and objects before assembly or
transportation. There is a risk of serious injury. Take particular care if there are children in the
vicinity of where the product is used or stored.
Children must not be left unsupervised in the area.
DANGER!


INSTRUCTIONS FOR EMERGENCY SITUATIONS
In case of emergency, call 112.
Always have a mobile phone or emergency phone available when working alone. A rst-aid
kit and re extinguisher must be kept in an easily accessible location when carrying out any
work, maintenance or service.
USE
Only those who understand the safety instructions and the instruction manual may use the
product. Exercise caution and care when working with the product and only use it in the way
described in the instruction manual.
Kellfri is not liable for any modications, changes or rebuilds carried out by customers.
STEPS TO TAKE BEFORE ASSEMBLY
Carefully read the safety instructions and the instruction manual. Make sure that you under-
stand the safety information and the instruction manual. Use common sense and suitable
personal protective equipment when using the product.
MAINTENANCE AND CARE
1. If any part of the structure is damaged during use, replace the damaged part in order to
avoid further damage and to keep the structure in good condition. Only use spare parts
with equal performance to reduce the risk of injuries and breakdowns.
2. When replacing components, ensure that they are attached correctly.
3. When replacing the fabric cover, ensure that conditions are not too windy. When remov-
ing the fabric cover, ensure that the ropes are removed and that the cover does not get
caught on the way down. Avoid using heavy equipment to pull o the cover.
4. To extend the service life of the fabric cover, place soft material such as foam rubber on
the frame where it comes in direct contact with the cover. This will reduce wear between
the cover and the frame.
5. At regular intervals, at least twice per year, the interior and exterior of the structure should
be inspected to ensure that it is still correctly installed and secure. Check that all bolts and
other attachments are in place and tightened. Check that the base plates are still in place,
and whether the ropes require tensioning. Clean the structure with a suitable cleaning
agent. If dirt and litter are allowed to remain on the cover for an extended period, this will
damage the cover.
Kellfri AB has a policy of continuous product development and therefore reserves the right to
make modications, e.g. to the design and appearance of the product, without prior notice.
TRANSPORTATION AND SET-UP
Always keep the product on a dry surface, preferably under a roof, when not in use.
Ensure that the equipment or product is stable and cannot fall over. Never permit children to
play at the storage site.
RECYCLING
When scrapping, the product should be dismantled and transported to a recycling station
designated by your local authority. Contact your municipality for further information.


PARTS NUMBER
Arch (2-part) 3
Gate 6
Foot 5
Foot (front) 2
Door 2
Fabric cover 1
Back wall 1
Anchor 7
Clamps 2
Rope 3
CHECKLIST


ASSEMBLY

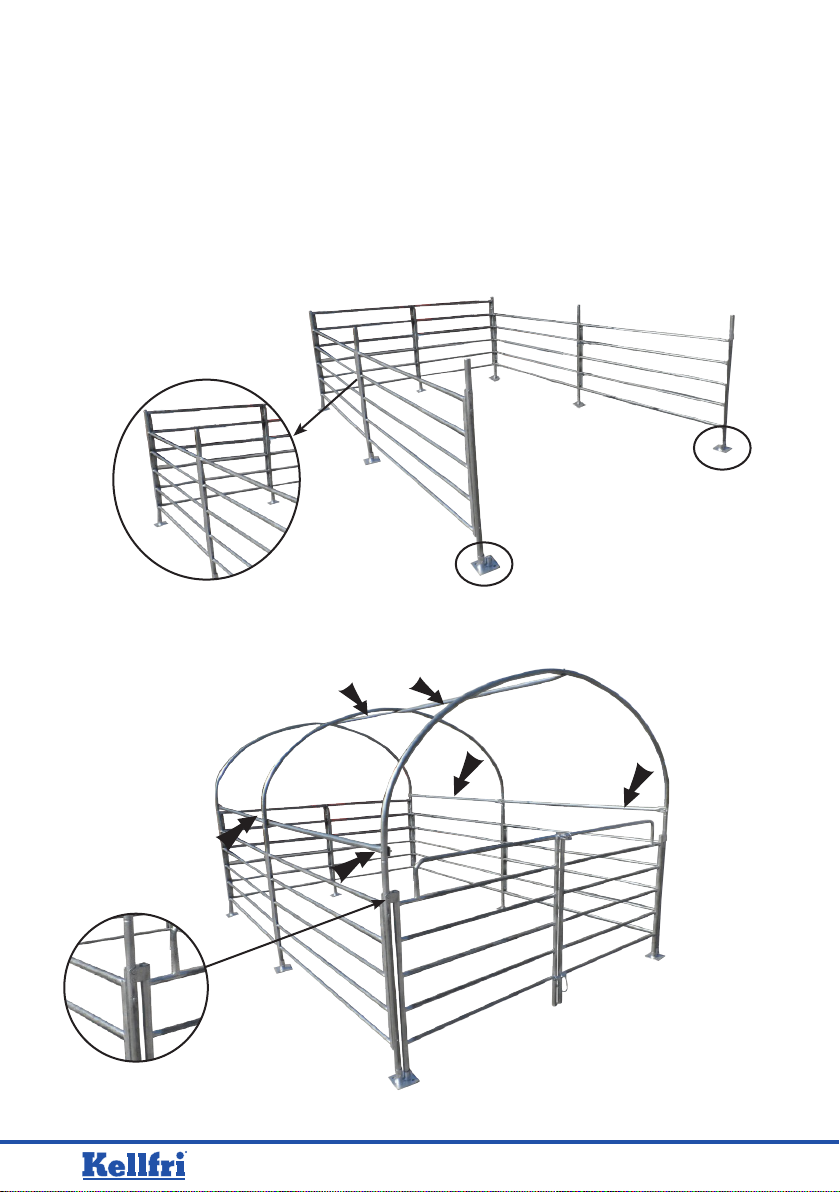

1. Prepare the position of the gates on a level surface. Ensure that the ground under the
selected location is level, and preferably hard-packed so that the feet of the gates cannot
sink into the ground. Put all material which is to be used for the installation nearby. Check
that you have all the parts needed for the assembly.
2. Fit the feet on the legs of the gates (6). The feet with two tubes should be placed at the
front where the gate doors will be. Bolt the gates onto the stabilisers. Note that the gates
for the gable are higher than the side gates. Tighten all bolts. Secure the gates in the
ground with tent pegs/anchors. Drill into the ground if necessary, using a thinner drill
bit to avoid bending the pegs. IMPORTANT! Tighten all bolts to ensure that they do not
come undone.
3. Assemble all arches (3). Fit the arches over the gates, then t the stabilising struts between
the arches: 2 on either side and 2 on top between the sections. Secure the arches with
bolts, and tighten. Fit the gate doors at the front and secure with tubular pipe clamps.


4. Begin by tting the back fabric cover wall.
5. Then pull the large cover carefully over the frame. It is helpful if someone can help you
to guide the cover over the frame from the inside, in order to prevent the canvas getting
caught on the frame.
6. Tension the rope at the front and rear to x the cover rmly on the frame.
The fabric cover should be pulled over
the back wall as shown in the picture.
Secure the cover around the gates
with ropes.
