Kelvinator KSV25CRF User manual

Inverter Air Conditioner
Installation Manual
KSV25CRF, KSV35CRF, KSV70CRF,
KSV25HRF, KSV35HRF, KSV52HRF,
KSV70HRF, KSV80HRF
Refrigerant R32

2Contents
Congratulations and thank you for choosing our Inverter air
conditioner. We are sure you will find your new air conditioner a
pleasure to use. Before you use the air conditioner, we recommend
that you read through the entire user manual, which provides the
description of the air conditioner and its functions.
To avoid the risks that are always present when you use an electrical
appliance, it is important that the air conditioner is installed
correctly and that you read the safety instructions carefully to avoid
misuse and hazards.
We recommend that you keep this instruction booklet for future
reference and pass it on to any future owners.
After unpacking the air conditioner please check it is not damaged.
If in doubt, do not use the air conditioner but contact your local
Electrolux Customer Care Centre.
Meanings of symbols used in this manual are shown below:
WARNING
warning
This symbol indicates information concerning your
personal safety
WARNING
caution
This symbol indicates information on how to avoid damaging
the appliance
TIPS & INFORMATION
important
This symbol indicates tips and information about
use of the appliance
ENVIRONMENTAL TIPS
environment
This symbol indicates tips and information about economical and
ecological use of the appliance
This symbol indicates never to do this
This symbol indicates always do this
Important safety instructions ....................................... 3
Notice for installation .................................................. 3
Minimum floor areas .................................................... 4
Components ................................................................ 4
Product description ..................................................... 5
Installation site instructions ......................................... 6
Rooftop installation ..................................................... 7
Outdoor unit installation.............................................. 8
Indoor unit installation................................................. 9
Installation ................................................................. 19
Testing the air conditioner ......................................... 23
Installation checklist................................................... 24
Post installation checks.............................................. 25
Warranty .................................................................... 27
Congratulations Contents

3Safety
WARNING
caution
1. The unit must only be installed by a qualified refrigeration
mechanic and electrical work carried out by a qualified
electrician according to AS/NZS3000 electrical installation
standard and all local and national regulations, and in
compliance with this manual..
2. Before installation, please contact a qualified air conditioner
installer. If the unit is not installed by a qualified air conditioner
installer, the malfunction may not be solved due to faulty
installation.
3. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
4. The appliance must be positioned so that the plug
is accessible.
5. The temperature of the refrigerant circuit will be high, please
keep the interconnection cable away from the copper tube.
6. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
7. Children should be supervised to ensure that they do not play
with the appliance.
WARNING
warning
Before obtaining access to terminals, all supply circuits must be
disconnected.
Please read this installation manual and the user manual before
installation and carefully store in a handy place for later reference.
Inside you will find many helpful hints on how to install and test the
air conditioner properly.
Electrical work must be installed by a licensed electrician. Be sure
to use the correct rating of the power plug and main circuit for the
model to be installed.
Incorrect installation due to ignoring this instruction may cause
harm or damage, which may not be covered by warranty.
R300 refrigerant warning
R32 REFRIGERANT WARNING
Warning Refrigerant R32, mildly flammable. This product uses
Refrigerant R32, Difluoromethane which is a mildly flammable
gas class 2.2, based on AS1677 and must be handled by a
Refrigeration Mechanic with an appropriate Australian Refrigerant
Gas handling license
ENVIRONMENTAL TIPS
environment
Information on disposal for users
• Most of the packing materials are recyclable.
Please dispose of those materials through your local recycling
depot or by placing them in appropriate collection containers.
• If you wish to discard this air conditioner, please contact your
local authorities and ask for the correct method
of disposal.
Important safety instructions Notice for installation

4Minimum floor areas / components
Minimum floor areas
Your air conditioner is designed to condition the air for a certain
range of room sizes, please ensure the selection of your air
conditioner complies with the Kelvinator selection tool available
from www.kelvinator.com.au
This product uses refrigerant R32. Certain levels of refrigerant
require minimum room sizes. Please ensure that these minimum
room sizes are adhered to for standard installations (7.5m pipe
length). If larger refrigerant charges than standard are used then
please consult AS60335.2.40 to determine the safe minimum floor
area for the installation.
Model no. Charge of R32 (g) Minimum floor area (m2)
KSV25CRF 710 n/a*
KSV25HRF 710 n/a*
KSV35CRF 970 n/a*
KSV35HRF 970 n/a*
KSV52HRF 900 n/a*
KSV70CRF 1300 1.87
KSV70HRF 1400 1.87
KSV80HRF 1700 2.76
*no minimum floor area required for this product
Items required for installation
• Level gauge
• Screw driver
• Electric drill
• Hole core drill ( 55mm / 70mm)
• Flaring tool specifically designed for R32 or
R410a refrigerant
• Specified torque wrenches
• Spanner (half union)
• A glass of water
• Hexagonal wrench (6mm)
• Gas-leak detector
• 2 stage vacuum pump
• Gauge manifold
• Users manual
• Thermometer
• Multimeter
• Pipe cutter
• Measuring tape
Number Description Quantity
1Indoor unit mounting plate 1
2Clip anchor not supplied
3
Self-tapping screw ST4 x 25
- for KSV70CRF, KSV70HRF & KSV80HRF 10
- for all other models 5
4Remote control 1
5Remote control holder 1
6Screw for remote holder 2
7Battery (AAA 1.5V) 2
8Insulation material not supplied
9Connection piping assembly
(refer to page 8)
varies by
country
10 Insulation hose for refrigerant piping not supplied
11 Wall clamp not supplied
12 Drain hose not supplied
13 Connection power cable not supplied
14 Drain connector
(heat pump model only) 1
15 Drain plug (reverse cycle models with
capacity of over 4500W) 3
16 Thermal insulating pipe for extending
drain hose 1
17 Flare nut 2
NOTE: Other parts necessary for installation besides those
mentioned above must be supplied by the customer/installer.
Components

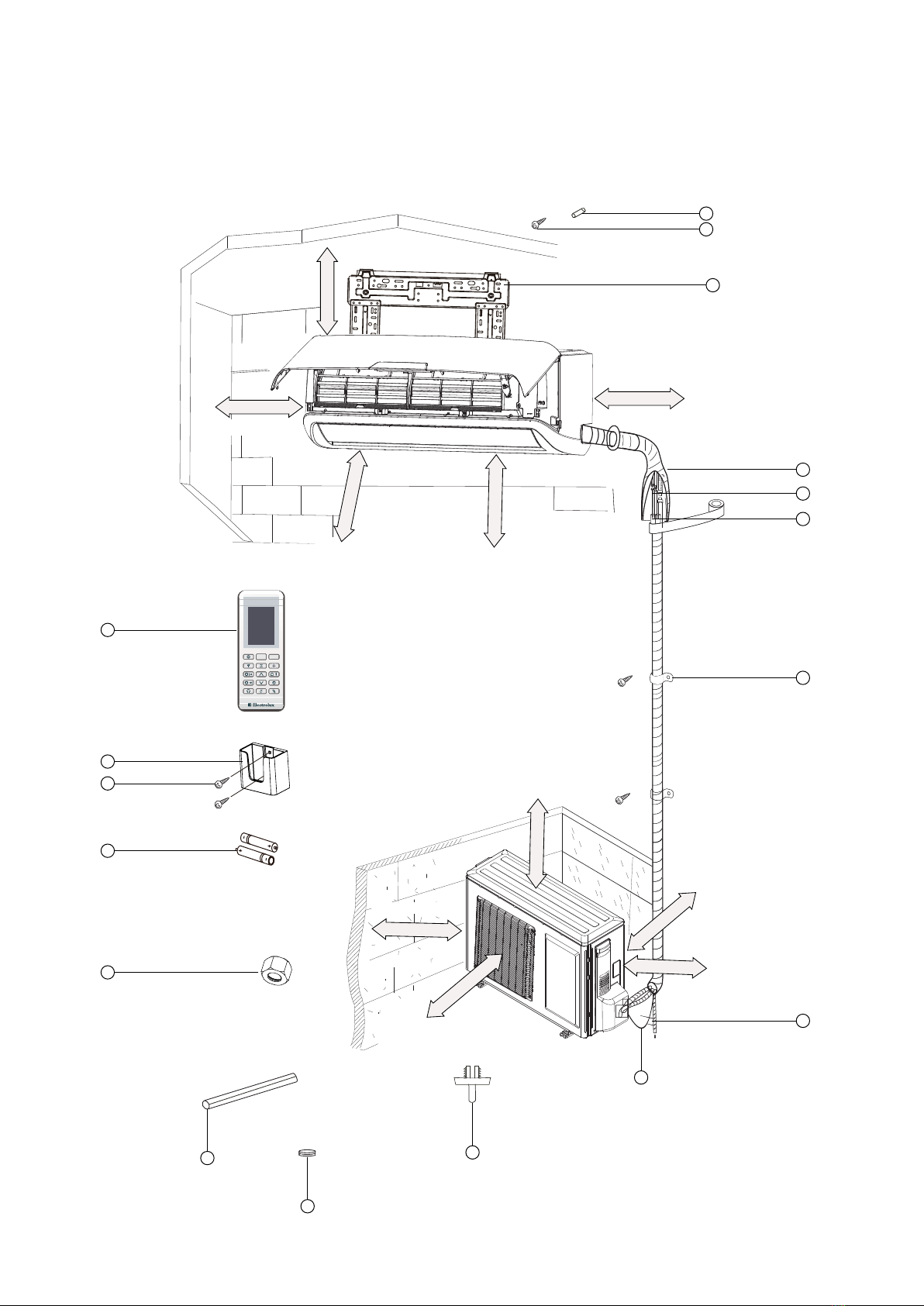

5Product description
Product description
Light
Turbo Healthy
Timer-On Temp
Timer-Off
Swing I feel Eco
Fan
Clock
Mode
2
3
Indoor unit
Outdoor unit
space to obstruction
air inlet side
space to the wall
space to the wall
space to the ceiling
space to the floor
air outlet side
15cm or more
200cm or more
15cm or more
250cm or more
15cm or more
space to the wall
air outlet side
30cm or more
50cm or more
space to the wall
50cm or more
20cm or more
150cm or more
1
8
9
10
11
12
13
14
15
16
17
7
6
5
4

6Installation site instructions
refrigerant charge.
14. Do not install near a doorway.
15. Note low temperature soldering alloys are not acceptable.
16. Minimum room space requirements as advised on the rating
plate must be complied with.
17. Reusable mechanical connectors may not be used within
indoors or within wall or ceiling cavities where a refrigerant leak
can gather.
18. All refrigerant tubing shall be protected or enclosed to prevent
damage.
Outdoor unit
1. Select a site where noise and outflow air emitted by unit will
not annoy neighbours.
2. Select a site where there is sufficient ventilation.
3. Select a site where there is no obstruction blocking the inlet
and outlet.
4 The site should be able to withstand the full weight and
vibration of the unit.
5. Select a dry place, but do not expose the unit to direct sunlight
or strong wind.
6. Make sure that the outdoor unit is installed in accordance with
the installation instructions, and is convenient for maintenance
and repair.
7. Select a place where it is out of reach of children and far from
animals or plants.
8. Select a place where the unit keeps the horizontal and aligned
position.

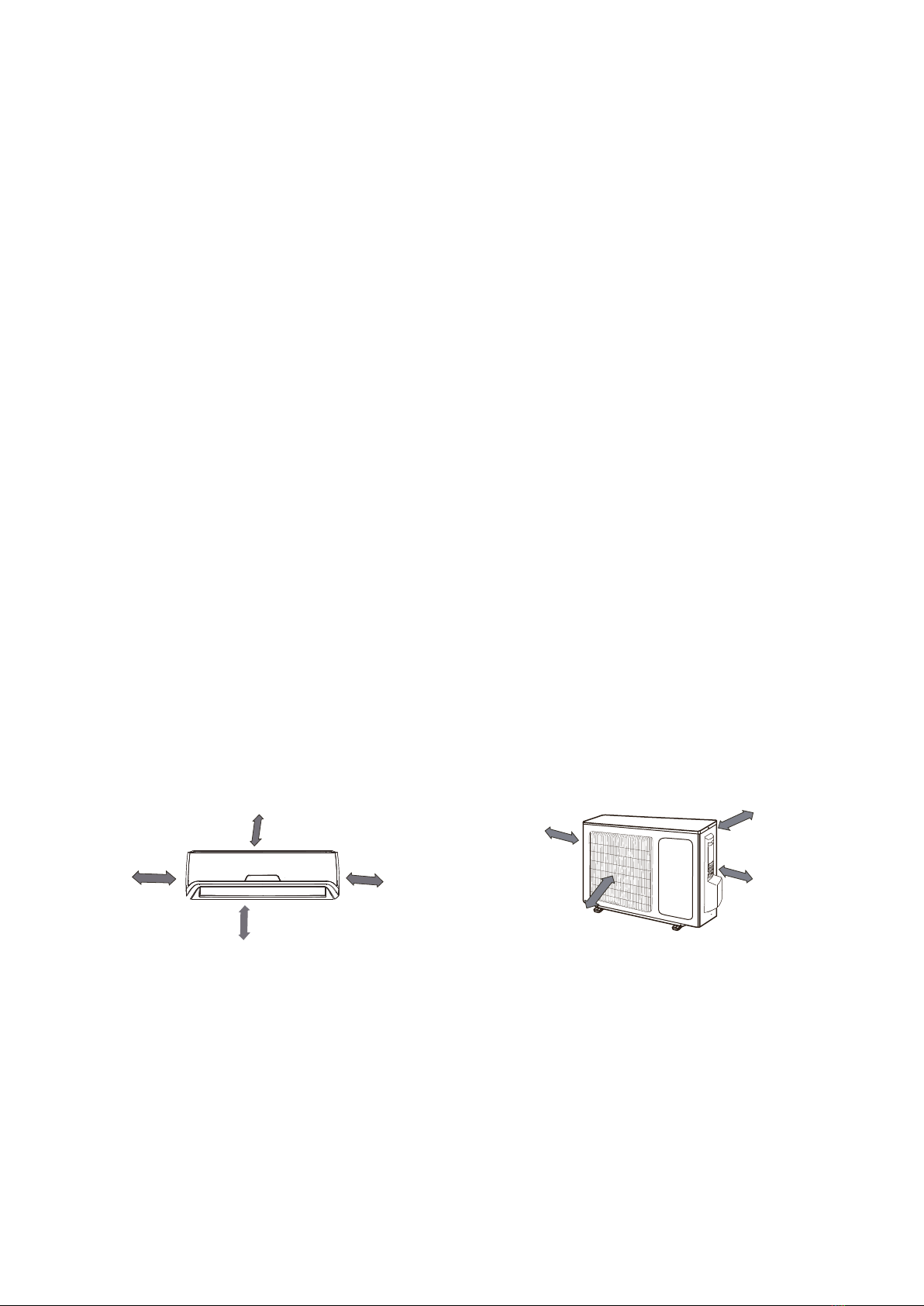

9. Select at a place that respects the minimum distances around
the outdoor unit as below:
more than 20cm
more than
50cm
more than
30cm
more than 1.5m
10. Note low temperature soldering alloys are not acceptable.
11. Reusable mechanical connectors may not be used within
indoors or within wall or ceiling cavities where a refrigerant leak
can gather.
Installation site instructions
A proper installation site is vital for correct and efficient
operation of the unit.
Avoid the following sites where:
• strong heat sources, vapour, flammable gas or volatile liquids
are emitted.
• high-frequency electro-magnetic waves are generated by radio
equipment, welders or medical equipment.
• salt-laden air prevails (such as close to coastal areas).
• the air is contaminated with industrial vapours and oils.
• the air contains sulphurous gas such as in hot
spring zones.
• corrosive or poor air quality exists.
Indoor unit
1. The air inlet and outlet should be kept clear of obstructions.
Ensure the air can be blown through the whole room.
2. Select a site where the condensing water can be easily drained
out, and where it is easily connected to the
outdoor unit.
3. Select a place where it is out of reach of children.
4. Select the place where the wall is strong enough to withstand
the full weight and vibration of the unit.
5. Be sure to leave enough space to allow access for routine
maintenance.
6. For optimum performance, the indoor unit should be installed
on the wall at a height of 2 metres or more above the floor and
at least 2.5 metres from the opposing wall.
7. Make sure that the indoor unit is installed in accordance with
installation dimension as below:
more than 15cm from
the ceiling
more than
15cm
more than
15cm
more than 2m from the floor
more than 2.5m from the opposing wall
8. Select place about 1m or more away from a TV set or any
other electric appliance.
9. Select a place where the filter can be easily taken out.
10. Do not use the unit in wet areas such as the laundry or by a
swimming pool.
11. A minimum pipe run of 3 metres is required to minimise
vibration and noise.
12. Use a stud finder to locate studs to prevent unnecessary
damage to the wall.
13. Any variations in pipe length may require adjustment to

7Rooftop installation
Rooftop installation
If the outdoor unit is installed on a roof structure, be sure to level
the unit.
Ensure the roof structure and anchoring method are adequate for
the unit location.
If the outdoor unit is installed on roof structures or external walls,
this may result in excessive noise and vibration, and may also be
classed as non-serviceable installation.

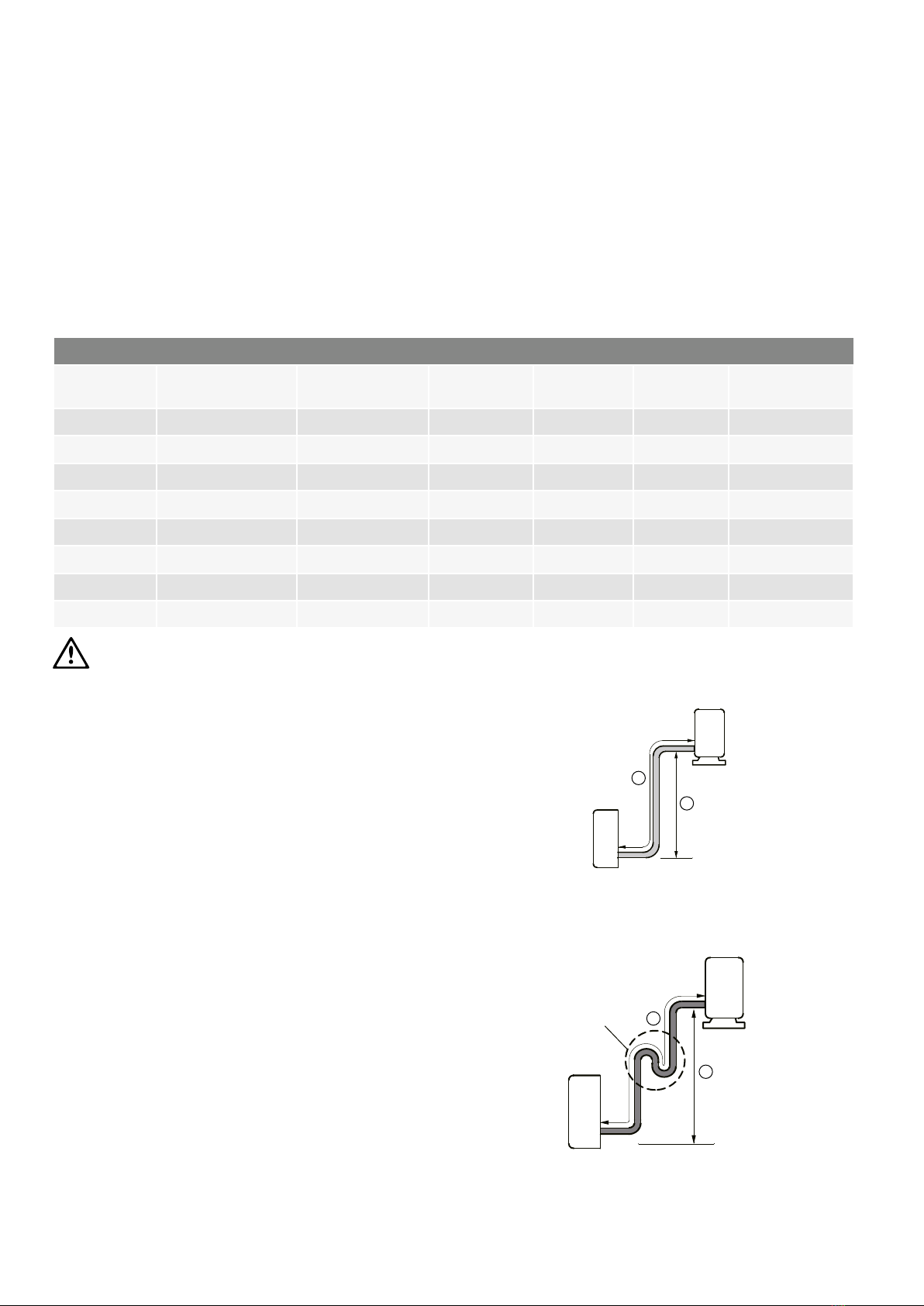

Pipe Length Elevation and Additional Quantity of Gas
Model Number Discharge Pipe
Diameter
Suction Pipe
Diameter
Standard
Length (m)
Maximum
Length (m)
Maximum
Height (m)
Additional
Refrigerant (g/m)
KSV25HRF Ø6.35 mm (1/4”) Ø9.52 mm (3/8”) 7.5 15 10 16
KSV35HRF Ø6.35 mm (1/4”) Ø9.52 mm (3/8”) 7.5 20 10 16
KSV52HRF Ø6.35 mm (1/4”) Ø12.70 mm (1/2”) 7.5 25 10 16
KSV70HRF Ø6.35 mm (1/4”) Ø15.88mm (5/8”) 7.5 25 10 40
KSV80HRF Ø6.35 mm (1/4”) Ø15.88mm (5/8”) 7.5 30 10 40
KSV25CRF Ø6.35 mm (1/4”) Ø9.52 mm (3/8”) 7.5 15 10 12
KSV35CRF Ø6.35 mm (1/4”) Ø9.52 mm (3/8”) 7.5 20 10 12
KSV70CRF Ø6.35 mm (1/4”) Ø15.88 mm (5/8”) 7.5 25 10 12
WARNING
caution
• The outdoor unit is charged with the refrigerant for standard
pipe length of 7.5m.
• When the connecting pipe length is longer than the standard
length, additional refrigerant should be added into the unit
according to the above table through the service port on 3-way
service valve on the outdoor unit.
• PLEASE MAINTAIN THE SHORTEST DISTANCE (3 TO 5
METRES) AND SHORTEST MISALIGNMENT POSSIBLE
BETWEEN THE INDOOR AND OUTDOOR UNITS.
• The maximum allowance length and height is based
on reliability. Exceeding the maximum may cause poor
performance or malfunction.
• When the level difference between indoor and outdoor units
is greater than the maximum height of 10 metres, or when
the outdoor unit is installed above the indoor unit, an oil trap
should be installed every 5-7 metres.
maximum length
maximum length
oil trap
maximum height
maximum height
piping length under 7.5m
piping length 7.5m or more
A
A
B
B
indoor unit
indoor unit
outdoor unit
outdoor unit

8Outdoor unit installation
Outdoor unit installation
Outdoor condensate drainage
• During heating operation, the condensate and defrosting
water should be drained out reliably through the drain hose.
• The drain-water hole must be plugged. Whether to plug other
holes will be determined by the installer according to actual
conditions.
• Install the outdoor drain connector in the drain-water hole on
the chassis of the outdoor unit, and attach the drain hose to
the connector so that the waste water formed in the outdoor
unit can be drained out.
• In case of a drain hose, the unit must be installed on a base
more than 3cm in height.
drain-water hole
chassis
drain connector
hose of inner diameter 16mm
(not supplied)
Securing the outdoor unit
Anchor the outdoor unit by fixing the 4 holes existent in its base
with 4 bolts and nuts of φ10 mm tightly (not included).
Place the outdoor unit over a horizontal concrete or rigid surface
(never directly over grass or earth).
A
B
air inlet
air inlet
air outlet
Model
Outdoor unit
dimensions
W x D x H (mm)
Dimension
A (mm)
Dimension B
(mm)
KSV25HRF/
CRF 776 x 320 x 540 510 286
KSV35HRF/
CRF 842 x 320 x 596 540 286
KSV52HRF,
KSV70CRF/
HRF KSV80HRF
955 x 396 x 700 560 364
WARNING
caution
• If a suspended installation is needed, the installation bracket
must allow the fixation according to dimensions on the figure
above.
• The wall where the unit will be installed must be of solid brick,
concrete or provided with other reinforcement ways to fix the
bracket. The fixation of the bracket to the wall and the bracket
to the air conditioner must be firm, steady and levelled.

9Indoor unit installation
Indoor unit installation
Installing the mounting plate
1. Fit the mounting plate horizontally on the wall with five or
more self-tapping screws (type ST4x25, item 3 on page 3).
2. Be sure that the mounting plate has been fixed firmly enough
to withstand about 60kg. The weight should be evenly shared
by every screw.
3. If the wall is made of brick, concrete or the like, drill five (5)
or more holes of 5mm diameter in the wall. Insert clip anchor
(item 2 on page 3) for appropriate mounting screws.
4. The water tray’s outlet for the indoor unit has two-way drainage
design. During installation, the indoor unit should slightly slant
to water tray’s outlet for smooth drainage of condensate water.
Mounting plate type A
55mm 55mm
143
135
80
542 235
Mounting plate type B
55
55
31
87
1000
219
694
98
78
256
78
Fit the mounting plate and drill holes in the wall according to the
wall structure and corresponding mounting points
on the mounting plate. (dimensions are in mm unless otherwise
stated)
Model no. Indoor unit dimension
W x D x H (mm)
Mounting
plate type
KSV25CRF 912 x 188 x 290 A
KSV25HRF 912 x 188 x 290 A
KSV35CRF 912 x 188 x 290 A
KSV35HRF 912 x 188 x 290 A
KSV52HRF 1000 x 219 x 326 B
KSV70CRF 1178 x 253 x 326 C
KSV70HRF 1178 x 253 x 326 C
KSV80HRF 1178 x 253 x 326 C

10 Indoor unit installation
Indoor unit installation
Mounting plate type C
indoor
unit
253 179746
326
65 65
50
163 90
6
74 105

11Indoor unit installation
Indoor unit installation

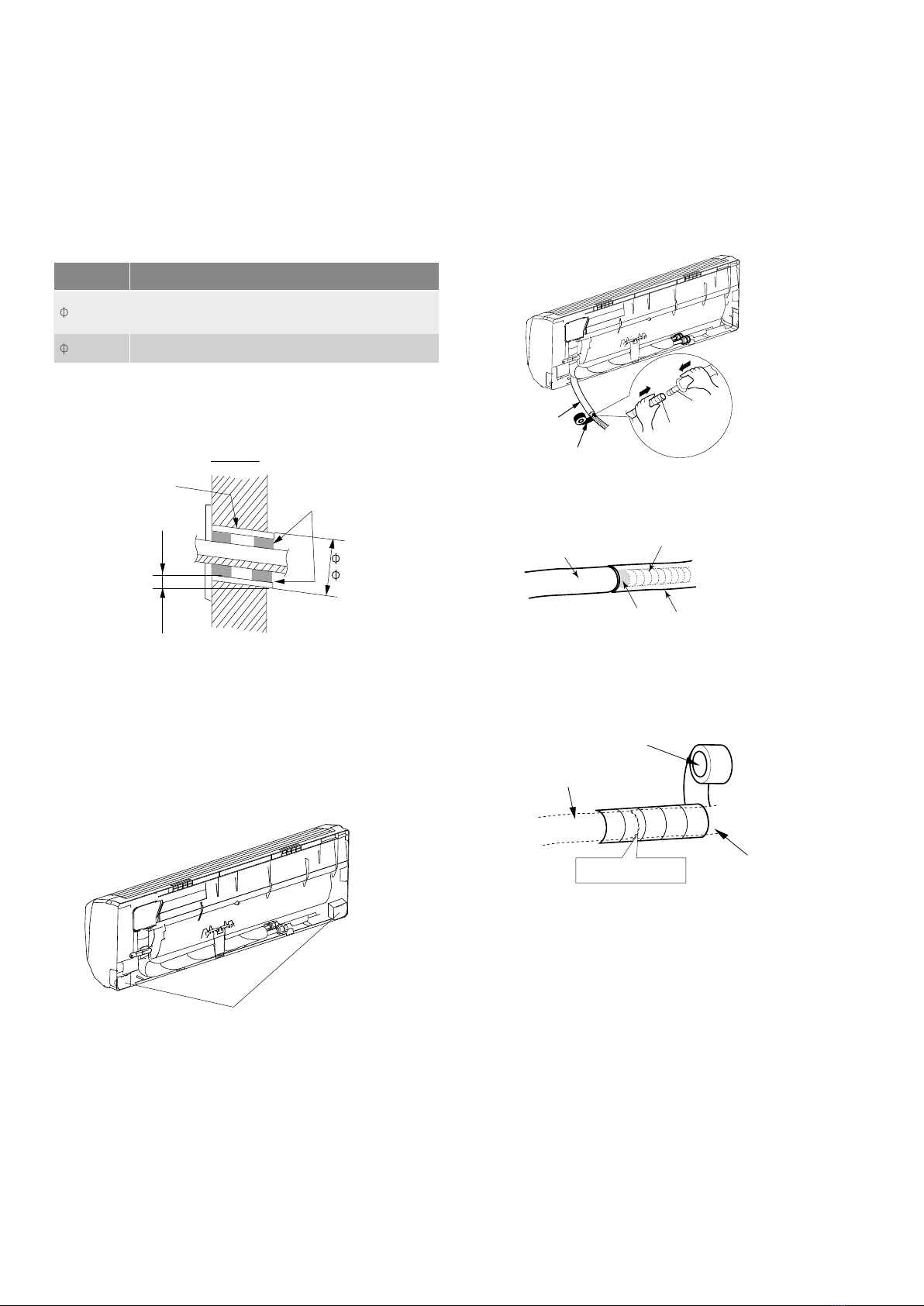

Drill piping hole
1. Determine hole positions according to the diagram. Drill one (1)
hole (Ф55 or Ф70 mm) in the wall at a slight downward slant to the
outdoor side.
Piping hole Model
55 KSV25CRF, KSV35CRF, KSV25HRF,
KSV35HRF, KSV52HRF
70 KSV70CRF, KSV70HRF, KSV80HRF
2. The inclination must be between 5mm and 10mm in order to
ensure a good drain of condensed water generated by the
indoor unit.
indoor
wall pipe
seal putty
5-10mm
outdoor
55mm or
70mm
3. Insert the wall pipe into the hole to prevent any wiring from being
damaged when passing through the hole.
4. Always use a wall hole conduit when drilling metal grids, metal
plates or the like.
5. For models with a cooling capacity greater than 4500W, remove
and dispose the two polystyrene lateral rear supports from the
indoor unit before the installation.
remove both supports
Installation of drain hose
1. Connect the drain hose to the outlet pipe of the indoor unit.
Bind the joint with vinyl tape.
outlet pipe of
indoor unit
vinyl tape
drain
hose
outlet pipe of
indoor unit
2. Put the drain hose into insulating pipe.
outlet pipe of
indoor unit
vinyl tape
drain hose (narrow)
insulating pipe
3. Wrap the insulating pipe with wide vinyl tape to prevent the
shift of insulating pipe. Slant the drain hose downward slightly
for smooth drainage of condensed water.
outlet pipe of
indoor unit
vinyl tape
insulating pipe
connected

12 Indoor unit installation
WARNING
caution
1. The insulating tube should be connected reliably with the
sleeve outside the outlet pipe.
2. The drain hose should be slanted downward slightly, without
distortion, bulge or fluctuation.
do not block water
flow with a rise
do not put the end
of the hose in water
3. Do not put the outlet in the water.
bulge flooded
The piping can be output from right, rear right, left or
rear left of the indoor unit body.
1. When routing the piping and wiring from the left or right
side of indoor unit, cut off the tailings from the chassis when
necessary (see figure below).
tailing 2
tailing 1
• Cut off the tailings 1 when routing the wiring only.
• Cut off the tailings 1 and tailings 2 when routing both the
wiring and piping.
indoor unit outline
connection piping
43
2. The drain hose can be connected at two different positions.
Use the most convenient position and, if necessary, exchange
the position of drain cap and drain hose.
• The drain hose is connected at the rear left side of the
indoor unit when you receive the product.
drain hose
(connected at the
rear left side)
refrigerant
piping
drain hole
drain cap

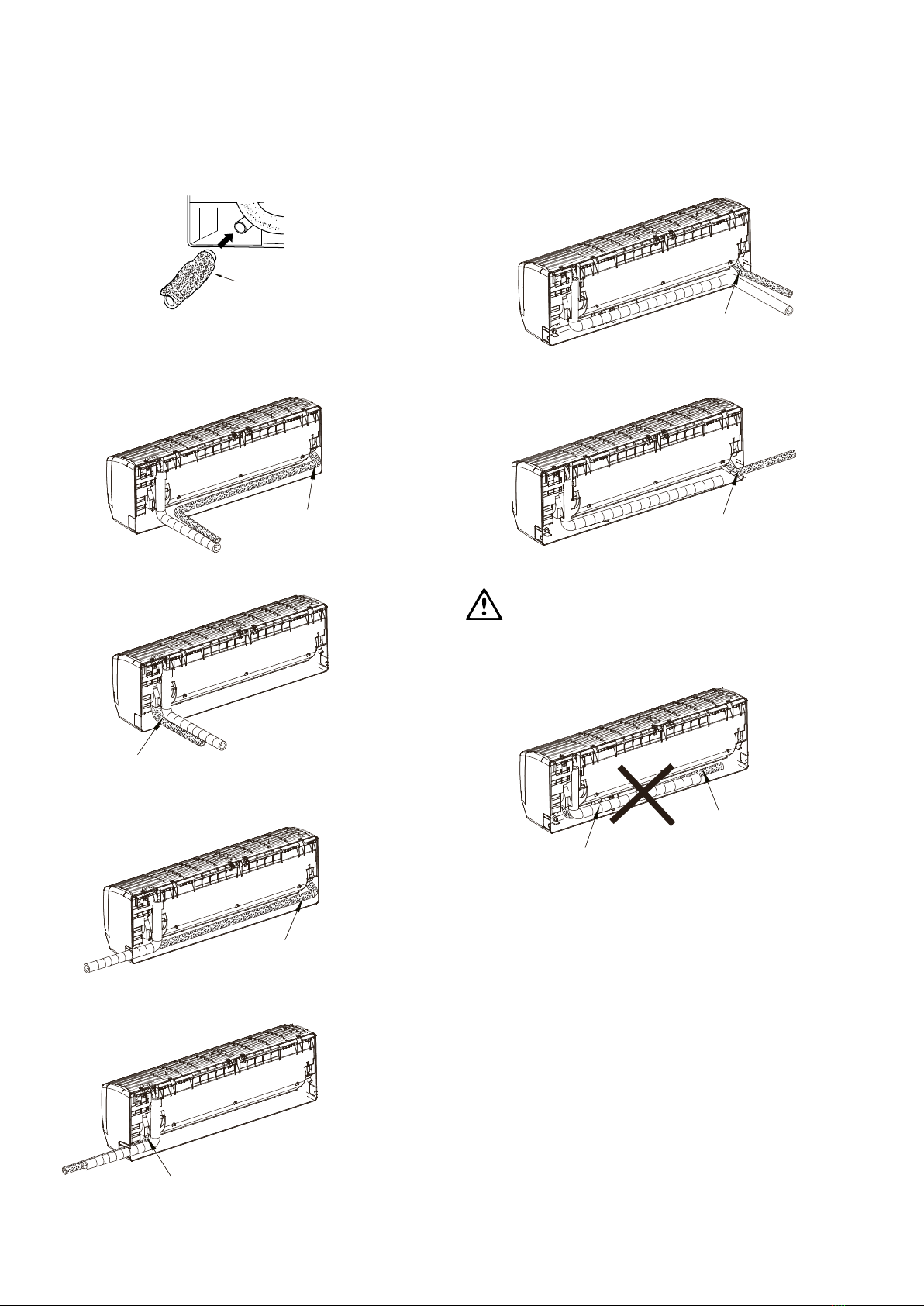

Follow the instructions below for exchanging the position of the
drain cap and drain hose from the left to the right side.
a. Pull out the drain cap at the rear right of the
indoor unit.
drain cap
b. Pull out the drain hose at the rear left of the
indoor unit.
drain hose
c. Put the drain cap into the drain hole at the rear left of the
indoor unit.
drain cap
Indoor unit installation

13Indoor unit installation
d. Insert the drain hose into the drain hole at the rear right of the
indoor unit.
drain hose
3. Arrange the pipe in the most convenient direction
and position.
piping on the rear
right side
drain hose from
the left side
piping on the rear
right side
drain hose from
the right side
piping on the
right side
drain hose from
the left side
piping on the
right side
drain hose from
the right side
piping on the left
rear side
drain hose from
the left side
piping on the
left side
drain hose from
the left side
WARNING
caution
When refrigerant pipes and the drain pipe are fitted to the same
side, ensure that the bulk does not push the unit away from the wall
when in its final position.
drain hose from
the right side
Piping and cable
from the right side

14 Indoor unit installation

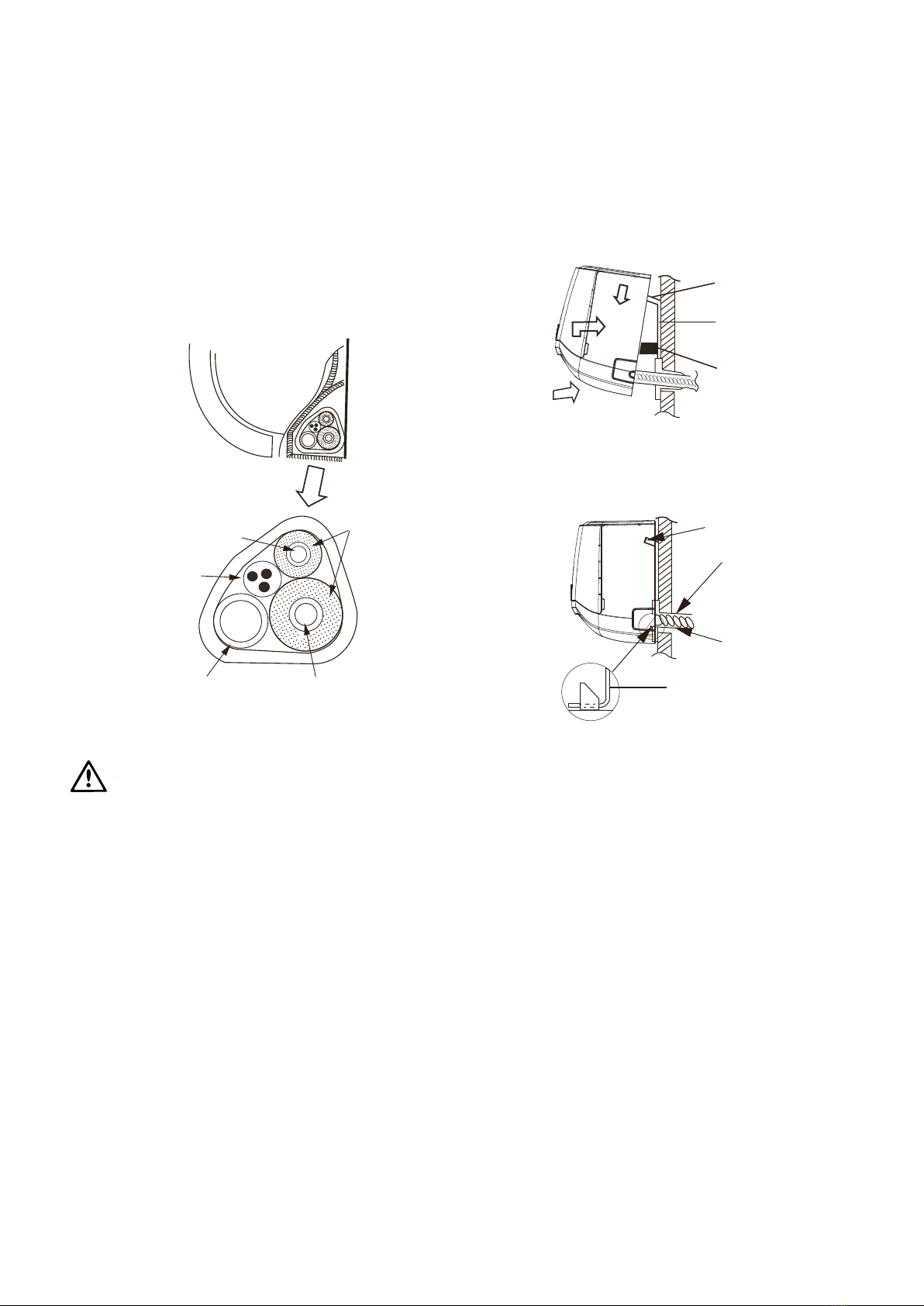

4. Take out the piping from body case, wrap the piping, power
cords, drain hose with the tape and then make them pass
through the piping hose.
Do not put any object in the drain pan located in the rear of
the indoor unit, as the condensed water is gathered there and
piped out of the room.
indoor unit
piping
insulation
liquid pipe
connecting
cable
drain hose gas pipe
WARNING
caution
• Connect the indoor unit first, then the outdoor unit.
• Do not plug the cable to the indoor unit. That must be done
at a later stage.
• Turn the cable lightly to make the connection easier.
• Be careful not to let the drain hose become slack.
• Heat insulate the connecting pipe.
• Be sure that the drain hose is located at the lowest side of
the bundle. Locating at the upper side can cause drain pan to
overflow inside the unit.
• Never cross connect or interwind the power wire with any
other wiring.
• Do not allow the piping to be exposed out from the back of
the indoor unit.
• If part of the drain hose is positioned inside the room, wrap
it with insulating materials so as to prevent condensed water
from dropping.
5. Hang the mounting slots of the indoor unit on the upper hooks
of the mounting plate and check if it is firm enough .
To ease the piping installation, put a spacer between the
indoor unit and the wall. Remove the spacer once finished.
upper hook
mounting plate
spacer
6. Press the lower left and right sides of the unit against the
mounting plate until the lower hooks engage into their slots.
Ensure the unit is firmly fitted.
upper hook
fixing lower hook
connecting
cable
drain hose
mounting plate
7. The installation site should be 2 metres or more above
the floor.

15Indoor unit installation

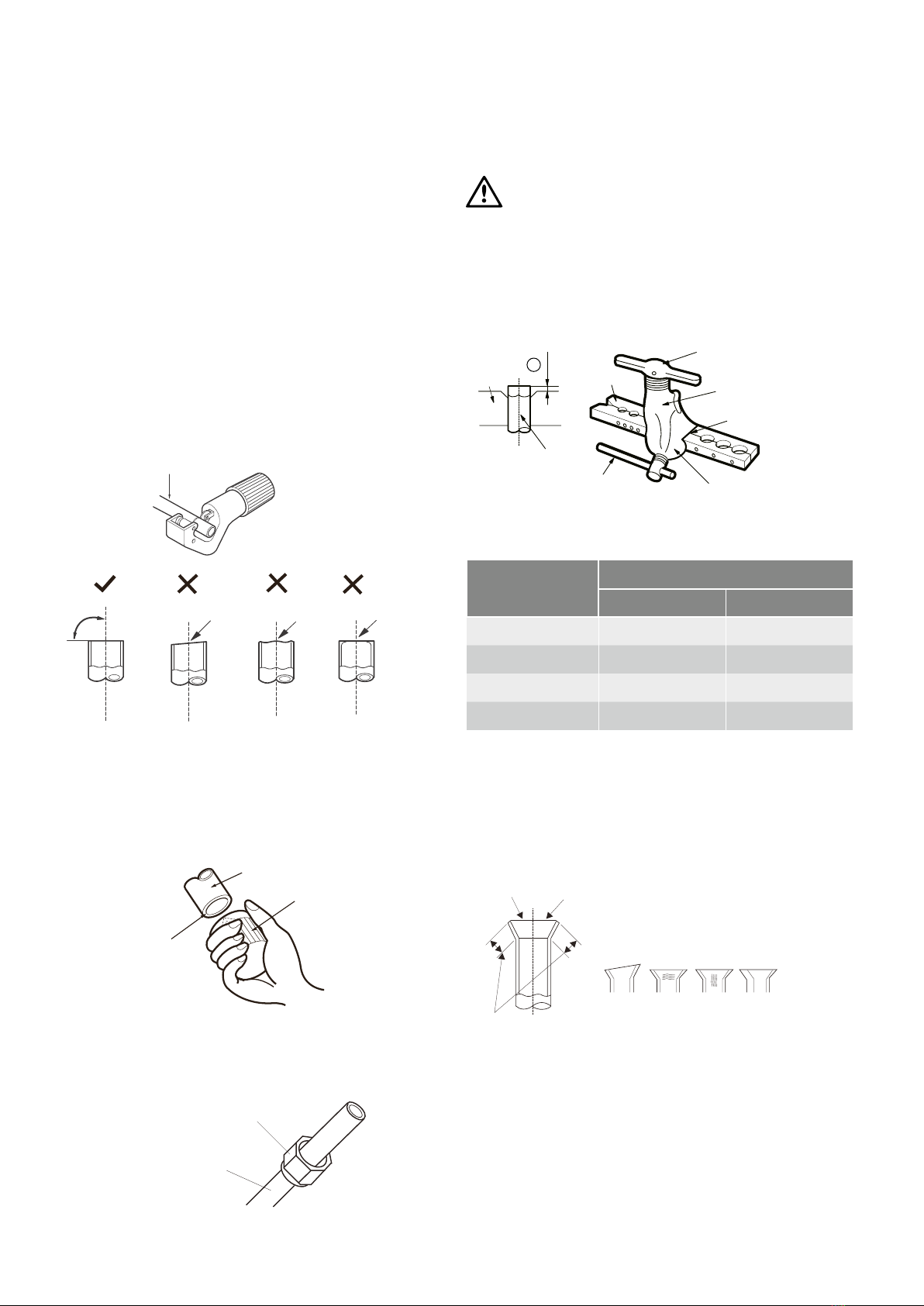

Refrigerant pipe connection
The main cause of refrigerant leakage is due to defects in the
flaring work. Carry out flaring work using the following procedure:
Note: When using refrigerant R32, a reusable flared connection is
the only allowed pipework on the outside of any building.
Hence the supplied "once only" flare fitting must be used unless all
welded connections are used. If welded connections are used, no
low temperature solder is permitted.
a. Cut the pipes and the cable
Use the piping kit accessory (if applicable) or pipes purchased
locally. Measure the distance between the indoor and the outdoor
unit. Cut the pipes a little longer than the measured distance. Cut
the cable 1.5m longer than the pipe length.
pipe
oblique roughness burr
90°
b. Burr removal
Completely remove all burrs from the cut cross section of pipe/
tube. Face the end of the copper pipe/tube in a downward
direction as you remove burrs in order to avoid burrs dropping into
the tubing.
pipe
reamer
face down
c. Put the flare nut on
Remove flare nuts attached to indoor and outdoor unit, then put
them on pipe/tube having completed burr removal.
flare nut
copper tube
WARNING
caution
It is not possible to put them on after flaring work.
d. Flaring work
Carry out flaring work using flaring tool as shown below.
bar
copper pipe
clamp handle
cone
yoke
handle
bar
A
Firmly hold copper pipe in a die according to the dimension shown
in the table below.
Outer diameter (mm)
A (mm)
Max. Min.
6.35 (1/4”) 1.3 0.7
9.52 (3/8”) 1.6 1.0
12.70 (1/2”) 1.8 1.0
15.88 (5/8”) 2.4 2.2
e. Check
Compare the flare work with the adjacent diagram.
If the pipe has any defect, cut off the enlarged section and redo the
work.
smooth all around
even length all
around
incorrect flaring
inclined
damaged
surface
uneven
thickness
cracked
Make an independent covering for each pipe with the appropriate
tubular isolation.
Indoor unit installation

16 Indoor unit installation
Piping connection - indoor unit
a. Connecting the indoor unit tubing to the connection piping:
Align the centres of the pipes and sufficiently tighten the flare
nut with your hands first.
indoor unit tubing flare nut piping
torque
wrench
spanner (fixed)
flare nut
piping
indoor unit piping
Then tighten the flare nut with spanner and torque wrench referring
to the following:
Outer diameter (mm) Torque (N.m)
6.35 (1/4”) 15-20
9.52 (3/8”) 35-40
12.70 (1/2”) 50-55
15.88 (5/8”) 60-65
19.05 (3/4”) 70-75
WARNING
caution
Excessive torque can break the nut depending on installation
conditions.
b. Wrap the insulation material around the connecting portion:
Cover the indoor unit pipe and the connection pipe with the
heat insulation material. Bind them together with vinyl tape so
that there is no gap.
insulating material
Isolate the suction pipe from the liquid pipe.
heat insulation
suction line pipe liquid line pipe
Wrap the insulated pipes with vinyl tape in the rear section for pipe
housing. Fasten the power cable to the pipes with vinyl tape.
connection pipe
vinyl tape (wide) wrap with vinyl tape
indoor unit pipe
vinyl tape (narrow)
pipe
connection
cable
Wrap the piping, drain hose and power cable tightly with vinyl tape
so that they can fit into the rear piping housing section.
wrap with vinyl
tape (wide)
vinyl tape (narrow)
pipe
drain hose
connection
power cable

17Indoor unit installationV
c. Positioning the indoor unit:
Remove the spacer.
Hook the indoor unit onto the upper portion of the mounting plate
(engage the hooks of the mounting plate into the openings at the
rear top of the indoor unit). Ensure that the hooks are properly
seated on the mounting plate by moving the indoor unit in all
directions.
upper hook
mounting plate
spacer
Press the lower left and right sides of the unit against the mounting
plate until the hooks engage into their slots (clicking sound).
upper hook
connecting
cable
fixing lower hook
mounting plate
Piping connection - outdoor unit
a. Align the centres of the pipes and sufficiently tighten the flare
nut with your hands.
b. Then, tighten the flare nut with torque wrench until the
wrench clicks.
outdoor unit
2-way
valve
3-way
valve
discharge pipe
(suction pipe for
KSV52HRF)
suction pipe
(discharge pipe
for KSV52HRF)
Make sure to follow the torque table value as below:
Outer diameter (mm) Torque (N.m)
6.35 (1/4”) 15-20
9.52 (3/8”) 35-40
12.70 (1/2”) 50-55
15.88 (5/8”) 60-65
19.05 (3/4”) 70-75
Piping formation
a. Form the piping by wrapping the connecting portion of the
indoor unit with insulation material and secure it with narrow
vinyl tape and wide vinyl tape.
If you want to connect an additional drain hose, the end of the
drain hose outlet should be routed above the ground. Secure
the drain hose appropriately.
b. In cases where the outdoor unit is installed below the indoor
unit level:
Wrap the piping, drain hose and connecting cable from the
bottom to the top. Secure the wrapped piping along the
exterior wall using saddle or equivalent.
seal small openings
around piping with a
gum type sealer
wrapping
pipe
drain hose
trap is required to prevent water from entering electrical parts
drain hose
connection cable
NOTE: all piping must be protected against mechanical damage.
Indoor unit installation

18 Safety precautions
Safety precautions

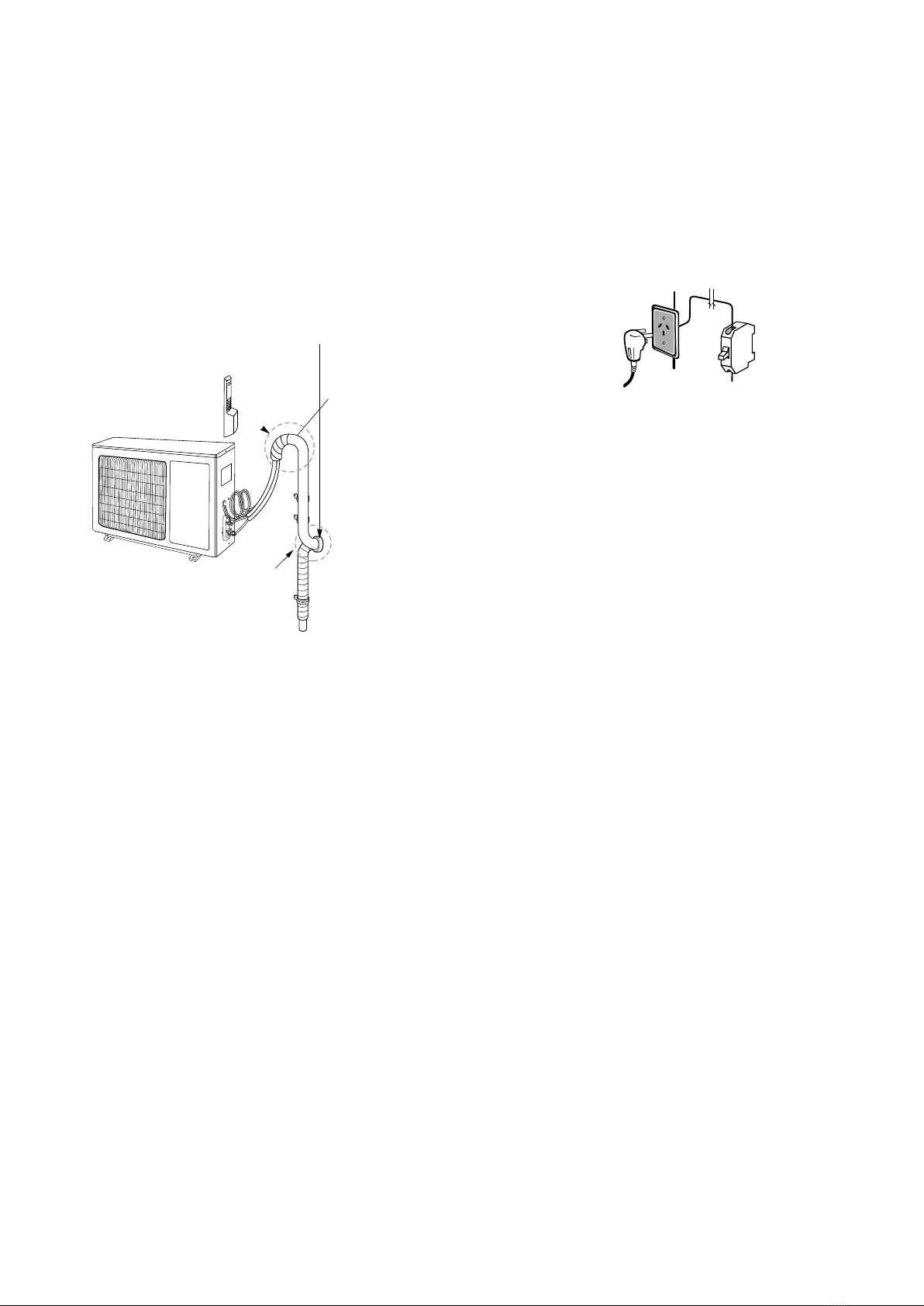

c. In cases where the outdoor unit is installed above the indoor
unit level:
Wrap the piping and connecting cable from bottom to top.
Form a trap to prevent water from entering the room.
Secure the wrapped piping along the exterior wall using
saddle or equivalent.
seal small openings
around piping with a
gum type sealer
trap
trap
drain hose
Note: all refrigerant piping must be protected against
mechanical damage
Electrical safety rules before starting the installation:
1. A dedicated power supply circuit and breaker should be
provided for the products which are not supplied with a
service cord and plug in accordance with local electrical safety
regulations.
2. The circuit breaker must have the functions of magnetic tripping
and heat tripping to prevent short circuit and overload.
3. The appliance shall be installed in accordance with national
wiring regulations.
4. A circuit breaker with proper capacity must be installed according
to AS3000 and applicable local electrical safety regulations.
5. In case of problems in power supply, the air conditioner must not
be installed before the customer fixes the problem.
6. Be sure the power supply matches the air conditioner.
7. Ensure the live wire, neutral wire and earth wire in the power
socket are properly connected.
8. Inadequate or incorrect electrical connections may cause electric
shock, fire or some electrical parts to malfunction.
9. Before performing any electrical work, turn off the main power to
the system.
Earthing requirements
1. Air conditioners are type 1 electric appliances. The unit must be
reliably earthed and connected by a qualified electrician.
2. The yellow-green wire in the air conditioner is the earthing wire
which cannot be used for any other purposes. Improper earthing
may cause electric shock.
3. The earth resistance must comply to national wiring regulations.
4. The user’s power must have reliable earthing terminal. Do not
connect the earthing wire with the following:
• Water pipe
• Gas pipe
• Contamination pipe

19Installation

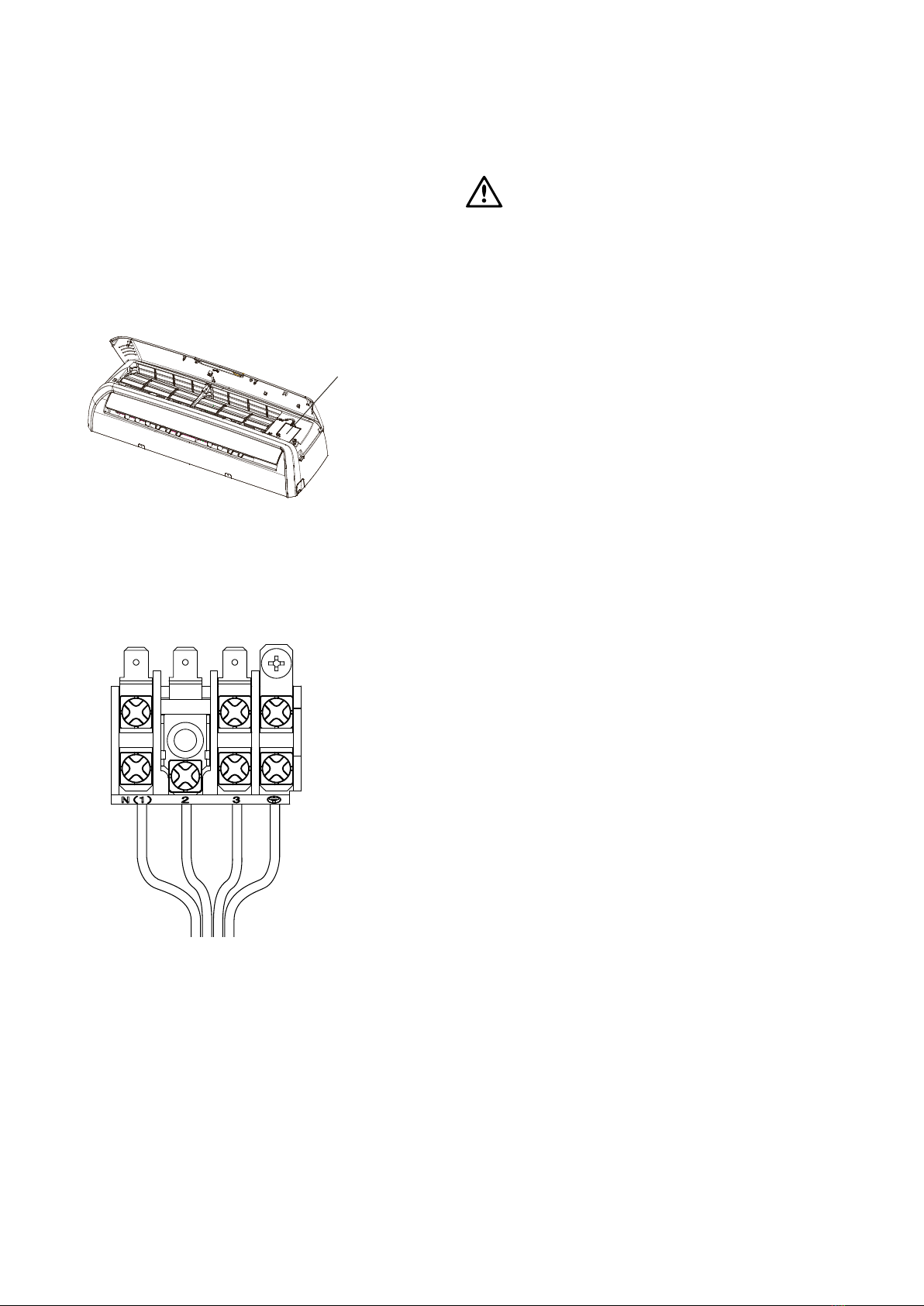

Indoor electric wiring
Note: for correct operation of the air conditioner and standby
power modes the mains power should be supplied to the
indoor unit.
1. Open the front panel and remove the wiring cover by
loosening the screw.
wiring cover
N(1) 2 4 5
N(1) 2 3
N(1) 2
2. Route the power connection cable from back of the indoor
unit and pull it toward the front through the wiring hole for
connection.
3. Connect and screw the wires onto the terminal block as
identified by their colours.
blue black brown
earthing wire
(green and yellow)
4. Wrap wires that are not connected with insulating tape so that
they do not touch any electrical or metal parts.
5. Secure the wires firmly with the cable clamp.
6. Put the wiring cover back and screw it.
7. Reinstall the front panel.
Installation
WARNING
warning
All wires between indoor and outdoor units must be connected
by a qualified electric contractor.
If the length of the power cord is not enough, please contact your
installer for new a power cord. Lengthening the power cord by
yourself is dangerous and illegal.
NOTE: Powered accessories cannot be connected to these
wiring points
After tightening the screws, pull the wire slightly to confirm whether
it’s firm or not.
Do not connect two power cables together to supply power to the
air conditioner.
Do not extend the power cable conductor by cutting or splicing.

20 Installation
Outdoor electric wires
1. When required, remove the handle on the right side plate of
outdoor unit by loosening the screw.
handle
terminal
block
N(1) 2
N(1) 2 3
N(1) 2 4 5
2. Take off wire cable clamp. Connect and screw the power
connection cable and signal control wire (for reverse cycle
models only) onto the terminal block following corresponding
identification numbers and colours on the terminal blocks of
indoor and outdoor units.
3. To prevent water from entering, make a trap (“U”) in the
connection wires (see page 16).
4. Wrap wires that are not connected with insulating tape so that
they do not touch any electrical or metal parts.
5. Fix the power connection wires with wire clamps.
6. Reinstall the handle.
blue black brown
to outdoor unit
cable clamp
earthing wire
(green & yellow)
WARNING
caution
After confirming the above conditions, prepare the wiring as
follows:
• The screws which fasten the wiring to the terminal block may
come loose from vibrations during transportation.
• Check and make sure all screws are well fixed. Otherwise, it
could cause burn-out of the wires.
• Be sure the circuit capacity is sufficient.
• Ensure the starting voltage is maintained at over 90% of the
rated voltage marked on the nameplate.
• Confirm that the cable thickness is as specified in the power
source specification.
• Always install a Residual Current Device (RCD).
• The following may be caused by voltage drop: vibration of a
contactor, which will damage the contact point, fuse blowing,
disturbance of the normal function of the overload.
• The means for disconnection from a power supply shall be
incorporated in the fixed wiring and have an air gap contact
separation of at least 3mm in each active (phase) conductor.
NOTE: Powered accessories cannot be connected to these
wiring points.
Installation
