Kelvinator KSV25CRG User manual

Inverter Air Conditioner
User Manual
KSV25CRG, KSV35CRG, KSV70CRG,
KSV25HRG, KSD25HRG, KSV35HRG,
KSD35HRG, KSV50HRG, KSD50HRG,
KSV70HRG, KSD70HRG, KSV80HRG,
KSD80HRG

2Contents
Congratulations and thank you for choosing our Inverter split
system room air conditioner. We are sure you will find
your new air conditioner a pleasure to use. Before you use the air
conditioner, we recommend that you read through
the entire user manual, which provides the description of
the air conditioner and its functions.
To avoid the risks that are always present when you use an electrical
appliance, it is important that the air conditioner
is installed correctly and that you read the safety instructions
carefully to avoid misuse and hazards.
We recommend that you keep this instruction booklet
for future reference and pass it on to any future owners.
Conditions of use
This appliance is intended to be used in household and similar
applications such as :
• staff kitchen areas in shops, offices and other working
environments.
• farm houses.
• by clients in hotels, motels and other residential type
environments.
• bed and breakfast type environments.
This air conditioner is designed for and intended to be used in
normal domestic applications only.
Record model and serial number here:
Model number: ..................................................................................
Serial number: ...................................................................................
ENVIRONMENTAL TIPS
environment
Information on disposal for users
• Most of the packing materials are recyclable.
Please dispose of those materials through your local
recycling depot or by placing them in appropriate collection
containers.
• If you wish to discard this air conditioner, please contact your
local authorities and ask for the correct method
of disposal.
R300 refrigerant warning
R32 refrigerant warning
This product uses R32 difluoromethane refrigerant, which is a
mildly flammable gas class 2.2 according to AS 1677 and must be
handled by a refrigeration mechanic with appropriate Australian
refrigerant handling licence.
Safety Instructions
Warnings .......................................................................................... 3
Product description
Installation drawing......................................................................... 5
Remote control specifications ....................................................... 6
Operating instructions
Using the remote control ............................................................... 6
Indoor unit display .......................................................................... 7
Indicators on LCD ......................................................................... 10
How to use the buttons................................................................ 11
Timer operation ............................................................................ 12
Special functions ........................................................................... 14
Airflow directional control............................................................ 15
Care and maintenance
Before maintenance...................................................................... 17
Cleaning the unit........................................................................... 17
Cleaning the air filter and air freshening filter ........................... 17
Preparation for extended non-operation................................... 18
Pre season inspection................................................................... 18
Troubleshooting tips
Troubleshooting tips..................................................................... 19
Warranty ...................................................................................... 23
Congratulations Contents

3
Safety instructions
Meanings of symbols used in this manual are shown below:
WARNING
warning
This symbol indicates information concerning your personal safety
or information on how to avoid damaging the air conditioner
TIPS & INFORMATION
important
This symbol indicates tips and information about use of the
appliance
ENVIRONMENTAL TIPS
environment
This symbol indicates tips and information about economical and
ecological use of the appliance
TIPS & INFORMATION
important
• Contact an authorised installer for installation of this unit.
• Installation work must be performed in accordance with the
national wiring standards by authorised personnel only.
• This air conditioner may need to be installed on it's own
separate circuit. Please refer to AS/NZS3000 and local wiring
regulations for requirements.
• Contact an authorised service technician for repair or
maintenance of this unit.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the air conditioner.
• If the system is to be moved to another location or disposed
of, only a suitably qualified person is permitted to undertake
such work.
• Take care not to catch fingers on the fan blade when adjusting
vertical louvres.
• This air conditioner uses R32 refrigerant.
• Do not use this air conditioner for non-specified special
purposes ( e.g. preserving precision devices, food, pets, plants,
and art objects). Usage in such a manner could damage your
property.
• Always insert the filters securely. Clean the filters every
3 months, or as required.
Safety instructions
WARNING
warning
• Do not use means to accelerate the defrosting process or to
clean, other than those recommended by the manufacturer.
• Do not store the appliance in a room with continuously
operating ignition sources (for example open flames, an
operating electric heater or an operating gas appliance with a
continuously lit pilot flame).
• Do not pierce or burn any part of the air conditioner.
• Be aware that the refrigerant is odourless and any gas leak is
not detectable by smell.
• Ensure the unit is properly connected to the power. Excess
heat generation caused by incorrect connection may result in
an electric shock or fire.
• Do not operate or stop the unit by switching on or off at the
power source. This may cause an electric shock or fire due to
excess heat generation.
• Do not operate with wet hands or in damp environment. This
may cause an electric shock.
• Always ensure that the unit is correctly earthed.
No earthing may cause electric shock.
• Do not allow water to run into electric parts. It may cause
failure of the unit or electric shock.
• Use a correctly rated circuit breaker or fuse. There is risk of fire
or electric shock.
• Disconnect the power if strange sounds, smells,
or smoke come from the unit. It may cause fire and
electric shock.
• Do not drink water drained from the air conditioner. It may
contain contaminants that could make you sick.
• Do not open the unit during operation. It may cause
electric shock.
• Ventilate room before operating the air conditioner if there has
been or may have been a flammable gas leak from another
appliance. It may cause an explosion, fire and burns.
• Do not disassemble or modify unit. It may cause failure and
electric shock.
• When the air filter is to be removed, do not touch the metal
parts of the unit. It may cause an injury.
• Do not clean the air conditioner with water. Water may
enter the unit and degrade the insulation. It may cause
an electric shock.
• Ventilate the room well when used together with a stove
or other combustion heating device. An oxygen shortage
may occur.
• Exposure of direct airflow to occupants, pets or plants for an
extended period of time could be a health hazard.

4Important safety instructions
Troubleshooting
You'll find many answers to common problems in the chart
of troubleshooting tips on page 21. If you review the chart of
Troubleshooting Tips first, you may not need to call for service.
Service
For repair and maintenance, contact your authorised
service dealer.
Refer to the contact numbers in the warranty section on the back
page of this manual.
Safety instructions
WARNING
warning
• Do not place obstacles around air inlets or inside of
air outlet. It may cause failure of appliance or accident.
• Turn off at the main power switch if the unit will not be used for
a long period of time. It may cause failure of the unit or fire.
• Do not use strong chemical cleaners such as detergents,
abrasive cleaners or thinners, as they may damage the
appliance causing scratches, discolouration or deteriorate the
surface finish. Use a soft cloth for cleaning.
• Where the airconditioned is installed on an external wall
bracket ensure that the installation bracket of the outdoor
appliance is not damaged due to prolonged exposure. If
bracket is damaged, the unit may fall and damage may occur.
• Use caution when unpacking and installing. Sharp edges could
cause injury.
• If water enters the unit, turn the unit off and disconnect the
power, contact a qualified service technician.

5Installation drawing
Installation drawing
Air Conditioner Qty. Qty.
1Indoor unit 17Battery (AAA 1.5V) 2
2Outdoor unit 18Drain elbow & seal 1
3Indoor unit mounting plate 19Flare nuts 2
4Mounting plate fixing screws, ST3.9x25 510 Installation Manual 1
5Remote controller 111 User manual 1
6Remote controller holder (optional) 1
NOTE: Appearance of outdoor unit and indoor unit may differ from some models. The actual shape shall prevail.
Installation plate fixing screw
ST3.9x25(5)
Remote
control
Before screwing the remote
controller holder to the wall,
make sure that control signals
are properly received by
indoor unit.
2x AAA batteries
In sites with poor drainage, use block bases
for outdoor unit. Adjust its height until the
unit is leveled. Otherwise, water leakage or
pooling of water may occur. Where there is a danger of the
unit falling, use foot bolts to fix.
Allow two of A, B and
C directions to be free
from obstructions.
Wrapping tape (wrap the
insulation pipe with the tape
from bottom to top)
30cm or more
30cm or more
15cm or more
200cm or more
12cm or more 12cm or more
Air filter
60cm
or more
60cm or more
200cm or more
Air outlet
3
4
5
6
7
A
1
2
B
8 9
C
Additional drain pipe
Fig. 1
Seal
Drain elbow
Flare nuts

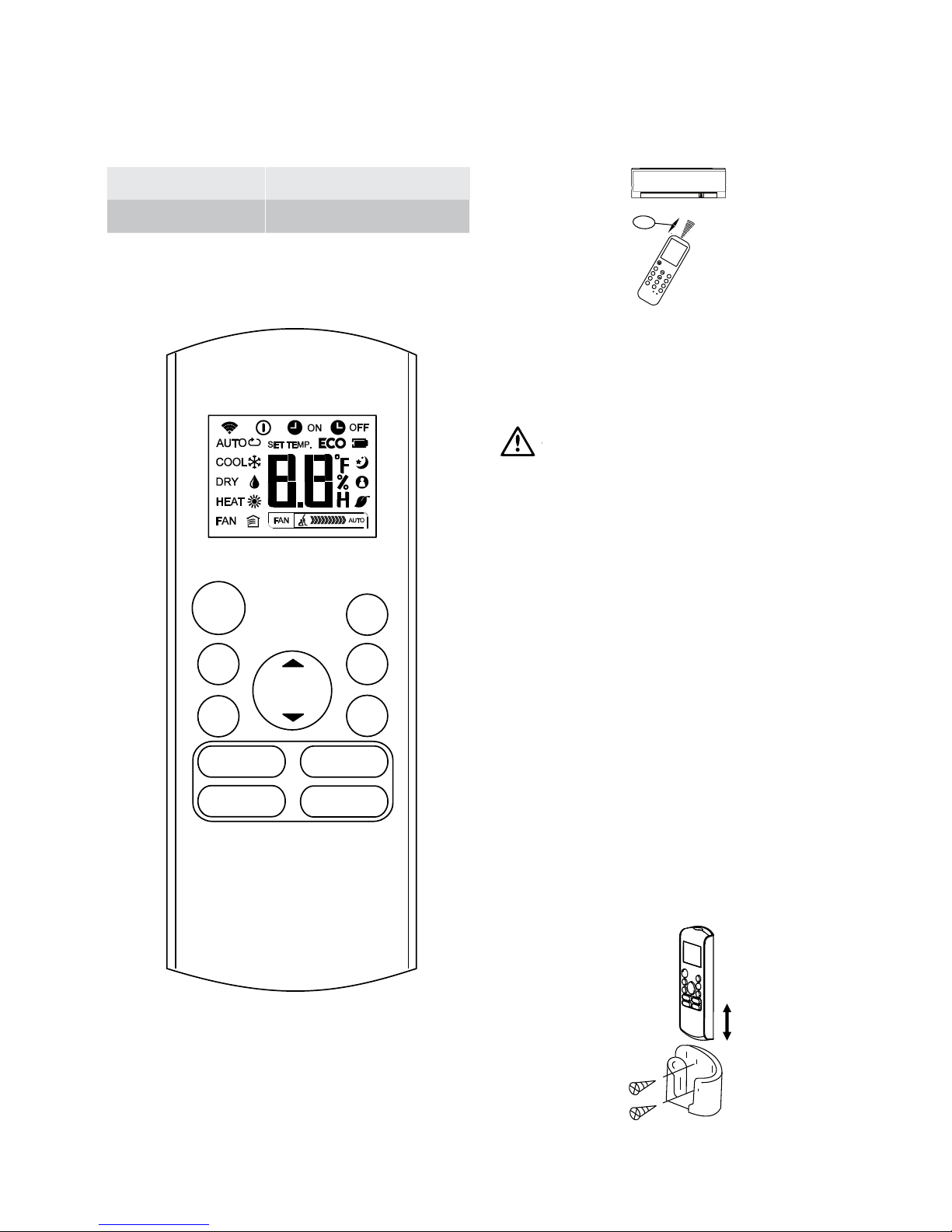

6Remote control specifications
MODE
SWINGTEMP
SHORTCUT
FAN
SPEED
TIMER
OFF
RESETLOCK
LED
FOLLOWME
TIMER
ON
TURBO
SELFCLEAN
DIRECT
SLEEP
FRESH
Location of the remote controller
• Use the remote controller within a distance of 8 meters from
the appliance, pointing it towards the receiver. Reception is
confirmed by a beep.
WARNING
caution
• The air conditioner will not operate if curtains, doors or other
materials block the signals from the remote controller to the
indoor unit.
• Prevent any liquid from falling into the remote controller. Do
not expose the remote controller to direct sunlight or heat.
• If the infrared signal receiver on the indoor unit is exposed to
direct sunlight, the air conditioner may not function properly.
• Use curtains to prevent the sunlight from falling on the receiver.
• If other electrical appliances react to the remote controller,
either move these appliances or consult your local dealer.
• Do not drop the remote controller. Handle with care.
• Do not place heavy objects on the remote controller,
or step on it.
Location of the remote controller
• The remote controller can be attached to a wall or pillar by
using a remote controller holder (not supplied, purchased
separately).
• Before installing the remote controller, check that the air
conditioner receives the signals properly.
• Install the remote controller holder with two screws.
• For installing or removing the remote controller, move it up or
down in the holder.
Remote control specifications Using the remote control
Rated voltage 3.0V (2x 1.5V AAA)
Signal receiving range 8m
MODE
FAN
TEMP
SLEEP
SWING DIRECT
LED FOLLOW ME
TURBO SELF CLEAN
ON/OFF
SILENCE
FP
TIMER
ON
TIMER
OFF

7Using the remote control

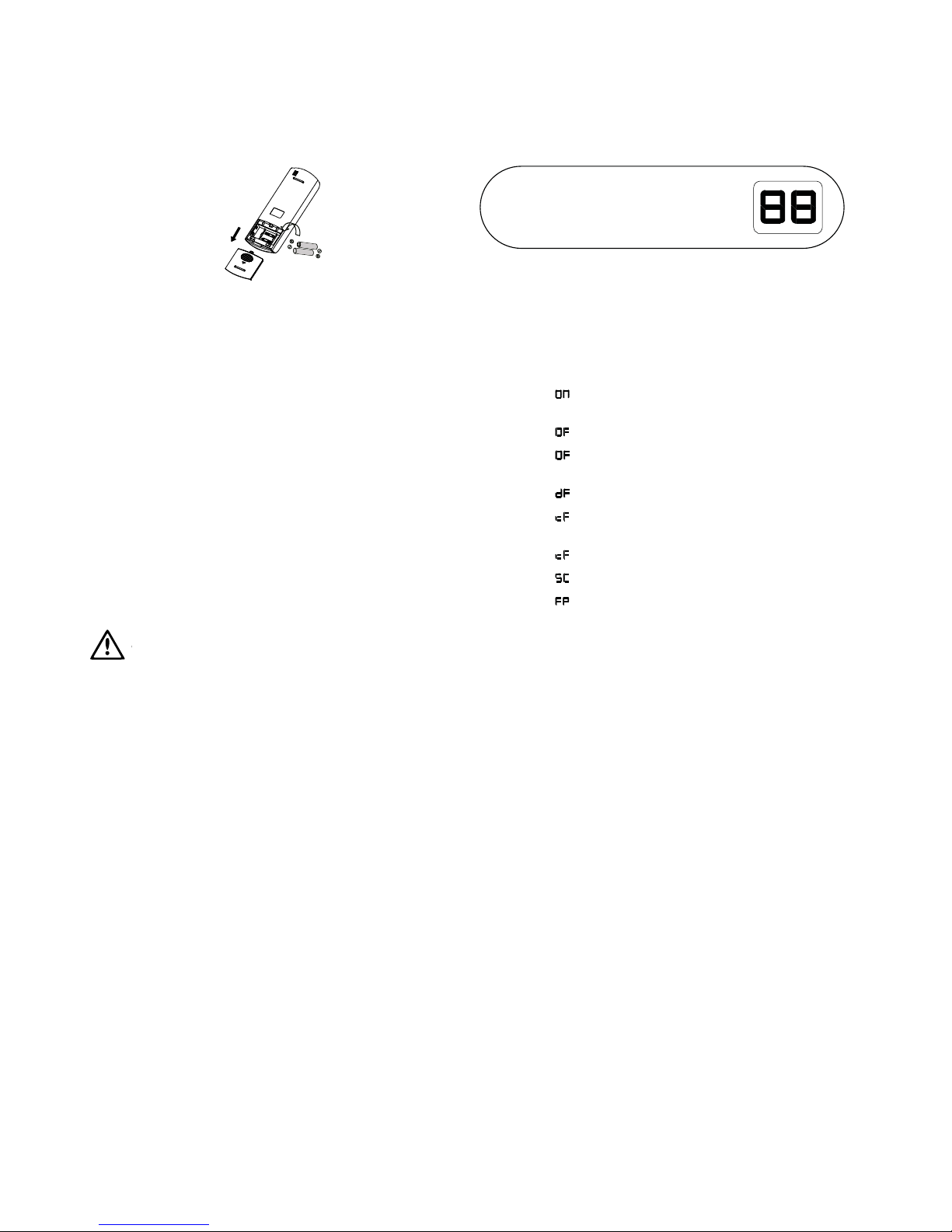

Replacing batteries
The following cases signify exhausted batteries.
Replace old batteries with new ones.
• Receiving beep is not emitted when a signal is transmitted.
• Indicator fades away.
The remote controller is powered by two dry batteries (2x AAA
1.5V)housed in the back rear part and protected by a cover.
1. Remove the cover in the rear part of the remote controller.
2. Remove the old batteries and insert the new batteries, placing
the(+) and (-) ends correctly.
3. Put the cover back on.
NOTE: When the batteries are removed, the remote controller
erases all programming. After inserting new batteries, the remote
controller must be reprogrammed.
WARNING
warning
• Do not mix old and new batteries or batteries of
different types.
• Do not leave the batteries in the remote controller if they are
not going to be used for 2 or 3 months.
• Do not dispose batteries as unsorted general waste. Collection
of such waste separately for special treatment
is necessary.
Indoor unit display
Digital display
• Displays the temperature settings when the air conditioner is
operational.
• Displays the room temperature in FAN mode.
• Displays the self-diagnostic codes.
• Displays ' ' for three seconds when Timer ON, Swing, Turbo
or Silence feature is activated.
• Displays ' ' for three seconds when Timer OFF is set.
• Displays ' ' for three seconds when Swing, Turbo or Silence
feature is cancelled.
• Displays ' ' under defrosting operation.
• Displays ' ' when anti-cold air feature is activated under
heating mode.
• Displays ' ' during self clean operation (if applicable).
• Displays ' ' during self clean operation (if applicable).
• Displays ' ' under 8°C heating operation (if applicable).
• If you want to turn off the indoor unit display (for example to
make the room dark for sleeping), press the LED button on the
remote control.

8Operation of buttons
Operation of buttons
1. ON/OFF Button
This button turns the air conditioner ON and OFF.
2. MODE Button
Press this button to modify the air conditioner mode in a
sequence of following:
AUTO > COOL > DRY > HEAT > FAN
NOTE: Please do not select HEAT mode if the machine you
purchased is cooling only type. Heat mode is not supported by
the cooling only appliance.
3. FAN Button
Used to select the fan speed in four steps:
AUTO > LOW > MED > HIGH
NOTE: You can not switch the fan speed in AUTO
or DRY mode.
4. SLEEP Button
• Active/Disable sleep function. It can maintain the most
comfortable temperature and save energy. This function
is available on COOL, HEAT or AUTO mode only.
• For the detail , see sleep operation on page.
NOTE: While the unit is running under SLEEP mode, it will
be cancelled if MODE, FAN SPEED or ON/OFF button is
pressed.
5. TURBO Button
Active/Disable Turbo function. Turbo function enables the
unit to reach the preset temperature at cooling or heating
operation in the shortest time.
6. SELF CLEAN Button
Active/Disable Self Clean function
7. UP Button (
)
Push this button to increase the indoor
temperature setting in 1°C increments to 30°C.
DOWN Button (
)
Push this button to decrease the indoor
temperature setting in 1°C increments to 17°C.
8 SILENCE/FP Button (FP frost protection - when selected
prevents the room temperature from dropping below 8°C)
• Active/Disable SILENCE function. If pushing more than
2 seconds, the FP function will be activated, pushing
more than 2 seconds again to disable.
• When the Silence function is activated, the compressor
will operate at low frequency and the indoor unit will
bring faint breeze, which will reduce the noise to the
lowest level and create a quiet and comfortable room for
you. Due to low frequency operation of compressor, it
may result in insufficient cooling and heating capacity.
• The FP function can only be activated during the heating
operation (only when the setting mode is HEAT). The unit
will operate at a setting temperature of 8°C. The display
window of indoor unit will display FP. Press the buttons of
ON/OFF, SLEEP, FP, MODE, FAN SPEED,UP or DOWN
while operating will cancel the FP function.
ON/OFF
MODE
FAN
TEMP
SLEEP SWING DIRECT
LED FOLLOW ME
TURBO SELF CLEAN
TIMER
OFF
TIMER
ON
SILENCE
FP
1
2
3
4
512
11
10
9
8
7
136

9Operation of buttons
Operation of buttons
9. TIMER ON Button
Press this button to initiate the auto-on time sequence.
Each press will increase the auto-timed setting in 30 minute
increments. When the setting time displays 10.0, each press
will increase the auto timed setting by 60 minute increments.
To cancel the auto-timed program, simply adjust the auto-on
time to 0.0.
10. TIMER OFF Button
Press this button to initiate the auto-off time sequence.
Each press will increase the auto-timed setting in 30 minute
increments. When the setting time displays 10.0, each press
will increase the auto-timed setting 60 minute increments.
To cancel the auto timed program, simply adjust the
auto-off time to 0.0
11. Swing Button
Used to stop or start horizontal louver auto swing feature.
DIRECT Button
Used to change the louver movement and set the desired up/
down air flow direction. The louver changes 6° in angle for
each press.
12. FOLLOW ME Button
Push this button to initiate the Follow Me feature, the remote
display is actual temperature at its location. The remote
control will send this signal to the air conditioner every
3 minutes interval until press the Follow Me button again.
The air conditioner will cancel the Follow Me feature
automatically if it does not receive the signal during any
7 minutes interval.
13. LED Button
Disable/Active indoor screen Display. When pushing the
button, the indoor screen display is cleared, press it again to
light the display.
NOTE: pressing LED button also disables the beep sound.

10 Indicators on LCD
Indicators on LCD
Mode display
AUTO COOL DRY
HEAT FAN
Icon Function
Displayed when data transmitted
Displayed when remote controller is ON
Battery display (low battery detection)
ON Displayed when TIMER ON time is set
OFF Displayed when TIMER OFF time is set
Show set temperature or room temperature, or time
under TIMER setting
Displayed in Sleep Mode operation
Indicated that the air conditioner is operating in follow
me mode
Displayed when silence feature is activated
Fan speed indication
FAN
FAN
FAN
FAN AUTO
Low speed
Medium speed
High speed
Auto fan speed
NOTE: All indicators shown in the figure are for the purpose of
clear presentation. But during the actual operation only the relative
functional signs are shown on the display window.
Information are displayed when the remote controller is
powered up.

11How to use the buttons
How to use the buttons
ON/OFF
MODE
FAN
TEMP
SLEEP SWING DIRECT
LED FOLLOW METURBO SELF CLEAN
TIMER
OFF
TIMER
ON
SILENCE
FP
Auto operation
Ensure the unit is plugged in and power is available.
The OPERATION indicator on the display panel of the
indoor unit starts flashing.
1. Press the MODE button to select Auto.
2. Press the UP/DOWN button to set the desired temperature.
The temperature can be set within a range of 17°C–30°C
in 1°C increments.
3. Press the ON/OFF button to start the air conditioner.
NOTE:
1. In the Auto mode, the air conditioner can logically choose the
mode of Cooling, Fan, and Heating by sensing the difference
between the actual ambient room temperature and the setting
temperature on the remote controller.
2. In the Auto mode, you can not adjust the fan speed. It has
already been automatically controlled.
3. If the Auto mode is not comfortable for you , the desired mode
can be selected manually.
ON/OFF
MODE
FAN
TEMP
SLEEP SWING DIRECT
LED FOLLOW METURBO SELF CLEAN
TIMER
OFF
TIMER
ON
SILENCE
FP
Cooling/Heating/Fan operation
Ensure the unit is plugged in and power is available.
1. Press the MODE button to select COOL, HEAT (cooling &
heating models only) or FAN mode.
2. Press the UP/DOWN buttons to set the desired temperature.
The temperature can be set within a range of 17°C–30°C in 1°C
increments.
3. Press the FAN button to select the fan speed in four steps-
Auto, Low, Med, or High.
4. Press the ON/OFF button to start the air conditioner.
NOTE: In the FAN mode, the setting temperature is not displayed
in the remote controller and you are not able to control the room
temperature either. In this case, only step 1, 3 and 4 may be
performed.
ON/OFF
MODE
FAN
TEMP
SLEEP SWING DIRECT
LED FOLLOW METURBO SELF CLEAN
TIMER
OFF
TIMER
ON
SILENCE
FP
Dehumidifying operation
Ensure the unit is plugged in and power is available. The
OPERATION indicator on the display panel of the indoor unit starts
flashing.
1. Press the MODE button to select DRY mode.
2. Press the UP/DOWN buttons to set the desired temperature.
The temperature can be set within a range of 17°C–30°C in 1°C
increments.
3. Press the ON/OFF button to start the air conditioner.
NOTE: In the Dehumidifying mode, you can not adjust the fan
speed. It has already been automatically controlled.
3
3
2
2
2
1
1
4
1
3

12 Timer operation

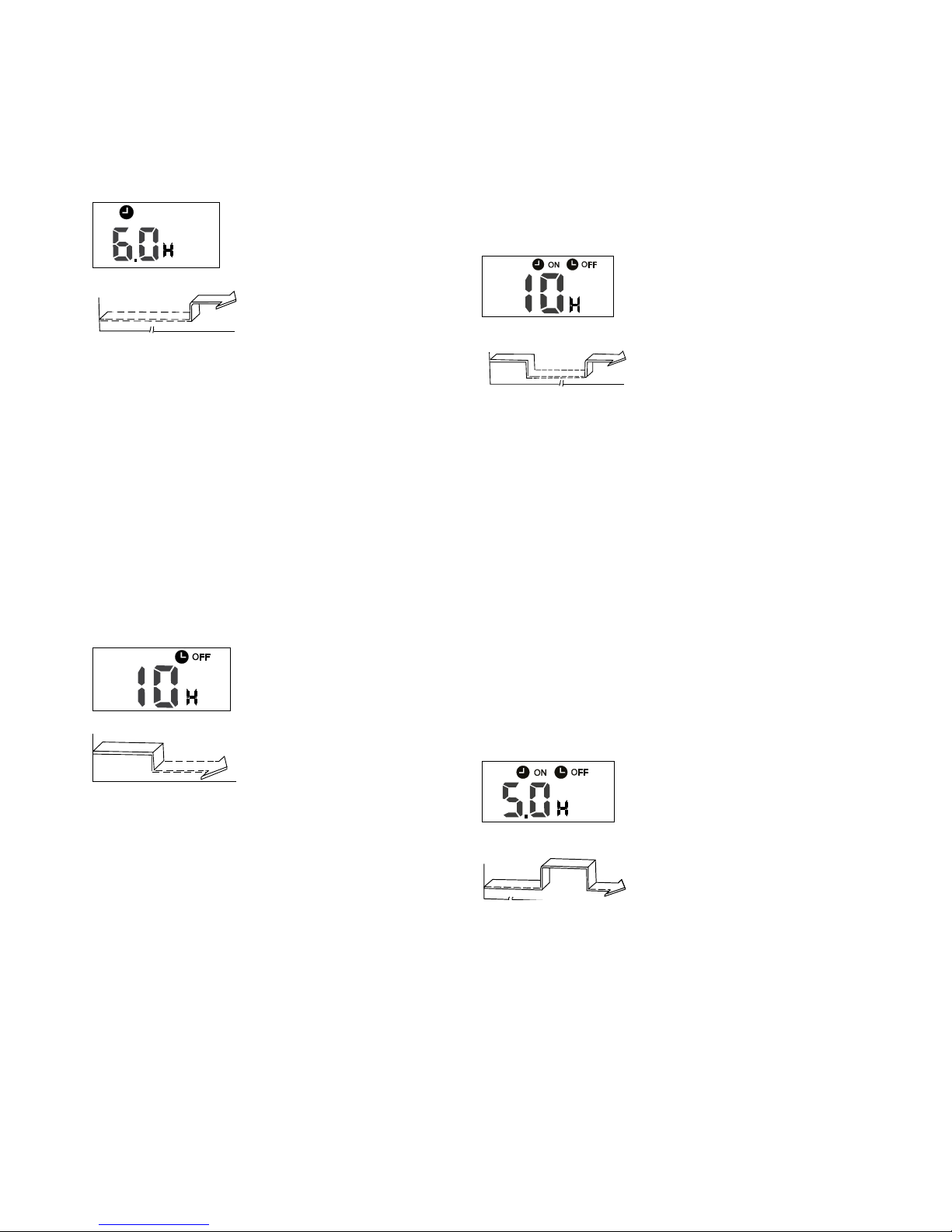

Timer operation
ON/OFF
MODE
FAN
TEMP
SLEEP SWING DIRECT
LED FOLLOW METURBO SELF CLEAN
TIMER
OFF
TIMER
ON
SILENCE
FP
Press the TIMER ON button can set the auto-on time of the unit.
Press the TIMER OFF button can set the auto-off time of the unit.
To set the Auto-ON time
1. Press the TIMER ON button. The remote controller shows
TIMER ON, the last Auto-on setting time and the signal "H"
will be shown on the LCD display area. Now it is ready to reset
the Auto-on time to START the operation.
2. Push the TIMER ON button again to set desired Auto-on time.
Each time you press the button, the time increases by half an
hour between 0 and 10 hours and by one hour between 10 and
24 hours.
3. After setting the TIMER ON ,there will be a one second delay
before the remote controller transmits the signal to the air
conditioner. Then, after approximately another 2 seconds,
the signal "H" will disappear and the set temperature will
re-appear on the LCD display window.
To set the Auto-OFF time
1. Press the TIMER OFF button. The remote controller shows

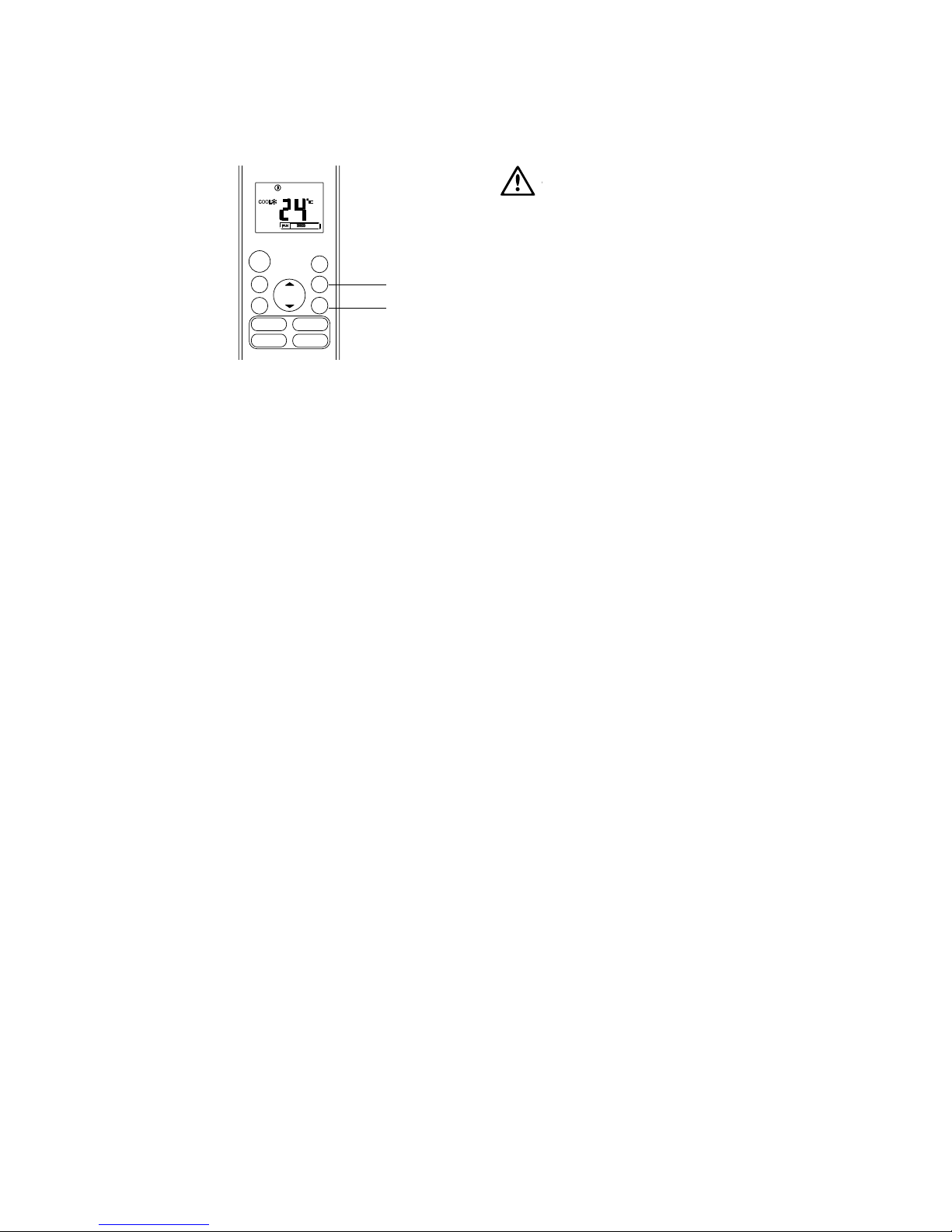

TIMER OFF, the last Auto-off setting time and the signal "H"
will be shown on the LCD display area. Now it is ready to reset
the Auto-off time to stop the operation.
2. Push the TIMER OFF button again to set desired Auto-off time.
Each time you press the button, the time increases by half an
hour between 0 and 10 hours and by one hour between 10 and
24 hours.
3. After setting the TIMER OFF, there will be a one second delay
before the remote controller transmits the signal to the air
conditioner. Then, after approximately another 2 seconds, the
signal "H " will disappear and the set temperature will
reappear on the LCD display window.
WARNING
caution
• When you select the timer operation, the remote controller
automatically transmits the timer signal to the indoor unit for
the specified time. Therefore, keep the remote controller in
a location where it can transmit the signal to the indoor unit
properly.
• Timer setting is in half hourly intervals up to 10 hours then
hourly intervals to 24 hours
1
2

13Timer operation
Examples of timer operation
Timer on (Auto-on Operation)
Off
Start
Set 6 hours later
The TIMER ON feature is useful when you want the unit to turn
on automatically before you return home. The air conditioner will
automatically start operating at the set time.
Example
To start the air conditioner in 6 hours.
1. Press the TIMER ON button, the last setting of starting
operation time and the signal "H" will show on the display
area.
2. Press the TIMER ON button to display "6.0H " on the TIMER
ON display of the remote controller.
3. Wait for 3 seconds and the digital display area will show the
temperature again. The "TIMER ON" indicator remains on and
this function is activated.
Timer off (Auto-off Operation)
On
Set 10 hours later
Stop
The TIMER OFF feature is useful when you want the unit to turn
off automatically after you go to bed. The air conditioner will stop
automatically at the set time.
Example
To stop the air conditioner in 10 hours.
1. Press the TIMER OFF button, the last setting of stopping
operation time and the signal "H" will show on the
display area.
2. Press the TIMER OFF button to display "10H " on the TIMER
OFF display of the remote controller.
3. Wait for 3 seconds and the digital display area will show the
temperature again. The "TIMER OFF" indicator remains on
and this function is activated.
Combined timer
(Setting both ON and OFF timers simultaneously)
Timer off/Timer on (On/Stop/Start operation)
On
Set 2 hours later
after setting
10 hours later
after setting
This feature is useful when you want to stop the air conditioner after
you go to bed, and start it again in the morning when you wake up
or when you return home.
Example
To stop the air conditioner 2 hours after setting and start it again
10 hours after setting.
1. Press the TIMER OFF button.
2. Press the TIMER OFF button again to display 2.0H on the
TIMER OFF display.
3. Press the TIMER ON button.
4. Press the TIMER ON button again to display 10H on the TIMER
ON display.
5. Wait for 3 seconds and the digital display area will show the
temperature again. The "TIMER ON OFF" indicator remains
on and this function is activated.
Timer off/Timer on (On/Stop/Start operation)
This feature is useful when you want to start the air conditioner
before you wake up and stop it after you leave the house.
Example
To start the air conditioner 2 hours after setting, and stop it 5 hours
after setting.
1. Press the TIMER ON button.
2. Press the TIMER ON button again to display 2.0H on the
TIMER ON display.
3. Press the TIMER OFF button.
4. Press the TIMER OFF button again to display 5.0H on the
TIMER OFF display.
5. Wait for 3 seconds and the digital display area will show the
temperature again. The "TIMER ON & TIMER OFF" indicator
remains on and this function is activated.

14 Special functions
SLEEP operation
SLEEP operation
Cooling
Heating
SLEEP operation
Continuous run
Continuous run
1 hour
1 hour
1°C
1°C
1°C
1°C
1 hour
1 hour
Set temp.
Set temp.
When selected, the set temperature will increase (cooling) or
decrease (heating) by 1°C per hour for the first 2 hours. Until new
settings are entered or the air conditioner is shut down.
Sleep function saves energy and improves night time by optimising
sleeping temperature.
Refrigerant leakage detection
When refrigerant leakage is detected, the indoor unit will display
EC code.
Louvre angle memory function
Within the scope of safety angle, the horizontal louver angle is
memorised and will return to the position last selected by user. If it
exceeds, it will memorize the boundary of safety angle. This will not
happen when Turbo or manual control buttons are pressed or after
a power interruption. So we strongly suggest that the open angle
of the horizontal louver should not be set too small, in case the
condensed water forms and drips from the horizontal louver.
SELF CLEAN function
• Airborne bacteria use the moisture on the indoor heat
exchanger to grow. Regular drying of the exchanger prevents
this growth. By simply pressing the SELF CLEAN button, the
system will automatically manage the process. This cleaning
action may be done as frequently as desired.
• For cooling models, only the indoor fan is active in low speed
for 30 minutes and the unit turns off automatically.
• For cooling & heating models, the unit will operate as in the
following sequence : FAN mode at Low fan speed--Heating
operation with LOW fan speed ---FAN operation--Stop
Operation---Turn off.
NOTE:
• Activating self clean function does not replace the need to
clean the filters. The filters must be cleaned at least every
3 months, or as required to maintain good cleanliness and
performance of this air conditioner.
• This function is only activated in COOLING or DRY mode.
• Before activation the air conditioner, it is recommended
to run the air conditioner under cooling operation for about
30 minutes.
• Pressing the SELF CLEAN or ON/OFF button again during the
cleaning cycle will cancel the operation and turn the unit off.
Auto-restart function
In event of power interruption such as a blackout, the air
conditioner stops once. But it restarts automatically and performs
previous operation when the power supply is resumed.
Mute operation
Press the LED button on the remote controller can turn off the
indoor screen display, and also turn off the Air conditioner buzzer,
which create a comfortable and quiet environment.
Special functions

WARNING
caution
• Do not operate the air conditioner for long periods with the
air flow direction set downward in cooling or dehumidifying
mode. Otherwise, condensation may occur on the surface of
the horizontal louver causing moisture to drop on to the floor
or on furnishings.
• After a quick restart, the horizontal louver may remain static for
approximately 10 seconds.
• Open angle of the horizontal louver should not be set too
small, as COOLING or HEATING performance may be reduced
due to too restricted air flow area.
• Do not move the vertical (up/down) louver manually, otherwise
the vertical louver will be out of sync. But if this happens,
please cease operating, switch off power for a few seconds,
then restart the air conditioner.
Optimal operation
To achieve optimal performance, please note the following:
• Adjust the air flow direction correctly so that it is not towards
people.
• Adjust the temperature to achieve moderate comfort levels.
Excessively low or high temperature waste energy.
• Improve performance by keeping windows and doors closed.
• Limit energy usage (run time) by using the TIMER function.
• Do not put any object near air inlet or air outlet, as the
efficiency of the air conditioner may be reduced and may
cause the air conditioner to stop running.
• Inspect and clean the filters every 3 months or as required.
Ensure that the filters are correctly inserted after cleaning.

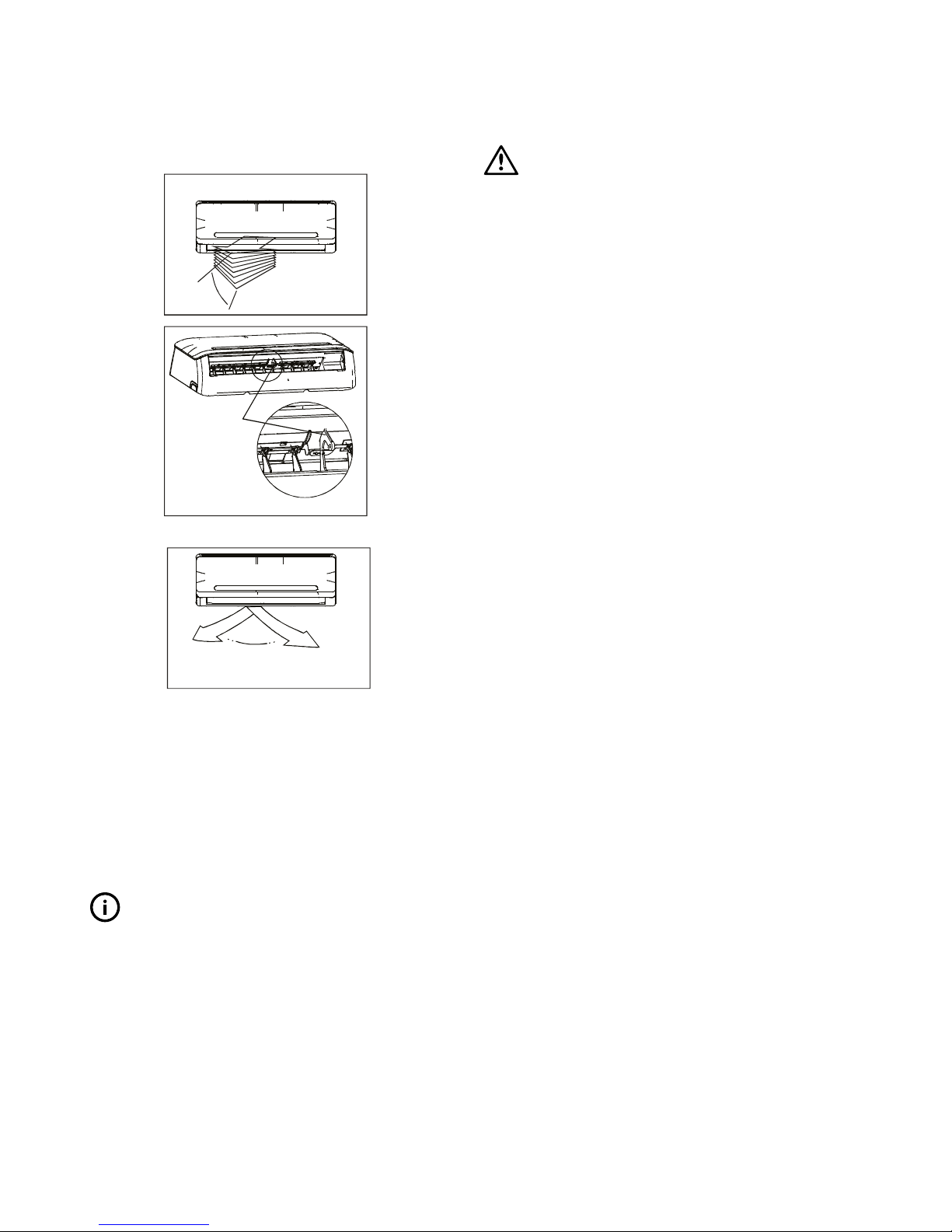

The direction of airflow can be adjusted for maximum comfort.
Adjusting vertical air flow (Up/Down)
The vertical airflow direction is controlled by using the remote
control. This can be set to a fixed direction or to automatically
swing up and down for even air distribution. Refer to Remote
Control section page 9 for operation details .
Adjusting horizontal air flow (Left/Right)
• The airflow can be directed horizontally (left to right) by
manually adjusting the deflector rod.
TIPS & INFORMATION
important
Do not put your fingers into the panel of the blower and suction
side. The high-speed fan inside may cause injury.
Airflow directional control
Range
Deflector rod
Range
15Airflow directional control

Manual operation
WARNING
caution
• This switch is used for testing purposes only. Please do not use
it unless necessary.
• To restore the remote controller operation, use the remote
controller directly.

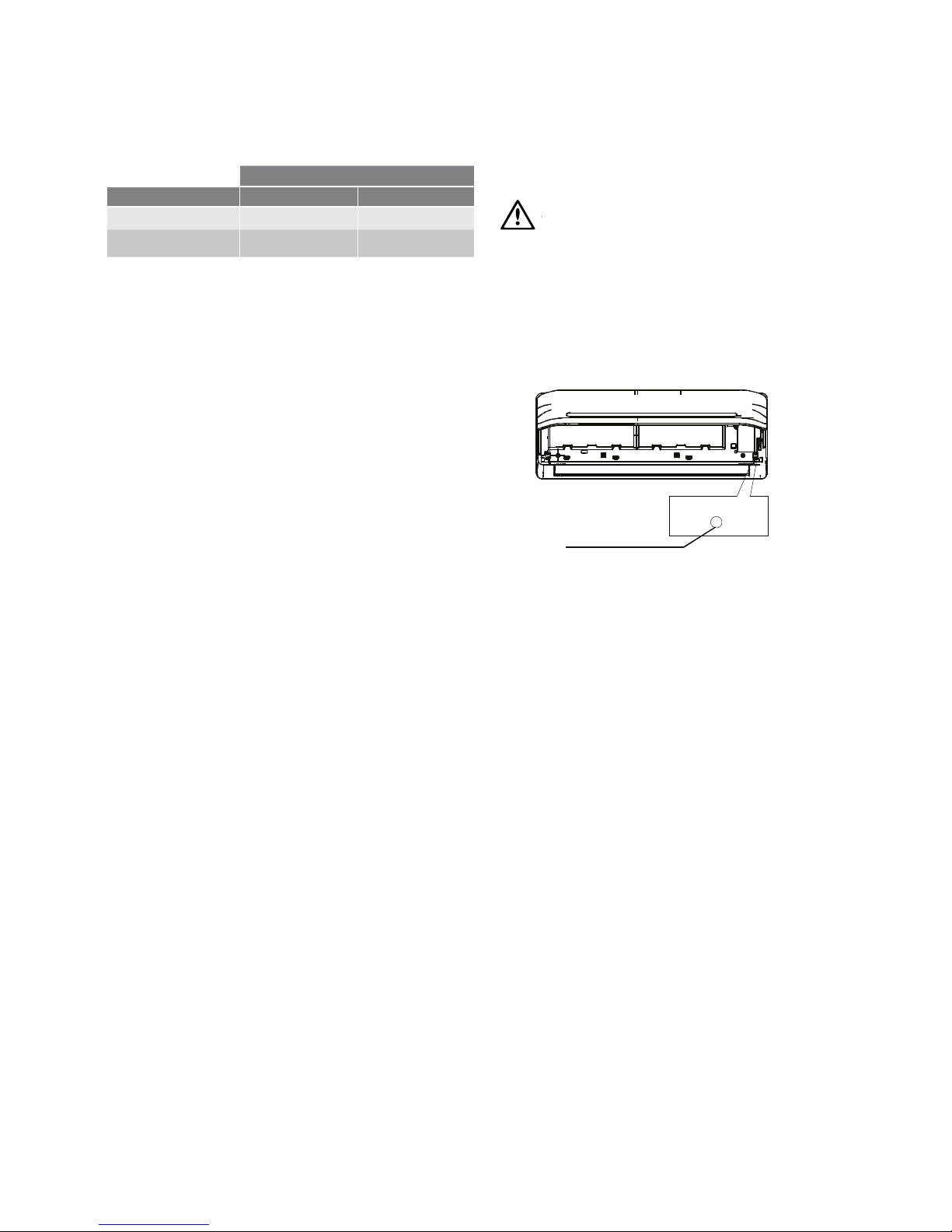

This air conditioner is equipped with a manual switch to allow
operation should the remote control fail to work. It can be accessed
by opening the front panel.
Manual switch
AUTO/COOL
NOTE: The unit must be turned off before operating the manual
control button. If the unit is operational, continue pressing the
manual control button until the unit is off.
• Open the front panel until it locks. There is a "click" when the
mechanism engages.
• One press of the manual control switch will lead to the forced
AUTO operation. Press the switch twice within 5 seconds to
operate in COOL mode.
• Close the panel after manual operation has been started.
• Press the button again while the air conditioner is running to
turn off.
Operating temperature
Mode
Temperature Cooling operation Heating operation
Room temperature 17°C – 48°C 0°C – 30°C
Outdoor temperature 0°C – 48°C -15°C – 30°C
The Air conditioner temperature can be set between the range of
17°C to 30°C.
NOTE:
1. Optimum performance will be achieved within these operating
temperatures. If air conditioner is used outside of the above
conditions, certain safety protection features might come into
operation and cause the unit to function abnormally.
2. If the air conditioner runs for a long time in cooling mode
and the humidity is high (over 80%) , condensed water may
drip out of the unit. Please set the vertical air flow louvre to
its maximum angle (vertically to the floor), and set HIGH fan
mode.
Low temperature protection
This air conditioner incorporates an automatic electric heater to
prevent the outdoor unit temperature dropping below 0°C and
freezing. It is strongly recommended to keep the power supply
connected to the air conditioner to prevent freezing.
16 Operating temperature

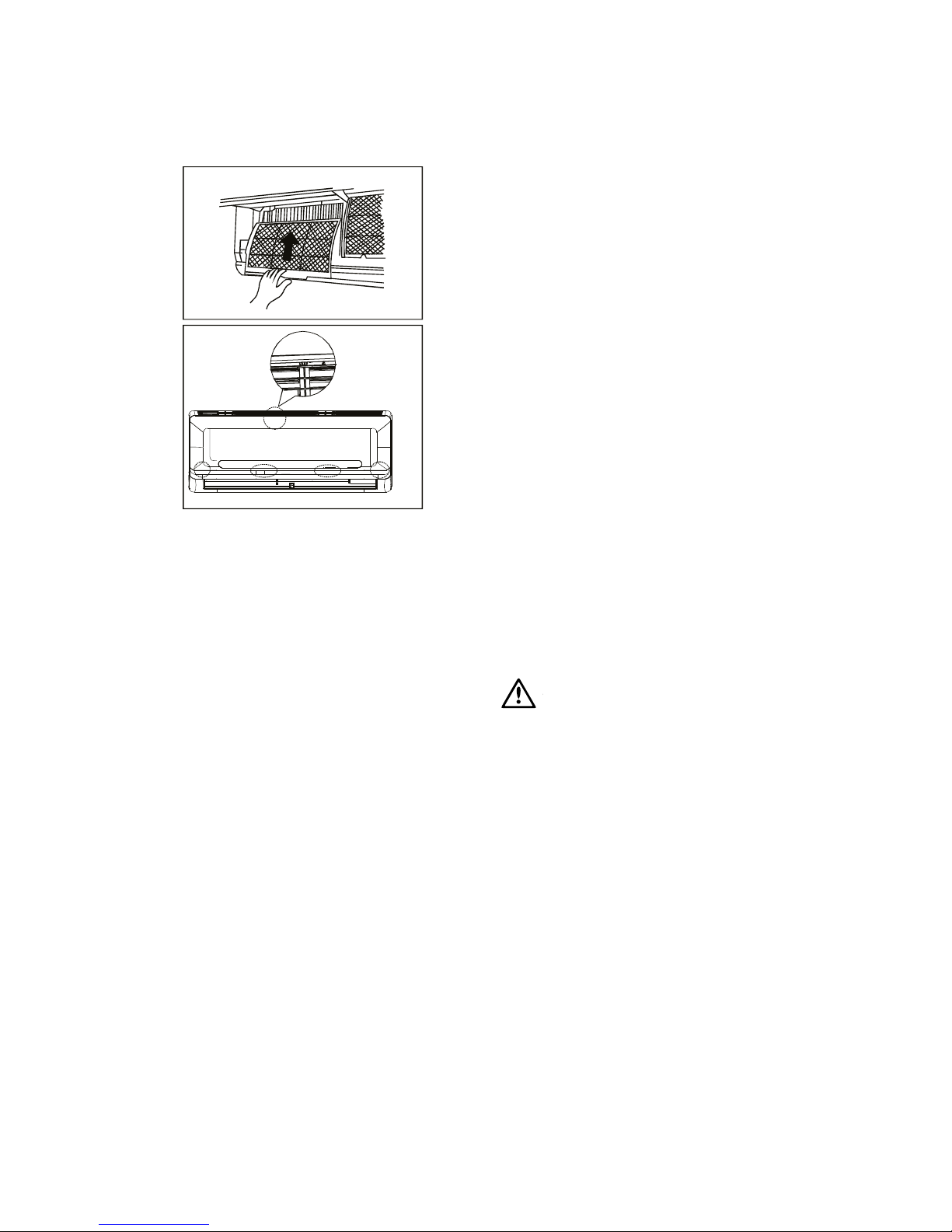

Before maintenance
• Turn the system off before cleaning. To clean, wipe with a soft,
dry cloth. Do not use bleach or abrasives.
NOTE: Power supply must be disconnected before attempting to
clean or service.
WARNING
warning
Servicing shall only be performed as recommended by the
equipment manufacturer. Maintenance and repair requiring the
assistance of other skilled personnel shall be carried out under
the supervision of the person competent in the use of flammable
refrigerants. For more details, please refer to the Information on
servicing on installation manual.
• Do not use a chemically treated cloth or duster to clean
the unit.
• Do not use benzine, thinner, polishing powder, or similar
solvents for cleaning. These may cause the plastic surface to
crack or deform.
• Never use water hotter than 40°C to clean the front panel, it
could cause deformation or discoloration.
Cleaning the unit
Wipe the unit with a soft dry cloth only. If the unit is very dirty, wipe
it with a cloth soaked in warm water.
Cleaning the air filter and air freshening filter
A clogged air filter reduces the efficiency of this unit. Please clean
the filter every 3 months, or as required..
1. Open the front panel by carefully lifting both ends at the
same time. At a certain angle, a clicking sound is heard and it
becomes self-supporting. For some models, please use the
suspension bars to prop up the panel.
2. Use the tab provided to move the filter first up a little, then
slightly towards you. Now extract the filter by gently drawing
downwards.
3. Unclip the small air freshening filter from the large air filter.
Clean it with vacuum, and replace it occasionally.
4. Clean the large air filter with soapy water. Rinse with fresh
water. Shake off excess water and dry it up in cool place,
replace it occasionally.
Care and maintenance
Filter tab
Air freshening filter
17Care and maintenance

5. After the filters are dry, refit the small filters onto the large
air filter.
6. Re-insert the filters back into the unit following the reverse
order as described in steps 1 & 2.
7. Close the front panel. Make sure the buckles are fully fit and
the panel is completely closed.
Preparation for extended non-operation
If you plan not to use unit for a long time, perform the following:
1. Clean the indoor unit and filters.
2. Operate the fan for about half a day to dry the inside
of the unit.
3. Stop the air conditioner and disconnect power.
4. Remove the batteries from the remote controller. The outdoor
unit requires periodic maintenance and cleaning. Do not
attempt to do this yourself. Contact your dealer or service
provider.
Pre-season inspection
• Damaged or disconnected wires.
• Clean the indoor unit and filters.
• Check water or oil leaks.
• Check that the outdoor unit is clear of leaves, rubbish and
other objects that may block the air inlet or outlet.
• Check if the remote control batteries are flat, replace as
required.
WARNING
warning
• Do not touch the metal parts of the unit when removing the
filter. Injuries can occur when handling sharp metal edges.
• Do not use water to clean inside the air conditioner. Exposure
to water can destroy the insulation, leading to possible electric
shock.
• When cleaning the unit, first make sure that the power and
circuit breaker are turned off.
• Do not wash air filter with hot water at more than 40°C . Shake
off moisture completely and dry it in the shade. Do not expose
it directly to the sun, it may shrink.
Care and maintenance
Panel
buckles
18 Care and maintenance

Troubleshooting
Symptom Cause
Operation is delayed after restart To prevent blowout of the fuse, the compressor will not operate while the protection
circuit is working for about 3 minutes after sudden OFF/ON operation of the power
supply, this is normal operation and designed to protect the compressor.
Fan speed changes from off, to very slow and
then normal
Automatically happens in heating mode :
• prevents cold air blowing onto occupants when the heating operation is start,
• perform automatic defrosting operation,
• perform low temperature heating operation
Heating operation stops suddenly and
defrost-light blinks
In HEAT mode, the indoor unit temporarily stops for maximum of 10 minutes to perform
the automatic defrosting operation.
Mist coming out of the indoor unit In COOL mode, a mist generated by condensation formed with sudden cooling process
may be emitted.
Mist may generate due to moisture generated from defrosting process when the air
conditioner restarts in HEAT mode operation after defrosting
Low volume sounds are emitted by the air
conditioner
Hissing sound-- during operation or immediately after stopping the air conditioner,
refrigerant flowing sound may be head.
Squeaking sound-- normal expansion and contraction of plastic and metal parts caused
by temperature change during the operation.
Rushing air-- when louver resets its position.
Dust discharges from the unit May occur when air conditioner is used for the first time or has not been used for a long
time.
Emits a peculiar odour
Various smells generated from interior textile, furniture, or cigarette smoke absorbed
into the air conditioner may be emitted. If not the case call an authorised service
contractor.
Changes to fan only while cooling or heating
mode
Room temperature reaches the temperature setting of the remote control. If not the
case call your suitable contractor.
Operation is erratic, unpredictable or
unresponsive
Interference from cell phone towers and remote boosters may cause the unit to
malfunction
Disconnect the power and then re-connect.
Press the ON/OFF button on the remote controller to restart operation.
NOTE: If the problem is not resolved, please contact a local dealer
or the nearest customer service center. Be sure to inform them of
the detailed malfunctions and unit model number.
Troubleshooting tips
The following events may occur during normal operation, and may
not indicate malfunction
19Troubleshooting

Troubleshooting
Symptom Diagnostic
Unit will not operate
Is there a power failure?
Has a switch been turned off, a circuit breaker tripped or a fuse blown?
Is the timer operating?
Are the batteries used in the remote controller exhausted?
Are the batteries used in the remote controller loaded properly?
Poor cooling or heating
performance
Are the air filters dirty?
Is air flow unrestricted in & out of indoor & outdoor units?
Are the temperature and mode settings correct?
Are the windows or doors left opened?
Is fan speed on high and louvers allowing maximum flow?
Is direct or strong sunlight shinning into the room in cooling operation?
Are there other heating apparatus or computers operating, or too many people in the room in
cooling operation?
Is the SILENCE function is activated? Under SILENCE operation, noise reduction is prioritized and
the air-conditioning performance may become lower.
Indicator lamps continue flashing The unit may stop operation or continue to run in a safety condition (depending on models).
Waiting for about 10 minutes, the fault may be recovered automatically, if not, disconnect the
power and then connect it in again. If the problem still exists, disconnect the power and contact
the nearest customer service center.
Error code appears in the
indoor unit, such as: E0,E1,E2....
P1,P2,P3.....or F1, F2,F3.....
Before you call for or request servicing, troubleshoot a problem by performing following checks:
If the problem persists even if you perform these checks or
diagnostics, immediately stop operation and contact the authorized
service center. Be sure to inform them of the detailed malfunctions
and unit model number.
WARNING
caution
In the case of ANY of the following, turn off the unit
immediately
• Power cord is damaged or abnormally warm.
• Burning odours are smelled.
• Loud or abnormal sounds are heard.
• A power fuse blows or a circuit breaker trips frequently.
• Water or other objects fall into or out of the unit.
Do not attempt to correct these items yourself. Contact
a authorized service provider.
20 Troubleshooting
