Kengo KL30K6T12 User manual

KL30K6T12

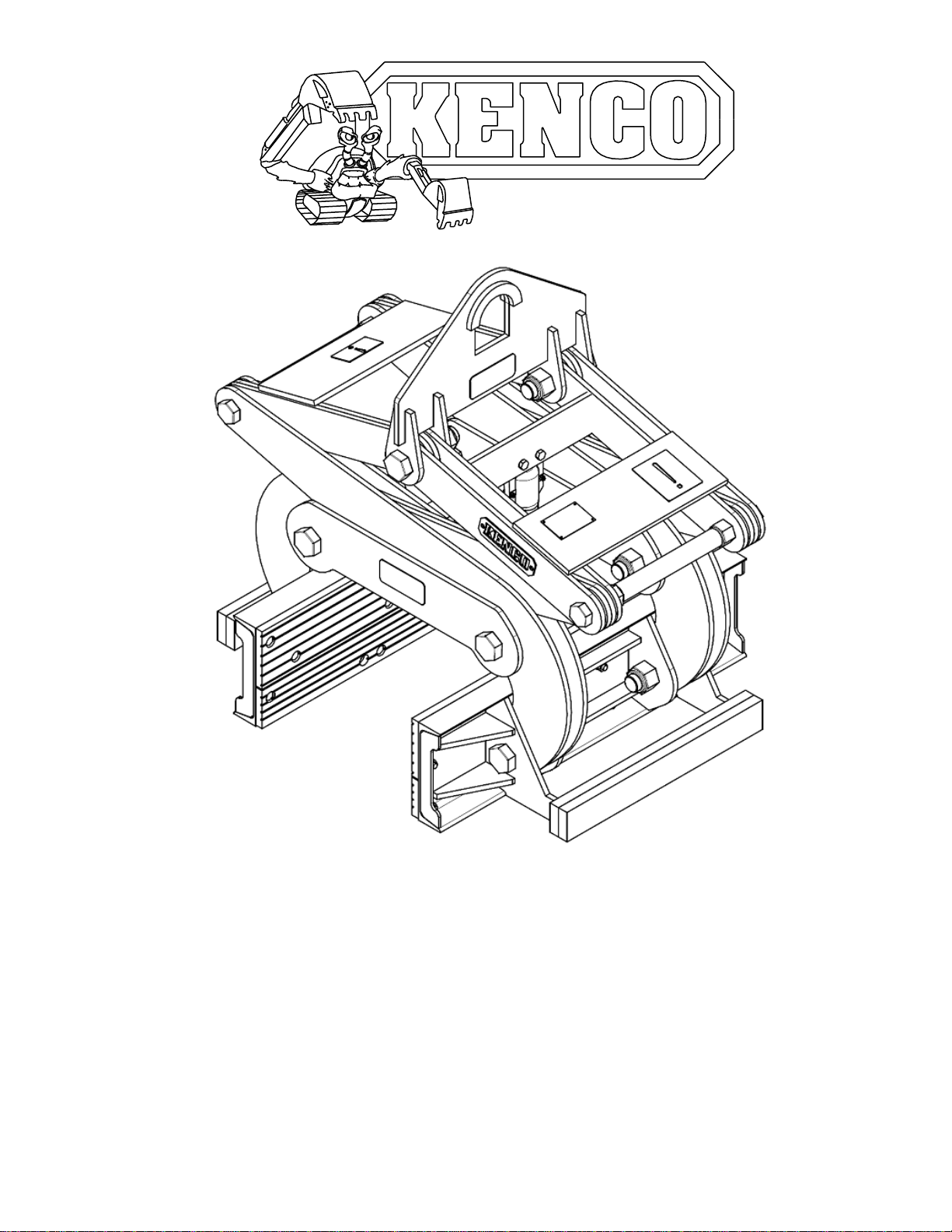

Concrete median barrier handling device
Operators Manual
Conforms to ASME B 30.20, BTH-1
Design Category B, Service Class 3
Attachment Solutions

KL30K6T12 KENCO Kenlift®Operation Manual
2
170 State Route 271
Ligonier, PA 15658
1-800-653-6069
TABLE OF CONTENTS
Section I. General Information......................................................................................3
Section II. Safety............................................................................................................3
Section III. Identification of Major Components ........................................................5
Section IV. Setup.............................................................................................................5
Section V. Operation.....................................................................................................7
Section VI. Maintenance................................................................................................9
Section VII.Inspection Criteria....................................................................................10
Section VIII. Parts/Drawings ......................................................................................11
Section IX. Warranty ...................................................................................................15
RECORD INFORMATION HERE
FOR REFERENCE
MODEL
BODY SERIAL NUMBER
Notes:

KL30K6T12 KENCO Kenlift®Operation Manual
3
170 State Route 271
Ligonier, PA 15658
1-800-653-6069
Section I. General Information.
May we take this opportunity to thank you for purchasing the Kenco Kenlift®highway
median barrier wall handling system. The Kenlift® System provides the ultimate in below the
hook concrete highway barrier handling versatility. The Kenlift® is quality engineered to
provide years of trouble free, low maintenance performance. Please read and fully
understand this manual and any additional attached documentation before attempting to
set-up, operate or maintain the Kenlift®system.
This manual should be made available to all persons who may use or maintain the
Kenlift®system. For additional information, please feel free to contact the service department
at Kenco at 1-800-653-6069
Section II.Safety
A. General
1. Safety practices described in this manual are intended as guidelines for safe operation under
most conditions and are supplementary to any and all rules and/or laws governing any aspect
of the Kenco Kenlift®operation that are in force in your area.
2. Before operating the Kenco Kenlift®, you should have a clear understanding of said laws and
regulations to ensure compliance.
3. Throughout this manual there are parts tagged with one or more of the following safety
warnings. Particular care must be exercised with regard to these statements.
This warning is used where there is a high probability
of death or serious injury if the instructions are not
followed correctly.
DANGER
!
This warning is used where there is a possibility of
injury to yourself or others if the instructions are not
followed correctly.
WARNING
!
This warning is used where there is a possibility of
damage to the machine if the instructions are not
followed correctly.
CAUTION
!

KL30K6T12 KENCO Kenlift®Operation Manual
4
170 State Route 271
Ligonier, PA 15658
1-800-653-6069
B. Personal Safety
1. Wear appropriate protective clothing and related safety equipment including protective glasses,
hardhat, gloves, protective shoes, hearing protection, and any other equipment/devices dictated
by job conditions.
2. Do not wear loose clothing, jewelry, or hairstyles that could become entangled in the Kenco
Kenlift®or rigging hardware.
3. Keep hands, feet, and any other appendages clear of the Kenlift®while in operation.
C. Operation Safety.
1. DO NOT ATTEMPT TO OPERATE OR PERFORM MAINTENANCE ON THE
Kenlift®UNTIL READING AND FULLY UNDERSTANDING THIS MANUAL
2. MAINTAIN SAFE DISTANCE FROM LOAD - NEVER ALLOW THE Kenlift®OR
LOAD TO PASS OVER ANY PART OF A PERSON.
3. DO NOT USE A KENCO Kenlift®THAT HAS BEEN ALTERED ACCIDENTALLY
OR INTENTIONALLY, IN ANY WAY WITHOUT INSPECTION BY QUALIFIED
PERSONNEL.
4. DO NOT USE A KENCO Kenlift®FOR ANY TASK OTHER THAN THE INTENDED
PURPOSE OF THE DESIGN.

KL30K6T12 KENCO Kenlift®Operation Manual
5
170 State Route 271
Ligonier, PA 15658
1-800-653-6069
Section III. Identification of Major Components
Section IV. Setup.
A. Check the Kenlift®for any signs of damage incurred during shipping.
B. Record model and serial # of assembly and components.
C. Check that all pad bolts are tight.
D. DO NOT OVER TIGHTEN PAD ANGLE BOLTS. PAD ANGLE MUST HAVE
(LIMITED) ROTATIONAL FREEDOM AT THIS POINT.
E. Check that all identification and warning labels are present.
F. Attach the Kenlift®to hoist.
1. Use as few rigging components (shackles, slings, chain, etc.) as possible.
LIFT BAIL
HANDLE
PAD CHANNEL
ASSY.
WIDE LEG
ASSY.
PAD
CENTERLINK
ACTUATOR
WIDE ARM
ASSY.
NARROW ARM
ASSY.
NARROW LEG
ASSY.

KL30K6T12 KENCO Kenlift®Operation Manual
6
170 State Route 271
Ligonier, PA 15658
1-800-653-6069
2. ALL RIGGING COMPONENTS MUST HAVE A WORKING LOAD LIMIT THAT
IS EQUAL TO OR GREATER THAN THE COMBINED WEIGHT OF INTENDED
LOAD PLUS THE Kenlift®.
3. UNDER NO CIRCUMSTANCES SHOULD ANY COMPONENT USED AS RIGGING
TO THE Kenlift®BE OF A RATED CAPACITY LESS THAN THAT OF THE
Kenlift®.
4. DO NOT RIG UNPROTECTED NYLON SLINGS OR WIRE ROPE DIRECTLY
THROUGH LIFT BAIL.
5. IF USING EQUIPMENT OTHER THAN A CRANE: USE RIGGING OF
SUFFICIENT LENGTH TO PREVENT CONTACT BETWEEN Kenlift®AND
EQUIPMENT.

KL30K6T12 KENCO Kenlift®Operation Manual
7
170 State Route 271
Ligonier, PA 15658
1-800-653-6069
Section V. Operation.
Before attempting to use the Kenlift®device ALWAYS perform a test lift on the
intended object(s) to confirm proper operation. DO NOT use a Kenlift®to handle
objects beyond the rated capacity or range.
A. Automatic operation:
1. Ensure that the Kenlift®’s capacity and range are appropriate to the median barrier wall to be
handled.
2. Ensure pads are clean and free of debris or contamination.
3. Position the Kenlift®at or near center of object to be lifted.
4. Lower Kenlift®onto object, taking care to minimize impact.
5. Ensure that all persons are clear of the Kenlift®and wall.
6. Release tension on the rigging to cycle the actuator.
7. Raise the Kenlift®and load in a smooth motion. Do not “jerk”.
8. Deposit at desired location.
9. Release tension on the rigging to cycle the actuator. (Note: avoid undue slamming of the
Kenlift®into open position to prolong actuator life.)
10. Remove the Kenlift®(Kenlift®is latched in open position automatically)
B. AVOID JARRING, SWINGING, AND OTHERWISE UNNECESSARY
MANIPULATION OF THE LOAD.
C. AVOID HANDLING OF LOADS OFF CENTER.
DANGER
!
Manipulation of the Kenlift®by ground personnel for the
purpose of alignment with load shall only be done with
Kenlift®suspended above the barrier. KEEP ALL HANDS
AWAY FROM Kenlift®DURING OPERATION.
DANGER
!
Tip: The majority of wear on the Kenlift®, pads and associated components
results from shock loading, impacting, and poor alignment of the Kenlift®with
the load. Minimizing these incidents will greatly extend the life of the Kenlift®
and consumables.
Pads and surfaces of the load that come into contact with the
pad surfaces MUST BE CLEAN and free of any foreign
material or coating that could compromise the grip.
DANGER
!

KL30K6T12 KENCO Kenlift®Operation Manual
8
170 State Route 271
Ligonier, PA 15658
1-800-653-6069
D. DO NOT USE THE Kenlift®TO PICK MULTIPLES OF ITEMS IN A SINGLE PICK.
E. OBSERVE ALL SAFETY PRACTICES ASSOCIATED WITH OPERATION OF HOIST
MACHINERY.
F. DO NOT USE A Kenlift®TO DRAG LOADS.
G. DO NOT ALLOW LOAD (BARRIER) TO CONTACT ANY SURFACE/OBJECT WHILE
BEING HANDLED.
The Kenlift®barrier handling device produces grip
proportional to and dependent on the weight of the
barrier wall. It is for this reason that while in
operation the Kenlift®and wall NEVER be allowed to
contact other items.
DANGER
!

KL30K6T12 KENCO Kenlift®Operation Manual
9
170 State Route 271
Ligonier, PA 15658
1-800-653-6069
Section VI. Maintenance
A. Daily:
1. Visually inspect the Kenlift®for signs of stress and wear.
2. Check that bolts and nuts are snug.
3. Ensure free movement of all components.
4. Ensure that all warning labels are present and readable.
5. Check that the actuator mounting screws are snug and seated.
6. Lubricate all moving mechanisms with penetrating oil.
7. LUBRICATE ACTUATOR WITH LIGHT PENETRATING OIL ONLY
(WD40™)

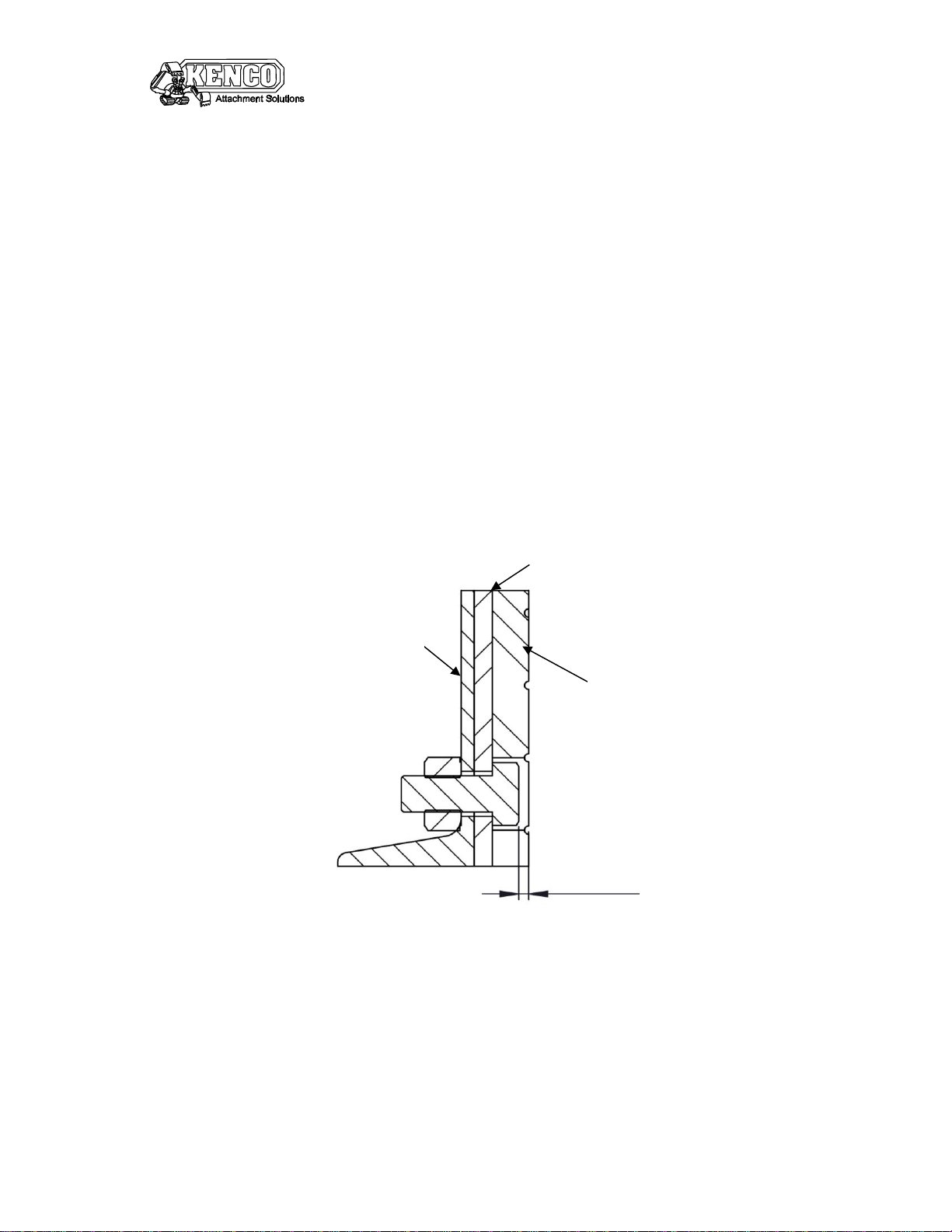

8. For Pads:
a. Check that all pad mounting bolts and nuts are tight.
b. Verify freedom of rotation for pad angle.
c. Ensure that pad material is sound, and not de-laminated from backing plates.
d. Ensure that pad mounting bolt heads are min.3/32” below the surface of the pad.
e. Ensure pads are clean and free of any foreign material or substance.
B. Annually*
1. Remove pivot bolts and coat with grease.
2. Inspect holes, pins, bolts etc. for wear. See sect VII for criteria.
3. Remove actuator, clean and lubricate with light penetrating oil –check for signs
of wear, replace if necessary.
* Frequency depends on usage, environmental conditions, etc.
BACKING
PLATE
PAD
PAD MOUNTING
CHANNEL OR
ANGLE

KL30K6T12 KENCO Kenlift®Operation Manual
10
170 State Route 271
Ligonier, PA 15658
1-800-653-6069
Section VII. Inspection Criteria
THE KENLIFT®UNIT AND ALL OF ITS ASSOCIATED COMPONENTS
SHALL BE REMOVED FROM SERVICE AND TAGGED APPROPRIATELY
UNTIL RECERTIFICATION BY A QUALIFIED INDIVIDUAL IN ANY OF
THE FOLLOWING CONDITIONS:
A. General
1. Cracking in any component or member.
2. Cracking in any weld.
3. Visible distortion in any member.
4. Visible distortion in any Bolt/Pin/Shaft.
B. Specific

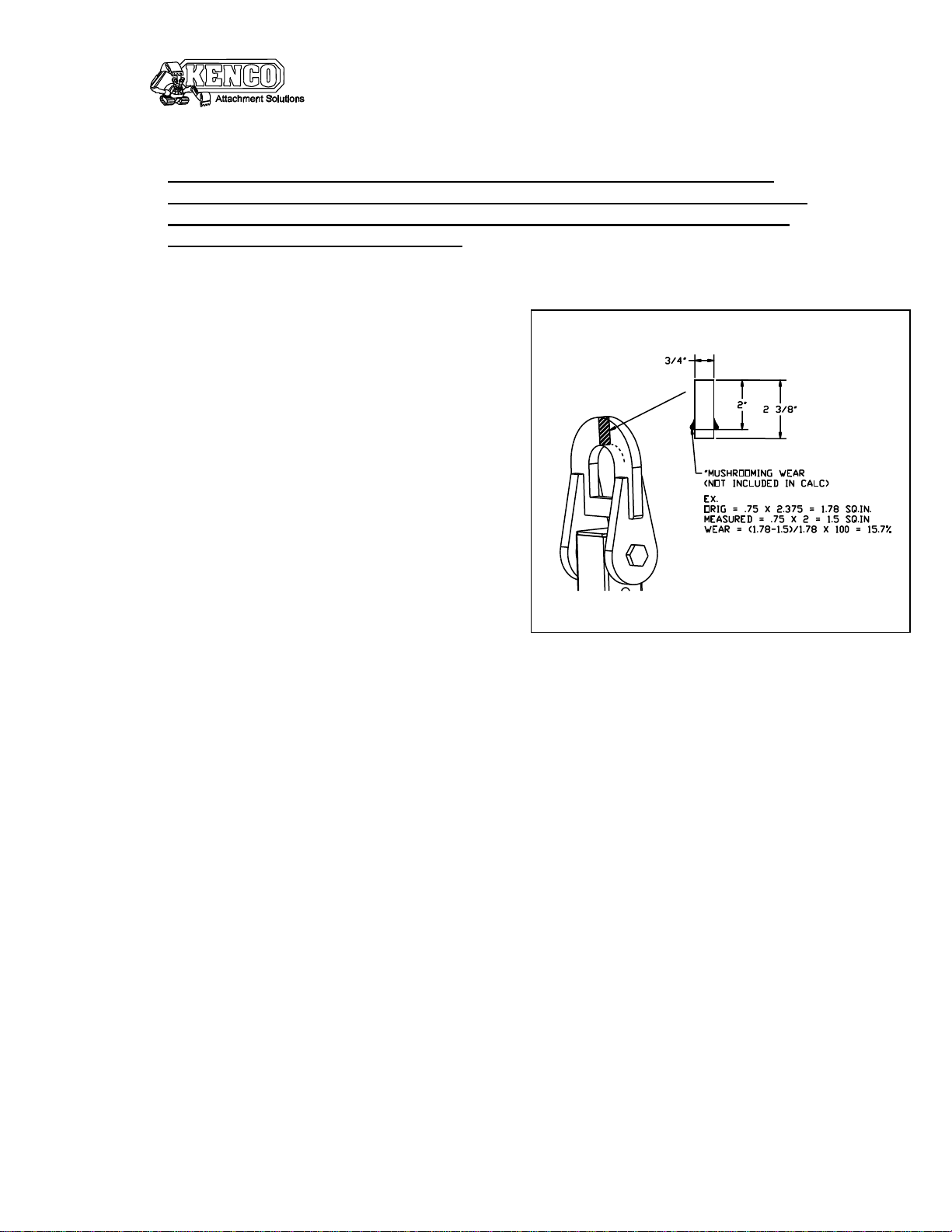

1. Lift Bail
a. The lift bail shall be replaced if a
20% loss in cross-sectional area
from the original member(s) can be
demonstrated. Note: cross section of
welds, “mushroomed” wear faces,
and burrs are not accounted for as
cross-sectional area. (See ill.)
2. Holes.
a. Any members through which bolted or pinned connections pass shall be
replaced if a 10% loss in cross-sectional area from the original member(s)
can be demonstrated. Note: cross section of welds, “mushroomed” wear
faces, and burrs are not accounted for as cross-sectional area.
3. Pins/Bolts.
a. Any visible deformation of a pin, shaft or bolt shall require replacement of
that part.
4. Pads –Replace if:
a. For units utilizing urethane gripping pads, if surface of any given mounting
bolt is not at least 3/32” below the surface of the pad,.
b. Any de-lamination of the pad from the backing plate.
c. Any scarring, chunking, or missing pad material constituting a total
combined loss of surface area greater than 3 sq. in. per pad.
d. Any single scar, chunk, or missing pad face that is greater than 1 sq. in per
pad.

KL30K6T12 KENCO Kenlift®Operation Manual
11
170 State Route 271
Ligonier, PA 15658
1-800-653-6069
Section VIII. Parts/Drawings

KL30K6T12 KENCO Kenlift®Operation Manual
12
170 State Route 271
Ligonier, PA 15658
1-800-653-6069

KL30K6T12 KENCO Kenlift®Operation Manual
13
170 State Route 271
Ligonier, PA 15658
1-800-653-6069
KENCO CORPORATION
877-4ATTACH
MODEL
USAGE
CAPACITY
SERIAL NO.
WT.
30
DANGER
DO NOT STAND UNDER OR NEAR
WHILE MACHINE IS OPERATING
31
DO NOT exceed the rated load capacity of
the lifter.
DO NOT attempt to operate a malfunctioning
or damaged unit.
DO NOT allow unit or load to pass over any
part of a person.
DO NOT
leave a suspended load unattended.
DO NOT remove or obscure any labels or
markings.
DO NOT operate or service without first
having read and understood the
operating manual.
DO NOT lift loads higher than necessary.
DO NOT alter or modify this equipment.
DO NOT use lifter for other than designated
purposes.
DO NOT lift unbalanced loads.
DO NOT
allow load to contact other objects
while suspended.
INSPECT LIFTER PRIOR TO EACH USE.
WARNING
!
32
Read and understand
operator’s manual before
using this equipment.
Failure to follow operating
and maintenance procedures
could result in death or
serious injury.
WARNING
!
33

KL30K6T12 KENCO Kenlift®Operation Manual
14
170 State Route 271
Ligonier, PA 15658
1-800-653-6069
NOTE: MODEL AND SERIAL NUMBER OF LIFTER MUST ACCOMPANY PART
ORDERS.
Item
Number
Quantity
Part Name
1
1
KL30K6T12 LIFT EYE ASSY.
2
1
KL30K6T12 NARROW ARM ASSY.
3
1
KL30K6T12 WIDE ARM ASSY.
4
1
NG30K6T12 NARROW LEG ASSY.
5
1
NG30K6T12 WIDE LEG ASSY.
6
1
NG30K6T12 CENTERLINK ASSY.
7
1
LARGE ACTUATOR
8
2
NG30K6T12 PAD CHANNEL ASSY.
9
2
NG30K6T12 PIPEHANDLE
10
2
4" X 36" PAD
11
2
6" X 36" PAD
12
20
.5" X 1.25" GRADE 8 HEX HEAD CAPSCREW
13
2
.5" X 2" GRADE 8 HEX HEAD CAPSCREW
14
22
.5" LOCK WASHER
15
22
.5" NUT
16
4
1.25" X 5" GRADE 8 HEX HEAD CAPSCREW
17
8
1.25" FLAT WASHER
18
4
1.25" NYLOCK NUT
19
10
1.5" X 6" GRADE 8 HEX HEAD CAPSCREW
20
40
1.5" FLAT WASHER
21
10
1.5" NYLOCK NUT
22
1
LARGE ACTUATOR BODY
23
1
LARGE ACTUATOR SHAFT
24
2
LARGE ACTUATOR PIN
25
2
1/4" X 3/8" SET SCREW
26
2
LARGE ACTUATOR COVER
27
2
3/16" X 1" SOCKET HEAD SCREW
28
2
3/16" NYLOCK NUT
29
1
LARGE RECIEVER BLOCK
30
1
KENCO ID TAG
31
4
LONG DANGER STICKER
32
1
LARGE WARNING STICKER
33
1
SMALL WARNING STICKER

KL30K6T12 KENCO Kenlift®Operation Manual
15
170 State Route 271
Ligonier, PA 15658
1-800-653-6069
Section IX. Warranty
A. Policy
1. KENCO Corporation (KENCO) warrants the Kenco Kenlift®lifting device (not including
pads or consumable items) sold by KENCO to be free from proven defects in material
and workmanship for a period of six (6) months from the delivery date to the original
customer.
2. Warranty is limited to replacement of parts and/or assemblies, which upon inspection by
KENCO are deemed to be defective in material, workmanship, or both.
3. Warranty shall not extend to products that have been altered or repaired in any way
without the express written consent of KENCO.
4. Warranty shall not extend to any product that has been misused, abused, or improperly
applied or any defect resulting thereof.
5. Defects and corrosion that are the result of improper storage and/or maintenance are not
warrantable.
6. Wear items such as Pads, Pins or Lifting bails etc. are not considered for warranty claims.
B. Disclaimer
1. THIS WARRANTY IS EXCLUSIVE AND IN LIEW OF ALL OTHER
REPRESENTATIONS AND WARRANTIES EXPRESSED OR IMPLIED, AND
KENCO EXPLICITLY DISCLAIMS AND EXCLUDES ANY IMPLIED WARRANTY
OF MERCHANTABILITY FOR A PARTICULAR PURPOSE. IN NO EVENT SHALL
THE END USER BE ENTITLED TO ANY CONSEQUENTIAL, INCIDENTAL OR
CONTINGENT DAMAGES OF ANY KIND ARISING OUT OF BREACH OF
CONTRACT, WARRANTY (INCLUDING NEGLIGENCE AND STRICT
LIABILITY) OR OTHER THEORIES OF LAW, WITH RESPECT TO PRODUCTS
SOLD OR SERVICES RENDERED BY KENCO, OR ANY UNDERTAKINGS, ACTS
OR OMISSIONS RELATING THERETO.
