Kenmore 27" (69 cm) User manual

27" (69CM) ELECTRIC DRYER
INSTALLATION INSTRUCTIONS
INSTRUCCIONES DE INSTALACION PARA LA
SECADORA ELI_CTRICA DE 27" (69CM)
Table of Contents/indice
DRYER SAFETY ............................................... 1
INSTALLATION INSTRUCTIONS .................... 2
Tools and Parts ............................................. 2
Location Requirements ................................ 2
Electrical Requirements ................................ 3
Electrical Connection .................................... 5
Venting Requirements ................................. 10
Plan Vent System ........................................ 11
Install Vent System ...................................... 12
Install Leveling Legs .................................... 12
Connect Vent ............................................... 13
Level Dryer .................................................. 13
Complete Installation .................................. 13
SERVICE NUMBERS ................. BACK COVER
SEGURIDAD DE LA SECADORA .................. 14
INSTRUCCIONES DE INSTALACION ........... 14
Herramientas y piezas ................................. 14
Requisitos de ubicacion .............................. 15
Requisitos el_ctricos .................................... 16
Conexi6n el_ctrica ....................................... 18
Requisitos de ventilacion ............................. 23
Planificaci6n del sistema de ventilaci6n......24
Instalacion del sistema de ventilaci6n ......... 26
Instalaci6n de las patas niveladoras ............ 26
Conexi6n del ducto de escape .................... 26
Nivelacion de la secadora ............................ 26
Complete la instalaci6n ............................... 27
NUMEROS DE SERVICIO CONTRAPORTADA
DRYERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow
instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
8576656

INSTALLATION INSTRUCTIONS
Gather the required tools and parts before starting installation.
Read and follow the instructions provided with any tools listed
here.
Flat-blade screwdriver
#2 Phillips screwdriver
Adjustable wrench that
opens to 1" (2.5 cm) or
hex-head socket wrench
(for adjusting dryer feet)
Wire stripper (for direct
wire installations)
•Tin snips(new vent
installations)
•Level
•Vent clamps
• Caulking gun and
compound (for installing
new exhaust vent)
• Tape measure
Parts supplied:
Remove parts package from dryer drum. Check that all parts
were included. 1
4 leveling legs
Parts needed:
Check local codes, check existing electrical supply and venting
and see "Electrical Requirements" and "Venting Requirements"
before purchasing parts.
Mobile home installations require metal exhaust system hardware
available for purchase from your local Sears store or Sears
Service Center. For further information, please call
1-80O-4-MY-HOME ®(1-800-469-4663).
Explosion Hazard
Keep flammable materials and vapors, such as
gasoline, away from dryer.
Place dryer at least 18 inches (46 cm) above the floor
for a garage installation,
Failure to do so can result in death, explosion, or fire.
You will need
• A location that allows for proper exhaust installation. See
"Venting Requirements."
• Aseparate 30-amp circuit.
• If using a power supply cord, a grounded electrical outlet
located within 2 ft (61 cm) of either side of the dryer. See
"Electrical Requirements."
• A sturdy floor to support the total weight (dryer and load) of
200 Ibs (90.7 kg). The combined weight of a companion
appliance should also be considered.
• A level floor with a maximum slope of 1" (2.5 cm) under entire
dryer. (If slope is greater than 1" [2.5 cm], install Extended
Dryer Feet Kit, Part Number 279810.) Clothes may not tumble
properly and models with automatic sensor cycles may not
operate correctly if dryer is not level.
Do not operate your dryer at temperatures below 45°F (7°C). At
lower temperatures, the dryer might not shut off at the end of an
automatic cycle. Drying times can be extended.
The dryer must not be installed or stored in an area where it will
be exposed to water and/or weather.
Check code requirements. Some codes limit, or do not permit,
installation of the dryer in garages, closets, mobile homes, or
sleeping quarters. Contact your local building inspector.

Installation Clearances
The location must be large enough to allow the dryer door to
open fully.
Dryer Dimensions
43½"
(110.5cmi
*291/4"
(74.3cm)
(68.6cm)
*Most installations require a minimum 5" (12.7 cm) clearance
behind the dryer for the exhaust vent with elbow. See "Venting
Requirements."
Installation spacing for recessed area or closet installation
The following spacing dimensions are recommended for this
dryer. This dryer has been tested for spacing of 0" (0 cm)
clearance on the sides and rear. Recommended spacing should
be considered for the following reasons:
• Additional spacing should be considered for ease of
installation and servicing.
• Additional clearances might be required for wall, door and
floor moldings.
• Additional spacing should be considered on all sides of the
dryer to reduce noise transfer.
• For closet installation, with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilation openings are
acceptable.
• Companion appliance spacing should also be considered.
o-ITo1 21:::,:;
18"
(45.7c_) I ___ ,_
I"_ I _- 27"-__--I" +11"*I-__'J_")I s"
(2.5cm) (68.6cm) (2.5cm) (2.Scm)(74.3cm)(14cm)
48in/*4
(a_0om')II
24in[*l[
(155crn2)U
B C
3"*
(7.6cm)
f
3"*
(7.6 crn)
+
A. Recessed area
B. Side view -closet or confined area
C. Closet door with vents
*Required spacing
Mobile Home -Additional Installation Requirements
This dryer is suitable for mobile home installations.
The installation must conform to the Manufactured Home
Construction and Safety Standard, Title 24 CFR, Part 3280
(formerly the Federal Standard for Mobile Home Construction
and Safety, Title 24, HUD Part 280).
Mobile home installations require:
• Metal exhaust system hardware, which is available for
purchase from your dealer.
• Special provisions must be made in mobile homes to
introduce outside air into the dryer. The opening (such as a
nearby window) should be at least twice as large as the dryer
exhaust opening.
It is your responsibility
• To contact a qualified electrical installer.
• To be sure that the electrical connection is adequate and in
conformance with the National Electrical Code, ANSI/NFPA
70-latest edition and all local codes and ordinances.
The National Electric Code requires a 4-wire supply
connection for homes built after 1996, dryer circuits involved
in remodeling after 1996, and all mobile home installations.
A copy of the above code standards can be obtained from:
National Fire Protection Association, One Batterymarch Park,
Quincy, MA 02269.
• To supply the required 3 or 4 wire, single phase, 120/240 volt,
60 Hz., AC only electrical supply (or 3 or 4 wire, 120/208 volt
electrical supply, if specified on the serial/rating plate) on a
separate 30-amp circuit, fused on both sides of the line. A
time-delay fuse or circuit breaker is recommended. Connect
to an individual branch circuit. Do not have a fuse in the
neutral or grounding circuit.
• Do not use an extension cord.
• If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that the
ground path is adequate.
Electrical Connection
To properly install your dryer, you must determine the type of
electrical connection you will be using and follow the instructions
provided for it here.
• If local codes do not permit the connection of a neutral
ground wire to the neutral wire, see "Optional 3-wire
connection" section.
This dryer is manufactured ready to install with a 3-wire
electrical supply connection. The neutral ground wire is
permanently connected to the neutral conductor (white wire)
within the dryer. Ifthe dryer is installed with a 4-wire electrical
supply connection, the neutral ground wire must be removed
from the external ground conductor screw (green screw), and
secured under the neutral terminal (center or white wire) of
the terminal block. When the neutral ground wire is secured
under the neutral terminal (center or white wire) of the
terminal block, the dryer cabinet is isolated from the neutral
conductor.
A 4-wire power supply connection must be used when the
appliance is installed in a location where grounding through
the neutral conductor is prohibited. Grounding through the
neutral is prohibited for (1) new branch-circuit installations,
(2) mobile homes, (3) recreational vehicles, and (4) areas
where local codes prohibit grounding through the neutral
conductors.

Ifusingapowersupplycord:
UseaULlistedpowersupplycordkitmarkedforusewith
clothesdryers.Thekitshouldcontain:
[] AULlisted30-amppowersupplycord,rated
120/240voltminimum.ThecordshouldbetypeSRDor
SRDTandbeatleast4ft(1.22m)long.Thewiresthat
connecttothedryermustendinringterminalsorspade
terminalswithupturnedends.
[] AULlistedstrainrelief.
If your outlet looks like this:
4-wire receptacle (14-30R)
Then choose a 4-wire power supply cord with ring or spade
terminals and UL listed strain relief. The 4-wire power supply
cord, at least 4 ft (1.22 m) long, must have four 10-gauge copper
wires and match a 4-wire receptacle of NEMA Type 14-30R. The
ground wire (ground conductor) may be either green or bare. The
neutral conductor must be identified by a white cover.
If your outlet looks like this:
3-wire receptacle (10-30R)
Then choose a 3-wire power supply cord with ring or spade
terminals and UL listed strain relief. The 3-wire power supply
cord, at least 4 ft (1.22 m) long, must have three 10-gauge copper
wires and match a 3-wire receptacle of NEMA Type 10-30R.
If connecting by direct wire:
Power supply cable must match power supply (4-wire or 3-wire)
and be:
[] Flexible armored cable or nonmetallic sheathed copper cable
(with ground wire), protected with flexible metallic conduit. All
current-carrying wires must be insulated.
[] 10-gauge solid copper wire (do not use aluminum).
[] At least 5 ft (1.52 m) long.
GROUNDING iNSTRUCTIONS
[] For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock
by providing a path of least resistance for electric current.
This dryer uses a cord having an equipment-grounding
conductor and a grounding plug. The plug must be plugged
into an appropriate outlet that is properly installed and
grounded in accordance with all local codes and ordinances.
[] For a permanently connected dryer:
This dryer must be connected to a grounded metal,
permanent wiring system, or an equipment-grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the dryer.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or service representative
or personnel if you are in doubt as to whether the dryer is
properly grounded. Do not modify the plug on the power
supply cord: if it will not fit the outlet, have a proper outlet
installed by a qualified electrician.
SAVE THESE INSTRUCTIONS

(}<_" ®C_:O
Power Supply Cord
Fire Hazard
Use a new UL listed 30 amp power supply cord.
Use aUL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal (silver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2supply wires to remaining
2terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
Direct Wire
Fire Hazard
Use 10 gauge solid copper wire.
Use a UL listed strain relief.
Disconnect power before making electrical connections.
Connect neutral wire (white or center wire) to center
terminal (silver).
Ground wire (green or bare wire) must be connected to
green ground connector.
Connect remaining 2supply wires to remaining
2terminals (gold).
Securely tighten all electrical connections.
Failure to do so can result in death, fire, or
electrical shock.
1. Disconnect power.
2. Remove the hold-down screw and terminal block cover.
A B C D
E
F
A. Terminal block cover
B. External ground conductor screw
C. Center, silver-colored terminal block screw
D. Hold-down screw
E.Neutral ground wire
F. Hole below terminal block opening
3= Install strain relief,
Style 1: Power supply cord strain relief
• Remove the screws from a 3/4"(1,9 cm) UL listed strain
relief (UL marking on strain relief). Put the tabs of the two
clamp sections into the hole below the terminal block
opening so that one tab is pointing up and the other is
pointing down, and hold in place. Tighten strain relief
screws just enough to hold the two clamp sections
together.
I ............................C
",.... ° _j ................D
A. Strain relief tab pointing up
B. Hole below terminal block opening
C. Clamp section
D. Strain relief tab pointing down

Put power supply cord through the strain relief. Be sure
that the wire insulation on the power supply cord is inside
the strain relief. The strain relief should have atight fit with
the dryer cabinet and be in a horizontal position. Do not
further tighten strain relief screws at this point.
Style 2: Direct wire strain relief
• Unscrew the removable conduit connector and any
screws from a %" (1.9 cm) UL listed strain relief (UL
marking on strain relief). Put the threaded section of the
strain relief through the hole below the terminal block
opening. Reaching inside the terminal block opening,
screw the removable conduit connector onto the strain
relief threads.
A. Removable conduit connector
B. Hole below terminal block opening
C. Strain relief threads
Put direct wire cable through the strain relief. The strain
relief should have a tight fit with the dryer cabinet and be
in a horizontal position. Tighten strain relief screw against
the direct wire cable.
Electrical Connection Options
If your home has: And you will be Go to Section:
connecting to:
4-wire receptacle
(NEMA type 14-30R) A UL listed, 4-wire connection:
120/240-volt Power Supply
minimum, Cord
30-amp, dryer
power supply
cord*
4-wire direct A fused 4-wire connection:
disconnect or Direct Wire
circuit breakerbox*
(12.7 cm)
3-wire receptacle
(NEMA type 10-30R) A UL listed, 3-wire connection:
120/240-volt Power Supply
minimum, Cord
30-amp, dryer
power supply
cord*
3-wire direct A fused 3-wire connection:
disconnect or Direct Wire
circuit breaker
box*
*If local codes do not permit the connection of a cabinet-ground
conductor to the neutral wire, go to "Optional 3-wire connection"
section.
4-wire connection: Power supply cord
IMPORTANT: A 4-wire connection is required for mobile homes
and where local codes do not permit the use of 3-wire
connections.
B F
C D E G
A. 4-wire receptacle (NEMA type 14-30R)
B. 4-prong plug
C. Ground prong
D. Neutral prong
E.Spade terminals with upturned ends
F. _" (1.9 cm) UL Iisted strain relief
G. Ring terminals
4. Now complete installation following instructions for your type
of electrical connection:
4-wire (recommended)
3-wire (if 4-wire is not available)

1=
2. Remove center silver-colored terminal block screw.
Remove neutral ground wire from external ground conductor
screw. Connect neutral ground wire and the neutral wire
(white or center wire) of power supply cord under center,
silver-colored terminal block screw. Tighten screw.
4-wire connection: Direct Wire
IMPORTANT: A 4-wire connection is required for mobile homes
and where local codes do not permit the use of 3 wire
connections.
Direct wire cable must have 5 ft (1.52 m) of extra length so dryer
can be moved if needed.
Strip 5" (12.7 cm) of outer covering from end of cable, leaving
bare ground wire at 5" (12.7 cm). Cut 11/2'' (3.8 cm) from
3 remaining wires. Strip insulation back 1" (2.5 cm). Shape ends
of wires into a hook shape.
3=
A. External ground conductor screw -Dotted line shows
position of NEUTRAL ground wire before being moved to
center silver-colored terminal block screw
B. Center silver-colored terminal block screw
C. Neutral ground wire
D. Neutral wire (white or center wire)
E.3/4"(1.9 cm) UL listed strain relief
Connect ground wire (green or bare) of power supply cord to
external ground conductor screw. Tighten screw.
When connecting to the terminal block, place the hooked end of
the wire under the screw of the terminal block (hook facing right),
squeeze hooked end together and tighten screw, as shown.
1=
2. Remove center silver-colored terminal block screw.
Remove neutral ground wire from external ground conductor
screw. Connect neutral ground wire and place the hooked
end (hook facing right) of the neutral wire (white or center
wire) of direct wire cable under the center screw of the
terminal block. Squeeze hooked ends together. Tighten
screw.
4=
A. External ground conductor screw
B. Ground wire (green or bare) of power supply cord
C. 3/4,,(1.9 cm) UL listed strain relief
D. Center silver-colored terminal block screw
E.Neutral ground wire
FNeutral wire (white or center wire)
Connect the other wires to outer terminal block screws.
Tighten screws. !! !!
5. Tighten strain relief screws.
6. Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
7. You have completed your electrical connection. Now go to
"Venting Requirements."
A. External ground conductor screw -Dotted line shows
position of NEUTRAL ground wire before being moved to
center silver-colored terminal block screw
B. Center silver-colored terminal block screw
C. Neutral ground wire
D. Neutral wire (white or center wire)
E.3/4.(!.9 cm) UL listed strain relief

3. Connect ground wire (green or bare) of direct wire cable to
external ground conductor screw. Tighten screw. 2. Connect neutral wire (white or center wire) of power supply
cord to the center, silver-colored terminal screw of the
terminal block. Tighten screw.
A. External ground conductor screw
B. Ground wire (green or bare) of power supply cable
C. s/4"(1.9 cm) UL ilsted strain relief
D. Center silver-colored terminal block screw
E. Neutral ground wire
ENeutral wire (white or center wire)
4. Place the hooked ends of the other direct wire cable wires
under the outer terminal block screws (hooks facing right).
Squeeze hooked ends together. Tighten screws.
!! !!
5. Tighten strain relief screw.
6. Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
7. You have completed your electrical connection. Now go to
"Venting Requirements."
3-wire connection: Power supply cord
Use where local codes permit connecting cabinet-ground
conductor to neutral wire.
I /
A_
C G F
A. 3-wire receptacle (NEMA type 10-30R)
B. 3-wire plug
C. Neutral prong
D. Spade terminals with upturned ends
E. _" (1.9 cm) UL listed strain relief
F. Ring terminals
G. Neutral wire (white or center wire)
1. Loosen or remove center silver-colored terminal block screw.
3.
A. Externalground conductor screw
B. Neutralground wire
C. Centersilver-colored terminalblock screw
D. Neutralwire (white or center wire)
E._" (1.9cm) UL listed strain relief
Connect the other wires to outer terminal block screws.
Tighten screws. !! !!
4. Tighten strain relief screws.
5. Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
6. You have completed your electrical connection. Now go to
"Venting Requirements."
3-wire connection: Direct Wire
Use where local codes permit connecting cabinet-ground
conductor to neutral wire.
Direct wire cable must have 5 ft (1.52 m) of extra length so dryer
can be moved if needed.
Strip 31/2'' (8.9 cm) of outer covering from end of cable. Strip
insulation back 1" (2.5 cm). If using 3-wire cable with ground
wire, cut bare wire even with outer covering. Shape ends of wires
into a hook shape. 1'
When connecting to the terminal block, place the hooked end of
the wire under the screw of the terminal block (hook facing right),
squeeze hooked end together and tighten screw, as shown.

1=
2.
3=
Loosen or remove center silver-colored terminal block screw.
Place the hooked end of the neutral wire (white or center wire)
of direct wire cable under the center screw of terminal block
(hook facing right). Squeeze hooked end together. Tighten
screw,
A. Externalground conductor screw
B.Neutral ground wire
C.Center silver-colored terminalblock screw
D.Neutral wire (white or center wire)
E._" (1.9cm)UL listed strain relief
Place the hooked ends of the other direct wire cable wires
under the outer terminal block screws (hooks facing right).
Squeeze hooked ends together. Tighten screws.
!! !!
4. Tighten strain relief screw.
5. Insert tab of terminal block cover into slot of dryer rear panel,
Secure cover with hold-down screw,
6. You have completed your electrical connection. Now go to
"Venting Requirements."
Optional 3-wire connection
Use for direct wire or power supply cord where local codes
do not permit connecting cabinet-ground conductor to
neutral wire.
1. Remove center silver-colored terminal block screw.
2. Remove neutral ground wire from external ground conductor
screw. Connect neutral ground wire and the neutral wire
(white or center wire) of power supply cord/cable under
center, silver-colored terminal block screw. Tighten screw.
E
3=
A. External ground conductor screw
B. Center silver-colored terminal block screw
C. Neutral ground wire
D. Neutral wire (white or center wire)
E. _" (1.9 cm) UL ilsted strain relief
EGrounding path determined by a qualified electrician
Connect the other wires to outer terminal block screws,
Tighten screws. !! !!
4. Tighten strain relief screws.
5. Insert tab of terminal block cover into slot of dryer rear panel.
Secure cover with hold-down screw.
6. Connect a separate copper ground wire from the external
ground conductor screw to an adequate ground.

• Removeexcessflexiblemetalventtoavoidsaggingand
kinkingthatmayresultinreducedairflowandpoor
performance.
• Donotinstallflexiblemetalventinenclosedwalls,ceilingsor
floors.
Fire Hazard
Use aheavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to fellow these instructions can result in death
or fire.
Elbows
45° elbows provide better airflow than 90° elbows.
Good Better
WARNING: To reduce the risk of fire, this dryer MUST BE
EXHAUSTED OUTDOORS.
IMPORTANT: Observe all governing codes and ordinances.
The dryer exhaust must not be connected into any gas vent,
chimney, wall, ceiling, or a concealed space of a building.
If using an existing vent system
• Clean lint from the entire length of the system and make sure
exhaust hood is not plugged with lint.
• Replace any plastic or metal foil vent with rigid or flexible
heavy metal vent. Exhaust
• Review Vent system chart. Modify existing vent system if
necessary to achieve the best drying performance.
If this is a new vent system
Vent material
• Use a heavy metal vent. Do not use plastic or metal foil vent.
• 4" (10.2 cm) heavy metal exhaust vent and clamps must be
used. DURASAFF Mventing products are recommended.
4" (10.2cm) heavymetal exhaust vent
DURASAFE TM vent products can be purchased from your
dealer. For further information, please call
1-800-4-MY-HOME ®(1-800-469-4663) or visit our website at
www.sears.com or www.sears.ca. •
Rigid metal vent
• For best drying performance, rigid metal vents are
recommended.
• Rigid metal vent is recommended to avoid crushing and
kinking. •
Flexible metal vent
• Flexible metal vents are acceptable only if accessible for
cleaning.
• Flexible metal vent must be fully extended and supported
when the dryer is in its final location.
Clamps
• Use clamps to seal all joints.
• Exhaust vent must not be connected or secured with screws
or other fastening devices that extend into the interior of the
duct. Do not use duct tape.
Clamp
Recommended hood styles are shown here.
(10.2 cm)
A. Louveredhood style
B.Box hood style
The angled hood style (shown here) is acceptable.
4"
(10.2 cm)_(_
An exhaust hood should cap the vent to keep rodents and
insects from entering the home.
Exhaust hood must be at least 12" (30.5 cm) from the ground
or any object that may be in the path of the exhaust (such as
flowers, rocks or bushes, snow line, etc.).
Do not use an exhaust hood with a magnetic latch.
improper venting can cause moisture and lint to collect
indoors, which may result in:
[] Moisture damage to woodwork, furniture, paint, wallpaper,
carpets, etc.
[] Housecleaning problems and health problems.
10

.......... Alternate installations for close clearances
Choose your exhaust installation type Venting systems come in many varieties. Select the type best for
your installation. Two close-clearance installations are shown.
Recommended exhaust installations Refer to the manufacturer's instructions.
Typical installations vent the dryer from the rear of the dryer.
Other installations are possible.
A
B
A. Dryer
B. Elbow
C. Wall
D. Exhaust hood
E. Clamps
F. Rigid metal or flexible metal vent
G. Vent length necessary to connect
elbows
H. Exhaust outlet
Optional exhaust installations
Fire Hazard
Cover unused exhaust holes with one of the following
kits:
279818 (white)
279819 (almond)
279915 (graphite)
279925 (biscuit)
Contact your local dealer,
Failure to follow these instructions can result in death,
fire, electrical shock, or serious injury.
This dryer can be converted to exhaust out the right side, left
side, or through the bottom. If you prefer, you may contact your
local dealer to have the dryer converted.
A B
A. Standard rear offset exhaust installation
B. Left or right side exhaust installation
C. Bottom exhaust installation
.........i.... '----.i....
A B
A. Over-the-top installation (alsoavailablewith one
offset elbow)
B.Periscopeinstallation
NOTE: The following kits for close clearance alternate
installations are available for purchase. For further information,
please call 1-800-4-MY-HOME ®(1-800-469-4663).
•Over-the-Top Installation:
Part Number 26-49900
Periscope Installation (For use with dryer vent to wall vent
mismatch):
Part Number 26-49901 - Less than 5" (12.7 cm) mismatch
Part Number 26-49908 - 5" (12.7 cm) to 18" (45.72 cm)
mismatch
Part Number 26-49904 - 18" (45.72 cm) to 29" (73.66 cm)
mismatch
Part Number 26-49905 - 29" (73.66 cm) to 50" (127 cm)
mismatch
Special provisions for mobile home installations
The exhaust vent must be securely fastened to a noncombustible
portion of the mobile home structure and must not terminate
beneath the mobile home. Terminate the exhaust vent outside.
11

Determine vent path
• Select the route that will provide the straightest and most
direct path outdoors.
• Plan the installation to use the fewest number of elbows and
turns.
• When using elbows or making turns, allow as much room as
possible.
• Bend vent gradually to avoid kinking.
• Use the fewest 90 ° turns possible.
Determine vent length and elbows needed for best
drying performance
• Use the Vent system chart below to determine type of vent
material and hood combinations acceptable to use.
NOTE: Do not use vent runs longer than those specified in
the Vent system chart. Exhaust systems longer than those
specified will:
• Shorten the life of the dryer.
• Reduce performance, resulting in longer drying times and
increased energy usage.
The Vent system chart provides venting requirements that will
help to achieve the best drying performance.
Vent system chart
NOTE: Side and bottom exhaust installations have a 90° turn
inside the dryer. To determine maximum exhaust length, add one
90° turn to the chart.
Number of Type of Box or Angled
90° turns vent Iouvered hoods
or elbows hoods
0 Rigid metal 64 ft (20 m) 58 ft (17.7 m)
Flexible metal 36 ft (11 m) 28 ft (8.5 m)
1 Rigid metal 54 ft (16.5 m) 48 ft (14.6 m)
Flexible metal 31 ft (9.4 m) 23 ft (7 m)
2 Rigid metal 44 ft (13.4 m) 38 ft (11.6 m)
Flexible metal 27 ft (8.2 m) 19 ft (5.8 m)
3 Rigid metal 35 ft (10.7 m) 29 ft (8.8 m)
Flexible metal 25 ft (7.6 m) 17 ft (5.2 m)
4 Rigid metal 27 ft (8.2 m) 21 ft (6.4 m)
Flexible metal 23 ft (7 m) 15 ft (4.6 m)
1. Install exhaust hood. Use caulking compound to seal exterior
wall opening around exhaust hood.
2. Connect vent to exhaust hood. Vent must fit inside exhaust
hood. Secure vent to exhaust hood with 4" (10.2 cm) clamp.
3. Run vent to dryer location. Use the straightest path possible.
See "Determine vent path" in "Plan Vent System." Avoid 90°
turns. Use clamps to seal all joints. Do not use duct tape,
screws or other fastening devices that extend into the interior
of the vent to secure vent.
Excessive Weight Hazard
Use two or more people to move and install dryer.
Failure to do so can result in back or other injury.
1. To protect the floor, use a large, flat piece of cardboard from
the dryer carton. Place cardboard under the entire back side
of the dryer.
2. Firmly grasp the body of the dryer (not the top or console
panel). Gently lay the dryer on the cardboard. See illustration.
3. Examine the leveling legs. Find the diamond marking.
4. Screw the legs into the leg holes by hand. Use a wrench to
finish turning the legs until the diamond marking is no longer
visible.
5. Place a carton corner post from dryer packaging under each
of the 2dryer back corners. Stand the dryer up. Slide the
dryer on the corner posts until it is close to its final location.
Leave enough room to connect the exhaust vent.
12

1. Using a 4" (10.2 cm) clamp, connect vent to exhaust outlet in
dryer. If connecting to existing vent, make sure the vent is
clean. The dryer vent must fit over the dryer exhaust outlet
and inside the exhaust hood. Make sure the vent is secured
to exhaust hood with a 4" (10.2 cm) clamp.
2. Move dryer into its final location. Do not crush or kink vent.
3. (On gas models) Make sure that there are no kinks in the
flexible gas line.
4. Once the exhaust vent connection is made, remove the
corner posts and cardboard.
Check the levelness of the dryer. Check levelness first
side to side, then front to back.
If the dryer is not level, prop up the dryer using a wood block.
Use a wrench to adjust the legs up or down and check again for
levelness.
1. Check that all parts are now installed. If there is an extra part,
go back through the steps to see which step was skipped.
2. Check that you have all of your tools.
3. Dispose of/recycle all packaging materials.
4. Check the dryer's final location. Check that the vent is not
crushed or kinked.
5. Check that the dryer is level. See "Level Dryer."
6. For power supply cord installation, plug into an outlet. For
direct wire installation, turn on power.
7. Remove the blue protective film on the console and any tape
remaining on the dryer.
8. Read "Dryer Use" in the Dryer User Instructions.
9. Wipe the dryer drum interior thoroughly with a damp cloth to
remove any dust.
10. Set the dryer on a full heat cycle (not an air cycle) for
20 minutes and start the dryer.
If the dryer will not start, check the following:
•Controls are set in a running or "On" position.
• Start button has been pushed firmly.
• Dryer is plugged into an outlet and/or electrical supply
is on.
• Household fuse is intact and tight, or circuit breaker has
not tripped.
• Dryer door is closed.
11. When the dryer has been running for 5 minutes, open the
dryer door and feel for heat. If you feel heat, cancel cycle and
close the door.
If you do not feel heat, turn off the dryer and check the
following:
• There may be 2 household fuses or circuit breakers for
the dryer. Check that both fuses are intact and tight, or
that both circuit breakers have not tripped. If there is still
no heat, contact a qualified technician.
NOTE: You may notice a burning odor when the dryer is first
heated. This odor is common when the heating element is first
used. The odor will go away.
13

INSTRUCCIONES DE INSTALACION PARA LA
SECADORA ELI CTRICA DE 27" (69CM)
SEGURIDAD DE LASECADORA
Su seguridad y la seguridad de los demas es muy importante.
Hemos incluido muchos mensajes importantes de seguridad en este manual yen su electrodomestico. Lea y obedezca siempre
todos los mensajes de seguridad.
Este es el sfmbolo de advertencia de seguridad.
Este sfmbolo le llama la atencion sobre peligros potenciales que pueden ocasionar la muerte o una lesion a
usted y a los demas.
Todos los mensajes de seguridad iran a continuacidn del simbolo de advertencia de seguridad y de la palabra
"PELIGRO" o "ADVERTENCIA". Estas palabras significan:
Si no sigue las instrucciones de inmediato, usted puede
morir o sufrir una lesion grave.
Si no sigue las instrucciones, usted puede morir o sufrir
una lesion grave.
Todos los mensajes de seguridad le diran el peligro potencial, le diran cdmo reducir las posibilidades de sufrir una lesidn y Io que
puede suceder si no se siguen las instrucciones.
INSTRUCCIONES DE INSTALACION
ReOna las herramientas y piezas necesarias antes de comenzar
la instalaci6n. Lea y siga las instrucciones provistas con
cualquiera de las herramientas enlistadas aqui.
• Destornillador de • Desforrador de alambre
cuchilla plana (instalaciones de cableado
• Destornillador Phillips directo)
# 2 • Tijeras de lata
(instalaciones del nuevo
• Llave de tuercas ducto de escape)
ajustable que se abra a
1" (2,5 cm) o una Ilave • Nivel
de cube de cabeza
hexagonal (para regular • Abrazaderas para ducto
las patas de la • Pistola y masilla para
secadora) calafateo (para instalar el
nuevo ducto de escape)
Cinta para medir
Piezas suministradas:
Retire el paquete de piezas del tambor de la secadora. Verifique
que esten todas las piezas.
4patas niveladoras
Piezas necesarias:
Verifique los c6digos locales, verifique el suministro electrico
existente y la ventilaci6n y vea "Requisitos electricos" y
"Requisitos de ventilaci6n" antes de comprar las piezas.
Las instalaciones en casas rodantes necesitan articulos de
ferreteria para sistemas de ventilaci6n de metal que se pueden
comprar en su tienda Sears o en el centro de servicio tecnico
Sears de su Iocalidad. Para mas informaci6n, Ilame per favor al
1-800-4-MY-HOME ®(1-800-469-4663).
14

Peligro de Explosion
IVlantenga los materialee y vapores inflamablee, come
la gasolina, lejos de la secadora.
Coloque la secadora a un mfnimo de 46 cm eebre
el piee para la inetalaci6n en un garaje.
No seguir eetas inetruccionee puede ocasionar
la muerte, explosion e incendio.
Usted necesitarb
•Una ubicaci6n que permita una instalaci6n adecuada del
ducto de escape. Consulte "Requisites de ventilaci6n'.
• Un circuito separado de 30 amperios.
• Siesta usando un cable de suministro de energia, un
contacto con conexi6n a tierra ubicado a un maximo de
2 pies (61 cm) de cualquiera de los lades de la secadora. Vea
"Requisites electricos".
• Un piso resistente para soportar el peso total (secadora y
carga) de 200 Ibs (90,7 kgs). Asimismo se debe considerar el
peso de otro artefacto que la acompaSe.
• Un piso nivelado con un declive maximo de 1" (2,5 cm)
debajo de la secadora completa. (Si el declive es mayor que
1" [2,5 cm], instale el juego de extensi6n de patas de la
secadora, Pieza No. 279810.) La ropa quizas no rote
adecuadamente y los ciclos del sensor automatico
posiblemente no funcionen debidamente si la secadora no
esta nivelada.
No ponga a funcionar su secadora en las temperaturas inferiores
a 45°F (7°C). A temperaturas inferiores, es posible que la
secadora no se apague al final de un ciclo automatico. Los
tiempos de secado pueden prolongarse.
No debe instalarse ni guardarse la secadora en un Area en donde
pueda estar expuesta al agua y/o a la intemperie.
Verifique los requisites de los c6digos. Algunos c6digos limitan, o
no permiten, la instalaci6n de la secadora en garajes, cl6sets,
casas rodantes o en dormitories. P6ngase en contacto con el
inspector de construcciones de su Iocalidad.
Espacios para la instalacibn
La ubicaci6n debe ser Io suficientemente grande para poder abrir
completamente la puerta de la secadora.
Dimensiones de la secadora
431/2''
(110,5cm)
(36 cm)
(68,6cm)
*La mayoria de las instalaciones requieren un espacio libre
minimo de 5" (12,7 cm) detras de la secadora para acomodar el
ducto de escape con code. Vea "Requisites de ventilaci6n".
15

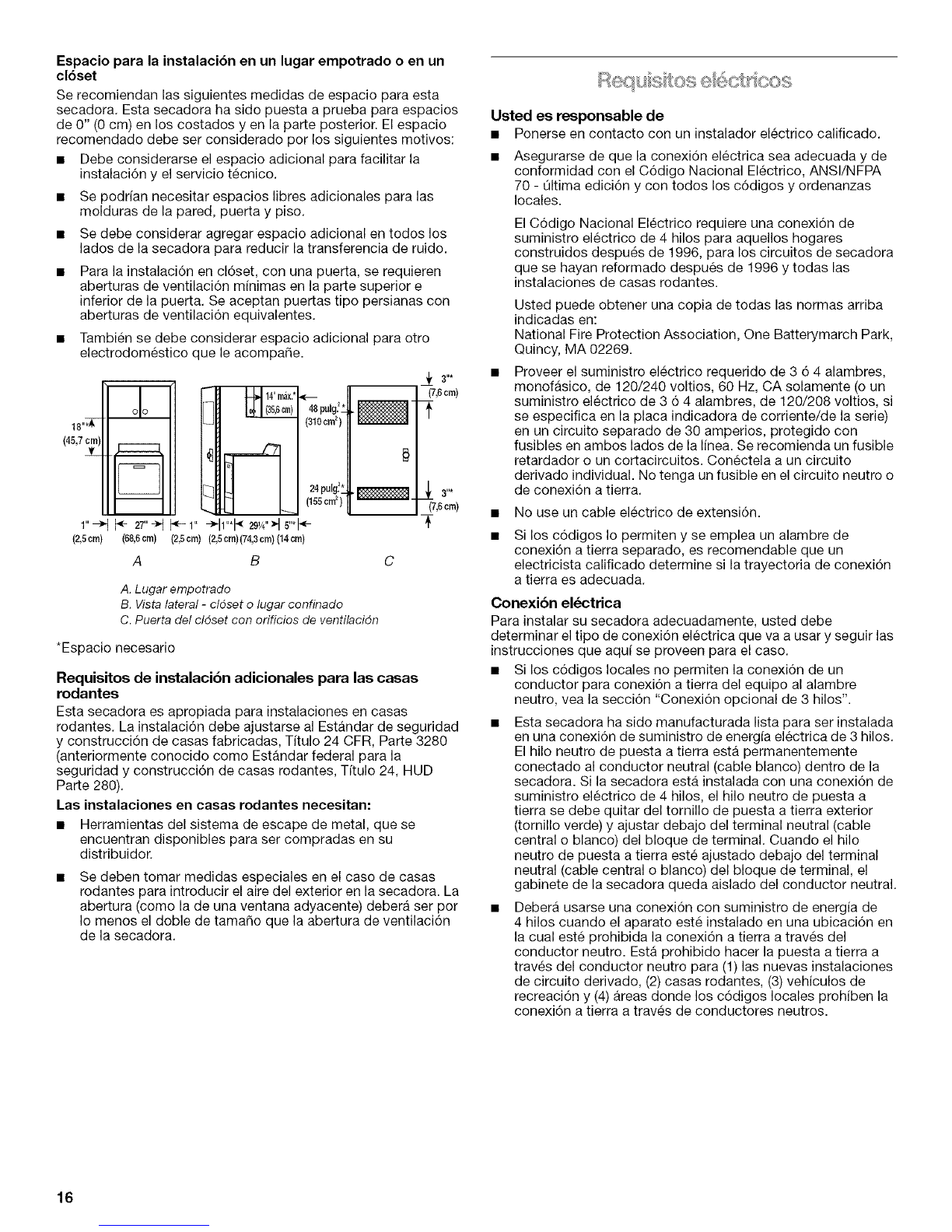

Espacio para la instalaci6n en un lugar empotrado oen un
cl6set
So recomiendan las siguientes medidas de espacio para esta
secadora. Esta secadora ha sido puesta a prueba para espacios
de 0" (0 cm) on los costados y on la parte posterior. El espacio
recomendado debe ser considerado por los siguientes motivos:
• Debe considerarse el espacio adicional para facilitar ia
instalaci6n y el servicio tecnico.
• Se podrian necesitar espacios iibres adicionales para ias
molduras de la pared, puerta y piso.
• Se debe considerar agregar espacio adicional en todos los
iados de la secadora para reducir la transferencia de ruido.
• Para la instalaci6n en cl6set, con una puerta, se requieren
aberturas de ventilaci6n m(nimas en la parte superior e
inferior de la puerta. Se aceptan puertas tipo persianas con
aberturas de ventilaci6n equivalentes.
• Tambien se debe considerar espacio adicional para otro
electrodomestico que ie acompar_e.
(45,7cm)
_. 3"*
(7,6cm)
_ 3"*
(7,6cm)
A B
A. Lugar empotrado
B. Vista lateral -cldset o lugar confinado
C. Puerta del cldset con orificios de ventilacidn
*Espacio necesario
Requisitos de instalacibn adicionales para las casas
rodantes
Esta secadora es apropiada para instalaciones en casas
rodantes. La instalaci6n debe ajustarse al Estandar de seguridad
y construcci6n de casas fabricadas, Titulo 24 CFR, Parte 3280
(anteriormente conocido come Estandar federal para la
seguridad y construcci6n de casas rodantes, T[tulo 24, HUD
Parte 280).
Las instalaciones en casas rodantes necesitan:
• Herramientas del sistema de escape de metal, que se
encuentran disponibles para ser compradas en su
distribuidor.
Se deben tomar medidas especiales en el caso de casas
rodantes para introducir el aire del exterior en la secadora. La
abertura (como la de una ventana adyacente) debera ser per
Io menos el doble de tamar_o que la abertura de ventilaci6n
de la secadora.
Usted es responsable de
• Ponerse en contacto con un instalador electrico calificado.
Asegurarse de que la conexi6n electrica sea adecuada y de
conformidad con el C6digo Nacional Electrico, ANSl/NFPA
70 - Qltima edici6n y con todos los c6digos y ordenanzas
locales.
El C6digo Nacional Electrico requiere una conexi6n de
suministro electrico de 4 hilos para aquellos hogares
construidos despues de 1996, para los circuitos de secadora
que se hayan reformado despues de 1996 y todas las
instalaciones de casas rodantes.
Usted puede obtener una copia de todas las normas arriba
indicadas en:
National Fire Protection Association, One Batterymarch Park,
Quincy, MA 02269.
Proveer el suministro electrico requerido de 3 6 4 alambres,
monofasico, de 120/240 voltios, 60 Hz, CA solamente (o un
suministro electrico de 3 6 4 alambres, de 120/208 voltios, si
se especifica en la placa indicadora de corriente/de la serie)
en un circuito separado de 30 amperios, protegido con
fusibles en ambos lados de la linea. Se recomienda un fusible
retardador o un cortacircuitos. Conectela a un circuito
derivado individual. No tenga un fusible en el circuito neutro o
de conexi6n a tierra.
• No use un cable electrico de extensi6n.
Si los c6digos Io permiten y se emplea un alambre de
conexi6n a tierra separado, es recomendable que un
electricista calificado determine si la trayectoria de conexi6n
a tierra es adecuada.
Conexi6n el_ctrica
Para instalar su secadora adecuadamente, usted debe
determinar el tipo de conexi6n electrica que va a usar y seguir las
instrucciones que aqu( se proveen para el caso.
• Si los c6digos locales no permiten la conexi6n de un
conductor para conexi6n a tierra del equipo al alambre
neutro, vea la secci6n "Conexi6n opcional de 3 hues".
• Esta secadora ha side manufacturada lista para ser instalada
en una conexi6n de suministro de energ(a electrica de 3 hilos.
El hilo neutro de puesta a tierra esta permanentemente
conectado al conductor neutral (cable blanco) dentro de la
secadora. Si la secadora esta instalada con una conexi6n de
suministro electrico de 4 hilos, el hilo neutro de puesta a
tierra se debe quitar del tornillo de puesta a tierra exterior
(tornillo verde) y ajustar debajo del terminal neutral (cable
central o blanco) del bloque de terminal. Cuando el hilo
neutro de puesta a tierra este ajustado debajo del terminal
neutral (cable central o blanco) del bloque de terminal, el
gabinete de la secadora queda aislado del conductor neutral.
• Debera usarse una conexi6n con suministro de energia de
4 hilos cuando el aparato este instalado en una ubicaci6n en
la cual este prohibida la conexi6n a tierra a traves del
conductor neutro. Esta prohibido hacer la puesta a tierra a
traves del conductor neutro para (1) las nuevas instalaciones
de circuito derivado, (2) casas rodantes, (3) vehiculos de
recreaci6n y (4) Areas donde los c6digos locales prohiben la
conexi6n a tierra a traves de conductores neutros.
16

Si emplea un cable de suministro el_ctrico:
Use un juego aprobado de UL para cable de suministro electrico
que este marcado para ser usado en secadoras de ropa. El juego
debera contener:
[] Un cable de suministro electrico de 30 amperios aprobado de
UL, con 120/240 voltios minimo. El cable debera ser del tipo
SRD o SRDT y debera tener un largo de por Io menos 4 pies
(1,22 m). Los hilos que conectan con la secadora deberan
terminar en terminales de anillo o de horquilla con los
extremos hacia arriba.
[] Un protector de cables aprobado de UL.
Si el contacto de pared luce corno _ste:
Contacto de 4 alambres (14-30R)
Entonces elija un cable de suministro electrico de 4 alambres con
terminales de anillo o de horquilla y con protector de cables
aprobado de UL. El cable de suministro electrico de 4 hilos, de
per Io menos 4 pies (1,22 m) de largo, debera tener 4 hilos de
cobre de calibre 10 y coincidir con un receptaculo de 4 hilos tipo
NEMA 14-30R. El hilo de conexi6n a tierra (conductor a tierra)
puede ser verde o desnudo. El conductor neutro debe set
identificado con una cubierta blanca.
Si el contacto de pared luce como _ste:
Contacto de 3 alambres (!0-30R)
Entonces elija un cable de suministro electrico de 3 alambres con
terminales de anillo o de horquilla y con protector de cables
aprobado de UL. El cable de suministro electrico de 3 hilos, de
per Io menos 4 pies (1,22 m) de largo, debera tener 3 hilos de
cobre de calibre 10 y coincidir con un receptaculo de 3 hilos tipo
NEMA 10-30R.
Si hace la conexi6n con cableado directo:
El cable de suministro electrico debe ser igual al suministro
electrico (de 4 alambres o de 3 alambres) y debe ser:
[] Cable blindado flexible o cable de cobre forrado no metalico
(con alambre puesto a tierra), protegido con un conducto
metalico flexible. Todos los alambres conductores de
corriente deben estar aislados.
[] Alambre de cobre s61ido de calibre 10 (no utilice aluminio).
[] Per Io menos 5 pies (1,52 m) de largo.
INSTRUCCIONES PARA LA CONEXION ATIERRA
[] Para la conexidn de una secadora mediante cable
electrico conectado a tierra:
Esta secadora debe estar conectada a tierra. En el caso de
funcionamiento defectuoso o averia, la conexidn a tierra
reducirb, el riesgo de cheque electrico al proporcionar una
vfa de menor resistencia para la corriente electrica. Esta
secadora usa un cable que cuenta con un conductor para la
conexidn a tierra del equipo y un enchufe de conexidn a
tierra. El enchufe debe conectarse en un contacto
apropiado, que este debidamente instalado y conectado a
tierra de acuerdo con todos los codigos y ordenanzas
locales.
[] Para la conexidn permanente de una secadora:
Esta secadora debe estar conectada a un sistema de
cableado de metal permanente, conectado a tierra, o se
debe tender un conducto para la conexidn a tierra del
equipo con los conductores de circuito y conectado al
terminal de tierra del equipo o al conductor de suministro de
la secadora.
ADVERTENClA: La conexidn indebida del
conductor para la conexidn a tierra del equipo puede
ocasionar un riesgo de choque electrico. Verifique con un
electricista, representante o personal de servicio tecnico
calificado para asegurarse de que la conexi6n a tierra de la
secadora sea apropiada. No modifique el enchufe que viene
con el cable electrico. Si no encaja en el contacto, contrate
un electricista calificado para que instale un contacto
adecuado.
GUARDE ESTAS INSTRUCCIONES
17

Cable de suministro el_ctrico
Peligro de Incendio
Use un cable de suministro electrico nuevo de
30 amperes que este en la lista de UL.
Use un protector de cables que este en la lista de UL.
Desconecte el suministro el_ctrico antes de hacer las
conexiones el_ctricas.
Conecte el alambre neutro (el blanco oel del centre)
al terminal central (plateada).
El alambre de tierra (el verde e el no aislado) se debe
conectar con el conector verde de tierra.
Conecte los 2 alambres de suministro restantes con
las 2 terminales restantes (las doradas).
Apriete firmemente tedas las cone×Jones el_ctricas.
No seguir estas instrucciones puede ocasionar la
muerte, incendio, o cheque electrico.
Cableado directo
Peligro de Incendio
Utilice alambres de cobre solide de ancho 10.
Use un protector de cables que este en la lista de UL.
Desconecte el suministro electrico antes de hacer las
cone×Jones electricas.
Conecte el alambre neutre (el blanco oel del centre)
al terminal central (plateada).
El alambre de tierra (el verde eel no aislado) se debe
conectar con el cenector verde de tierra.
Conecte los 2 aiambres de suministro restantes con
las 2 terminales restantes (las doradas).
Apriete firmemente todas las cone×iones electricas.
No seguir estas instrucciones puede causar la muerte,
incendio o cheque electrico.
1. Desconecte el suministro de energia.
2. Quite el tornillo de sujeci6n y la tapa del bloque de terminal.
A B CD
E
F
A. Tapa del bloque de terminal
B. Tornillo conductor de tierra externo
C. Tomillo de bloque de terminal de color plateado, del centro
D. Tornillo de sujecidn
E. Hilo neutro de puesta a tierra
F. Orificio debajo de la abertura del bloque de terminal
3= Instale el protector de cables.
Estilo 1: Protector de cables del cable de suministro
el_ctrico
Quite los tornillos de un protector de cables de
3A"(1,9 cm) que este en la lista de UL (con la marca UL en
el protector de cables). Coloque las lengQetas de las dos
secciones de la abrazadera en el orificio que esta debajo
de la abertura del bloque de terminal de manera que una
lengQeta este apuntando hacia arriba y la otra este
apuntando hacia abajo, y sujetelas en su lugar. Apriete los
tornillos del protector de cables s61o Io suficiente para
mantener las dos secciones de la abrazadera juntas.
........ i ...........................B
A. LengOeta del protector de cables
apuntando hacia arriba
B. Orificio debajo de la abertura del
bloque de terminal
C. Seccidn de la abrazadera
D. LengOeta del protector de cables
apuntando hacia abajo
18

Haga pasar el cable de suministro electrico a traves del
protector de cables. AsegQrese de que el aislamiento de
alambre del cable de suministro electrico este dentro del
protector de cables. El protector de cables debera
encajar bien con el gabinete de la secadora y estar en
posici6n horizontal. No ajuste mas los tornillos del
protector de cables en este momento.
Estilo 2: Protector de cables para cable directo
• Desatornille el conector de conducto removible y
cualquier tornillo del protector de cables de 3A"(1,9 cm)
que este en la lista de UL (con la marca UL en el protector
de cables). Haga pasar la seccidn roscada del protector
de cables a traves del orificio que esta debajo de la
abertura del bloque de terminal. Busque dentro de la
abertura del bloque de terminal y atornille el conector de
conducto removible sobre las roscas del protector de
cables.
A
B
C
A. Conector del conducto removible
B. Oriflcio debajo de la abertura del
bloque de terminal
C. Roscas del protector de cables
Haga pasar el cable directo a traves del protector de
cables. El protector de cables debera encajar bien con el
gabinete de la secadora y estar en posicidn horizontal.
Apriete el tornillo del protector de cables contra el cable
directo.
4. Ahora termine la instalaci6n siguiendo las instrucciones para
el tipo de su conexidn electrica:
Alambre de 4 hilos (se recomienda)
Alambre de 3hilos (si no dispone de alambre de 4 hilos)
Opciones para la conexi6n el_ctrica
Si su casa tiene: Y usted va a Vayaa la
conectar con: secc=on:
Un contacto de Un cable de
4 hilos (tipo NEMA suministro
14-30R) electrico para
secadora,
(_ aprobado de
UL, de 120/240
voltios m[nimo y
30 amperios*
Conexidn de
4 hilos:
Cable de
suministro
electrico
Cable directo de Un Conexi6n de
4 hilos desconectador 4 hilos:
con fusible o Cable directo
una caja de
disyuntor*
(12,7 cm)
Contacto de 3 hilos Un cable de Conexi6n de
(Tipo NEMA 10-30R) suministro 3 hilos:
electrico para Cable de
secadora, suministro
aprobado de electrico
UL, de 120/240
voltios m[nimo y
30 amperios*
Cable directo de Un Conexi6n de
3 hilos desconectador 3 hilos:
con fusible o Cable directo
una caja de
disyuntor*
*Si los c6digos locales no permiten la conexi6n de un conductor
de conexi6n atierra del gabinete al cable neutro, prosiga a la
seccidn "Conexi6n opcional de 3 hilos".
Conexibn de 4 hilos: Cable de suministro el_ctrico
IMPORTANTE: Se necesita una conexi6n de alambre de cuatro
hilos para las casas rodantes y para los casos en que los cddigos
locales no permitan el uso de conexiones de 3 hilos.
B F
C D E G
A. Contacto de cuatro hilos (ripe NEMA 14-30R)
B. Enchufe de 4 terminales
C. Terminal de conexidn a tierra
D. Terminal neutro
E. Terminales de horquilla con los extremos hacia arriba
F. Protector de cables que est_ en la lista de UL, de 3/4"(1,9 cm)
G. Terminales anulares
19

1,
2.
Saque el tornillo central de color plateado del bloque de
terminal.
Saque el hilo neutro de puesta a tierra del aparato del tornillo
conductor de tierra externo. Conecte el hilo neutro de puesta
a tierra y el hilo neutro (hilo blanco o central) del cable de
suministro de energia debajo del tornillo central de color
plateado del bloque de terminal. Apriete el tornillo.
Conexi6n de 4 hilos: Cable directo
IMPORTANTE: Se necesita una conexi6n de 4 hilos para las
casas rodantes y para los casos en que los c6digos locales no
permitan el uso de conexiones de 3 hilos.
El cable de conexidn directa debe tener 5 pies (1,52 m) extra de
largo para poder mover la secadora si fuese necesario.
Pele 5" (12,7 cm) de la cubierta exterior desde el extremo del
cable, dejando el hilo de tierra desnudo a 5 pies (12,7 cm). Corte
11/2"(3,8 cm) de los 3 hilos restantes. Pele el aislamiento 1"
(2,5 cm) hacia atrfis. Doble los extremos de los hilos para formar
un gancho.
3,
A. Tornillo conductor de tierra extemo - La Ifnea punteada ilustra
la posicidn del hilo de tierra NEUTRO antes de moverlo al
tornillo central de color plateado del bloque de terminal
B. Tomillo central de color plateado del bloque de terminal
C. Hilo neutro de puesta a tierra
D. Hflo neutro (hflo blanco 0 central)
E.Protector de cables de 3/4"(!,9 cm), que est_ en la lista de UL
Conecte el hilo de tierra (verde o desnudo) del cable de
suministro electrico al tornillo conductor de tierra externo.
Apriete el tornillo.
AI conectar el hilo al bloque de terminal, coloque el extremo del
hilo en forma de gancho debajo del tornillo del bloque de
terminal (con el gancho mirando hacia la derecha). Apriete y junte
el extremo en forma de gancho y apriete el tornillo, como se
muestra.
1,
2.
Saque el tornillo central de color plateado del bloque de
terminal.
Saque el hilo neutro de puesta a tierra del tornillo conductor
de tierra externo. Conecte el hilo neutro de puesta a tierra y
coloque el extreme en forma de gancho (con el gancho
mirando hacia la derecha) del hilo neutro (blanco o central)
del cable de conexi6n directa debajo del tornillo central del
bloque de terminal. Apriete y junte los extremos en forma de
gancho. Apriete el tornillo.
A. Tomillo conductor de tierra extemo
B. Hilo de tierra (verde o desnudo) del cable de suministro el_ctrico
C. Protector de cables que est_ en la lista de UL de 3/4"(1,9 cm)
D. Tornillo central de color plateado del bloque de terminal
E. Hilo neutro de puesta a tierra
FHilo neutro (hilo blanco o central)
4. Conecte los otros hilos a los tornillos exteriores del bloque de
terminal. Apriete los tornillos.
5. Apriete los tornillos del protector de cables.
6. Introduzca la lengQeta de la cubierta del bloque de terminal
en la ranura del panel posterior de la secadora. Asegure la
cubierta con el tornillo de sujeci6n.
7. Usted ha completado la conexi6n electrica. Ahora vaya a
"Requisites de ventilaci6n".
A. Tomillo conductor de tierra extemo - La Ifnea punteada ilustra la
posicidn del hilo de tierra NEUTRO antes de moverlo al tomillo
central de color plateado del bloque de terminal
B. Tomillo central de color plateado del bloque de terminal
C. Hilo neutro de puesta a tierra
D. Hilo neutro (hflo blanco o central)
E.Protector de cables que est_ en la lista de UL de 3/_,,(1,9 cm)
20
