Kenmore 3405587 Operating instructions

Owner's Manual and
installation instructions
®
29-inch Wide
GAS DRYERS
I
J
lmwB
Your dryer may took different
IMPORTANT: from the dryer shown.
Read and follow all safety
and operating instructions
before first use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
PART NO. 3405587 Rev. A PRINTED IN U.S.A.

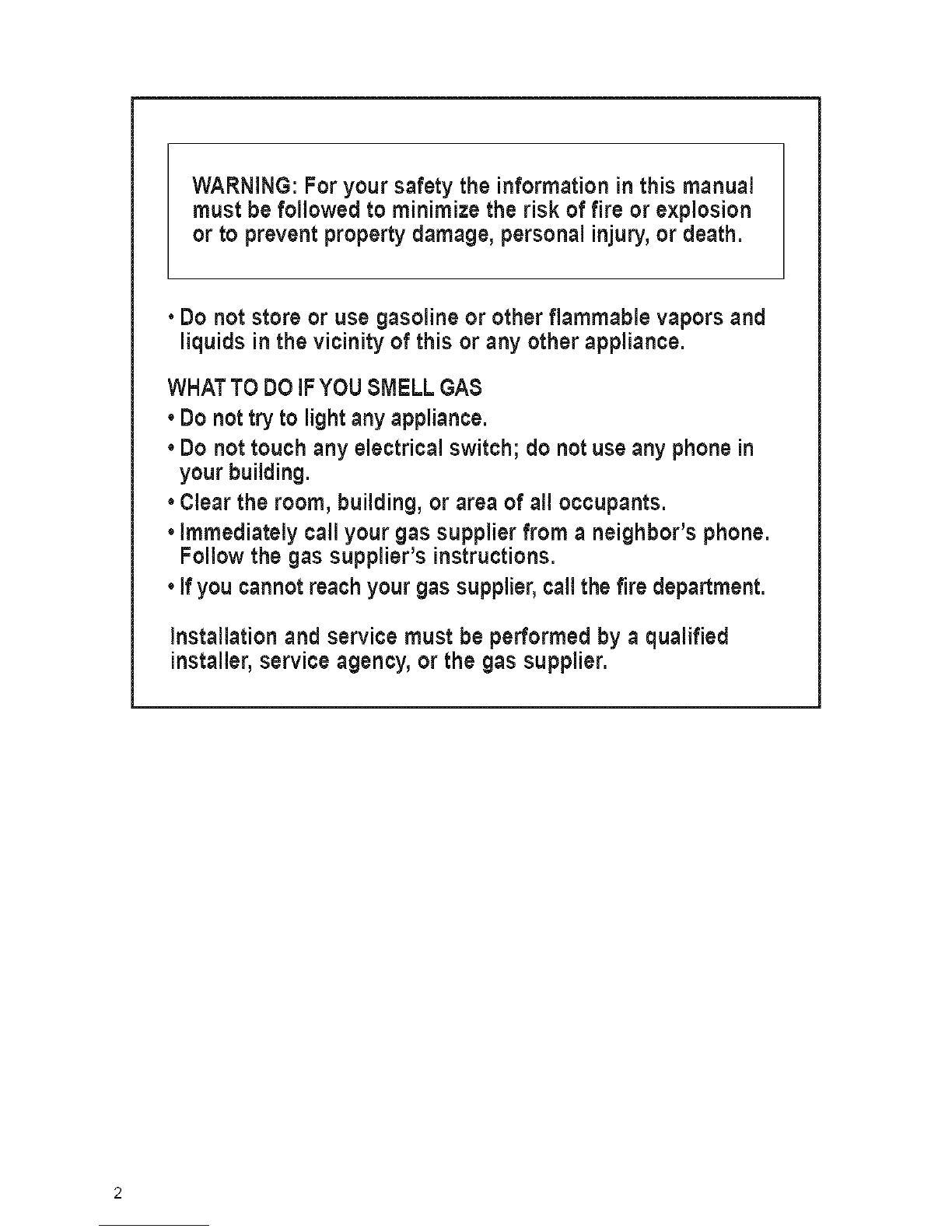

WARNING: For your safety the information in this manual
must be followed to minimize the risk of fire or explosion
or to prevent property damage, personal injury, or death.
•Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
WHATTO DO iFYOU SMELL GAS
•Do not try to lightany appliance.
•Do not touch any electrical switch; do notuse any phone in
your building.
•Clear the room, building, or area of all occupants.
•immediately call your gas supplier from aneighbor's phone.
Follow the gas supplier's instructions.
• if you cannot reach your gassupplier, callthe fire department.
installation and service must be performed by aqualified
installer, service agency, or the gas supplier.

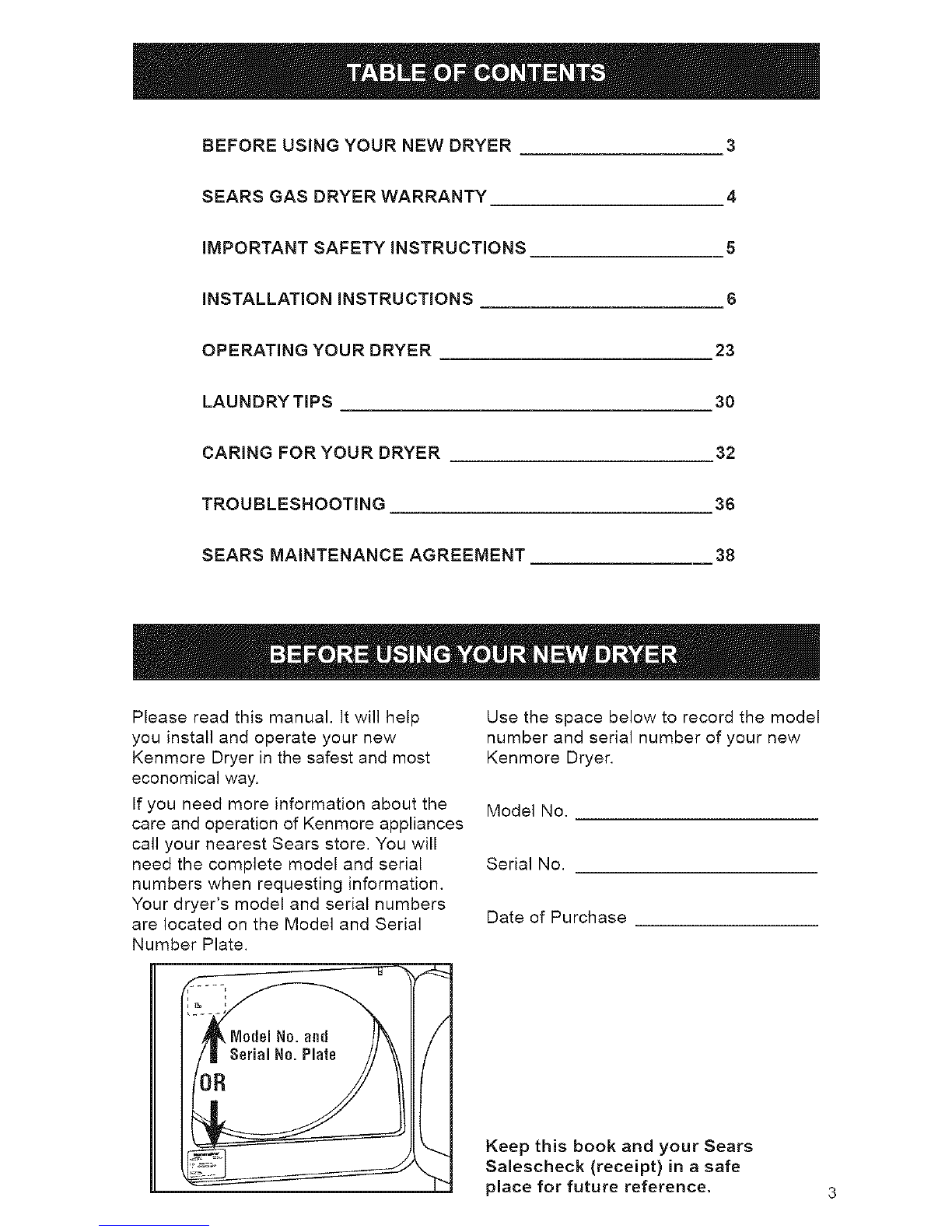

BEFORE USING YOUR NEW DRYER 3
SEARS GAS DRYER WARRANTY 4
iMPORTANT SAFETY iNSTRUCTiONS 5
iNSTALLATION iNSTRUCTiONS 6
OPERATING YOUR DRYER 23
LAUNDRY TIPS 30
CARING FOR YOUR DRYER 32
TROUBLESHOOTING 36
SEARS MAINTENANCE AGREEMENT 38
Please read this manual. It will help
you install and operate your new
Kenmore Dryer in the safest and most
economical way.
If you need more information about the
care and operation of Kenmore appliances
call your nearest Sears store. You will
need the complete model and serial
numbers when requesting information.
Your dryer's model and serial numbers
are located on the Model and Serial
Number Plate.
Use the space below to record the model
number and serial number of your new
Kenmore Dryer.
Model No.
Serial No.
Date of Purchase
Keep this book and your Sears
Salescheck (receipt) in a safe
place for future reference.

FullOneYearWarranty on
Mechanical and Electrical Parts
For one year from the date of purchase,
if this dryer is installed and operated
according to the instructions in this manual,
Sears will repair or replace any of its
mechanical or electrical parts if they are
defective in material or workmanship.
NOTE: Exhausting your dryer with
a plastic vent may void this warranty.
Pages 17-21 of this manual describe
the complete exhaust requirements
for this dryer.
Warranty Restriction
If the dryer is subjected to other than
private family use, all warranty coverage
is effective for only 90 days.
Warranty Service
Warranty service is available by contacting
your nearest Sears Service Center in the
United States.
This warranty applies only while this dryer
is in use in the United States.
This warranty gives you specific legal rights,
and you may also have other rights which
vary from state to state.
Sears, Roebuck and Co., Dept. 817WA,
Hoffman Estates, IL 60179.
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual
and on your appliance. Always read and obey all safety messages.
This is the safety alert symbol. This symbol alerts
you to hazards that can kil! or hurt you and others.
All safety messages will be preceded by the safety
alert symbol and the word "DANGER" or "WARNING:'
These words mean:
You will be killed or seriously
injured if you don't follow
-- instructions.
You can be killed or seriously
injured if you don't follow
-- instructions.
Al! safety messages will identify the hazard, tell you how to reduce the
chance of injury, and tell you what can happen if the instructions are
not followed.

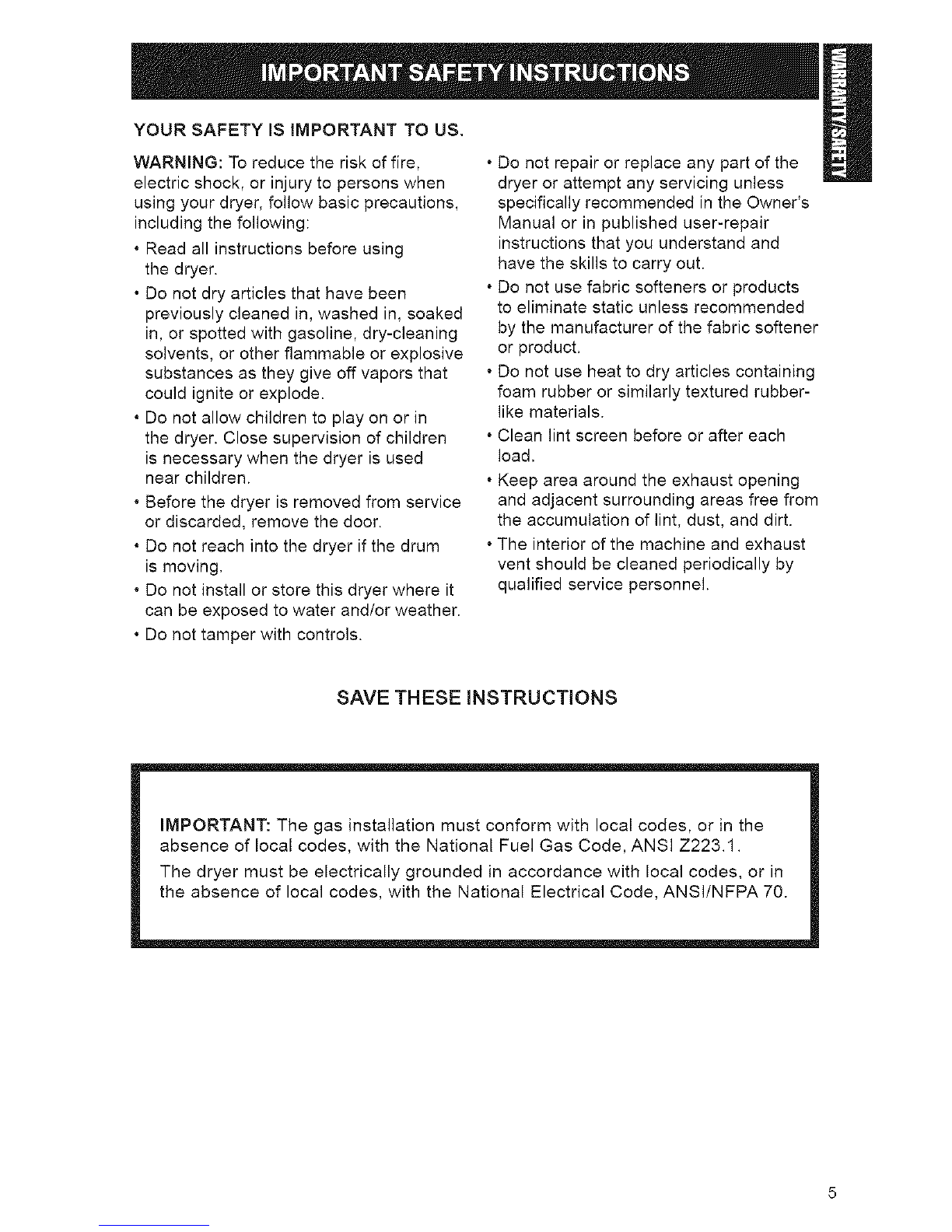

YOUR SAFETY IS IMPORTANT TO US.
WARNING: To reduce the risk of fire,
electric shock, or injury to persons when
using your dryer, follow basic precautions,
including the following:
* Read all instructions before using
the dryer.
. Do not dry articles that have been
previously cleaned in, washed in, soaked
in, or spotted with gasoline, dry-cleaning
solvents, or other flammable or explosive
substances as they give off vapors that
could ignite or explode.
* Do not allow children to play on or in
the dryer. Close supervision of children
is necessary when the dryer is used
near children.
* Before the dryer is removed from service
or discarded, remove the door.
* Do not reach into the dryer if the drum
is moving.
* Do not install or store this dryer where it
can be exposed to water and/or weather.
. Do not tamper with controls.
• Do not repair or replace any part of the
dryer or attempt any servicing unless
specifically recommended in the Owner's
Manual or in published user-repair
instructions that you understand and
have the skills to carry out.
• Do not use fabric softeners or products
to eliminate static unless recommended
by the manufacturer of the fabric softener
or product.
• Do not use heat to dry articles containing
foam rubber or similarly textured rubber-
like materials.
• Clean lint screen before or after each
load.
• Keep area around the exhaust opening
and adjacent surrounding areas free from
the accumulation of lint, dust, and dirt.
• The interior of the machine and exhaust
vent should be cleaned periodically by
qualified service personnel.
SAVE THESE iNSTRUCTiONS
IMPORTANT: The gas installation must conform with local codes, or in the
absence of local codes, with the National Fuel Gas Code, ANSI Z223.1.
The dryer must be electrically grounded in accordance with local codes, or in
the absence of local codes, with the National Electrical Code, ANSI/NFPA 70.

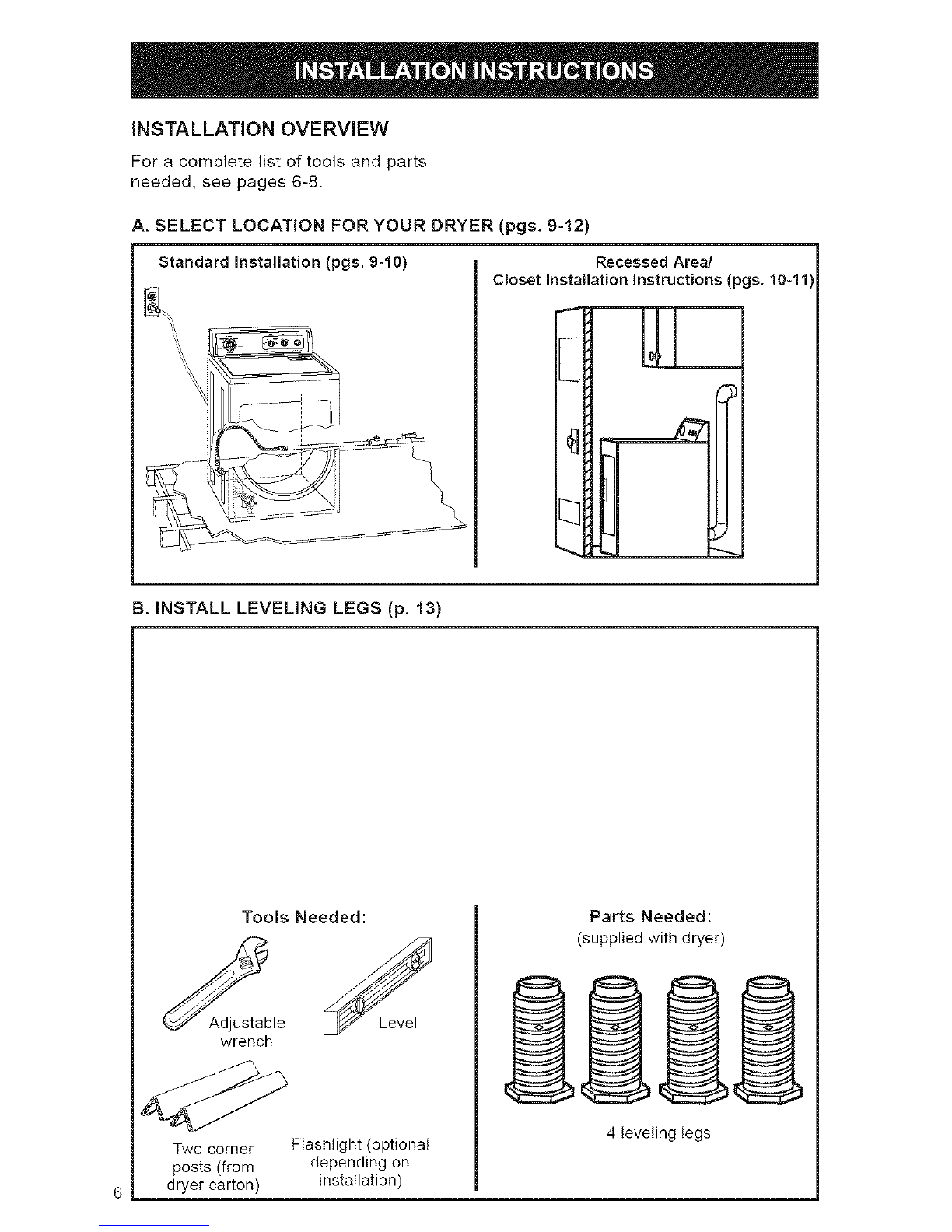

INSTALLATION OVERVIEW
For acomplete list of tools and parts
needed, see pages 6-8.
A. SELECT LOCATION FOR YOUR DRYER (pgs. 9-12)
Standard Installation (pgs. 9-10)
\
Recessed Areal
Closet Installation Instructions (pgs. 10-11)
Q

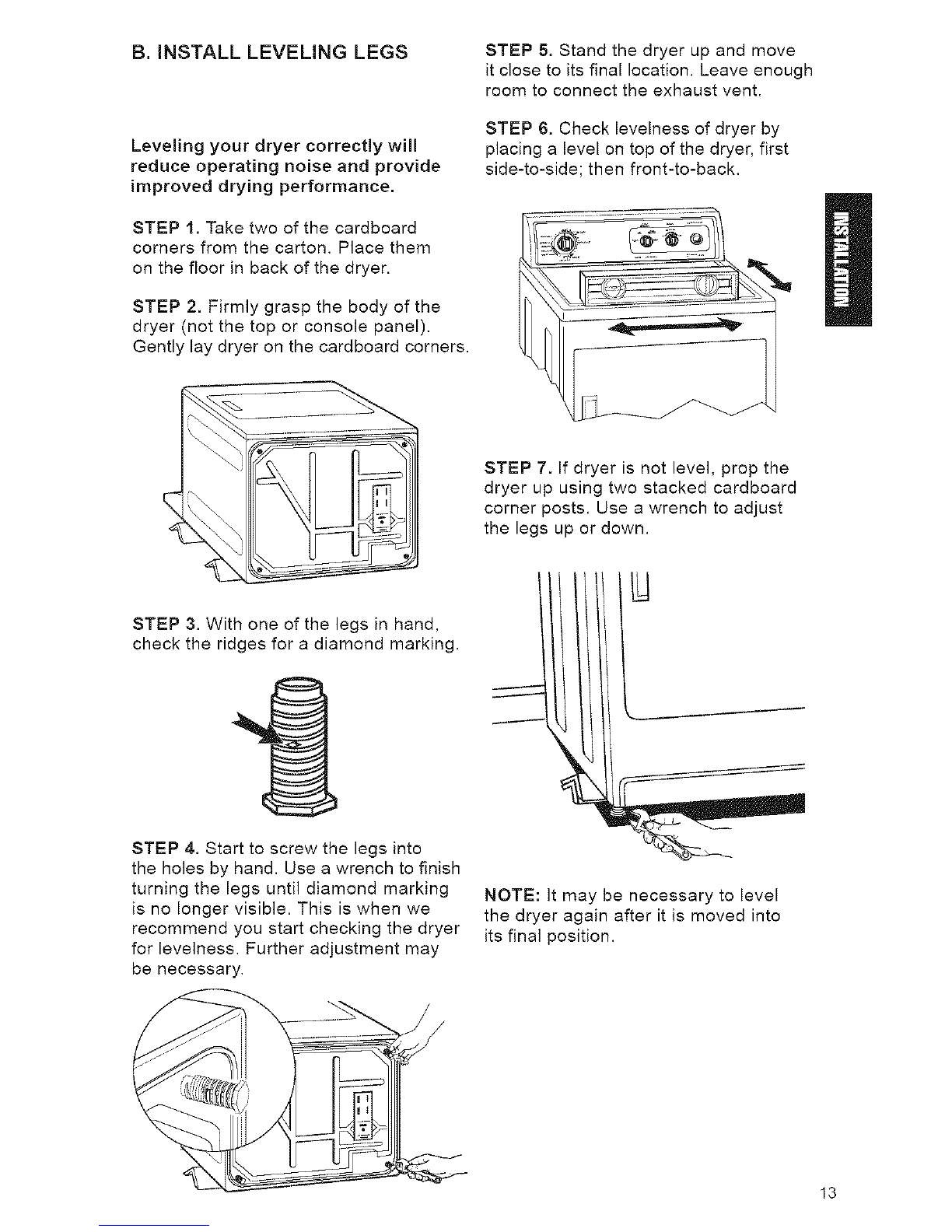

B. INSTALL LEVELING LEGS (p. 13)
Tools Needed:
Adjustable _Level
wrench
Two corner Flashlight (optional
posts (from depending on
dryer carton) installation)
Parts Needed:
(supplied with dryer)
4 leveling legs

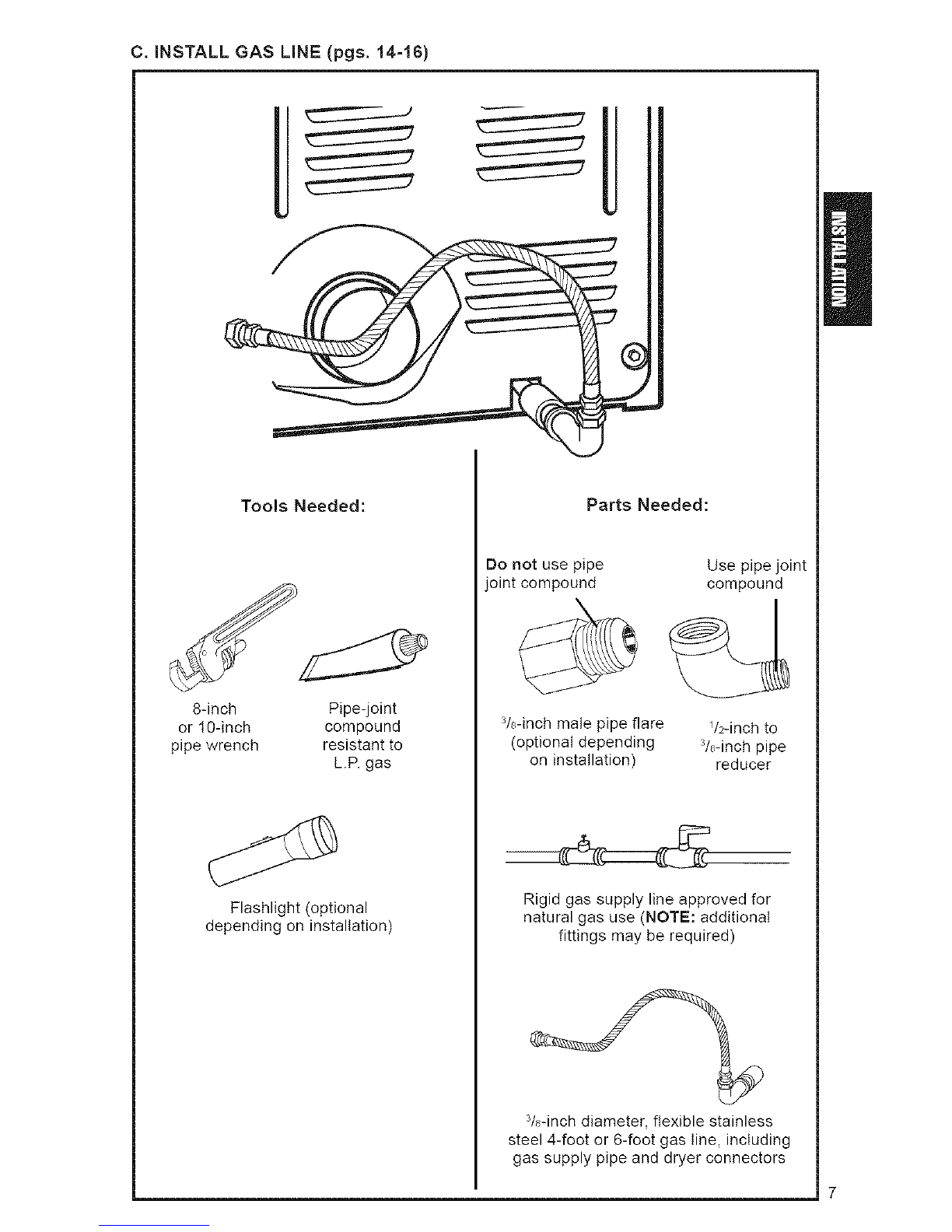

C, INSTALL GAS LINE (pgs. 14-16)
@
J
Tools Needed:
8-inch Pipe-joint
or 10-inch compound
pipe wrench resistant to
L.P. gas
Flashlight (optional
depending on installation)
Parts Needed:
Do not use pipe
joint compound Use pipe joint
compound
3/s-inch male pipe flare V2-inch to
(optional depending 3/8-inch pipe
on installation) reducer
Rigid gas supply line approved for
natural gas use (NOTE: additional
fittings may be required)
3/s-inch diameter, flexible stainless
steel 4-foot or 6-foot gas line, including
gas supply pipe and dryer connectors

D. CONNECT EXHAUST (pgs. 17-21)
m I_B
Tools Needed:
Tin snips Duct tape
Flashlight
(optional depending
on installation)
Flat-bladed
screwdriver
Parts Needed:
4-inch rigid or
flexible heavy
metal vent
4-inch outlet
exhaust hood
4-inch metal elbow(s)
(optional depending
on installation)
Od>
© db
(4) 4-inch
diameter clamps

A. 8ELECT LOCATION FOR
YOUR DRYER
Selecting the proper location for your
dryer makes installation easy and
gives you the best drying performance,
8TANDARD IN8TALLATION
Check location where dryer will be installed.
Proper installation is your responsibility.
Make sure you have everything necessary
for correct installation (see illustration
below).
The dryer must not be installed where it
can be exposed to water and/or weather.
•Proper operation of dryer cycles
requires temperatures above 45°F (at
lower temperatures, the dryer may not
shut off at the end of automatic cycles
and drying times will be extended).
•Use at least the minimum installation
spacings described on page 11. This will
ensure you have an adequate clearance
for service and proper operation including
flow of combustion and ventilation air,
and that you have a sufficient distance
from combustible construction.
Explosion Hazard
Keep flammable materials and vapors,
such as gasoline, away from dryer.
Place dryer at least 18 inches above
the floor for a garage installation.
Failure to follow these instructions
can result in death, explosion, or fire.
• Be sure your location allows for a
proper exhaust installation. A gas dryer
must be exhausted to the outdoors.
See pages 17-21 for complete exhaust
requirements.
• Check code requirements. Some
codes limit or do not permit installation
of clothes dryers in garages, closets,
mobile homes, or sleeping quarters.
Contact your local building inspector.
Grounded receptacle:
Within 2 feet of either
side of dryer.
I--6 Ft. Max.--
Rigid gas supply line:
Approved for natural
gas use.
J
Shut-off valve:
No further than
6 feet away from
dryer.
Support: Floor must be sturdy
enough to support a total weight
of 175 pounds (includes dryer and
load weight).
Level floor: Maximum
allowable slope under
entire dryer - 1 inch.

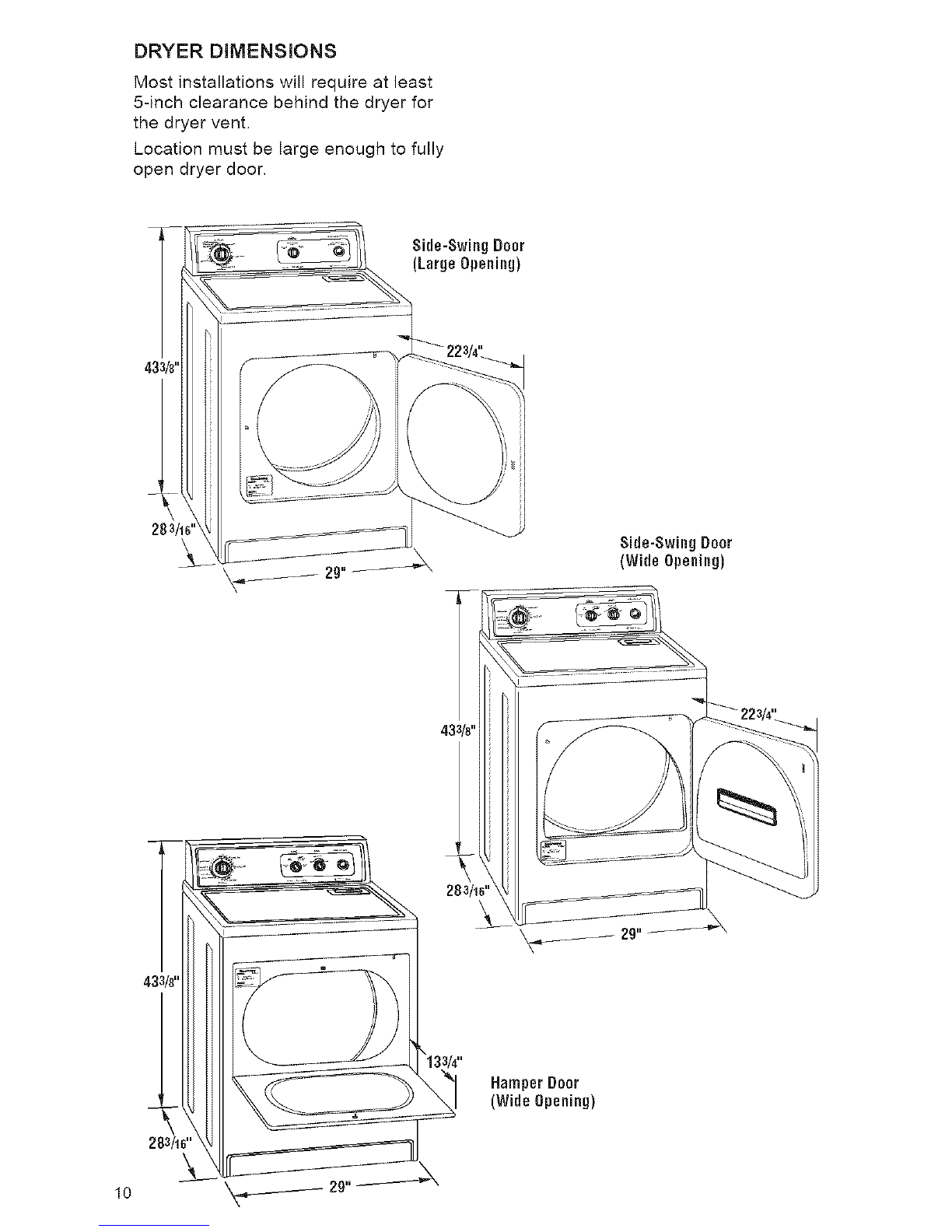

DRYERDIMENSIONS
Most installations will require at least
5-inch clearance behind the dryer for
the dryer vent.
Location must be large enough to fully
open dryer door.
Side-Swing Doer
(Large Opening)
Side-SwingDoor
(WideOpening)
HamperDoor
(WideOpening)

RECESSED AREA/CLOSET
INSTALLATION INSTRUCTIONS
Check governing codes and ordinances.
This dryer may be installed in a recessed
area or closet.
The dryer must not be installed where it
will be exposed to water and/or weather.
* Proper operation of dryer cycles
requires temperatures above 45°F (at
lower temperatures, the dryer may not
shut off at the end of automatic cycles
and drying times will be extended).
* Use at least the minimum installation
spacings described below. This will
ensure you have an adequate clearance
for service and proper operation including
flow of combustion and ventilation air,
and that you have a sufficient distance
from combustible construction.
* Be sure your location allows for a
proper exhaust installation. A gas dryer
must be exhausted to the outdoors.
See pages 17-21 for complete exhaust
requirements.
* Check code requirements. Some
codes limit or do not permit installation
of clothes dryers in garages, closets,
mobile homes, or sleeping quarters.
Contact your local building inspector.
NOTE: No fuel-burning appliances may
be installed in the same closet as a dryer.
MINIMUM INSTALLATION SPACING
minimum
ventilation
al'ea
**24 sq. in.
minimum
ventilation
81'ea
F-29"- 't F-*I" ÷11"1<-28'/,0" ''
FrontView SideView
(DoorNotShown) (DoorShown) FrontView (DoorWithVent)
* Additionalclearancesforwall, doorandfloor moldingsmayberequired.O"clearance
isacceptablebutnotrecommended.
** Openingisminimumfor closetdoor.Lonvereddoorwith equivalentair
openingsisacceptable.
*** Additionalapaceisneededwhenexternal exhaustelbow isused. CanbeO"clearance
whenhouseexhaustingislinedupdirectlywith dryerexhaust.
J:
3"
f
3"
T
• In the above illustration, the installation
spacing is in inches and is the minimum
allowable.
• Additional spacing should be considered
for ease of installation and servicing.
• If closet door is installed, the minimum
air openings in top and bottom are
required. Louvered doors with equivalent
air openings in top and bottom are
acceptable.
* All installations must be exhausted
outside. Use at least the minimum
dimensions indicated.
I1

MOBILE HOME EXHAUST
REQUIREMENTS
• The dryer must not be installed where
it can be exposed to water and/or
weather. Proper operation of dryer
cycles requires temperatures above
45°F (at lower temperatures, the
dryer may not shut off at the end of
automatic cycles and drying times
will be extended).
• Use at least the minimum installation
spacings described on page 11. This
will ensure you have an adequate
clearance for service and proper opera-
tion including flow of combustion and
ventilation air, and that you have a
sufficient distance from combustible
construction.
• Special provisions must be made for
the introduction of outside air into the
dryer when installed in a mobile home.
The area of any opening for the intro-
duction of outside air (such as a nearby
window) should be at least twice as
large as the dryer exhaust opening.
This dryer is suitable for mobile home
installations. The installation must conform
to the Manufactured Home Construction
and Safety Standard, Title 24 CFR, Part
3280 (formerly the Federal Standard for
Mobile Homes Construction and Safety,
Title 24, HUD Part 280).
• Dryer exhaust vent must not
be connected or secured
with screws or //I
other devices
which extend I11
intotheinterior I
ofthevent / I
• A gas dryer must __ /
be exhausted __ _
outdoors. The _._ _ ._4/_!
exhaust vent
must be securely fastened
to a noncombustible portion
of the mobile home structure
and must not terminate beneath
the mobile home.
For mobile home use, gas dryers must
be securely fastened to the floor. Order
Mobile Home Installation Kit 346764
from your Sears store or Sears Service
Center. Kit includes the necessary fas-
tening hardware and detailed installation
instructions. Exhaust system hardware
is also available through your Sears store
or Sears Service Center.
I2

B. iNSTALL LEVELING LEGS
Leveling your dryer correctly will
reduce operating noise and provide
improved drying performance.
STEP 1. Take two of the cardboard
corners from the carton. Place them
on the floor in back of the dryer.
STEP 2. Firmly grasp the body of the
dryer (not the top or console panel).
Gently lay dryer on the cardboard corners.
STEP 5. Stand the dryer up and move
it close to its final location. Leave enough
room to connect the exhaust vent.
STEP 6. Check levelness of dryer by
placing a level on top of the dryer, first
side-to-side; then front-to-back.
STEP 3. With one of the legs in hand,
check the ridges for a diamond marking.
STEP 4. Start to screw the legs into
the holes by hand. Use a wrench to finish
turning the legs until diamond marking
is no longer visible. This is when we
recommend you start checking the dryer
for levelness. Further adjustment may
be necessary.
STEP 7. If dryer is not level, prop the
dryer up using two stacked cardboard
corner posts. Use a wrench to adjust
the legs up or down.
NOTE: It may be necessary to level
the dryer again after it is moved into
its final position.
I3

C. INSTALL GAS LiNE
The proper gas connection ensures
asafe installation that meets local
code requirements,
GAS REQUIREMENTS
Explosion Hazard
Use a new AGA approved gas
supply line.
Connect dryer to a regulated gas
supply with a shut=off valve.
L.P. gas supply pressure must not
exceed 13" water column.
Securely tighten all gas connections.
Failure to follow these instructions
can result in death, explosion, or fire.
It is your responsibility to contact a
qualified gas line installer to ensure
you have natural gas.
• The design of this dryer has been certi-
fied by the American Gas Association
for use at altitudes up to 10,000 feet
above sea level at the B.T.U. rating
indicated on the model/serial number
plate. Burner input adjustments are not
required when the dryer is operated
up to this level.
• When installed above 10,000 feet,
a four percent (4%) reduction of the
burner B.T.U. rating shown on the
model/serial number plate is required
for each 1,000 foot increase in eleva-
tion. For assistance when converting
to other gas types and/or installing
above 10,000 feet elevation contact
your local service company.
• Make certain your dryer has the correct
burner for the type of gas in your home.
Burner information is located on the
rating plate in the door well of your
dryer. If this information does not agree
with the type of gas available, contact
your local Sears store or Sears Service
Center. Any change to the burner must
be made by a qualified installer.
• Provide a rigid gas supply line of
1/2-inch pipe to your dryer.
• If you are using natural gas, do not use
copper tubing.
• If your dryer has been converted to use
L.R gas, 3/8-inch L.P.-compatible copper
tubing may be used. If the total length
of the supply line is more than 20 feet,
use larger pipe. Pipe joint compounds
that resist the action of L.R gas MUST
be used. Do not use Teflon tape.
1/2-inchgas threaded
supply line
3/8-inchmale
threadedpipe
I4

*If local codes permit, use flexible
stainless steel tubing (Design Certified
by the American Gas Association) to
connect your dryer to the gas supply
line. To prevent kinking, you may need
an elbow and connector between the
stainless steel tubing and the dryer
gas pipe. The gas pipe that comes
out through the rear of your dryer has
a 3/8-inch male pipe thread.
U
* A combination of pipe fittings must
be used to connect the dryer to the
existing gas line.
3/8-inchmale l/B-inch HPT
threaded pipe pluggedtapping
connection
Gas shut-
Reducer or 1/2-inchgas off valve
connector supply line
* The gas supply must have a shut-off
valve. The valve should be in the same
room as the dryer, within six feet. The
location should be easy to reach for
opening and closing the valve.
*A 1/8-inch NPT plugged tapping, acces-
sible for test gauge connection, must
be installed immediately upstream of
the gas supply connection to the dryer.
* To ensure proper combustion and
ventilation, the dryer installation should
adhere to the minimum recommended
clearances. See page 11.
* For mobile home installation, see
page 12 for more instructions.
* The dryer must be disconnected from
the gas supply piping system during
any pressure testing of that system at
test pressures in excess of 1/2psig.
3/8-inchmale threaded
pipe connection 1/2-inchto 3/g-inch
pipe reducer
I5

CONNECT DRYER TO GAS LINE
Explosion Hazard
Use a new flexible gas supply line.
Failure to do so can result in
death, explosion, or fire,
STEP 1. Remove the red cap from
the gas pipe. Move the dryer to its
final position.
STEP 2. Connect gas supply to dryer.
Use a wrench to tighten. For gas
connections you must use pipe joint
compound resistant to the action of
LP. gas. Apply pipe joint compound
to the non-flared male threads only.
If flexible metal tubing is used be sure
there are no kinks.
Do not use pipe Use pipe joint
joint compound compound
STEP 3. Open the shut-off valve in the
supply line. The valve is open when the
handle is parallel to the gas pipe.
STEP 4. Test all the connections by
brushing on a soapy water solution
(liquid detergent also works well).
Bubbles will show a leak. Correct
any leak found. Never test for gas
leaks with a flame.
ELECTRICAL REQUIREMENTS
It is your responsibility:
• To contact a qualified electrical installer.
• To assure that the electrical installation
is adequate and in conformance with
the National Electrical Code, ANSI/
NFPA 70 - latest edition and all local
codes and ordinances.
Copies of the code standards listed
above may be obtained from:
National Fire Protection Association
Batterymarch Park
Quincy, Massachusetts 02269
The proper electrical connection
ensures a safe installation that
meets local code requirements.
Electrica! Shock Hazard
Plug into a grounded 3=prong
outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions
can result in death, fire, or
electrical shock.
• A 120-volt, 60-Hz., AC-only, 15- or
20-ampere fused electrical supply
is required.
• A time-delay fuse or circuit breaker is
recommended. Be sure fuse or circuit
breaker matches the rating of your line.
• Use a separate circuit serving only
your dryer.
• Do not use an extension cord.
I6

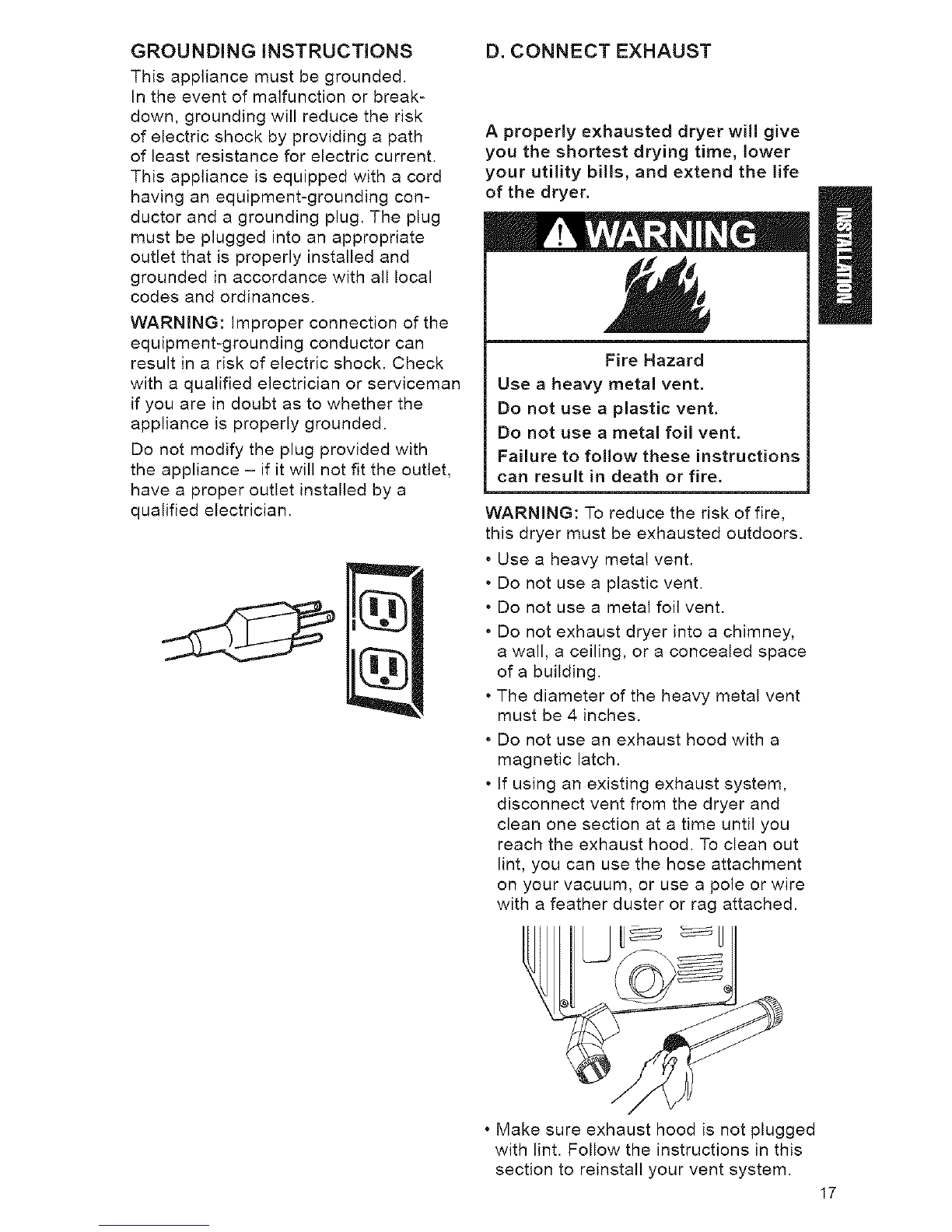

GROUNDINGINSTRUCTIONS
Thisappliancemustbegrounded.
Intheeventofmalfunctionorbreak-
down,groundingwillreducetherisk
ofelectricshockbyprovidingapath
ofleastresistanceforelectriccurrent.
Thisapplianceisequippedwithacord
havinganequipment-groundingcon-
ductorandagroundingplug.Theplug
mustbepluggedintoanappropriate
outletthatisproperlyinstalledand
groundedinaccordancewithalllocal
codesandordinances.
WARNING:Improperconnectionofthe
equipment-groundingconductorcan
resultinariskofelectricshock.Check
withaqualifiedelectricianorserviceman
ifyouareindoubtastowhetherthe
applianceisproperlygrounded.
Donotmodifytheplugprovidedwith
theappliance- ifitwillnotfittheoutlet,
haveaproperoutletinstalledbya
qualifiedelectrician.
D. CONNECTEXHAUST
A properly exhausted dryer will give
you the shortest drying time, lower
your utility bills, and extend the life
of the dryer.
Fire Hazard
Use a heavy metal vent.
Do not use a plastic vent.
Do not use a metal foil vent.
Failure to follow these instructions
can result in death or fire.
WARNING: To reduce the risk of fire,
this dryer must be exhausted outdoors.
• Use a heavy metal vent.
• Do not use a plastic vent.
• Do not use a metal foil vent.
•Do not exhaust dryer into a chimney,
a wall, a ceiling, or a concealed space
of a building.
• The diameter of the heavy metal vent
must be 4 inches.
•Do not use an exhaust hood with a
magnetic latch.
• If using an existing exhaust system,
disconnect vent from the dryer and
clean one section at a time until you
reach the exhaust hood. To clean out
lint, you can use the hose attachment
on your vacuum, or use a pole or wire
with a feather duster or rag attached.
• Make sure exhaust hood is not plugged
with lint. Follow the instructions in this
section to reinstall your vent system. I7

ROUTETHEVENT
Typical installations exhaust from the
rear of the dryer.
Avoid pushing the dryer tightly against
a wall. This can crush or kink the vent.
Use the straightest path you can, where
possible. Avoid 90 ° turns.
Rear exhaust installations for standard offset
connections - (see pgs. I9-20)
Rear exhaust installations for offset
connections with close clearances -
(see p. 21)
I8
DETERMINE VENT LENGTH
Maximum Exhaust Lengths:
• The maximum length of the rear
exhaust system depends on the
type of vent, the number of elbows,
and the type of exhaust hood. Refer
to the chart below.
NOTE: If a combination of rigid metal
vent and flexible metal vent is used,
use instructions for flexible metal vent.
4-iNCH EXHAUST HOODS
._. -<
Number Maximum length of
of 90 ° 4-inch diameter rigid
Turns heavy metal vent
0 64 ft.
1 54 ft.
2 44 if,
3 35 ft.
4 27 ft.
Number Maximum length of
of 90° 4-inch diameter flexible
Turns heavy metal vent
0 36 ft,
1 31 ft.
2 27 ft,
3 25 ft,
4 23 ft.
21/2-INCH EXHAUST HOODS*
Number Maximum length of
of 90° 4-inch diameter rigid
Turns heavy metal vent
0 58 ft,
1 48 ft,
2 38 ft,
3 29 ft,
4 21 ft.
Number Maximum length of
of 90° 4-inch diameter flexible
Turns heavy metal vent
0 28 ft.
1 23 ft,
2 19ft,
3 17ft,
4 15ft.
*Use a 4-inch exhaust hood if possible.

STANDARDOFFSETCONNECTIONS
Using 4-inch rigid heavy metal vent:
NOTE: Do not secure exhaust vent
joints with screws. Screws can catch lint
and slow the drying process. Instead,
use clamps to secure exhaust vent joints.
STEP 1. Install a 4-inch metal elbow on
the hood and on the dryer's exhaust outlet.
STEP 2. Measure the length of 4-inch
rigid heavy metal vent needed to connect
the two elbows.
Rigid
heavy
metal
vent
Elbow •Wall
Exhaust
hood
Dryer
STEP 2
"Elbow
Ducttape & clamps
The vent usually comes in 2-foot lengths.
Use tin snips to cut the vent 3 inches
longer than your measurement in order
to make a connection.
STEP 3. Place a clamp on each end
of vent elbow and connect elbow to your
dryer's exhaust outlet. Tape the joint
with duct tape. Tighten clamp.
Tape
Clamp
STEP 4. Connect vent to elbow. Tape
the joint with duct tape. Tighten clamp.
STEP 5. Install one end of elbow on
vent, the other end to the exhaust hood.
Tape joints and tighten clamps.
Finish installation, See "REVIEW
INSTALLATION" on page 22,
I9

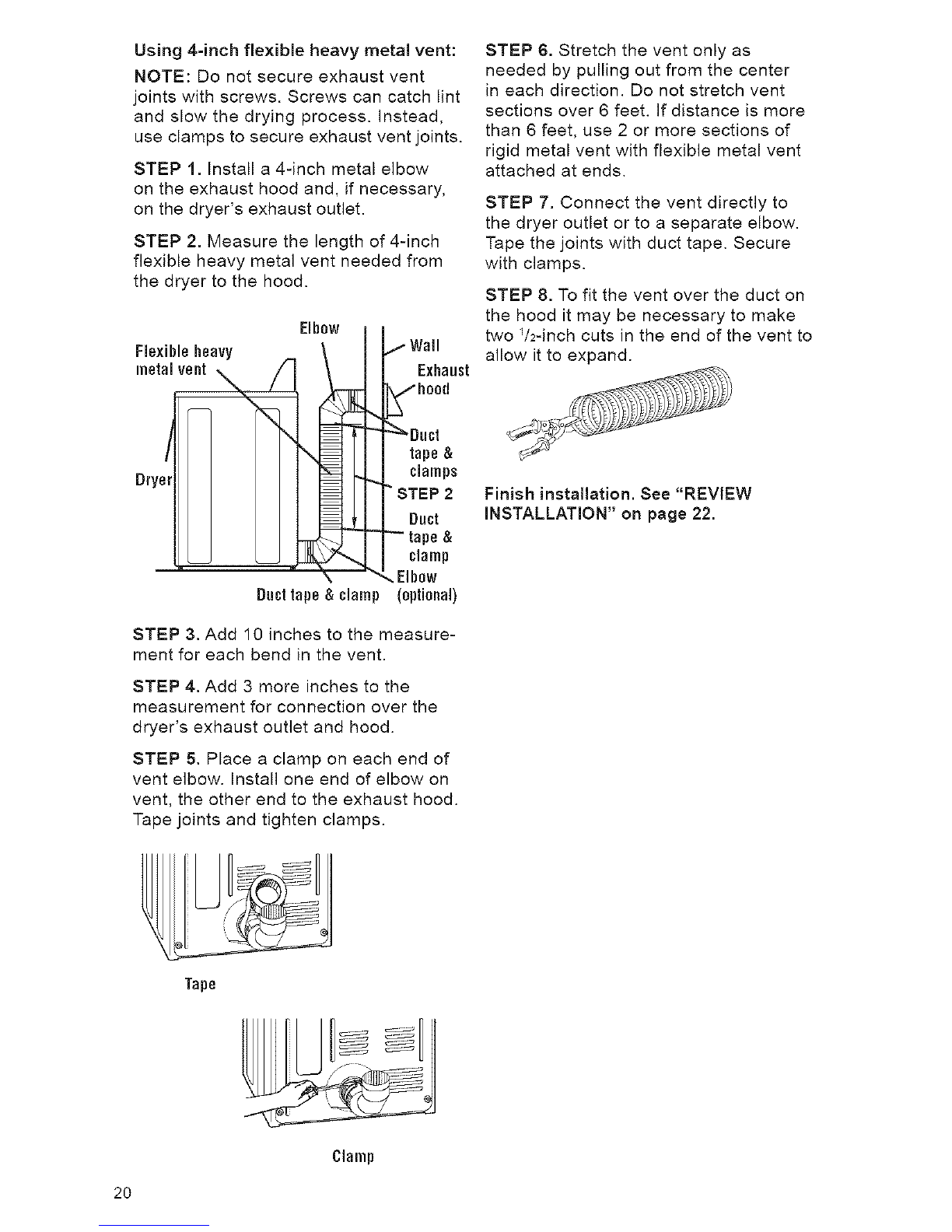

Using4-inchflexibleheavymetalvent:
NOTE:Donotsecureexhaustvent
jointswithscrews.Screwscancatchlint
andslowthedryingprocess,instead,
useclampstosecureexhaust vent joints.
STEP 1. install a 4-inch metal elbow
on the exhaust hood and, if necessary,
on the dryer's exhaust outlet.
STEP 2. Measure the length of 4-inch
flexible heavy metal vent needed from
the dryer to the hood.
Flexibleheavy
\
Elbow
Exhaust
STEP 6. Stretch the vent only as
needed by pulling out from the center
in each direction. Do not stretch vent
sections over 6 feet. If distance is more
than 6 feet, use 2 or more sections of
rigid metal vent with flexible metal vent
attached at ends.
STEP 7. Connect the vent directly to
the dryer outlet or to a separate elbow.
Tape the joints with duct tape. Secure
with clamps.
STEP 8. To fit the vent over the duct on
the hood it may be necessary to make
two 1/2-inch cuts in the end of the vent to
allow it to expand.
tape&
clamps
STEP 2
Duct&
¢lamp
Elbow
Daottape&clamp (optional)
STEP 3. Add 10 inches to the measure-
ment for each bend in the vent.
STEP 4. Add 3 more inches to the
measurement for connection over the
dryer's exhaust outlet and hood.
STEP 5. Place a clamp on each end of
vent elbow. Install one end of elbow on
vent, the other end to the exhaust hood.
Tape joints and tighten clamps.
Tape
Finish installation. See "REVIEW
INSTALLATION" on page 22.
20
Clamp
