Use & Care Guide
®
Liquid Propane Gas Grill
Sears Model No: 119.16126010
Safety
Parts
Use and Care
Assembly
Espa_ol, Pg. 27
This Grill is for Outdoor Use Only
• Read and follow all Safety, Assembly,
and Use & Care Instructions in this
Guide before assembling and
cooking with this grill.
• Failure to follow all instructions in
this Use & Care Guide may lead
to fire or explosion, which could
result in property damage, personal
injury or death.
Grill Information Center
Missing Parts? Assembly Questions?
Operation Problems? Before
returning grill to store,
call 1-800-933-0527
Tools needed for assembly:
Protective work gloves and eyewear
Phillips head screwdriver (included
in hardware pack)
SAVE THESE INSTRUCTIONS!
See our extensive assortment of outdoor living products on-line at
www.sears.com and www.kmart.com
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
© 2010 Sears Brands, LLC Printed in China B10PG23-B

Primary Safety Warnings. .................................. 1-3
Warranty Information ............................................ 2
Pre-Assembly instructions .................................... 3
Part Diagram and Lists ...................................... 4-6
Assembly Instructions ..................................... 7-16
Use & Care Instructions ................................. 17-26
Frequently Asked Questions ....................................... 26
Spanish Guide ........................................................... 27-52
Repair Protection Agreement ...................................... 53
Sears Parts and Service Information ......................... 54
Kenmore Full Warranty
if this grill fails due to a defect in material or
workmanship within one year from the date of purchase,
call 1-800-4-MY-HOME® to arrange for
free repair (or replacement if repair proves impossible).
For five years from the date of purchase, the
stainless steel burners will be replaced free of
charge if they rust through. After the first year
from the date of purchase, you must pay the labor
cost to have them installed.
All warranty coverage excludes ignitor batteries,
grill part paint loss, discoloration, and surface
rusting, which are either expendable parts that can
wear out from normal use within the warranty
period, or are conditions that can be the result of
normal use, accident or improper maintenance.
All warranty coverage is void if this grill is ever used for
commercial or rental purposes.
All warranty coverage applies only if this grill is used in
the United States.
This warranty gives you specific legal rights, and you
may have other rights which vary from state to state.
Sears, Roebuck and Co., Hoffman Estates, IL
60179
IF YOU SMELL GAS:
Shut off gas to the appliance.
Extinguish any open flame.
Open lid.
If odor continues, keep away
from the appliance and immediately
call your gas supplier or your fire
department.
•Do not store or use gasoline or other
flammable liquids or vapors in the
vicinity of this or any other appliance.
•An LP cylinder not connected for use
shall not be stored in the vicinity of this
or any other appliance.
If you are missing parts, need assistance during
assembly, or have any other questions, please call 1-
800-933-0527 between the hours of 8:30am and
5:00pm, Monday through Friday, Central time.
Note that you will be speaking with a representative
of the grill manufacturer and not a Sears employee.
Product Record
IMPORTANT" Fill out the product record
information on below.
•Model Number 119.16126010
Serial Number
(See silver CSA plate inside of Cabinet Panel)
•Date Purchased
For residential use only. Do not use for commercial cooking.
California Proposition 65
1. Combustion by-products produced when using this
product contain chemicals known to the State of
California to cause cancer, birth defects, and other
reproductive harm.
2. This product contains chemicals, including lead and
lead compounds, known to the State of California to
cause cancer, birth defects or other reproductive harm.

DONOTlightthisgrillwithoutfirst reading
theLightingInstructions.
DONOTlightthisgrillwithoutcheckingthe
burnertubesfor blockagethatcouldhave
occurredduringshipment.SeetheCleaning
andMaintenanceInstructions.
Theinstallationmustconformwithlocalcodesor,
intheabsenceoflocalcodes,witheitherthe
NationalFuelGasCode,ANSIZ223.1/NFPA54,
orCAN/CGAB149.1,NaturalGasandPropane
InstallationCode,orPropaneStorageand
HandlingCode,B149.2.
• DONOTuseanytypeofcharcoalinthisgrill.
• DONOToperatethemainburnersandback
burneratthesametime.(If Equipped)
• ALWAYSinspectthegreasetraybeforeeach
use.Removeandcleanasnecessary.
Allelectricalaccessories(suchasarotisserieor
light)mustbeelectricallygroundedinaccordance
withlocalcodes,orintheabsenceof localcodes,
withtheNationalElectricalCode,ANSI/NFPA70,
ortheCanadianElectricalCode,CSAC22.1.Keep
anyelectricalcordsawayfromhotsurfaces.
Thisoutdoorcookinggasapplianceisnotintended
tobeinstalledinoronboatsorrecreational
vehicles.
Liquid Propane Gas (LPG) grills must be used with
the liquid propane gas regulator assembly
supplied. This grill is not convertible to natural
gas.
ALWAYS keep the gas hose assembly away from
any heated surface and dripping grease. Avoid
unnecessary twisting of the hose. Visually
inspect the hose prior to each use for cuts,
cracks, excessive wear, or other damage. Do not
use the gas grill if the hose appears damaged.
Call Sears at 1-800-4-MY-HOME®
(1-800-469-4663) for a Kenmore replacement
gas hose assembly.
• NEVER use your gas grill in a building,
garage, porch, shed, breezeway or any
other enclosed area.
• NEVER obstruct the flow of ventilation
air around your gas grill cabinet.
• DO NOT leave children and pets
unattended in the area when the grill is
in operation.
• ENSURE the grill is on a level surface
when in operation. You can adjust the
feet in front to level and stabilize the grill.
• NEVER attach an unregulated gas line
to this appliance.
PRE-ASSEMBLY
• Two people will be necessary to assemble the
larger parts of the grill.
• Lay a cardboard sheet on the floor and use as a
work surface to protect floor and grill parts from
scratches.
• Once all parts are removed and unpacked,
use the Hardware and Part Diagrams to ensure all
items are included and free of damage.

A
Phillips Head Bolt M6x25mm
Qty: 2 pcs
B
Flat Head Bolt M6×25mm
Qty: 4 pcs
G
Grill Transport Handle Heat Shield
Qty' 2 pcs
Phillips Head Screwdriver
Qty: 1 pc
Step Bolt M6
Qty: 4 pcs
C
Battery Size AA
Qty: 1 pc
D
Flat Head Bolt M6×12mm
Qty: 8 pcs
Propane Tank Support Chain Hook
Qty: 1 pc
E
Phillips Head Bolt M6×10mm
Qty: 7 pcs
K
Propane Tank Support Chain
Qty: 1 pc
F
Washer Head Bolt M4xl0mm
Qty: 14 pcs

Key Qty Part No. Description
A1 1 Hood Assembly
A2 2 Hood Bolt Assembly
A3 1Thermometer
A4 1 Thermometer Seat
B1 1 Firebox Assembly
B2 1 Gas Manifold Assembly
B3 2 Side Shelf Right Front and Left Back Support
B4 2 Side Shelf Left Front and Right Back Support
B5 1Control Panel Left Support
B6 1 Regulator and Hose Assembly
B7 1 Control Panel Right Support
B8 3 'T' Burner
B9 i Electronic Igniter
BIO 1 Firebox front Heat Shield
Bll 1 Control Panel
B12 3 Control Knob
B13 3 Control Knob Seat
B14 1 Manual Igniter Stick
B15 2 Grill Transport Handle Heat Shield
B16 i Grill Transport Handle
B17 1 Warming Rack
B18 2 Cooking Grate
B19 3 Heat Diffuser
B20 1 Firebox Rear Heat Shield
B21 1 Grease Pan
B22 1 Grease Pan Bracket
B23 1 Heat Shield
B24 3 Electrode
B25 1Electronic Igniter Button
B26 1 Firebox Assembly Support
B27 3 Electronic Igniter Wire Set

Key Qty
B28 4
C1 2
C2 1
C3 1
C4 1
C5 2
C6 2
C7 1
C8 1
C9 1
CI0 1
D1 1
D2 1
D3 2
D4 1
D5 1
Part No. Description
Electrode
Electronic Igniter Button
Firebox Assembly Support
Electronic Igniter Wire Set
Hood Bumper
Cabinet Side Panel
Cabinet Front Panel
Cabinet Frame
Cabinet Base
Caster
Adjustable Foot
Bottle Opener
Bottle Cap Catcher
Propane Tank Support Chain Hook
Propane Tank Support Chain
Left Shelf Assembly
N/A 1 Hardware Pack
N/A 1 Manual
If you are missing hardware or have damaged parts after unpacking grill, call 1-800-933-0527 for replacement.
To order replacement parts after using grill, call 1-800-4-MY-HOME®.

iil i _
ii i ¸¸¸¸_¸¸¸¸¸¸'i_ _
©

Install Cabinet Left Side Panel and Right Side Panel
[] Attach Cabinet Left Side Panel to the Cabinet Base using 1 Phillips Head Bolt (M6xlOmm).
[] Attach Cabinet Right Side Panel to the Cabinet Base using i Phillips Head Bolt (M6xiOmm),
Do not fully tighten any bolts at this time,
Phillips Head Bolt M6xiOmm
Qty: 2
Install Cabinet Front Panel
[] Attach Cabinet Front Panel to the Cabinet Base using i Phillips Head Bolt (M6xiOmm),
[] Attach Cabinet Front Panel to the Cabinet Left and Right Side Panels using 6 Washer Head Bolts
(M4xiOmm), Do not fully tighten any bolts at this time,
Phillips Head Bolt M6xiOmm
Qty: i
Washer Head Bolt M4xiOmm
Qty: 6

Install Cabinet Frame
[] Slide Cabinet Frame into position between side panels as shown.
[] Attach the Cabinet Frame to the Cabinet Base Panel using 2 Phillips Head Bolts (M6xl0mm),
[] Attach the Cabinet Frame to the Cabinet Left and Right Side Panels using 5 Washer Head Bolts
(M4xl0mm),Now ensure base and cabinet components are square and tighten all bolts used in
the cabinet assembly,
Phillips Head Bolt M6xl0mm
Qty: 2
Washer Head Bolt M4xl0mm
Qty: 5
Note: Do not install this
center bolt at this time,
1_ Attach Propane Tank Support Chain and Propane Tank Support Chain Hook
[] Attach the Propane Tank Support Chain to Cabinet Frame using 1 Washer Head Bolt (M4xl0mm).
[] Attach the Propane Tank Support Chain Hook to Cabinet Frame using 1 Washer Head Bolt
(M4xl0mm),
Propane Tank Support Chain Hook
Qty: 1
Washer Head Bolt M4xlOmm ,....-"
Qty: 2 ......

Hang Bottle Cap Catcher
[] Hang Bottle Cap Catcher on the Cabinet Front Panel.
Install Hood and Firebox Assembly
[] Remove regulator and hose from underside of Hood and Firebox Assembly. Remove packing
from regulator.
[] With the aid of an assistant, place Hood and Firebox Assembly onto the Cabinet, and attach to
the Cabinet Frame using 2 Phillips Head Bolts (IV16x25mm).
Phillips Head Bolt M6x25mm
Qty: 2
10

Attach Hood and Firebox Assembly to Cabinet Front
[] Attach the Hood and Firebox Assembly to the front of the Cabinet Side Panels using 2 Phillips
Head Bolts (M6xl0mm),
Phillips Head Bolt M6xl0mm
Qty: 2
Install Grease Pan Bracket and Grease Pan
[] Insert the Grease Pan Bracket into the bottom of Heat Shield.
[] Insert the Grease Pan into the Grease Pan Bracket as shown.
i=,l,,i,,i,iim,
1!

Install Control Knobs
[] Press 3 Control Knobs onto the valve stems as shown.
Install Side Shelf Supports to Firebox
[] Attach Side Shelf Right Front Support and Side Shelf Right Back Support to Firebox using 4 Flat
Head Bolts (M6x12mm).
[] Attach Side Shelf Left Front Support and Side Shelf Left Back Support to firebox using 4 Flat
Head Bolts (M6x12mm),
Note: Position the supports so that the pins are at the bottom of the supports and extend
towards the center of the Firebox,
Flat Head Bolt M6x12mm
Qty: 8
Pin
12

Attach Side Shelf
[] Position Shelves brackets to the inside of the Shelf supports.
[] Attach Left and Right Shelves to Firebox with two Step Bolts (M6) each. Securely tighten
bolts.
Step Bolt M6
Qty: 4
Side Shelf Operation
[] Pull up on the Left Side Shelf and slide down over the support pins to secure in the upright
position. Repeat the same procedure on the Right Shelf. To lower, slide shelves up and fold
down into storage position.
|mmmmm •mmmmm
Pin
13

I_ nstall the Heat Diffusers, Cooking Grates, Warming Rack
[] Insert the Heat Diffusers into the firebox by placing them into the indentations along the front
and back of the firebox, See Figure 1,
[] Place the Cooking Grates into the firebox, See Figure 2,
[] Insert the Warming Rack into the slots of firebox side panels as shown, See Figure 3,
Figure i
Figure 2
Figure 3
14

Grill Transport Handle
[] Attach Transport Handle and 2 Handle Heat Shields to the back of the Firebox using 4 Flat Head
Bolts (M6x25mm).
Grill Transport Handle Heat Shield
Qty: 2
Flat Head Bolt M6x25mm
Qty: 4
Install the Regulator Hose Support Chain
[] Attach the Regulator Hose Support Chain (on the regulator hose) to the back of Cabinet Side
Panel using i Washer Head Bolt (M4xi0mm).
Washer Head Bolt M4xi0mm
Qty: i
15

1_ Place and Secure LP Cylinder into the Cabinet
[] Be sure the LP cylinder is "OFF" by turning the hand wheel clockwise until it stops. Place the LP
cylinder down into the tank support hole in the bottom of the cabinet. Be sure the grill burner
controls are turned to the "OFF" position, Remove the safety cap from the cylinder valve, Center
the nipple of the grill regulator into the cylinder and turn the black nut clockwise until it stops,
Hand tighten only,
[] Hang the propane tank support chain around the LP tank and attach to its hook to secure the
tank,
Propane Tank Support Chain
Qty: 1
immlmmlmmlm,i •
Install Battery
[] Unscrew the electronic igniter button. Place the AA Battery into the igniter with the positive (+)
end up, Screw the electronic igniter button back into place,
Battery (Size AA)
Qty: 1
Do not dispose batteries into fire
as they may leak or explode.
ld

Congratulations - Assembly is now complete!
[] Remove any additional labels or packing material from the grill except the CSA label. Be sure to
clean all foam packing material out of all areas.
[] Level your grill by adjusting the 2 front feet.
[] Please proceed to and read the remaining sections of the Use & Care Guide prior to operating
your grill.
Grill Transport
[] Grasp Grill Transport Handle with one hand and Grill Hood Handle with the other. Place foot
against back of grill base for leverage. Tilt grill back onto wheels to transport.
CAUTION: Grill must be completely cooled down before transporting.
17

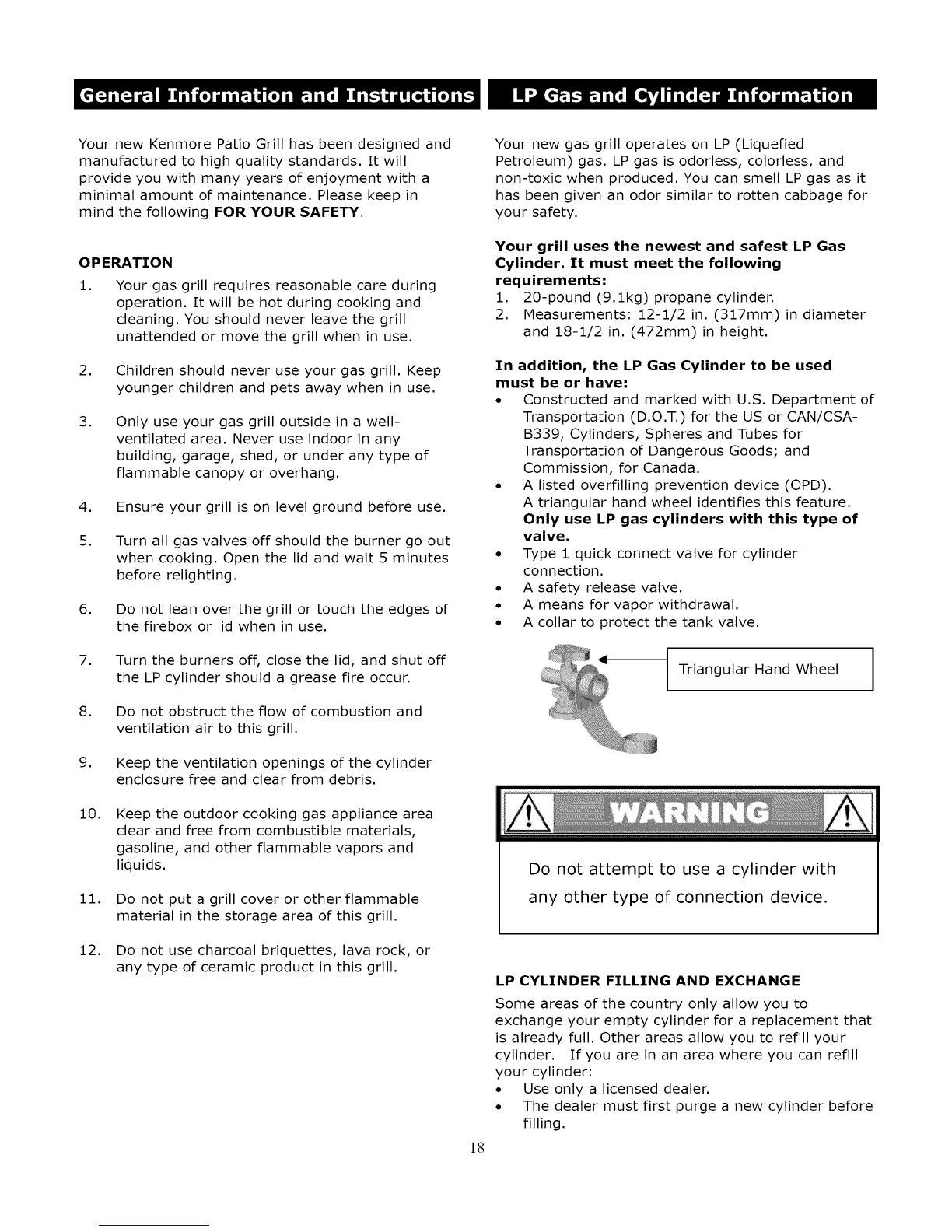

YournewKenmorePatioGrillhasbeendesignedand
manufacturedto highqualitystandards.It will
provideyouwithmanyyearsofenjoymentwitha
minimalamountofmaintenance.Pleasekeepin
mindthefollowingFOR YOUR SAFETY.
Your new gas grill operates on LP (Liquefied
Petroleum) gas. LP gas is odorless, colorless, and
non-toxic when produced. You can smell LP gas as it
has been given an odor similar to rotten cabbage for
your safety.
OPERATION
1, Your gas grill requires reasonable care during
operation. It will be hot during cooking and
cleaning. You should never leave the grill
unattended or move the grill when in use.
2, Children should never use your gas grill. Keep
younger children and pets away when in use.
3, Only use your gas grill outside in a well-
ventilated area. Never use indoor in any
building, garage, shed, or under any type of
flammable canopy or overhang.
4. Ensure your grill is on level ground before use.
5. Turn all gas valves off should the burner go out
when cooking. Open the lid and wait 5 minutes
before relighting.
6, Do not lean over the grill or touch the edges of
the firebox or lid when in use.
7. Turn the burners off, close the lid, and shut off
the LP cylinder should a grease fire occur.
8, Do not obstruct the flow of combustion and
ventilation air to this grill.
Your grill uses the newest and safest LP Gas
Cylinder. It must meet the following
requirements:
1. 20-pound (9.1kg) propane cylinder.
2. Measurements: 12-1/2 in. (317mm) in diameter
and 18-1/2 in. (472mm) in height.
In addition, the LP Gas Cylinder to be used
must be or have:
• Constructed and marked with U.S. Department of
Transportation (D.O.T.) for the US or CAN/CSA-
B339, Cylinders, Spheres and Tubes for
Transportation of Dangerous Goods; and
Commission, for Canada.
• A listed overfilling prevention device (OPD).
A triangular hand wheel identifies this feature.
Only use LP gas cylinders with this type of
valve,
• Type 1 quick connect valve for cylinder
connection.
• A safety release valve.
• A means for vapor withdrawal.
• A collar to protect the tank valve.
Triangular Hand Wheel I
9, Keep the ventilation openings of the cylinder
enclosure free and clear from debris.
10.
11.
Keep the outdoor cooking gas appliance area
clear and free from combustible materials,
gasoline, and other flammable vapors and
liquids.
Do not put a grill cover or other flammable
material in the storage area of this grill.
Do not attempt to use a cylinder with
any other type of connection device.
12. Do not use charcoal briquettes, lava rock, or
any type of ceramic product in this grill.
]8
LP CYLINDER FILLING AND EXCHANGE
Some areas of the country only allow you to
exchange your empty cylinder for a replacement that
is already full. Other areas allow you to refill your
cylinder. If you are in an area where you can refill
your cylinder:
• Use only a licensed dealer.
• The dealer must first purge a new cylinder before
filling.

• Neverfill acylindermorethan80%full by
weight,Volumewillvarybytemperature.An
emptycylinderweighsapproximately18pounds
(8.2kgs).
• BesuretheLPdealerchecksthecylinderfor
leaksafterfilling.
• DonotreleaseLPgasintotheatmosphereasit
canunexpectedlyignitewhenmixedwithair.
• ContactanLPdealerto removeLPgasfroma
cylinder.
Afrostycylindervalveindicatespossiblegas
overfill.ClosetheLPvalveandcallyourdealer
immediately.
LP CYLINDER LEAK TEST
A leak test should be done each time a cylinder is
refilled or exchanged. Do not smoke or use any type
of flammable material in the area during this leak
test.
Do not use an open flame to check for leaks.
• Test outside in a well - ventilated area.
• Use a paintbrush and a solution of 50% liquid
soap and 50% water. Do not use cleaning agents
as they can damage the fuel supply parts.
• Brush liquid onto areas highlighted with arrows.
• Bubbles indicate a leak. /
/
/
1. Never store any extra cylinders under or near
your grill.
2. Never fill your cylinder over 80% full by volume.
This may cause release of gas from the safety
release valve.
3. If the information in "1" and "2" is not followed
exactly, a fire causing death or serious injury
may occur.
4. Immediately call your LP dealer or fire
department should you hear or smell escaping
gas.
5. Keep cylinders out of direct sunlight and high
heat.
6. Do not insert any type of foreign objects into
the valve outlet.
Bubbles indicate a leak. In that case, call your LP
dealer or fire department immediately.
TRANSPORTATION AND STORAGE
• Place the dust cap on the cylinder valve outlet
whenever the cylinder is not in use. Only install
the type of dust cap on the cylinder valve outlet
that is provided with the cylinder valve. Other
types of caps or plugs may result in leakage of
propane.
• Do not smoke when transporting your cylinder.
• Keep cylinders out of direct sunlight and away
from sources of heat.
The gas supply must be turned off at the LP gas
supply cylinder when this gas grill is not in use.
Storage of this gas grill indoors is permissible
only if the cylinder is disconnected and removed
from the gas grill.
Cylinders must be stored outdoors out of reach
of children and must not be stored in a building,
garage, or any other enclosed area.
19
Dust Cap
Keep the gas cylinder in the upright position at
all times to allow for vapor withdrawal. Always
keep gas cylinders upright for
transportation and storage.

Thepressureregulatorandhoseassemblyprovided
withthisgasgrillmustbeused.Thisregulatorisset
foranoutletpressureof11incheswatercolumn.
Replacementpressureregulatorsandhose
assembliesmustbethosespecifiedinthepartslist.
YourregulatorisequippedwithaQ.C.C.Type1quick
connectsystem.It willnotallowgastoflowuntila
positivesealhasbeenmade.It hasaflow-limiting
devicethatwillrestricttheflowofgasto 10cubic
feetperhour(0.28cubicmetersperhour).
TO PLACE THE CYLINDER INTO THE GRILL
CABINET
1. Place the LP tank cylinder in the cabinet bottom
panel.
2. The front of the tank valve should face out from
the enclosure.
3. Wrap the tank support ring around the tank and
latch over its hook to secure the tank.
I he regulator must enter the I
cylinder valve in a straiqht line.
I
Center this nipple of the I
regulator into the cylinder valve. I
I Q.C.C.1 Type 1 Connector I
Keep the gas cylinder in the upright position at
all times.
TO CONNECT THE CYLINDER TO THE
REGULATOR AND HOSE
1. Place the cylinder into the cabinet following the
information in the assembly instructions.
2. Be sure the LP cylinder is "OFF" by turning the
hand wheel clockwise until it stops.
3. Be sure the burner controls are turned to the
"OFF" position.
4. Remove the safety cap from the cylinder valve.
5. Center the nipple of the regulator into the
cylinder.
6. Turn the black nut clockwise until it stops.
Hand Tighten Only, Do Not Use A Wrench.
• Do not connect this grill to any unregulated
sources of propane.
• Before each use, check the gas hose for
excessive abrasion or wear, or cuts. Replace a
hose assembly showing those signs with the
hose assembly specified in the parts list before
using the grill. Inspect the hose assembly by
following it from the LP tank connection to the
gas manifold assembly.
• Always perform the Leak Test listed below
before using your grill for the first time, if the
cylinder has been changed, any gas
components have been changed, the regulator
flow-limiting device has been activated, or
after a long period of non-use.
• Do not attempt to connect this grill to the LP
system of a motor home or trailer.
2O
