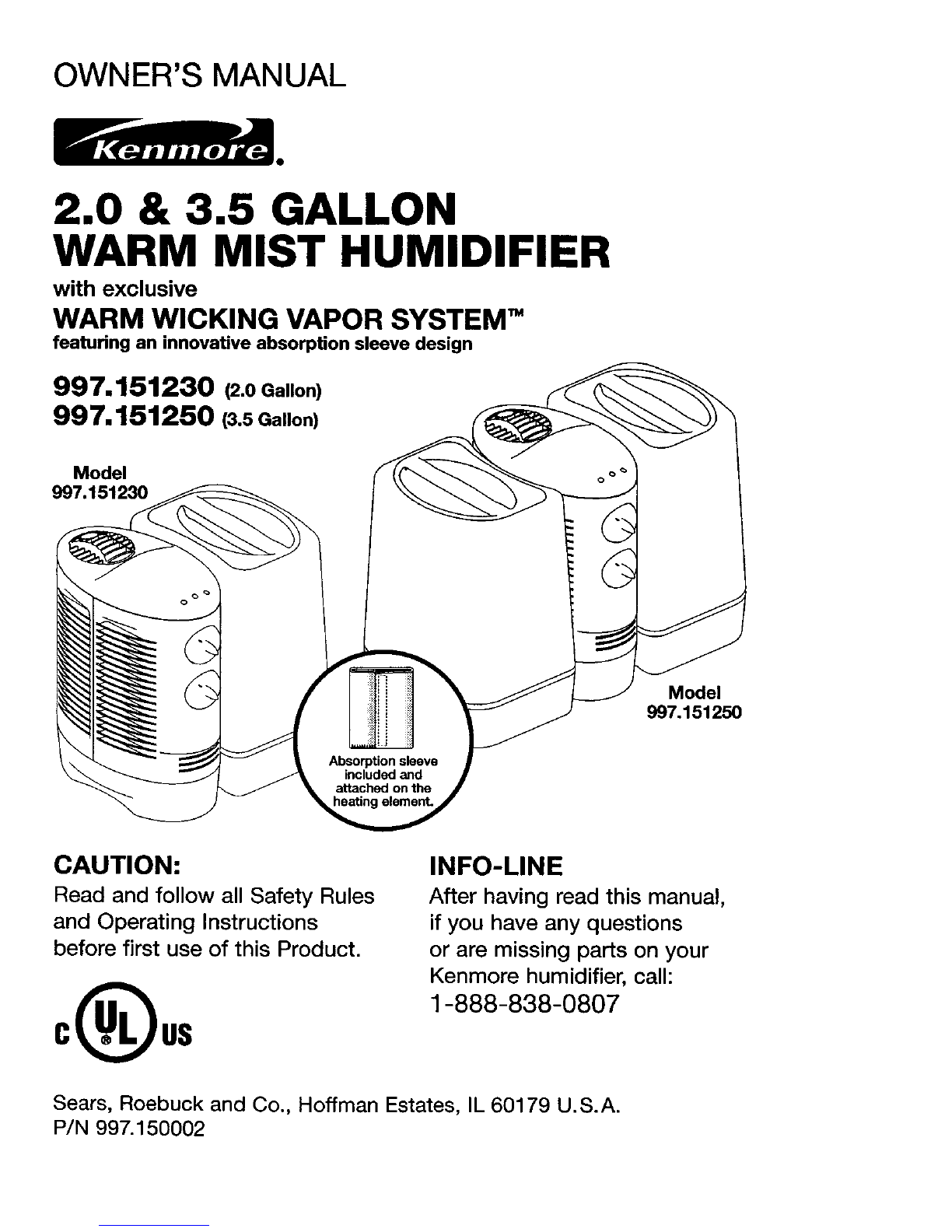

OWNER'S MANUAL
2.0 & 3.5 GALLON
WARM MIST HUMIDIFIER
with exclusive
WARM WICKING VAPOR SYSTEM TM
featuring an innovative absorption sleeve design
997.151230 (20Gallon)
997.151250 (3sGallon)
Model
997.151230
Model
997.151250
CAUTION:
Read and follow all Safety Rules
and Operating Instructions
before first use of this Product.
INFO-LINE
After having read this manual,
if you have any questions
or are missing parts on your
Kenmore humidifier, call:
1-888-838-0807
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
P/N 997.150002

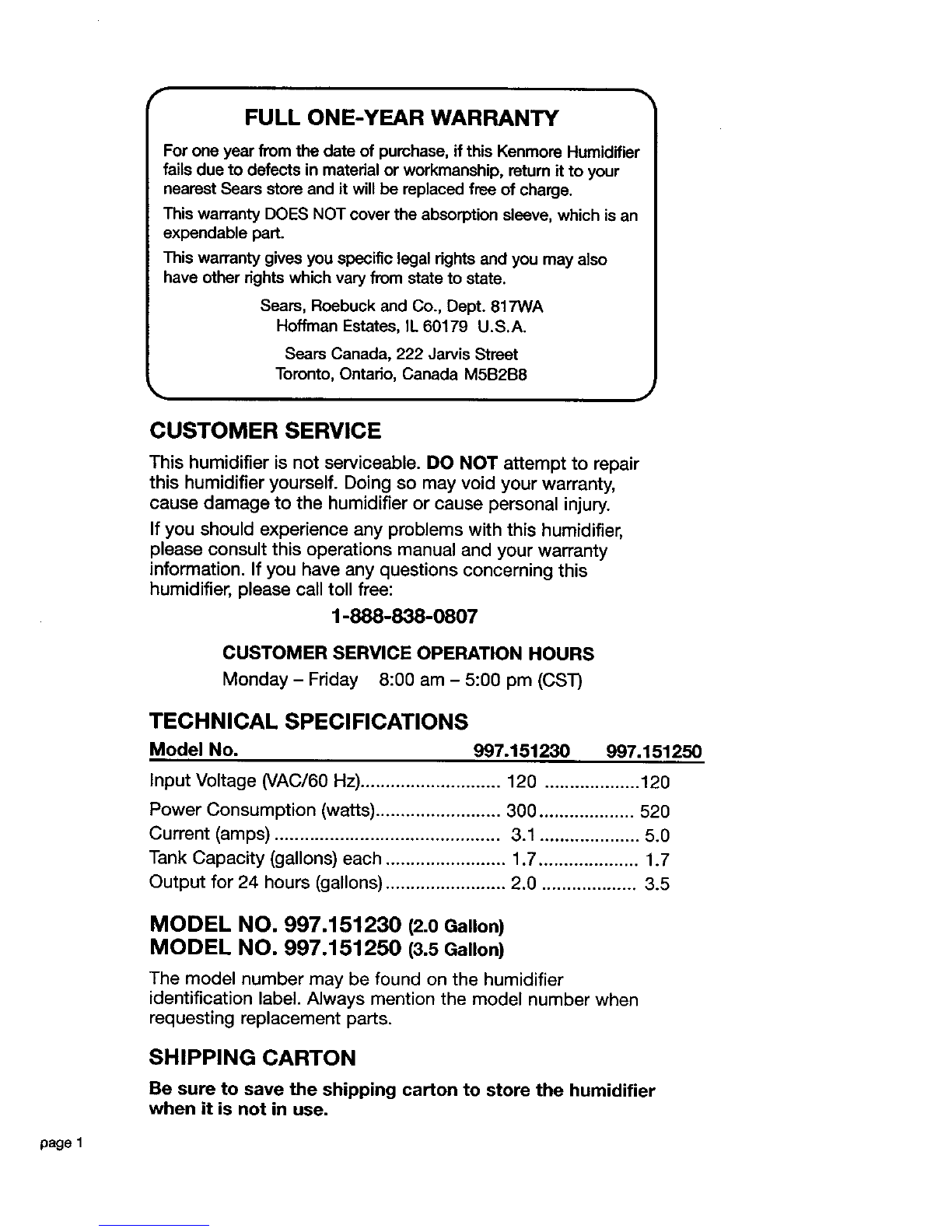

FULL ONE-YEAR WARRANTY
For one year from the date of purchase, if this Kenmore Humidifier
fails due to defects in material or workmanship, return it to your
nearest Sears store and it will be replaced free of charge.
This warranty DOES NOT cover the absorption sleeve, which is an
expendable part.
This warranty gives you specific legal rights and you may also
have other rights which vary from state to state.
Sears, Roebuck and Co., Dept. 817WA
Hoffman Estates, IL 60179 U.S.A.
Sears Canada, 222 Jarvis Street
Toronto, Ontario, Canada M5B2B8
CUSTOMER SERVICE
This humidifier is not serviceable. DO NOT attempt to repair
this humidifier yourself. Doing so may void your warranty,
cause damage to the humidifier or cause personal injury.
If you should experience any problems with this humidifier,
please consult this operations manual and your warranty
information. If you have any questions concerning this
humidifier, please call toll free:
1-888-838-0807
CUSTOMER SERVICE OPERATION HOURS
Monday - Friday 8:00 am - 5:00 pm (cs-r)
TECHNICAL SPECIFICATIONS
Model No. 997.151230 997.151250
Input Voltage (VAC/60 Hz) ............................ 120 ................... 120
Power Consumption (watts) ......................... 300 ................... 520
Current (amps) ............................................. 3.1 .................... 5.0
Tank Capacity (gallons) each ........................ 1.7 .................... 1.7
Output for 24 hours (gallons) ........................ 2.0 ................... 3.5
MODEL NO. 997.151230 (2.0Gallon)
MODEL NO. 997.151250 (3.5Gallon)
The model number may be found on the humidifier
identification label. Always mention the model number when
requesting replacement parts.
SHIPPING CARTON
Be sure to save the shipping carton to store the humidifier
when it is not in use.
p_el

GENERAL SAFETY INSTRUCTIONS
• As with all electrical appliances, be sure to follow basic
safety procedures to minimize risk of injury.
•To avoid electrical shock or fire, be sure to plug into a 120v
AC outlet only. Make sure the plug is fully inserted.
•The power cord has apolarized AC plug, which will fit into
the outlet one way only (one blade is wider than the other).
If the plug will not insert fully with the outlet you are using,
try reversing the plug. If the plug still fails to fit, call an
electrician to replace the older outlet. Never alter the plug to
fit into an obsolete outlet. Doing so may compromise safety.
•Use this product indoors only.
• Do not use an extension cord.
• Do not place power cord under carpeting, rugs, or runners.
Arrange the power cord as not to be a tripping hazard.
•Do not use this product if parts are missing. Do not use this
appliance if the power cord shows signs of damage, or if the
appliance has been dropped or misused.
• Use this appliance on a flat, level surface only. This appliance
may not function properly if placed on an uneven surface.
• Place this humidifier on a water-resistant surface.
• Be sure to unplug the appliance when not in use, while
cleaning, or replacing the absorption sleeve.
• Never tip or move this appliance while operating it, or while
water is in the base or tank(s).
• Do not place this appliance near furnaces, heaters, stoves,
or any other source of heat.
• Position this appliance out of the reach of children.
• Do not attempt to use this humidifier without the absorption
sleeve.
• Be sure the humidifier's heating element has cooled down
sufficiently before moving, cleaning, or replacing the
absorption sleeve.
• This appliance requires periodic maintenance, including
cleaning or replacement of the absorption sleeve.
Refer to those instructions in this manual.
• Do not use anything other than water in this appliance.
Do not use additives.
•Turn off the humidifier if relative humidity exceeds 60%.
•Never block the mist outlet.
Save these important instructions for future reference.
page 2

GETTING TO KNOW YOUR HUMIDIFIER
Model No. 997.151230 (2.0 Gallon)
10 _2 9
1. Tank
2. Cap
3. Base
4. Mist Chamber
5. Power Control Knob
6. Humidistat Control Knob
7. Medicine Cup
8. Tank Carry Handle (top)
9. Tank Carry Handle (bottom)
10. Safety Switch
11. Locking Device
12. Grill
Model No. 997.151250 (3.5 Gallon)
Power Lilg_ _
Humidit
page 3
3_

INTRODUCTION
Congratulations on your purchase of your new Kenmore Warm
Mist Humidifier with exclusive Warm Wicking Vapor System'.
You have purchased the newest and most advanced technology
available in warm mist humidifiers. This patented technology
creates an extremely quiet, low-maintenance humidifier.
WHAT IS WARM WlCKING VAPOR SYSTEM'?
Warm Wicking Vapor System" is a new, revolutionary,
patented technology that eliminates annoying problems
associated with other warm mist humidifiers. An absorption
sleeve placed on the heating element traps dirt and unwanted
minerals, preventing buildup on the heating element and near
the steam outlet. The sleeve also works to eliminate annoying
bubbling and gurgling sounds created by other warm mist
humidifiers.
•No dangerous mineral buildup on the heating element!
•No unsightly mineral buildup near the steam outlet!
•No noisy gurgling sounds to keep you awake at night!
•No need to perform tedious cleaning of the heating element!
ADVANTAGES OF MAINTAINING PROPER
MOISTURE LEVELS
Dry indoor air can be uncomfortable and damaging to people,
pets, plants and belongings. Proper moisture levels can help
alleviate or prevent:
• Stuffy, dry nasal passages
• Dry coughs and irritated throats
• Parched lips and itchy, flaky skin
• Dry, cracking wood furniture
• Dry plants, flowers
• Static electricity
• Dry coats and minimizes
shedding for pets
IMPORTANT! It is recommended that you remove and inspect your
absorption sleeve every time you refill your tank(s). Clean or replace your
sleeve if you notice any mineral buildup or discoloration on the outside or
inside of your absorption sleeve. Failure to properly maintain your
absorption sleeve can result in poor performance and possible malfunction
of your humidifier. For best results use distilled or filtered water.
page 4

HOW YOUR HUMIDIFIER WORKS
Water flows from the tank(s) into the humidifier base.
The water is then absorbed up the absorption sleeve where it
is heated, purified and converted into warm mist. The warm
mist then rises up through the mist chamber, dispensing
comfortable, soothing, invisible moisture into the air. During
this process, unwanted minerals are trapped within the
absorption sleeve material.
PRE-OPERATING INSTRUCTIONS
Locate an appropriate, level, flat surface near an electrical
outlet for placement of your humidifier. Be sure to place your
humidifier on a water-resistant surface, since water can cause
damage to furniture. Position the humidifier so the power cord
does not become a tripping hazard. To ensure proper
ventilation, be sure to keep the humidifier at least 6 inches
from a wall or any other object.
Model Model
,' 997.151230 997.151250
;°°o (2.0 Gallon)
page 5
Mist Chamber Locking Device i
Remove the tank(s) from the base by grasping top handle.
Rotate the mist chamber locking device to unlock the mist
chamber (see illustration above). Lift the mist chamber off the
base. Locate the absorption sleeve attached to the heating
element on the underside of mist chamber. Be sure the sleeve
is tightly attached to the heating element. Loosely attached
absorption sleeves may produce less humidity and cause
malfunctions.
CAUTION- Never attempt to use this humidifier without the
absorption sleeve.
Refer to pages 8-9 for proper absorption sleeve attachment.
Replace the mist chamber. Turn locking device to secure mist
chamber to the base. Replace tank(s).

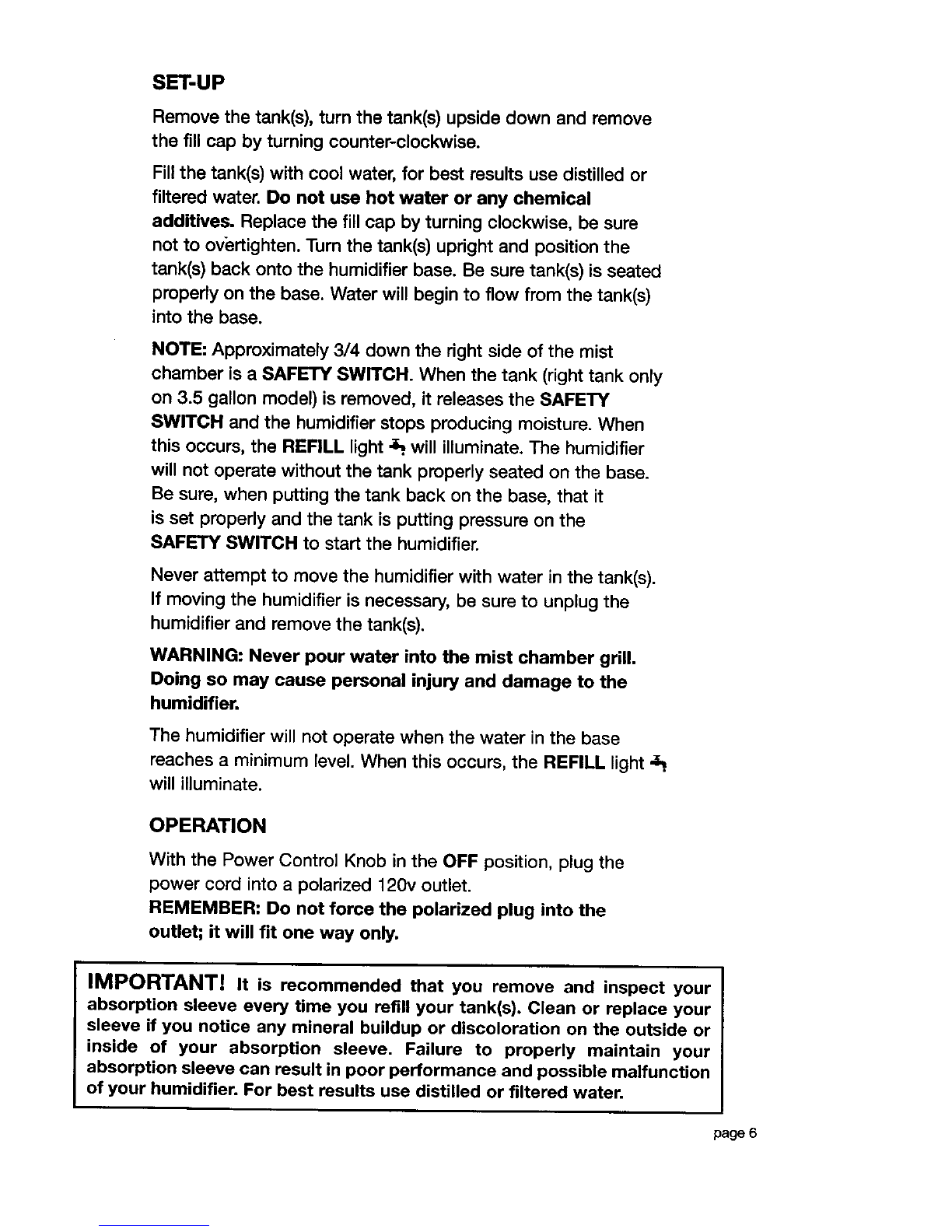

SET-UP
Remove the tank(s), turn the tank(s) upside down and remove
the fill cap by turning counter-clockwise.
Fill the tank(s) with cool water, for best results use distilled or
filtered water. Do not use hot water or any chemical
additives. Replace the fill cap by turning clockwise, be sure
not to overtighten. Turn the tank(s) upright and position the
tank(s) back onto the humidifier base. Be sure tank(s) is seated
properly on the base. Water will begin to flow from the tank(s)
into the base.
NOTE: Approximately 3/4 down the right side of the mist
chamber is a SAFETY SWITCH. When the tank (right tank only
on 3.5 gallon model) is removed, it releases the SAFETY
SWITCH and the humidifier stops producing moisture. When
this occurs, the REFILL light "_.will illuminate. The humidifier
will not operate without the tank properly seated on the base.
Be sure, when putting the tank back on the base, that it
is set properly and the tank is putting pressure on the
SAFETY SWITCH to start the humidifier.
Never attempt to move the humidifier with water in the tank(s).
If moving the humidifier is necessary, be sure to unplug the
humidifier and remove the tank(s).
WARNING: Never pour water into the mist chamber grill.
Doing so may cause personal injury and damage to the
humidifier.
The humidifier will not operate when the water in the base
reaches a minimum level. When this occurs, the REFILL light
will illuminate.
OPERATION
With the Power Control Knob in the OFF position, plug the
power cord into a polarized 120v outlet.
REMEMBER: Do not force the polarized plug into the
outlet; it will fit one way only.
IMPORTANT! It is recommended that you remove and inspect your
absorption sleeve every time you refill your tank(s). Clean or replace your
sleeve if you notice any mineral buildup or discoloration on the outside or
inside of your absorption sleeve. Failure to properly maintain your
absorption sleeve can result in poor performance and possible malfunction
of your humidifier. For best results use distilled or filtered water.
page 6

WARNING: Do not attempt to plug the humidifier in with wet
hands, as an electrical shock may occur.
Turn the Humidistat Control Knob to the MAX position
(far right). Turn the Power Control Knob to the desired position:
HIGH for fast humidification or LOW for more gradual
humidification. When the power is ON, the POWER light
will illuminate.
Comforting, invisible warm mist will begin in 2-4 minutes.
NOTE: If the humidifier does not produce moisture, the
humidistat may be positioned too low. Moving the
Humidistat Control Knob to a higher position (farther right)
should start the humidifier. Do not force the Humidistat
Control Knob beyond the MAX position. Doing so will cause
damage to the humidifier.
When the humidity in the immediate area reaches the setting
on the Humidistat Control Knob, the HUMIDITY light 6will
illuminate and the humidifier will stop producing moisture.
When the humidity in the immediate area drops below the
Humidistat Control Knob setting, the humidifier will
automatically start producing moisture again and the
HUMIDITY light 6 will not be illuminated. This ON/OFF cycle
will continue while the humidifier is in use.
If condensation begins to form on walls or windows, lower the
Humidistat Control Knob setting (turn knob to the left).
When you are finished using the humidifier, be sure to turn the
Power Control Knob to the OFF position.
REFILLING THE TANK(S)
When the water reaches a minimum level in the base, the
REFILL light "_. will illuminate and the humidifier will
automatically stop producing moisture.
Fill the tanks with cool water, for best results, use distilled or
filtered water. Do not use hot water or chemical additives.
If the humidifier is already in the ON position, the humidifier will
automatically start producing warm mist in 2-4 minutes.
NOTE: Approximately 3/4 down the right side of the mist cham-
ber is a SAFETY SWITCH. When the tank (right tank only on
3.5 gallon model) is removed, it releases the SAFETY SWITCH
page 7

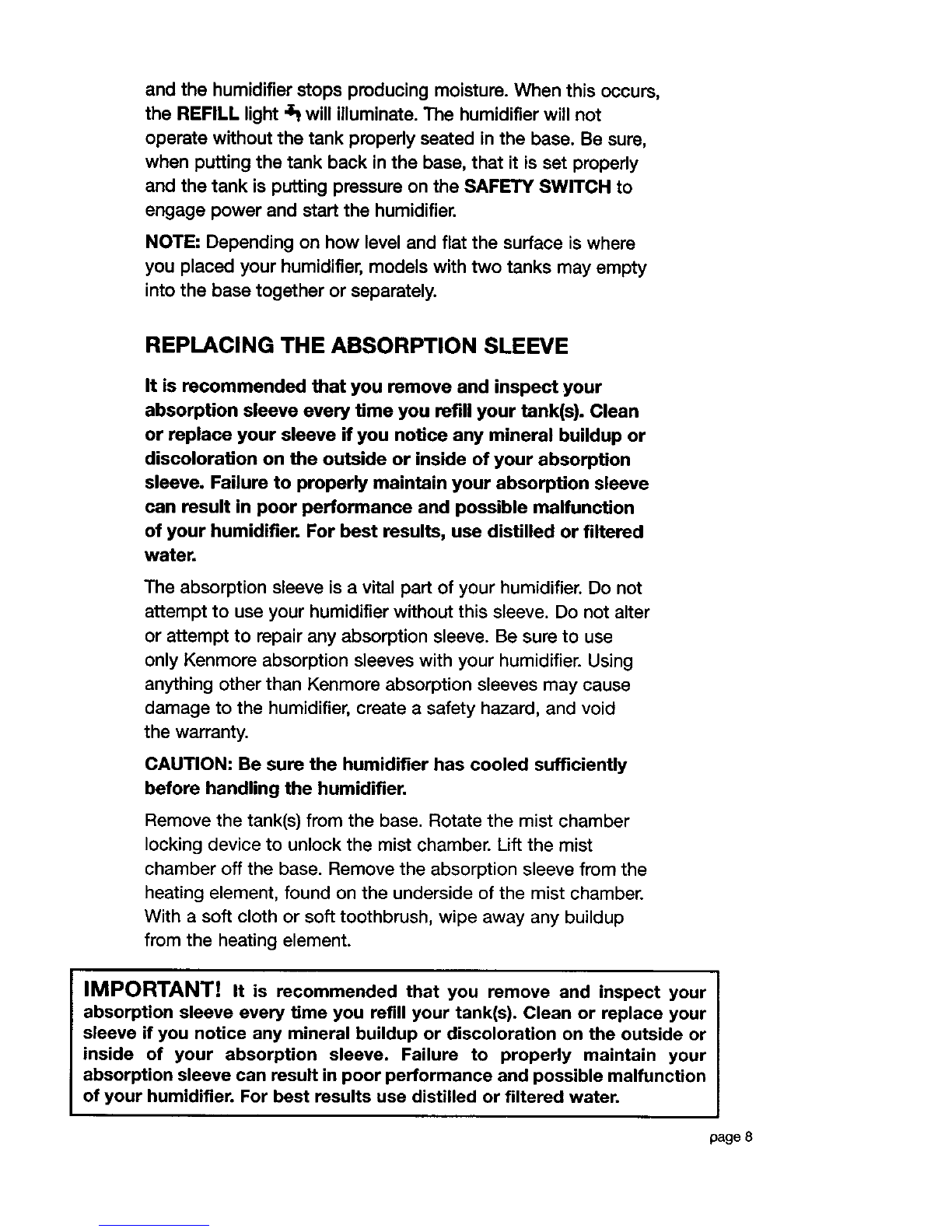

and the humidifier stops producing moisture. When this occurs,
the REFILL light _will illuminate. The humidifier will not
operate without the tank properly seated in the base. Be sure,
when putting the tank back in the base, that it is set properly
and the tank is putting pressure on the SAFETY SWITCH to
engage power and start the humidifier.
NOTE: Depending on how level and flat the surface is where
you placed your humidifier, models with two tanks may empty
into the base together or separately.
REPLACING THE ABSORPTION SLEEVE
It is recommended that you remove and inspect your
absorption sleeve every time you refill your tank(s). Clean
or replace your sleeve if you notice any mineral buildup or
discoloration on the outside or inside of your absorption
sleeve. Failure to properly maintain your absorption sleeve
can result in poor performance and possible malfunction
of your humidifier. For best results, use distilled or filtered
water.
The absorption sleeve is a vital part of your humidifier. Do not
attempt to use your humidifier without this sleeve. Do not alter
or attempt to repair any absorption sleeve. Be sure to use
only Kenmore absorption sleeves with your humidifier. Using
anything other than Kenmore absorption sleeves may cause
damage to the humidifier, create a safety hazard, and void
the warranty.
CAUTION: Be sure the humidifier has cooled sufficiently
before handling the humidifier.
Remove the tank(s) from the base. Rotate the mist chamber
locking device to unlock the mist chamber. Lift the mist
chamber off the base. Remove the absorption sleeve from the
heating element, found on the underside of the mist chamber.
With a soft cloth or soft toothbrush, wipe away any buildup
from the heating element.
IMPORTANT! It is recommended that you remove and inspect your
absorption sleeve every time you refill your tank(s). Clean or replace your
sleeve if you notice any mineral buildup or discoloration on the outside or
inside of your absorption sleeve. Failure to properly maintain your
absorption sleeve can result in poor performance and possible malfunction
of your humidifier. For best results use distilled or filtered water.
page 8

Attach a new or cleaned absorption sleeve to the heating
element. Pull sleeve tightly around the heating element and
secure it with the attached Velcro® fastener. See illustrations
below.
NOTE: It is important to be sure the sleeve is very tight
around the heating element for best performance.
_iiili
!iii
i!i_i
iiil
_AA&AA_
Wrong Wrong Correct
•Replacement Sleeve Item No. 15005.
Absorption Sleeve 3-Pack Item No. 15110 can be found at
your local Sears store.
CLEANING THE ABSORPTION SLEEVE
Hand wash the absorption sleeve using running tap water,
while gently rubbing the inside and outside of sleeve with your
fingers. Do not put absorption sleeve in washer or dishwasher.
•Inspect the absorption sleeve for signs of wear. Do not use
if sleeve is torn, tattered, or has holes.
NOTE: Washed absorption sleeves may build up minerals more
quickly and may experience deterioration of the sleeve material.
Washed absorption sleeves will need more frequent cleaning.
page 9
CLEANING THE HUMIDIFIER
It is strongly recommended that you clean your humidifier at
least once a week, or more frequently if you:
•Have hard water.
•Notice a buildup of impurities.
•Notice an unpleasant odor.
Always turn off and unplug the humidifier before cleaning.
Be sure to wait until the heating element has cooled
sufficiently.

Periodicallywipe down the outside of the humidifier with a
damp, soft cloth. Do not use harsh, abrasive cleaners on this
humidifier. Never submerse the mist chamber in liquid or pour
liquid in or on the mist chamber. Doing so may damage the unit
and may cause injuries.
CLEANING THE TANK(S)
Put 1/2 teaspoon of chlorine bleach and 1/2 gallon of water in
the tank. Let solution stand for 20 minutes swishing every few
minutes, Empty tank(s) and rinse well with water until bleach
smell is gone.
CLEANING THE BASE
Mineral deposits will accumulate in the base of the humidifier
from time to time. When this occurs, the base should be
cleaned. Remove the tank(s) and mist chamber. The base can
be put in the dishwasher or cleaned with a damp, soft cloth.
CAUTION: Only the base is dishwasher safe. Do not
attempt to put the tank, mist chamber or absorption sleeve
in the dishwasher. Doing so may damage the humidifier and
create a safety hazard.
END OF SEASON CARE AND STORAGE
•Empty the tank and base of all water.
• Clean all surfaces with a damp, soft cloth.
• Clean the base by putting it in the dishwasher or wiping it
with a damp, soft cloth.
• Remove the absorption sleeve and replace with a dry sleeve.
NOTE: Before storing your humidifier for the season, or for
any extended period of time, be sure the absorption sleeve
is completely dry to help prevent mold and mildew. Air dry
only. Do not put in dryer.
• Store the unit in its original carton, in a cool dry location.
• Remember to clean and inspect your humidifier before using
it the next season.
IMPORTANT! It is recommended that you remove and inspect your
absorption sleeve every time you refill your tank(s). Clean or replace your
sleeve if you notice any mineral buildup or discoloration on the outside or
inside of your absorption sleeve. Failure to properly maintain your
absorption sleeve can result in poor performance and possible malfunction
of your humidifier. For best results use distilled or filtered water.
page 10

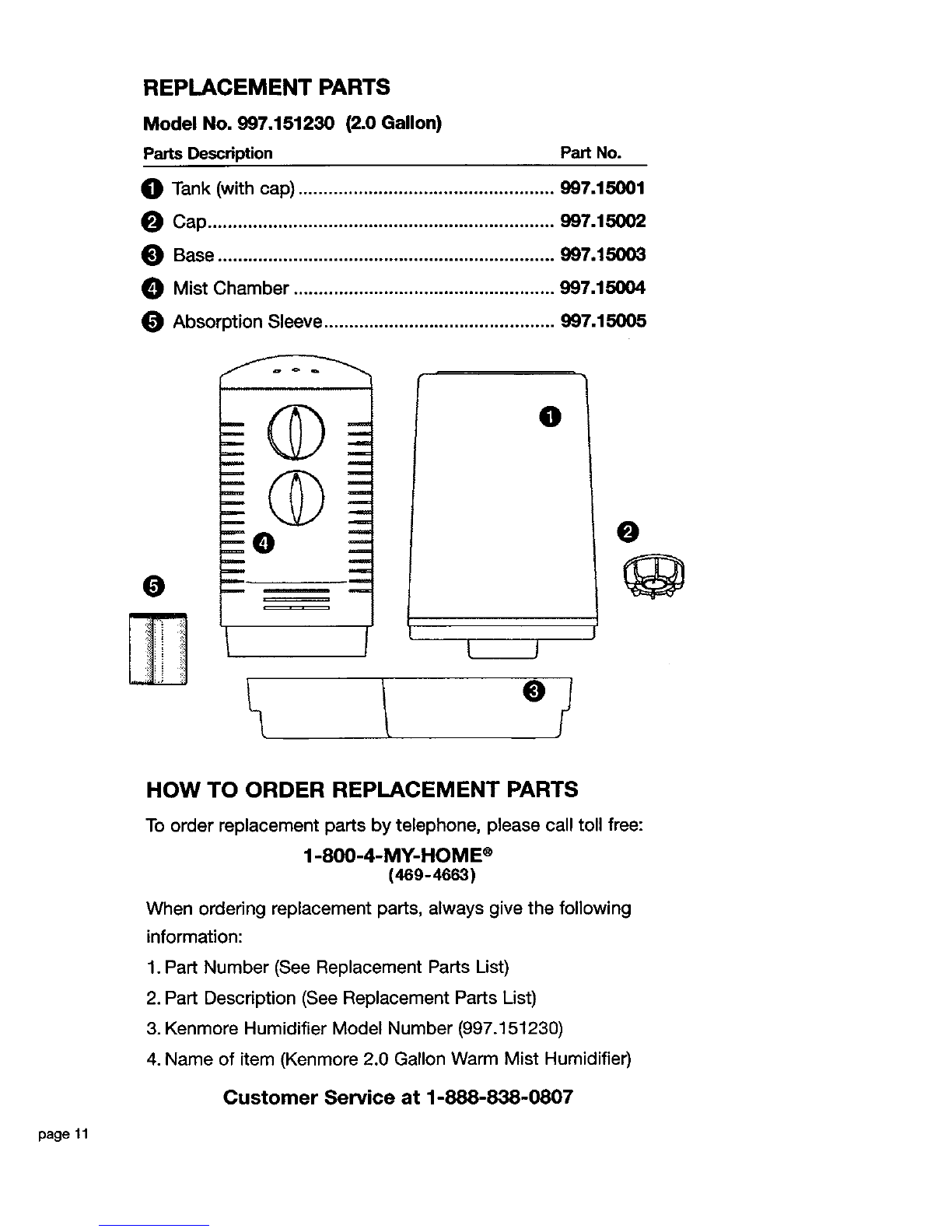

REPLACEMENT PARTS
Model No. 997.151230 (2.0 Gallon)
Parts Description Part No.
(]) Tank (with cap) ................................................... 997.15001
OCap ..................................................................... 997.15002
_) Base ................................................................... 997.15003
_]) Mist Chamber .................................................... 997.15004
Absorption Sleeve .............................................. 997.15005
@
0
LL J
/ °/
0
p_e11
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts by telephone, please call toll free:
1-800-4-MY-HOME ®
(469-4663)
When ordering replacement parts, always give the following
information:
1. Part Number (See Replacement Parts List)
2. Part Description (See Replacement Parts List)
3. Kenmore Humidifier Model Number (997.151230)
4. Name of item (Kenmore 2.0 Gallon Warm Mist Humidifier)
Customer Service at 1-888-838-0807

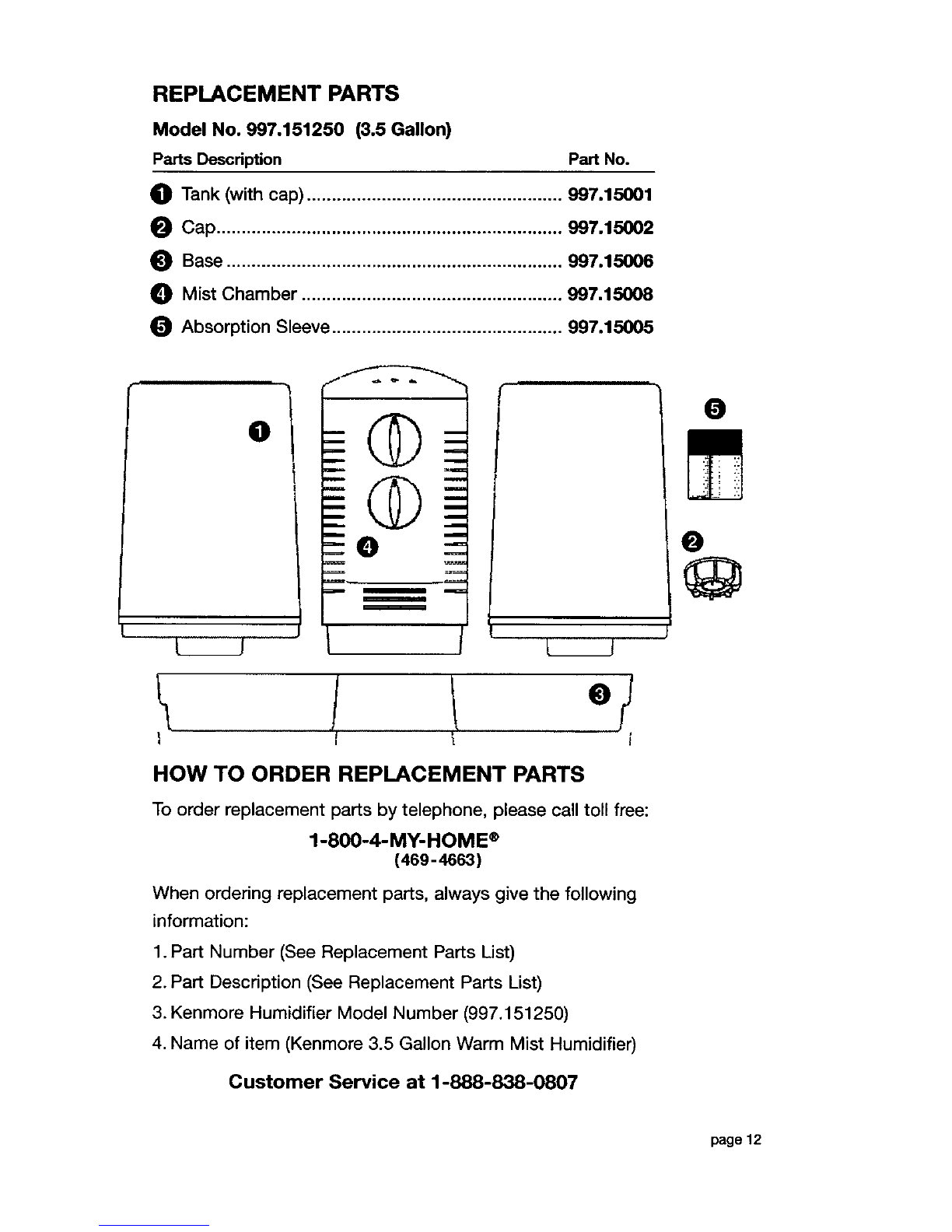

REPLACEMENT PARTS
Model No. 997.151250 (3.5 Gallon)
Parts Description Part No.
_0) Tank (with cap) ................................................... 997.15001
O Cap ..................................................................... 997.15002
Base ................................................................... 997.15006
_) Mist Chamber .................................................... 997.15008
OAbsorption Sleeve .............................................. 997.15005
O®
®
\...../!0
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts by telephone, please call toll free:
1-800-4-MY-HOME ®
(469-4663)
When ordering replacement parts, always give the following
information:
1. Part Number (See Replacement Parts List)
2. Part Description (See Replacement Parts List)
3. Kenmore Humidifier Model Number (997.151250)
4. Name of item (Kenmore 3.5 Gallon Warm Mist Humidifier)
Customer Service at 1-888-838-0807
O
page 12

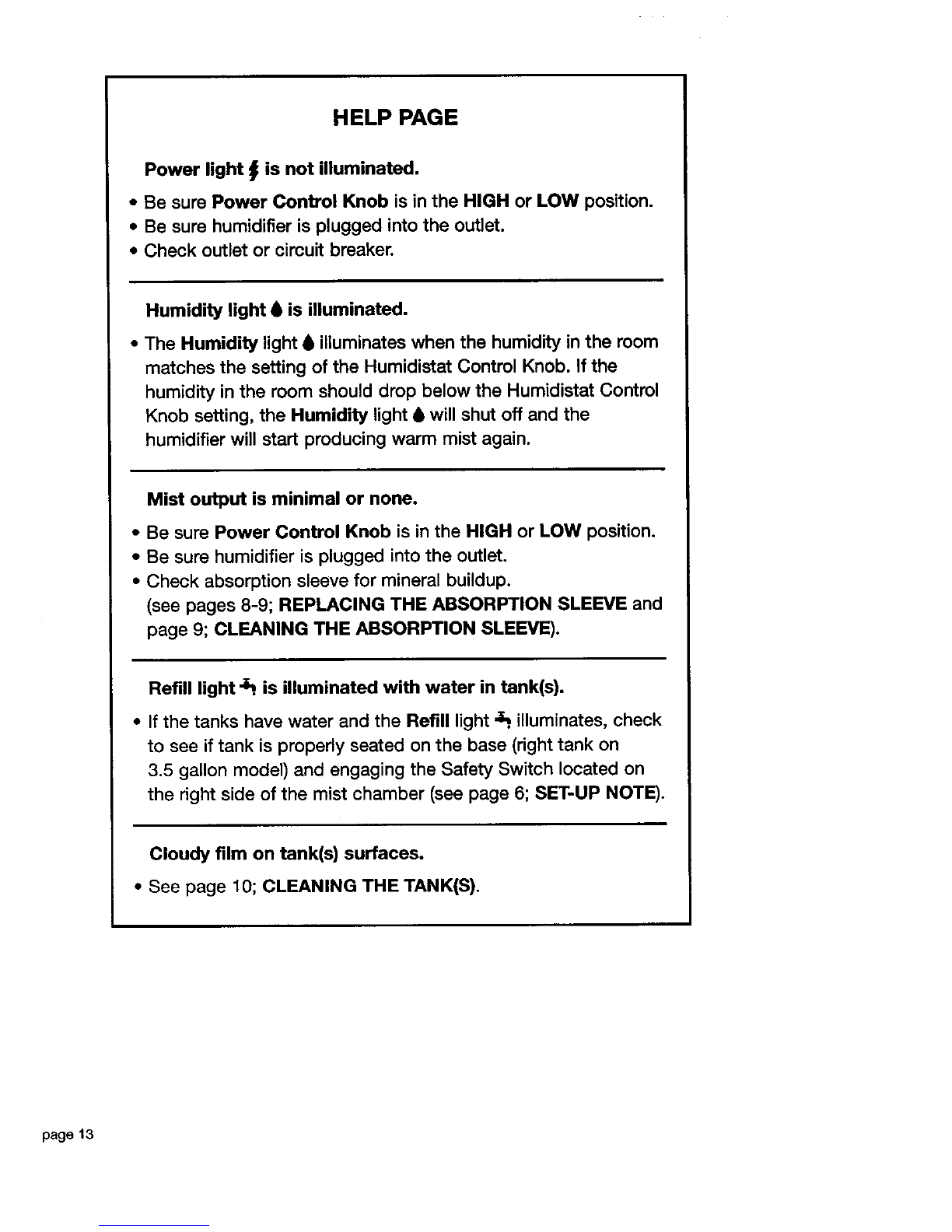

HELP PAGE
Power light _is not illuminated.
•Be sure Power Control Knob is in the HIGH or LOW position.
• Be sure humidifier is plugged into the outlet.
•Check outlet or circuit breaker.
Humidity light 6 is illuminated.
• The Humidity light 6 illuminates when the humidity in the room
matches the setting of the Humidistat Control Knob. If the
humidity in the room should drop below the Humidistat Control
Knob setting, the Humidity light •will shut off and the
humidifier will start producing warm mist again.
Mist output is minimal or none.
Be sure Power Control Knob is in the HIGH or LOW position.
Be sure humidifier is plugged into the outlet.
Check absorption sleeve for mineral buildup.
(see pages 8-9; REPLACING THE ABSORPTION SLEEVE and
page 9; CLEANING THE ABSORPTION SLEEVE).
Refill light _is illuminated with water in tank(s).
If the tanks have water and the Refill light a! illuminates, check
to see if tank is properly seated on the base (right tank on
3.5 gallon model) and engaging the Safety Switch located on
the right side of the mist chamber (see page 6; SET-UP NOTE).
Cloudy film on tank(s) surfaces.
• See page 10; CLEANING THE TANK(S).
page 13

page14

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
