Kenmore QUIET COMFORT 758.14451 User manual

for Future Reference
8EARS
owner's
manual
Model No.
758.144510
7 Gallon
FOR YOUR
SAFETY
READ ALL
INSTRUCTIONS
CAREFULLY
®
QUIETCOMFORT
WHOLE HOUSE
HUMiDiFiER
7 Gallon Output
, Operating Instructions
• Parts List
J
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
PartNo.SP6054 Printedin Canada

Seam, Roebuck and Co., D/817 VAI Hoffman Estates, tL 60179
GENERAL SAFETY iNSTRUCTiONS
Safety Signal Words 4
DANGER: means ifthe safety information 5.
is not followedsomeone wilt be seriously
injured or killed, 6.
WARNING: means ifthe safety informa-
tion is not followed someone could be
seriously injured or killed,
CAUTION: means ifthe safety informa-
tion is net followed someone may be seri-
ously injured.
1,Toavoid fire or shock hazard, plug
humidifier directly into a120V,A.C. elec-
trical outlet. Do not use extension cords.
2. Keep the electric cord out of traffic
areas. To avoid fire hazard, never put
the electric cord under rugs, near heat
registers, radiators, stoves orheaters.
3. Always unplug the humidifier before
moving it, removing the housing sec-
tion, before cleaning, or whenever the
humidifier is not in service.
Table of Contents
Keep the humidifier clean,
Do not put foreign objects inside the
humidifier,
Never use your humidifierwhile any part
ismissing or damaged in any manner.
7.To avoid electrical hazard or damage
to humidifier, do not tilt, jolt or tip
humidifier while unit is running,
8. To avoid damage to humidifier, unplug
humidifier, when water reservoir is
empty or when the humidifier is not in
use,
9. To avoid accidental electrical shock,
do not touch the cord or controls with
wet hands.
10. Note the warning label shown below
and on the humidifier,
WARNING: To reduce the risk offire,
electric shock, or injury always unplug
before filling, servicing or cleaning.
HH
Warranty Information ............................. 2 Water Fill ............................................ 6-7
General Safety Instructions .................. 2 Operating Humidifier Controls ............... 7
To Save a Service Call .......................... 2 Using Your Humidifier ............................ 8
Know Your Humidifier ............................ 3 Operating Tips for Best Performance .... 8
Humidifier Operations ............................ 4 Replacement and Care of Filters ...... 9-10
Assembly ............................................... 4 Cleaning of Humidifier ................... 11-t2
Location Instructions ............................... 5 Troubleshooting .................................. 13
Electrical Hook-Up ................................. 5 Repair Parts ................................... 14-15
To Save a Service Call
Check following if your humidifierwill not
.operate.
1.Is power cord attached to outlet?
2. is there electrical power to outlet?
3. ls airflow control in operating position?
4. ts humidity control set high enough?
5. Is the cabinet setting on a tevel surface?

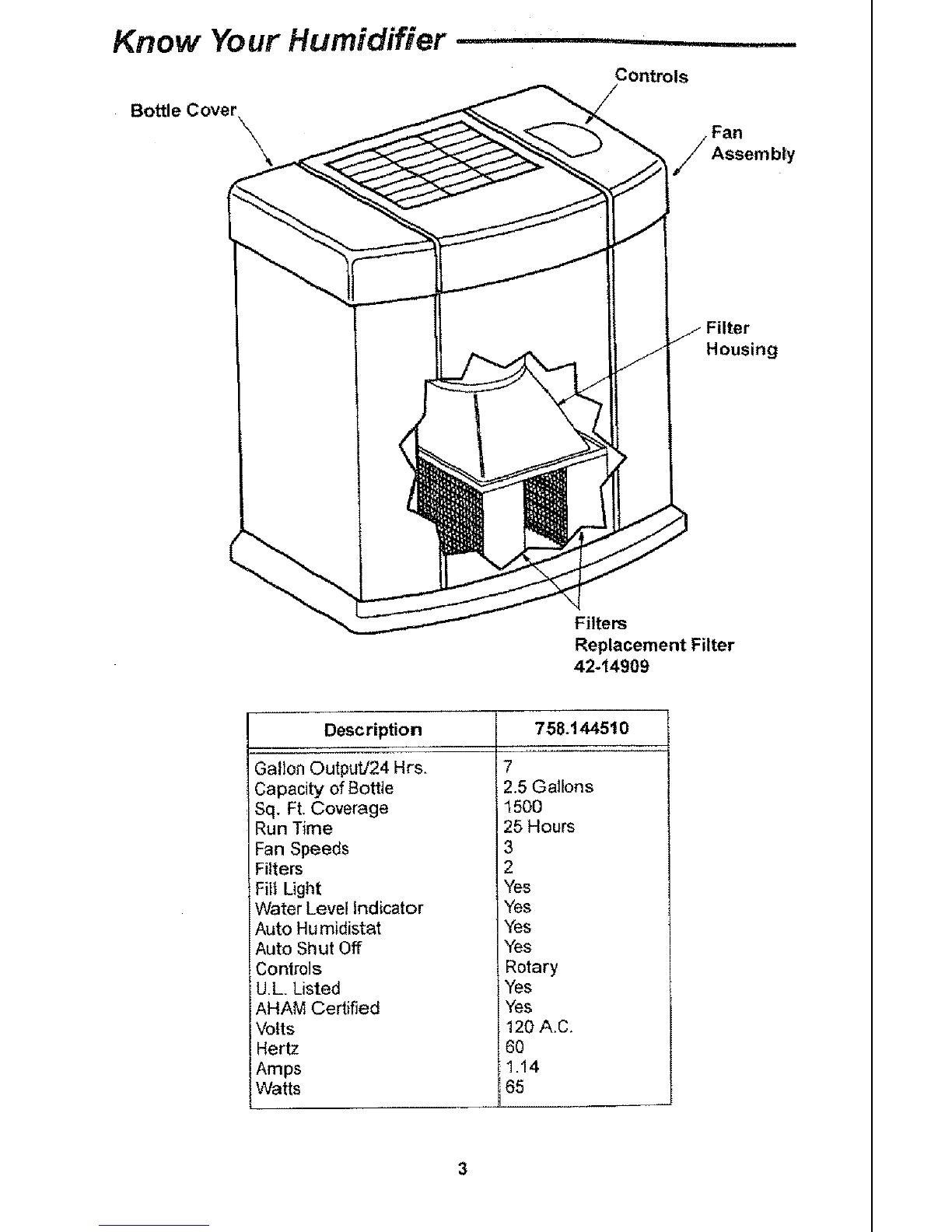

Know Your Humidifier .....
Controls
Fan
Assem b_y
Housing
Filters
Replacement Filter
42-14909
Description 758.t 44510
Gallon Output/24 Hrs,
Capacity of Bottle
Sq. Ft, Coverage
Run Time
Fan Speeds
Filters
Fill Light
Water Level Indicator
Auto Humidistat
7
2,5 Gallons
t 500
25 Hours
3
2
Yes
Yes
Yes
Auto Shut Off
Controls
U.L. Listed
AHAM Certified
Volts
Hertz
Amps
Watts
Yes
Rotary
Yes
Yes
120 A.C.
6O
1.14
65

water intothe air_
Afterwate:r Sadded to the bottle the ill- .:. _o
er : iiJryA r _nters
t s beg n to soak up:the water and Thmu-h the
becom etotally saturated in approxi- Rear
mately 30 minutes. Air is drawn in from _,
the rear of the humidifier, then passes: 1_
through the filters by means of a circula- _.
tion fan. As air passes through the filters, _Jk..
moisture is absorbed intothe air and then :
released through the top of the humidifier.
This moist air is released inthe form of
vapor. No water droplets willenter the
home. All evaporation into the air takes
place in the humidifier, which means that
the residue left by evaporating water isnot
passed into the home, but remains in the
filter.
CAUTION: Use only 42-14900 EPA I
Registered Bacteriostat available
from SEARS Retail store. Under no
circumstances should you use water
treatment products designed for
Roto belt or Ultrasonic humidifiers.
Assembly
Your new Sears Kenmore humidifier Js
completely assembled for you to use
i i i_ i i iHumidified Air is
.':_'_,::: Then Released
_i_. i i i Throughthe Top
, T
,t %t
CAUTION: Keep your humidifier
clean. While humidifiers do not
cause colds, some studies suggest
that dirty humidifiers can cause cold-
like symptoms in some people. To
avoid this, we recommend you clean
your humidifier weekly with Humidi-
tier Cleaner 42-14713 and use Bacte-
riostat 42-14900. These are available
at your local Sears store.
Follow the instructionsofthis owner's
manual for proper usage,

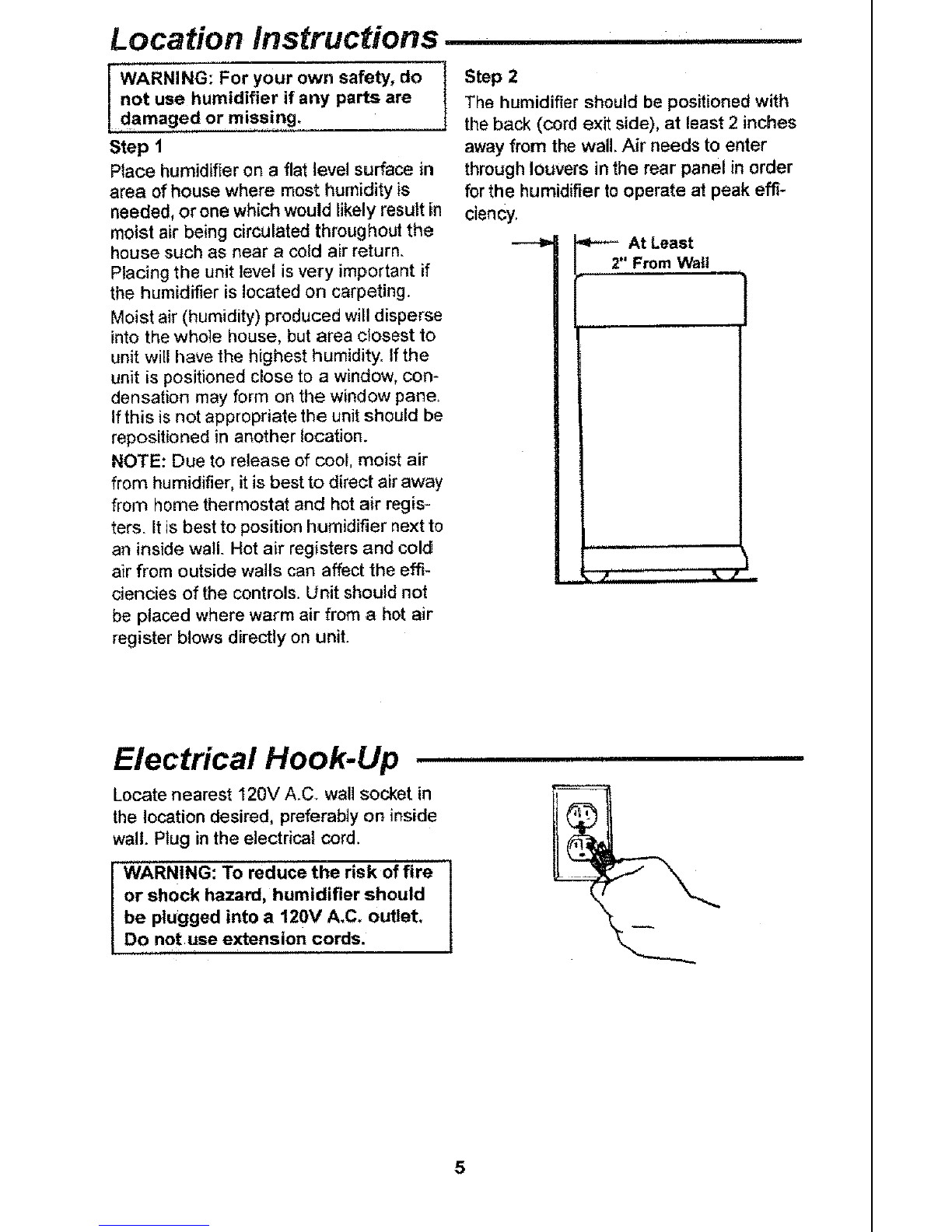

Location Instructions
WARNING: For your own safety, do
not use humidifier if any parts are
damagedormiss!n .
Step 1
Place humidifier on aflat level surface in
area of house where most humidity is
needed, or one which would likely result in
moist air being circulated throughout the
house such as near acold air return.
Placing the unit level is very important if
the humidifier is located on carpeting.
Moist air (humidity) produced wiil disperse
intothe whole house, but area closest to
unit will have the highest humidity. Ifthe
unit is positioned close to awindow, con-
densation may form on _he window pane,
Ifthis isnot appropriate the unit should be
repositioned in another location.
NOTE: Due to release of coot, moist air
from humidifier, it is best to direct air away
from home thermostat and hot air regis-
ters. tt is best to position humidifier next to
an inside wall. Hot air registers and cold
air from outside wails can affect the effi-
ciencies of the controls. Unit should not
be placed where warm air from a hot air
register blows directly on unit.
i iiii i ii iii
Step 2
The humidifier should be positioned with
the back (cord exit side), at teast 2 inches
away from the wall. Air needs to enter
through louvers in the rear panel in order
forthe humidifier tooperate at peak effi-
ciency.
At Least
2" From Wall
•J,...:..:: "-,. i_
Electrical Hook-Up
Locate nearest _20V A.C. wall socket in
the location desired, preferably on inside
wall. Plug inthe electrical cord.
WARNING: To reduce the risk of fire
or shock hazard, humidifier should
be plugged into a 120V A.C. outlet.
Do not use extension cords.

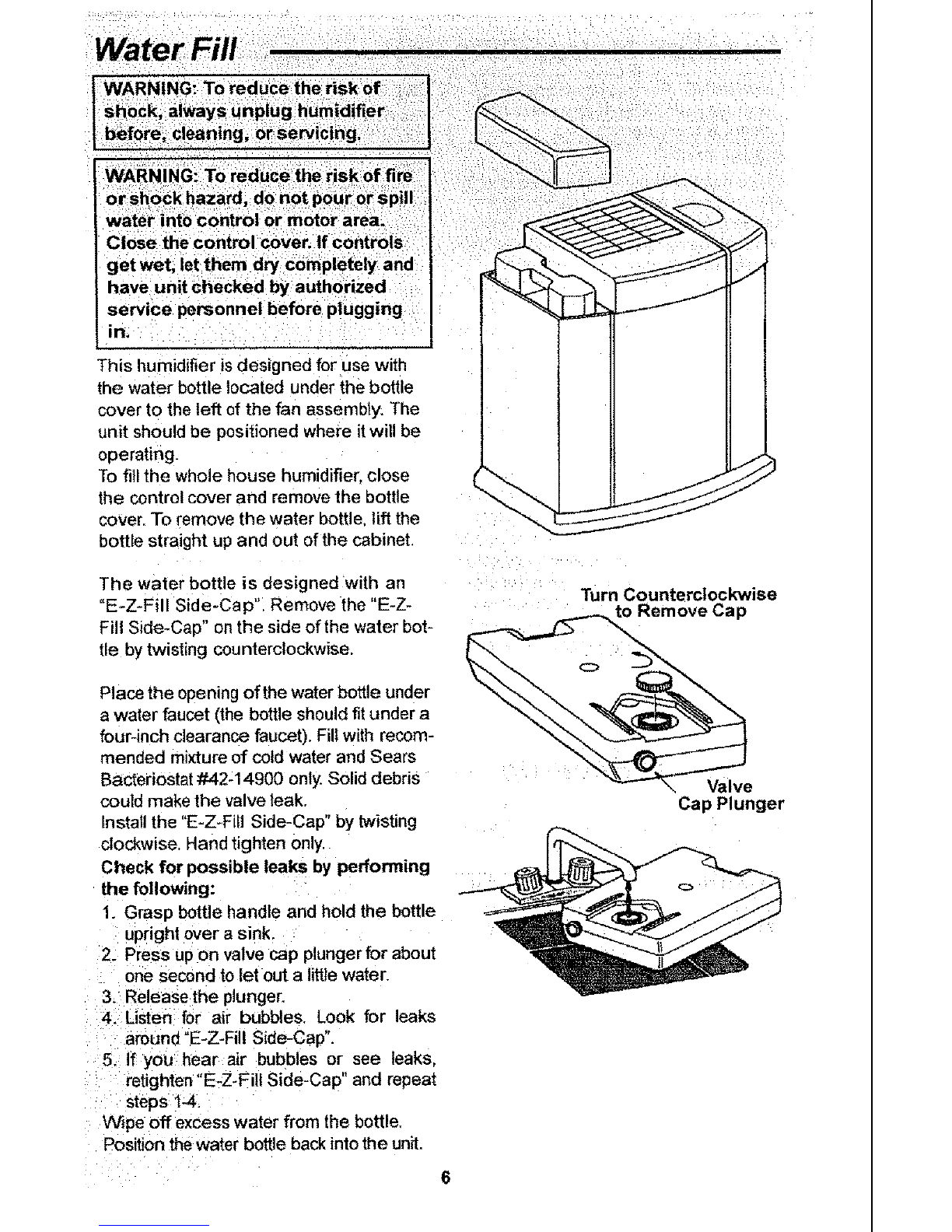

Water Fill
WARNING: To reduce the risk of
shock, always unp ug:humtdifier
before_ cleaning, Or servicing.
Close the control cover. If controls
get wet let them dry completely and
have unit Checked by authorized
service personnel before plugging
in.
This humidifier is designed for use with
the water bottle located under the bottle
cover to the left of the fan assembly. The
unit should be positioned where it will be
operating.
To fill the whole house humidifier, close
the control cover and remove the bottle
cover. To remove the water bottle, lift the
bottle straight up and out ofthe cabinet
]-he water bottle is designed with an
"E-Z-Fill Side-Cap". Remove the "E-Z-
Fill Side-Cap" on the side of the water bot-
tle by twisting counterclockwise.
Place the opening of the water botUe under
awater faucet (the bottle should fit under a
four-inch Oearance faucet). Fill with recom-
mended mixture of cold water and Sears
BacterioStat #42:14900 only. Solid debris
could make the valve leak.
tnstall the "E-Z-Fill Side-Cap" by twisting
clockwise. Hand tighten only.
Check for possible leaks by performing
the following:
1. Grasp bottle handle and hold the bottle
Upright over asink. :
2_ Press upon valve cap plungerfor about
one second to let outa littlewater.
3, ReleaSe the plunger.
i 4_ Listen for air bubbles. Look for leaks
around _E-Z-Fill Side-Cap".
:51 !f you:hear air bubbles or see leaks,
retighten "E-Z-Fill Side-Cap" and repeat
: Steps "t-4_
Wipe off excess water from the bottle.
Position the water bottleback intothe unit.
6
Turn Counterclockwise
_ Valve
Cap Plunger

Grasp the water bottle handle, and lower
into the cabinet The "E-Z-Fill Side-Cap"
must be facing the center of the cabinet,
When positioned properly, the plunger wilt
open andwater will ftow into the cabinet.
The water level will automatically remain at
approximately 1" until the bottle isempty.
The unit is now ready for operation.
Operating Humidifier Controls ........
The operating controls of your Kenmore
Quiet Comfort whole house humidifier are
located on the top right ofthe humidifier.
The controls are found under the smoked
control cover.
Lift the control cover by placing your finger
in the round cutout and lifting. The cover
will stay open. Nov; you can clearly see the
control area. Familiarize yourself with the
controls and reference the diagram of the
control area forthe correct naming used in
this manual:
To Operate the Controls
Humidity Control:
Adjust the amount of humidity depending
on your needs. The humidifier will turn on
and off as required to maintain level of
humidity selected. MEDIUM setting is rec-
ommended, but there are times when tow
or high amount of humidity may be pre-
ferred. For constant operation of humidi-
fier, MAX allows for the maximum amount
of humidity to be evaporated into the air
continuously.
IMPORTANT: Water damage may result if
condensation starts to form on windows
or walls. Humidity Control setting should
be towered until condensation no longer
forms.
Speed Control
The higher the air flow speed, the more
water is evaporated and released into the
air. Low speed is the quietest and is pro-
vided for conditions that may not require
as high an evaporation rate.
Fill Light
When the unit has a small amount of
water left in it, the fill light wilt come on
and the unit will automatically shut off.
Fan Control
Your Kenmore Quiet Comfort Whole
House humidifier has a three speed fan
contro[ switch. (Low, Medium and High)
The maximum humidity output is obtained
with the fan control on high. \
°l /'/ le
".VJ,;
OMt,x
e_
SPEED MI_D
O
RLIL
Humidifer Control
7

Using
Step 1
Be sure unit is full ofwater and plugged in.
Step 2
Set the Fan selectionswitch to the desired
fan speed.
Step 3
Set Humidity Control to medium position.
NOTE: Humidifier should operate with
humidity controlon the recommended
MEDIUM setting, if itdoes not, the humidity
is at a relatively high level. Totest the unit
under this condition, turn Humidity Control
all the way to MAX and unit should begin to
operate. After unit has been tested, set
Humidity Control to MEDIUM or desired
level.
Allow 24 hours for humidifier to adjust.
If humidity level in home is sufficient, the
humidifier will only operate with Humidity
Control set on maximum.
IMPORTANT: Water damage may result if
condensation starts to form on windows
or walls. Humidity Control setting should
be lowered until condensation no longer
forms.
Your Humidifier --
Step 4
If humidifier stops running, the humidity
lever is at the normal requirements for that
setting or it is adjusting tothe home condi-
tions. The table below shows approximate
relative humidity percentages which cor-
respond to the various settings of the
Humidity Control.

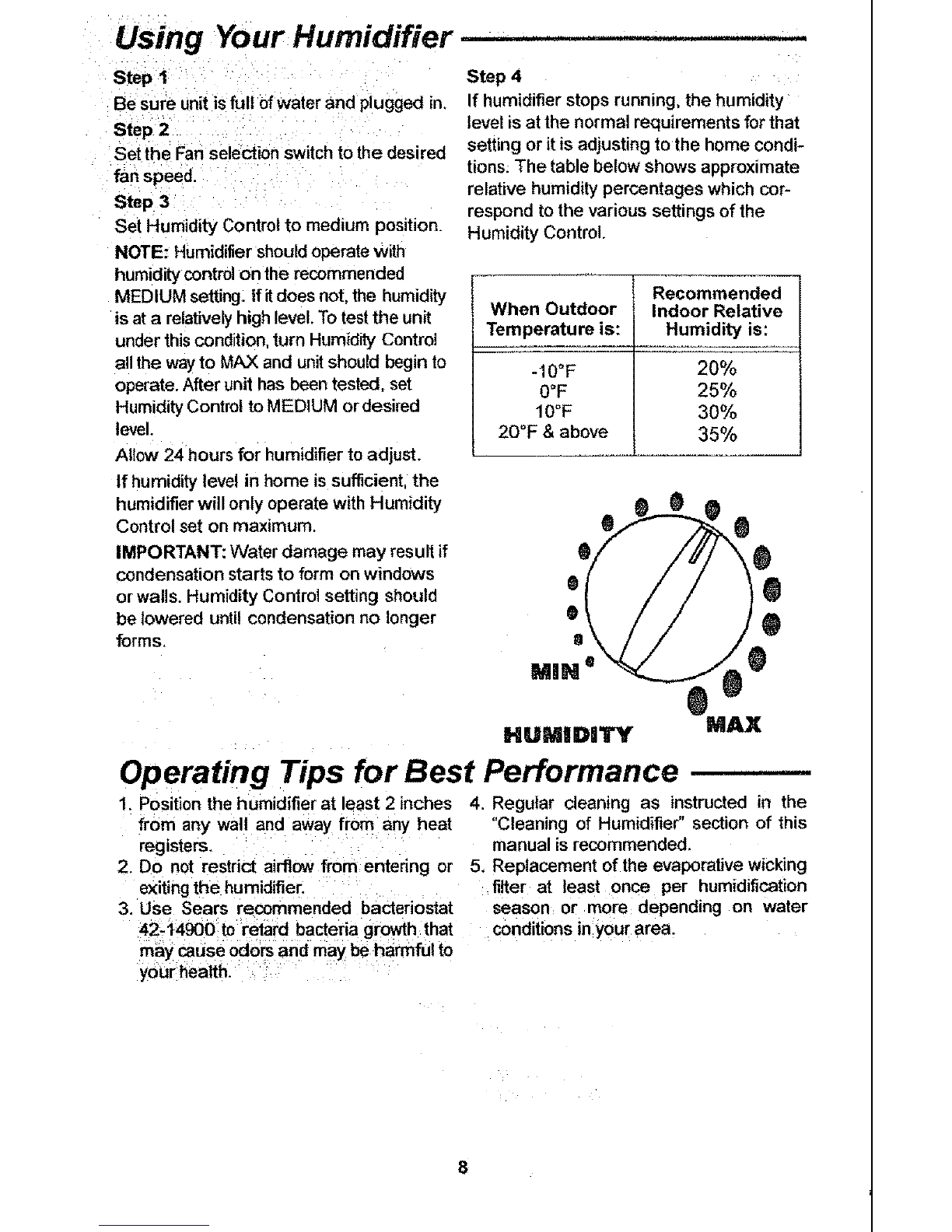

Recommended
When Outdoor Indoor Relative
Temperature is: Humidity is:
-10°F 20%
0°F 25%
10°F 30%
20°F & above 35%
HUMIDgTY
Operating Tips for Best Performance
1. Position the humidifier at least 2 inches 4. Regular cleaning as instructed in the
from any watt and away from any heat "Cleaning of Humidifier" section of this
registers, manual isrecommended.
2. Do not restrict airflow from entering or 5, Replacement of the evaporative wicking
exiting the humidifier. : filter at least once per humidification
3. Use Sears recommended bacteriostat season= or more depending on water
42_14900 t0 retard bacteria growth that conditions inyour area.
rni_ycause 0d0'rsand may be harmful to ....
your 5ealth.' i..... ....
8

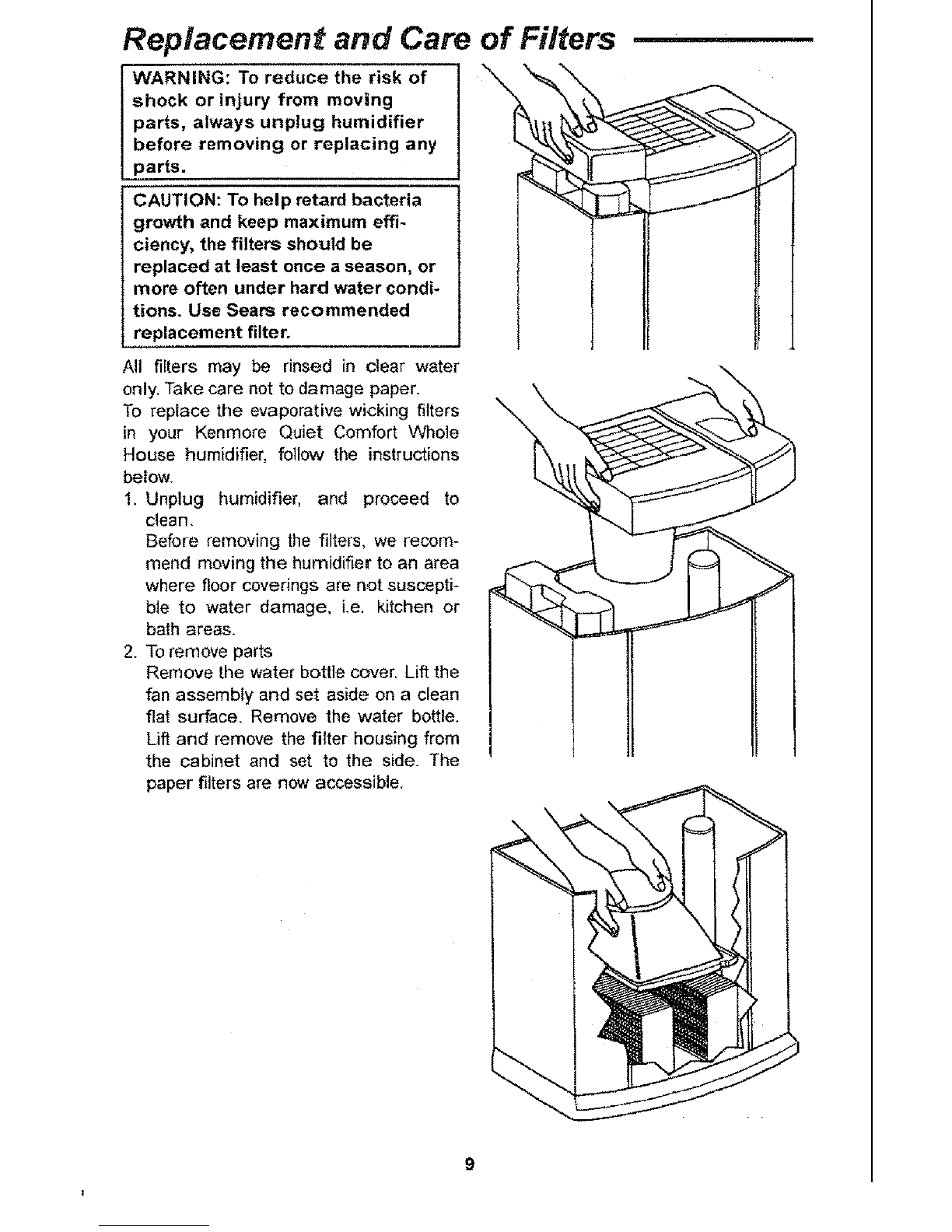

Replacement and Care of Filters
WARNING: To reduce the risk of
shock or injury from moving
parts, always unplug humidifier
before removing or replacing any
parts.
CAUTION: To help retard bacteria
growth and keep maximum effi-
ciency, the filters should be
replaced at least once a season, or
more often under hard water condi-
tions. Use Sears recommended
replacement filter.
J
All filters may be rinsed in clear water
only. Take care not to damage paper.
To replace the evaporative wicking fillers
in your Kenmore Quiet Comfort Whole
House humidifier, follow the instructions
below.
1. Unplug humidifier, and proceed to
clean,
Before removing the filters, we recom-
mend moving the humidifier to an area
where floor coverings are not suscepti-
ble to water damage, i,e, kitchen or
bath areas,
2. To remove parts
Remove the water bottle cover, Lift the
fan assembly and set aside on a clean
flat surface. Remove the water bottle,
Lift and remove the fitter housing from
the cabinet and set to the side. The
paper filters are now accessible.

Replacement and Care of Filters (continued)
3i a_ Remove the two filters and dispose of
proPerlY, i
b_ Ctean internat p_rts 0f humidifier per
the "Cleaning of Humidifier ``section
of your Owner's manual
c. Install new filters inside the cabinet
with the glue beads on the fitter fac-
ing the center of the cabinet. The fil-
ters should set into the channel
areas inside the cabinet, Make sure
the filters are resting on the floor of
the cabinet.
d, Return the filter housing to the cabi-
net. Position the filter housing onto
the filters. AIige the back of the filter
housing over the filters and between
the rear ribs of the cabineL Place
the filter housing down onto the fit-
ters, Make sure the filters are cap-
tured inside the side flanges of the
filter housing,
e. Position fan assembly onto the cabi-
net, Make sure the fan venturJ (low-
est cylinder section below the fan) is
placed inside the filter housing. The
left edge of the fan assembly hous-
ing should rest in the groove of the
cabinet,
f. Replace the water bottle and the
water bottle cover. The right edge of
the bottle cover will rest _n the
groove of the cabinet mentioned
above,
g The unit is ready for use or t_ be
Stored away for next season.
"Channel Area"
Cabinet
t
Glue
Beads
10

Cleaning of Humidifier
CAUTION: To reduce the risk of
injury, fire or damage to humidifier,
use only cleaners specifically rec-
ommended for humidifiers. Never
use flammable, combustible or poi-
sonous materials to clean your
humidifier. To avoid scalds and
damage to humidifier, never put hot
water in humidifier.
CAUTION: Local water purity may
vary from area to area and under cer-
tain conditions water impurities and
airborne bacteria may promote the
growth of microorganisms in the res-
ervoir of a humidifier.
To retard bacteria growth that may
cause odors and be harmful to your
health, use only Sears replacement
filters. We als0 recommend using a
EPA approved bacteriostat, 42-14900
and humidifier cleaner 42-14713,
available at your local Sears store.
NOTE: If it is necessary to use approved
bacteriostat, fotlow ttle directions cor-
rectly.
The bottle of the whoie house humidifier will
hold 2-I/2 gallons of water.
Step !
To make cleaning easier, the water resero
voir should be empty and completely
dried out. To accomplish this. use the fol-
lowing method:
a. A_low the humidifier to run until the
automatic shutoff turns the humidifier
"OFF",
b. Unplug humidifier
WARNING: If humidifier is not ]
unplugged, fan could start after 1
housing is removed.
c, Follow instructions in step 2 below "To
Remove Parts"
d. After removing the parts, dry out the
bottom of the humidifier cabinet,
e. Proceedto "Bi-Weekly Maintenance _or
"End of Season Maintenance".
Step 2
TO Remove Parts
a, Remove the water bottle cover and the
water bottle. Set parts aside
b. Lift and _ernove the fan assembly and
set aside.
c. Remove the fitter housing Before
removing the internal parts of the
flurnidifier cabinet, we recommend
moving the humidifier to an area where
floor coverings are not susceplib_e to
water damage, i.e., kitchen or bath
area.
d, Remove the filters and the water _evel
float.
e The cabinet should be empty, if any
water is in the cabinet, empty as nec-
essary
f, Proceed to"Bi-Weekly Maintenance" o_
"End of Season Maintenance" Con-
tinue to clean cabinet and internal
pads as described below
Step 3
Install new filters (purchase the co_ec_
evaporative wicking filter pads 42.-14909
for your humidifier) into the location where
the old filters were positioned Replace fit-
ter housing Reinstall the water level float
into the cabinet, Position the fan assenrbly
on top of the cabinet and replace the
water bottle and water bottle cover The
unit is ready for storage or operational
_Jse,
11

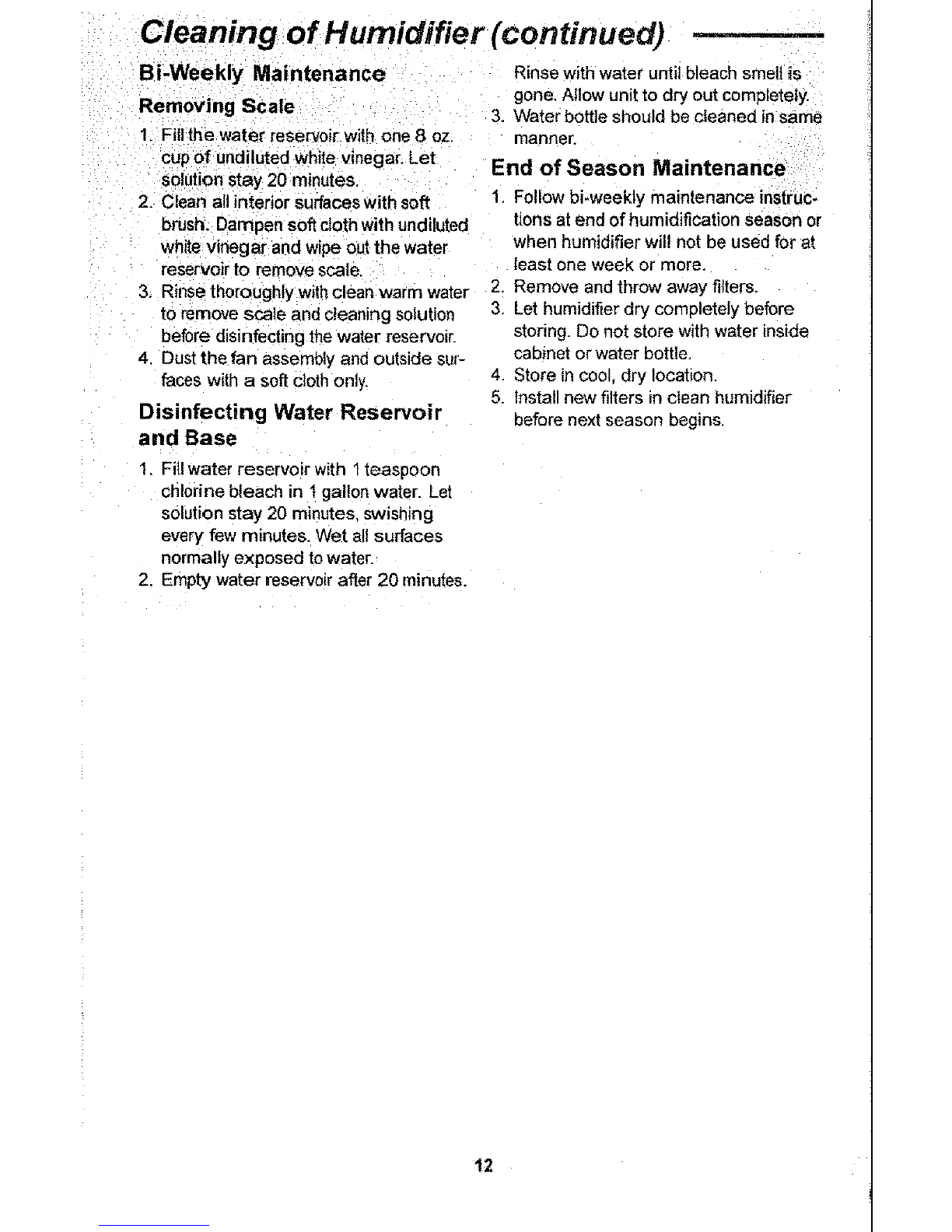

Cleaning of Humidifier (continued) ------------
Bi-Weekly Maintenance Rinse with water untilbleach smelt is
Removing Scale
1. Fillthe water reservoir with one 8 oz.
cup of undiluted white v negar Let
solution stay 20 minutes.
2. Clean nit interior surfaceswith soft
brush. Dampen soft clothwith undiluted
whitevinegar and wipe outthe water
reservoir to remove scale
3. Rinse thoroughly withclean warm water
to remove scale and cleaning solution
before disinfecting the water reservoir.
4. Dust the fan assembly and outside sur-
faces with a soft cloth only.
Disinfecting Water Reservoir
and Base
gone. Allow unit to dry out completely.
3. Water bottle should be cleaned in same
manner.
End of Season Maintenance
1, Follow bi=weekly maintenance instruc-
tions at end of humidification season or
when humidifier will not be used for at
least one week or more.
2. Remove and throw away filters.
3. Let humidifier dry completely before
storing. Do not store with water inside
cabinet or water bottle,
4. Store in cool, dry location.
5. Install new filters in clean humidifier
before next season begins.
1. Fill water reservoir with I teaspoon
chlorine bleach in 1gallon water. Let
solution stay 20 minutes, swishing
every few minutes. Wet all surfaces
normally exposed to water.
2. Emoty water reservoir after 20 minutes.
1:2

Troubleshooting --.,.,.,,..,., "
Trouble Probable Cause
Unit wilt not run. oHumidity level is too high
-No power
*Float is not freeUnit wil_ not shut off.
Unit will not dry out
completely
Bottle continues to
empty.
Unit is not emptying.
Unit runs and shuts
off before bottle is
empty
•Water is present in the
system
•High humidity or low
temperature resulting in
istow evaporation
Air is entering water reser-
voirs.
Dirty filter
Reservoir cap plunger
missing post in bottom of
cabinet.
* Humidity level is too high
. Unit is not setup on a level
surface (Float will not
sense water at the rear of
the cabinet.
Remedy
Raise humidistat setting
•Check 120 volt power source
• Free float from obstruction
, This is normal. A small
amount of water remains in
the cabinet.
•Allow unit to continue opera-
tion.
• Check "E-Z-Fill Side-Caps" to
• ensure tightness.
Check for leak in water bottle.
• Are gaskets for "E-Z-Fill Side-
Caps" in place (see repair
parts fist).
• Change to a fresh new fi}ter.
•Check orientation of bottle.
Reposition so that reservoir
cap plunger is depressed by
post in bottom of cabinet.
, Raise humidistat setting (if
possible)
•Position unit level (Some car-
pet padding may allow unit to
set lower on the left side than
the right side due to the weight
of the water bottle on left side.
Install coasters under left cast-
ers.)
CAUTION: Use only 42-14900 EPA Registered Bacteriostat available from
Sears Retail store,
Use of other water treatment products may damage the filter elements.
Under no circumstances should you use water treatment products designed
for Roto belt or Ultrasonic humidifiers.
t3

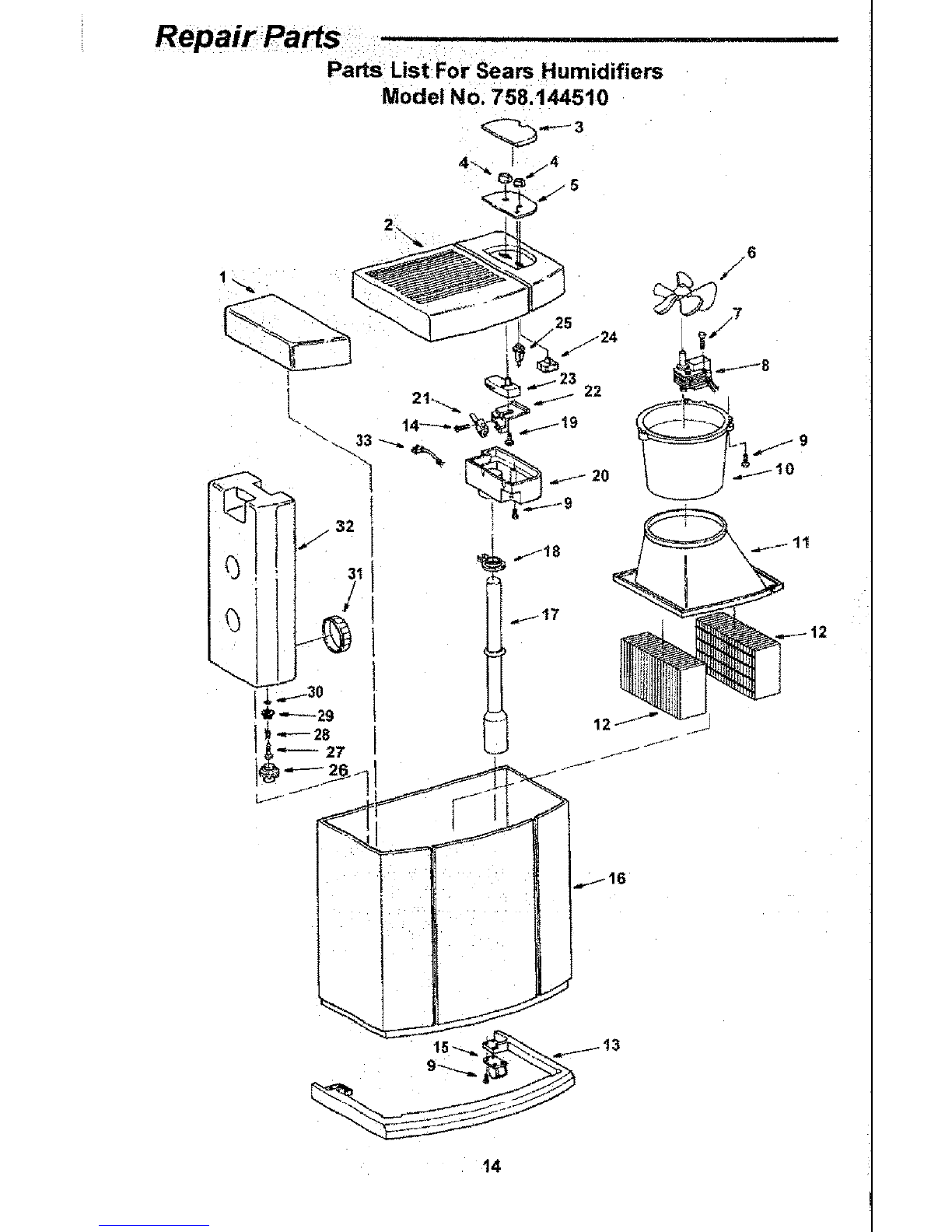

Repair PartsParts List For Sears Humidifiers
Model No. 758.144510
22
_6
/
t4

Repair Parts .,

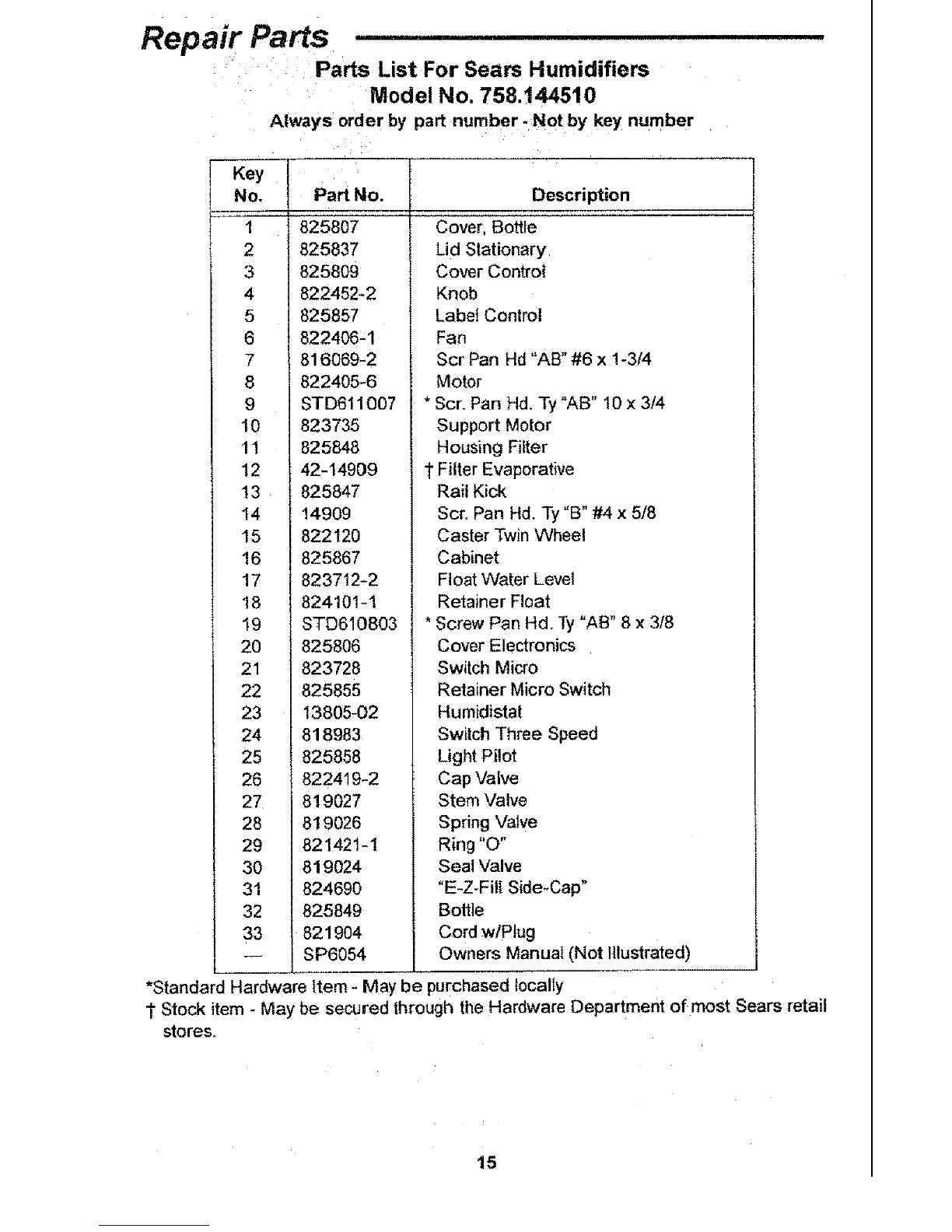

Parts List For Sears Humidifiers
Model No. 758.144510
Always order by part number. Not by key number
Part No.
i I 825807
825837
825809
822452-2
825857
822406-1
816069-2
822405-6
STD611007
10 823735
11 825848
12 42-14909
i 13 825847
i 14 I 14909
15 822120
16 825867
17 823712-2
18 824101-1
19 STD610803
20 825806
21 823728
22 825855
23 13805-02
24 818983
25 825858
26 i 822419-2
27 819027
28 819026
29 821421-1
30 819024
31 824690
32 825849
_ 821904
SP6054
Description
Cover; Bottle
Lid Stationary
Cover Control
Knob
Label Control
Fan
Scr Pan Hd "AB" #6 x 1-3/4
Motor
* Scr. Pan Hd, Ty "AB° 10 x 3/4
Support Motor
Housing Filter
1"Filter Evaporative
Rail Kick
Scr, Pan Hd. Ty "B" #4 x 5/8
Caster Twin Wheel
Cabinet
Float Water Level
Retainer Float
* Screw Pan Hd. Ty"AB" 8 x 3/8
Cover Electronics
Switch Micro
Retainer Micro Switch
Humidistat
Switch Three Speed
Light Pilot
Cap Valve
Stem Valve
Spring Valve
Ring "O"
Seal Valve
"E-Z-Fill Side*Cap"
Bottle
Cord w/Ptug
Owners Manual (Not Illustrated)
*Standard Hardware Item - May be purchased locally
1"Stock item - May be secured through the Hardware Department of most Sears retail
stores.
15

FortheCall 7 am - 7 pro, 7 days a week
1-800-366-PART
(1-800-366-7278)
For in-home major brand repair service
Call 24 hours a day, 7 daysa week
1-800-4-REPAIR
(1-800-473-7247)
Forthe location of a
Sears Repair Service Center in yourarea
Call 24 hours a day, 7 days aweek
1-800-488-1222
For information ou purchasing a Sears
Maintenance Agreement or to inquire
about a, existing Agreement
Call 9 am - 5 pro, Monday-Saturday
1-800-827-6655
S£/ARS
America's R_p_r Specialists
The model number will be found on the Humidifier Identification
label.
When requesting service or ordering parts, always provide the
following information:
• Product Type oModel Number
• Part Number . Part Description
©1998 Emerson Electric Co.
Sears, Roebuck and Co., Hoffman Estates, 1L 60179 U.S.A.
Part No, SP6054 Form No SP6054-1 Printed in Canada 6/98
