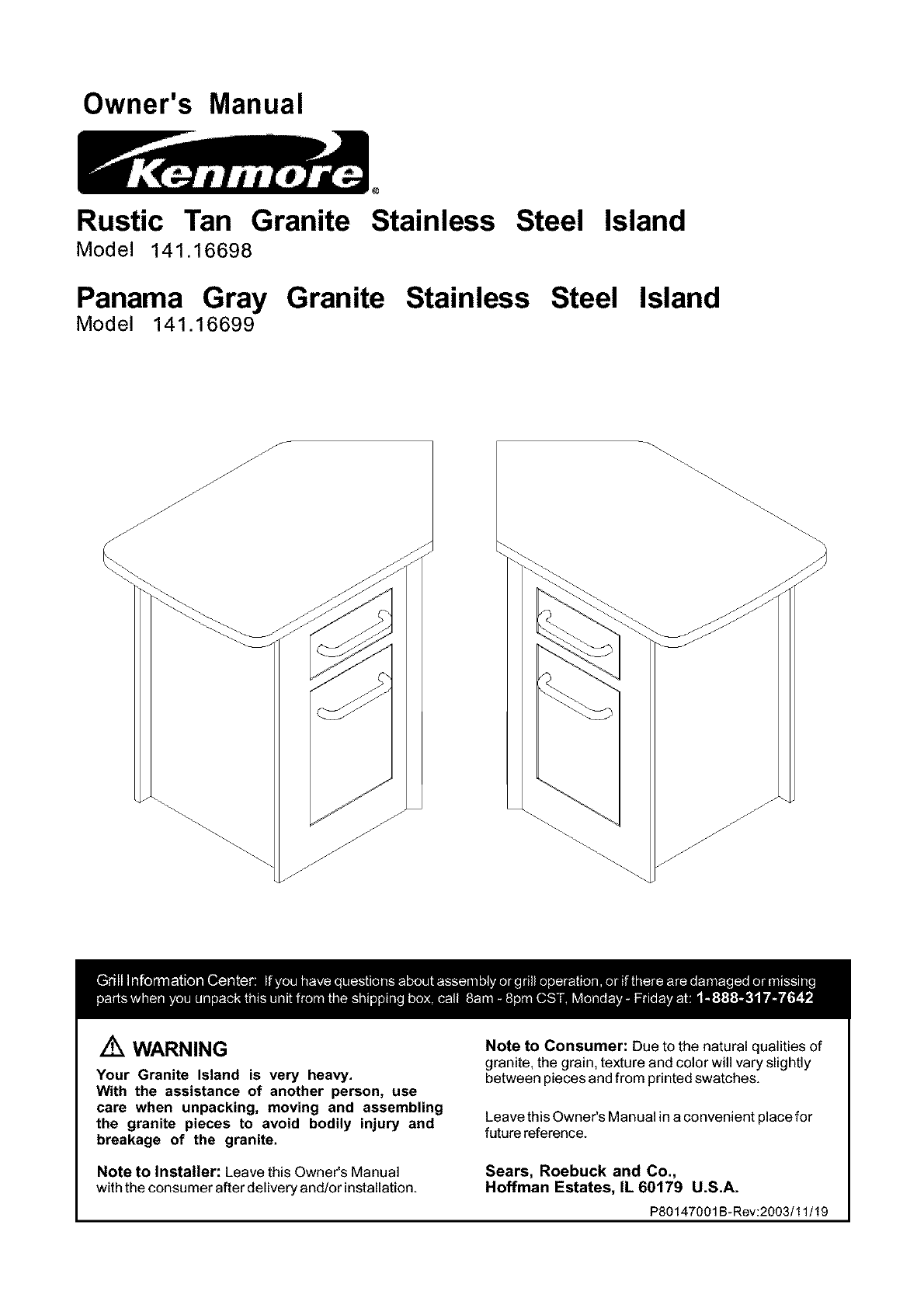

Owner's Manual
@
Rustic Tan Granite Stainless Steel Island
Model 141.16698
Panama Gray Granite Stainless Steel Island
Model 141.16699
Z_ WARNING
Your Granite Island is very heavy,
With the assistance of another person, use
care when unpacking, moving and assembling
the granite pieces to avoid bodily injury and
breakage of the granite,
Note to Consumer: Due to the natural qualities of
granite, the grain, texture and color will vary slightly
between pieces and from printed swatches.
Leave this Owner's Manual in aconvenient place for
futurereference.
Note to installer: Leave this Owner's Manual Sears, Roebuck and Co.,
withthecansumerafterdeliveryand/arinstallation. Hoffman Estates, IL60179 U.S.A.
P80147001 B-Rev:2003/11/19

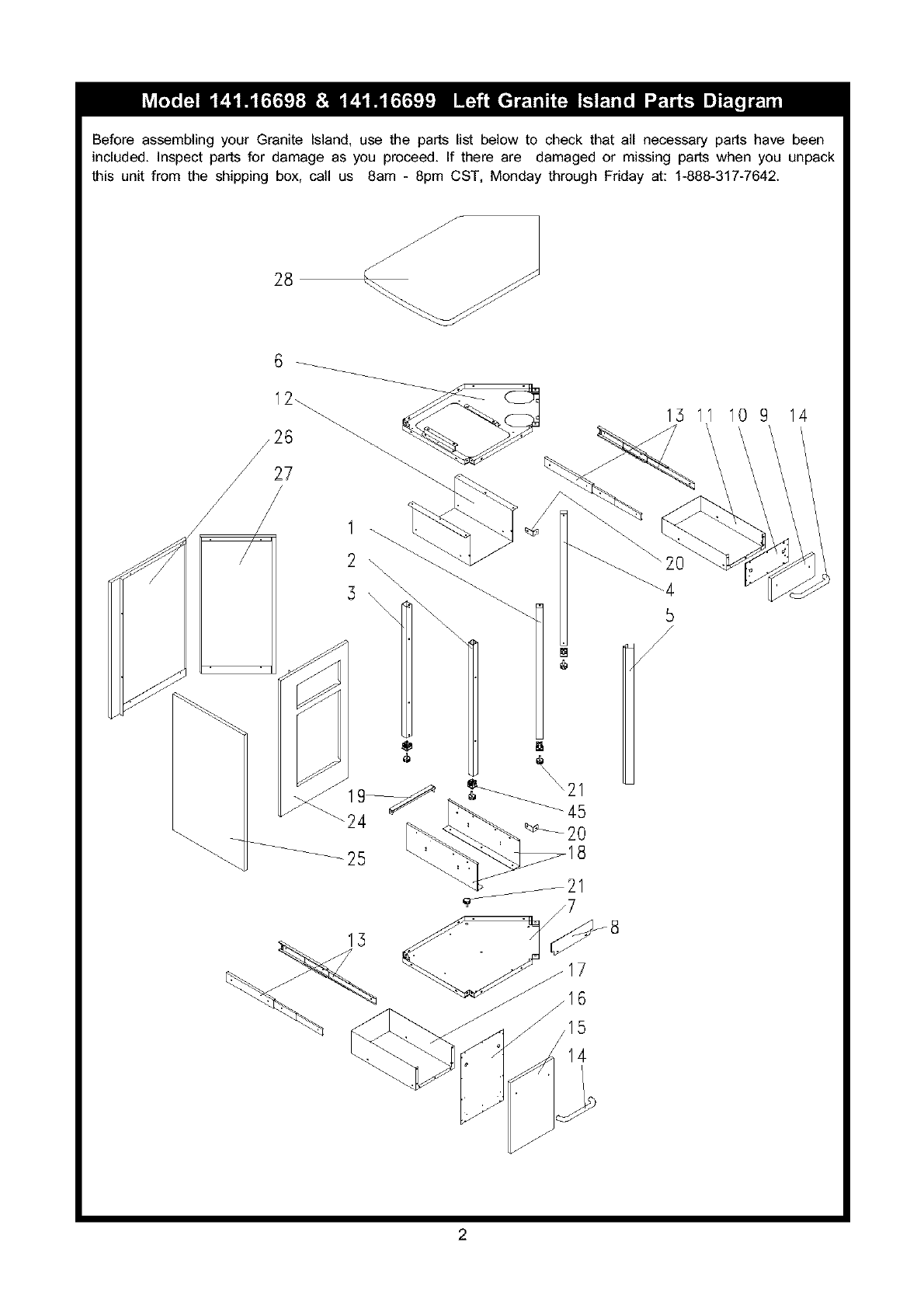

BeforeassemblingyourGraniteIsland,usethepartslistbelowto checkthatall necessarypartshavebeen
included.Inspectpartsfordamageasyouproceed.If thereare damagedor missingpartswhenyouunpack
thisunitfromtheshippingbox,callus 8am- 8pmCST,MondaythroughFridayat:1-888-317-7642.
28
6_
12_
/26
27
\21
_45
_20 8
j16
/15
14
15 11 10 9 14
2

44
14 9 10 11 13
71
45j
38_
39"
21_.
_54
_12
45
\\\\
_29
j30
46_
47
For the repair or replacement parts you need: Call anytime
1-800-4-MY-HOME _ 1-800-469-4663)
To make sure you obtain the correct replacement parts for your Kenmore Granite Island, please refer to the part
numbers on this page, The following information is required to ensure you receive the correct parts:
1. Granite Island Model Number
2, Part Number
3. Part Description
4, Quantity of parts needed
Important: Keep this Owner's Manual for convenient referral and for part replacement,
Important: Use only Sears authorized parts, The use of any part that is not Sears authorized can be dangerous
and will also void your product warranty,
3

REF# DESCRIPTION PART# QTY
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
Leg, Right Front/Left Island
Leg, Left Front/Left Island
Leg, Left Rear/Left Island
Leg, Right Rear/Left Island
Decorative Strip Plate/ Left Island
Table Top Frame/ Left Island
Bottom Shelf/Left Island
Covering Plate
Drawer Panel, Upper
Drawer Trim Plate, Upper
Drawer, Upper
Drawer Slide Bracket, Upper
Drawer Slide Set
Handle, Drawer/Door
Drawer Panel, Lower/Left Island
Drawer Trim Plate, Lower/Left Island
Drawer, Lower/Left Island
Drawer Slide Bracket, Lower/Left Island
Drawer Slide Bracket Brace, Lower/Left Island
Drawer Slide Bracket Fastener
Level Adjuster
Decorative Panel
Decorative Panel, Extension
Panel, Front/ Left Island
Panel, Left/Left Island; Right/Right Island
Panel, Rear/Left Island
Panel, Right/Left Island
Table Top, Left Island/Granite/Rustic Tan
Table Top, Left Island/Granite/Panama Gray
Leg, Left Front/Right Island
Leg, Right Front/Right Island
Leg, Right Rear/Right Island
Leg, Left Rear/Right Island
Decorative Strip Plate/ Right Island
Table Top Frame/ Right Island
Bottom Shelf/ Right Island
Door Panel/ Right Island
Door Trim Plate/Right Island
Door Hinge Bracket, Upper/Right Island
Door Hinge Bracket, Lower/Right Island
Door Magnet/Right Island
Panel, Front/Right Island
Panel, Rear/Right Island
Panel, Left/Right Island
Table Top/ Right Island/Granite/Rustic Tan
Table Top/ Right Island/Granite/Panama Gray
Leg Seat
Lighting Tube
Lighting Tube Extension
Hardware Pack
Owners Manual
4
P00912007G
P00910007G
P00911007G
P00913007G
P07505001A
P01004005K
P01004006K
P07515007D
P01902001B
P01910001G
P01906001B
P01908001G
P05516005L
P00205019B
P01902002B
P01910002G
P01906002B
P01908002G
P01911001G
P01911002G
P05322036A
P07901008A
P07901009A
P07901001A
P07901002A
P07901003A
P07901004A
P07802001A
P07803001A
P00913008G
P00911002G
P00910002G
P00912002G
P07504001A
P01004007K
P01004008K
P04303015A
P07507002D
P03314001C
P03314002C
P05523002K
P07901005A
P07901006A
P07901007A
P07802002A
P07803002A
P04509002A
P05313001C
P05313002C
P06016001A
P80147001A
2
2
2
2
2
6
4
1
1
1
2
1
3
10
2
1
1
2
2
1
1
1
1
1
8
1
1
1
1

The following table illustrates a breakdown of the hardware pack. It highlights what components are used
in the various stages of assembly.
Refl
$122G04061
$313G04061
$122G04161
$194G04121
$313G04061
P05515006B
Component Qty.
Phillips Head Screw 1/4"x3/8" 4
Flange Nut 1/4" 4
Phillips Head Screw 1/4"x1" 8
Hex Socket Set Screw 1/4"x3/4" 8
Flange Nut 1/4" 8
Hex Key Wrench
Purpose of Components
Attaches Decorative Panels
Attaches Handles to Door and Drawers
Attaches Granite Table Top Panels
Tighten Hex Socket Set Screw
Actual Size and Quantity of Each Hardware Piece:
$122G04061
Qty. 4
Phillips Head Screw 1/4"x3/8"
$194G04121
Qty. 8
Hex Socket Set Screw 1/4"x3/4"
©
$313G04061
Qty. 12
Flange Nut 1/4"
S122G04161
Qty. 8
Phillips Head Screw 1/4"x1"
P05515006B
Qty. 1
Hex Key Wrench

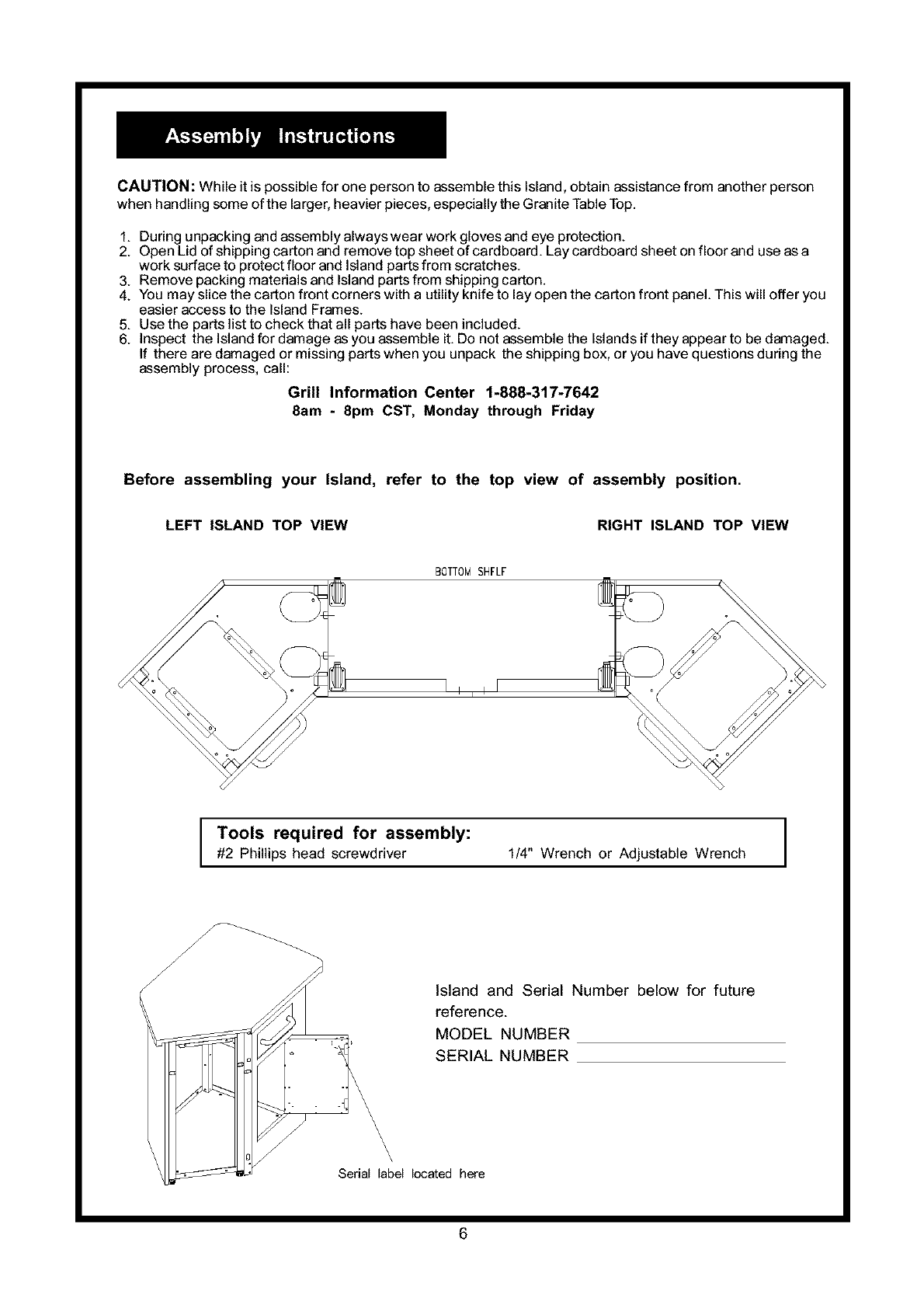

CAUTION:WhileitispossibleforonepersontoassemblethisIsland,obtainassistancefromanotherperson
whenhandlingsomeofthelarger,heavierpieces,especiallytheGraniteTableTop.
1. During unpacking and assembly always wear work gloves and eyeprotection.
2. Open Lid ofshipping carton and remove top sheet of cardboard. Lay cardboard sheet on floor and use asa
work surface to protect floor and Island parts from scratches.
3. Remove packing materials and Island parts from shipping carton.
4. You may slice the carton front corners with autility knife to lay openthe carton front panel. This will offer you
easier access to the Island Frames.
5. Use the parts list to check that all parts have been included.
6. Inspect the Island for damage as you assemble it.Do not assemble the Islands ifthey appear to be damaged.
If there are damaged or missing parts when you unpack the shipping box, or you have questions during the
assembly process, call:Grill Information Center 1-888-317-7642
8am - 8pm CST, Monday through Friday
Before assembling your Island, refer to the top view of assembly position.
LEFT ISLAND TOP VIEW RIGHT ISLAND TOP VIEW
BOTTOM SHFLF
Tools required for assembly:
#2 Phillips head screwdriver 1/4" Wrench or Adjustable Wrench
JIsland and Serial Number below for future
reference.
MODEL NUMBER
SERIAL NUMBER
\\\\\
Serial label located here
6

Assembly Instructions
Z WARNING
Read these instructions before assembling your granite islands. The granite
pieces are very heavy. With the assistance of another person, use care when
unpacking, moving and assembling the granite pieces to avoid bodily injury
and breakage of the granite.
Make sure the surface is solid, flat and level. Rough or soft ground will
cause levelling problems that could cause the grill to incline, door frames to
distort and/or the island to partially sink after installation.
1. Please locate the following free space per diagram for installation of the models of the
grill with granite island. 153"
/
/
/
/
P3 P2
\/
\/
\/
,\ /
•/
(N
INSTALLATION AREA FOR 6B GRILL MODEL 16690/17690/16691/17691
142"
,I
F
/
/
J
/
J
/
/
\
\
'\ /
\/
P3 P2
/
\.
\\
\
\
\\
\)
/
/
/
/
INSTALLATION AREA FOR 4B GRILL MODEL 16680/17680/16681/17681
l
r_
2. Use a tape measure to ensure that all four (4) points P1, P2, P3 and P4 are at the
same height.
P3_
P4
@ @o@ @ @ @O
E
E
co SOLID AND FL,_
co Ob
¢o --_ SURFACE
7

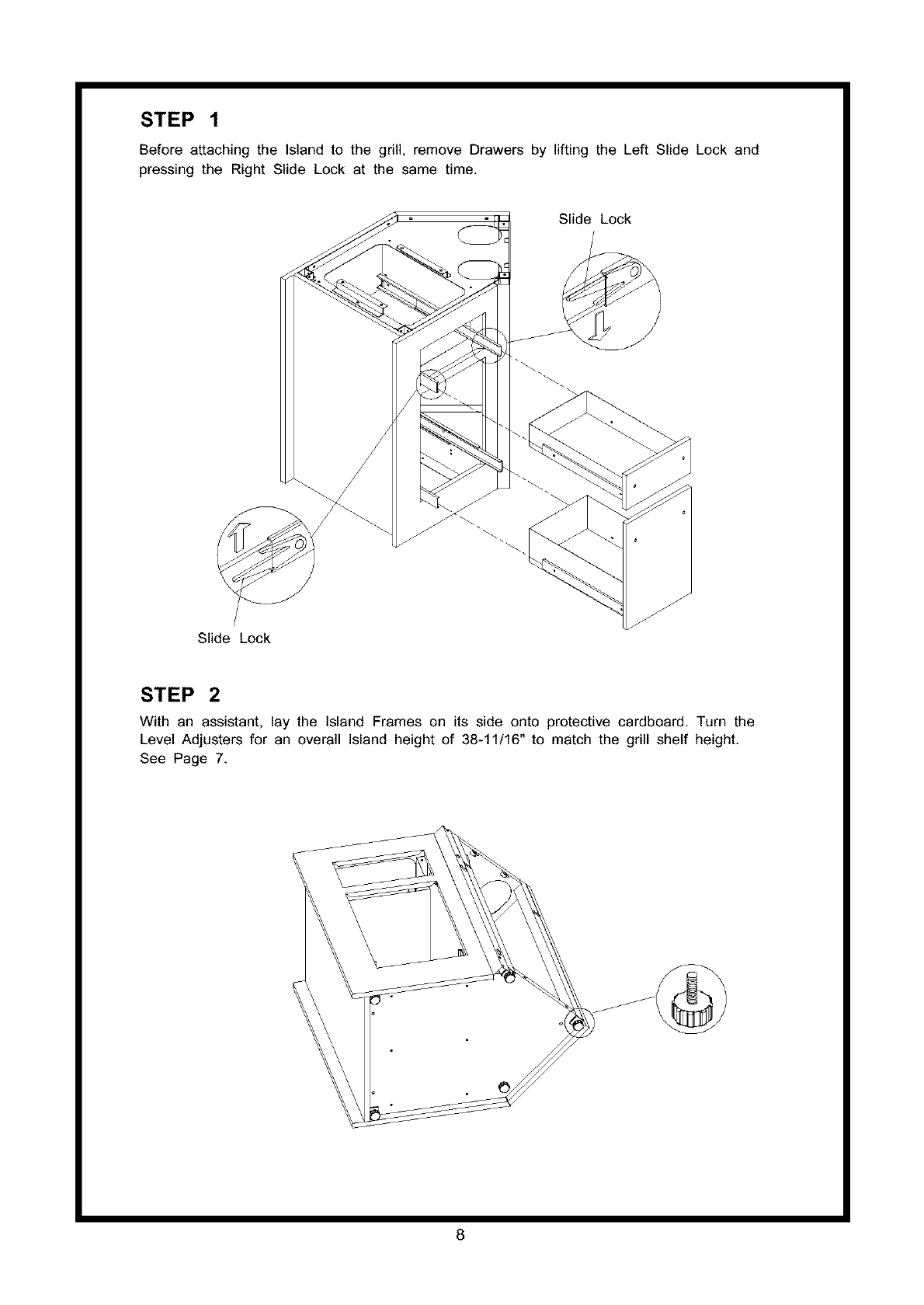

STEP 1
Before attaching the Island to the grill, remove Drawers by lifting the Left Slide Lock and
pressing the Right Slide Lock at the same time.
Slide Lock
Slide Lock
STEP 2
With an assistant, lay the Island Frames on its side onto protective cardboard. Turn the
Level Adjusters for an overall Island height of 38-11/16" to match the grill shelf height.
See Page 7.
8

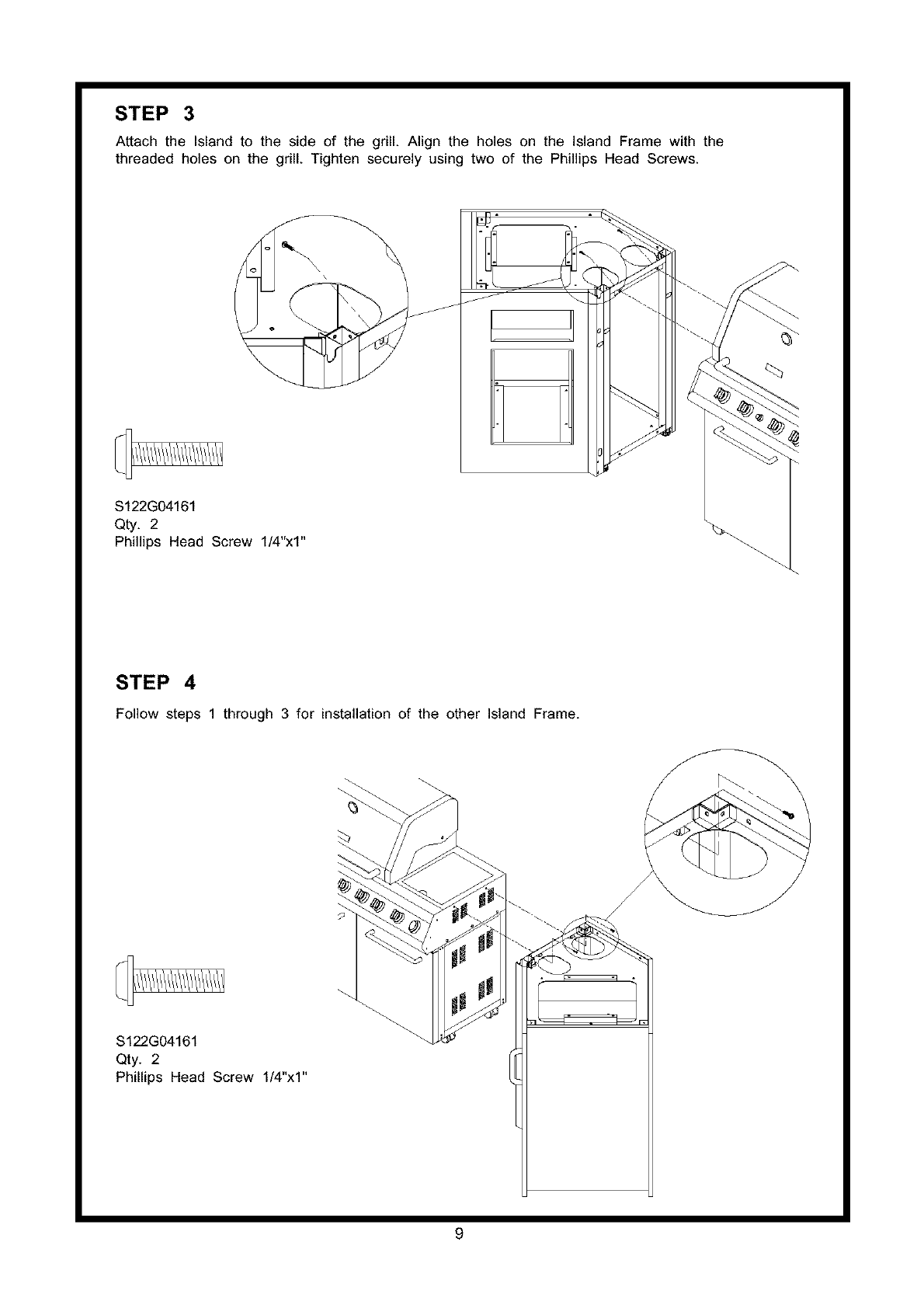

STEP 3
Attach the Island to the side of the grill. Align the holes on the Island Frame with the
threaded holes on the grill. Tighten securely using two of the Phillips Head Screws.
S122G04161
Qty. 2
Phillips Head Screw 1/4"x1"
%
STEP 4
Follow steps 1 through 3 for installation of the other Island Frame.
S122G04161
Qty. 2
Phillips Head Screw 1/4"x1"
9

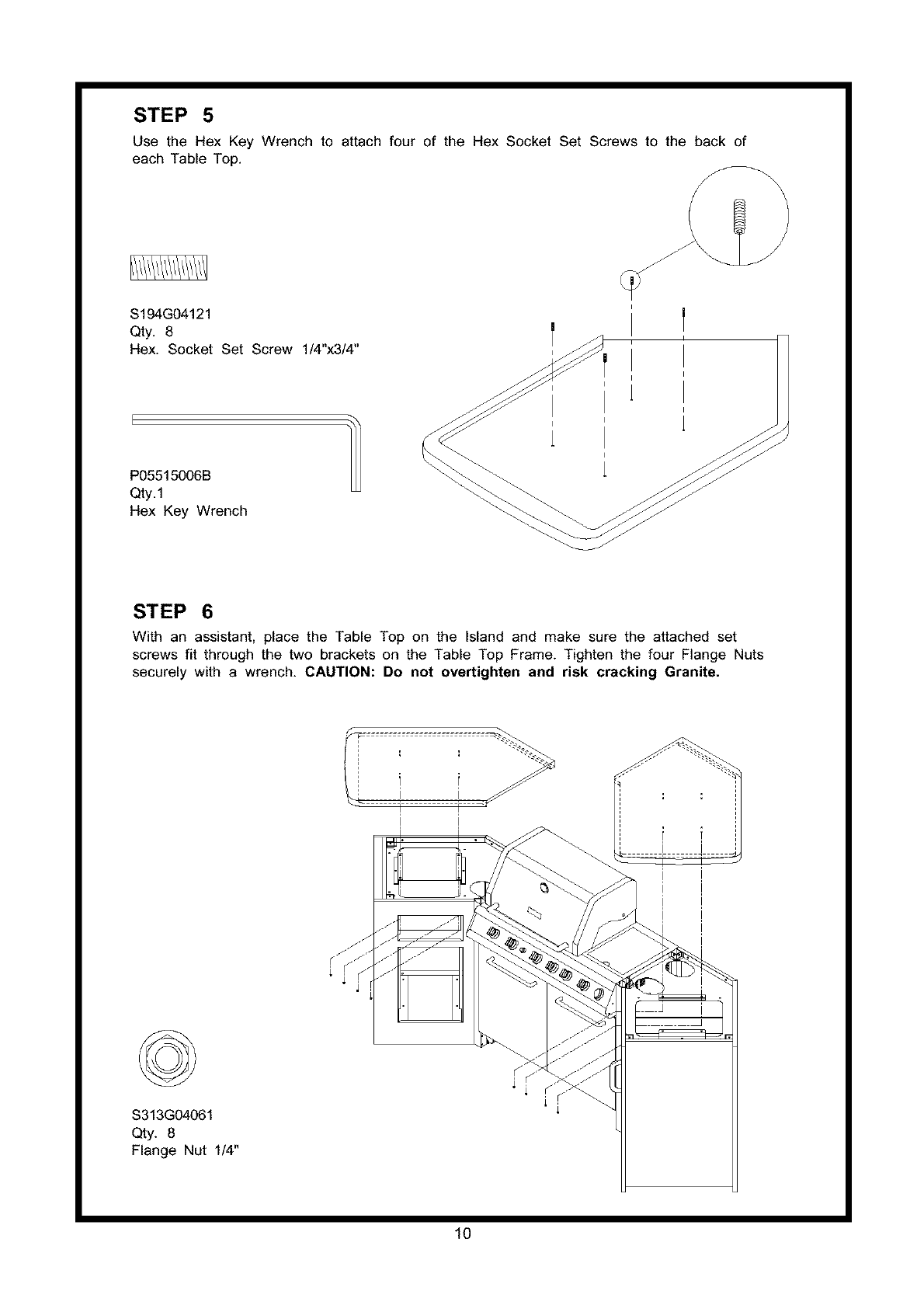

STEP 5
Use the Hex Key Wrench to attach four of the Hex Socket Set Screws to the back of
each Table Top.
$194G04121
Qty. 8
Hex. Socket Set Screw 1/4"x3/4"
P05515006B
Qty. 1
Hex Key Wrench
STEP 6
With an assistant, place the Table Top on the Island and make sure the attached set
screws fit through the two brackets on the Table Top Frame. Tighten the four Flange Nuts
securely with a wrench. CAUTION: De not evertighten and risk cracking Granite.
©
S313G04061
Qty. 8
Flange Nut 1/4"
10

STEP 7
Attach the Handles to Drawers/Door using Phillips Head Screws and tighten securely.
S122G04161
Qty. 8
Phillips Head Screw 1/4"x1"
STEP 8
Slide the Drawers into the Island Frames.
11

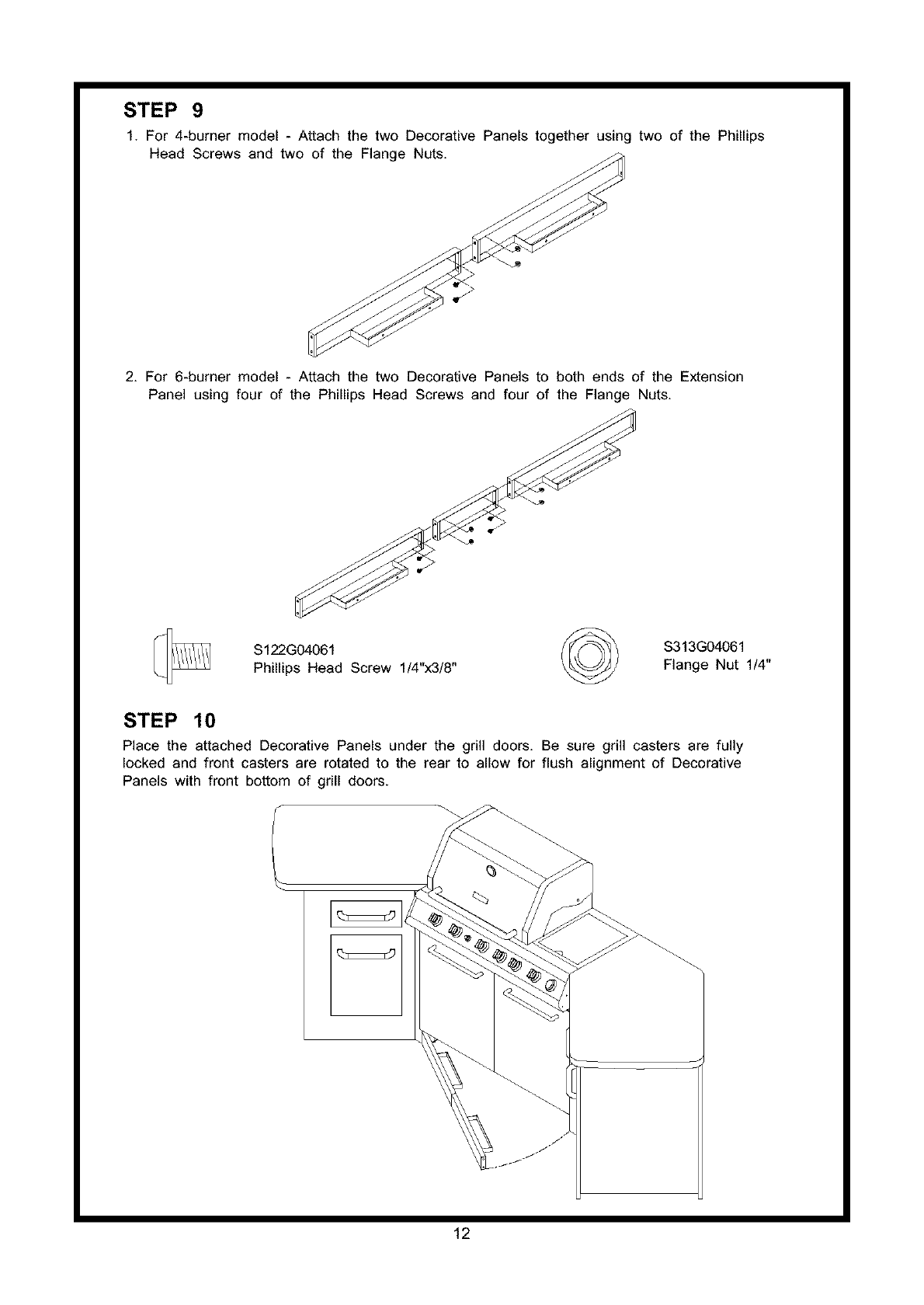

STEP 9
1. For 4-burner model - Attach the two Decorative Panels together using two of the Phillips
Head Screws and two of the Flange Nuts.
2. For 6-burner model - Attach the two Decorative Panels to both ends of the Extension
Panel using four of the Phillips Head Screws and four of the Flange Nuts.
S122G04061
Phillips Head Screw 1/4"x3/8" $313G04061
Flange Nut 1/4"
STEP 10
Place the attached Decorative Panels under the grill doors. Be sure grill casters are fully
locked and front casters are rotated to the rear to allow for flush alignment of Decorative
Panels with front bottom of grill doors.
12

STEP 11
CONGRATULATIONS
Congratulations your Kenmore Island is now ready for use.
Caring for your Granite
The warm beauty of granite is unparalleled among building materials, but preserving that beauty in certain granites
requires careful, regular maintenance.
Granite and other natural stones have become increasingly popular for backyard residential and commercial uses.
However, some simple steps will help preserve the original luster of the stone over time.
Granite requires very little maintenance and isnaturally resistant to stains and scratches. However, it is not indestruc-
tible! Please follow these simple guidelines for care of your granite.
1. Regularly clean your surfaces with a damp cloth. Dry-off wet spots to avoid dull patches appearing where hard
water and soap residue have been left behind during daily use. A light neutral (PH7) solution may be safely added.
2. Maintain an original finish on the granite surface by using sealers and regular maintenance procedures. Be sure to
select sealers and waxes with caution, asthey may contain ingredients which could dull or scratch the Table Top.
Before application, clean the Table Top with soapy water and let it dry. Apply two coats of sealer in quick succes-
sion, using sealer brushes. After 30 minutes, remove the excess sealer with a dry cloth.
3. Avoid the use of abrasive cleaners or scour pads.
4. A spray cleaner can be applied to surfaces to clean and help the surface shine.
5. Cutting foods on the stone Table Top should not scratch the granite but it will blunt your knives quickly! To be safe
use a separate cutting board.
6. Hot saucepans can be placed on your granite surfaces with no damage.
7. Avoid contact with edges of worksurfaces as chipping may occur.
8. Granite is a porous material even though surfaces and edges have been polished. The stone istreated before
leaving the factory to help resist staining. Be mindful there are oil and spirit based products such aswine, fruits and
perfume, and also oil based products such as olive and cooking oils that may stain if allowed to soak intothe Table
Top. Should spills occur, wipe off as soon as possible.
9. Table Top should not be brought into contact with strong acid based chemicals including paint stripper, brush
cleaner, oven cleaners, varnish remover, degreasant or similar products.
13

NOTE: A Lighting Tube is used whenever you cannot electronically ignite your grill. Some older
model grills did not come with Lighting Tubes (Models #16680/#17680/#16690/#17690). Therefore a
Lighting Tube is provided for these grills. If your grill already has a Lighting Tube installed,
disregard page 14 & 15. Follow steps 1 through 6 to install Lighting Tube Kit.
STEP 1: Remove cooking grids, flame tamers and
secondary cooking rack.
I
I
I
I
Locate the fllowing parts provided with the upgrade
Lighting Tube Kit.
PARTS LIST
For Models 16680117680116690117690
REP# DESCRIPTION PART# QTY
1Lighting Tube P05313001C 1
2 Phitlips HeadScrew 1/4_x3/8" $122G04061 2
3 Nut 1/4" $362G04061 2
Additional Parts
For Models 16680/17680
4 Extension Tube P05313002C
5 Phitlips HeadScrew M4x8rnrn $112M04081
IIf you have any problem with the Lighting
Tube Kit, call us 8am-8pm CST, Monday
through Friday at: 1-888-317-7642
STEP 2: On inside of left bowl panel, insert Lighting
Tube slightly below the burner top and align
the holes of Lighting Tube mounting bracket
with holes in the side of grill bowl.
For 16690/17690 For 16680/17680
14

STEP 3: Insert 2 Phillips head screws 1/4"x3/8"
from outside of grill bowl through
Lighting Tube bracket and secure
tightly with 2 1/4" Nuts.
6. Set ALL Control Knobs to OFF. For LP Models,
open gas tank valve slowly until 1/4 to 1/2 open.
7. Light a match and place it over the top opening of
the Lighting Tube. Turn the farthest Left Control
Knob to the HIGH setting to release gas. The
Burner should light immediately.
STEP 5: Turn Control Knob to "OFF"
STEP 4 :
Follow below Lighting Instruction procedures to
check Lighting Tube function and light your grill.
1. Familiarize yourself with the safety guidelines in
the Grill manual. Do not smoke while lighting grill
or checking gas supply connections.
2. If you have a LP gas grill be sure the LP gas tank
is filled, or if you have a NG grill be sure that the
locking shut off valve is open.
3. Open the Grill Lid.
4. Check that the end ofthe Burner Tube is propedy
located under the far left burner top.
5. Be sure all gas connections are securely tightened.
STEP 6: Replace flame tamers, cooking grids and
secondary cooking rack.
WARNING
Failure to open Grill Lid during the
lighting procedures could result in a fire
or explosion that could cause serious
bodily injury, death, or property damage,
15

Home
For repair-_nyou _ home- ofallmajor brandappliances,
la_m and garden equipme_sL or healing and c_otiag _ystems
f_o ma_e_ who ma_e ill ao ma_e_ who so|# it:!
For the re#laoement pa_s, aosessorles and
ovmers manuals that you need t_ d_>it-yotmrgel£
For Sears pro|ess,io_al inst@il4ion of home appliances
and items like #ara#e door opene_ and w_er h_.3ters
C_ IIan!_i_e; day or night (U:$ A, a_:l Can_Ja_
Ou[ Nome
For rer_ _ of._arr_ n _ten_ i_ke _c_ ums, hwn eq[_ipreen_,
and el_troni_ call or go em_ine for the: i_;a:_on :_1_your near_t
Callanytime, day er n_ght_U,$ °A, onl_
To £urc:hase a pr0:fec_on agree_ent (L.:S A )
or mairite_anr_ agreemen_(Ca_'_ada)on a p_duct se_'iced by Sea_:
Para pedir ser_o _e rep_cbn Au C_n_ _our _r¥ice en fra_3_i_:
