Kenmore 30" Built In Wall Oven User manual

Installation
Instructions 30" Built In Wall Oven
911.41084,41085,41086,41089,41184,41185,41189,41785,
41789,41885,41889,47082,47084,47089,47822,47824,
47829,49002,49003,49004,49009,49012,49013,49014,
49019,49022,49023,49024,49029,49032,49033,49034,
49039
Questions? Contact our Website at: www.sears.com

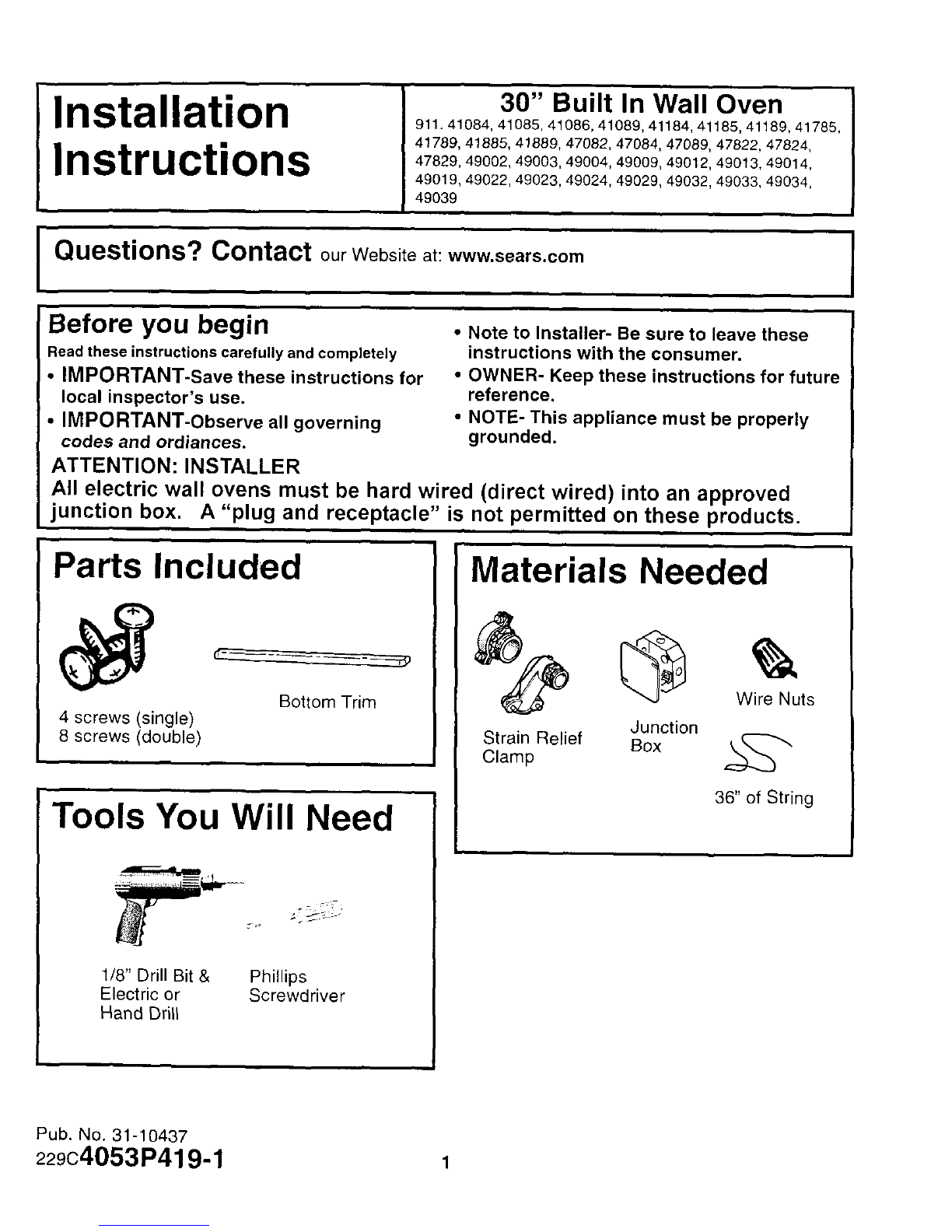

Before you begin
Read these instructions carefully and completely
• IMPORTANT-Save these instructions for
local inspector's use.
•IMPORTANT-Observe all governing
codes and ordiances.
ATTENTION: INSTALLER
• Note to Installer- Be sure to leave these
instructions with the consumer.
• OWNER- Keep these instructions for future
reference.
•NOTE- This appliance must be properly
grounded.
All electric wall ovens must be hard wired (direct wired) into an approved
junction box. A "plug and receptacle" is not permitted on these products.
Parts Included
4 screws (single)
8 screws (double)
Bottom Trim
Tools You Will Need
1/8" Drill Bit & Phillips
Electric or Screwdriver
Hand Drill
Materials Needed
Junction
Box
Wire Nuts
Strain ReliefClamp
36" of String
Pub. No. 31-10437
229c4053P419-1 1

Installation Instructions

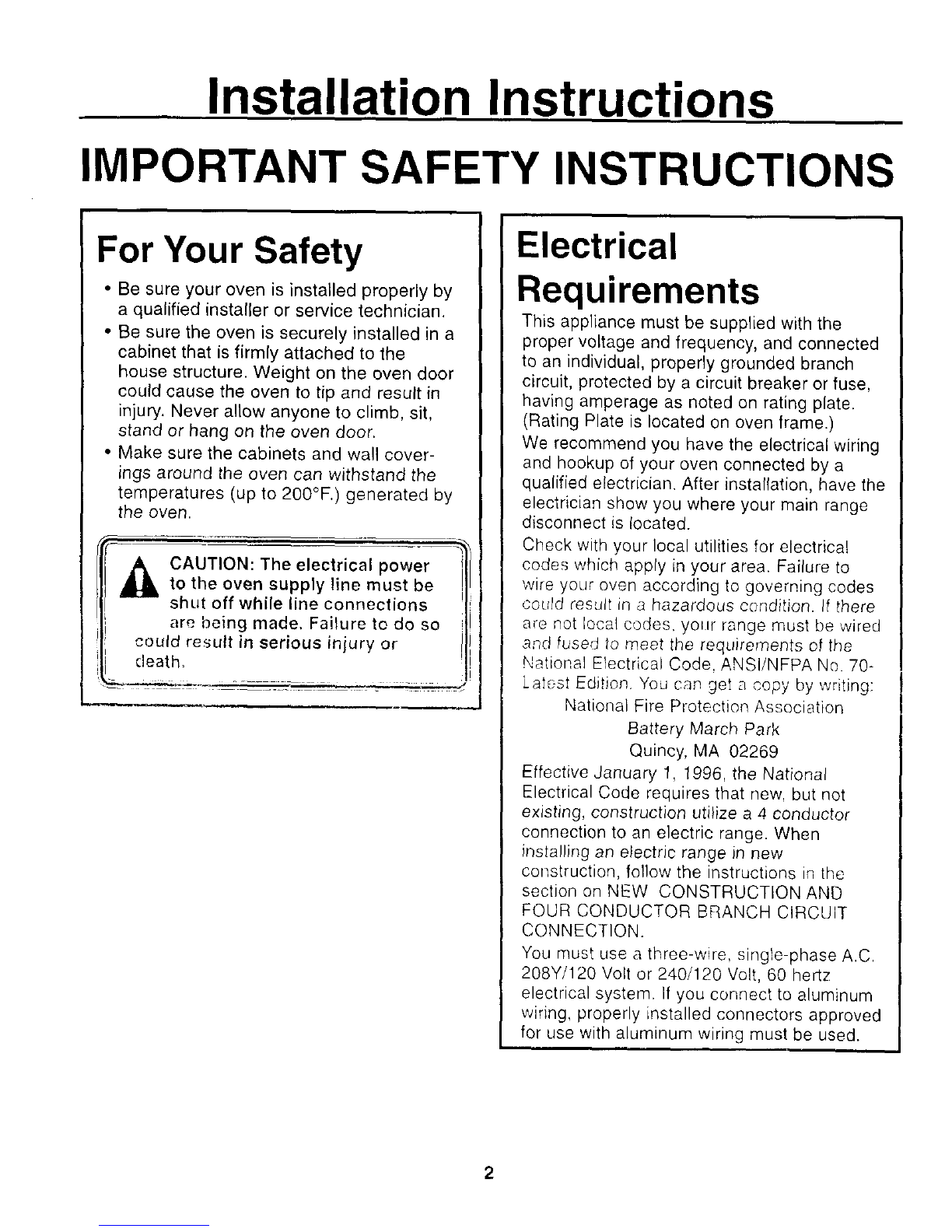

IMPORTANT SAFETY INSTRUCTIONS
For Your Safety
• Be sure your oven is installed properly by
a qualified installer or service technician.
• Be sure the oven is securely installed in a
cabinet that is firmly attached to the
house structure. Weight on the oven door
could cause the oven to tip and result in
injury. Never allow anyone to climb, sit,
stand or hang on the oven door.
• Make sure the cabinets and wall cover-
ings around the oven can withstand the
temperatures (up to 200°F.) generated by
the oven,
_1 CAUTION: The electrical power
to the oven supply line must be
shut off while line connections
are being made. Failure to do so
could result in serious injury or
death.
Electrical
Requirements
This appliance must be supplied with the
proper voltage and frequency, and connected
to an individual, properly grounded branch
circuit, protected by a circuit breaker or fuse,
having amperage as noted on rating plate.
(Rating Plate is located on oven frame.)
We recommend you have the electrical wiring
and hookup o1 your oven connected by a
qualified electrician. After installation, have the
electrician show you where your main range
disconnect is located.
Check with your local utilities for electrical
codes which apply in your area. Failure to
wire your oven according to governing codes
could result in a hazardous condition. If there
are not local codes, your range must be wired
and fused to meet the requirements of the
National Electrical Code. ANSI/NFPA No. 70-
Late-st Edition. You can get _qcopy by writing:
National Fire Protection Association
Battery March Park
Quincy, MA 02269
Effective January 1, 1996, the National
Electrical Code requires that new, but not
existing, construction utilize a 4 conductor
connection to an electric range. When
installing an e_ectric range in new
construction, follow the instructions in the
section on NEW CONSTRUCTION AND
FOUR CONDUCTOR BRANCH CIRCUIT
CONNECTION.
You must use a three-wire, single-phase A.C.
208Y/120 Volt or 240/120 Volt, 60 hertz
electrical system. If you connect to aluminum
wiring, properly installed connectors approved
for use with aluminum wiring must be used.
2

Installation Instructions

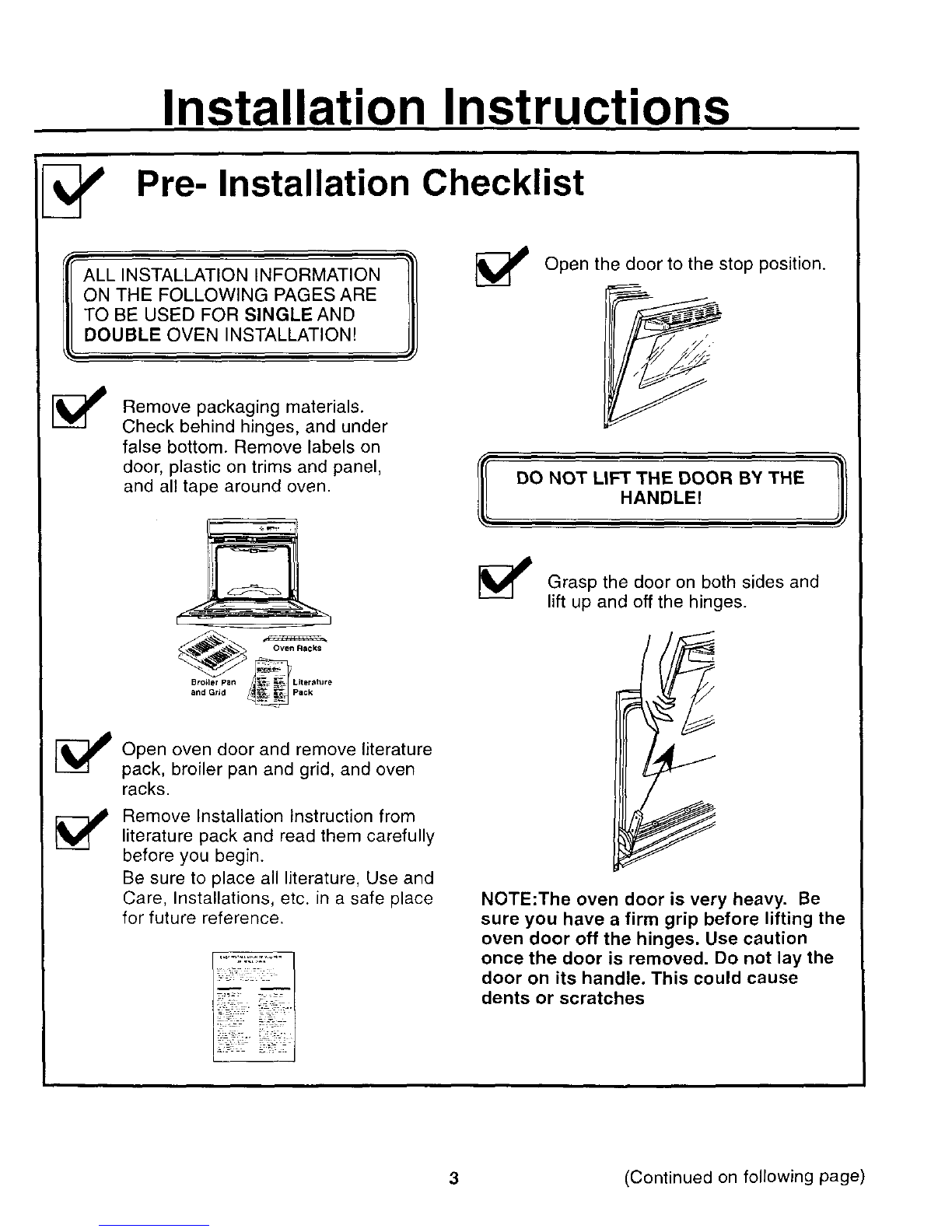

Pre- Installation Checklist
iALL INSTALLATION INFORMATION
ON THE FOLLOWING PAGES ARE
TO BE USED FOR SINGLE AND
DOUBLE OVEN INSTALLATION!
Remove packaging materials.
Check behind hinges, and under
false bottom. Remove labels on
door, plastic on trims and panel,
and all tape around oven.
Open the door to the stop position.
II DO NOT LIFT THE DOOR BY THE III
HANDLE!
_Oven Rack_
Open oven door and remove literature
pack, broiler pan and grid, and oven
racks.
Remove Installation Instruction from
literature pack and read them carefully
before you begin.
Be sure to place all literature, Use and
Care, Installations, etc. in a safe place
for future reference.
Grasp the door on both sides and
lift up and off the hinges.
NOTE:The oven door is very heavy. Be
sure you have afirm grip before lifting the
oven door off the hinges. Use caution
once the door is removed. Do not lay the
door on its handle. This could cause
dents or scratches
3(Continued on following page)

Installation Instructions

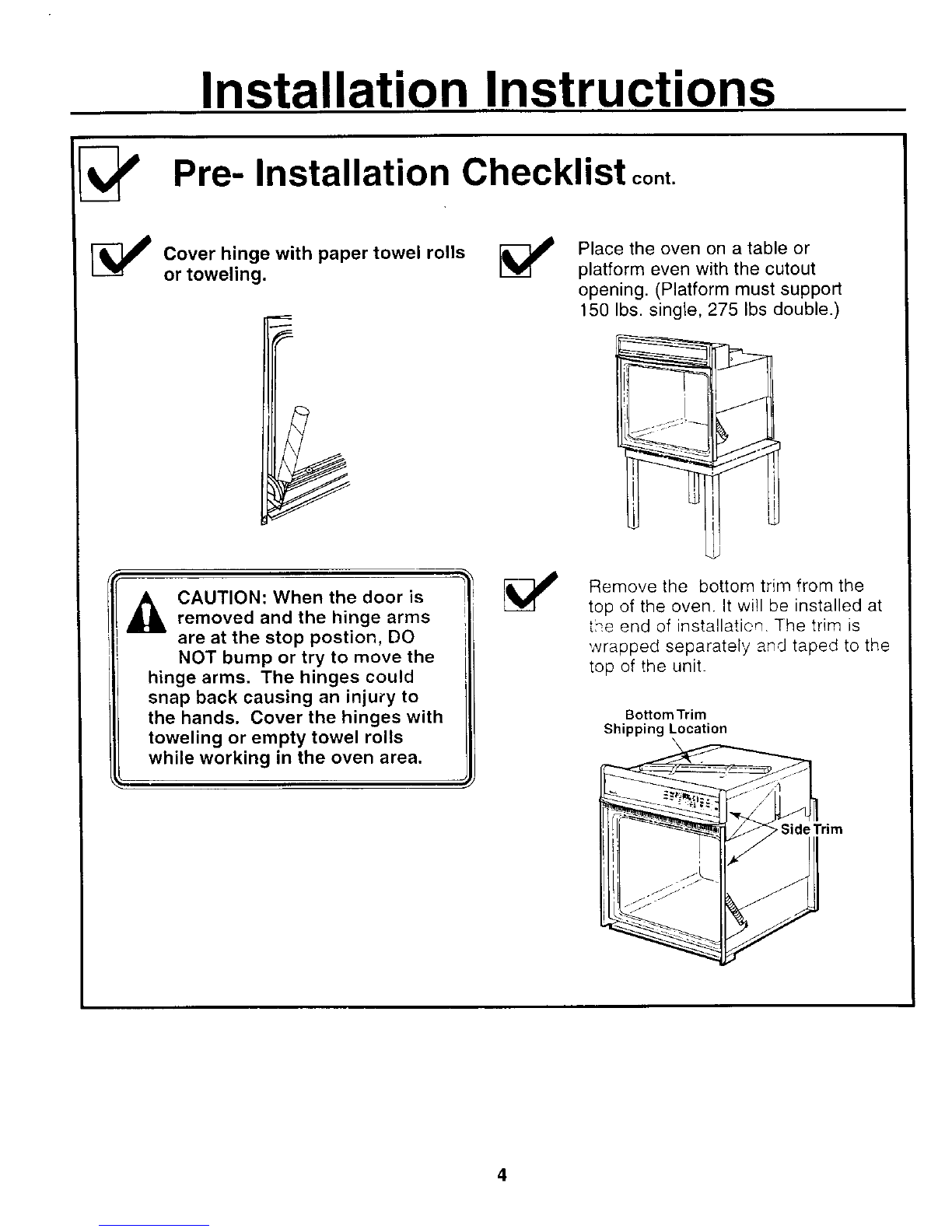

Pre- Installation Checklist cont.
Cover hinge with towel roils
paper
or toweling.
,_ CAUTION: When the door isremoved and the hinge arms
are at the stop post!on, DO
NOT bump or try to move the
hinge arms. The hinges could
snap back causing an injury to
the hands. Cover the hinges with
toweling or empty towel rolls
while working in the oven area.
Place the oven on a table or
platform even with the cutout
opening. (Platform must support
150 Ibs. single, 275 Ibs double.)
Remove the bottom trim from the
top of the oven. It will be installed at
the end of installation The trim is
wrapped separately and taped to the
top of the unit.
Bottom Trim
Shipping Location
•Side Trim
4

Installation Instructions
Cutouts for Single Built-In-Oven
CUTOUT
WIDTH
_--281/2" MIN.
ALLOW 11/16"FOR
OVERLAPOFTHE
EDGESOFCUTOUT
21,,_--_"_.
/
ALLOW A MINIMUM
OF 21" FOR CLEARANCE
TO ADJACENT CORNERS,
DRAWERS, WALLS ETC.
WHEN THE DOOR IS (
THE OPENING
WALLS MUST
BE AT LEAST
28 1/2"WIDE
ALLOW 1" FOR
OVERLAP
ON OVEN TOP
AND BOTTOM
OF CUTOUT
WIDTH
30"
CUTOUT
HEIGHT
27 1/4" MIN
27 5116"
RECOMMENDED
CUTOUT
LOCATION
32 1_"
FROM THE
FLOOR
JUNCTION BOX
22"TO
BOTTOM OF
Cabinet Width 30"
Recommended
Cutout Location
from Floor 32 1/2"
Cutout Depth 23 1/2" Min.
Cutout Width 28 1/2" Min.
28 5/8" Max.
Cutout Height 27 1/4" Min.
27 5/16" Max.
NOTE: If the cabinet does not
have a front frame and the sides
are less than
3/4" thick, shim both sides
equally to establish the cutout
width.
BRACIN G --
TO SUPPORT ,,
°u+°s OF CABINET
--2*x 4"or
EQUIVALENT
RUNNERS
If the cabinet does not have a solid
bottom, then two braces or runners
must be installed to support the
weight of the oven. For single ovens
the runners and braces must
support 150 pounds.
THIS OVEN IS NOT APPROVED FOR STACKABLE
OR SIDE BY SIDE INSTALLATION
5

Installation Instructions

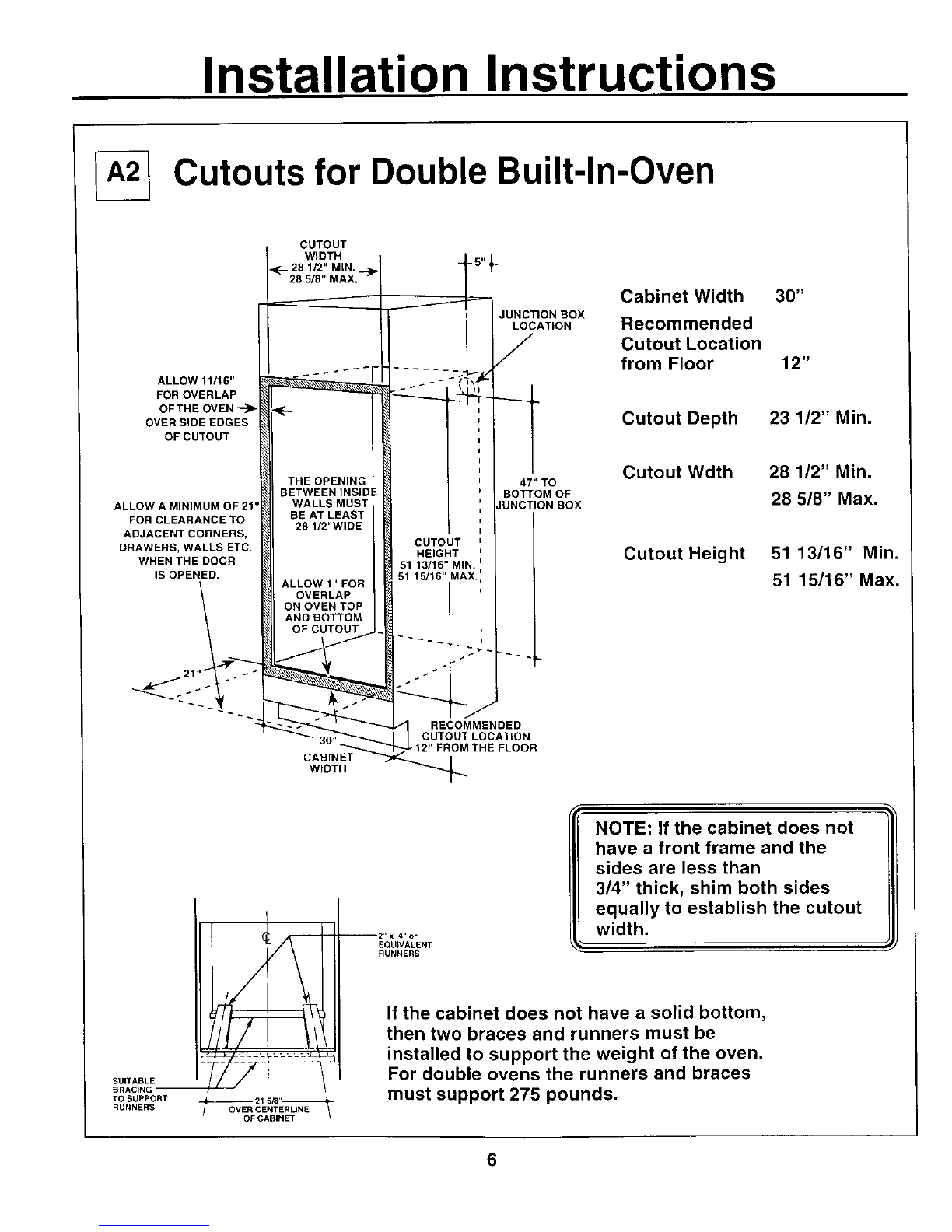

Cutouts for Double Built-In-Oven
ALLOW 11116"
FOR OVERLAP
OFTHE OVEN-_
OVER SIDE EDGES
OFCUTOUT
ALLOW A MINIMUM OF21
FORCLEARANCETO
ADJACENT CORNERS,
DRAWERS, WALLS ETC.
WHENTHE DOOR
IS OPENED.
CUTOUT
WIDTH
28 1/2" MIN.
28 5/
THE OPENING
BETWEEN INSIDE
WALLS MUST
BE AT LEAST
28 1/2"WIDE
ALLOW 1"FOR
OVERLAP
ON OVEN TOP
AND BOTTOM
OF CUTOUT
CABINET
WIDTH
CUTOUT
HEIGHT
51 13/16" MIN.
51 15/16" MAX.
iJUNCTION BOX
LOCATION
47" TO
BOTTOM OF
JUNCTION BOX
RECOMMENDED
CUTOUT LOCATION
• 12" FROM THE FLOOR
Cabinet Width
Recommended
Cutout Location
from Floor
Cutout Depth
Cutout Wdth
Cutout Height
30"
12"
23 1/2" Min.
28 1/2" Min.
28 5/8" Max.
51 13/16" Min.
51 15/16" Max.
SUITABLE
BRACING--
TO SUPPORT
RUNNERS _ 21 5/13"
OVER CENTER LINE
OF CABI_
--2,,x 4,,or
EQUIVALENT
RUNNERS
NOTE: If the cabinet does not
have a front frame and the
sides are less than
3/4" thick, shim both sides
equally to establish the cutout
width.
If the cabinet does not have a solid bottom,
then two braces and runners must be
installed to support the weight of the oven.
For double ovens the runners and braces
must support 275 pounds.
6

Installation Instructions

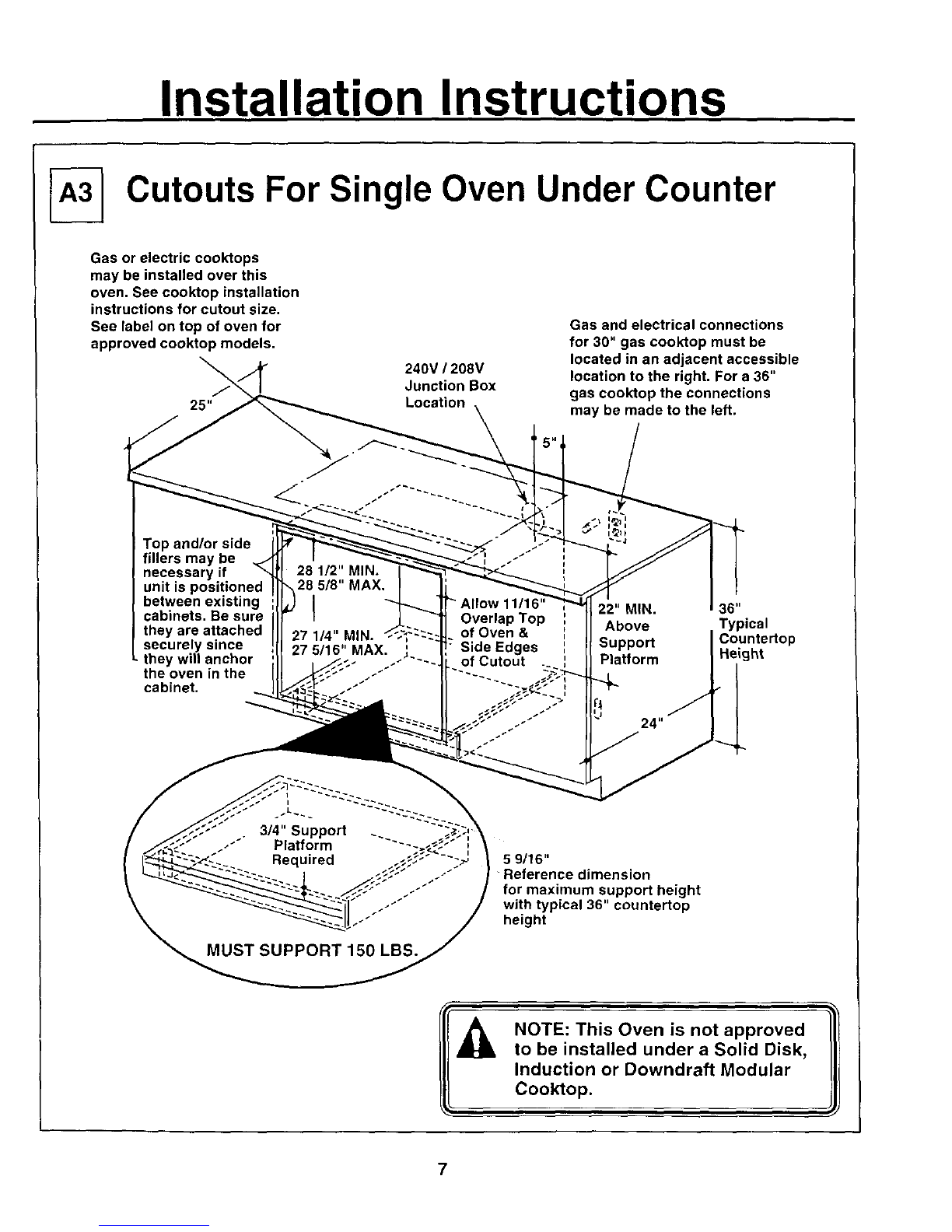

Cutouts For Single Oven Under Counter
Gas or electric cooktops
may be installed over this
oven, See cooktop installation
instructions for cutout size,
See label on top of oven for
approved cooktop models,
Top and/or side
fillers may be
necessary if 28 1/2" MIN.
unit is positioned 28 5/8" MAX.
between existing I
cabinets. Be sure
they are attached 27 1/4" MIN.
securely since 27 5/16" MAX,
they will anchor
the oven in the .I I
cabinet. I j
240V /208V
Junction Box
Location
"Allow 11116"
Overlap Top
of Oven &
Side Edges
of Cutout
Gas and electrical connections
for 30" gas cooktop must be
located in an adjacent accessible
location to the right, For a 36"
gas cooktop the connections
may be made to the left.
22" MIN. 36"
Above Typical
Support Countertop
Platform Height
I
_L_
3/4" Support
Platform
Required
MUST SUPPORT 150 LBS.
5 9/16"
Reference dimension
for maximum support height
with typical 36" countertop
height
_IL NOTE: This Oven is not approved
to be installed under a Solid Disk,
Induction or Downdraft Modular
Cooktop.
7

Installation Instructions
Electrical Connections
Turn off the circuit breaker or remove
fuses to the oven branch circuit.
With the oven in front of the cabinet
opening, on a table or platform, connect
the flexible conduit to the electrical
junction box as shown below. You will
need to purchase a strain relief clamp
to complete the connection of the
conduit to the junction box.
JUNCTION BOX
PLACE OVEN ON
ASUPPORT
TO ASSISTIN
CONNECTING
CONvDUIT
STRAIN RELIEF CLAMP
{ NOT INCLUDED )
MUST BE USED
AT JUNCTION BOX
NEW CONSTRUCTION AND FOUR-
CONDUCTOR BRANCH CIRCUIT
CONNECTION
• When installing in a new
construction, or
• When installing oven in a mobile
home, or
• When local codes do not permit
grounding through neutral:
a.Cut the neutral (White) lead from the crimp.
Re-strip the neutral (white) lead to expose
the proper length of conductor.
Grounc
Wires
,]unctim_
Box Co', er
b.Attach the appliance grounding lead (green
or bare copper) in accordance with local
codes. If the residence grounding conductor
is aluminum, see WARNING note.
c.Connect the oven neutral (white) lead to
the branch circuit neutral (white or gray) in
accordance with local codes, using wire
nut.
d.Connect the oven red lead to the branch
circuit red lead and the oven black lead to
the branch circuit black lead in accordance
with local codes, using wire nuts. If the
residence red, black or white leads are
aluminum conductors, see " WARNING"
note.
e. Install Junction Box Cover.
8 ( Continued on Next Page)

Installation Instructions
Electrical Connections cont.
OR
ITHREE-CONDUCTOR BRANCH I
CIRCUIT CONNECTION
When connecting to a 3-conductor
branch circuit, if local codes permit:
a.Connect the bare oven ground conductor
with the crimped neutral (white) lead to the
branch circuit neutral (white or gray in
color), using wire nut.
Ground and
Neutral Wires
b.Connect the oven red lead to the branch
circuit red lead, using wire nut.
c.Connect the oven black lead to the branch
circuit black lead in accordance with local
codes, using wire nut.
d.lnstall Junction Box Cover.
Do not shorten the flexible conduit.The
conduit strain Relief Clamp must be
securely attached to the junction box
and the flexible conduit must be
securely attached to the clamp. If the
flexible conduit will not fit within the
clamp, do not install the oven until a
clamp of the proper size is obtained.
NOTE TO ELECTRICIAN: The 3 power
leads supplied with this appliance are UL
recognized for connection to larger gauge
household wiring. The insulation of these 3
leads is rated at temperatures much higher
than the temperature rating of household
wiring. The current carrying capacity of the
conductor is governed by the temperature
rating of the insulation around the wire,
rather than the wire gauge alone.
_WARNING: Improper
connection of aluminum
house wiring to copper leads
can result in an electrical hazard or
fire, Use only connectors designed
for joining copper to aluminum and
follow the manufacturer's
recommended procedure closely.
9

Installation Instructions

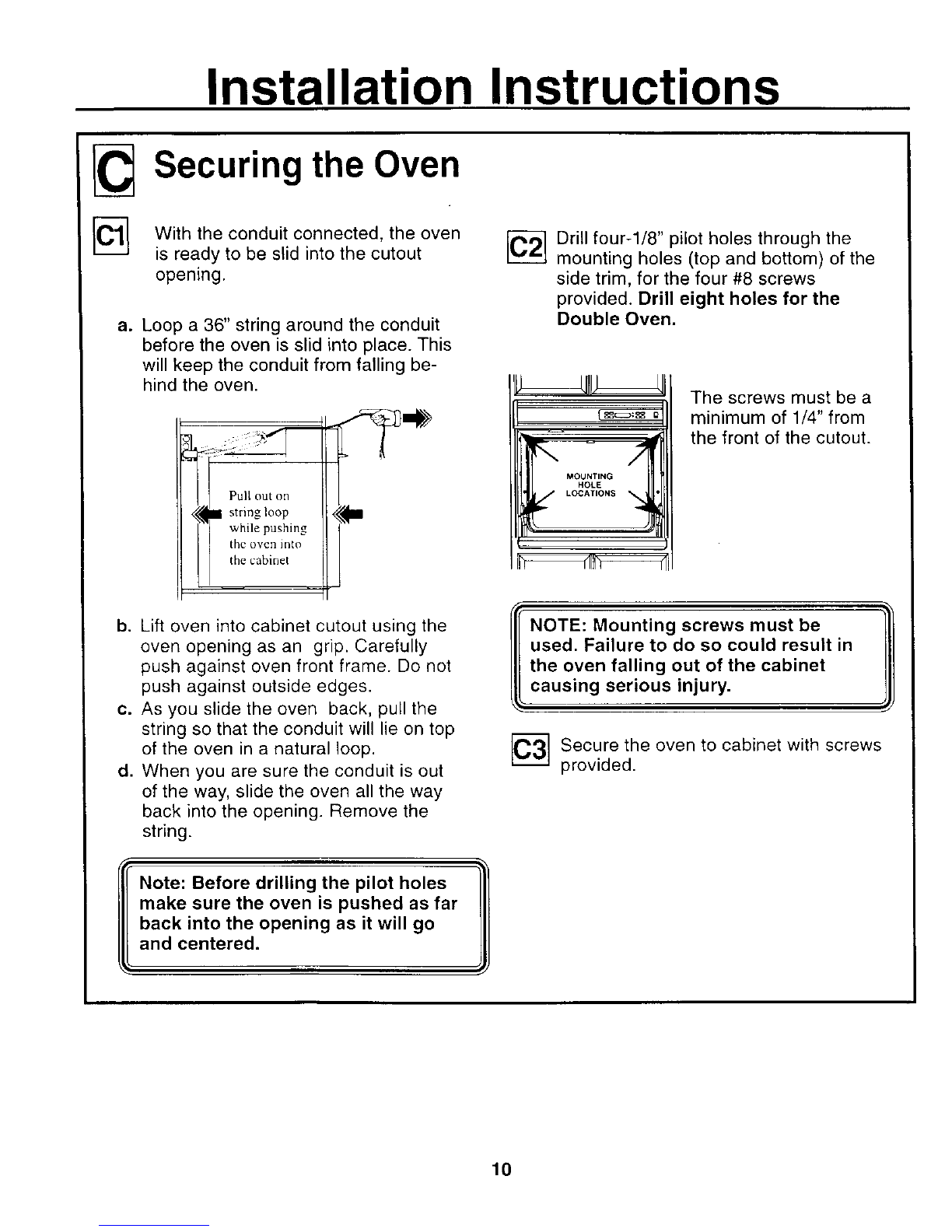

Securing the Oven
With the conduit connected, the oven
is ready to be slid into the cutout
opening.
a. Loop a 36" string around the conduit
before the oven is slid into place. This
will keep the conduit from falling be-
hind the oven.
Pull out on
<i • string loop
while pushing
the oven into
the cabinet
II
b. Lift oven into cabinet cutout using the
oven opening as an grip. Carefully
push against oven front frame. Do not
push against outside edges.
c. As you slide the oven back, pull the
string so that the conduit will lie on top
of the oven in a natural loop.
d. When you are sure the conduit is out
of the way, slide the oven all the way
back into the opening. Remove the
string.
_-] Drill four-I/8" pilot holes through the
mounting holes (top and bottom) of the
side trim, for the four #8 screws
provided. Drill eight holes for the
Double Oven.
MOUNTING
HOLE
_,/ LOCATIONS _
JFF_IlIIY_
The screws must be a
minimum of 1/4" from
the front of the cutout.
NOTE: Mounting screws must be
used. Failure to do so could result in
the oven falling out of the cabinet
causing serious injury.
_3-] Secure the oven to cabinet with screws
provided.
Note: Before drilling the pilot holes
make sure the oven is pushed as far
back into the opening as it will go
and centered.
10

Installation Instructions
Installing the Bottom Trim
D----_ Make sure the flat side is up on the
bottom trim. Key hole slot and wide flange at top
_-2-] Find the Key Slot on the back of the
trim.
_3-_ Match the key slot with the rivet on the
bottom of the side trim
[_ Push the trim down until it into
snaps
place.
\
Lower trim mounting rivet on bottom of side
trim.
Push trim down at both ends until it snaps into
place.
f
il _jlL CAUTION: Be sure you do not tip the oven foward during installation or you
may bend the bottom trim. The bottom trim providas an opening for cooling
air to enter the cabinet. This opening should never be blocked.
11

Installation Instructions
Replacing the Oven Door
_-_ Make sure the hinge is in the door stop
position.
_-_ Remove the toweling or paper towel holder
from the hinge.
_--_ Grasp the door on both sides.
_4-_ Hold the door over the hinges lining up the
hinges with the hinge slots on the bottom of
the door.
_--_ Slide the door down onto the hinges as far
as it will go.
_6] Close the door.
The oven door is heavy. You may need help lifting the door high enough to slide it
down onto the hinges. Do not lift the door by the handle.
12

Installation Instructions
#r Pre-Test Check List
Remove all protective film if
present, and any stickers.
Check to be sure that all wiring is
secure and not pinched or in
contact with moving parts.
Check that the bottom trim is installed
properly (see page 11).
Check to be sure the mounting
screws are installed and flush with the
side trim, (see page 10).
Operation Checklist
Remove all items from the inside
of the oven.
Turn on the power to the oven.
(Refer to your Use and Care
Manual.) Verify that the bake and
broil units, and all cooking
functionsoperate properly.
Check that the circuit breaker is
not tripped or the house fuse is
blown.
Check that conduit is securely
connected to the junction box.
See Use & Care manual for
troubleshooting list.
[_ NOTE TO ELECTRICIAN:
The power leads supplied with this
appliance are UL recognized for
connections to larger gauge
household wiring. The insulation of
these leads is rated at temperatures
much higher than the temperature
rating of household wiring. The
current carrying capacity of a
conductor is governed by the wire
gauge and also the temperature rating
of the insulation around the wire.
NOTE: ALUMINUM WIRING
A. WARNING:
IMPROPER CONNECTION OF
ALUMINUM HOUSE WIRING TO
THE COPPER LEADS CAN
RESULT IN A SERIOUS PROBLEM.
B. Splice copper wires to aluminum
wiring using special connectors
designed and UL approved for
joining copper to aluminum and
follow the manufacturer's
recommended connector
procedure closely.
NOTE:Wire used, location and
enclosure of splices, etc., must
conform to good wiring practice and
local codes.
13

NOTES
14

NOTES
15

NOTES
Pub. No. 31-10437
16 229c4053P419-1
