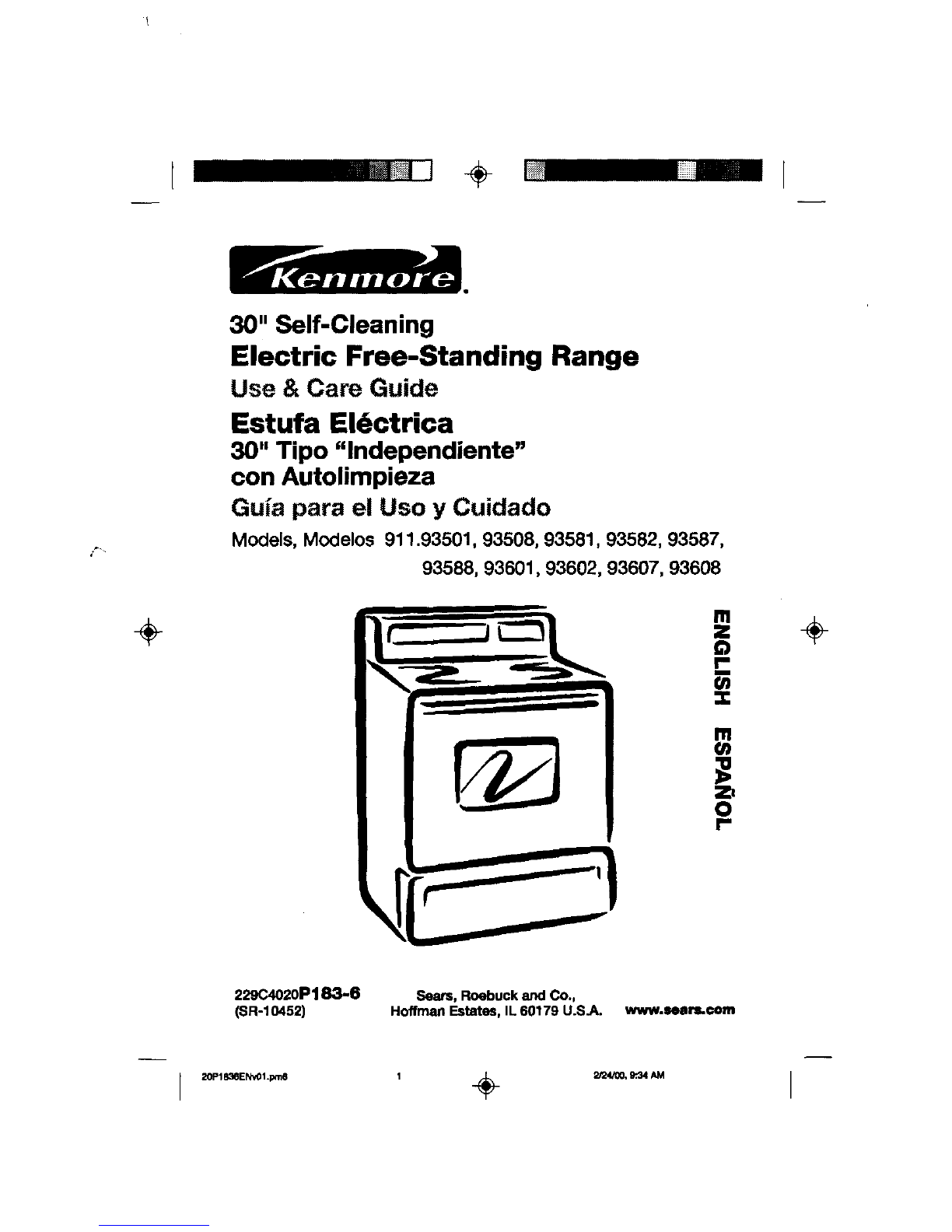

Kenmore 911.93501 User manual

t
30" Self-Cleaning
Electric Free-Standing Range
Use & Care Guide
Estufa EI6ctrica
30" Tipo "lndependiente"
con Autolimpieza
Guia para el Uso y Cuidado
Models, Modelos 911.93501, 93508, 93581, 93582, 93587,
93588, 93601,93602, 93607, 93608
÷÷
229c4o2oP183-6
(SR-10452) Sears, Roebuck and Co,
Hoffman Estates, IL 60179 U.SJ_. www.sears.eom

I ÷
SELF-CLEANiNG
FREE-STANDiNGRANGE

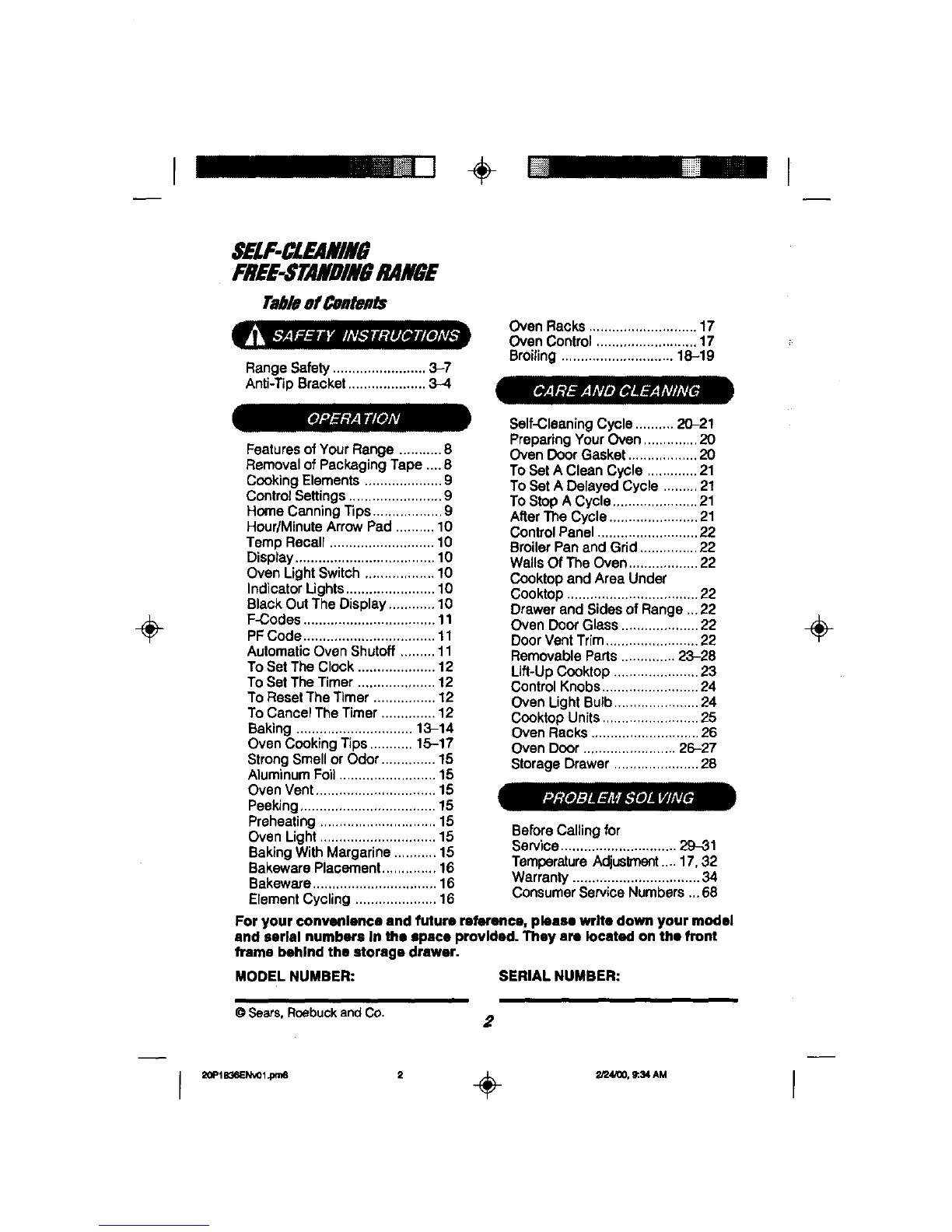

Tableof Dontents
RangeSafety ........................3-7
Anti-Tip Bracket....................3-4
Oven Racks............................ 17
Oven Control.......................... 17
Broiling............................. 18-19
÷
Featuresof Your Range ...........8
Removalof Packaging Tape.... 8
Cooking Elements .................... 9
Control Settings........................9
Home Canning Tips .................. 9
Hour/Minute ArrowPad .......... 10
Temp Recall ........................... 10
Display.................................... 10
Oven Light Switch .................. 10
Indicator Lights .......................10
Black OutThe Display ............10
F-Codes.................................. 11
PFCode.................................. 11
Automatic Oven Shutoff .........11
ToSet The Clock .................... 12
ToSet TheTimer .................... 12
To ResetTheTimer ................ 12
To Cancel The Timer .............. 12
Baking .............................. 13-14
Oven Cooking Tips ........... 15-17
Strong Smell or Odor .............. 15
Aluminum Foil......................... 15
Oven Vent............................... 15
Peeking................................... 15
Preheating .............................. 15
Oven Light .............................. 15
Baking With Margarine ...........15
Bakeware Placement.............. 16
Bakeware ................................16
Element Cycling .....................16
Self-Cleaning Cycle .......... 20-21
Preparing YourOven..............20
Oven DoorGasket..................20
ToSet AClean Cycle .............21
To SetA DelayedCycle .........21
ToStopA Cycle......................21
AfterThe Cycle.......................21
ControlPanel..........................22
BroilerPanand Grid...............22
WallsOf The Oven..................22
Cooktopand Area Under
Cooktop..................................22
Drawerand SidesofRange .. 22
Oven DoorGlass....................22
DoorVentTrim........................22
RemovableParts.............. 23-28
Lift-UpCooktop......................23
ControlKnobs.........................24
OvenLightBulb......................24
CooktopUnits.........................25
OvenRacks............................26
OvenDoor ........................26-27
StorageDrawer ......................28
BeforeCalling for
Service.............................. 29_31
TemperatureAdjusb]_3nt.... 17,32
Warranty.................................34
ConsumerServiceNumbers.,.68
For your convenience and future reference, please write down your model
and serial numbers In the apace provided. They are located on the front
frame behind the storage drawer.
MODEL NUMBER: SERIAL NUMBER:
© Sears, Roebuck and Co. ,2
÷
I2_'t8_EN'_01 .pro6 2÷ _24J00, _34 AM

f[
PI iiii!i m
÷
IMPORTANTSAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Read all Instructions before using this appliance. When using gea
or electrical appliances, basic safety precautions should be followed,
Including the following:
B. Usethe bracketas a template
and mark2 holepositionsonthe
wall and 2 holepositionson the
floor,Useeither thewoodor
concretefloor setof positions,
dependingonyourfloortype.
See Fig. 1.
Adjacent Cabinet or
Final Location of Range
Side Panel
TheseANTI-TIP bracket installation
instructionsare for woodorconcrete
floors and walls.Any othertypeof
constructionmayrequirespecial
installation techniquesto provide
adequatefastening oftheANTI-TIP
bracket tothefloorand wall.
The useofthisbracketdoes not
preventtippingofthe rangewhen
bracket isnotproperlyinstalled.
NOTE: The installation ofthe
ANTI-TIP bracketmustmeatall
localcodes forsecuringappliance.
Step 1
Locating the bracket
A. Locatethe bracketagainstthe rear
walland eitherthe rightor left
cabinet, if thecountertop
overhangsthecabinet,offsetthe
bracketfrom thecabinetbythe
amountofoverhang.Ifthereisno
adjacentcabinet, position the edge
ofthe bracket atthe desired
locationoftherangeside panel.
Wood
Floor Holes
Bracket
Side
Rear
Leveling Leg
3
Wall
Holes
Fig. 1
€ondnued on next page
÷

I
÷
IMPORTANTSAFETY
INSTRUCTIONS
Ard_l-TIp Bracket (contd.)
Step 2
Anti-tip bracket installation
A. Wood Construction:
1. Roor. Drilla _' pilothoaein
the centerofeach pre-.marked
woodfloorholeposition(a nail
or awlmay be usedifa drillis
notavailable),
AND
2. Wall: Drillanangled _" pilot
hole (as showninFig. 2) inthe
centerofeach pre-marked
wall holeposition(a nailor awl
may be used ifadrillisnot
available).
A'rrACHMENTTOWALLANDFLOOR
Bracket
I ScrewMunt "_ Plate
__..._j F.==w_ Im T
Rg. 2
B. Mount theANTI-TIP bracket
withthe4screwsprovided as
illustratedin Fig. 2,
C. Concrete Construction:
1. Hardware required:
4each V,'x 11/2'lag bolt
4 each V£O.D. sleeve
anchor
2. Drilltherecommendedsize
hole forthe anchors intothe
concreteat thecenterof each
pre-markedconcretefloorand
wallholeposition.Installthe
sleeveanchorintothedrilled
holesand theninstallthelag
boltsthroughthebracket.
DO NOTOVERTIGHTENTHE
BOLTS.
Step 3
Checking the installation
A. Complete theinstallationof
the rangeper theinstallation
instructionsprovidedwithit.
B. CheckiftheANTI.TIP bracketis
installedand engaged properly.
Removethekickpanelor storage
drawerand inspeottheREAR
LEVEUNG LEG. Makesureitfits
securelyintotheslot.See Fig. 1.
÷
4

I÷
÷
IMPORTANTSAFETY
INSTRUCTIONS
from abnormal use, Including
exceealvs loading of the oven
door, attach the range to the
wall or floor by installing the
Anti-Tip device supplied, if the
range is moved for cleaning,
servicing or any reason, be
sure the Anti-Tip device is
re-engaged properly when
the range Is slid back n the
opening. Failure to do so could
resultIn therangetipping end
may causepersonal Injury. To
Inspect the AnU-TIp device,
remove the storage drawer end
look to see Ifthe rear leg leveler
fully engages the slot In the
bracket.
t#
Important: To ensure safetyfor
yourself, family, and home, please
read yourOwner'sManualcarefully.
Keep ithandyfor reference.Pay
closeattentiontoSafetySections.
BE SURE yourappliance isinstalled
and groundedbya qualified
technician.
IMPORTANT SAFETY
NOTICE:
The California Safe Drinking
Water and Toxic Enforcement Act
requires the governor of California
to publish • list ofsubstances
known to the stets to cause birth
defects or other reproductive harm
and requires businesses to warn
their customers of potential
exposure to such substances.
The fiberglass insulation in a
saIl-cleaning oven will give off a
very small amount of carbon
monoxide during the cleaning
cycle. Exposure can be minimized
byventing with an open door or
window or using aventilation fan
or hood.
IMPORTANT: The health of
some birds is extremely sensitive
to the fumes given off during
the self-cleaning cycle of any
range. Move birds to another
well-ventilated room.
• DO NOT leavechildren alone
or unattendednear an appliance
in use.
•TEACH CHILDREN nottoplay with
controlsoranypart ofthe appliance
and not tosit,ctimb,or standon the
dooror any otherpartsofthe
appliance.
• CAUTION: NEVER STORE
itemsofinterestto childrenonthe
backguard or incabinetsabove the
appliance,Childrenclimbing on the
appliance couldbe seriouslyinjured,
•KEEP THIS bookfor lateruse.
•NEVER TRY to repair or replace
any part of the appliance unless
instructions are given in this manual.
Atl other work should be done by a
qualified technician.
•NEVER USE your appliance for
warming or heating the room.
÷
5
j , ÷ ,-,=.,,'-, f

f[
W
÷
IMPORTANTSAFETY
INSTRUCTIONS
• ALWAYS KEEP combustible wall
coverings, curtains, dishcloths,
towels,potholdersand otherlinens
a safe distancefrom the appliance.
•NEVER HEAT unopened food
containers.Pressurebuildupcan
cause thecontainerto burst and
causeinjury.
•NEVER LEAVE containersoffat or
drippingsinyouroven.
• ALWAYS KEEP theoven and
surfaceunitareas free from things
thatwillburn.Food,wooden
utensils,and grease buildup could
catchfire. Plasticutensilscould
meltand cannedfoods could
explode.Yourappliance should
neverbe used as a storagearea.
•ALWAYS KEEP yourappliance
clear ofthingsthatwillburn
(gasolineand otherflammable
vaporsor liquids).
•NEVER TRY to clean hot
surfaces.Some cleanersproduce
noxiousfumes, and wet clothsor
spongescould cause steamburns.
• NEVER WEAR loose-fittingclothing
when usingyourappliance.
•NEVER USEa towelor otherbulky
clothas a potholder.Makesurethe
potholderisdry. Moistpotholders
and wet clothsor spongesoouJd
causesteam burns. DO NOT let
potholderstouchhotheating
elements.
•DO NOT touch heating elements,
surfacesnearthem,or interioroven
surfaces.Thesemay be hotenough
tocauseburnseventhoughthey
are darkin color.Duringand after
use,do nottouchor let clothingor
flammablematerialcontactthe
elementsor hotsurfacesuntil they
havehadtimetocool.Other
surfacesnear the ovenvent
openings, oven doorand window
and cooktopsurfacesmayalsobe
hotenoughtocause burns.
•ONLY CERTAINkindsof glassor
ceramiccookwarecanbe usedfor
cooktopcooking.Makesurethe
cookwareyouchooseto useis
designedfor ccoktopcooking
withoutbreakingdue tothesudden
temperaturechanges,
•ALWAYSUSEcarewhentouching
cod(topelements.Theywiltretain
heataftertherangehasbeen
turnedoff.
•NEVERBLOCKtheovenairvent
underthedghtrearelement.
•COOKWAREUSEDforcook,top
cookingshouldbeflat onthebottom
andlargeenoughtocovertheheating
areabeingused.Undersizedutensils
exposetheheatingelementandmay
resultindirectcontactor ignitionof
clothing.Thepropersizeutensilwill
alsoimproveefficiency.
•ALWAYSUSEdripbowlstoprevent
widngandcomponentdamage.DO
NOT usealuminumlinersorfoil indrip
bowls.Improperusemay resultin risk
ofelectricshookorfire.
•NEVER LEAVEsurfaceunits
unattendedat highset_ngs.Boilovers
resultinsmokingorgreasyspills
whichcouldcatchfire.
•ALWAYSTURN utensilhandles
inwardand awayfromothersurface
unitstoreducetheriskofburns,
ignition,unintendedcontact,and
spillage.
•NEVERputheatingelementsin water.
•WHEN PREPARINGflaming foods
underthe venthood,turnthefanon.
6
÷

I
÷
IMPORTANTSAFETY
INSTRUCTIONS
• PLACE OVEN RACKS in the
desired positionwhiletheoven is
cool If racksmustbe movedwhile
ovenis hot,do notlet potholder
contactthehotovenelement.
•AFTER BROILING, alwaystake the
broilerpan and gridoutoftheoven
and clean them.Leftovergrease in
the broiler pan couldcatchfirethe
nexttimeyou useyouroveR.
•ALWAYS USE care whenopening
theoven door.Lethotair and steam
escape beforemovingfoods.
•NEVER USE aluminumfoil toline
the ovenbottom,Improperuseof
foil couldstarta fire, or electrical
shookcould result.
•CLEAN ONLY the parts listed
in this manuel. Follow all cleaning
instructions, Be sure to remove
the broiler pan end grid before the
self-clean cycle.
•NEVER RUB, move, clean, or
damage the door gasket on self-
cleaning ranges, It is essential for a
good seal.
•NEVER TRY to clean utensils,
cookware, removable parts, or
broiler pan and grid in the self-
clean cycle.
•DO NOT USE oven cleaners -
No commercial oven cleaner or
protective coating of any kind
should be used in or around any
part of the oven.
• IF THE SELF-CLEANING mode
malfunctions,turntheovenoffand
disconnectthepowersupply.Have
itservicedbya qualified technician.
_CAUTION:
Nevar lins the drip bowls
with aluminum foil. Foil
can block the normal heat flow
and damage the range.
Always use cookware and woke
that are fiat on the bottom and
the same size as the cooking
element being used.
Cookware should not extend
more than 1" beyond the edge
ofthe conking element.
READ AND UNDERSTAND
THIS INFORMATION NOW!
Be sure everyone In your home
knows whet to do In case of fire.
Never use water on a grease fire;
It will only spread the flames.
COOKTOP GREASE RRE:
Never pick up • flaming pen...
1. Turn off the surface elements.
2. Smothertheflame witha tightly
fitting lid, use baking soda,or use
a drychemical,foam or halon-type
extinguisher.
Do not try to =wovethe panl
1. Close the oven door and turn
controls off.
2. If firecontinues,carefullyopen
the door, throw baking sodaon
the fire, or use edry chemical,
foam, or helen-typeextinguisher.
÷
7

II ÷

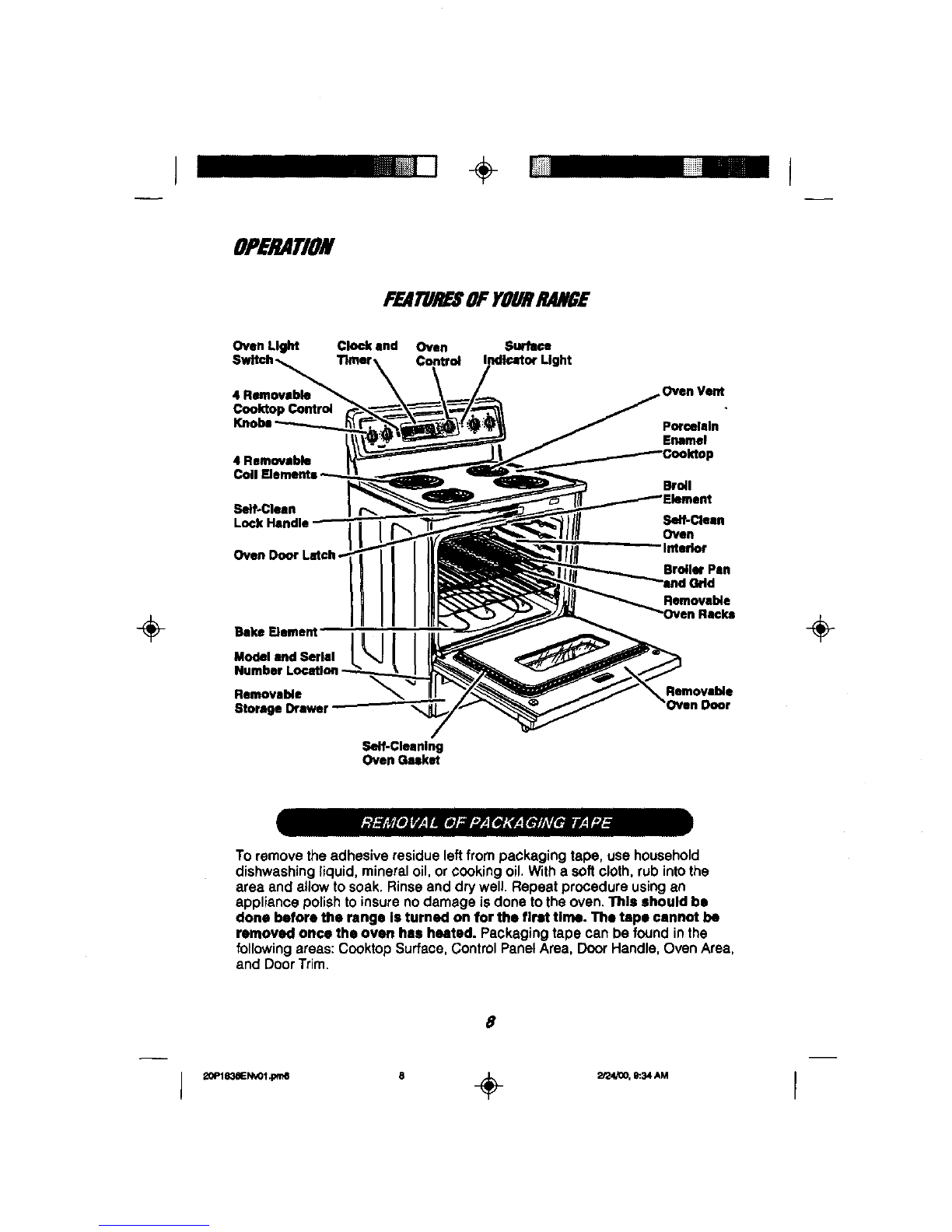

OPERATION
FEATURESOFYOURRANGE
÷
Oven Light Clock and Oven Surhlna
Timer Control Indicator Light
4 Removable
Cooktop Control
4 Removable
Self-Clean
Lock
Oven Door
Bake memem
Model end Serial
Number Location -
Removalde
Storage Drawer
Self-Cleaning
Oven Geaket
Oven Vent
Porcelain
Enamel
Broil
Serf-Cleen
Oven
nterle_'
Broiler Pan
and Grid
Removeble
Rllcke
Remove_e
)ocr
÷
To removetheadhesive residueleft frompackaging tape, usehousehold
dishwashingliquid, mineraloil,or cookingoil, Witha softcloth,rub intothe
area and allowto soak.Rinseand drywell. Repeat procedureusingan
appliance polishtoinsurenodamage isdone totheoven,This should be
done before the range Is tumed on for the flrat time. The tape cannot be
removed once the oven has heated. Packagingtape can be found in the
following areas: Cooktop Surface, Control PanelArea, Door Handle,Oven Area,
and DoorTrim.
8

Ir
OPERATION

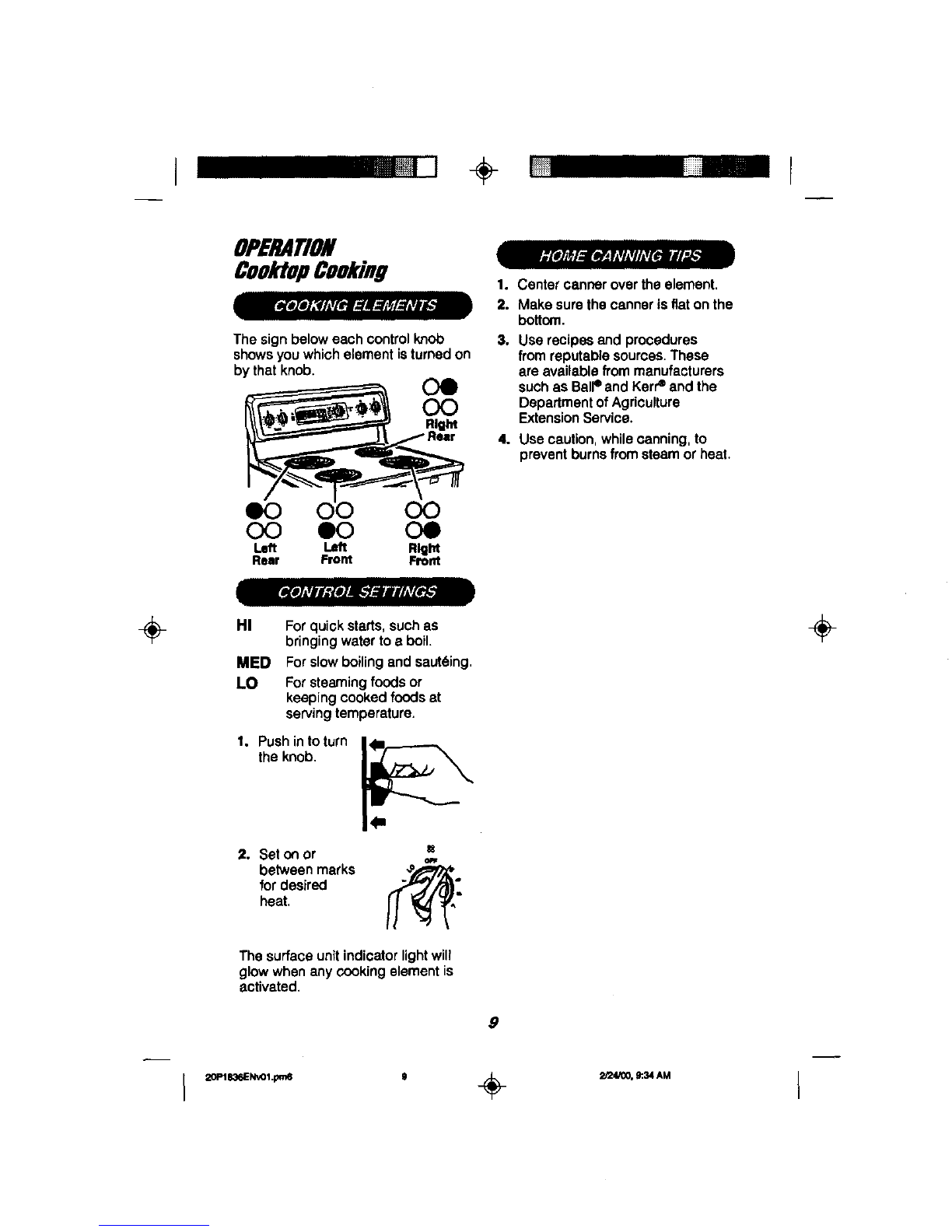

Cooktop Cooking
J
The signbelow each controlknob
showsyouwhichelementisturnedon
bythatknob. OO
O0
O0
O0 O0 O0
Left Left Rlgflt
Rear Front Front
1.
2.
3,
4.
Centercannerover theelement.
Make surethecannerisfiaton the
bottom.
Use recipesand procedures
from reputablesources.These
are availablefrom manufacturers
suchas BalPand Kerreand the
Departmentof Agriculture
ExtensionService.
Use caution, while canning, to
prevent burns from steam or heat.
÷HI Forquick starts,suchas
bringing watertoaboil.
MED Forslowboilingand saut6ing,
LO Forsteamingfoods or
keepingcookedfoods at
servingtemperature.
1. Push in to turn
the knob,
2. Seton or =
between marks /_
for desired
heat,
The surfaceunitindicator light will
glowwhenany cooking elementis
activated.
9
÷

iI÷r
OPERATION
OvenControl, Clock,andtimer
O'_,NCd..EJUIg4G G_OC_U, AI_4TO_ O'_O_aa_TO'_
OFF _1
YourrangeCLOCK, TIMER, and OVEN operationsares=mpleand easy to
understand
Jm
÷
The HOUR/MINUTEarrowpadsallow
youto settheexact timeyou need
Touch the DOWN arrow pad to
d=splay the selected oven
temperature
The displaywdlshow
1. The timeofdayCLOCK
2. The amountoftimeyou choose
when us=ngtheTIMER
3. Anydelayedfunct=onsor cooking
timesset
Asyou read throughyourmanual,you
w=llfind whateachoftheind_wdual
indtoatorsare usedforand howthey
willhelpyou inunderstandingyour
newcontrol
If the time of day isshowing in the
dtsplay, touch the CLOCK pad once
To bring back the d_splayfrom the
bme of day blackout, touch the
CLOCK pad twice,
÷
The ovenlightsw_tchturnsthelight
inside theoven onor off
/o

I ÷ J
OPBMTiON

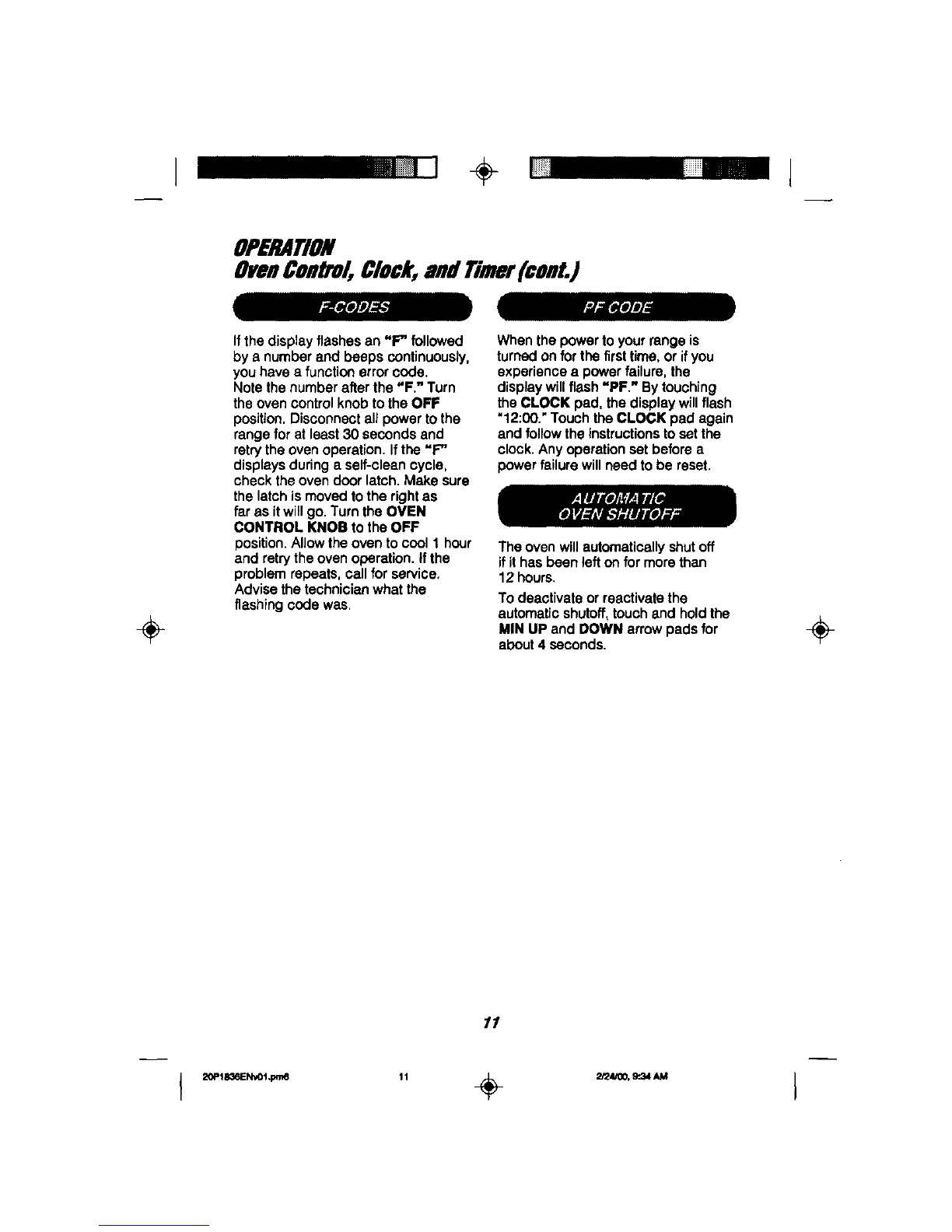

OvenCon ol, Clock,and Timer(cont.)
÷
If thedisplay flashes an "F" followed
by a number and beeps continuously,
you have a function errorcode.
Note the number after the "F." Turn
the oven controlknob to the OFF
position. Disconnect all power to the
range for at least 30 seconds and
retry the oven operation. If the "F"
displays during a self-clean cycle,
check the oven door latch. Make sure
the latch is moved to the right as
far as it will go. Turn the OVEN
CONTROL KNOBto the OFF
position. Allow theoventocool 1 hour
and retry the oven operation. If the
problem repeats, call for service,
Advise the technician what the
flashing code was.
When the power to your range is
turned on for thefirsttime, or if you
experience apower failure, the
display will flash "PF." By touching
the CLOCK pad, the display will flash
"12:00."Touch the CLOCK pad again
and follow the instructionsto set the
clock.Any operation set beforea
power failure will need to be reset.
The oven will automatically shut off
if it has been left on for more than
12 hours.
To deactivateor reactivatethe
automaticshutoff,touchand hold the
MIN UPand DOWN arrowpadsfor
about4 seconds, ÷
11

J ÷
÷
OPERATION

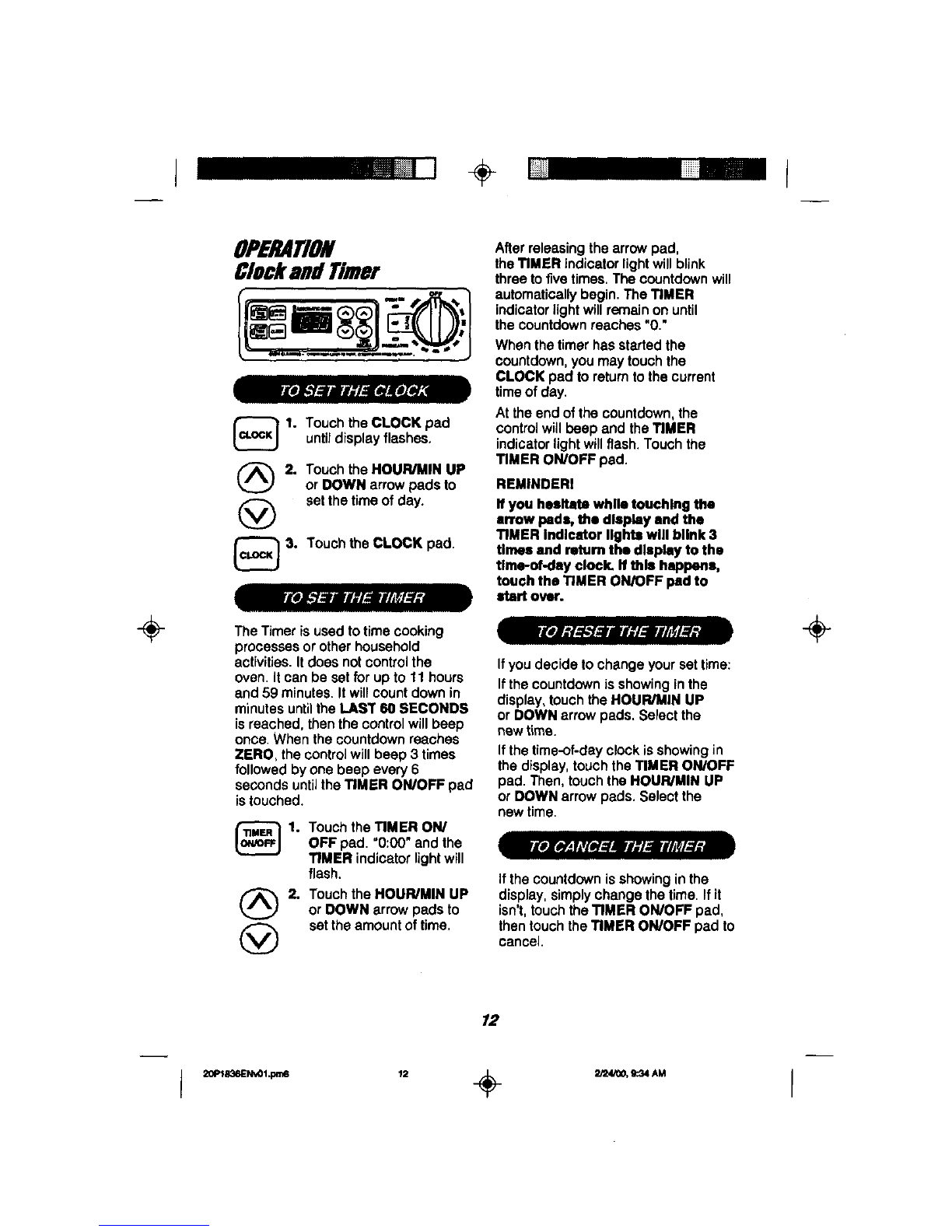

Clockand Timer
1. ouchthe CLOCK paduntil displayflashes.
2. TouchtheHOUR/MIN UP
or DOWN arrowpads to
(_ setthetimeofday.
3. TouchtheCLOCK pad.
TheTimerisusedtotimecooking
processesorotherhousehold
activities.Itdoes notcontrolthe
oven.it canbe set for upto 11 hours
and59 minutes.Itwillcountdownin
minutesuntilthe LAST 60 SECONDS
isreached, thenthecontrolwillbeap
once.Whenthecountdownreaches
ZERO, thecontrolwillbeep 3 times
followedbyone beep every6
secondsuntilthe TIMER ON/OFF pad
istouched.
1. Touchthe TIMER ON/OFF pad. "0:00" and the
TIMER indicatorlight will
flash.
2. Touchthe HOUH/MIN UP
or DOWNarrowpads to
(_ settheamountoftime,
After releasingthearrowpad,
theTIMER indicatorlightwillblink
threetofivetimes,The countdownwill
automaticallybegin.TheTIMER
indicatorlight willremainon until
thecountdown reaches"O."
Whenthetimerhasstartedthe
countdown, you maytouchthe
CLOCK pad toreturntothe current
timeof day.
Attheend ofthe countdown,the
controlwillbeep and theTIMER
indicatorlightwillflash. Touchthe
TIMER ON/OFF pad.
REMINDERI
Ifyou hesitate while touching the
arrow pads,the display and the
TIMER indicator lights will blink 3
times and return the display tothe
time-of-day clock. If this happens,
touchthe TIMER ON/OFF pad to
start over.
Ifyou decidetochangeyoursettime:
ifthecountdownis showingFnthe
display,touchtheHOUN/MIN UP
or DOWN arrowpads,Selectthe
newtime.
Ifthetime-of-dayclock isshowingin
thedisplay,touchtheTIMER ON/OFF
pad.Then, touchthe HOUR/MIN UP
or DOWNarrowpads. Selectthe
newtime.
Ifthe countdownisshowinginthe
display,simplychangethetime.Ifit
isn't,touchtheTIMER ON/OFF pad,
thentouchtheTIMER ON/OFF pad to
cancel.
÷
/2

I
÷
OPERATION
Baking
1. Setthe OVEN CONTROL KNOB
to thetemperatureyou wantto
usewhenbaking.The OVEN ON
indicatorlightwillglow.
Whenthetemperatureinside
theovenreachesyourselected
temperature,the preheattone
willsoundand thePREHEATED
indicatorlightwillglow.
2. Whenbakingisfinished,turnthe
OVEN CONTROL KNOB tothe
OFF position.
BAKING SHELF POSITION CHART
TYPE OF FOOD SHELF PosnloN
Frozen pies 4
(on cookie sheet)
Angel food cake, 3 or 4
bundt or pound
cakes
Biscuits, muffins, 3 or 4
brownies, cookies,
cupcakes, layer
cakes, pies
Casseroles 3 or 4
Turkey or Roast 1
The ovenwillturnon immediatelyand
cookfor aselected length oftime, At
theend ofthe cookingtime,theoven
willturnoffautomatically.
1. Makesurethecorrecttimeofday
isshowinginthe display.
2. Touchthe COOK TIME
ON/OFF pad
3. TouchtheHOUR/MIN UPend/or
DOWN arrowpads,toset how
longyouwantfoodstocook.
4, Turnthe OVEN CONTROL KNOB
tothe bakingtemperatureyou
wanttouse
6.
The OVEN ON and AUTOMATIC
OVEN indicator lightswillglow.
Whenthetemperatureinsidethe
oven reachesthetemperatureyou
haveselected,the PREHEATED
indicatorlightwillglow.
Whenthe setamount ofcooktime
hasreachedzero, a tonewill
soundandthe AUTOMATIC OVEN
indicatorlightwillblinkuntilthe
OVEN CONTROL KNOB isturned
to the OFF position.
÷
/3

LIlll l÷;iiiii
÷
OPERATION
Baking (cont.]
Youcan settheovencontroltodelay
starttheoven,cookfor a specific
lengthoftime, and thenturnoff
automatically,
1. Makesurethecorrecttimeofday
isshowinginthedisplay.
2. TouchtheCOOK TIME
ON/OFF pad.
3. TouchtheHOUN/MIN UP and/or
DOWN arrow pads, toset how
longyouwantfoods tocook.
4. Touchthe START TIME
ON/OFF pad.
5. Touchthe HOUN/MIN UP and/
orDOWN arrowpads tosetthe
timeof dayyouwanttheovento
turnon.
6. TurntheOVEN CONTROL KNOB
tothebakingtemperatureyou
wantto use.
The OVEN ONand AUTOMATIC
OVEN indicatorlightswillglow.
7. Whenthe starttimeisreached,
theovenwillautomatically turnon
and startcooking.Whenthe
temperatureinsidetheoven
reachesthetemperatureyouhave
selected,thePREHEATED
indicator lightwillglow.The set
amountofcooktimewillcount
downtozero, a tonewillsound,
and theAUTOMATIC OVEN
indicatorlightwillblinkuntilthe
oven controlknobisturnedtothe
OFF position.
NOTE: AftertouchingtheCOOK
TIME or START TIME pads,ifyou
hesitatebeforetouchingtheHOUR/
MIN pads, thedisplaywillblink3
limesand returntothetimeofday.If
thishappens,repeattheoperationto
continue. ÷
14

L ÷ liii!i!il.rr
÷
OPEP TION
OvenCookingTips
It isnormaltohave someodorwhen
usingyour ovenfor thefirsttime.To
helpeliminatethisodor,ventilate the
room by opening a window or using
avent hood.
IMPORTANT: Never cover theoven
bottomor oven rackwithaluminum
foil. Improperusecan cause poor
heatflow, poorbaking results,and
may damage theoven finish. To
preventstainingfrom spillovers,you
may place a piece of aluminum foilor
a cookiesheeton the rackbelowthe
food whichmay spillover.
Openingthedooroftento check
foods willcauseheat lossand poor
bakingresults.
Preheatingisbringing the oven
temperatureup tothetemperature
youwillbe usingduringbaking,Let
theoven preheatwhenrecipescall
forpreheating.
To prolong thelifeof your ovenlight
bulb, follow thishelpful tip: Arways
turn the lightoff when the ovenis not
in useor during a cleancycle, If yo_Jr
oven light is left on for an extended
period of time, the oven willbe warm
when the door is opened due to the
heat generated from the oven light
bulb. ÷
Theoven ventis locatedunderthe
rightrear element. Thisarea could
becomehotduringovenuse. Itis
normalfor steam tocomeoutof
theventand/orcollectmoisture
underneathwhentheoven is inuse.
The ventis importantfor properair
circulation.Never block this venL
OvenVent
Mostrecipesforbaking have been
developed usinghigh-fat products
suchas butter or margarine(80% fat
byweight--the federal requirement
for productslabeled"margarine").
Youwillgetpoorresultsifcakes, pies,
pastries,cookies,or candiesare
made withlow-fat spreads.Low-fat
spreadscontainless fat and more
water.The highmoisturecontentof
thesespreadsaffectsthetextureand
flavor offavorite baked recipes.The
lowerthefat contentof a spread
product,themore noticeablethese
differencesbecome,To ensurebest
results,usemargarine,butter,orstiok
spreadscontainingat least70%
vegetableoil,
/5

I ÷ liiiiiiil I
÷
OPERATION
OvenCookingTips{cont.J
Bakingresultswillbe batterifbaking
pansare centeredintheovenas
muchas possible.Ifbakingwith
morethanonepan, place thepans
soeach hasat leastI to 1½"ofair
space aroundit.If bakingfour cake
layersat thesame time,place two
layerson rack2 and two layerson
rack4. Staggerpanson therackso
one isnotdirectlyabove theother.
FLAT COOKIE SHEETS, without
sides, allow air to circulate all around
the cookies for even browning.
SHINY PANS reflectheatand are
perfectforcakes and quickbreads
thatneed a light browncrust.
GLASS, DARK NON-STICK,
OR DARKENED-BY-AGE
BAKEWARE absorbsheatand can
be usedforyeast breads, pie crust,or
foodsthatneed abrowncrust.The
oventemperatureshouldbereduced
by25"F.
The OvenTemperatureSensor
continuouslysensesand controlsthe
temperatureinsidetheoven.To keep
a constantsettemperature,the
elementswillcycle(turnon and off
duringcooking).
16
÷
m
1 20P1836El_h_O14n6 16 ÷2,'24/00, 9:.3S AM I

÷
I
÷
OPERATION
OvenCookingTips(cont.)
The oven racks are designedwith
stops,a convenienceaswell as a
safetyprecaution.The guides havea
bumptoprevent theracksfrom tilting
whentheyarepulledoutoftheoven.
Thisdesignallows theracksto be
insertedinonlyone way.
Bump I'__ |
In Rack _ li
Oulde_
Your oven has six (6) rack positions.
The top position is only a guide. It
cannot be used as a rack position,
Guidee
6 6
1'
Always place oven racks Inthe
proper position while oven Iscool.
CAUTION: Whenyou are usingthe
rackinthe lowestposition(1), youwill
need tousecautionwhenpuffingthe
rackout.We recommendthatyou pull
the rack outseveralinchesand then,
usingtwo potholders, pullthe rackout
by holdingthesidesof it.The rackis
lowand youcouldbe burnedifyou
place yourhand in themiddleofthe
rackand pullall theway out.Bevery
carefulnot toburnyourhandonthe
doorwhen usinga rackinthe lowest
position(1).
Youmay feel thatyournewoven
cooks differentlythantheovenit
replaced.We recommendthatyou
useyournewoven a few weeksto
become morefamiliar withit, following
thetimesgiveninyourrecipesas a
guide.Ifyoufeel your oven istoo
hotortoocoolforyourcooking
preference,see Do-It-Yourself
Adjustmentinthe backofthismanual
tomake theadjustment,
NOTE: On soma models the Oven
Control Knob must be pushed In
before tumlng.
Yourovencontrolhas a selector
knob for settingBake,Broil,or Clean.
Simply turntheknob tothe bake
temperaturesettingyouwanttouse
or toBROILor CLEAN,
The Indicator Lights:
• PREHEATED indicatorlight- turns
on and stayson whenoven has
reachedselectedtemperature,
• OVEN ON indicatorlight-turnson
and stayson whena Bake,Broil,or
Cleanfunction hasbeen chosen.
•CLEAN indicatorlight- turnson
and stayson for self..c)ean.Ifthe
CLEAN indicator lightflashes,
youshouldcheckfor oneofthe
following:
1. Thelatchhandle islockedduring
a bakingfunction.
2. Thelatchhandle isnotlocked
/7 duringa self-cleanfunction.
÷
I--'" ,7 ÷I

I
liiiiiiil,
÷
OPERATION
Broiling
Broiling is cookingbydirectheat from
the upperelement.The ovendoor
shouldremainopened tothebroil
stoppositionduringbroiling.
It is not necessary to preheat the oven
when broiling. Use the broiler pan and
grid that came with your range, Both
are designed for proper drainage of
fat and liquids.
fffoil is used, It must be
Lmolded tightly to the grid
and slits cut Intothe foil
to match those ofthe grid. This
allows fats end liquids to drain
Intothe broiler pan, preventing
fire and excessive smoke.
Always remove the
pan and grid from ,_
the oven. Storing
or forgetting a
soiled broiler pan
in the oven Is s potential smoke
or fire hazard.
The U.S.DepartmentofAgriculture
recommendsto cookmeatand
poultrythoroughly---meattoat least
anINTERNALtemperatureof 160°F
and poultryto at leastan INTERNAL
temperatureof 180°F.Cookingto
thesetemperaturesusually protects
againstfood-borneillness.
The closeryouplace foodsto the
broilelement,thefesterfoods brown
ontheoutsideyet remainredto pink
inthecenter.
Movingmeats away from theelement
willallowthemeat tocooktothe
centerwhilebrowningon theoutside.
Usingthispositioning, cookside t at
least 2 minuteslongerthan side2. If
yourovenisconnectedto208 volts,
youmaywanttousea higherrack
positionand/or broilfoods longer.
The size,weight,thickness,starting
temperature,and yourpreferenceof
thedonenessofthe meatwillaffect
broiling.The charton the nextpage is
based on meatsat refrigerator
temperature.
1. Set theOVEN CONTROL KNOB
to BROIL.
2. Whenbroilingisfinished,turnthe
OVEN CONTROL KNOB tothe
OFF position,
÷
18

÷I
÷
OPERATION
Broiling(cont.)
FOOD
GroundBeef
WellDone
BeefSteaks
Rare_
Medium
WellDone
Raret
Medium
WellDone
Chicken
BROIUNG GUIDE (HI Broil)
QUANTITY FIRST SECOND
AND/OR SHELF SIDETIME SIDETIME
THICKNESS PosmoN (MIN.) (MIN.)
1le (4 paffies) 4 13 8
½' to _'4"thick
4Ibs.(12patties) 4 15 11
_' to 1" thick
(1 to l'h Ibs.)
11h' thick
(2 to2'hIbs.)
COMMENTS
Spaceevenly.
I whole, cut up
2 to 21,_Ib6.),
;plitlengthwise
3reast
Bakery
Product=
Bread to 4 slices
(Toast) or Z(split)
English
Muffins
LobMer Zto 4
Tails 3to 8 oz. each)
Fish I lb.filletsV4'to _,_'
Lhick
6
5
5
4
4
5
3
6 4
8 6
10 8
10 8
15 10-12
20 20
25 25
25 15
_eaks lessthan _A'thick
are difficultto cook rare.
Slashfat.
Brusheach sidewith
melted butter,Broilskin-
side downfirst,
3 1 Spaceevenly.Place
3-4 Englishmuffinsout-side-
upandbrushwithbutter,
it desired.
10-20 Do not Cutthroughbackofshell.
tomover. Spreadopen,Brushwith
rnoitedbutterbefore
broilingandafterhalfof
broilingtime.
5 5 Handleandtornvep/
carefully.Brushwith
lemonbutterbeforeand
dudngcooking,ifdesired.
Salmon
Steaks 2 (1" thick) 5 10 5 Turn carefully. Do notfum
Fillets 2 lye' to s/£ thick) 5 10 skin-sidedown.
Hem Slices _z"thick 4 ti 6
(precooked) ' thick 4 ti 8
Pork Chops 2 (Y£ thick) 4 10 10 Slash fat.
Weft Done 2(I" thick)about1Ib. 4 15 15
Medium 2(l"l_x). ab0utt0t012a
Well Done
Medium 2(1_' Ih_k)abmtI lb.
Well Done
t The U.S. Department of Agdcultum says "Rare beef is popular, butyou shouldknowthat cooking
it to only 140°F means some food poisoning organisms may survive."(Source: Safe Food Book.
Your KitchenGuide. USDA Rev. June 1985.)
/9
÷
I"÷I

I÷Miiiiiiii
÷
CAREANDCLEANING
Self-CleaningCycle
1. Removethe broiler pan and grid,
oven racks,utensils,and anyfoil
that may be in the oven.
2. Soilon the front frame andoutside
the gasket on the door liner will
need to be cleaned by hand.
Front
Frame
Door
Gneket Liner
Clean these areas with hot water,
soap-filled steel-woolpads, or
cleansers such as Soft Scrub®to
remove any soil, Rinsewell with clean
water and dry.
3. Wipe up any heavy apillovers on
the oven bottom.
4. Do not clean the gasket. The
fiberglass material of the oven
door gasketcannot withstand
abrasion. It is essential for the
gasketto remain intact. If you
notice itbecoming worn or frayed,
itshould be replaced.
The gasketis designedtohave a
5"-6"gap at the bottomofthe door.
This allowsfor proper aircirculation.
Door Panel Gasket
Door Liner
Itis normalfor your oven doorto give
theappearance of nothavinga good
sealagainstthe range. This is due to
the gasket. The location of the gasket
on the door maintains a good seal
and prevents any heat loss.
Utensils should never be
I_1 _t In the oven during a
self-clean cycle.
The oven racks may be cleaned
during the eelf-cisen cycle, but
will lose their luster and become
hardto slide, if you choose
to leavethem In during the
cycle, wiping them down with
vegetable oil after the cycle will
helpthem slide easier.
For thefirst clean cycle, ventthe
room with an opened window or
hood vent. This will reduce the
odor produced when heating
new parts.
_,
÷
2O
m
I ÷ I
