Kenmore 911.95989 User manual

30" Radiant
Self-Cleaning Convection
Electric Free-Standing Range
Estufa El_ctrica
30" Radiante a Convecci6n Tipo
"lndependiente" con Autolimpieza
Models, Modelos 911.95982, 95987, 95989
II1
I"
Zl
0
229c4020P251
(SR-10453) Sears, Roebuck and Co.,
Hoffman Estates, IL 60179 U.S.A. www, sears.com

RADIANTSELF-CLEANING
FREE-STANDINGRANGE
Tableof Contents
Range Safety ........................ 3-8
Anti-Tip Bracket .................... 3, 4
Protecting the Cooktop ............ 8
Features of Your Range .......... 9
Removal of Packaging Tape .... 9
Cooking Zones ........................ 10
Hot Cooktop Indicator Lights ..... 10
Cooking Utensils and Woks ... 10
Home Canning Tips ................. 11
Checking Your Cookware ...... 11
Cookware Performance .......... 11
Radiant Coils ....................... 1t
Temperature Limiter ............... 11
Control Settings ..................... 12
Dual Cooking Zones ........... 12
Warmer Zone ....................... 12
Oven Control, Clock, Timer.._ 13
Contro! Display ....................... 14
Clock ........................................ 15
Kitchen Timer ......................... 15
Tones ..................................... 16
F Code ................................... 16
Oven Cooking Tips .......... I7-19
Baking With Margarine ........... I8
Baking .................................... 20
Convection Baking Tips ......... 21
Convection Roasting Tips ... 22-23
Convection Baking and
Roasting ................................. 24
Broiling .............................. 25-26
Setting Special Features ._ 27-28
Self-Cleaning Cycle .......... 29-30
Glass-Ceramic Cooktop. 31-32
Control Panel ......................... 32
Broiler Pan and Grid .............. 32
Self-Clean Oven Interior .......... 32
Drawer and Sides of Range., 32
Oven Door Glass .................... 32
Door Vent Trim ........................ 32
Surface Control Knobs .......... 33
Oven Light Bulb .................... 33
Oven Racks ......................... 34
Oven Door ...................... 34-35
Storage Drawer ...................... 36
Storage Drawer Liner .............. 36
Before Calling for
Service ............................. 37-39
Temperature
Adjustment ..................... 19, 40
Warranty ............................... 42
Consumer Service
Numbers .............................. 84
For your convenience and future reference, please write down your model
and serial numbers in the space provided. They are located on the front
frame behind the storage drawer.
MODEL NUMBER: SERIAL NUMBER:
© Sears, Roebuck and Co 2

IMPORTANTSAFETY
INSTRUCTIONS
SAVE THESE INSTRUCTIONS
Read all instructions before using this appliance. When using gas
or electrical appliances, basic safety precautions should be followed,
including the following:
All Ranges Can Tip
Injury to Persons
Could Result
Install Anti-Tip
Device Packed
With Range
See Installation
:Instructions
These ANTI-TIP bracket installation
instructions are for wood or concrete
floors and walls Any other type of
construction may require special
installation techniques to provide
adequate fastening of the ANTI-TIP
bracket to the floor and wall
The use of this bracket does not
prevent tipping of the range when
bracket is not properly installed,
NOTE: The installation of the
ANTI-TIP bracket must meet all
local codes for securing appliance
Step 1
Locating the bracket
A. Locate the bracket against the rear
wall and either the right or left
cabinet If the countertop
overhangs the cabinet, offset the
bracket from the cabinet by the
amount of overhang If there is no
adjacent cabinet, position the edge
of the bracket at the desired
location of the range side panel
B. Use the bracket as a template
and mark 2 hole positions on the
walt and 2 hole positions on the
floor. Use either the wood or
concrete floor set of positions,
depending on your floor type.
See Fig. 1,
Adjacent Cabinet or
Final Location of Range
Side Panel
Wood
Floor
Bracket
Side \
Wall
Holes
; i
Rear
Leveling Leg
Concrete
Floor
Holes
Fig. 1
3continued on next page

IMPORTANTSAFETY
INSTRUCTIONS
Anti-Tip Bracket (contd.)
Step 2
Anti-tip bracket installation
A. Wood Construction:
lJ Floor: Drill a Vd'pilot hole in
the center of each pre-marked
wood floor hole position (a nail
or awl may be used if a drill is
not available),
AND
2_ Wall; Drill an angled 1/8"pilot
hole (as shown in Fig. 2) in the
center of each pre-marked
wall hole position (a nail or awl
may be used if a drill is not
available)r
ATTACHMENT TO WALL AND FLOOR
Bracket XI
i ScrewMust_
Enter Wood Ill
&.., o
.,\\\\\\\i_\'_\\x\\\\\\\\_
Fig. 2
Wall
Plate
B. Mount the ANTI-TIP bracket
with the 4 screws provided as
illustrated in Fig. 2
C. Concrete Construction:
Hardware required:
4 each W'x 1W' lag bolt
4 each 1W'O D sleeve
anchor
.Drill the recommended size
hole for the anchors into the
concrete at the center of each
pre-marked concrete floor and
wall hole position Install the
sleeve anchor into the drilled
holes and then install the lag
bolts through the bracket
DO NOT OVERTtGHTEN THE
BOLTS.
Step 3
Checking the installation
A. Complete the installation of
the range per the installation
instructions provided with it
B. Check if the ANTI-TIP bracket is
installed and engaged properly
Remove the kick panel or storage
drawer and inspect the REAR
LEVELING LEG Make sure it fits
securely into the sloL See Fig. 1
4

IMPORTANTSAFETY
INSTRUCTIONS
_ARNING! To prevent
accidental tipping of the
range from abnormal use,
including excessive loading of
the oven door, attach the range
to the wall or floor by installing
the Anti-Tip device supplied, if
the range is moved for cleaning,
servicing or any reason, be
sure the Anti-Tip device is
re-engaged properly when
the range is slid back in the
opening. Failure to do so could
result in the range tipping and
may cause personal injury. To
inspect the Anti-Tip device,
remove the storage drawer and
look to see if the rear leg leveler
fully engages the slot in the
bracket.
Important: To ensure safety for yourself,
family, and home, piease read your
Owner's Manual carefully. Keep it
handy for reference Pay close attention
to Safety Sections BE SURE your
appliance is installed and grounded by a
qualified technician.
• DO NOT leave children alone or
unattended near an appliance in use
• TEACH CHILDREN not to play with
controls or any part of the appliance,
and not to sit, climb or stand on the
door, or any other part of the appliance.
•CAUTION: NEVER STORE items of
interest to children on the backguard
or in cabinets above the appliance.
Q
Children climbing on the appliance
could be seriously injured,
KEEP THIS book for later use,
NEVER USE your appliance for
warming or heating the room.
•NEVER TRY to repair or replace
any part of the appliance unless
instructions are given in this manual.
All other work should be done by a
qualified technician,
• ALWAYS KEEP combustible wall
coverings, curtains, dishcloths, towels,
potholders, and other linens a safe
distance from the appliance,
• NEVER HEAT unopened food
containers. Pressure buildup can
cause the container to burst and
cause injury
• NEVER LEAVE containers of fat or
drippings in your oven.
• ALWAYS KEEP the oven and surface
unit areas free from things that will
burn, Food, wooden utensils, and
grease buildup could catch fire
Plastic utensils could melt and
canned foods could explode. Your
appliance should never be used as
a storage area
• ALWAYS KEEP your appliance clear
of things that will burn (gasoline and
other flammable vapors or liquids).
• NEVER TRY to clean a hot surface.
Some cleaners produce noxious
fumes, and wet cloths or sponges
could cause steam burns.
NEVER WEAR loose-fitting clothing
when using your appliance.
NEVER USE a towel or other bulky
cloth as a potholder, Make sure the
potholder is dry. Moist potholders and
wet cloths or sponges could cause
steam burns DO NOT let potholders
touch hot heating elements.
5

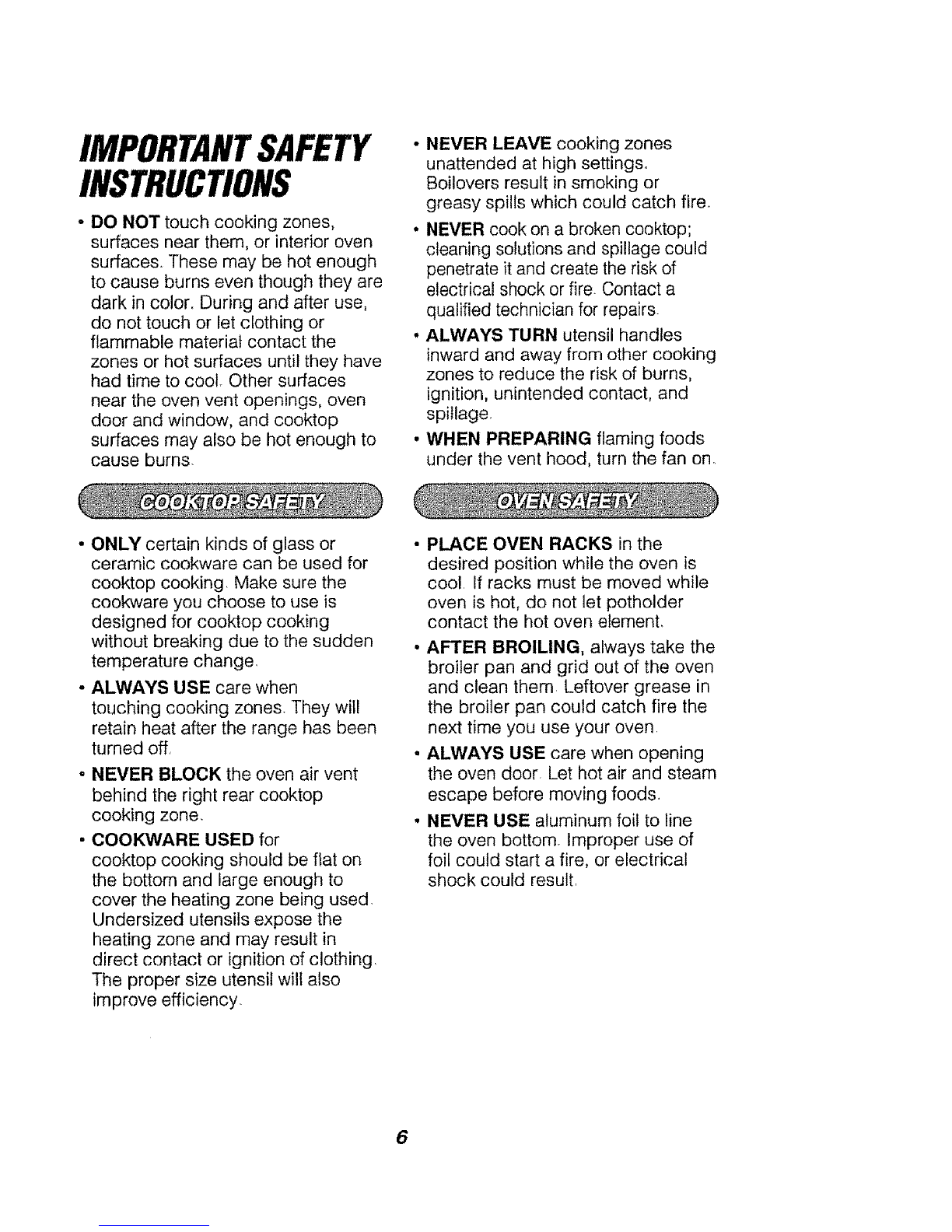

IMPORTANTSAFETY
INSTRUCTIONS
•DO NOT touch cooking zones,
surfaces near them, or interior oven
surfaces_ These may be hot enough
to cause burns even though they are
dark in color. During and after use,
do not touch or let clothing or
flammable material contact the
zones or hot surfaces until they have
had time to coot. Other surfaces
near the oven vent openings, oven
door and window, and cooktop
surfaces may also be hot enough to
cause burns.
• NEVER LEAVE cooking zones
unattended at high settings.
Boilovers result in smoking or
greasy spills which could catch fire.
• NEVER cook on a broken cooktop;
cleaning solutions and spillage could
penetrate it and create the risk of
electrical shock or fire. Contact a
qualified technician for repairs.
.ALWAYS TURN utensil handles
inward and away from other cooking
zones to reduce the risk of burns,
ignition, unintended contact, and
spillage.
• WHEN PREPARING flaming foods
under the vent hood, turn the fan on.
• ONLY certain kinds of glass or
ceramic cookware can be used for
cooktop cooking, Make sure the
cookware you choose to use is
designed for cooktop cooking
without breaking due to the sudden
temperature change.
- ALWAYS USE care when
touching cooking zones. They will
retain heat after the range has been
turned off,
• NEVER BLOCK the oven air vent
behind the right rear cooktop
cooking zone.
• COOKWARE USED for
cooktop cooking should be flat on
the bottom and large enough to
cover the heating zone being used.
Undersized utensils expose the
heating zone and may result in
direct contact or ignition of clothing,
The proper size utensil will also
improve efficiency.
PLACE OVEN RACKS in the
desired position while the oven is
cool. if racks must be moved while
oven is hot, do not let potholder
contact the hot oven element.
• AFTER BROILING, always take the
broiler pan and grid out of the oven
and clean them Leftover grease in
the broiler pan could catch fire the
next time you use your oven.
•ALWAYS USE care when opening
the oven door. Let hot air and steam
escape before moving foods.
•NEVER USE aluminum foil to line
the oven bottom. Improper use of
foil could start a fire, or electrical
shock could result.
6

IMPORTANTSAFETY
INSTRUCTIONS
•CLEAN ONLYthe parts listed in this
manual. Follow all cleaning
instructions. Be sure to remove broiler
pan and grid before the self-clean
cycle.
• NEVER RUB, move, clean, or
damage the door gasket on
self-cleaning ranges. It is essential
for a good seal.
o NEVER TRY to clean utensils,
cookware, removable parts, or broiler
pan and grid in the self-clean cycle,
• DO NOT USE oven cleaners - No
commercial oven cleaner or protective
coating of any kind should be used in
or around any part of the oven,
• IF THE SELF-CLEANING mode
malfunctions, turn the oven off and
disconnect the power supply, Have it
serviced by a qualified technician
iMPORTANT SAFETY
NOTICE!
The California Safe Drinking Water
and Toxic Enforcement Act requires
the governor of California to
publish a list of substances known
to the state to cause birth defects or
other reproductive harm and
requires businesses to warn their
customers of potential exposure to
such substances. The fiberglass
insulation in a self-cleaning oven
will give off a very small amount
of carbon monoxide during the
cleaning cycle. Exposure can be
minimized by venting with an
open door or window or using a
ventilation fan or hood.
IMPORTANT: The health of
some birds is extremely
sensitive to the fumes given off
during the self-cleaning cycle of
any range. Move birds to another
well-ventilated room.
READ AND UNDERSTAND
THIS INFORMATION NOW!
Be sure everyone in your home
knows what to do in case of fire.
Never use water on a grease fire;
it will only spread the flames.
COOKTOP GREASE FIRE:
Never pick up a flaming pan...
1. Turn off the surface elements
2. Smother the flame with a tightly
fitting lid, use baking soda, or
use a dry chemical, foam, or
halon-type extinguisher,
OVEN FIRE:
Do not try to move the pan!
1. Close the oven door and turn
controls off
21 If fire continues, carefully open the
door, throw baking soda on the
fire, or use a dry chemical, foam,
or halon-type extinguisher.

OPERATION
Protectingthe Cooktop
•DO NOT slide cookware across your
cooktop
• DO NOT use a dishtowel or sponge
to clean or wipe your cooktop,,
• DO NOT use scouring powders or
plastic, nylon, or metal cleaning
pads on your cooktop.
. DO NOT apply your cooktop
cleaning creme to the cooktop
surface if the surface is hot,
°READ the instruction label on the
cooktop cleaning creme bottle
before attempting to clean the
surface of your cooktop
• AFTER cleaning the cooktop
surface, be sure to wipe off any
residue that may be left from the
creme with a dry paper towel.
• FOR MAJOR spills, turn the surface
control knob to OFF, Use a dry
paper towel to wipe up spill, then
use a razor scraper (held with a
potholder) at a 45° angle against
the surface of the cooktop to
scrape remaining spill from the
hot cooking zone.
•DO NOT cook directly on the
surface of the glass.
• DO NOT use the cooktop as a
cutting board.
•DO NOT use a knife or any sharp
object on the cooktop seal around
the outer edge of the glass because
it will cut or damage it.
:== .q
F
_CAUTION: When the
surface controls are turned
off, the Hot Surface
Indicator light will remain lit until
the cooktop surface has cooled to
approximately 150°F. The glass-
ceramic surface will retain heat
after the indicator light goes out.
Use caution until the cooktop
surface has had time to cool.
Sugar spills (such as jellies, fudge,
candy syrups) or melted plastic can
cause pitting of the cooktop surface
unless the spill is removed while it is
still hot Special care should be taken
when removing hot substances
Follow these instructions carefully and
remove soil while spill is hot.
1. Turn off the cooking zone affected
by the spill Remove the utensils,
2. Wearing an oven mitt, hold the
razor scraper at a 45° angle
against the cooktop and scrape
hot spill to a cool area outside the
cooking zone.
3. With the spill in a cool area, use
a dry paper towel to remove the
spil!over. Any spill remaining
should be left until the surface of
the cooktop has cooled. Do not
continue to use the soiled cooking
zone until all of the spill has been
removed. Follow the steps under
Heavy Soil to continue the
cleaning process
8

OPERATION

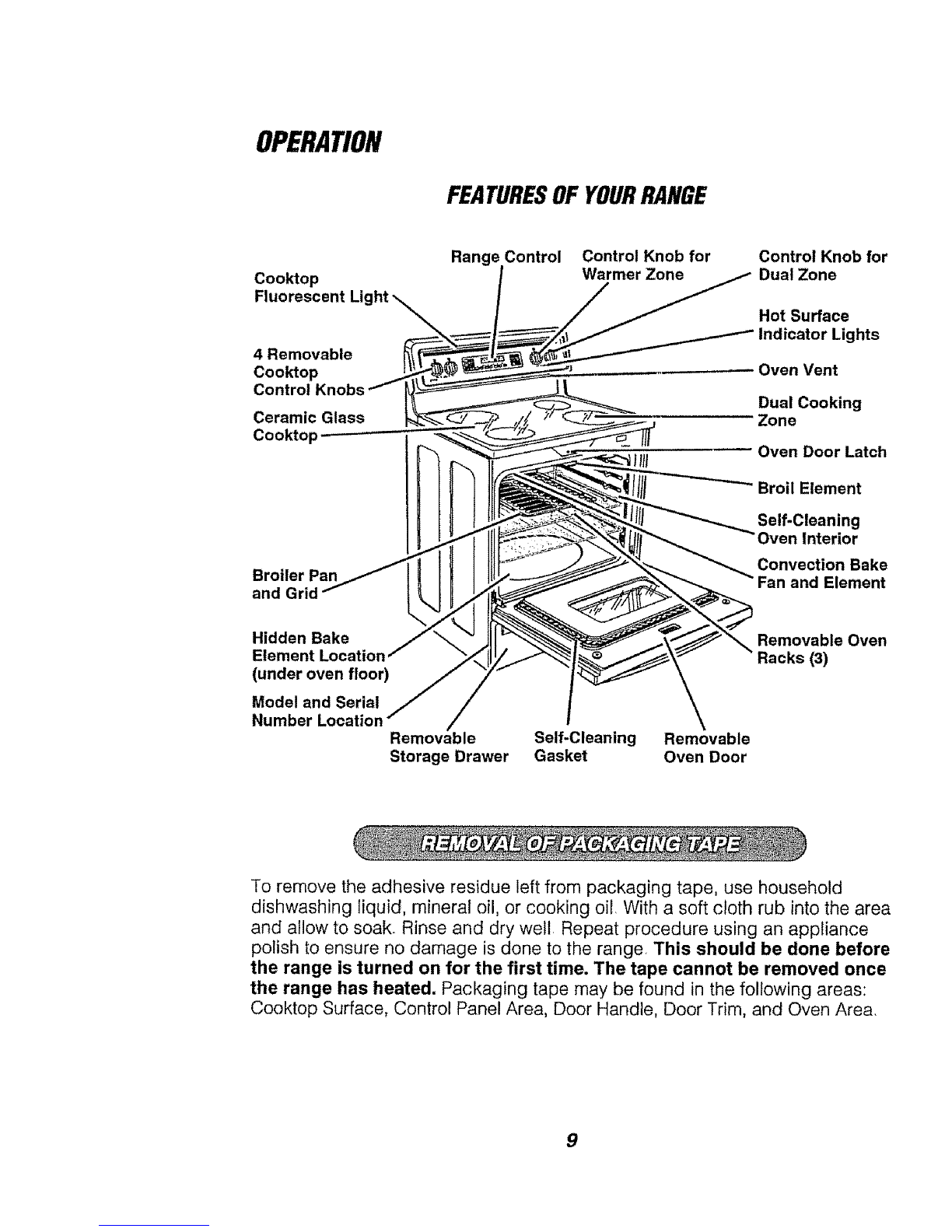

FEATURESOFYOURRANGE
Cooktop
Fluorescent
4 Removable
Cooktop
Control
Ceramic Glass
Cooktop
Broiler Pan
and Grid
Range Control Control Knob for
Warmer Zone Control Knob for Dual Zone
Hot Surface
Indicator Lights
Oven Vent
Dual Cooking
Zone
Oven Door Latch
Broil Element
Self-Cleaning
Oven Interior
Convection Bake
Fan and Element
Hidden Bake
Element Location
(under oven floor)
Model and Serial
Number Removable
Storage Drawer
\
Self-Cleaning Removable
Gasket Oven Door
Removable Oven
Racks (3)
To remove the adhesive residue left from packaging tape, use household
dishwashing liquid, mineral oil, or cooking oir With a soft cloth rub into the area
and allow to soak. Rinse and dry well. Repeat procedure using an appliance
polish to ensure no damage is done to the range. This should be done before
the range is turned on for the first time. The tape cannot be removed once
the range has heated. Packaging tape may be found in the following areas:
Cooktop Surface, Control Panel Area, Door Handle, Door Trim, and Oven Area.
9

OPERATION
RadiantCooktopCooking
Before using your new radiant
cooktop, clean it with the Cooktop
Cleaning Creme e. This will leave a
protective coating.
The cooking zones are shown by the
outline on the glass. The sign below
each control knob shows you which
radiant zone is turned on by that knob
O0 ®0 O0
Left Left Right
Rear Front Front
Use pans and woks that are flat on
the bottom. The size of the pan should
be the same size as the zone used
when cooking
[Size of
Bottom Of t ICooking
Pan __mBi_ -<---- Zone
Pans should be flat on bottom.
Wok Cooking
We recommend that you use only a
flat-bottomed wok They are available
at your local retail store.
Do not use woks that have support
rings. Use of these types of woks, with
or without the ring in place, can be
dangerous.
Placing the ring over the surface unit
wilt cause a buildup of heat that will
damage the porcelain cooktop. Do
not try to use such woks without the
ring° You could be seriously burned if
the wok is tipped over.
A Hot Cooktop Indicator Light will
glow when any radiant element is
turned on, and will remain on until the
surface has cooled to approximately
150°F,
"%__//'
Use only fiat-bottomed woks,
10
