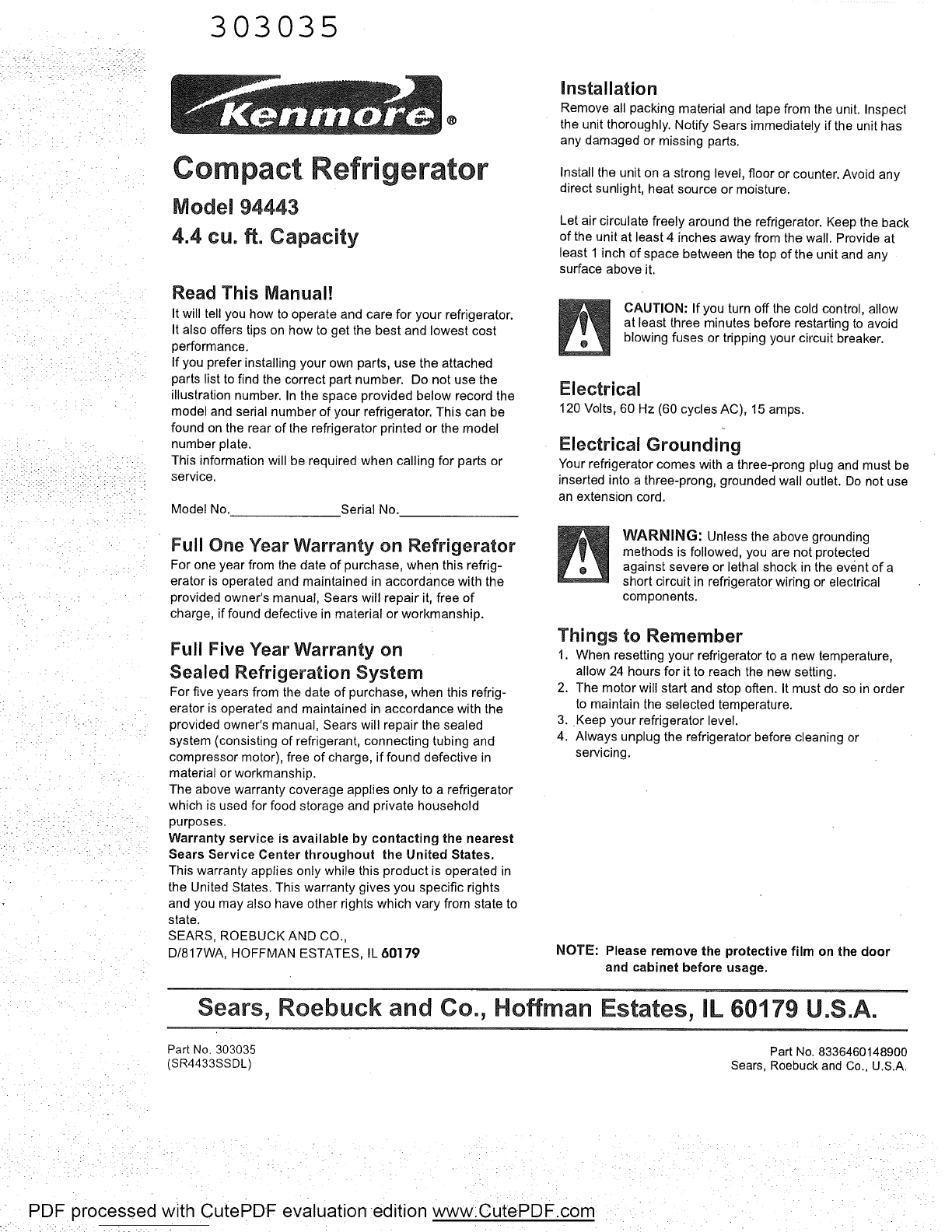

Kenmore 94443 User manual

303035
®
Compact Refrigerator
Model 94443
4.4 cu0 ft. Capacity
Read This Manual!
It will tell you how to operate and care for your refrigerator.
It also offers tips on how to get the best and lowest cost
performance.
If you prefer installing your own parts, use the attached
parts list to find the correct part number. Do not use the
illustration number. In the space provided below record the
model and serial number of your refrigerator. This can be
found on the rear of the refrigerator printed or the model
number plate.
This information will be required when call ng for parts or
servtce.
Model No. Seria No.
Full One Year Warranty on Refrigerator
For one year from the date of purchase, when this refrig-
erator is operated and maintained in accordance with the
provided owner's manual, Sears will repair it, free of
charge, if found defective in material or workmanship.
Full Five Year Warranty on
Sealed Refrigeration System
For five years from the date of purchase, when this refrig-
erator _s operated and maintained in accordance with the
provided owner's manua, Sears will repair the sealed
system (consisting of refrigerant, connecting tubing and
compressor motor), free of charge, if found defective in
material or workmanship.
The above warranty coverage applies only to a refrigerator
which is used for food storage and private household
purposes.
Warranty service is available by contacting the nearest
Sears Service Center throughout the United States.
This warranty applies only while this product is operated in
the United States. This warranty gwes you specific rights
and you may also have other rights which vary from state to
state.
SEARS, ROEBUCK AND CO.,
D/817WA, HOFFMAN ESTATES IL 60179
installation
Remove all packing material and tape from the unit. Inspect
the unit thoroughly. Notify Sears immediately if the unit has
any damaged or missing parts.
Install the unit on a strong level, floor or counter. Avoid any
direct sunlight, heat source or moisture.
Let air circulate freely around the refrigerator. Keep the back
of the unit at least 4 inches away from the wall Provide at
least 1 inch of space between the top of the unit and any
surface above it.
CAUTION: If you turn off the cold control, allow
at least three minutes before restarting to avoid
blowing fuses or tripping your circuit breaker.
Electrical
120 Volts, 60 Hz (60 cycles AC), 15 amps.
Electrical Grounding
Your refrigerator comes with a three-prong plug and must be
inserted into a three-prong, grounded wall outlet. Do not use
an extension cord.
WARNING: Unless the above grounding
methods is followed, you are not protected
against severe or lethal shock in the event of a
short circuit in refrigerator wiring or electrical
components.
Things to Remember
1. When resetting your refrigerator to a new temperature,
allow 24 hours for it to reach the new setting.
2. The motor will start and stop often. It must do so in order
to maintain the selected temperature.
3. Keep your refrigerator level.
4. Always unplug the refrigerator before cleaning or
servicing.
NOTE: Please remove the protective film on the door
and cabinet before usage.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
Part No. 303035
SR4433SSDL) Part No. 8336460148900
Sears Roebuck and Co. U.S.A.
PDF processed with CutePDF evaluation edition www:CutePDF.com

.k :_
.• . . . .
k_• -1 k
HOW TO TRANSFER THE DOOR HINGE LOCATION OF
A REVERSIBLE DOOR
Foryour convenience, this door can be reversed bychanging the position of the door hinge assembly.
1. Gently lay de refrigerator on its back.
2. Unscrew the leg at opening side and set aside. *There may be a screw next to the leg; if so unscrew it.
Otherwise unable to attach the hinge.
3. Unscrew two screws (some models have 3 screws) at the bottom hinge, remove the leg, a hinge and a
shaft.
4. Unscrew two screws at the bottom of the door and remove the door stopper, then transfer them to the other
side
5. Pull the door toward you, and set it at the side. (We recommended putting the door on a blanket to avoid
scratches.)
6. Remove the shaft carefully from the top table as using the screwdriver and relocate itto the other side.
7. Remove the hinge collar cap from the door cap, and then relocate itto the other side.
8. Reattach the door to the refrigerator cabinet toward the shaft at the top tahie and the bottom of the door hole
has to meetwith the shaft at the bottom hinge.
9. Reattach the hinge with two screws (some models have 3 screws), the leg and also the shaft with the hinge.
10. Now your door has been reversed. The following points should be checked.
A. Make sure the door is on straight.
B. Make sure that there is no space between the door gasket and the refrigerator unit itself when the door is
closed.
C. Make sure that the gasket on the hinge side is not caught between the door and the unitwhen the door is
opened or closed. (If the door isforced closed when the gasket is caught, the gasket may be damaged.)
When checking the above points, ifit isdiscovered that the door is not installed properly (this is apt to happen
at the first try), loosen the screws holding the lower hinge, straighten the door and tighten the screws slowly
with the socket wrench. After making sure that the door is installed correctly, tighten all the screws holding
the hinge. Ifthey are not tightened, the door may slip put of position or there may be an opening between the
door and the unit
11. Stand the unit back in the upright position.
Wait 3 hours before plug in the power cord.
TophingeAssernbly
F HingeCollar CaB
/
l
• " °
Leg Space, '-'=-'_''_"
Leg j
NexegonalHsad
Screws

(STAINLESS LOOK) Model: 564.94443500
I
t
4 8

.,• . . .. - • .
