Kenmore KW3010 User manual

Use & Care Guide
Manual de Uso y Cuidado
Manuel d'entretien et d'utilisation
Model/Modelo/Modèle: KW3010
Household Dry Canister Vacuum
Cleaner
Aspiradora con depósito de uso
doméstico en seco
Aspirateur-Traîneau Domestique
Pour Déchets Secs
www.kenmorefloorcare.com
Vacuum Cleaner Help Line:
1-877-531-7321 (US) / 1-844-608-3081 (CA)
8:00am-5:00pm EST, M-F

- 2 -
Before Using Your New Vacuum Cleaner ........................................................................ 2
Packing List ..................................................................................................................... 2
Important Safety Instructions........................................................................................... 3
Vacuum Cleaner Warranty ..............................................................................................4
Parts and Features........................................................................................................4-5
Assembly Instructions...................................................................................................6-7
Operating Instructions ..................................................................................................7-9
Vacuum Maintenance and Care.................................................................................10-14
Troubleshooting ......................................................................................................... 14-15
Requesting Assistance or Service......................................................................Back Cover
TABLE OF CONTENTS
PACKING LIST
Your KENMORE VACUUM CLEANER is packaged with the following parts and components
assembled separately in the carton:
1 Vacuum Assembly
1 Hose
2 Extension Wands
1 Pre-filter
3 Dust Bags
1 Multi-Surface Floor Nozzle
1 Crevice Tool
1 Round Dusting Brush
1 Use & Care Guide
Read this Use & Care Guide. It will help you assemble and operate your new Kenmore
vacuum cleaner in the safest and most effective way.
For more information about vacuum cleaner care and operation, call the Vacuum Cleaner
Help Line at 1-877-531-7321 (US) / 1-844-608-3081 (CA). You will need the complete model
and serial numbers when requesting information.
Your vacuum cleaner’s model and serial numbers are located on the Model and Serial
Number Plate. Use the space below to record the model number and serial number of your
new Kenmore vacuum cleaner.
Model No.____________________________________________
Serial No. ____________________________________________
Date of Purchase ______________________________________
Keep this book and your sales check (receipt) in a safe place for future reference.
BEFORE USING YOUR NEW VACUUM CLEANER

- 3 -
IMPORTANT SAFETY INSTRUCTIONS
• Use only as described in this Use & Care
Guide. Use only with manufacturer’s
recommended attachments.
• Do not leave vacuum cleaner when
plugged in. Unplug from outlet when not
in use and before servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close
attention is necessary when used by or
near children.
• Do not use with damaged cord or plug.
If vacuum cleaner is not working as it
should, has been dropped, damaged,
left outdoors, or dropped into water, call
1-877-531-7321 (US) / 1-844-608-3081
(CA) for assistance.
• Do not pull or carry by cord, use cord as
a handle, close a door on cord, or pull
cord around sharp edges or corners. Do
not run vacuum cleaner over cord. Keep
cord away from heated surfaces.
• Do not unplug by pulling on cord. To
unplug, grasp the plug, not the cord.
• Do not put any object into openings. Do
not use with any opening blocked; keep
free of dust, lint, hair, and anything that
may reduce air flow.
• Do not handle plug or vacuum cleaner
with wet hands.
• Keep hair, loose clothing, fingers, and
all parts of body away from openings
and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up flammable or
combustible liquids, such as gasoline, or
use in areas where they may be present.
• Do not pick up anything that is burning
or smoking, such as cigarettes, matches,
or hot ashes.
• Do not use without dust bag and/or
filters in place.
• Hold plug when rewinding cord reel. Do
not allow plug to whip when rewinding.
WARNING!
Your safety is important to us. To reduce the risk of fire, electrical shock, injury to persons
or damage when using your vacuum cleaner, follow basic safety precautions including the
following:
Read all instructions in this guide before assembling or using your vacuum cleaner.
CAUTION
To reduce the risk of injury from moving
parts - Unplug before servicing.
WARNING
To reduce the risk of electric shock - Unplug
before cleaning or servicing.
SAVE THESE INSTRUCTIONS
Proper assembly and safe use of your vacuum cleaner are your responsibilities. Your vacuum
cleaner is intended for Household Use. Read this Use & Care Guide carefully for important
use and safety information. This guide contains safety statements under warning and caution
symbols.

- 4 -
VACUUM CLEANER WARRANTY
LIMITED WARRANTY
FOR ONE YEAR from the date of sale this product is warranted against defects in material
or workmanship.
WITH PROOF OF SALE, a defective product will be replaced free of charge.
The Kenmore brand is used under license. Direct all claims for warranty service to:
1-877-531-7321 (US) / 1-844-608-3081 (CA).
This warranty does not cover attachments such as filter, hose, nozzles, or casters which are
expendable parts that can wear out from normal use within the warranty period.
This warranty is void if this product is ever used for other than private household purposes.
This warranty gives you specific legal rights, and you may also have other rights which
vary from state to state.
Cleva North America, Inc., Greenville SC 29607
PARTS AND FEATURES
It is important to know your vacuum cleaner’s parts and features to assure its proper and
safe use. Review these before using your vacuum cleaner.
To order a replacement part, call 1-877-531-7321 (US) / 1-844-608-3081 (CA).
REPLACEMENT PARTS
Item Part No.(US) Part No.(CA)
HEPA Filter 551590102 551590102
Pre-filter 551590105 551590105
Hose 551590109 551590109
Multi-Surface Floor Nozzle 551590110 551590110
Round Dusting Brush 551004116 551004116
Extension Wand 551121144 551121144
Crevice Tool 551004114 551004114
Dust Bag 551590111 551590111

- 5 -
Hose Pre-filter (Pre-installed
Inside the Vacuum)
Multi-Surface
Floor Nozzle Round Dusting Brush
Crevice Tool
NOTE: The hose and accessories for this dry vacuum are 1-1/4'' (32mm) diameter.
PARTS AND FEATURES
Cord Rewind Knob
Vacuum Port
Front Caster
Rear Wheel
Collection Tank
Latch
Power Button
Carry Handle
Powerhead
Multi-Surface
Floor Nozzle
Storage
Accessory
Storage
Extension Wand Dust Bag

- 6 -
1. Undo the latches.
2. Lift the powerhead off the collection
tank and remove the pre-filter.
3. Remove the contents from inside the
collection tank; make sure you have all
contents as listed on page 5.
Before assembling the vacuum cleaner, check the PACKING LIST (page 2). Use this list to
verify that you have received all the components of your new Kenmore Vacuum Cleaner.
Please pay special attention to these hazard alert boxes, and follow any
instructions given. WARNING statements alert you to such hazards as fire,
electric shock, burns and personal injury. CAUTION statements alert you to
such hazards as personal injury and/or property damage.
ASSEMBLY INSTRUCTIONS
WARNING
Electrical Shock Hazard.
DO NOT plug into electrical supply until
assembly is complete. Failure to do so
could result in electrical shock or injury.
To reduce the risk of electric shock, do
not expose to rain.
4. Before vacuuming, fit the dust bag
flange onto the inlet port, taking care
not to damage the bag.
5. Your vacuum comes ready for dry
vacuum cleaning. If the pre-filter is not
installed, refer to page 11 for installation
instructions.
6. Place the powerhead onto the collection
tank and secure it with the latches.
ⅠⅡ
Ⅰ
Ⅱ

- 7 -
ASSEMBLY INSTRUCTIONS
7. Insert the locking end of the hose into
the vacuum port of the collection tank
and turn clockwise to lock into place.
8. Choose the desired accessory and insert
onto the end of hose or extension wand.
OPERATING INSTRUCTIONS
VACUUMING OPERATION
WARNING
Be sure to read, understand, and apply
information entitled ‘important safety
instructions’. Do not vacuum in areas
with flammable gases, vapors, or
explosive dusts in the air. Flammable
gases or vapors include but are not
limited to: lighter fluid, solvent type
cleaners, oil-based paints, gasoline,
alcohol, or aerosol sprays. Explosive
dusts include but are not limited to:
coal, magnesium, grain, or gun powder.
To reduce the risk of health hazards
from vapors or dust, do not vacuum
toxic materials.
WARNING
Do not plug the power cord into
electrical supply. Make sure the plug
is disconnected before changing the
filters.
NOTE: To reduce the risk of electric shock,
this vacuum cleaner has a polarized plug;
one blade is wider than the other. This plug
will fit in a polarized outlet only one way.
If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit,
contact a qualified electrician to install the
proper outlet. Do not change the plug in
any way.
CAUTION
Do not vacuum drywall dust, fireplace
soot, or ash with this vacuum. This is a
very fine dust which will not be captured
by the filter and may cause damage to
motor.
CAUTION
THIS VACUUM IS INTENDED FOR DRY
PICK-UP ONLY.

- 8 -

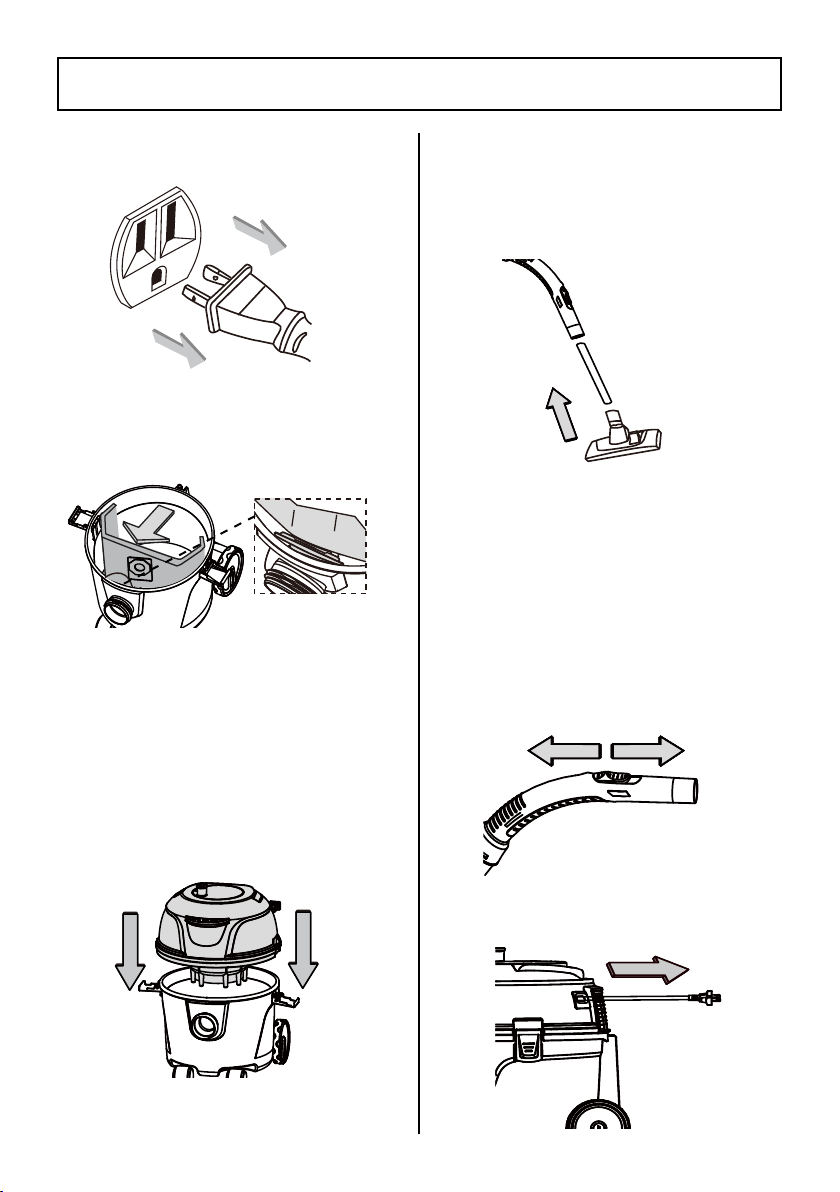

VACUUMING OPERATION
1. Verify that the power cord is
disconnected from the outlet.
2. Before vacuuming, fit the dust bag
flange onto the inlet port, taking care
not to damage the bag.
3. In order to prepare your vacuum for dry
vacuuming, make sure the edge of the
filter fits snugly along the edge of the
collection tank. Your vacuum comes with
the filter pre-installed. For installation
instructions, see page 11.
4. Place the powerhead back on the
collection tank and secure it in place
using the latches.
5. Insert the locking end of the hose into
the vacuum port on the collection tank
and turn clockwise to lock into place.
6. Choose the desired accessory and insert
onto the end of hose or extension wand.
7. The air flow regulation on the hose
handle allows you to adjust the amount
of vacuum suction. For best cleaning
results, fully close the air flow regulation.
NOTE: Open the air flow regulation for
lightweight rugs or thick carpets. Close the
air flow regulation suction for upholstery,
hard floor or low pile carpets.
8. Pull out the power cord slowly.
﹢－

- 9 -
VACUUMING OPERATION
9. Plug the power cord into the outlet,
turn on the dry vacuum by pressing the
power button once.
10.Once you have finished vacuuming,
press the power button again to turn the
vacuum off and unplug the cord from
the power outlet.
11.To rewind the cord, hold onto the
vacuum port to ensure unit remains
stationary and turn the cord rewind knob
clockwise
ATTACHMENTS
All included attachment tools can be inserted into either the hose or the extension wand.
MULTI-SURFACE FLOOR NOZZLE
Use the standard setting for carpet
cleaning. Push the carpet/bare floor
selector down to release the brush and
squeegee to transition to bare floor
cleaning.
CREVICE TOOL
For vacuuming edges, gaps, and reaching
tight spaces.
ROUND DUSTING BRUSH
For vacuuming fragile or easily scratched
items, such as furniture and drapes.

1. Verify that the power cord is
disconnected from the outlet.
2. Disconnect the hose from the vacuum by
turning counter-clockwise.
3. Undo the latches and remove the
powerhead from the collection tank.
Place powerhead on a soft, clean
surface upside down.
4. Clear all dirt and debris from the
collection tank and hose into a proper
waste container.
5. Clean or replace the filters.
6. Check the hose, accessories, and power
cord to verify that they have not been
damaged.
7. Place the powerhead back on collection
tank and secure latches.
- 10 -
VACUUM MAINTENANCE AND CARE
WARNING
Always disconnect the plug from the
outlet before removing the powerhead
from the collection tank.
EMPTYING THE COLLECTION TANK
Always follow all safety precautions when performing maintenance to the vacuum cleaner.

INSTALLING PRE-FILTER
1. Verify that the power cord is
disconnected from the outlet.
2. Remove the powerhead and place in an
upside-down position.
3. Install the pre-filter onto the rim of the
collection tank. Make sure the edge of
the filter fits snugly along the edge of
the collection tank.
NOTE: Ensure the dust bag and the pre-
filter are correctly installed before each
use.
4. Place the powerhead back onto the
collection tank.
REMOVING & CLEANING PRE-FILTER
1. Remove the pre-filter by lifting up.
2. Clean the pre-filter by gently tapping
or brushing dirt off. If necessary, gently
rinse the pre-filter with cool clean
water. Do not scrub or brush the pre-
filter. Allow the pre-filter to air dry for
24 hours before re-installing. DO NOT
install pre-filter if it is damp, or it will
damage the vacuum.
3. For optimal performance, it is
recommended to replace the pre-filter
every 3 to 6 months.
4. Install cleaned or new filters as above in
steps 2-4 of Installing Pre-Filter.
1. Verify that the power cord is
disconnected from the outlet. 2. With the removed powerhead in an upside-down position, carefully remove
the air inlet filter from the tabs.
- 11 -
INSTALLING & CLEANING PRE-FILTER
REMOVING & CLEANING THE AIR INLET FILTER
Air Inlet Filter

1. Verify that the power cord is
disconnected from the outlet.
2. Unlock the exhaust filter door by lifting
both of the locking tabs upwards and
pull the door out.
3. Remove the exhaust filter from the
vacuum and clean by gently tapping
or brushing off dirt. If necessary, gently
rinse the exhaust filter with cool clean
water. Do not scrub or brush the exhaust
filter while wet. Allow the exhaust
filter to air dry for 24 hours before re-
installing.
4. For optimal performance, it is
recommended to replace the old exhaust
filter with a new filter every year.
3. Wash and rinse the air inlet filter with
cool clean water.
4. Allow the wet filter to air dry for 24
hours before re-installing.
5. Re-install the cleaned air inlet filter.
6. Place the powerhead back onto the
collection tank.
- 12 -

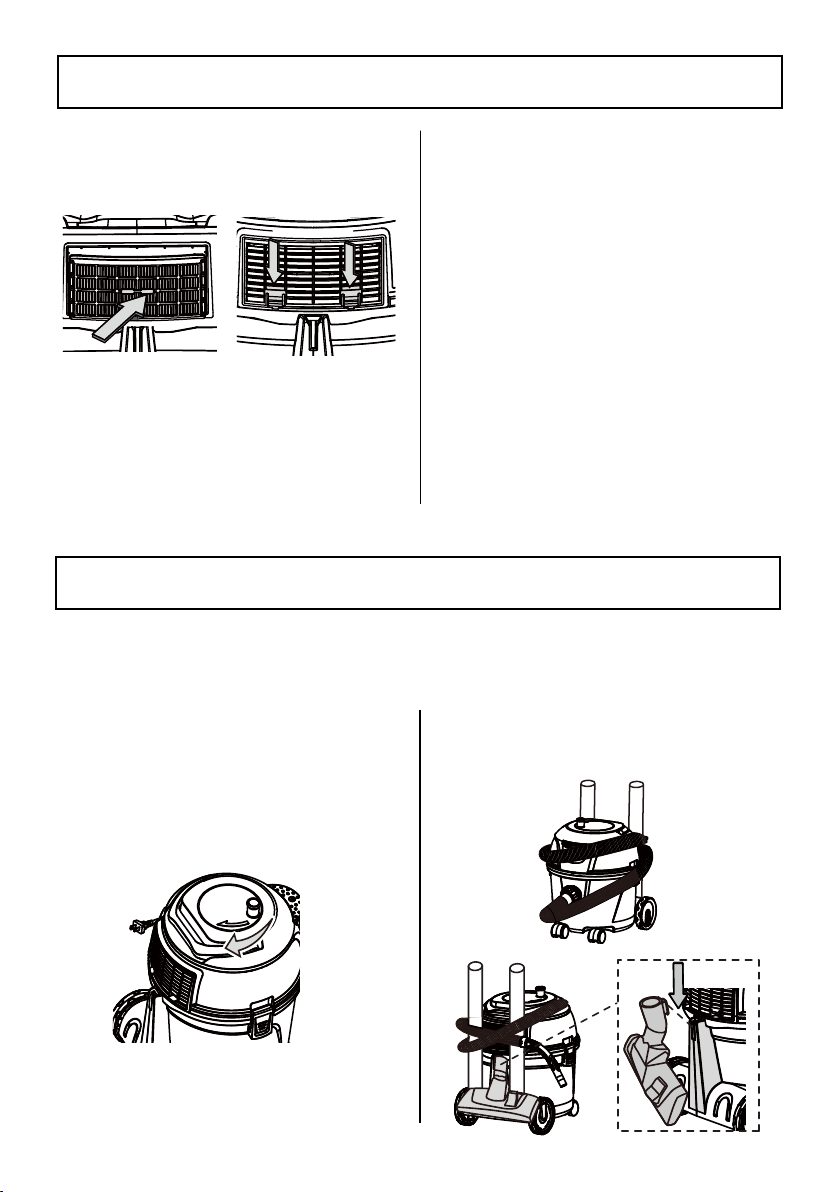

REMOVING & CLEANING EXHAUST FILTER
REMOVING & CLEANING THE AIR INLET FILTER
CAUTION
Make sure that the pre-filter and air inlet
filter are dry before use, otherwise it
may cause poor cleaning performance
or damage to the motor.
CAUTION
Make sure the exhaust filter is dry
before use.
Exhaust Filter
Locking Tabs Exhaust Filter Door

Before storing your vacuum, the collection tank should be emptied and cleaned. The
accessories should be cleaned and stored so they can be readily available when needed.
Store the vacuum indoors.
STORAGE
IMPORTANT! Clean or change all filters
regularly for best performance. ALWAYS
USE FILTERS FOR DRY VACUUMING. If
the machine is used without the filters, the
motor will burn out and the warranty will
be voided. Always keep spare filters on
hand.
5. Install the cleaned or new filter. Then
insert the filter door tabs into the upper
slots and lock the filter door into place.
NOTE: All of the filters included are made
of high-quality materials designed to stop
small dust particles. The vacuum and all
of the included filters should be used for
dry pick-up only. Dry filters are necessary
to pick up dust. If the filter is wet, it will
clog quickly and be very difficult to clean.
Handle all of the filters carefully when
removing it for cleaning and or replacing.
Check the filters for tears or small holes.
A small hole can let dust pass through and
out of the filter. Do not use a filter with
holes or tears; replace it immediately.
1. Store the power cord in place by
rotating the cord rewind knob clockwise
as shown.
NOTE: To prevent the power cord from
getting stuck, do not retract the cord too
fast or in wrong direction.
2. Place the wands onto the accessory
storage.
3. The floor nozzle has a storage hook that
slides into the slot on the back of the
collection tank.
- 13 -
REMOVING & CLEANING EXHAUST FILTER

PROBLEM POSSIBLE CAUSE SOLUTION
The dry vacuum
will not operate.
The socket is damaged. Check if the socket has power.
The plug is not plugged into the
wall outlet tightly.
Insert the plug into the power source and
press the on/off switch button.
Power button in the wrong
position. Press the power button on the powerhead.
Motor overheating protection
during use.
Unplug the plug, check whether the dust bag
is full and the pre-filter or exhaust filter is
locked. Replace the dust bag or clean up the
pre-filter or exhaust filter, wait for the motor
to cool enough about 50 minutes before
restarting it for use.
Functional fault in the power
cord, power button, or motor.
Have the damaged part checked by
qualified personnel or call 1-877-531-7321
(US) / 1-844-608-3081 (CA) for assistance.
The dust comes
out from the
motor cover.
The exhaust filter is missing,
damaged or not fully installed.
Ensure the exhaust filter is correctly installed
or replace it if damaged.
The pre-filter is missing or
damaged.
Ensure the pre-filter is correctly installed or
replace if damaged.
The air inlet filter is missing or
damaged.
Ensure the air inlet filter is correctly installed or
replace if damaged.
Repairs for this vacuum should be performed only by qualified service personnel using
only identical replacement parts.
REPAIRS
- 14 -
Review this table to find do-it-yourself solutions for minor performance problems. Any
service needed, other than maintenance described in this Use & Care Guide, should be
performed by a qualified service agent.
TROUBLESHOOTING
WARNING
Always turn off and unplug vacuum cleaner before performing maintenance to the
vacuum cleaner. Failure to do so could result in electrical shock or personal injury.

PROBLEM POSSIBLE CAUSE SOLUTION
The power
cord cannot be
retracted.
The power cord is stuck. Release the power cord and retract it again.
The cord is being winded in the
wrong direction. Wind in the direction the arrow is pointing.
Retract the power cord too fast. Retract the power cord slowly.
Reduced
efficiency and
motor/speed
vibration.
Dust bag is full. Replace the dust bag.
Suction nozzle, hose, or tank inlet
is blocked.
Check the suction nozzle, hose, and tank inlet
for obstructions.
The pre-filter or air inlet filter
needs to be cleaned.
Check and clean the pre-filter and air inlet
filter. Replace if damaged.
The accessories such as hose, floor
nozzle and extension wand or the
powerhead are not installed into
place, causing air leakage.
Install each part correctly.
TROUBLESHOOTING
- 15 -
