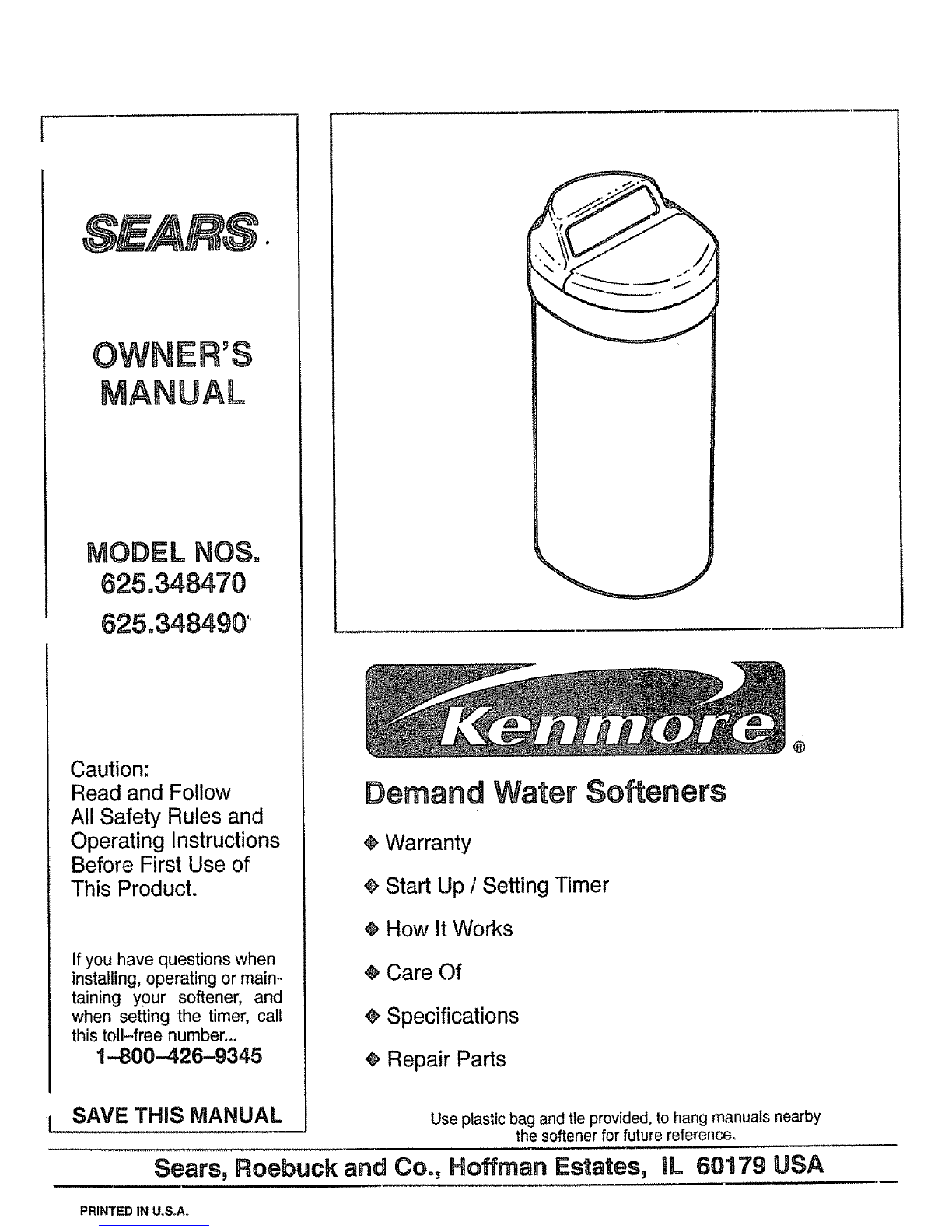

Kenmore 625.34847 User manual

MODEL NOS.
625.348470
625.348490'
Caution:
Read and Follow
All Safety Rules and
Operating Instructions
Before First Use of
This Product.
If you have questions when
installing, operating or main-
taining your softener, and
when setting the timer, call
this toll-free number...
1-800-426-9345
SAVE THiS MANUAL
Demand Water Softeners
®
_, Warranty
÷ Start Up /Setting Timer
How ItWorks
4_Care Of
÷ Specifications
e, Repair Parts
Use plastic bag and tie provided, to hang manuals nearby
the softener for future reference.
I
Sears, Roebuck and Co., Hoffman Estates, IL 60179 USA
PRINTED IN U,S.A.

WARRANTY
If
SEARS RESSDENTIAL WATER SOFTENER
FULL ONE YEAR WARRANTY ON WATER SOFTENER
For one year from the date of purchase, when this water softener is installed and maintained
in accordance with our instructions, Sears will repair, free of charge, defects in material or work-
manship in this water softener.
FULL TEN YEAR WARRANTY AGAINST LEAKS
For ten years from the date of purchase, Sears will furnish and install a new current model water
softener tank or salt storage drum, free of charge, if either the tank or drum develop a leak.
TO OBTAIN WARRANTY SERVICE, SIMPLY CONTACT THE NEAREST SEARS SERVICE
CENTER THROUGHOUT THE UNITED STATES. This warranty applies only while this product
is in use in the United States.
This warranty gives you specific legal rights, and you may have other rights which vary from
state to state.
Sears, Roebuck and Co., D/8t7 WA, Hoffman Estates, IL 60179
If you want you[ water softener professionally installed, talk to your Sears Salesman. He will arrange for a
prompt, quality installation by Sears Authorized Installers.
SEARS INSTALLATION POLICY
All installation labor' arranged by Sears shall be
performed in a neat, workmanlike manner in
accordance with generally accepted trade practices
Further, all installadons shall comply with all local
laws, codes, regulations, and ordinances. Customer
shall also be protected, during installation, by
insurance relating to Property Damage, Workman's
Compensation and Public Liability.
SEARS INSTALLATION WARRANTY
In addition to any warranty extended to you on th_
Sears merchandise involved, which warranty be-
comes effective the date the merchandise is installed,
should the workmanship of any Sears arranged
installation prove faulty within one year', Sears will,
upon notice from you, cause such faults to be
corrected at no additional cost to you.
FACTS AND FIGURES TO KEEP
Fill in the blanks below and keep this book in a safe
place so you always have these facts.
Water Softener Model No.t
Serial Number
Date Installed
Water Hardness
Iron Content
*pH
Water Pressure
Water Flow Rate
Grains Per Gallon
Parts Per Million
Taste AndlOr Odor
PoundslSquare Inch
Gallons Per Minute
t The model number is on the rating decal, located on
the rim, under the salt hole cover.
2

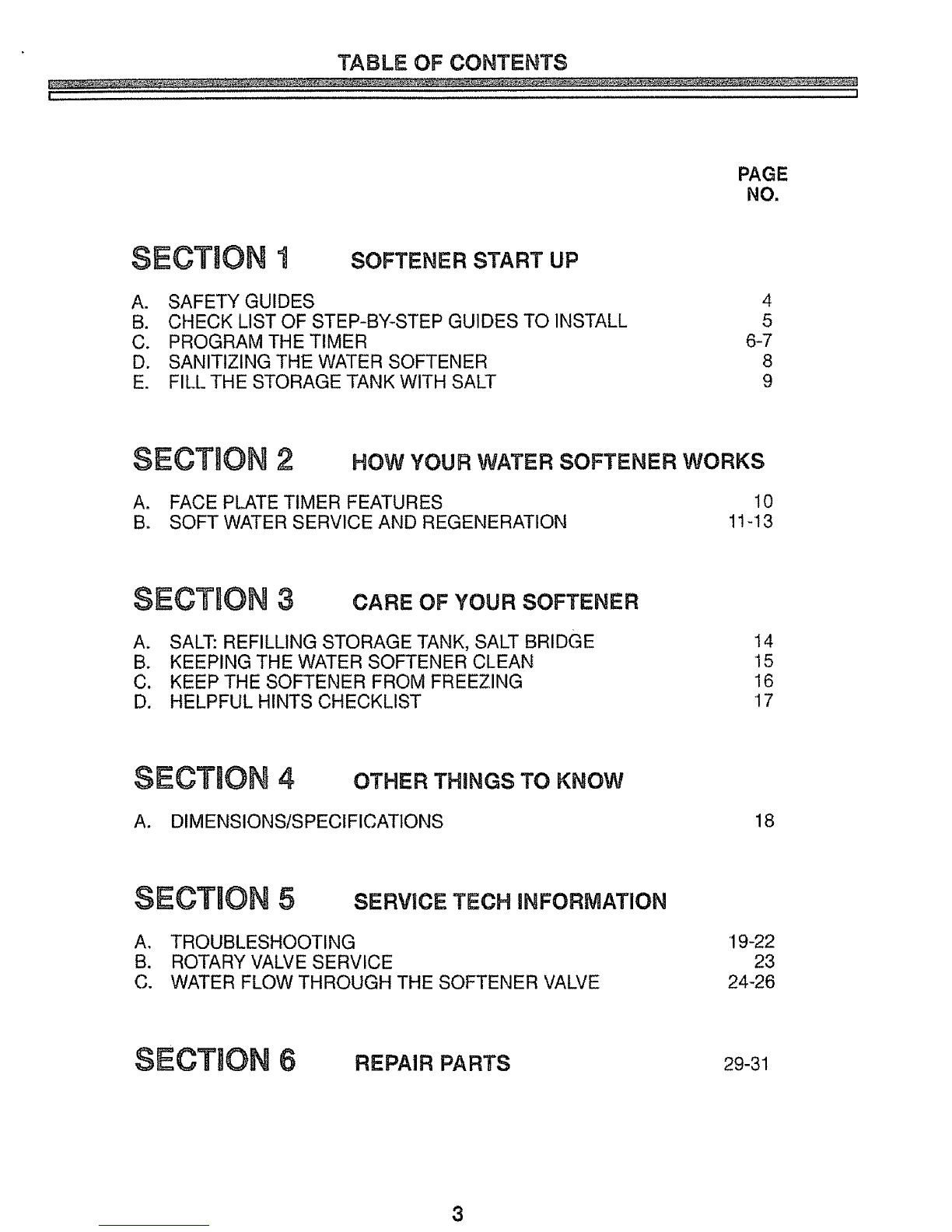

TABLE OF CONTENTS
I i
PAGE
NO.
SECTnON ISOFTENER START UP
A. SAFETY GUIDES
B. CHECK LIST OF STEP-BY-STEP GUIDES TO INSTALL
C. PROGRAM THE TIMER
D, SANITIZING THE WATER SOFTENER

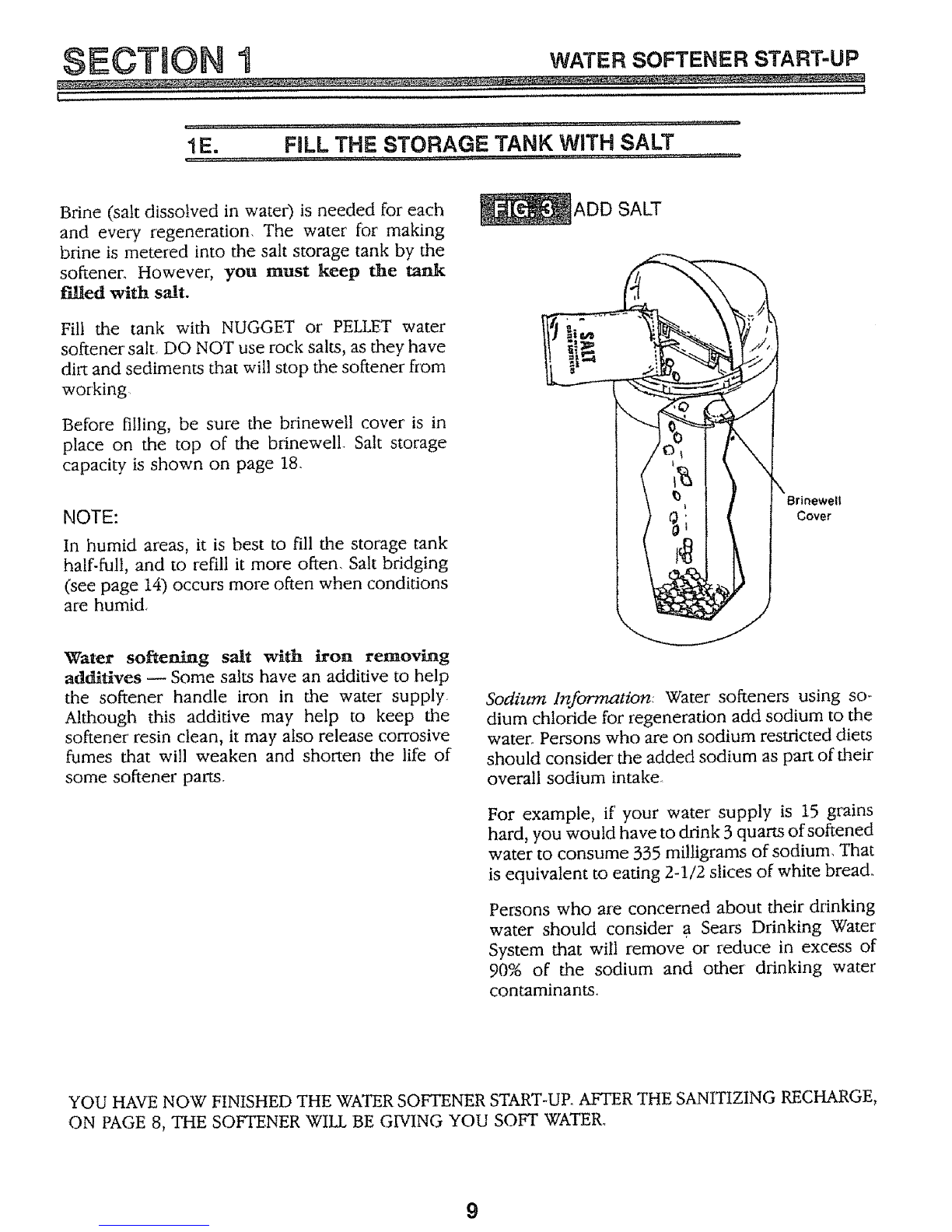

E. FILl, THE STORAGE TANK WITH SALT
4
5
6-7
8
9
SEOT_ON 2 HOW YOUR WATER SOFTENER WORKS
A, FACE PLATE TIMER FEATURES 10
B, SOFT WATER SERVICE AND REGENERATION !!-13
SECTION 3CARE OF YOUR SOFTENER
A. SALT: REFILLING STORAGE TANK, SALT BRIDGE
B. KEEPING THE WATER SOFTENER CLEAN
C. KEEP THE SOFTENER FROM FREEZING
D. HELPFUL HINTS CHECKLIST
14
15
16
17
SEOT_ON 4 OTHER THINGS TO KNOW

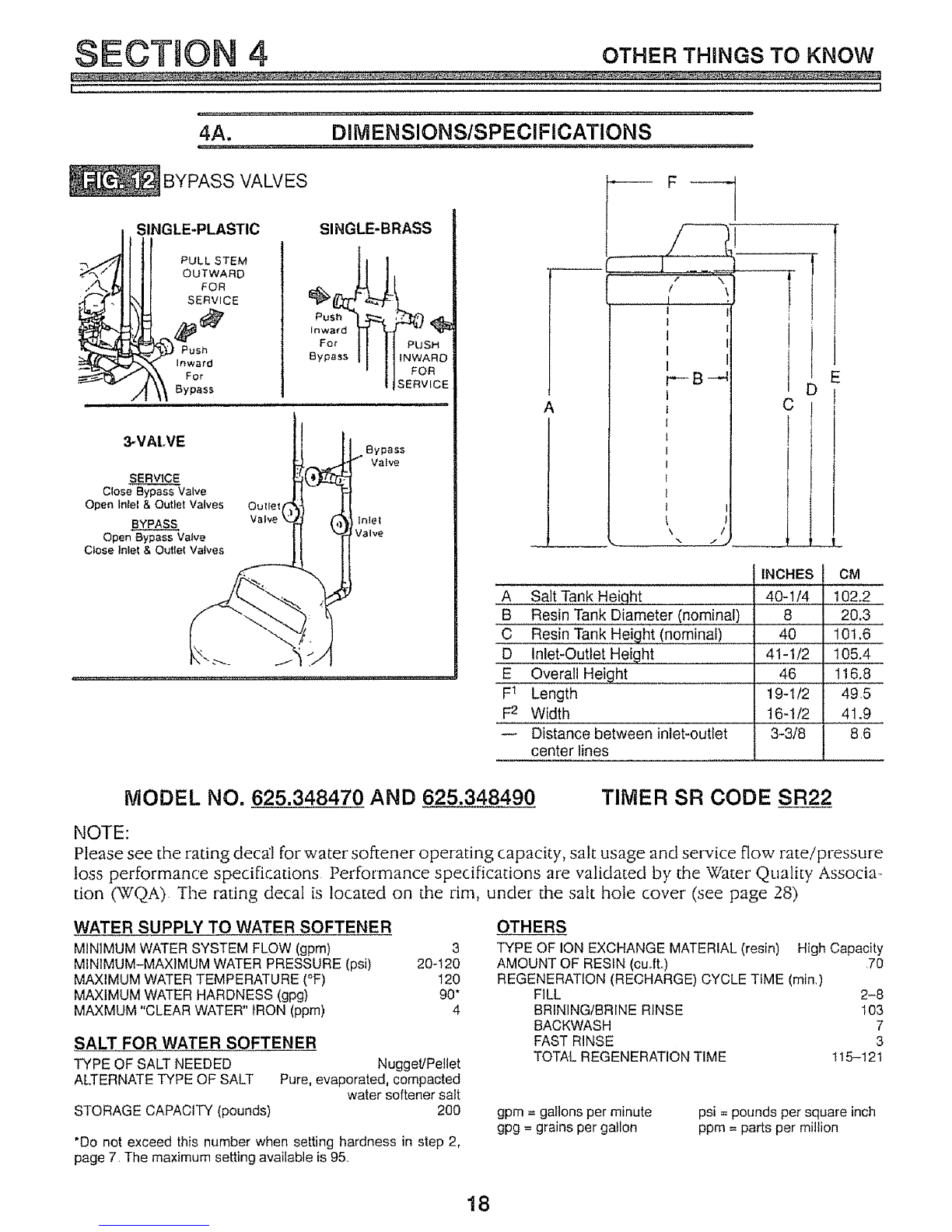

A. DIMENSIONS/SPECIFICATIONS 18
SECTION 5 SERVICE TECH iNFORMATION
A, TROUBLESHOOTING
B. ROTARY VALVE SERVICE
C. WATER FLOW THROUGH THE SOFTENER VALVE
19-22
23
24-26
SECTnON 6REPAIR PARTS 29-31
3

SECTION 1 WATER SOFTENER START=UP
1A. SAFETY GUIDES
Read all steps, guides and rules carefully be-
fore installing and using your new water softener.
Follow all steps exactly to correctly install. Fail-
ure to follow them could cause personal injury or
property damage. Reading this book will also
help you to get alt of the benefits from your water
softener.
AYour water softener will remove hardness min-
erals and "clear water" iron from water, up to the
limits shown on page 18. It will not remove other
types of iron, acids, tastes and odors, etc. It will
not purify polluted water or make it safe to drink.
AProtect the softener and piping from freezing.
Damage from freezing voids the softener warran-
ty. See page 16.
CAUTIONS
PLEASE READ AND COMPLY WiTH THE FOL-
LOWING GUIDES TO PREVENT DAMAGE TO
THE SOFTENER OR OTHER PROPERTY,
PERSONAL INJURY, OR POSSIBLE FATAL
SHOCK.
A THIS SOFTENER WORKS ON 24 VOLTS
ONLY. BE SURE TO USE THE TRANSFORMER
INCLUDED, AND PLUG IT INTO A 120V OUT-
LET.
A Unplug the transformer right away if the
power cable should become damaged Or
frayed. Make repairs before plugging back
into the power outRet.
A Always unplug the softener from electrical
power before removing outer valve covers.
4

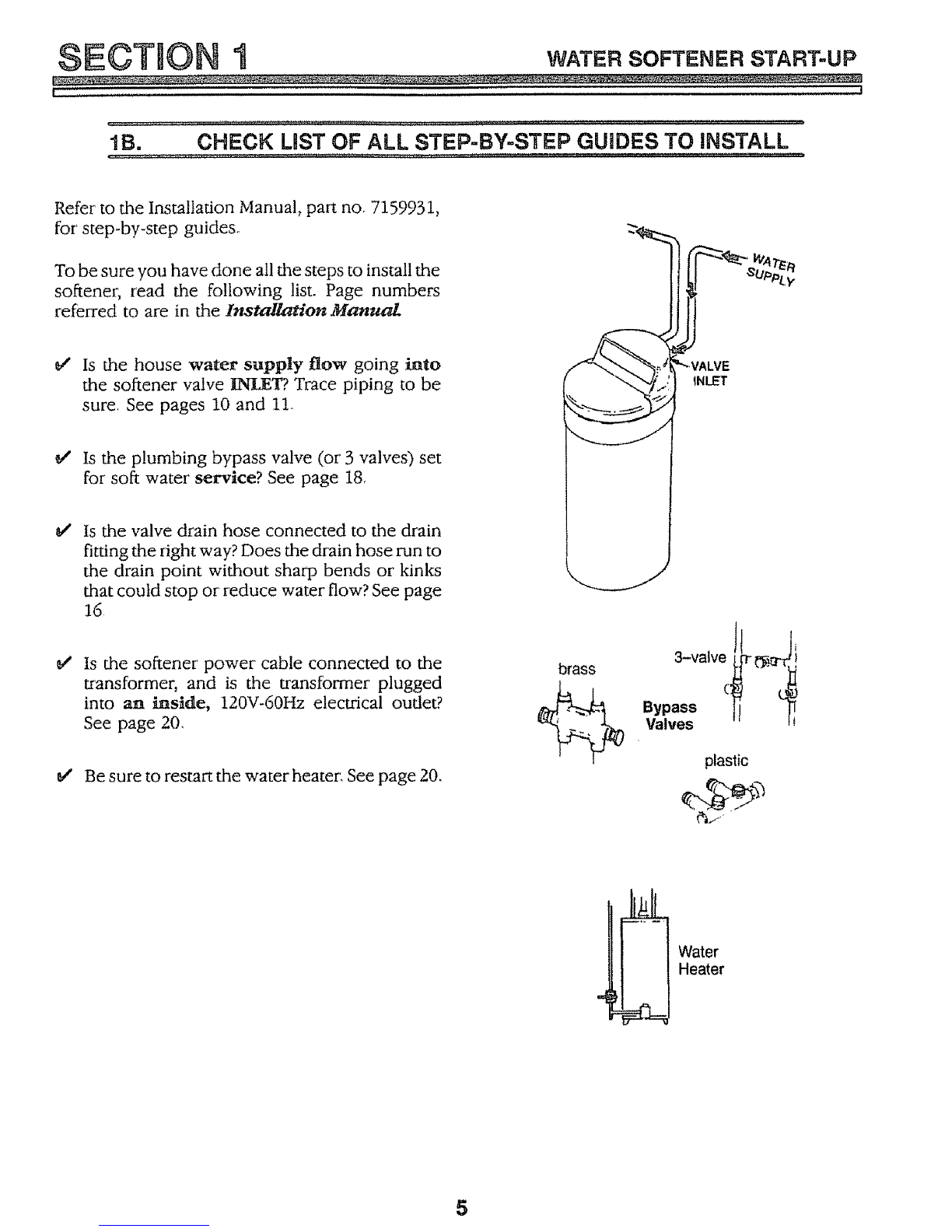

Refer to the Installation Manual, part no. 7159931,
for' step-by-step guides.
To be sure you have done all the steps to install the
softener, read the following list. Page numbers
referred to are in the Installation Manual.
_' Is the house water supply flow going into
the softener valve INLET? Trace piping to be
sure, See pages 10 and 11,
_" Is the plumbing bypass valve (or 3 valves) set
for soft water servtce. See page 18,
_' Is the valve drain hose connected to the drain
fitting the right way? Does the drain hose run to
the drain point without sharp bends or kinks
that could stop or reduce water flow? See page
16
v" Is the softener' power cable connected to the
transformer, and is the transformer plugged
into an inside, 120V-60Hz electrical oudet?
See page 20.
_" Be sure to restart the water heater: See page 20.
SUppLy
"-,VALVE
iNLET
brass 3 valve Jt |_
Bypass (
Valves
plastic
_Water
Heater
5

10. PROGRAM THE TIMER
r r ............. .........
display
Sears Wate_Line
lerCustomerAssistance
_.,800.426-9345
DOWN
UP button button
\/
®7
/\
SELECT button
ON/OFF-HOLD button
(Recharge Tonight-Now)
DemandWaterSoftener
J
When the transformer is plugged in, the model
code SR22 shows in the face plate display for a few
seconds, followed by a test number (example:
$3_0). After the test number, 12:00 AM begins to
flash PRESENT TIME and RECHARGE TONIGHT
show at the bottom of the display
CODE 1i
•-• =,= L%*I
PR ESE N'I" TIME
NOTE:
tf SR- - is flashing in the display, press the U£{_
button (FIG 1) until SR22 shows Then, press the
SELECT button to display the flashing 12:00 AM. If
other tha_t SR22 shows, when the transformer is
plugged in, please see page 1"7 to reset.
SOUND "BEEPER": A "beeper" sounds while
pressing buttons for timer set-up. One beep
signals a change in the face plate display.
Repeated beeps means the timer will not accept a
change from the button you have pressed, telling
you to use another button. For example, in setting
the hardness (step 2), the beeper sounds repeat-
edly when the display reaches i using the DOWN
button, or the highest hardness setting using the
UP button,
1, SET PRESENT TIME OF DAY:
NOTE:
If the words PRESENT TIME do not show in the
display, press the SELECT button (FIG. 1) until
they do.
Press the [] UP/DOWN _ buttons to set the
present time. Press UP to move the display ahead;
press DOWN to move the time backward.
If' the present time is between I
I
noon and midnight, be sure PM |_..ESEUr
shows. TiME
If the present time is between ;: ;;_.,_,'""....
midnight and noon, be sure AM l.._.r *,M_
shows.
NOTE:
Each press of the UP or DOWN buttons changes
the time by 1 minute. Pressing and holding the
buttons changes the time 32 minutes each second.
6

S_CT_ON "_ WATER SOFTENER START-UP
I, _,, !

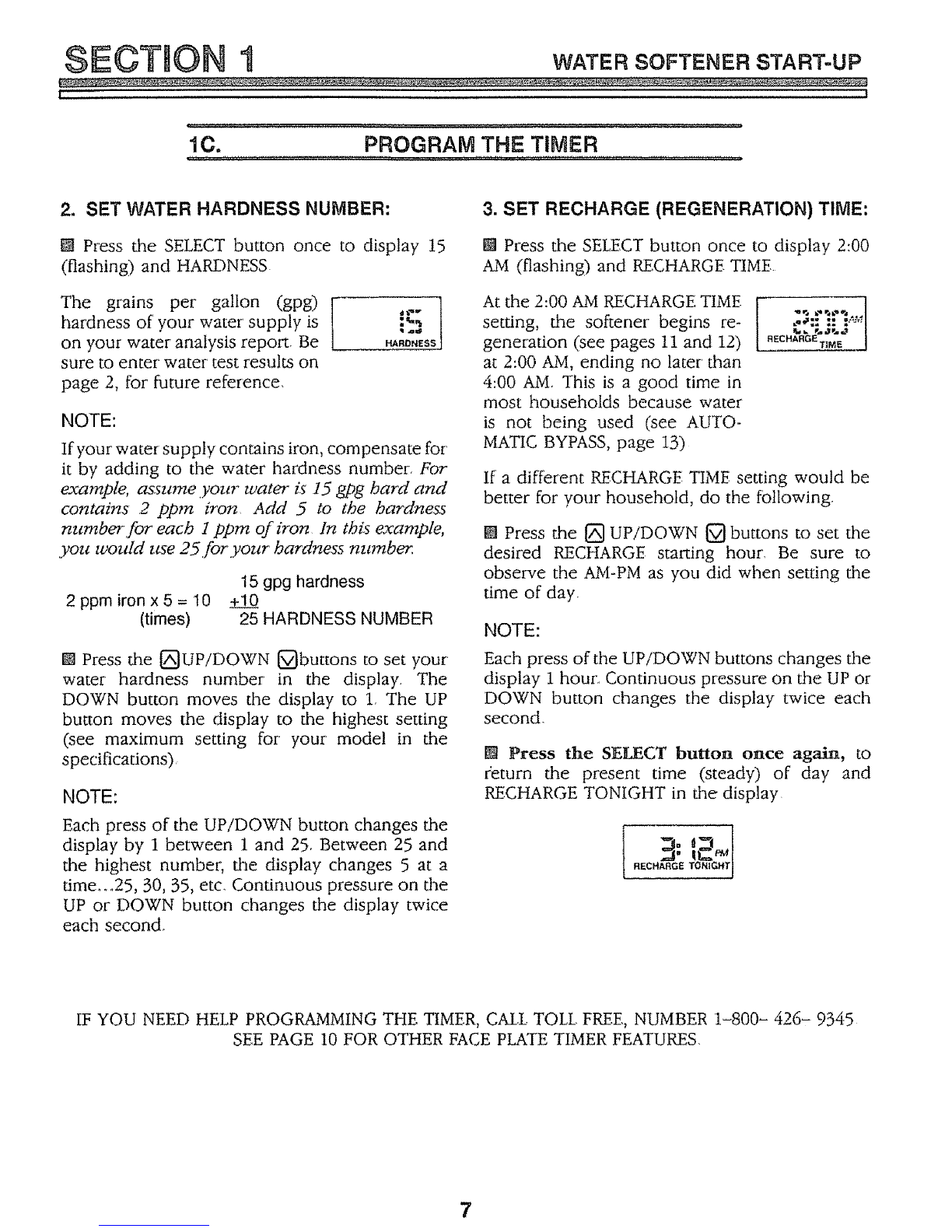

10. PROGRAM THE TIMER
2. SET WATER HARDNESS NUMBER:
[] Press the SELECT button once to display t5
(flashing) and HARDNESS
The grains per gallon (gpg)
hardness of your water' supply is
on your water analysis report, Be
sure to enter water test results on
page 2, for future reference,
d_w
HARONESS
NOTE:
If your water supply contains iron, compensate for
it by adding to the water hardness number, For
example, assume your water is 15 gpg hard and
contains .2 ppm iron, Add 5 to the hardness
number for each I ppm of iron In thLs e_cample,
you would use 25 for your hardness nzonber
15 gpg hardness
2 ppm iron x5 = 10 +10
(times) 25 HARDNESS NUMBER
[] Press the {_UP/DOWN []buttons to set your'
water hardness number in the display, The
DOWN button moves the display to 1, The UP
button moves the display to the highest setting
(see maximum setting for your' model in the
specifications)
NOTE:
Each press of the UP/DOWN button changes the
display by 1 between 1 and 25. Between 25 and
the highest number, the display changes 5 at a
time,.o25, 30, 35, etc. Continuous pressure on the
UP or DOWN button changes the display twice
each second.
3. SET RECHARGE (REGENERATION) TIME:
[] Press the SELECT button once to display 2:00
AM (flashing) and RECHARGE TIME
At the 2:00 AM RECHARGE TIME
setting, the softener begins re-
generation (see pages 11 and 12)
at 2:00 AM, ending no later than
4:00 AM, This is a good time in
most households because water

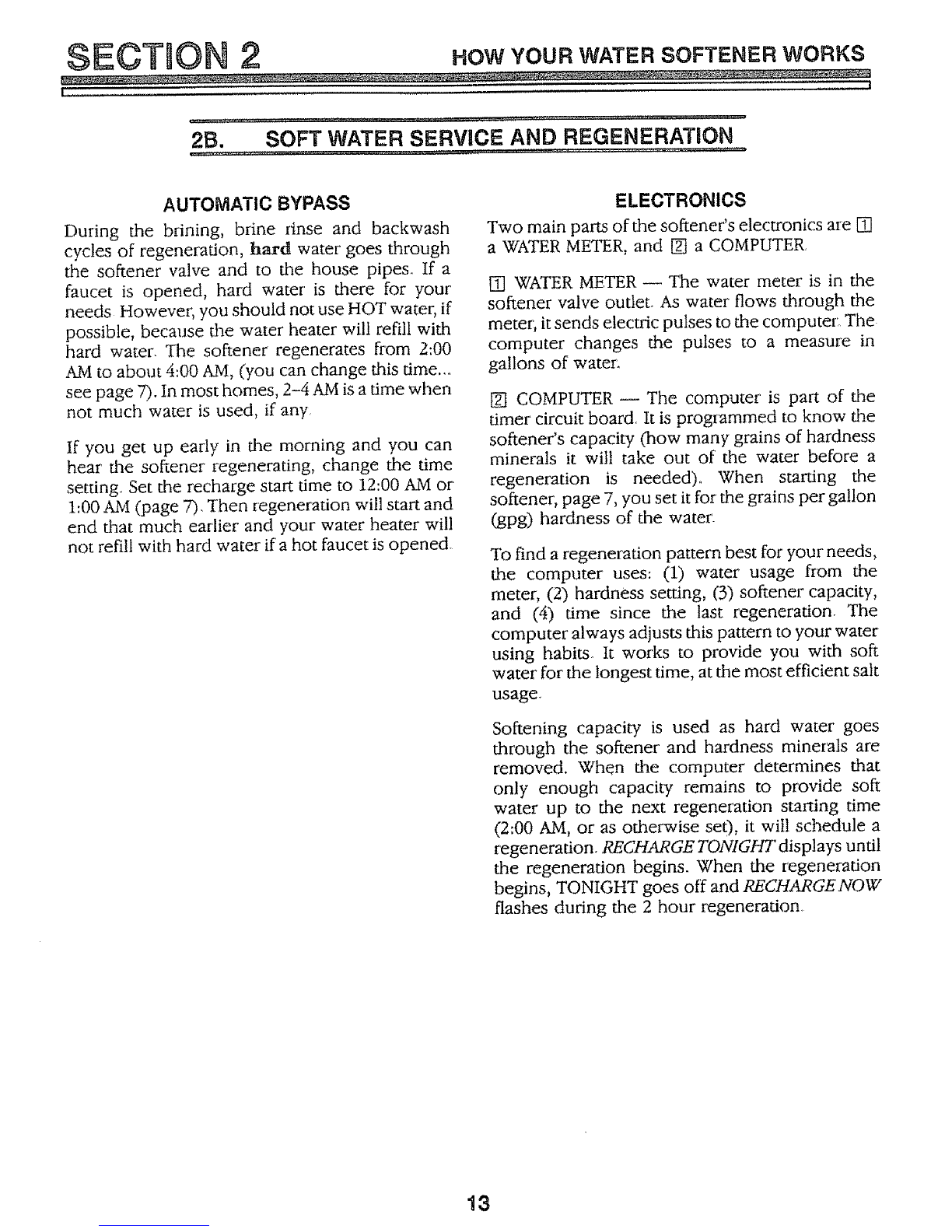

is not being used (see AUTO-
MATIC BYPASS, page 13)
RECHARGE TIME ]
If a different RECHARGE TIME setting would be
better for your household, do the following.
[] Press the [] UP/DOWN [] buttons to set the
desired RECHARGE starting hour. Be sure to
observe the AM-PM as you did when setting the
time of day.
NOTE:
Each press of the UP/DOWN buttons changes the
display 1 hour,. Continuous pressure on the UP or
DOWN button changes the display twice each
second.
[] Press the SELECT button once again, to
return the present time (steady) of day and
RECHARGE TONIGHT in the display
" {F2.,I
RECHARGE
IF YOU NEED HELP PROGRAMMING THE TIMER, CAH_, TOLL FREE, NUMBER 1-800- 426- 9345

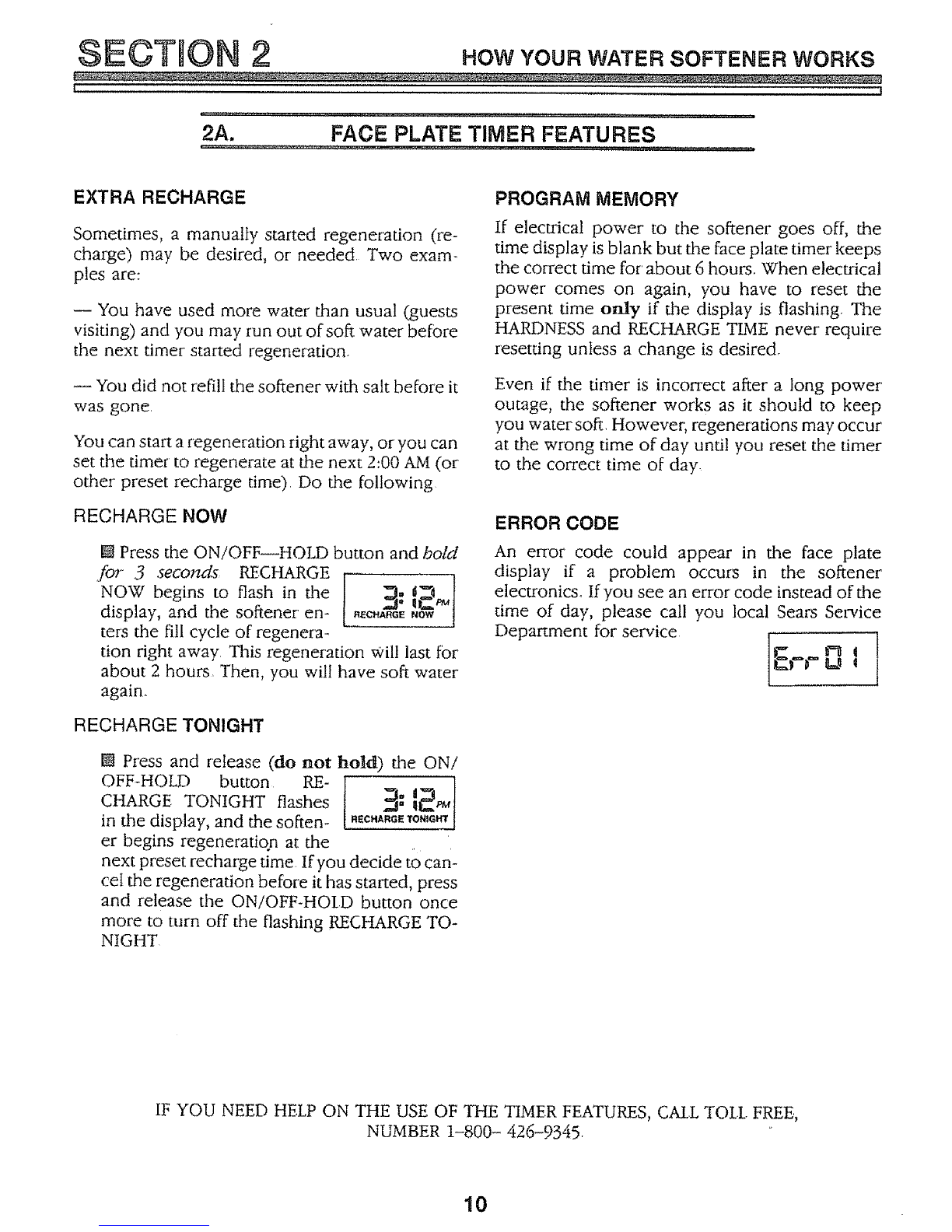

SEE PAGE 10 FOR OTHER FACE PLATE TIMER FEATURES,

SECTION I WATER SOFTENER START-UP
r'---
1D. ,,, SANBTiZING THE WATER SOFTENER
Care is taken at the factory to keep your water
softener clean and sanitary. Materials used to
make the softener will not infect or contaminate
your water supply, and will not cause bacteria to
form or grow. However, during shipping, storage,
installing and operating, bacteria could get into
the softener. For this reason, sanitizing as follows
is suggested ® when installing
1. Lift the salt hole cover and use a pail or hose to
fill the salt storage tank with at least 3 gallons of
water.
2. Remove the brinewell cover (FIG 2) and pour
about 3/4 ounce of common 5.25% household
bleach (Clorox, Linco, BoPeep, White Sail, Eagle,
etc.) in the softener bdnewell.
3. Press the ON/OFF.HOLD button and bold for3
seconds to start a recharge. This first recharge does
several things,
-- It draws the bleach into and through the
softener' to sanitize it.
--It fills the salt tank to the water' level
needed •
-- It gets all the air out of the resin tank,
-- It makes the resin bed (see page 11) ready
for service.
NOTES:
This recharge takes about 2 hours.
You can sanitize the softener with or without
salt in the storage tank.
ADD WATER
SaltHole
Cover
hose
Wate£
About3Gailons
-._
Brinewell
Cover
(remove and add
about 3t4 oz, bleach)
Brinewell
@ Recommended by the Water Quality Association. On
some water supplies, the water softener' may need periodic
disinfecting, Sanitize with or without salt in the storage
tank
8

SEOT ON I WATER SOFTENER START-UP
r'-
1E. RLL THE STORAGE TANK WiTH SALT
Brine (salt dissolved in water) is needed for each
and every regeneration. The water for making
brine is metered into the salt storage tank by the
softener. However; you must keep the tank
f'd]iedwith salt.
Fill the tank with NUGGET or PELLET water
softener salt. DO NOT use rock salts, as they have
dirt and sediments that will stop the softener from
working
Before filling, be sure the brinewell cover is in
place on the top of the brinewelL Salt storage
capacity is shown on page 18.
NOTE:
In humid areas, it is best to fill the storage tank
half-full, and to refill it more often, Salt bridging
(see page 14) occurs more often when conditions
are humid,
Water softening salt with iron removing
additives -- Some salts have an additive to help
the softener handle iron in the water supply.
Although this additive may help to keep the
softener' resin clean, it may also release corrosive
fumes that will weaken and shorten the life of
some softener parts.
ADD SALT
J
/
\Brinewett
Cover
Sodium Infcrrmation: Water' softeners using so-
dium chloride for regeneration add sodium to the
water. Persons who are on sodium restricted diets
should consider the added sodium as part of their
overall sodium intake,
For example, if your water' supply is 15 grains
hard, you would have to drink 3 quarts of softened
water to consume 335 milligrams of sodium, That
is equivalent to eating 2-112 slices of white bread.
Persons who are concerned about their drinking
water should consider a Sears Drinking Water
System that will remove or reduce in excess of
90% of the sodium and other drinking water
contaminants.
YOU HAVE NOW FINISHED THE WATER SOFTENER START-UP. AFTER THE SANITIZING RECHARGE,
ON PAGE 8, THE SOFTENER WILL BE GMNG YOU SOFT WATER_
9

SECTION 2HOW YOUR WATER SOFTENER WORKS
I' i
2A. FACE PLATE TIMER FEATURES
,,,,,,,,, ......... _,,,,,,, ,, _................ ,_., .
EXTRA RECHARGE
Sometimes, a manually started regeneration (re-
charge) may be desired, or needed. Two exam-
ples are:
-- You have used more water than usual (guests
visiting) and you may run out of soft water before
the next timer started regeneration.
-- You did not refill the softener with salt before it
was gone
You can start a regeneration right away, or you can
set the timer to regenerate at the next 2:00 AM (or
other preset recharge time). Do the following
RECHARGE NOW
m Press the ON/OFF--HOLD button and hold
for3 .seconds RECHARGE 6D ]
NOW begins to flash in the 3: q_i
display, and the softener en- .ECUA.G_NOWJ
ters the fill cycle of regenera-
tion right away. This regeneration Will last for
about 2 hours Then, you will have soft water
again.
RECHARGETONIGHT
[] Press and release (do not hold) file ON!
OFF-HOLD button RE- ,_/., !_ 1i
CHARGE TONIGHT flashes J qt,= 1
in tile display, and the soften- ._C.A.G_TO.,CU*J
er begins regeneration at the
next preset recharge time If you decide to can-
cel the regeneration before it has started, press
and release the ON/OFF-HOI.D button once
more to turn off the flashing RECHARGE TO-
NIGHT
PROGRAM MEMORY
If electrical power to the softener goes off, the
time display is blank but the face plate timer keeps
the correct time for' about 6 hours. When electrical
power comes on again, you have to reset the
present time only if the display is flashing. The
HARDNESS and RECHARGE TIME never require
resetting unless a change is desired.
Even if the timer is incorrect after a long power
outage, the softener works as it should to keep
you water soft. However', regenerations may occur
at the wrong time of day until you reset the timer
to the correct time of day
ERROR CODE
An error code could appear in the face plate
display if a problem occurs in the softener
electronics° If you see an error code instead of the
time of day, please call you local Sears Service
Department for service ...........
iErr0 E
IF YOU NEED HELP ON THE USE OF THE TIMER FEATURES, CALL TOLL FREE,
NUMBER 1-800- 426-9345,
10

2B. SOFT WATER SERVICE AND REGENERATION
i=======_==_== .... _, ,,,, _,, ,,,.,,,.,,,,_,, ,,,, =, _,, i
SERVICE
When the softener is giving you soft water, it is
called "Service". During service, hard water flows
through the house main water pipe and into the
softener Inside of the softener resin tank is a bed
made up of thousands of tiny, plastic resin beads
(FIG. 4) As hard water' passes through the bed,
each bead attracts and holds the hardness
minerals This is called ion-exchanging It is much
like a magnet attracting and holding metals_ Water
without the hardness minerals (soft water) flows
out of the softener' and into the house soft water
pipes
After a period of time, the resin beads become
coated with hardness minerals and they have to be
cleaned This cleaning is called regeneration or
recharge_ Regeneration is started at 2:00 a.m. by
the electronic timer (see page 13). It takes place in
5 stages or cycles. These are:
[] FILL [] BACKWASH
r_ BRINING [_ FAST RINSE
[] BRINE RINSE
WATER FLOW THROUGH THE
SOFTENER IN SERVICE
Hard Water
IN
Resin Bed
REGENERATION
[_]FILL: Salt, dissolved in water, is called brine.
Brine is needed to clean the hardness minerals
from the resin beads_ To make the brine, water
flows into the salt storage area during the ill! stage
as shown in FIG. 5. Fill cycle length depends on
how much soft water making capacity you have
used since the last regeneration. As you use more
water, fill time increases so more brine is made.
The greater amount of brine cleans more hardness
minerals from the resin bed
_WATER FLOW THROUGH THE
SOFTENER IN FILL
Hard Water
IN
Soil Water ,h
Filt Water,.. :i _!:;-!
Salt
_- Storage Tank
(salt not shown)
11

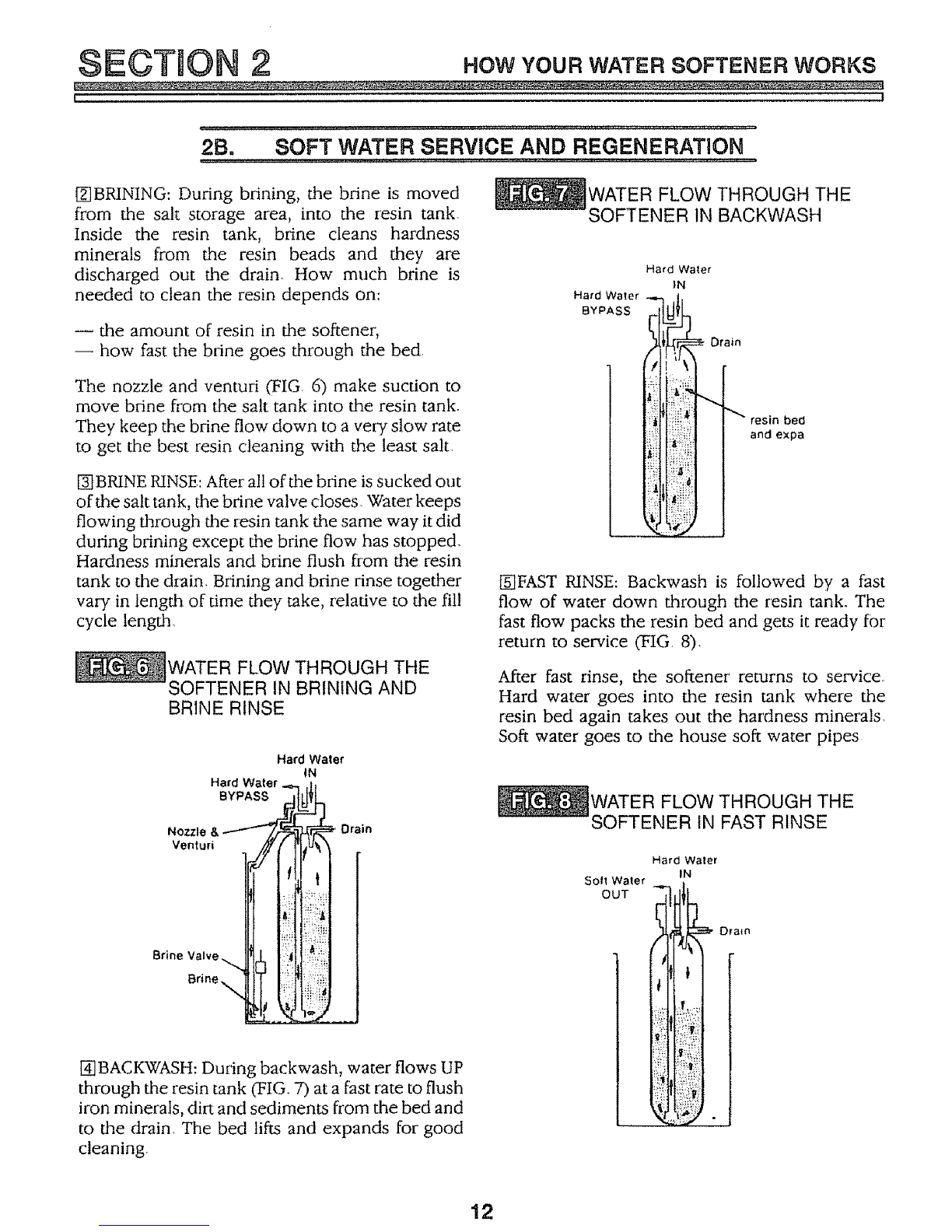

$ErT ON 2 .owyou.wATE.SO TE.E.WO.KS
., , , ,, ................... _, ,, ..... ,, ......... , ,, , . , .... .....
I, t
2Bo SOFT WATER SERVICE AND REGENERATION
[]BRINING: During brining, the brine is moved
from the salt storage area, into the resin rank,
Inside the resin tank, brine cleans hardness
minerals from the resin beads and they are
discharged out the drain_ How much brine is
needed to clean the resin depends on:
the amount of resin in the softener,
-- how fast the brine goes through the bed,
The nozzle and venturi WIG 6) make suction to
move brine from the salt tank into the resin tank.
They keep the brine flow down to a very slow rate
to get the best rosin cleaning with the least salt.
[] BRINE RINSE: After all of the brine is sucked out
of the salt tank, the brine valve closes. Water keeps
flowing through the resin tank the same way it did
during brining except the brine flow has stopped.
Hardness minerals and bnne flush from the resin
tank to the drain. Brining and brine rinse together
vary in length of time they take, relative to the fit!
cycle length.
WATER FLOW THROUGH THE
SOFTENER IN BRINING AND
BRINE RINSE
Hard Water
IN
Nozzle &
Venturi
Brine
t
{
[]BACKWASH: During backwash, water flows UP
through the resin tank (FIG. 7) at a fast rate to flush
iron minerals, dirt and sediments from the bed and
to the drain, The bed lifts and expands for good
cleaning.
WATER FLOW THROUGH THE
SOFTENER 1N BACKWASH
Hard Waler
BYPASS
Hard Water
tN
" "j_l' ;-;:_ "" resi_bed
:!'_;I[i!_;i'! and expa
F_IFASTRINSE: Backwash is followed by a fast
flow of water down through the resin tank. The
fast flow packs the resin bed and gets it ready for
return to service (FIG. 8).
After fast rinse, the softener returns to service
Hard water goes into the resin tank where the
resin bed again takes out the hardness minerals,
Soft water goes to the house soft water pipes
WATER FLOW THROUGH THE
SOFTENER tN FAST RINSE
Hard Wale_'
IN
Sott Water
OUT
_ _" Dram
_.1"
12

_EC'T_ON 2HOW YOUR WATER SOFTENER WORKS
I f
2B, SOFT WATER SERVICE AND REGENERATION
AUTOMATIC BYPASS
During the brining, brine rinse and backwash
cycles of regeneration, hard water goes through
the softener valve and to the house pipes. If a
faucet is opened, hard water is there for your
needs However; you should not use HOT water, if
possible, because the water heater wilt refill with
hard water. The softener' regenerates from 2:00
AM to about 4:00 AM, (you can change this time....
see page 7). In most homes, 2-4 AM is a time when
not much water is used, if any
If you get up early in the morning and you can
hear the softener regenerating, change the time
setting. Set the recharge start time to 12:00 AM or
1:00 AM (page 7). Then regeneration will start and
end that much earlier and your water heater will
not refill with hard water if a hot faucet is opened.
ELECTRONICS
Two main paKs of the softener's electronics are []
a WATER METER, and [] a COMPUTER.
[] WATER METER -- The water meter is in the
softener valve outlet. As water flows through the
meter, it sends electric pulses to the computer. The
computer changes the pulses to a measure in
gallons of water.
[] COMPUTER -- The computer is part of the
timer circuit board. It is programmed to know the
softener's capacity (how many grains of hardness
minerals it will take out of the water before a
regeneration is needed). When starting the
softener, page 7, you set it for the grains per gallon
(gpg) hardness of the water'.
To find a regeneration pattern best for your needs,
the computer uses: (1) water usage from the
meter, (2) hardness setting, (3) softener capacity,
and (4) time since the last regeneration. The
computer always adjusts this pattern to your water'
using habits° It works to provide you with soft
water for the longest time, at the most efficient salt
usage_
Softening capacity is used as hard water goes
through the softener and hardness minerals are
removed. When the computer determines that
only enough capacity remains to provide soft
water up to the next regeneration starting time
(2:00 AM, or as otherwise set), it wilt schedule a
regeneration. RECHARGE TONIGHT displays until
the regeneration begins. When the regeneration
begins, TONIGHT goes off and RECHARGE NOW
flashes during the 2 hour regeneration.
13

3A. SALT...REFiLLING STORAGE TANK/BREAKING A SALT BRIDGE
WHEN TO REFILL WITH SALT: Check the salt
level a few weeks after' you install the softener and
every week after' that, Refill when the storage
tank is about I13 full. Never let the softener use
all the salt before refilling Without salt, you will
soon have hard water:
IMPORTANT:
You will have a loss in softening capacity and
may get partly hard water if less than 10
inches of salt is in the storage tank.
PLEASE SEE PAGE 9 FOR SALT FILLING DiRECTiONS.
SALT BRIDGE
Sometimes, a hard crust or salt bridge forms in the
salt storage tank_ It is usually caused by high
humidity or' the wrong kind of salt. When the salt
bridges, an empty space forms between the water
and salt. Then salt will not dissolve (melt.) in the
water to make brine Without brine, the resin bed
does not regenerate and you will have hard water.
If the storage tank is full of salt, it is hard to tell if
you have a salt bridge_ Salt is loose on top, but the
bridge is under it. The following is the best way to
check for a salt bridge.
Salt should be loose all the way to the bottom of
the tank. Hold a broom handle, or like toot, up to
the softener as shown in FIG. 9. Make a pencil
mark on the handle, 1" or 2" below the top height
of the rim, as shown. Then, carefully push it
straight down into the salt. If a hard object is felt
before the pencil mark gets to the top of the tank,
it's most likely a salt bridge, Carefully push into the
bridge in a few places to break it_Do not try to
break the salt bridge by pounding on the
outside of the salt tank. You may damage the
tanl_=
If the wrong kind of salt was the cause of the
bridge, take itout. Then fill the tank with nugget or'
pellet salt only.
SALT BRIDGE
•__ _ 2 _
J__
r-?
Pencil
Mark
Broom Handfe J
push tool into salt
bridge to break
14

SECTmON3CA.E yourso .ER
f 'l
3B. KEEPING THE WATER SOFTENER CLEAN
COVERS NOTE:
To keep your new Sears water softener looking Never use cleaners having ammonia or abrasives.
nice, apply a coat of paste wax and repeat once a They may scratch and dull the surface
year'. When dusty, wipe it with a damp cloth to
keep it sparkling
NOZZLE AND VENTURi
A clean nozzle and venturi (FIG.. 10) is a must for
the softener to work fight. This small unit moves
brine from the salt storage tank to the resin tank
during regeneration. If it becomes plugged with
sand, silt, dirt, etc., the softener' will not work and
you will get hard water:
To get to the nozzle and venturi, remove the
softener top covet: Be sure the softener is in
service cycle (no water pressure at nozzle and
venturi). Then, holding the housing tightly with 1
hand, turn the cap off. Do not lose the large
o-ring seal. Lift out the screen support and
screen, then the nozzle and venturi Wash and
rinse the parts in warm water until clean If
needed, use a small brush to remove iron or dirt.
Also check and clean the gasket..
Carefully replace all parts in the correct order.
Lubricate the o-ring seal with silicone grease or
Vaseline and place in position. Install and tighten
the cap, by hand only. Do not over-tighten and
break the cap or housing.
CLEANING THE NOZZLE & VEN-
fURl
Nozzle & Venturi
Housing
*INSTALL WITH
NUMBERED SIDE UP
CONCAVE SIDE DOWN,
IRON FROM THE RESBN BED
Your water softener takes hardness minerals
(calcium and magnesium') out of the water_ Also, it
can control some "clear water" iron See maximum
allowed in the specifications on page 18. With
clear water' iron, water from a faucet is clear when
first put into a glass. After' 15 to 30 minutes, the
water begins to cloud or turn rust colored. A water'
softener will not remove any iron which makes
the water cloudy or rusty as it comes from the
faucet (called red water iron). To take red water
iron out of water, or over the maximum of
clear water iron, an iron filter or other
equipment is needed. Your local Seats store has
trained people to help you with iron water
problems,
If your water supply has clear water iron, even
though less than the maximum allowed, regular
resin bed cleaning is needed. Sears has resin bed
cleaner, Stock No 42_34426 for dais. Clean the bed
at least every 6 months If iron appears in the soft
water before 6 months, clean more often. Printed
instructions are on the resin bed cleaner' bottle
IF YOU HAVE QUESTIONS ABOUT CLEANING AND MAINTAINING YOUR SOFTENER, CALL TOLL
FREE, NUMBER 1-800-426-9345
15

SECTION 3 CARE OF YOUR SOFTENER
,i1,1 ul, iiii ,,11,,i
3C. KEEP THE SOFTENER FROM FREEZING
u Ulll. ii,
If the softener is installed where it could fi-eeze
(summer cabin, lake home, etc_), you must drain
all water from it to stop possible freeze damage,
To drain the softener:
1. Close the shut-off valve on the house main
water pipe, near the water meter or pressure
tank_
2. Open a faucet in the soft water pipes to vent
pressure in the softener
mIf a single bypass valve is insta!led, move the
stem into bypass. See FIG, 12 on page 18 In a
3-valve bypass system, close the inlet and
outlet valve and open the bypass valve, If you
want water in the house pipes again, reopen
the shut-off valve on the main water' pipe,
4. Unplug the transformer at the wall outlet.
5. Remove the salt hole cover and the main
cover_ Take off both drain hoses
6. Careful!y remove the large holding clips at the
softener" inlet and outlet (see Key No, 61, on
page 30) Separate the softener fi'om the
adaptors or bypass valve
.Remove the brinewell cover and disconnect
the brine valve tubing at the nozzle and venturi
assembly (see page 23), Liftthe brine valve out
of the brinewell Tip the brine valve upside
down to drain out water.
DRAIN WATER FROM THE
SOFTENER
___..___---.----
Drain Wood Block
o
Q
Looking at FIG 11, lay a piece of 2 inch thick
board near the floor drain Move the softener
close to the drain. Slowly and carefully, tip it
over until the rim rests on the wood block with
the inlet and outlet over the drain Do not
allow the softener's weight to rest on the
inlet and outlet fittings or they will break.
Tip the bottom of the softener up a few inches
and hold until all water has drained Leave the
softener laying like this until you are ready to
use iL Plug the inlet and outlet with rags to
keep dirt, bugs, etc, out,
16

SECTION 3 CAREOFYOURSOFTENER
I I
... TO HELP YOU SAVE MONEY
If your water softener fails to work, make the following easy checks. Often, you will find what's wrong
yourself and you won't have to call and wait for'service If',after making the checks, your softener still does
not work right, call your Sears Service Department, or call toll free, number 1-800--426-9345 for'telephone
assistance
NOTE:
Also read ERROR CODE, page 10. tf an error code is not dispIayed, press and holdthe SELECTbutton untit
(example: 000- -) shows in the display. Then, press SELECT again and hold until an SR code appears. It
must show SR 22. If any other' SRnumber shows, the softener computer' is working on incorrect input and
this would probably be the cause of the problem.. To set SR22, press either the UP [] or DOWN[;_button_
Then, press SELECT to return a flashing 12:00 AM display, and reset the timer' on page 6.
PROBLEM CAUSE CORRECTION
No soft water Faucet or fixture may be plumbed to From the outlet of the water softener, trace the water flow
hard water _aths in your house pipes. If soft water is not directed to
a faucet or fixture where it is wanted, consult a plumber.
To conserve salt, the installer may have isolated some
fixtures (outside faucets, toilets, etc.) from soft water.
No salt (or saR bridged) in the storage Refill with salt, or break the salt bridge (page 14). Press
tank ON/OFF-HOLD (RECHARGE NOW) button and hold for
3 seconds to start a regeneration (see page 10)
Transfomer unplugged at the wall Check for loss of power due to any of these and correct.
outlet, or power cable leads loose, fuse With the power back on, took at the time display and read
blown, circuit breaker popped, or circuit PROGRAM MEMORY, page t0o
switched off.
Manual bypass valve(s) in bypass
position
Dirty, plugged or damaged nozzJe &
venturi
Valve drain hose plugged
Water hard Hardness number setting too low
sometimes
Using hot water when softener is
regenerating
Increase in the grains of hardness in
your water supply
Look at FIG, 12 on page 18,,Move the stem in a single
valve to service. In a 3waive bypass, open the inlet and
outlet valves, and be sure to fully close the bypass valve.
Take apart and clean or replace damaged parts (see page
15).
The drain hose must not have kinks, sharp bends, or be
raised too high above the softener (see page 16 in your
installation manual)°
Press and release the SELECT button until HARDNESS
shows in the display Read the hardness number in the
display and be sure the same grains per gallon number is
shown on your water analysis report. See page 7 to reset°
Press and release the SELECT button until the present
time shows in the display.
Avoid using hot water during this time because the water
heater refills with hard water (see Automatic Bypass, page
13).
Ask your Sears retail or catalog store for a new water
analysis. Then make a new hardness number setting
(page 7).
17

SECTION 4 OTHERTH NGSTOK.OW
I I
...................................... ................ ,., ........ _ .... J.
4A. DIMENSIONSISPECIFICATIONS
BYPASS VALVES
/L
SINGLE-PLASTIC
PULL STEM
OUTWARD
FOR
SERVICE
Inward
_ For
./ Bypass
n i
SINGLE-BRASS
Bypass I j
n n iinn iiiiiinllnllliiiii
RD
ICE
, ,,111,
3-VALVE
SERV1CE
Close Bypass Valve
Open tntel & Outlet Valves
BYPASS
Open Bypass Valve
Close Inlet & Outlet Valves
Bypass
Valve
lnlet
Valve
J
J
1: "\
_B_
/;
E
C
A Salt Tank Heiqht
B Resin Tank Diameter (nominal)
C Resin Tank Height (nominal)
D Inlet-Out!et Height
E Overall Heig_
F1 Length
F2 Width
Distance between inlet-outlet
center lines
INCHES
40-1/4
8
40
41-1/2
46
19-1/2
16-1/2
3-3/8
CM
102,2
20.3
101 _6
105.4
116,8
49,5
41.9
8,6
MODEL NO. 625.348470 AND 625.348490 TIMER SR CODE SR22
NOTE:
Please see the rating decal for water softener operating capacity, salt usage and selwice flow rate/pressure
loss performance specifications Performance specifications me validated by the Water Quality Associa-
tion O,VQA) The rating decal is located on the rim, under the salt hole cover' (see page 28)
WATER SUPPLY TO WATER SOFTENER
MINIMUM WATER SYSTEM FLOW (gpm) 3
MINIMUM-MAXIMUM WATER PRESSURE (psi) 20-120
MAXIMUM WATER TEMPERATURE (°F) 120
MAXIMUM WATER HARDNESS (gpg) 90"
MAXMUM "CLEAR WATER" IRON (ppm) 4
SALT FOR WATER SOFTENER
TYPE OF SALT NEEDED Nugget!Pellet
ALTERNATE TYPE OF SALT Pure, evaporated, compacted
water softener salt
STORAGE CAPACITY (pounds) 200
"Do not exceed this number when setting hardness in step 2,
page 7 The maximum setting available is 95.
TYPE OF ION EXCHANGE MATERIAL (resin) High Capacity
AMOUNT OF RESIN (cu..ft..) 70
REGENERATION (RECHARGE) CYCLE TiME (rain.)
FILL 2-8
BRINING/BRINE RINSE 103
BACKWASH 7
FAST RINSE 3
TOTAL REGENERATION TIME t 15-121
gpm = gallons per minute
gpg = grains per gallon psi = pounds per square inch ppm = parts per million
18

5A. TROUBLESHOOTING
Keep this manual with your water softener. If repairs are needed, the service technician must have
the information on the following pages For telephone assistance, call toll free, 1-800-426-9345
1}0
VAC
TRANSFORMER
24VAC
(
iWIRtNG SCHEMATIC
wh
gm
__ Shield
i .... ITURBINE
"-'--"'SENSOR
NC
0"*"_"_POSITIO NSWITCH
-0
NO
display J
DemandWaterSoftener
ON/OFF-HOLD button
(Recharge Tonight-Now) SELECT button DOWN
button
ALWAYS MAKE THESE INITIAL CHECKS FIRST
1. Does the time display show the correct time of day?
If display is blank, check power source to the
softener,
- If time is flashing, power was off' for over 6 hours The
softener resumes no[maI operation but regenerations
occur at the wrong time,
- If an error code (Example: Err 03) shows in the face
plate display, go to Automatic Electronic DiagnostiCs
2. Plumbing bypass valve(s) must be in Full Service
position.
3_
4_
The inlet and outlet pipes must connect to the softener
valve inlet and outlet respectively
Is the transformer plugged into a "live", grounded wall
outlet, and is the power cable fastened securely?
5. The valve drain hose must be free of kinks and sharp
bends, and not elevated over 8 ft. above the floor'
REMOVETHETOP COVER ANDSALTTANKCOVER
6. Is there salt in the storage tank?
7. Is the brine tubing connected? (See water' flow
diagrams),
8. Is the brine valve float set right? (See page 22)
9. Press the SELECT button 2 times to display the hardness
setting Be sure it is the correct setting for the
househotd's water supply, (Make a hardness test of the
raw water' and compare with the hardness setting, Also
test a soft water' sample to verify if a problem exists,)
Press SEIECT twice more to return the time of day
display.
If you do not find the problem after' making initial checks,
do the Manual Initiated Electronic Diagnostics, and the
Manual Advance Regeneration Check,
19

AUTOMATIC ELECTRONIC DIAGNOSTICS
The face plate computer' has a self-diagnostic
function for the electrical system (except input
power and water meter'). The £ t '=" .....
computer monitors the electronic {Fj% '= D_
components and circuits for cor- I
rect operation. Ifa malfunction occurs, an error code
appears in the face plate display.
The chart below shows the error codes that could
appear, and the possible defects for' each code
While an err'or code appears in the display, all face
plate buttons are inoperable except the SEI_ECT
button The SELECTbutton remains operational so
the service person can make the Manual Initiated
Electronic Diagnostics to further isolate the defect,
and check the water meter.
CODE
Err 01
Err 02
Err 03
Err 04
Err 05
POSSIBLE DEFECT
MOST LIKELY _ _ LESS LIKELY
motor inoperative Iwiring harness or connection to switch Iposition switch Iface plate
face plate
motor inoperative /face plate
face plate /position switch
face plate
PROCEDURE FOR REMOVING ERROR CODE FROM FACE PLATE: 1 Unplug tsansformer 2. Correct defect 3 Plug-in
transformer 4. Wait for 6 minutes, The error code will remm if the defect was not corrected
,,, , , ,, ,,,,,,,,,,,,, : -
•, , , ,, ,, ...........
MANUAL INITIATED ELECTRONIC DIAG-
NOSTICS
1. To enter diagnostics, press and hold the SELECT
button until 000 - - shows in the display.
ITURB1NE SWITCHES]
nli='t ,=.=_ l
orP 1
WATER METER (A) SWITCH (B)
A. The first 3 digits indicate water meter operation
as follows:
000 (steady) = Soft water not in use, and no
flow through the meter.
--OPEN ANEARBY SOFT WATER FAUCET--
000 to 199 (continual) = Repeats display for
each gallon of' water passing through the meter.
If you don't get a reading in the display, with the
faucet open, pull the sensor' from the valve outlet
port. Pass a small magnet back and forth in front of
the sensor. You should get a reading in the display, if
you get a reading, unhook the in and out plumbing
and check the turbine for binding.
POSITION
SWITCH
VALVE
OUTLET
I
I..,....-TURBINE
..._--TURBINE
SUPPORT AND
SHAFT
B* The letter' (P) and dash (or dashes) indicate POSI-
TION switch operation. If the letter' appears, the
switch is closed, If the dash shows, the switch is
open.
Use the ON/OFF-HOLD (Recharge Now) button
to manually advance the valve into each cycle
and check correct switch operation.
20
