OWNER'S MANUAL
Advanced Two-Stage
Drinking Water System
MODEL NO. 625.385010
m
®
®
J
Caution:
Read and follow all safety rules and operating
instructions before first use of this product.
Questions ?
Visit www.KenmoreWater.com
or call toll free 1-800-426-9345 (M - F, 7 AM - 6 PM CST)
Repair or Parts ?Call toll free 1-800-469-4663
See back cover for other Sears service numbers.
SAVE THIS MANUAL
•Warranty
• Installation
• How It Works
• Care Of
• Specifications
• Repair Parts
System tested and certified by NSF International
against NSF/ANSI Standard 42 and 58.
See performance data sheet for details.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
PRINTED IN U.S.A. www.KenmoreWater.com Part No. 7328483 (Rev. G 4/16/13)

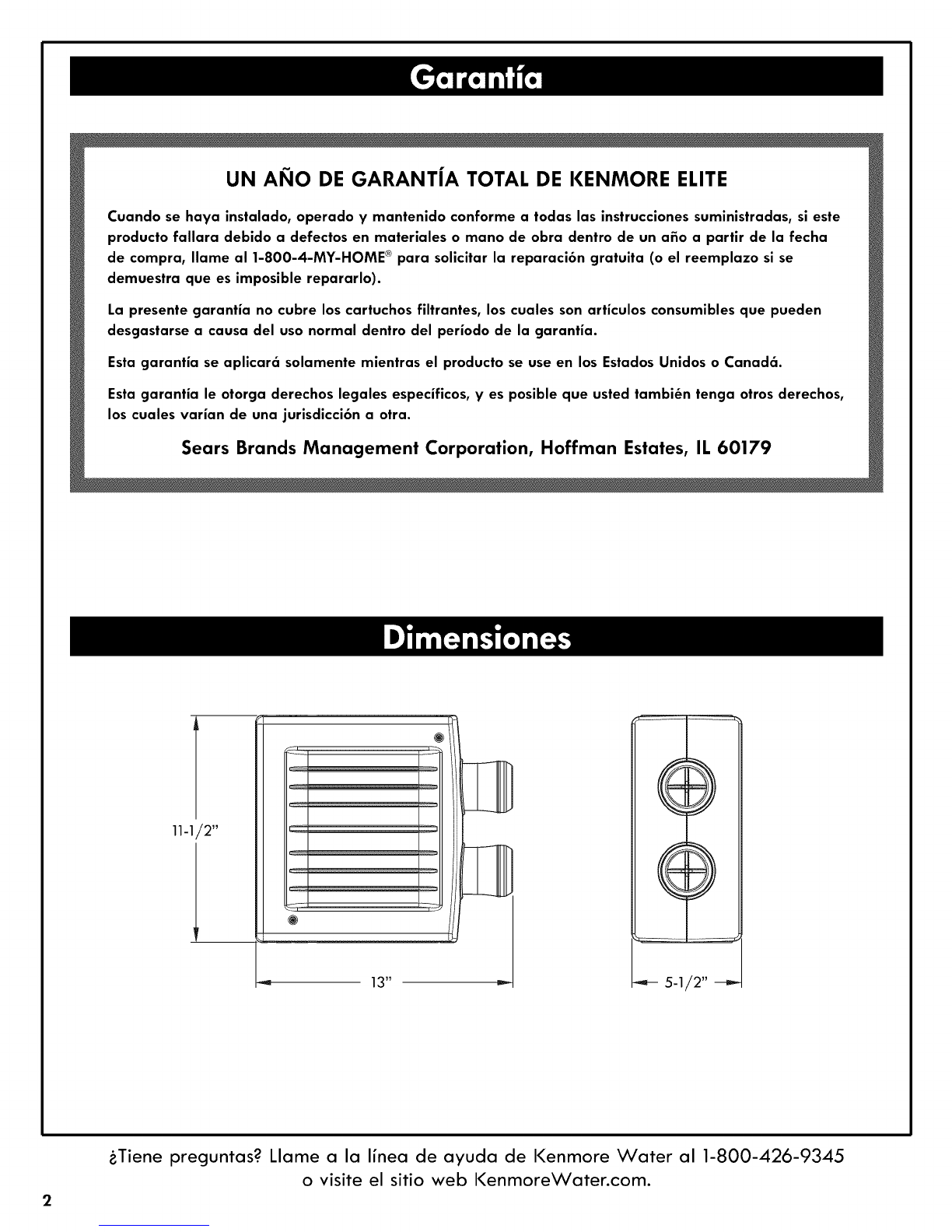

KENMORE ELITE ONE YEAR FULL WARRANTY
When installed, operated and maintained according to all supplied instructions, if this product fails due to
a defect in material or workmanship within one year from the date of purchase, call 1-800-4-MY-HOME ®
to arrange for free repair (or replacement if repair proves impossible).
This warranty does not cover the filter cartridges, which are expendable items that can wear out from
normal usewithin the warranty period.
This warranty applies only while this product is in use in the United States or Canada.
This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
11-1/2"
--_ 13"
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com

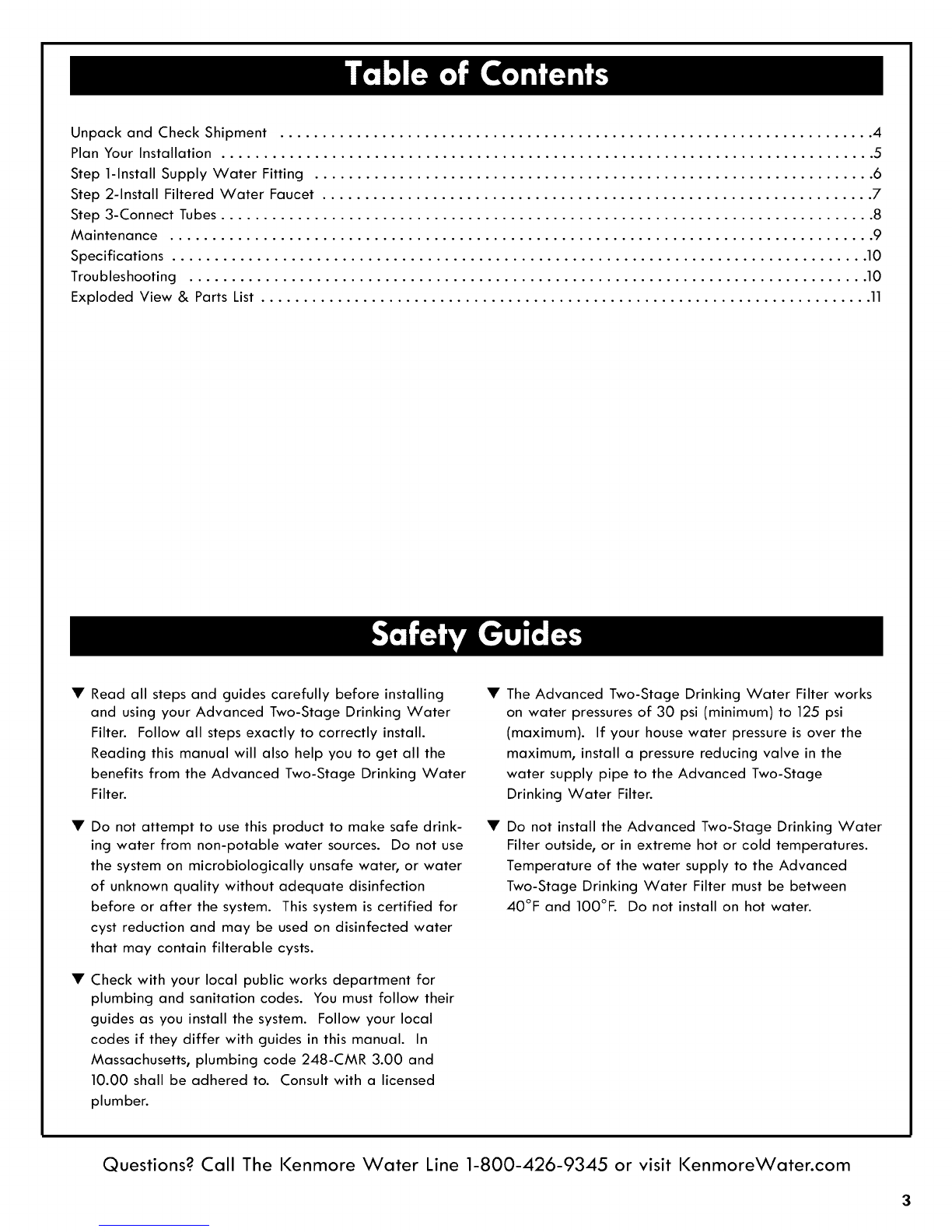

Unpack and Check Shipment ...................................................................... 4
Plan Your Installation ............................................................................. 5
Step I-Install Supply Water Fitting .................................................................. 6
Step 2-Install Filtered Water Faucet ................................................................. 7
Step 3-Connect Tubes ............................................................................. 8

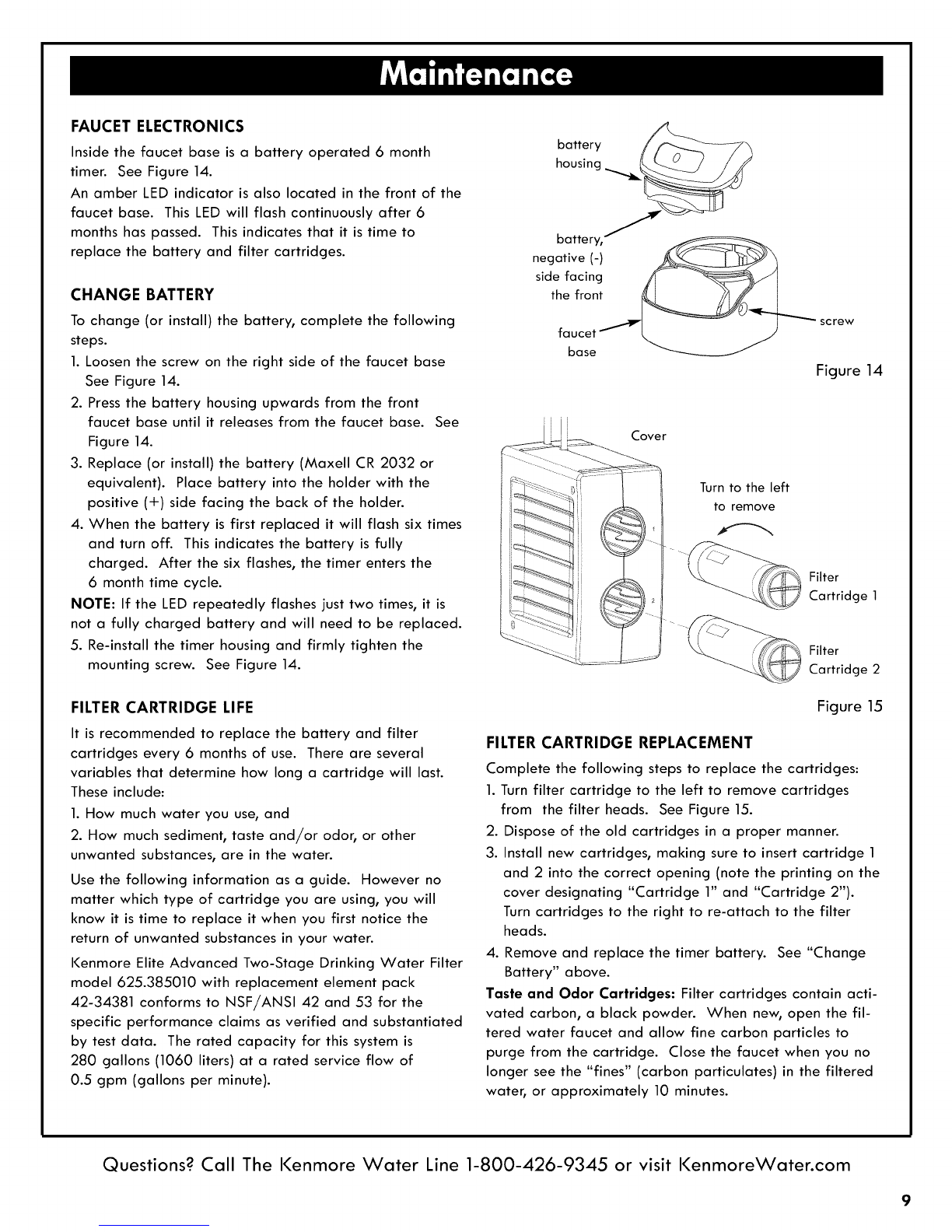

Maintenance ................................................................................... 9
Specifications .................................................................................. 10
Troubleshooting ................................................................................ 10
Exploded View & Parts List ........................................................................ 11
• Read all steps and guides carefully before installing
and using your Advanced Two-Stage Drinking Water
Filter. Follow all steps exactly to correctly install.
Reading this manual will also help you to get all the
benefits from the Advanced Two-Stage Drinking Water
Filter.
• Do not attempt to use this product to make safe drink-
ing water from non-potable water sources. Do not use
the system on microbiologically unsafe water, or water
of unknown quality without adequate disinfection
before or after the system. This system is certified for
cyst reduction and may be used on disinfected water
that may contain filterable cysts.
• Check with your local public works department for
plumbing and sanitation codes. You must follow their
guides as you install the system. Follow your local
codes if they differ with guides in this manual. In
Massachusetts, plumbing code 248-CMR 3.00 and
10.00 shall be adhered to. Consult with a licensed
plumber.
The Advanced Two-Stage Drinking Water Filter works
on water pressures of 30 psi (minimum) to 125 psi
(maximum). If your house water pressure is over the
maximum, install a pressure reducing valve in the
water supply pipe to the Advanced Two-Stage
Drinking Water Filter.
Do not install the Advanced Two-Stage Drinking Water
Filter outside, or in extreme hot or cold temperatures.
Temperature of the water supply to the Advanced
Two-Stage Drinking Water Filter must be between
40°F and 100°F. Do not install on hot water.
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
3

INSPECT SHIPMENT
Your Advanced Two-Stage Drinking Water Filter is
shipped complete in one carton. Remove all items from
your shipping carton.
Check all items against the packing list below. Note any
items lost or damaged in shipment. Note any damage to
the shipping carton. Refer to the exploded view and
parts list in the back of the manual for the part names
and numbers of missing or damaged items. If problems
exist, refer to the website or the toll free number listed
throughout this manual.
Keep the small parts in the parts bag until you are ready
to install them.
NOTE: Codes in the state of Massachusetts require instal-
lation by a licensed plumber.
If you live in the state of Massachusetts, review plumbing
code 248-CMR of the Commonwealth of Massachusetts
before proceeding with the installation.
®
Advanced Two-Stage Drinking Water Filter
Bag Assembly
©
Tee, Feed Adaptor
©
Coin Battery
Bag Assembly
Faucet & Electronics Base
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
4

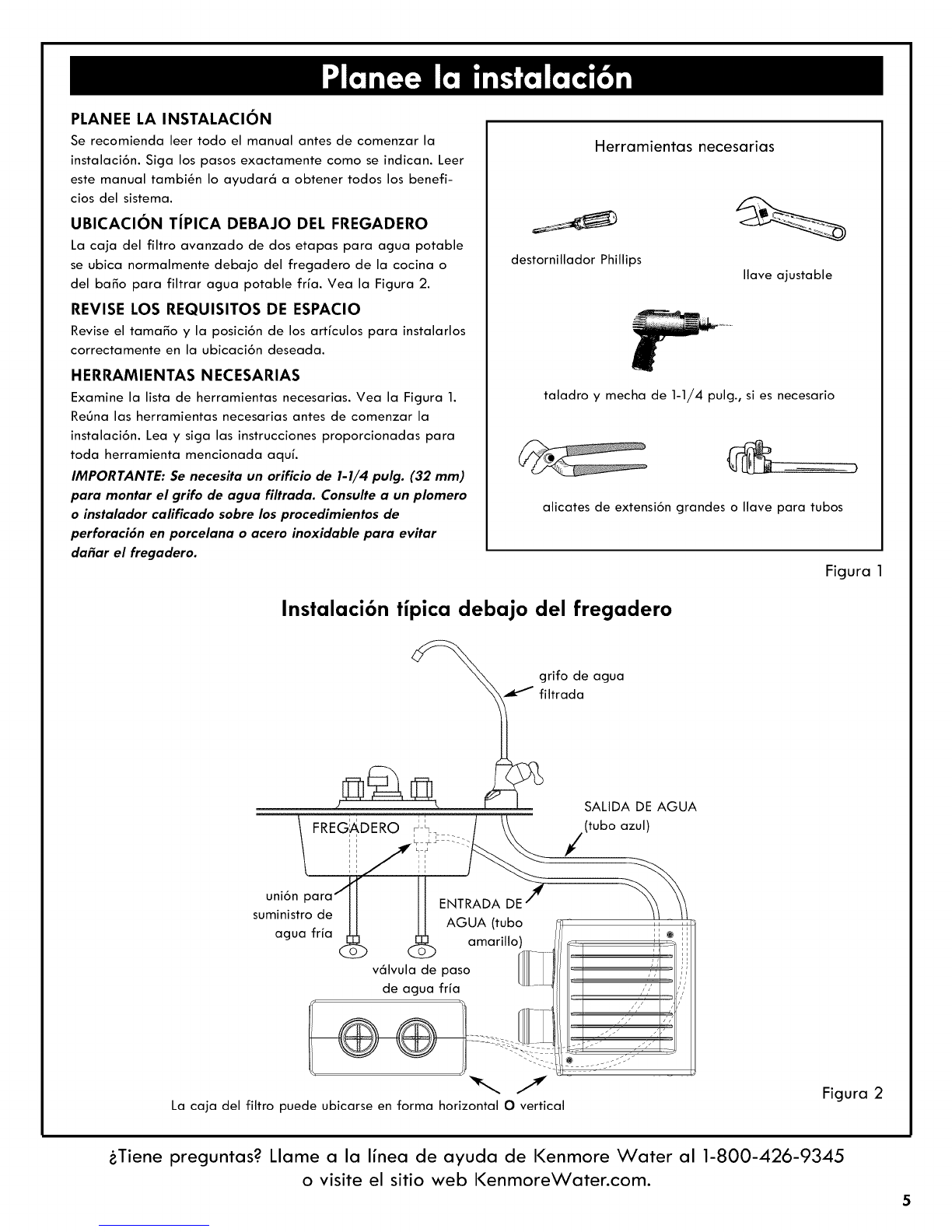

PLAN YOUR INSTALLATION
It is recommended to read through the entire manual
before beginning your installation. Follow all steps
exactly. Reading this manual will also help you get all
the benefits from your system.
TYPICAL UNDER SINK LOCATION
The Advanced Two-Stage Drinking Water Filter housing is
normally located under the kitchen and/or bathroom sink,
to filter the cold drinking water. See Figure 2.
CHECK SPACE REQUIREMENTS
Check size and position of items for proper installation
into location chosen.
TOOLS NEEDED
Review the tools needed list. See Figure 1. Gather need-
ed tools before proceeding with the installation. Read
and follow the instructions provided with any tools listed
here.
IMPORTANT: A 1-1/4" dia. hole is needed to mount the
filtered water faucet. To avoid damaging the sink, con-
sult aqualified plumber or installer for drilling proce-
dures in porcelain or stainless steel.
Tools Needed
Phillips Screwdriver Adjustable Wrench
Drill & 1-1/4" bit, if required
Large Adjustable Jaw Pliers or Pipe Wrench
)
Figure 1
Typical Under Sink Installation
filtered water
faucet
SINK
blue tubing
WATER OUT
cold water
supply fitting yellow tubing
WATER IN
cold shutoff
/ / /
//
//
Filter Housing may be placed horizontally OR vertically Figure 2
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
5

CHOOSETYPEOFWATERSUPPLYFITTINGTOINSTALL
Locate the cold water line in the sink cabinet. Check and
comply with local plumbing codes as you plan, and then
install a water supply fitting on the sink's cold water line.
The fitting must provide a leak-tight connection to the
Advanced Two-Stage Drinking Water Filter's 3/8" O.D.
inlet tubing. A typical connection using the included
water supply fitting is shown in Fig. 3. An alternative
connection using standard plumbing fittings (not included)
is shown in Fig. 4.
NOTE: Local code may dictate which type of water fit-
ting is used. Consult aplumber if you are not familiar
with local codes or plumbing procedures.
NOTE: Codes in the state of Massachusetts require
installation by alicensed plumber.
If you live in the state of Massachusetts, review plumb-
ing code 248-CMR of the Commonwealth of
Massachusetts before proceeding with the installation.
A. WATER SUPPLY CONNECTION B. WATER SUPPLY TYPICAL CONNECTION
USING INCLUDED FITTING USING COMPRESSION TYPE FITTING
1. Close the house main water shutoff valve and open
faucets to drain water from the sink's cold water pipe.
2. Remove the nut that connects the cold water faucet to
cold water plumbing.
3. Thread the included water supply fitting onto the pipe
and reconnect nut to bottom of fitting.
cold water included water
faucet stud _ supply fitting
3/8" O.D. yellow
tubing to Water
Filter inlet
wrap outside
threads with
Teflon tape
cold water _
pipe
cold water
shutoff valve
/
(PARTS NOT INCLUDED)
NOTE: Before starting, be sure to turn off water supply
and open alow faucet to drain the pipe.
Complying with plumbing codes, install a fitting on the
cold water pipe to adapt to 3/8" O.D. tubing. A typical
connection is shown in Figure 4. If threaded fittings are
used, be sure to use pipe joint compound or Teflon tape
on outside threads.
OR
_r
I I I i f_'
II /_ It J
tl It
coldwater
shutoff valve
cold water
pipe
3/8" compression
fitting
_>_ /insert
_/ferrule
_; 3/8. y_llo_w_"__-
tubing to
Water Filter inlet
Figure 3 Figure 4
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
6

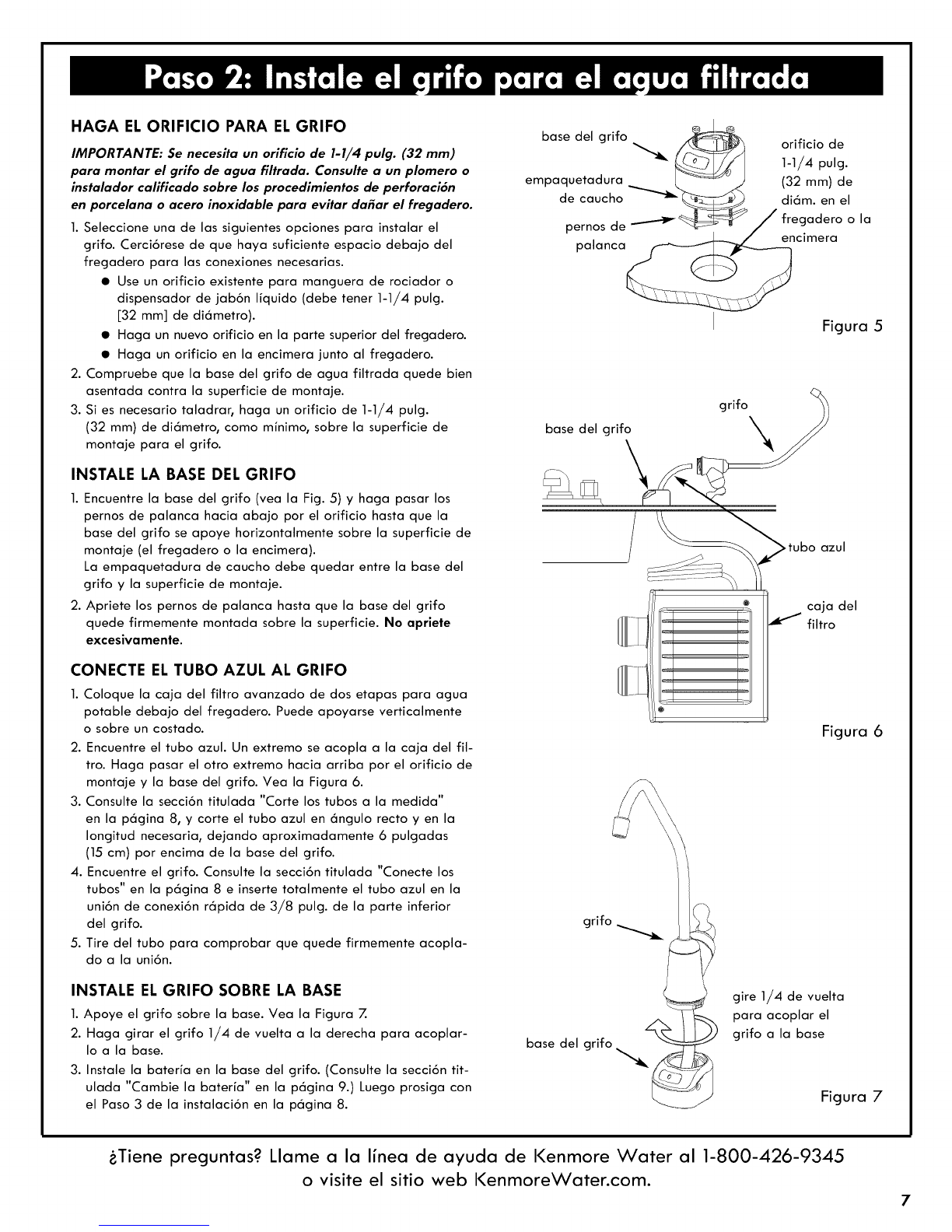

MAKE HOLE FOR FAUCET
IMPORTANT: A 1-I/4" dia. hole is needed to mount the
filtered water faucet. To avoid damaging the sink,
consult aqualified plumber or installer for drilling
procedures in porcelain or stainless steel.
1. Select one of the following options to install the faucet.
Make sure there is room underneath to make the needed
connections.
• Use an existing sink top hole for spray hose or soap
dispenser (must be 1-1/4" in diameter).
• Drill a new hole in the sink top.
• Drill a hole in the countertop next to the sink.
2. Check to make sure the filtered water faucet base will
sit flat against the mounting surface.
3. If drilling is needed, make a 1-1/4" dia. (minimum) hole
for the faucet in the mounting surface.
INSTALL FAUCET BASE
1. Locate the faucet base (See Fig. 5) and feed the toggle
bolts down through the hole until the faucet base is
square against the mounting surface (sink or countertop).
The rubber gasket should be between the faucet base
and mounting surface.
2. Tighten the toggle bolts until the faucet base is firmly
mounted to the surface. Do not overtighten.
CONNECT BLUE TUBE TO FAUCET
1. Place the Advanced Two-Stage Drinking Water Filter
housing under the sink. It can sit upright or on its side.
2. Locate the blue tube. One end is attached to the filter
housing. Feed the other end up through the mounting
hole and faucet base. See Figure 6.
3. Refer to the "Cut Tubes to Length" section on Page 8
and cut the blue tube square and to length as needed,
leaving about 6inches above the faucet base.
4. Locate the faucet. Refer to the "Connect Tubes" section
on Page 8 and insert the blue tube all the way into the
3/8" quick connect fitting on the faucet bottom.
5. Pull on the tube to be sure it is held firmly in the fitting.
INSTALL FAUCET ON BASE
1. Lower the faucet onto the base. See Figure 7.
2. Give the faucet a 1/4 turn clockwise to attach the
faucet to the base.
3. Install battery in faucet base (See "Change Battery"
section on Page 9) then continue installation with Step 3
on Page 8.
faucet base _/ 1-1/4" dia. hole
rubber gasket .............__ through sink or
toggle bolts _ countertop
Figure 5
faucet
faucet base _ Xj_
blue tubing
®
= _ housing
Figure 6
filter
faucet
faucet base
1/4 turn to
connect faucet
to base
Figure 7
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
7

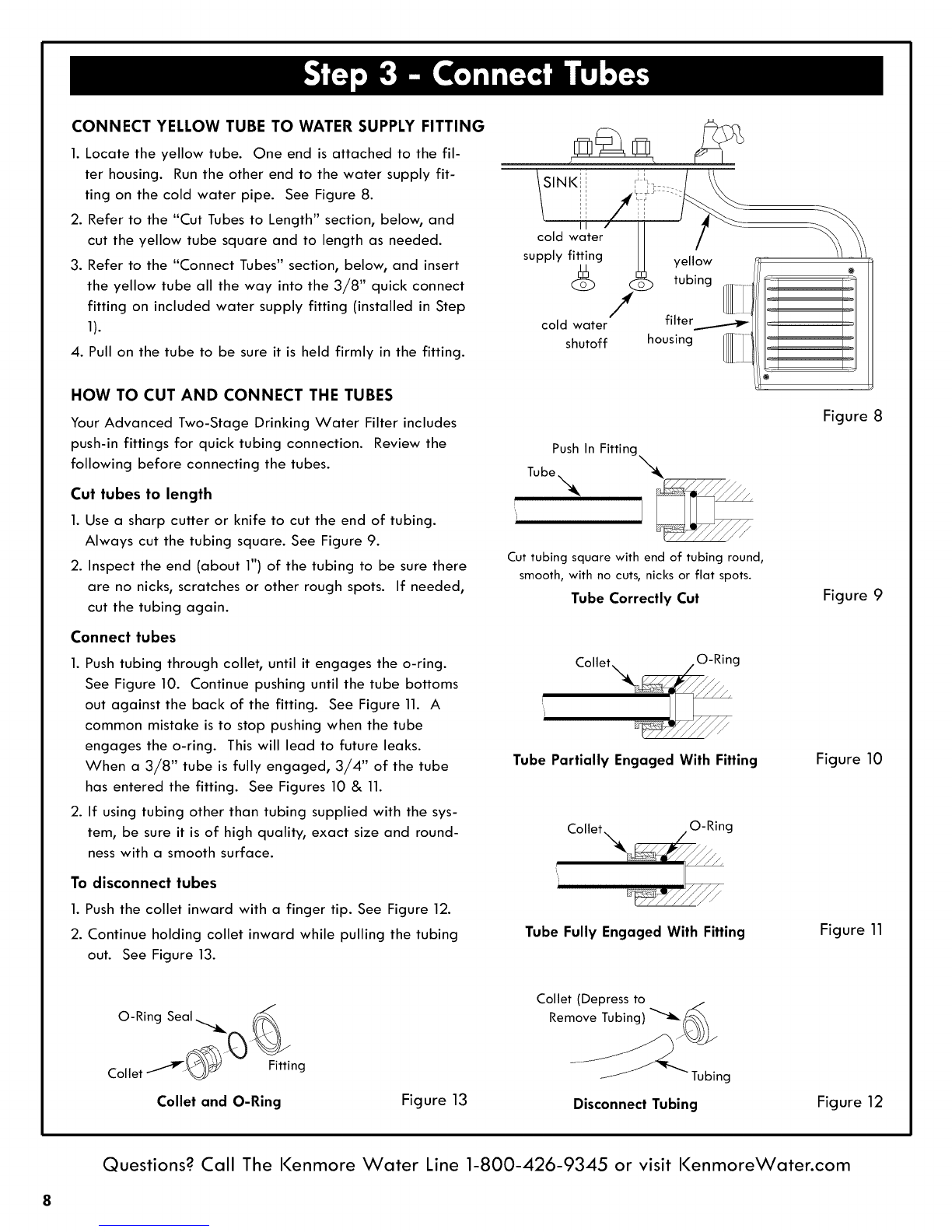

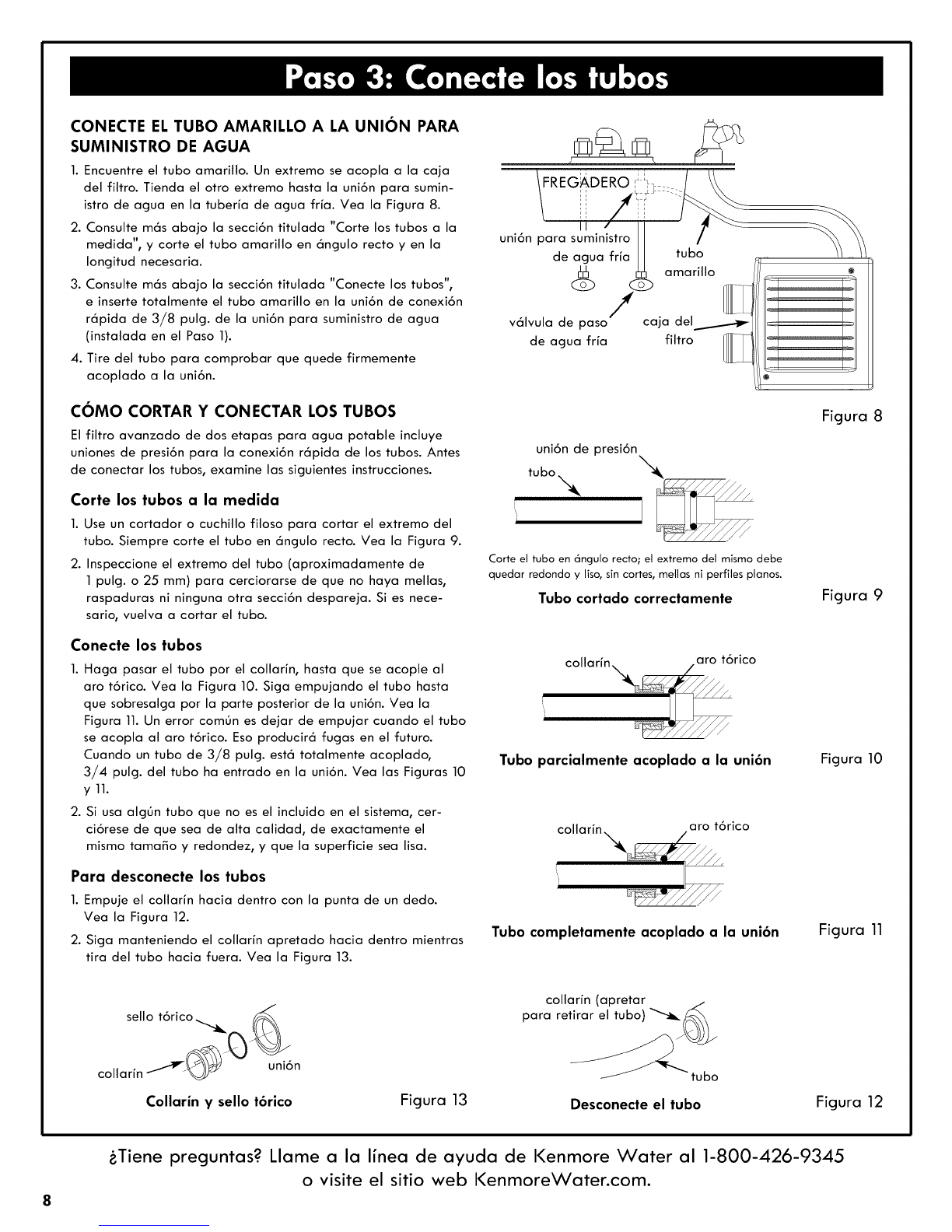

CONNECT YELLOW TUBE TO WATER SUPPLY FITTING
1. Locate the yellow tube. One end is attached to the fil-
ter housing. Run the other end to the water supply fit-
ting on the cold water pipe. See Figure 8.
2. Refer to the "Cut Tubes to Length" section, below, and
cut the yellow tube square and to length as needed.
3. Refer to the "Connect Tubes" section, below, and insert
the yellow tube all the way into the 3/8" quick connect
fitting on included water supply fitting (installed in Step
1).
4. Pull on the tube to be sure it is held firmly in the fitting.
HOW TO CUT AND CONNECT THE TUBES
Your Advanced Two-Stage Drinking Water Filter includes
push-in fittings for quick tubing connection. Review the
following before connecting the tubes.
Cut tubes to length
1. Use a sharp cutter or knife to cut the end of tubing.
Always cut the tubing square. See Figure 9.
2. Inspect the end (about 1") of the tubing to be sure there
are no nicks, scratches or other rough spots. If needed,
cut the tubing again.
Connect tubes
1. Push tubing through collet, until it engages the o-ring.
See Figure 10. Continue pushing until the tube bottoms
out against the back of the fitting. See Figure 11. A
common mistake is to stop pushing when the tube
engages the o-ring. This will lead to future leaks.
When a 3/8" tube is fully engaged, 3/4" of the tube
has entered the fitting. See Figures 10 & 11.
2. If using tubing other than tubing supplied with the sys-
tem, be sure it is of high quality, exact size and round-
ness with a smooth surface.
To disconnect tubes
1. Pushthe collet inward with a finger tip. See Figure 12.
2. Continue holding collet inward while pulling the tubing
out. See Figure 13.
SINKi /L
cold water
supply fitting
cold water
shutoff
yellow
tubing
filter ...._
housing
Push In Fitting,_ k
Tube ,_
Cut tubing square with end of tubing round,
smooth, with no cuts, nicks or flat spots.
Tube Correctly Cut
Figure 8
Figure 9
f
Tube Partially Engaged With Fitting Figure 10
Collet O-Ring
Tube Fully Engaged With Fitting Figure 11
O-Ring
Collet ......1_r_ Fitting
Collet and O-Ring
Collet (Depress to
Remove Tubing) "_
_ Tubing
Figure 13 DisconnectTubing Figure 12
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com

FAUCET ELECTRONICS
Inside the faucet base is a battery operated 6month
timer. See Figure 14.
An amber LED indicator is also located in the front of the
faucet base. This LED will flash continuously after 6
months has passed. This indicates that it is time to
replace the battery and filter cartridges.
CHANGE BATTERY
To change (or install) the battery, complete the following
steps.
1. Loosen the screw on the right side of the faucet base
See Figure 14.
2. Press the battery housing upwards from the front
faucet base until it releases from the faucet base. See
Figure 14.
3. Replace (or install) the battery (Maxell CR 2032 or
equivalent). Place battery into the holder with the
positive (+) side facing the back of the holder.
4. When the battery is first replaced it will flash six times
and turn off. This indicates the battery is fully
charged. After the six flashes, the timer enters the
6month time cycle.
NOTE: If the LED repeatedly flashes just two times, it is
not a fully charged battery and will need to be replaced.
5. Re-install the timer housing and firmly tighten the
mounting screw. See Figure 14.
FILTER CARTRIDGE LIFE
It is recommended to replace the battery and filter
cartridges every 6months of use. There are several
variables that determine how long a cartridge will last.
These include:
1. How much water you use, and
2. How much sediment, taste and/or odor, or other
unwanted substances, are in the water.
Use the following information as a guide. However no
matter which type of cartridge you are using, you will
know it is time to replace it when you first notice the
return of unwanted substances in your water.
Kenmore Elite Advanced Two-Stage Drinking Water Filter
model 625.385010 with replacement element pack
42-34381 conforms to NSF/ANSI 42 and 53 for the
specific performance claims as verified and substantiated
by test data. The rated capacity for this system is
280 gallons (1060 liters) at a rated service flow of
0.5 gpm (gallons per minute).
battery
housing
Cover
Turn to the left
to remove
Filter
Cartridge 1
Filter
Cartridge 2
Figure 15
FILTER CARTRIDGE REPLACEMENT
Complete the following steps to replace the cartridges:
1. Turn filter cartridge to the left to remove cartridges
from the filter heads. See Figure 15.
2. Dispose of the old cartridges in a proper manner.
3. Install new cartridges, making sure to insert cartridge 1
and 2 into the correct opening (note the printing on the
cover designating "Cartridge 1" and "Cartridge 2").
Turn cartridges to the right to re-attach to the filter
heads.
4. Remove and replace the timer battery. See "Change
Battery" above.
Taste and Odor Cartridges: Filter cartridges contain acti-
vated carbon, a black powder. When new, open the fil-
tered water faucet and allow fine carbon particles to
purge from the cartridge. Close the faucet when you no
longer see the "fines" (carbon particulates) in the filtered
water, or approximately 10 minutes.
Questions? Call The I<enmore Water Line 1-800-426-9345 or visit I<enmoreWater.com
9

Supply water pressure limits ...................................... 30-125 psi (207-862 kPa)
Supply water temperature limits ....................................... 40-100 °F (5-40 °C)
Inlet - Outlet ................................................. 3/8" O.D. tubing, included
This system conforms to NSF/ANSI 42 and 53 for the specific performance claims as verified and substantiated
by test data.
Installations In The Commonwealth Of Massachusetts: The Commonwealth of Massachusetts requires installation
be performed by a licensed plumber. Plumbing code 248--CMR of the Commonwealth of Massachusetts must be
followed in these cases.
iiiiiiiiii!!ii!ii iili {iliiiiiiiiLiiliiiiii ii iiili!ii!iiiii!!i!i iiiiiiiiiiIiliiiiliiii!!iiiiiiiiiiii iii iiliii!iiiiii]iiiii
iiiili_ ___iiiliiiiiiili_i_iliiiiil_i_iiiliiiiii_i_iiii_iiiiii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_iii_i....
Cause: Pre & Post filter expended. Correction: Replace the filter cartridges. See Page 9.
Cause: System contaminated. Correction: Sanitize system. Call 1-800-426-9345 for instructions.
] ] ] ( ! ....
Cause: Battery dead__ I Correction: Replace with ne._wbattery__ See Page 9.
Cause: Battery installed incorrectly. ICorrection: Install battery correctly.
I
Cause: Tubing not pushed in all the way. Correction: Push Tubing all the way into fittings. See Page 8.
Cause: Tubing not cut square. Correction: Cut tubing square. See Page 8.
Remove tube from connection. Remove nicked portion
Cause: Tubing nicked. Correction: by cutting tube to shorter length. Reinsert in connection
See Page 8.
Remove tube from connection. Remove problem area
Cause: Outer tubing surface not smooth. Correction: by cutting tube to shorter length. Reinsert in connection
See Page 8.
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
10

1
/
3
4
2
I(ey No.
1
2
3
4
5
6
7
8
Part No.
7292674
7328459
7280106
7208057
7207962
42-34381
7228536
7314183
7294294
Description
Faucet, with base & electronics
Cover Kit (includes Key No. 2
& 4 ea. of Key No. 3)
Cover Set (includes both halves)
Screw, Cover (4 req.)
Head Assembly
Tubing, 3/8" O.D. x 72" long, Yellow
Tubing, 3/8" O.D. x 72" long, Blue
Filter Cartridge 1 & 2 set "/€
Tee Feed Adaptor
Coin Battery
Owner's Manual
Purchase replacement filter cartridges at your local Sears store, online
at www.sears.com or from Sears Parts at 1-800-469-4663.
• Not illustrated.
Questions? Call The Kenmore Water Line 1-800-426-9345 or visit KenmoreWater.com
11

Your Home
For troubleshooting, product manuals and expert advice:
managernylife
Our Home
For repair of carry-in items like vacuums, lawn equipment,
and electronics, call anytime for the location of your nearest
Sears Parts & Repair Service Center
1-800-488-1222 (U.S.A.) 1-800-469-4663 (Canada)
www.sears.com www.sears.ca
To purchase a protection agreement on a product serviced by Sears:
1-800-827-6655 (U.S.A.) 1-800-361-6665 (Canada)
Para pedir servicio de reparaci6n
a domicilio, y para ordenar piezas:
1-888-SU-HOGAR ®
(1-888-784-6427)
Au Canada pour service en frangais:
1-800-LE-FOYER Mc
(1-800-533-6937)
www.sears.ca
www.sears.com sears
® Registered Trademark /TMTrademark of KCD IP, LLC in the United States, or Sears Brands, LLC in other countries
® Marca Registrada /TMMarca de Fabrica de KCD IP, LLC en Estados Unidos, o Sears Brands, LLC en otros parses
MCMarque de commerce /MDMarque depos6e de Sears Brands, LLC

MANUAL DEL PROPIETARIO
Sistema avanzado
de dos etapas
para agua potable
MODELO No. 625.385010
m
®
®
J
Precauci6n:
Antes de usar este producto por primera
vez, lea y siga toclas las reglas de seguri-
dad y las instrucciones de operaci6n.
_Tiene preguntas?
Visite el sitio web www.KenmoreWater.com
o Ilame gratis al 1-800-426-9345
(lun. a vie., de 7 a.m. a 6 p.m., hora del Centro)
i.Necesita reparaci6n o repuestos? Llame gratis al 1-800-469-4663
Vea otros n0meros de servicio de Sears en la cubierta posterior.
CONSERVE ESTE MANUAL
•Garanfia
• Instalaci6n
• C6mo funciona
• C6mo cuidar el producto
• Especificaciones
• Piezas de repuesto
Este sistema ha sido probado y certificado por
NSF International para el cumplimiento de las
Normas NSF/ANSI 42 y 53. Consulte los detalles
en la hoja de datos de rendimiento.
Sears Brands Management Corporation, Hoffman Estates, IL 60179 U.S.A.
IMPRESO EN LOS EE.UU. www.KenmoreWater.com Pieza No. 7328483 (Rev. G 4/16/13)

UN AI_IO DE GARANTJA TOTAL DE I(ENMORE ELITE
Cuando se haya instalado, operado y mantenido conforme a todas las instrucciones suministradas, si este
producto fallara debido a defectos en materiales omano de obra dentro de un afio a partir de la fecha
de compra, Ilame al 1-800-4-MY-HOME ®para solicitar la reparaci6n gratuita (o el reemplazo si se
demuestra que es imposible repararlo).
La presente garantia no cubre los cartuchos filtrantes, los cuales son articulos consumibles que pueden
desgastarse a causa del uso normal dentro del periodo de la garantia.
Esta garantia se aplicar_ solamente mientras el producto se use en los Estados Unidos o Canada.
Esta garantia le otorga derechos legales especificos, yes posible que usted tambi_n tenga otros derechos,
los cuales varian de una jurisdicci6n a otra.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
11-1/2"
r i T _
4,1 13"
_.Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345
o visite el sitio web KenmoreWater.com.

Desempaque y revise el env[o ...................................................................... 4
Planee la instalaci6n ............................................................................. 5
Paso 1: Instale la uni6n para el suministro de agua ...................................................... 6
Paso 2: Instale el grifo para el agua filtrada .......................................................... 7
Paso 3: Conecte los tubos ......................................................................... 8
Mantenimiento .................................................................................. 9
Especificaciones ................................................................................ 10
Soluci6n de problemas ........................................................................... 10
Vista detallada y lista de piezas ................................................................... 11
• Antes de instalar y usar el filtro avanzado de dos
etapas para agua potable, lea atentamente todos los
pasos y las pautas. Siga exactamente todos los pasos
para Iograr la instalaci6n correcta. Leer este manual
tambi6n Io ayudar6 a obtener todos los beneficios del
filtro avanzado de dos etapas para agua potable.
• No intente utilizar este producto a fin de potabilizar
agua proveniente de fuentes no potables. Si el agua es
microbiol6gicamente impura o si se desconoce su
calidad, no use el sistema sin una adecuada desinfec-
ci6n antes o despu_s del sistema. Este sistema se ha
certificado para la reducci6n de quistes y puede
usarse con agua desinfectada que pueda contener
quistes filtrables.
• Consulte los c6digos de plomeria y sanidad a su
departamento local de obras pOblicas. AI instalar el
sistema deber6 seguir las pautas que le indiquen.
Siga sus c6digos locales si difieren con las pautas del
presente manual. En el Estado de Massachusetts, se
debe cumplir con los c6digos de plomeria 248-CMR
3.00 y 10.00. Consulte a un plomero con licencia.
• El filtro avanzado de dos etapas para agua potable
funciona con presiones de agua de 30 psi (minima) a
125 psi (m6xima). Si la presi6n del agua de su casa
supera la m6xima, instale una v61vula reductora de
presi6n en la linea de suministro de agua al filtro
avanzado de dos etapas para agua potable.
• No instale el filtro avanzado de dos etapas fuera de
la casa ni bajo temperaturas extremadamente
calientes o frias. La temperatura del suministro de
agua al filtro avanzado de dos etapas debe estar
entre 40 °F y 100 °F (4 °C y 38 °C). No Io instale en
tuberias de agua caliente.
_.Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345
o visite el sitio web KenmoreWater.com. 3

INSPECCIONE EL ENVIO
El filtro avanzado de dos etapas para agua potable se envfa
completo en una caja de cart6n. Retire todos los articulos de
la caja de cart6n del envfo.
Revise todos los articulos contra la lista de empaque que figu-
ra a continuaci6n. Tome nota de todo articulo faltante o
dafiado durante el envfo. Tome nota de cualquier dafio en la
caja del envfo. Consulte la vista detallada y la lista de piezas
que est6n en la parte posterior del manual para tomar nota
de los nombres y los nOmeros de los articulos faltantes o
da_ados. Si hubiera problemas, consulte el sitio web o Ilame
al nOmero telef6nico gratuito que figura en todo este manual.
Conserve las piezas peque_as dentro de la bolsa de piezas
hasta que est6 listo para instalarlas.
NOTA: Los c6digos del Estado de Massachusetts requieren
que un plomero con licencia realice la instalaci6n.
Si vive en Massachusetts, examine el c6digo de plome6a
248-CMR del Estado de Massachusetts antes de instalar el
producto.
®
Filtro avanzado de dos etapas para agua potable
Conjunto que contiene
la bolsa
Adaptador de
alimentaci6n en T
©
Bateria plana
Conjunto que contiene la bolsa
Grifo y base de sistema electr6ni¢o
4
_.Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345
o visite el sitio web KenmoreWater.com.

PLANEE LA INSTALACION
Se recomienda leer todo el manual antes de comenzar la
instalaci6n. Siga los pasos exactamente como se indican. Leer
este manual tambi6n Io ayudar6 a obtener todos los benefi-
cios del sistema.
UBICACION TJPICA DEBAJO DEL FREGADERO
La caja del filtro avanzado de dos etapas para agua potable
se ubica normalmente debajo del fregadero de la cocina o
del ba_o para filtrar agua potable frM. Vea la Figura 2.
REVISE LOS REQUISITOS DE ESPACIO
Revise el tama_o y la posici6n de los arficulos para instalarlos
correctamente en la ubicaci6n deseada.
HERRAMIENTAS NECESARIAS
Examine la lista de herramientas necesarias. Vea la Figura 1.
Regna las herramientas necesarias antes de comenzar la
instalaci6n. Lea y siga las instrucciones proporcionadas para
toda herramienta mencionada aquf.
IMPORTANTE: Se necesita un orificio de 1-1/4 pulg. (32 mm)
para montar el grifo de agua filtrada. Consulte aun plomero
o instalador calificado sobre los procedimientos de
perforaci6n en porcelana o acero inoxidable para evitar
dahar el fregadero.
Herramientas necesarias
destornillador Phillips Ilave ajustable
taladro y mecha de 1-1/4 pulg., si es necesario
alicates de extensi6n grandes o Ilave para tubos
Figura 1
Instalaci6n tipica debajo del fregadero
grifo de agua
filtrada
i FREG_DERO _
uni6n
suministro de
agua fria
ENTRADA DE
v61vula de paso
de agua fria
SALIDA DE AGUA
(tubo azul)
La caja del filtro puede ubicarse en forma horizontal O vertical Figura 2
_.Tiene preguntas? Llame a la linea de ayuda de I<enmore Water al 1-800-426-9345
o visite el sitio web KenmoreWater.com. 5

ESCOJA EL TIPO DE UNION PARA EL SUMINISTRO DE AGUA A INSTALAR
Encuentre la tuber[a de agua fr[a dentro del gabinete del fre-
gadero. AI planear la instalaci6n, consulte los c6digos locales
de plomer[a y cgmplalos; luego instale una uni6n para sumin-
istro de agua en la tuber[a de agua fr[a del fregadero. La
uni6n debe proporcionar una conexi6n a prueba de fugas para
el tubo de entrada de 3/8 pulg. D.E. del filtro avanzado de
dos etapas para agua potable. En la Fig. 3. se ilustra una
conexi6n t[pica con la uni6n para suministro de agua que se
incluye. En la Fig. 4. se ilustra una conexi6n alternativa con
uniones est6ndar de plomer[a (no incluidas).
NOTA: Es posible que el c6digo local determine el tipo de
uni6n de plomeria ausarse. $i no conoce los c6digos o los
procedimientos de plomeria locales, consulte aun plomero.
NOTA: Los c6digos del Estado de Massachusetts requieren
que un plomero con licencia realice la instalaci6n.
$i vive en Massachusetts, examine el c6digo de plomeria
248-CMR del Estado de Massachusetts antes de instalar el
producto.
A. CONEXION DEL SUMINISTRO DE AGUA
CON LA UNION INCLUIDA
1. Cierre la vc_lvula principal de agua de la casa y abra los gri-
fos para desaguar la tuber[a de agua fr[a del fregadero.
2. Retire la tuerca que conecta el grifo de agua fr[a con la
tuber[a de agua fr[a.
3. Enrosque la uni6n (que se incluye) para suministro de agua
fr[a en el tubo y vuelva a enroscar la tuerca a la parte infe-
rior de la uni6n.
esp6rrago
del grifo de
agua fria
envuelva la
rosca externa
uni6n (incluida)
para suministro
deagua tuboamarillo
de 3/8 pulg. D.E.
a la entrada del
/filtro de agua
con cinta de
Teflon® I
tuberia de _ _ _'_
agua fria
v61vula de paso
de agua fria
O BIEN
B. CONEXION TiPICA DEL SUMINISTRO DE AGUA
CON UNION DE COMPRESION
(NO SE INCLUYEN LAS PIEZAS)
NOTA: Antes de comenzar, no olvide cerrar el suministro de
agua yabrir un grifo bajo para desaguar la tuberia.
En cumplimiento de los c6digos de plomeria, instale una uni6n
en la tuberia de agua fria para adaptarla al tubo de 3/8 pulg.
D.E. En la Figura 4 se ilustra una conexi6n tipica. Si se usan
uniones roscadas, no olvide aplicar compuesto para juntas de
tuberia o cinta de Teflon ® en la rosca externa.
ii ii ;
Ii ii
.Ii
d
l_ vdlvula de paso
de agua fria
uni6n de compresi6n
de 3/8 pulg.
inserto
virola
tuberia de
agua fria tubo amarillo de
3/8 pulg. a la
entrada del filtro
Figura 3 de agua Figura 4
6
_.Tiene preguntas? Llame a la linea de ayuda de I<enmore Water al 1-800-426-9345
o visite el sitio web I<enmoreWater.com.

HAGA EL ORIFICIO PARA EL GRIFO
IMPORTANTE: Se necesita un orificio de I-I/4 pulg. (32 mm)
para montar el grifo de agua filtrada. Consulte a tin plomero o
instalador calificado sobre los procedimientos de perforacidn
en porcelana o acero inoxidable para evitar dafiar el fregadero.
1. Seleccione una de las siguientes opciones para instalar el
grifo. Cerci6rese de que haya suficiente espacio debajo del
fregadero para las conexiones necesarias.
• Use un orificio existente para manguera de rociador o
dispensador de jab6n Ifquido (debe tener 1-1/4 pulg.
[32 mm] de di6metro).
• Haga un nuevo orificio en la parte superior del fregadero.
• Haga un orificio en la encimera junto al fregadero.
2. Compruebe que la base del grifo de agua filtrada quede bien
asentada contra la superficie de montaje.
3. Si es necesario taladrar, haga un orificio de 1-1/4 pulg.
(32 mm) de di6metro, como minimo, sobre la superficie de
montaje para el grifo.
INSTALE LA BASE DEL GRIFO
1. Encuentre la base del grifo (vea la Fig. 5) y haga pasar los
pernos de palanca hacia abajo por el orificio hasta que la
base del grifo se apoye horizontalmente sobre la superficie de
montaje (el fregadero o la encimera).
La empaquetadura de caucho debe quedar entre la base del
grifo y la superficie de montaje.
2. Apriete los pernos de palanca hasta que la base del grifo
quede firmemente montada sobre la superficie. No apriete
excesivamente.
CONECTE EL TUBO AZUL AL GRIFO
1. Coloque la caja del filtro avanzado de dos etapas para agua
potable debajo del fregadero. Puede apoyarse verticalmente
o sobre un costado.
2. Encuentre el tubo azul. Un extremo se acopla a la caja del fil-
tro. Haga pasar el otto extremo hacia arriba por el orificio de
montaje y la base del grifo. Vea la Figura 6.
3. Consulte la secci6n titulada "Corte los tubos a la medida"
en la p6gina 8, y corte el tubo azul en c_ngulo recto y en la
Iongitud necesaria, dejando aproximadamente 6pulgadas
(15 cm) por encima de la base del grifo.
4. Encuentre el grifo. Consulte la secci6n titulada "Conecte los
tubos" en la p6gina 8 e inserte totalmente el tubo azul en la
uni6n de conexi6n r6pida de 3/8 pulg. de la parte inferior
del grifo.
5. Tire del tubo para comprobar que quede firmemente acopla-
do a la uni6n.
INSTALE EL GRIFO SOBRE LA BASE
1. Apoye el grifo sobre la base. Vea la Figura 7.
2. Haga girar el grifo 1/4 de vuelta a la derecha para acoplar-
Io a la base.
3. Instale la bateria en la base del grifo. (Consulte la secci6n tit-
ulada "Cambie la bateria" en la p6gina 9.) Luego prosiga con
el Paso 3 de la instalaci6n en la p_gina 8.
base del grifo _ ......
__i l°ri_4'pu/_.
empaquetadura _ L _-_-_-1_ _, (32 mm) de
de caucho _'_"__ di6m. en el
pernos de "''_ _ /fregadero o la
palanca_ ,_. enclmera
Figura 5
base del grifo grif° X
azul
caja del
filtro
Figura 6
grifo
base del grifo
gire 1/4 de vuelta
para acoplar el
grifo a la base
Figura 7
_.Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345
o visite el sitio web KenmoreWater.com. 7

CONECTEELTUBaAMARILLOA LAUNIONPARA
SUMINISTRODEAGUA
1. Encuentre el tuba amarillo. Un extremo se acopla a la caja
del filtro. Tienda el otro extremo hasta la uni6n para sumin-
istro de agua en la tuberia de agua fria. Vea la Figura 8.
2. Consulte m6s abajo la secci6n titulada "Carte los tubas a la
medida", y carte el tuba amarillo en 6ngulo recto yen la
Iongitud necesaria.
3. Consulte m6s abajo la secci6n titulada "Conecte los tubas",
e inserte totalmente el tuba amarillo en la uni6n de conexi6n
r6pida de 3/8 pulg. de la uni6n para suministro de agua
(instalada en el Paso 1).
4. Tire del tuba para comprobar que quede firmemente
acoplado a la uni6n.
COMa CORTAR Y CONECTAR LOS TUBAS
El filtro avanzado de dos etapas para agua potable incluye
uniones de presi6n para la conexi6n r6pida de los tubas. Antes
de conectar los tubas, examine los siguientes instrucciones.
Carte los tubas a la rnedida
1. Use un cortador o cuchillo filoso para cortar el extremo del
tuba. Siempre carte el tuba en 6ngulo recto. Vea la Figura 9.
2. Inspeccione el extremo del tuba (aproximadamente de
1 pulg. o 25 mm) para cerciorarse de que no haya mellas,
raspaduras ni ninguna otra secci6n despareja. Si es nece-
sario, vuelva a cortar el tuba.
Conecte los tubas
1. Haga pasar el tuba par el collarin, hasta que se acople al
aro t6rico. Vea la Figura 10. Siga empujando el tuba hasta
que sobresalga par la parte posterior de la uni6n. Vea la
Figura 11.Un error com6n es dejar de empujar cuando el tuba
se acopla al aro t6rico. Eso producir6 fugas en el futuro.
Cuando un tuba de 3/8 pulg. est6 totalmente acoplado,
3/4 pulg. del tuba ha entrado en la uni6n. Vea las Figuras 10
y11.
2. Si usa alg6n tuba que no es el incluido en el sistema, cer-
ci6rese de que sea de alta calidad, de exactamente el
mismo tama_o y redondez, y que la superficie sea lisa.
Para desconecte los tubas
1. Empuje el collarin hacia dentro con la punta de un dedo.
Vea la Figura 12.
2. Siga manteniendo el collarin apretado hacia dentro mientras
tira del tuba hacia fuera. Vea la Figura 13.
FREG_DERO i
uni6n para suministro
de agua fria tuba
(_ /'_ amarillo
v61vula de paso caja del ........_
de agua fria filtro
®
Figura 8
uni6n de presi6n
tubo.x _ "_
Carte eJ tuba en 6ngulo recto; eJ extrema del misma debe
quedar redondo y lisa, sin cartes, mellas ni perfiles pianos.
Tuba corlado correclamenle Figura 9
aro t6rico
Tuba parcialmente acoplado a la uni6n Figura 10
aro t6rico
Tuba completamente acoplado a la uni6n Figura 11
sello t6rico
collarin _'_ uni6n
Collarin y sello t6rico Figura 13
collarin (apretar
para retirar el tuba)
_tubo
Desconecte el tuba Figura 12
_.Tiene preguntas? Llame a la linea de ayuda de Kenmore Water al 1-800-426-9345
o visite el sitio web KenmoreWater.com.
