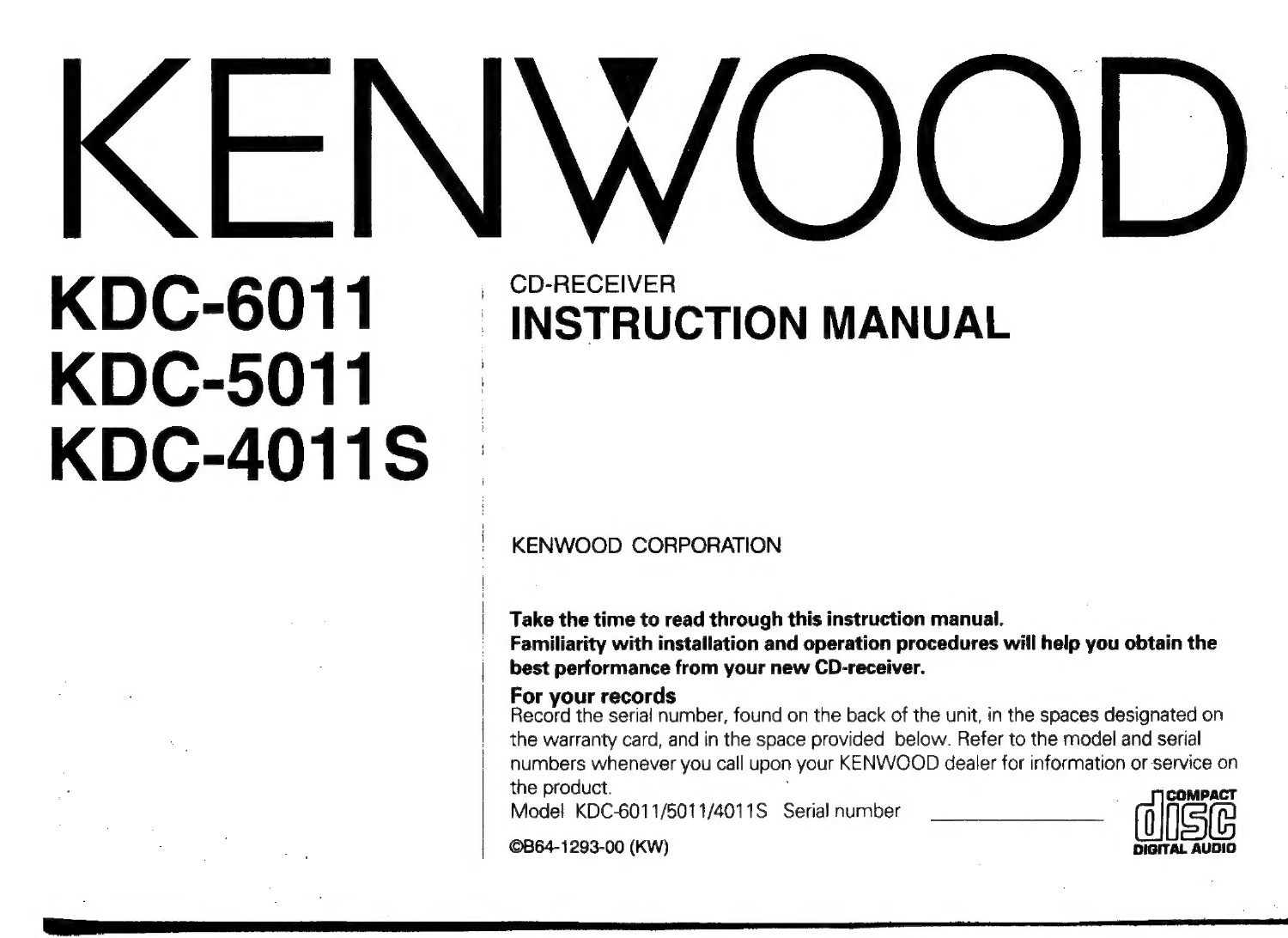

Kenwood KDC-6011 User manual

KENWOOD
KDC-6011
KDC-5011
KDC-4011S
CD-RECEIVER
INSTRUCTION MANUAL
KENWOOD CORPORATION
Take the time to read through this instruction manual.
Familiarity with installation and operation procedures will help you obtain the
best performance from your new CD-receiver.
For your records
Record the serial number, found on the back of the unit, in the spaces designated on
the warranty card, and in the space provided below. Refer to the model and serial
numbers whenever you call upon your KENWOOD dealer for information or service on
the product. COMPACT
Mode! KDC-6011/5011/4011S Serial number , (|
©B64-1293-00 (KW) DIGITAL AUDIO

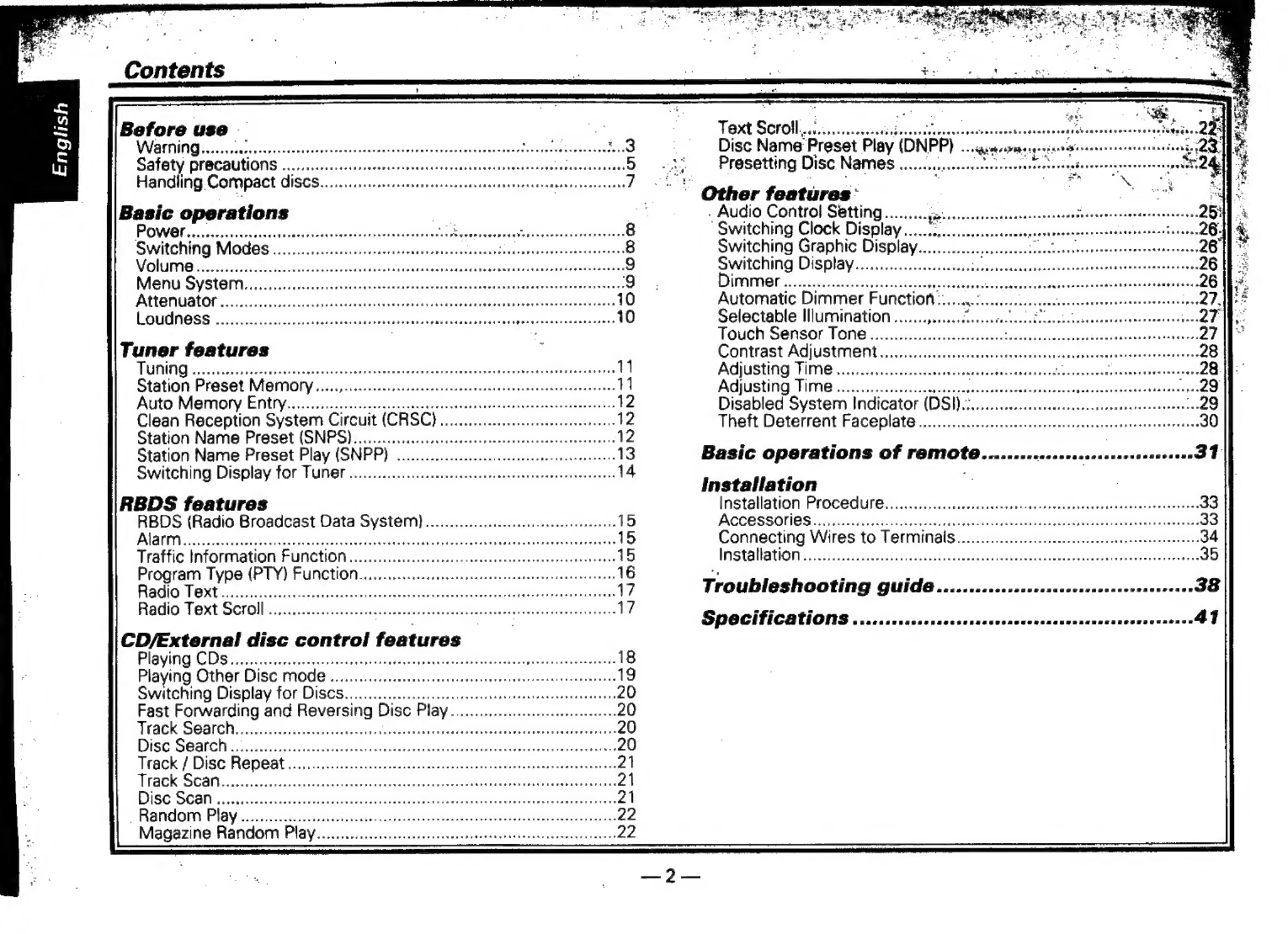

Contents
Before use
Warning...
Safety precautions ...
Handling Compact discs

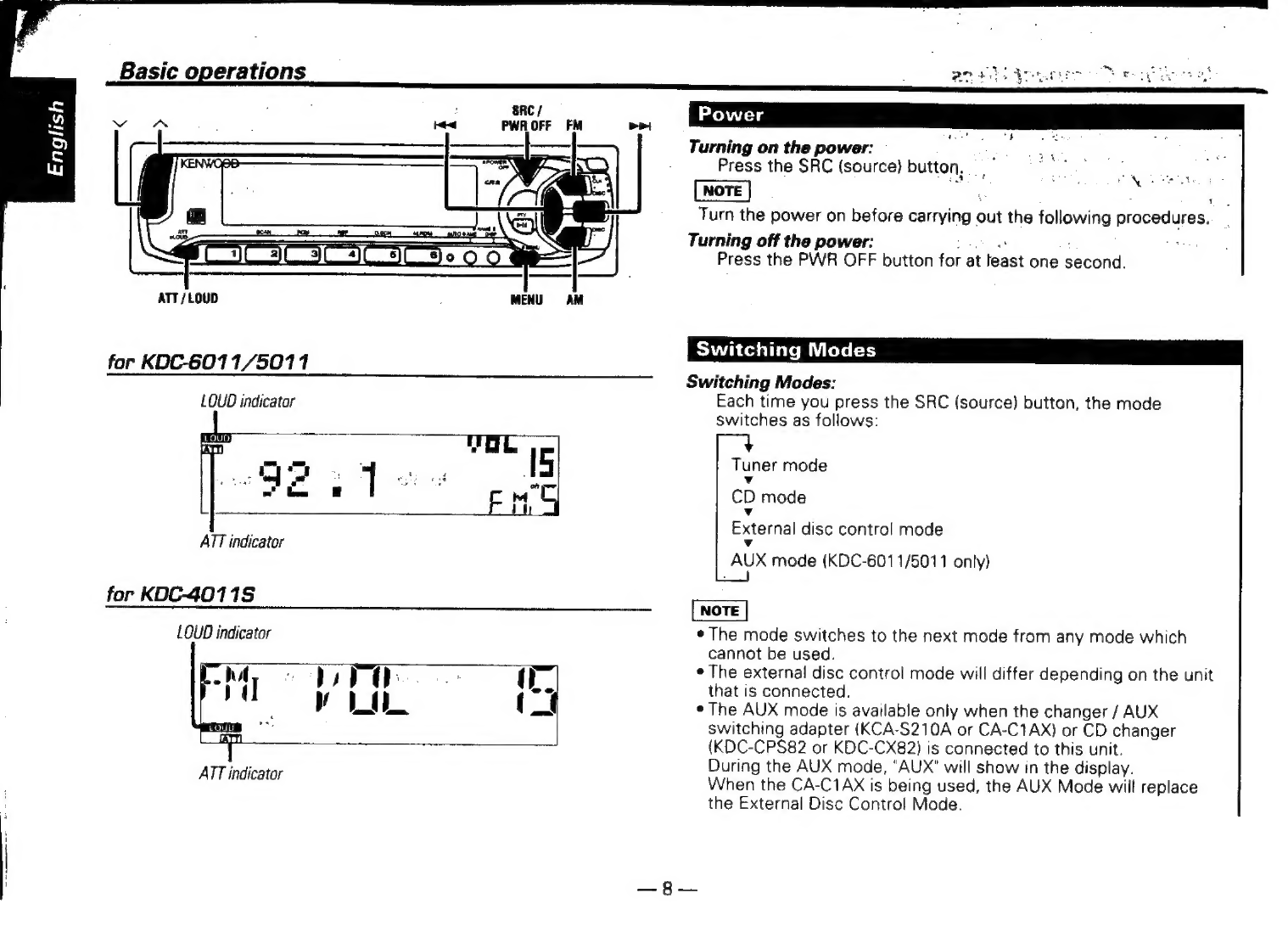

Basic operations
Power..
Tuner features
Tuning
Station Preset Memory..
Auto Memory Entry
Clean Reception System Circuit (CRSC)}
Station Name Preset (SNPS)
Station Name Preset Play (SNPP)
Switching Display for Tuner
RBDS features
RBDS (Radio Broadcast Data System)
Traffic Information Function..

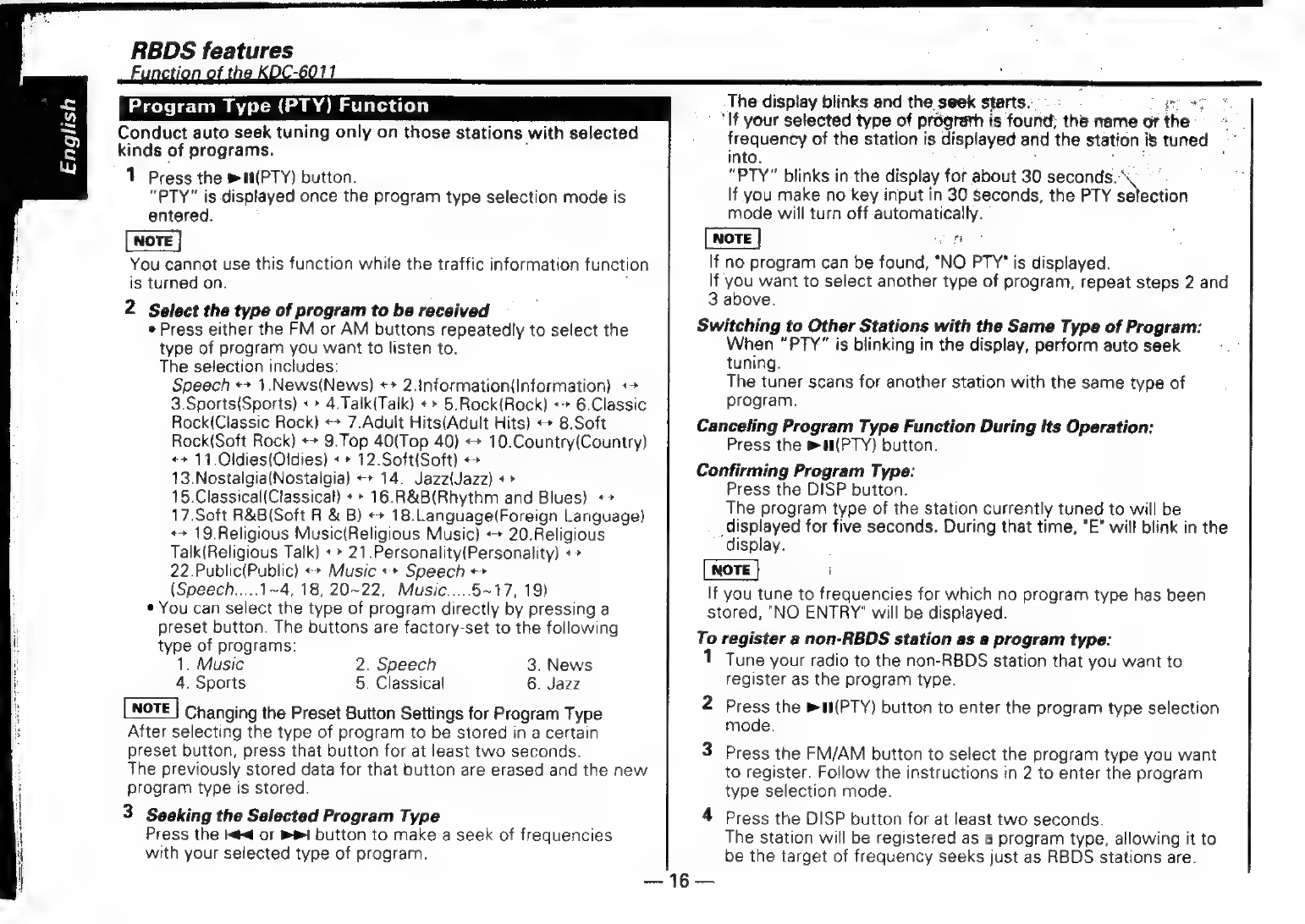

Program Type (PTY) Function
Radio Text
Radio Text Scroll
CD/External disc control features
Playing CDs
Playing Other Disc mode ...
Switching Display for Discs
Fast Forwarding and Reversing Disc Play .
Track Search
Disc Search
Track / Disc Repeat .
Track Scan
Disc Scan ......
Random Play
Magazine Random Play.
Text § Scroll... ererar
Disc Name. po Play iONPEY seigautsomnesee
Presetting Disc Names wits
mH Other features:
. Audio Control Setting
Switching Clock Display
Switching Graphic Display..
Switching Display
Automatic Dimmer Fu
Selectable Illumination
Touch Sensor Tone
Contrast Adjustment
Adjusting Time
Adjusting Time
Disabled System Indicator (DSI)
Theft Deterrent Faceplate
Basic operations Of remote. .......ccc.sessseccesesseeersene SD
Installation
Installation Procedure
Accessories
Connecting Wires to Terminals.
Installation
Troubleshooting QUIDG « vvcccsisasercvocssccesssvesscecsseavs SO
Specifications........... gaadenecenseons eobatecscunes rer. ft |

AWarning
i
Selecting fine audio equipment such as the unit you’ ve just
purchased is only the start of your musical enjoyment. Now
it’s time to consider how you can maximize the fun and
excitement your equipment offers. This manufacturer and the
Electronic Industries Association’s Consumer Electronics
Group want you to get the most out of your equipment by
playing it at a safe level. One that lets the sound come through
loud and clear without annoying blaring or distortion — and,
most importantly, without affecting your sensitive hearing.
Sound can be deceiving. Over time your hearing “comfort
level” adapts to higher volumes of sound. So what sounds
“normal” can actually be loud and harmful to your hearing. ,
Guard against this by setting your equipment at a safe level
BEFORE your hearing adapts.
To establish a safe level:
* Start your volume control at a low setting.
* Slowly increase the sound until you can hear it comfortably
and clearly, and without distortion.
Once you have established a comfortable sound level:
* Set the dial and leave it there.
- Taking a minute to do this now will help to prevent hearing
damage or loss in the future. After all, we want you listening
for a lifetime.
We Want You Listening For A Lifetime
Used wisely, your new sound equipment will provide a lifetime of
fun and enjoyment. Since hearing damage from loud noise is often
undetectable until it is too late, this manufacturer and the Electronic
Industries Association's Consumer Electronics Group recommend you
avoid prolonged exposure to excessive noise. This list of sound levels
is included for your protection.
Devel Example
30 Quiet mpi soft whispers
40 Living room, refrigerator, bedroom away from traffic
50 Light traffic, normal conversation, quiet office
60
Air
conditioner
at
20
feet,
sewing
machine
70 Vacuum cleaner, hair dryer, noisy restaurant
80 Average city traffic, garbage disposals, alarm clock at
two feet.
THE FOLLOWING NOISES CAN B
DANGEROUS UNDER CONSTANT EXPOSURE
90 Subway, motorcycle, truck traffic, lawn mower
100 Garbage truck, chain saw, pneumatic drill
120 Rock band concert in front of speakers, thunderclap
140 "Gunshot blast, jet plane
180 Rocket launching pad
Information courtesy of the Deafness Research Foundation.

ACAUTION
Use of controls or adjustments or
performance of procedures other than those
specified herein may result in hazardous
radiation exposure.
In compliance with Federal Regulations,
following are reproductions of labels on, or
inside the product relating to laser product
safety.
KENWOOD CORPORATION
2967-3, ISHIKAWA-CHO,
HACHIOJI-SHI
TOKYO, JAPAN
KENWOOD CORP. CERTIFIES THIS EQUIPMENT
CONFORMS TO DHHS REGULATIONS NO.21 CFR
1040. 10, CHAPTER |, SUBCHAPTER J.
Location : Bottom Panel
FCC WARNING
This equipment may generate or use radio
frequency energy. Changes or modifications
to this equipment may cause harmful
interference unless the modifications are
expressly approved in the instruction manual.
The user could lose the authority to operate
this equipment if an unauthorized change or
modification is made.
|
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment may cause harmful interference
to radio communications, if it is not installed
and used in accordance with the instructions.
However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference
by one or more of the following measures:
© Reorient or relocate the receiving antenna.
* \ncrease the separation between the
equipment and receiver.
¢ Connect the equipment into an outlet on a
circuit different from that to.which the
receiver is connected.
* Consult the dealer or an experienced radio/TV
technician for help.
This Class B digital apparatus complies with
Canadian ICES-003.

Safety precautions a 7
To prevent injury or fire, take the
following precautions:
¢ Insert the unit all the way in until it is fully
locked in place. Otherwise it may fail out of
place when jolted.
e When extending the ignition, battery, or
ground wires, make sure to use automotive-
grade wires or other wires with a 0.75mm?
(AWG18) or more to prevent wire
deterioration and damage to the wire coating.
® To prevent a short circuit, never put or leave
any metallic objects (such as coins or metal
tools) inside the unit.
e if the unit starts to emit smoke or strange
smells, turn off the power immediately and
consult your Kenwood dealer.
¢ Make sure not to get your fingers caught
between the faceplate and the unit.
* Be careful not to drop the unit or subject it to
strong shock.
The unit may break or crack because it
contains glass parts.
¢ Do not touch the liquid crystal fluid if the LCD
is damaged or broken due to shock. The
liquid crystal fluid may be dangerous to your
health or even fatal. :
If the liquid crystal fluid from the LCD
contacts your body or clothing, wash it off
with soap immediately.
ACAUTION
To prevent damage to the machine,
take the following precautions:
¢ Make sure to ground the unit to a negative
12V DC power supply.
* Do not open the top or bottom covers of the
unit.
* Do not install the unit in a spot exposed to
direct sunlight or excessive heat or humidity.
Also avoid places with too much dust or the
possibility of water splashing.
© Do not set the removed faceplate or the
faceplate case in areas exposed to direct
sunlight, excessive heat or humidity. Also
avoid places with too much dust or the
possibility of water splashing.
¢ To prevent deterioration, do not touch the
terminals of the unit or faceplate with your
fingers.
«Do not subject the faceplate to excessive
shock, as it is a piece of precision equipment.
¢ When replacing a fuse, only use a new one
with the prescribed rating. Using a fuse with
the wrong rating may cause your unit to
malfunction.
¢ To prevent a short circuit when replacing a
fuse, first disconnect the wiring harness.
* Do not place any object between the
faceplate and the unit.
* Do not use your own screws. Use only the
screws provided. If you use the wrong
screws, you could damage the unit.
IMPORTANT INFORMATION
You cannot connect the unit directly to the
following CD automatic changers. If you want
to use older changers with the unit, follow
the directions below according to the type of
changer you own:
* KDC-C200 / KDC-C300 / KDC-C400
Use the extension cable and the contro! box
attached to the CD changer, and the optional
CA-DS100 converter cord.
* KDC-C301 / KDC-C600 / KDC-C800 / KDC-
C601 / KDC-C401
Use the extension cable attached to the CD
changer, and the optional CA-DS100
converter cord.
* KDC-C100 / KDC-C302 / C205 / C705 /
non-Kenwood CD changers
Cannot be used with this model.
ACAUTION
You can damage both your unit and
the CD changer if you connect them
incorrectly.
ACAUTION
Do Not Load 3-in. CDs in the CD slot
If you try to load a 3 in. CD with its adapter
into the unit, the adapter might separate from
the CD and damage the unit.

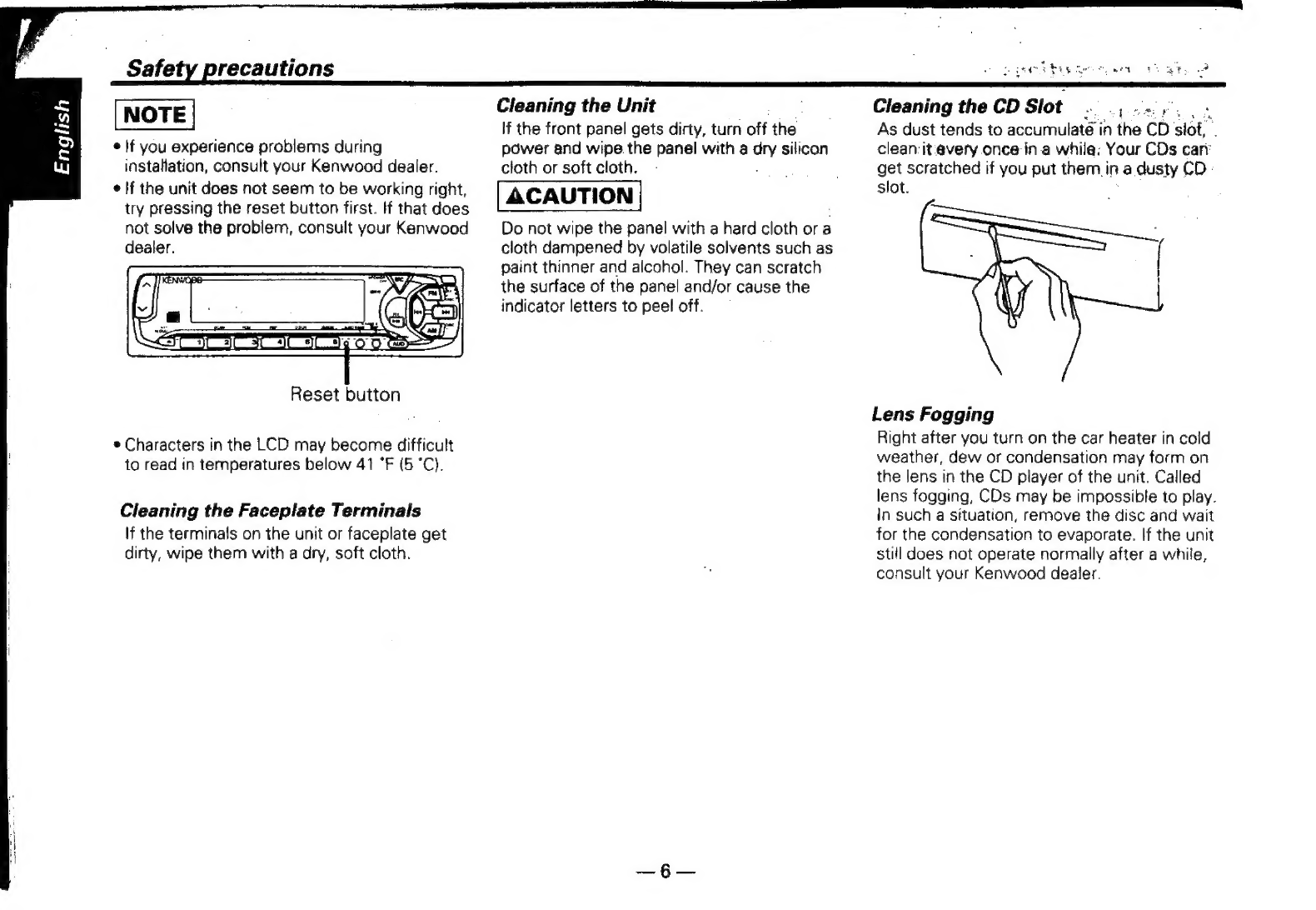

¢ If you experience problems during
installation, consult your Kenwood dealer.
¢ If the unit does not seem to be working right,
try pressing the reset button first. If that does
not solve the problem, consult your Kenwood
dealer.
Reset button
© Characters in the LCD may become difficult
to read in temperatures below 41 °F (5 °C).
Cleaning the Faceplate Terminals
If the terminals on the unit or faceplate get
dirty, wipe them with a dry, soft cloth.
Cleaning the Unit
If the front panel gets dirty, turn off the
power and wipe the panel with a oy silicon
cloth or soft cloth.
ACAUTION
Do not wipe the panel with a hard cloth or a
cloth dampened by volatile solvents such as
paint thinner and alcohol. They can scratch
the surface of the panel and/or cause the
indicator letters to peel off.
Cleaning the CD Slot. . ae
As dust tends to accumulaté in the CD slot, f
clean:it every once-in.a while: Your CDs can:
get scratched if you put them in a dusty CD
slot. ;
Lens Fogging
Right after you turn on the car heater in cold
weather, dew or condensation may form on
the lens in the CD player of the unit. Called
lens fogging, CDs may be impossible to play.
In such a situation, remove the disc and wait
for the condensation to evaporate. If the unit
still does not operate normally after a while,
consult your Kenwood dealer.

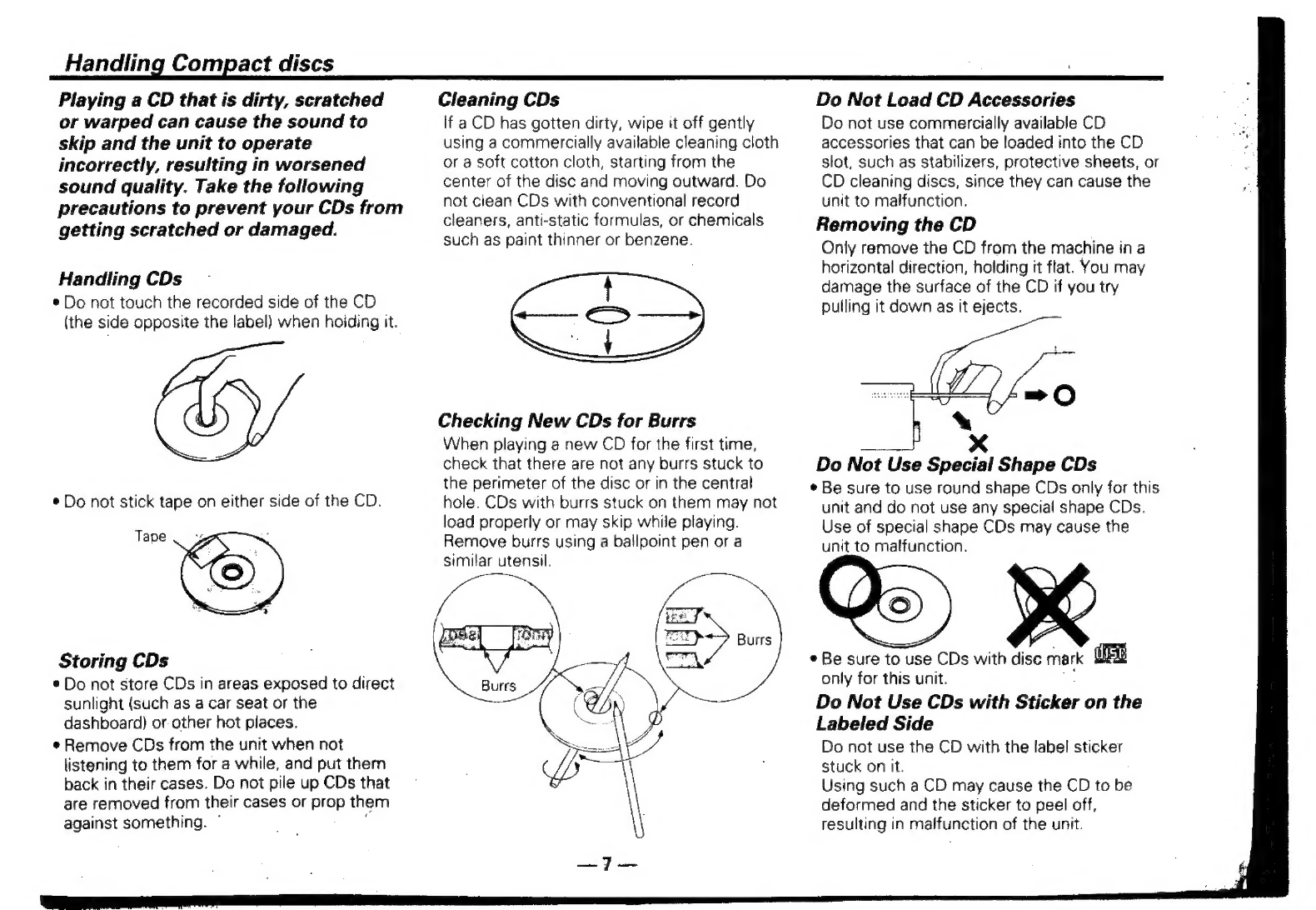

Handling Compact discs
Playing a CD that is dirty, scratched
or warped can cause the sound to
skip and the unit to operate
incorrectly, resulting in worsened
sound quality. Take the following
precautions to prevent your CDs from
getting scratched or damaged.
Handling CDs
* Do not touch the recorded side of the CD
(the side opposite the label) when hoiding it.
* Do not stick tape on either side of the CD.
Tape
Storing CDs
® Do not store CDs in areas exposed to direct
sunlight (such as a car seat or the
dashboard) or other hot places.
¢ Remove CDs from the unit when not
listening to them for a while, and put them
back in their cases. Do not pile up CDs that
are removed from their cases or prop them
against something. © 7
Cleaning CDs
If a CD has gotten dirty, wipe it off gently
using a commercially available cleaning cloth
or a soft cotton cloth, starting from the
center of the disc and moving outward. Do
not clean CDs with conventional record
cleaners, anti-static formulas, or chemicals
such as paint thinner or benzene.
See ee
Checking New CDs for Burrs
When playing a new CD for the first time,
check that there are not any burrs stuck to
the perimeter of the disc or in the central
hole. CDs with burrs stuck on them may not
load properly or may skip while playing.
Remove burrs using a ballpoint pen or a
similar utensil.
7
Do Not Load CD Accessories
Do not use commercially available CD
accessories that can be loaded into the CD
slot, such as stabilizers, protective sheets, or
CD cleaning discs, since they can cause the
unit to malfunction.
Removing the CD
Only remove the CD from the machine in a
horizontal direction, holding it flat. You may
damage the surface of the CD if you try
pulling it down as it ejects.
x
Do Not Use Special Shape CDs
* Be sure to use round shape CDs only for this
unit and do not use any special shape CDs.
Use of special shape CDs may cause the
unit to malfunction.
¢ Be sure to use CDs with disc mark lis
only for this unit. :
Do Not Use CDs with Sticker on the
Labeled Side
Do not use the CD with the label sticker
stuck on it.
Using such a CD may cause the CD to be
deformed and the sticker to peel off,
resulting in malfunction of the unit.

Basic operations
for KDC-6011/5011
ha
for KDC-4011S
:
Turning on the power:
Press the SRC (source) button, _,
[Nore os Eo, os paougs Cee
Turn
the
power
on
before
carrying
out
the
following
procedures.
Turning
off
the
power:
Press the PWR OFF button for at teast one setoad:
Switching Modes
Switching Modes:
Each time you press the SRC (source) button, the mode
switches as follows:
Tuner mode
cD mode
External disc control mode
AUX mode (KDC-601 1/5011 only)
¢
The
mode
switches
to
the
next
mode
from
any
mode
which
cannot
be
used.
¢
The
external
disc
control
mode
will
differ
depending
on
the
unit
that
is connected.
¢ The AUX mode is available only when the changer / AUX
switching adapter (KCA-S210A or CA-C1AX) or CD changer
(KDC-CPS82 or KDC-CX82} is connected to this unit.
During the AUX mode, “AUX” will show in the display.
When
the
CA-C1AX
is
being
used,
the
AUX
Mode
will
replace
the External Disc Control Mode.

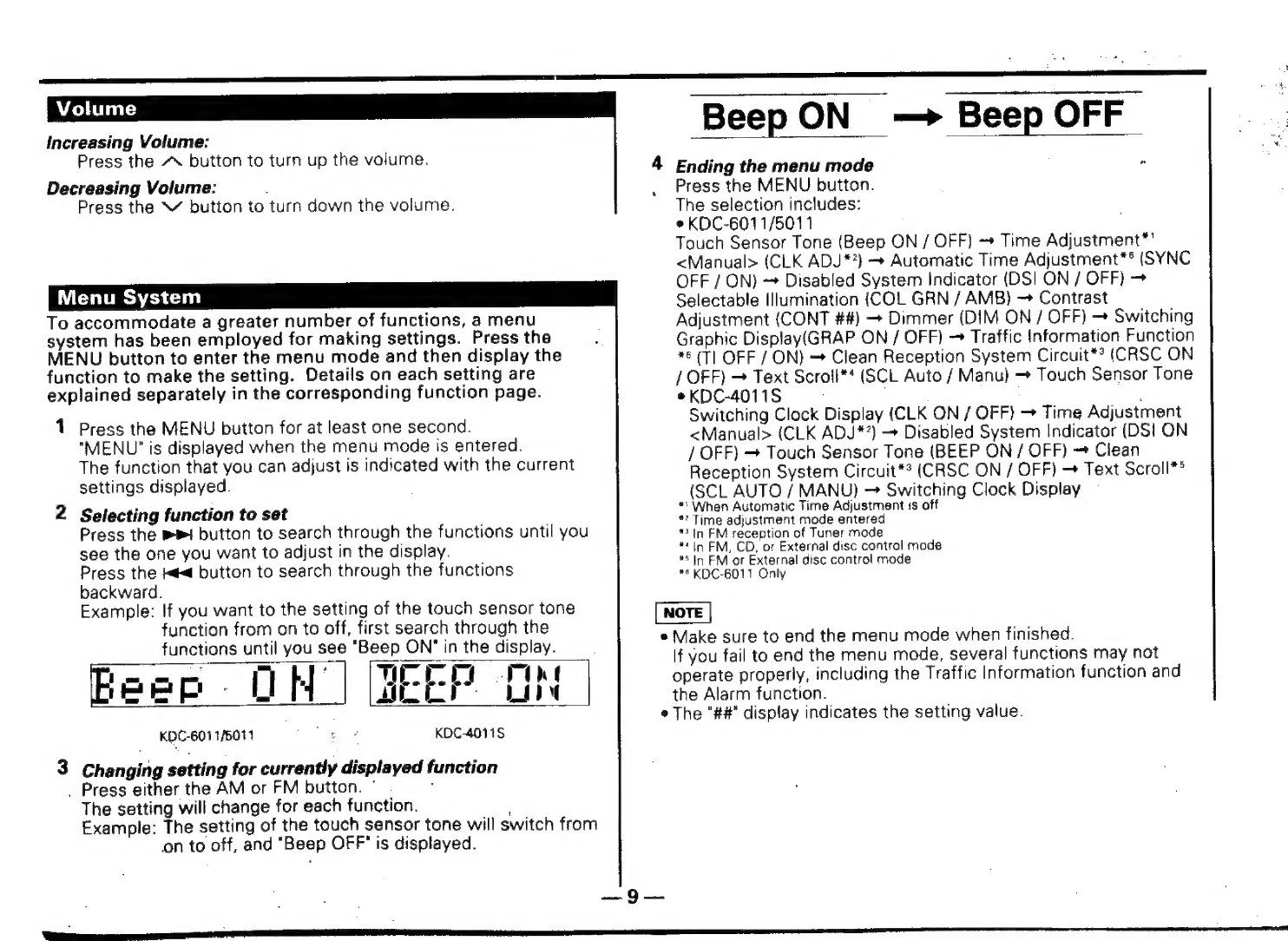

Increasing Volume:
Press the “ button to turn up the volume.
Decreasing Volume: :
Press the \ button to turn down the volume.
To
accommodate
a
greater
number
of
functions,
a
menu
system
has
been
employed
for
making
settings.
Press
the
MENU
button
to
enter
the
menu
mode
and
then
display
the
function
to
make
the
setting.
Details
on
each
setting
are
explained
separately
in
the
corresponding
function
page.
1
Press
the
MENU
button
for
at
least
one
second.
"MENU’
is
displayed
when
the
menu
mode
is
entered.
The
function
that
you
can
adjust
is
indicated
with
the
current
settings
displayed.
2 Selecting function to set
Press
the
®1
button
to
search
through
the
functions
until
you
see
the
one
you
want
to
adjust
in
the
display.
Press
the
kd
button
to
search
through
the
functions
backward.
Example:
If
you
want
to
the
setting
of
the
touch
sensor
tone
function
from
on
to
off,
first
search
through
the
functions
until
you
see
"Beep
ON"
in
the
display.
Beer
Of
|
GEEP
ON
KDC-601 1/6011 g oF KOC-4011S
3
Changing
setting
for
currently
displayed
function
.
Press
either
the
AM
or
FM
button.
* y
The
setting
will
change
for
each
function.
:
Example:
The
setting
of
the
touch
sensor
tone
will
switch
from
on
to
off,
and
“Beep
OFF"
is
displayed.
Beep ON =» Beep OFF
4
Ending
the
menu
mode
.
Press
the
MENU
button.
The
selection
includes:
¢
KDC-6011/5011
Touch
Sensor
Tone
(Beep
ON
/
OFF)
-+
Time
Adjustment*'
<Manual>
(CLK
ADJ**}
—
Automatic
Time
Adjustment*®
(SYNC
OFF
/
ON)
—*
Disabled
System
Indicator
(DSI
ON
/
OFF)
>
Selectable
Illumination
(COL
GRN
/
AMB)
— Contrast
Adjustment
(CONT
##)
@
Dimmer
(DIM
ON
/
OFF)
—
Switching
Graphic
Display(GRAP
ON
/
OFF)
—
Traffic
Information
Function
*6
(T|
OFF
/
ON)
@
Clean
Reception
System
Circuit*®
(CRSC
ON
/
OFF)
>
Text
Scroll**
(SCL
Auto
/
Manu)
—
Touch
Sensor
Tone
*KDC-4011S
‘
Switching
Clock
Display
(CLK
ON
/
OFF}
—
Time
Adjustment
<Manual>
(CLK
ADJ*?}
+
Disabled
System
Indicator
(DSi
ON
/
OFF)
+
Touch
Sensor
Tone
(BEEP
ON
/
OFF)
-
Clean
Reception
System
Circuit*®
(CRSC
ON
/
OFF)
—
Text
Scroll*®
(SCL
AUTO
/
MANU)
-
Switching
Clock
Display
* When Automatic Time Adjustment is off
*? Time adjustment mode entered
*.1n FM reception of Tuner mode
“«In FM, CD, or External disc control mode
*5 In FM or External disc control mode
*° KDC-6011 Only
e
Make
sure
to
end
the
menu
mode
when
finished.
lf
you
fail
to
end
the
menu
mode,
several
functions
may
not
operate
properly,
including
the
Traffic
Information
function
and
the
Alarm
function.
¢ The "##" display indicates the setting value.

Basic operations _
Tuner features
Attenuator 7
This function allows you to turn down the volume quickly
Turning Attenuator On/Off:
Press the ATT button to switch the attenuator on and off.
When the attenuator is on, the ATT indicator blinks.
When the attenuator is off, the volume returns to the original
level,
Turning the volume all the way down deactivates the attenuator
function.
1-8 AUTO/AME DI8P/ MENU
WAME.8’
for KDC-6011/5011
STEREO indicator ;
This function amplifies tow and high tones when the volume is Frequency | Mode display
turned down.
7
EM
The LOUD indicator lights up when the loudness function is on
Turning Loudness On/Off:
Press the LOUD button for at feast one second to switch the
loudness on and off.
Band display
AUTO
indicator
Preset
station
number
for KDC-40171S
Band display
Frequency
m |
y
Ue
I
Preset station number
ST indicator
AUTO indicator
<= AQ

‘ +
LL
being received. ee Car “|
You
can
choose
from
three
tuning
modes:
auto
seek,
preset
station
seek,
and
manual.
The
"AUTO
1"
indicator
lights
up
when
auto
seek
tuning
is
selected,
and
the
"AUTO
2"
indicator
lights
when
preset
station
seek
tuning
is
selected.
Station Preset Memory
Selecting
Tuning
Mode:
Store
the
frequency
of
a
station.
You
can
then
recall
that
Press
the
AUTO
button.
station
with
a
single
touch
of
a
button.
Each
time
you
press
the
AUTO
button,
the
mode
switches
as
;
follows.
ear
1
Select
the
band/
station
that
you
want
to
have
stored.
.
2
Press
the
button
(#1-6)
that
you
want
to
use
for
the
station,
for
Auto
1
(Auto
Seek
Tuning)
at
least
two
seconds.
;
:
wots
v
g
:
The
button
number
blinks
once
in
the
display
to
indicate
that
Auto
2
(Preset
Station
Seek
Tuning)
the
data
has
been
stored.
v
Manual
(Manual
Tuning)
Recalling
a
Preset
Station:
Press
the
preset
station
button
(#1-6)
for
the
desired
station,
The
number
of
the
recalled
station
is
displayed.
Tuning:
1
Press
the
SRC
(source)
button
repeatedly
to
select
the
tuner
,
;
’
M
mode.
"TUNER’
is
displayed
when
the
tuner
mode
has
been
You
can
store
six
stations
in
each
of
the
FM1,
FM2,
FM3,
and
A
selected.
bands.
2
Press
either
the
FM
or
AM
button
to
select
the
band.
Each
time
you
press
the
FM
button,
the
band
switches
between
the
FM1,
FM2
and
FM
(which
are
used
for
groups
of
preset
stations).
Press
the
AM
button
to
select
the
AM
band.
3 Auto Seek Tuning
Press
the
PI
button
to
seek
higher
frequencies.
Press
the
4
button
to
seek
lower
frequencies.
¢ Preset station seek tuning
Press
the
BPI
button
to
move
to
the
next
preset
station
(i.e.,
the
one
with
the
next
highest
number),
and
the
kt
button
to
move
to‘the
last
preset
station
{i.e.,
the
one,
with
the
next
lowest number}.
*¢ Manual Tuning
Press
the
mi
button
to
increase
the
frequency
by
one
step.
Press
the
e<¢
button
to
decrease
the
frequency
by
one
step.
-
The
ST/STEREO
indicator
lights
up
when
stereo
broadcasts
are
At
Sep

Tuner features
Auto Memory Entry
You can automatically store all the receivable frequencies in
the band currently being listened to, and then recall them with
the touch of a button later. This function is especially useful
when you are travelling and do not know what stations are .
available: Up to six frequencies can be stored this way.
1 Select the band for auto memory entry.
2 Press the AME button for at least two seconds to start auto _
memory entry.
The numbers of the preset station buttons are shown in order.
When all the stations in a certain band are stored in the preset
memory, the auto memory entry stops. The tuner then plays
the last station received.
Recalling a Preset Station:
Press the preset station button (#1-6) for the desired station.
The number of the recalled station is displayed.
Clean Reception System Circuit (CRSC)
Temporarily have reception switched from stereo to mono to
reduce multi-path noise when listening to the FM station.
The factory default for this function is ON.
Turning CRSC On/Off:
1 Press the MENU button for at least one second.
"MENU" is displayed and the menu mode is turned on.
2 Keep pressing the I button until the Clean Reception System
Circuit function appears in the display.
Press the é<@ button to search in the other direction.
The function setting is indicated by "CRSC ON" or "CRSC OFF"
in the display, indicating that the CRSC is on or off,
respectively.
3 Switching settings
Press either the AM or FM button.
The display and setting will change.
4 Press the MENU button to end the menu mode.
z
wT
See,
ONE
Ex
Bs
"Strong electrical fields (such as Tay power lines) Sey cause
unstable sound quality when Chae is turned on. In sucha
situation, turn it off. A
Station Name Preset (SNPS)
You can assign names to radio stations with the Station Preset
Memory. Up to 32 FM stations and 16 AM stations can be
assigned names.
1 Adjust the frequency to the station whose name you want to
enter.
2 Press the NAME.S button for at least two seconds.
“NAME SET” is displayed once the station name preset mode
is entered.
The cursor will blink in the position where letters are entered.
3 Press either the <4 or BR button to move the cursor to the
desired position.
The a button moves the cursor to the left, and the mr
button to the right.
You can also move the cursor left or right by pressing the
or mei buttons, respectively, on the remote.
4 Each time the mil button is pressed, the characters to be
entered change as listed below.
Press the FM or AM button to display the desired character.
Characters that can be displayed are as follows.
Alphabet (upper case): A ~ Z
Vv
Alphabet (lower case): a ~ z (KDC-6011/5011 Only)
v
Numerals and symbols: 1~9 0 @ " ** %Ha*+-=,./\<>F]
Seacialichanctery aaéei idéduuACIhiVvaaea
Tids6aunes sii
(KDC-6011/5011 Only)
—12—

Pets
:
.
re
displayed
in
th
i i
:

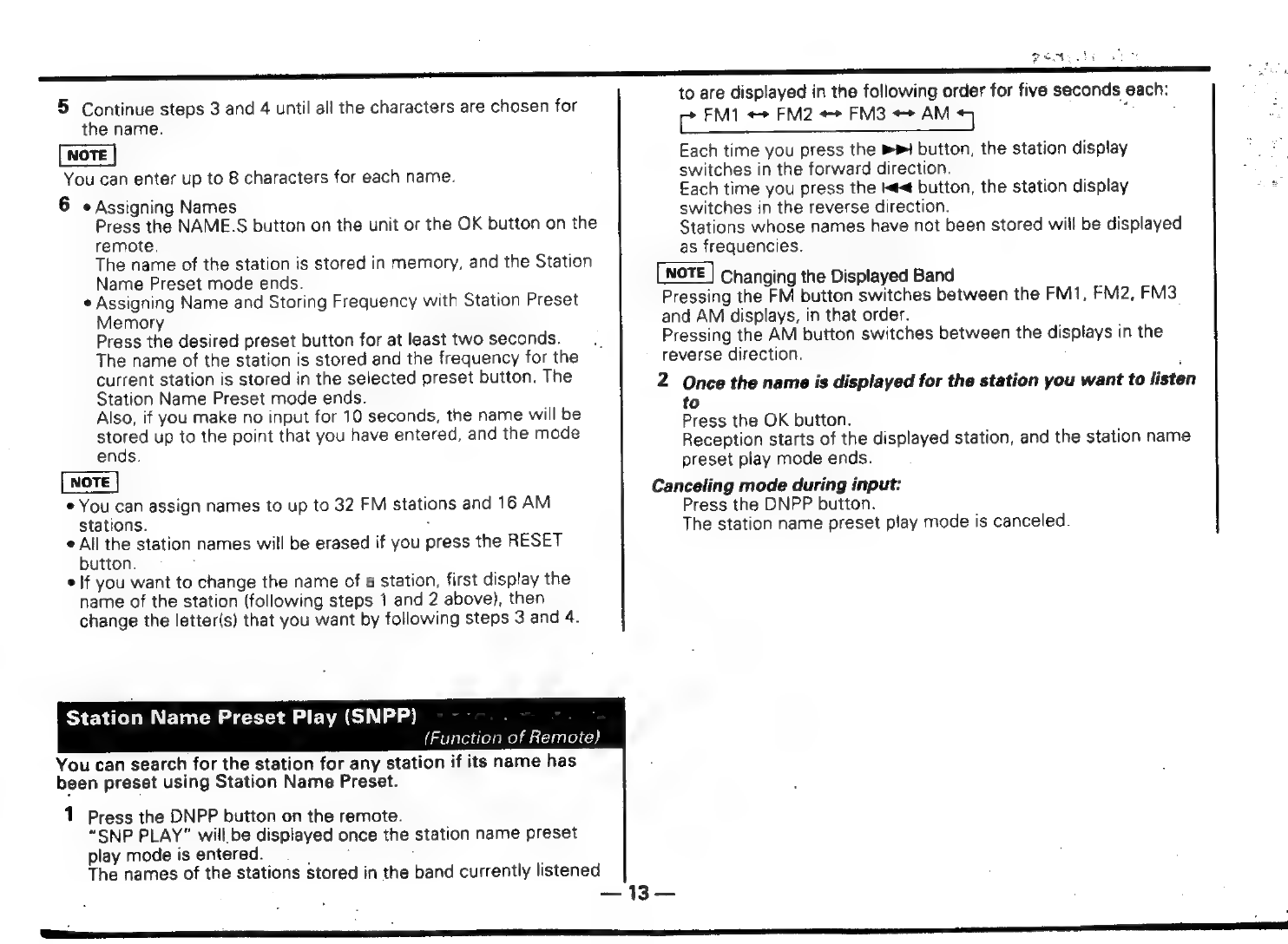

5
Continue
steps
3
and
4
until
all
the
characters
are
chosen
for
to
are
displayed
in
the
following
order
for
five
seconds
each
the
name
c
FM1
+>
FM2
«+
FM3
«+
AM
a5
NOTE
Each
time
you
press
the
mm
button,
the
station
display
You
can
enter
up
to
8
characters
for
each
name.
switches
in
the
forward
direction.
Each time you press the é<¢ button, the station display
switches in the reverse direction.
Stations
whose
names
have
not
been
stored
will
be
displayed
6 + Assigning Names
Press
the
NAME.S
button
on
the
unit
or
the
OK
button
on
the
remote:
a
.
;
as
frequencies.
The
name
of
the
station
is
stored
in
memory,
and
the
Station
Name
Preset
mode
ends.
Changing
the
Displayed
Band
*
Assigning
Name
and
Storing
Frequency
with
Station
Preset
Pressing
the
FM
button
switches
between
the
FM1,
FM2,
FM3
Memory
and
AM
displays,
in
that
order.
Press
the
desired
preset
button
for
at
least
two
seconds.
Pressing
the
AM
button
switches
between
the
displays
in
the
The
name
of
the
station
is
stored
and
the
frequency
for
the
reverse
direction.
current
station
is
stored
in
the
selected
preset
button.
The
Station Name Preset mode ends.
Also,
if
you
make
no
input
for
10
seconds,
the
name
will
be
stored
up
to
the
point
that
you
have
entered,
and
the
mode
2
Once
the
name
is
displayed
for
the
station
you
want
to
listen
to
Press the OK button.
Reception
starts
of
the
displayed
station,
and
the
station
name
ends.
preset
play
mode
ends.
;
Canceling
mode
during
input:
*
You
can
assign
names
to
up
to
32
FM
stations
and
16
AM
Press
the
DNPP
button.
Stations.
:
The
station
name
preset
play
mode
is
canceled.
¢
All
the
station
names
will
be
erased
if
you
press
the
RESET
button.
*
If
you
want
to
change
the
name
of
a
station,
first
display
the
name
of
the
station
(following
steps
1
and
2
above),
then
change
the
letter(s)
that
you
want
by
following
steps
3
and
4.
Station Name Preset Play (SNPP)
(Function of Remote)
You
can
search
for
the
station
for
any
station
if
its
name
has
been
preset
using
Station
Name
Preset.
1 Press the DNPP button on the remote.
“SNP
PLAY”
will.be
displayed
once
the
station
name
preset
play
mode
is
entered.
;
.
The
names
of
the
stations
stored
in
the
band
currently
listened
213

RBDS features
Tuner
features
ion
of
th
z
Switching Display for Tuner
You
can
change
the
display
used
when
listening
to
the
radio.
Changing the Display:
Each time you press the DISP button for at least one second,
the display changes as follows:
Station frequency
SNPS name (only when being preset) /
Program
Service
name
(during
RBDS
station
reception)
Radio
text
(only
during
RBDS
station
reception)
Clock (KDC-4011S only)
When receiving an RBDS station to which a name has been
preset with Station Name Preset, switching to the program
service name/SNPS name display will result in the program
service name being displayed with priority.
DISP MENU AM
<EMM
OOD
At
pers
Band display
T} indicator ATG indicator
—14—

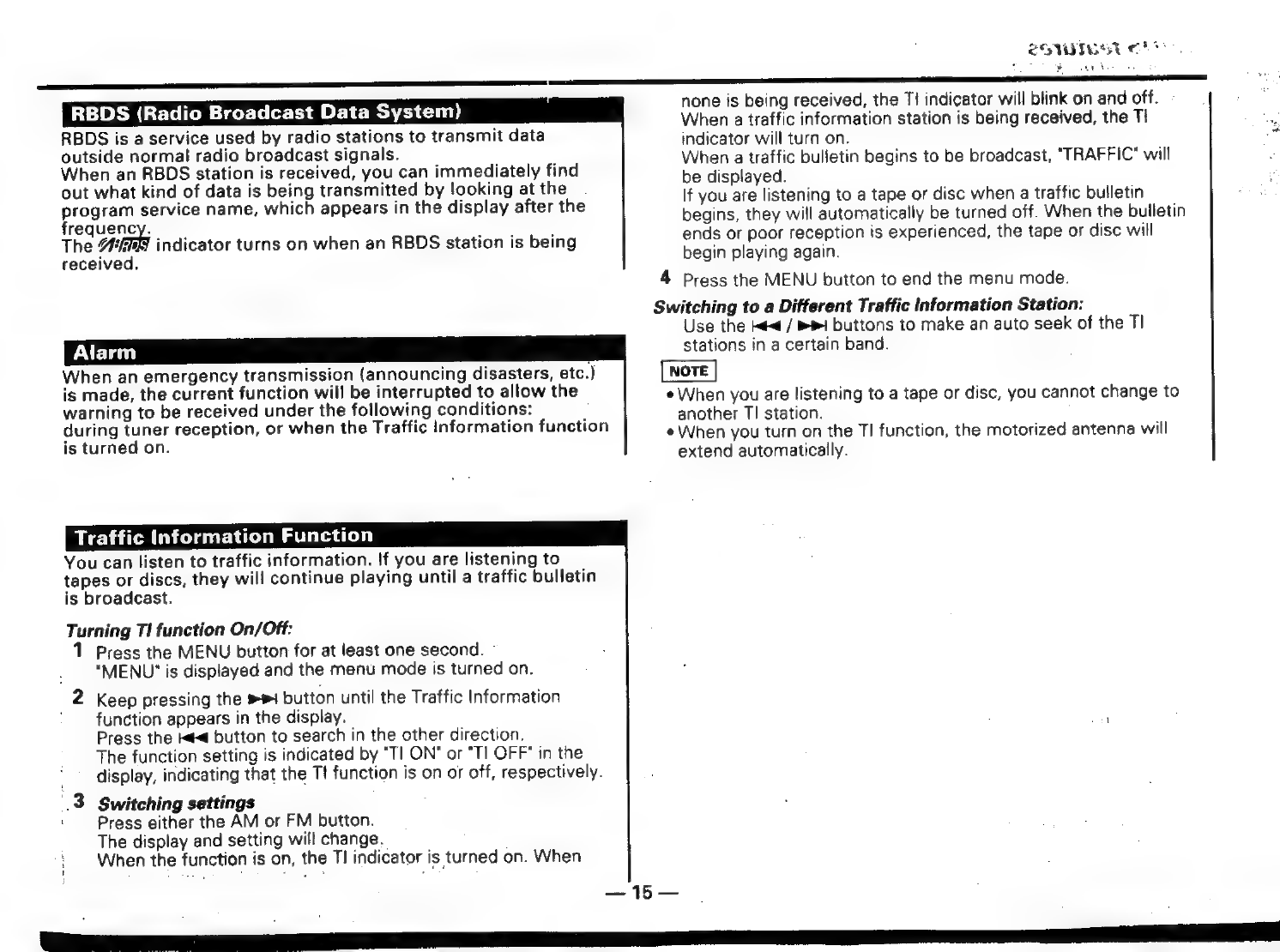

RBDS (Radio Broadcast Data System)
RBDS
is
a
service
used
by
radio
stations
to
transmit
data
outside
normal
radio
broadcast
signals.
When
an
RBDS
station
is
received,
you
can
immediately
find
out
what
kind
of
data
is
being
transmitted
by
!ooking
at
the
program
service
name,
which
appears
in
the
display
after
the
frequency.
The
ees
indicator
turns
on
when
an
RBDS
station
is
being
received.
When
an
emergency
transmission
(announcing
disasters,
etc.)
is
made,
the
current
function
will
be
interrupted
to
allow
the
warning
to
be
received
under
the
following
conditions:
during
tuner
reception,
or
when
the
Traffic
information
function
is
turned
on.
Traffic
Information
Function
You
can
listen
to
traffic
information.
If
you
are
listening
to
tapes
or
discs,
they
will
continue
playing
until
a
traffic
bulletin
is
broadcast.
Turning TI function On/Off:
Press
the
MENU
button
for
at
least
one
second.
"MENU"
is
displayed
and
the
menu
mode
is
turned
on.
2
Keep
pressing
the
»
button
until
the
Traffic
Information
:
function
appears
in the
display,
Press
the
ké<
button
to
search
in
the
other
direction.
The
function
setting
is
indicated
by
“Tl
ON"
or
“Tl
OFF"
in
the
display,
indicating
that
the
Tt
function
is
on
or
off,
respectively.
.3 Switching settings
Press
either
the
AM
or
FM
button.
The display and setting will change.
When
the
function
is
on,
the
Tl
indicator
is
turned
on.
When
EOWIEST CE
y. rt
LS
none
is
being
received,
the
TI
indicator
will
blink
on
and
off.
When
a
traffic
information
station
is being
received,
the
Ti
indicator
will
turn
on.
When
a
traffic
bulletin
begins
to
be
broadcast,
"TRAFFIC"
will
be
displayed.
If you are listening to a tape or disc when a traffic bulletin
begins,
they
will
automatically
be
turned
off.
When
the
bulletin
ends
or
poor
reception
is
experienced,
the
tape
or
disc
will
begin playing again.
4 Press the MENU button to end the menu mode.
Switching
to
a
Different
Traffic
Information
Station:
Use
the
<4
/
Bhi
buttons
to
make
an
auto
seek
of
the
TI
stations
in
a certain
band.
¢When
you
are
listening
to
a
tape
or
disc,
you
cannot
change
to
another
TI
station.
¢
When
you
turn
on
the
TI
function,
the
motorized
antenna
will
extend
automatically.
— 15 —

RBDS features
Function of the KDC-6011 a
Program Type (PTY) Function
Conduct auto seek tuning only on those stations with selected
kinds of programs.
1 Press the m(PTY) button.
“PTY” is displayed once the program type selection mode is
entered.
You cannot use this function while the traffic information function
is turned on.
2 Select the type of program to be received
* Press either the FM or AM buttons repeatedly to select the
type of program you want to listen to.
The selection includes:
Speech +> 1.News(News) +> 2.Information(Information) +>
3.Sports(Sports) «> 4. Talk(Talk) «>» 5. Rock(Rock) «* 6.Classic
Rock(Classic Rock) «> 7.Adult Hits(Adult Hits) 8.Soft
Rock(Soft Rock) «+ 9.Top 40(Top 40) < 10.Country(Country)
«+ 11.Oldies(Oldies) «+ 12.Soft(Soft) «+
13.Nostalgia(Nostalgia) «» 14. Jazz(Jazz) «>
15.Classical(Classical) «> 16.R&B(Rhythm and Blues) «>
17. Soft R&B(Soft R & B) «* 18.Language(Foreign Language)
++ 19.Religious Music(Religious Music) «+ 20.Religious
Talk(Religious Taik) « > 21.Personality(Personality) +>
22.Public(Public) «» Music «+ Speech «+
(Speech.....1~4, 18, 20~22, Music.....5~17, 19)
* You can select the type of program directly by pressing a
preset button. The buttons are factory-set to the following
type of programs:
1. Music 3. News
4. Sports 6. Jazz
Changing the Preset Button Settings for Program Type
After selecting the type of program to be stored in a certain
preset button, press that button for at least two seconds.
The previously stored data for that button are erased and the new
program type is stored.
3 Seeking the Selected Program Type
Press the <4 or BRI button to make a seek of frequencies
with your selected type of program.
2. Speech
5. Classical
The display blinks and the seek starts.’ *
“If your selected type of prograrh i is found: the name or ihe ;
frequency of the station is displayed and the station istuned ~
into. ‘
“PTY” blinks in the display for about 30 seconds.s
lf you make no key input in 30 seconds, the PTY selection
mode will turn off automatically.
If no program can be found, "NO PTY’ is displayed.
If you want to select another type of program, repeat steps 2 and
3 above.
Switching to Other Stations with the Same Type of Program:
When ”PTY” is blinking in the display, perform auto seek
tuning.
The tuner scans for another station with the same type of
program.
Canceling Program Type Function During Its Operation:
Press the ma(PTY) button.
Confirming Program Type:
Press the DISP button.
The program type of the station currently tuned to will be
displayed for five seconds. During that time, "E° will blink in the
display.
If you tune to frequencies for which no program type has been
stored, "NO ENTRY‘ will be displayed.
To register a non-RBDS station as a program type:
1 Tune your radio to the non-RBDS station that you want to
register as the program type.
2 Press the PI(PTY) button to enter the program type selection
mode.
3 Press the FM/AM button to select the program type you want
to register. Follow the instructions in 2 to enter the program
type selection mode.
4 Press the DISP button for at least two seconds.
The station will be registered as a program type, allowing it to
be the target of frequency seeks just as RBDS stations are.
ae (ae

You can store up to 48 Stations.
If you try to store a 49th station, the frequency and program type
will appear alternately in the display.
In that case, press the FM/AM button to change the display to a
station that you want to erase, and then press the DISP button
again for at least two seconds. The newly entered station will
thus be stored.
5 Press the PU(PTY) button to end the program type selection
mode.
Radio Text
You can display textual information being transmitted by RBDS
stations.
Turning on Radio Text Display Mode:
Pressing the DISP button switches the display as follows
Select the Radio Text Display mode.
Station frequency
v
Program Service name
Vv
Radio text
If the RBDS station currently tuned to is transmitting no text
while the Radio Text Display mode is turned on, "NO TEXT’ will
appear in the display. While awaiting reception, “WAITING’ will be
displayed.
To prevent accidents, drivers should not ook at the display while
on the road.
Radio Text Scroll
This function permits the text to be scrolled and the entire text
to be displayed. Switching between manual scrolling and
automatic scrolling is permitted. The factory default is
automatic scrolling.
To scroll automatically:
Press the DISP button to display the Radio Text. The display of
the text will be scrolled repeatedly.
Manual/Automatie scroll switching:
1 Press the MENU button for at least one second.
"MENU" is displayed and the menu mode is turned on.
2 Keep pressing the mr button until the Text scroll function
appears in the display.
Pressing the <d button results in the functions being switched
in the reverse order.
The text scroll function is displayed with "SCL Manu‘ or "SCL
Auto’.
"SCL Manu" (Manual scrolling)
"SCL Auto" (Automatic scrolling)
3 Switching settings
Press either the AM or FM button.
The display and setting will change.
4 Press the MENU button to end the menu mode.
To scroll manually:
1 Press the DISP button to display the Radio Text.
2 Pressing the DISP button for at least one second results in one
scrolling display of the text.
The setting of the text scroll function is in common with Text
Scroll for disc control.
=47 =

CD/External
disc
control
features
;
Fl
Retease button @ When a unit equipped with an O-N switch is to be convieeted:
please also see the instruction manual of this unit.
Set the O-N switch to "N". "N"-operation will be set.
@ When a unit that is not equipped with an O-N switch, or the
changer switching unit “KCA-S200" is connected, “O"-
operation will be set.
'N"-operation:
¢ The disc title and track title of the CD text can be displayed.
* The disc name will be displayed when the name has been
registered to any connected unit with the Presetting Disc
Names function, or when the playing unit contains a disc to
which the disc title has been recorded.
‘O"-operation:
for KDC-6011/5079 © CD text cannot be displayed.
¢ Regardless of the control unit, the characters that can be
registered with the Presetting Disc Names function are "A~Z
; Mode display 0~9 /7.+,—%5,<,>,0, 1)".
Track time =a. * The disc name will be displayed when the name has been
T bald aussie Lh ql registered to the playing unit with the Presetting Disc Names
M.ROM DISP/ MENU AM/
ROM D.SCN NAME.S bIsc-
vee function.
or
am
ra ry
r .
|e at ry
Disc indi The CD text, Presetting Disc Names, and Disc Name Preset Play
is¢ inaicator functions may not be operational depending on the unit.
Track number Dise number
for
KDC-4011S
Se
aera
eras
Playing
CDs
Playing CDs:
; . A press of the release button causes the faceplate to drop to
ee paki the front, thereby exposing the CD slot.
q ) Ay ( Hotding the CD with the labeled side facing up, insert it in the
ol | or slot. The CD wil! start playing. Push back on the right side of
—
|
:
aia
= the faceplate with your hand until it locks.
Lt b> ~ The ¢ IN § indicator will light when a CD has been inserted.
| ACAUTION
Disc
number
Dise
indicator
When
inserting
a
CD,
make
sure
the
CD
has
been
completely
drawn
in
before
pushing back the
faceplate.
Failing
to
do
so might
— 18 —

scratch the CD.
Playing CDs Already Inserted:
Press
the
SRC
(source}
button
repeatedly
to
select
the
CD
mode.
"CD"
is
displayed
when
the
CD
mode
has
been
selected.
The CD will start playing.
Pausing and Restarting CD Play:
Press the PII button to make the disc pause.
Press the same button again to start play again.
Eject:
Press
the
release
button
and
drop
open
the
faceplate.
Press the & button located near the CD slot.
The
CD
stops
playing
and
ejects
from
the
slot.
.
Push
back
on
the
right
side
of
the
faceplate
with
your
hand
until
it locks.
¢ Do not attempt to insert a CD into the slot if another one is
already there.
¢
The
unit
can
only
play
5
in.
CDs.
If
you
insert
a3
in.
CD,
it
will
get
stuck
inside
and
can
cause.
the
unit
to
malfunction.
¢
When
the
faceplate
has
been
dropped
open,
it
might
interfere
with
the
shift
lever
or
something
else.
If
this
happens,
pay
attention
to
safety
and
move
the
shift
lever
or
take
an
appropriate
action,
then
operate
the
unit.
¢
Do
not
apply
excessive
force
to
the
open
faceplate
or
place
_objects
on
it.
Doing
so
will
cause
damage
or
breakdown.
©
Do
not
use
the
unit
with
the
faceplate
in
the
open
condition.
~'
Doing
so
will
cause
breakdown.
.
:
When
you
load
a
CD
and
eject
it
right
away,
the
next
time
you
try
a
PT
EE
ZEST
ES
to
insert
the
CD
may
not
load.
In
such
a
situation,
take
the
CD
out
for
a moment
and
then
reinsert
it.
Playing Other Disc mode
This
function
permits
the
connection
of
optional
players
and
the
playing
of
discs
other
than
the
loaded
CD
(in
the
current
unit).
Playing Discs:
Press the SRC button repeatedly to select the external disc
control mode.
The disc will start playing.
The
external
disc
control
mode
will
differ,
depending
on
the
unit
that
is
connected.
Mode Display Examples
e"CD2"...when a CD player is connected
e"DISC"...when a disc changer is connected
¢"DISC-1", "DISC-2"...when two disc changers are connected
Pausing and Restarting Disc Play:
Press the mil button to make the disc pause.
Press the same button again to start play again.
¢
When
one
disc
has
finished
playing
its
last
track,
the
next
disc
in
the
changer
will
start
playing.
When
the
last
disc
in
the
changer
has
finished,
the
player
will
return
to
the
first
disc
and
start
playing
it.
* Disc #10 is displayed as "0".

CD/External disc control features
Switching Display for Discs
Switch the display that appears while discs are playing.
Switching Display for Discs:
Each time you press the DISP button, the display during disc play
switches as follows.
Track time
Vv
Total disc playing time (CD only) (KDC-4011S only)
Disc name (DNPS)
Dise title (Units featuring CD text/MD only)
Track title (Units featuring CD text/MD only)
Clock (KDC-40115S only)
¢ You can give names to discs through the presetting disc name
function (see p.24).
Note that depending on the unit, dispiay may not be possible.
¢ lf you try to display the name of a disc that does not have one,
"NO NAME" is displayed instead.
¢ When there is an attempt to display the title of a disc for which
the disc title/track title has not been recorded, "NO TEXT" is
displayed for CD and "NO NAME’ is displayed for MD.
* Depending on the type of characters of the CD text, some
characters may not be displayed.
Fast Forwarding and Reversing Disc Play
Fast Forwarding Disc Play:
Hold down on the m1 button.
Release your finger to play the disc at that point.
Reversing Disc Play:
Hold down on the <4 button.
Release your finger to play the disc at the point.
You cannot use reverse play between tracks depending on the
model being connected. instead, the reverse play function is
canceled when it reaches the beginning of a track, at which point
normal play will automatically resume.
Search forward or backward through the tracks on the disc until
you reach the one that you want to listen to.
Making a Reverse Track Search:
Press the «dé button to display the desired track number.
Press once to search back to the beginning of the current track,
twice to search back to the beginning of the previous track, and
so forth.
Play starts at the beginning of the displayed track number.
(For disc changers)
Pressing the é«t button while listening to track 1 will only search
back to the beginning of that track. The reverse search is not
“recycled” to the last track on the disc.
Making a Forward Track Search:
Press the »1 button to display the desired track number.
Press once to fast forward to the next track, twice to fast
forward to the track after that, and so forth.
Play starts at the beginning of the displayed track number.
(For disc changers)
You cannot make a forward track search when listening to the last
track on a disc.
Disc Search
(Function of disc changers)
Search forward or backward through the discs in a disc
changer.
